The American Ultra Stratocaster is a solid body electric guitar built by Fender. This S-style bolt on guitar is manufactured in Corona, CA in the United States and is a Fender American Ultra Series model. Key features include an Alder Body, Maple Neck, Locking Tuners, Sculpted Neck Heel, Ultra Noiseless Vintage Stratocaster Pickups and Mocha Burst finish. The specs listed below pertain to the 2019 product year model pictured on this page.
Factory Specs
- Alder Body
- Gloss Urethane Body Finish
- Stratocaster Body Shape
- 2-Point Deluxe Synchronized Tremolo
- Pop-In Tremolo Arm
- Ultra Noiseless Vintage Strat Single Coil Pickups
- SSS Configuration
- Aged White Soft Touch Knobs
- One Volume & Two Tone Controls
- S-1 Switch
- Maple Fingerboard
- Maple Neck
- 10" to 14" Compound Radius
- Medium Jumbo Fret Wire
- Nickel/Chrome Hardware
- 4-Bolt Standard Neck Joint
- Ultra Satin Urethane Neck Finish
- Gloss Urethane Headstock Finish
- Modern "D" Shape Neck Profile
- 22 Frets
- Bone Nut
- 1.685" Nut Width
- 3-Ply Mint Green Pickguard
- Black Pearloid Dot Inlays
- 25.5" Scale Length

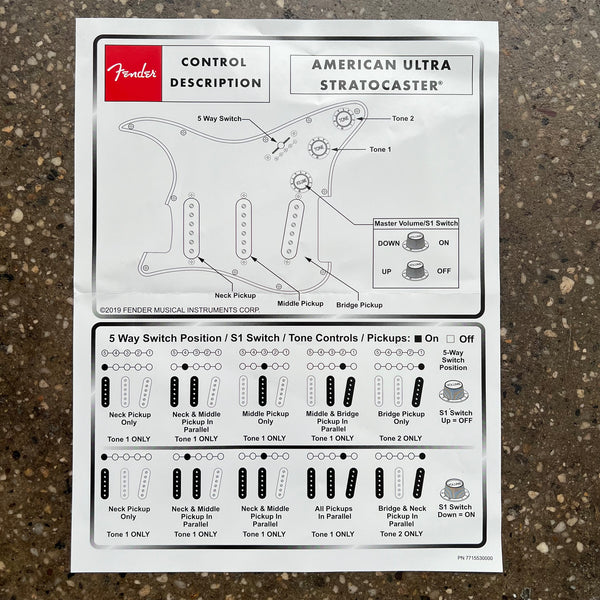

- S-1 Switch Adds Neck Pickup into Positions 1-2-3
- Bi-Flex Truss Rod
- Deluxe Cast/Sealed Locking Tuners
Reference Images

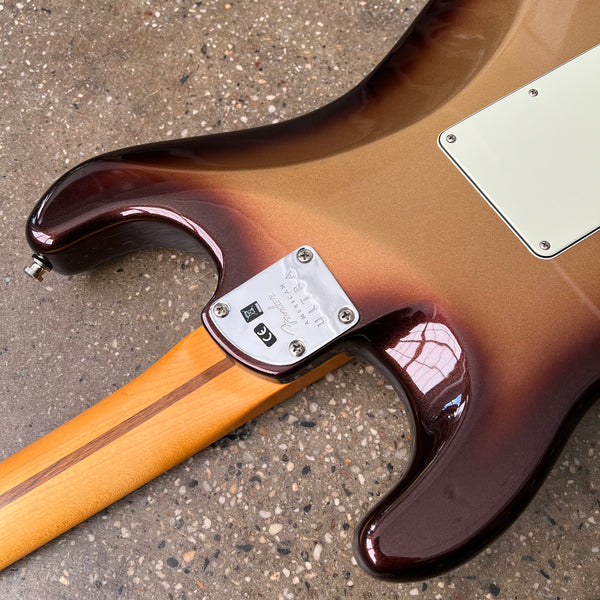

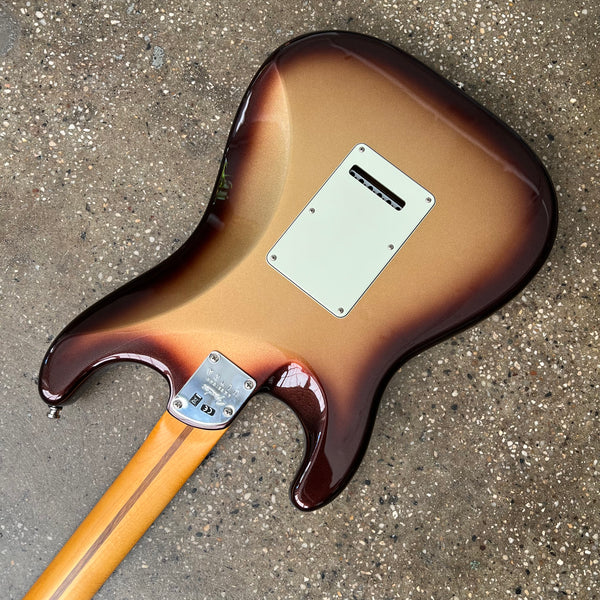

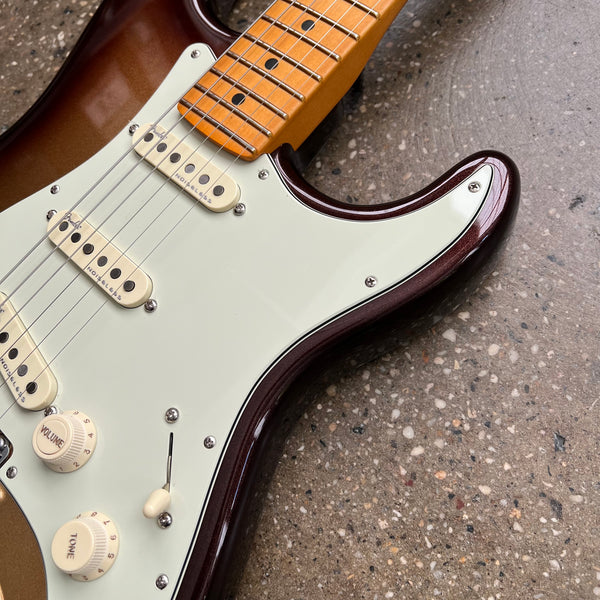

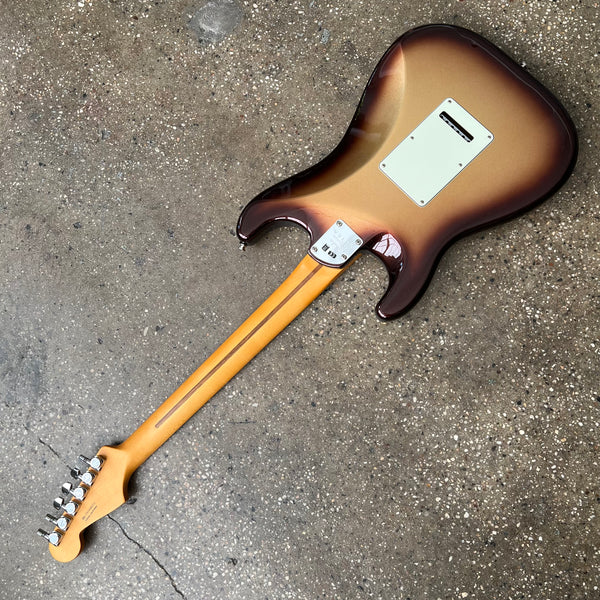

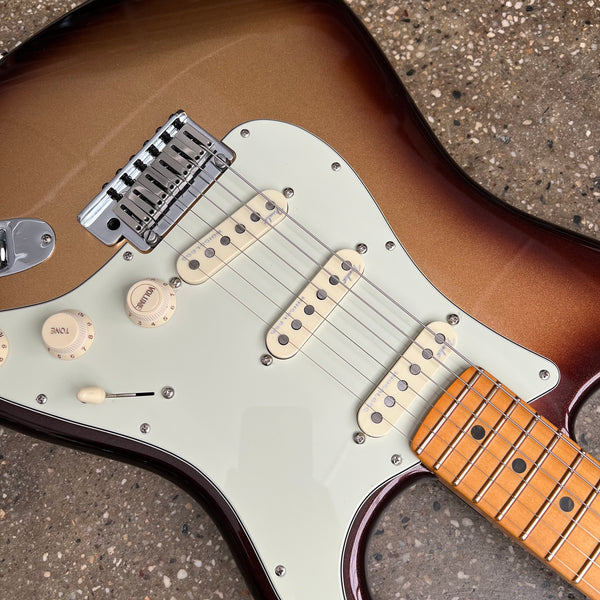

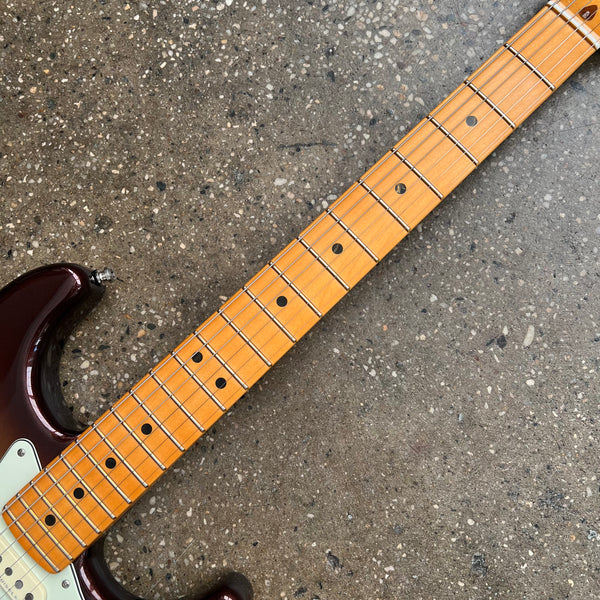

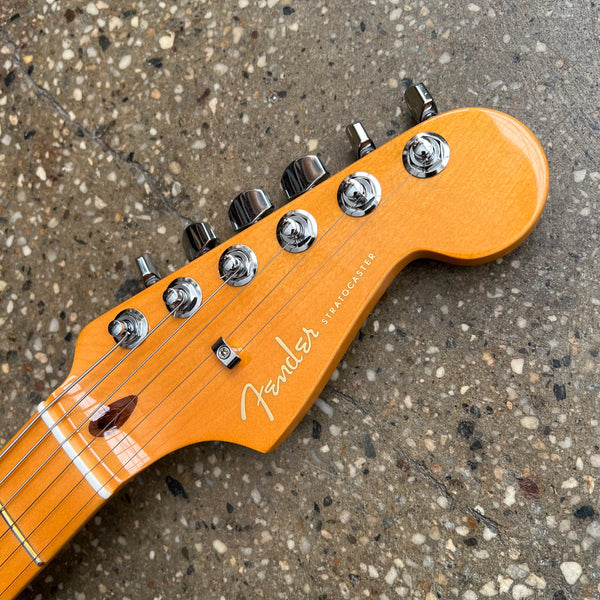

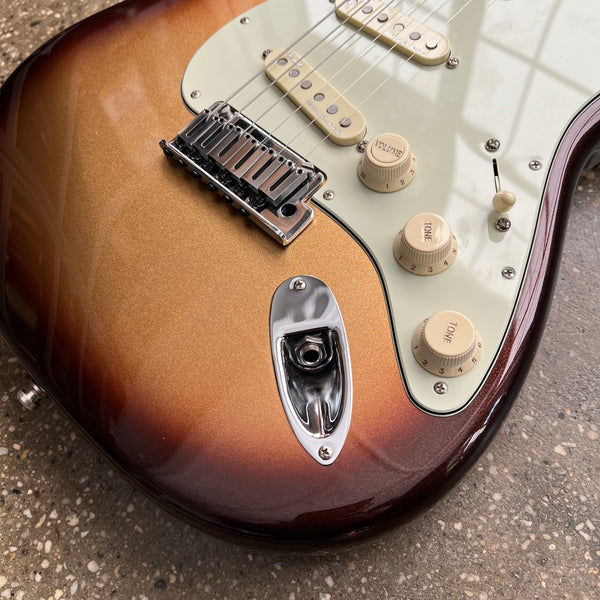

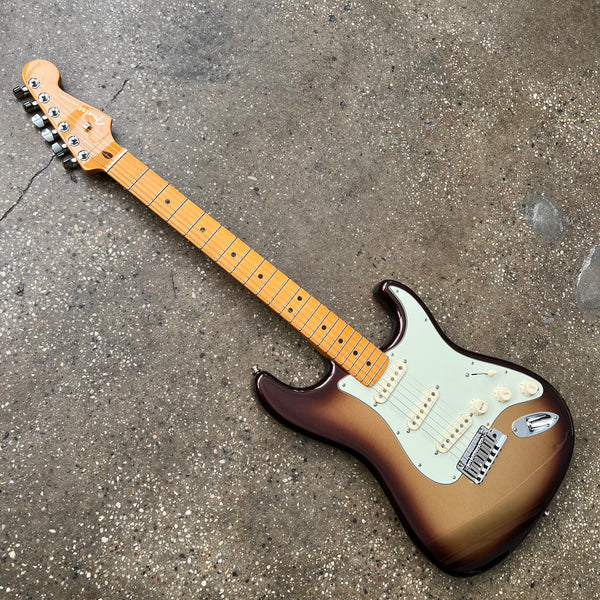

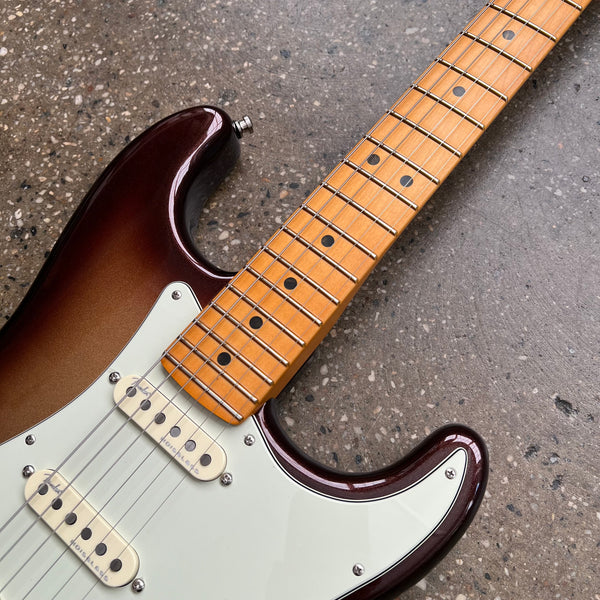

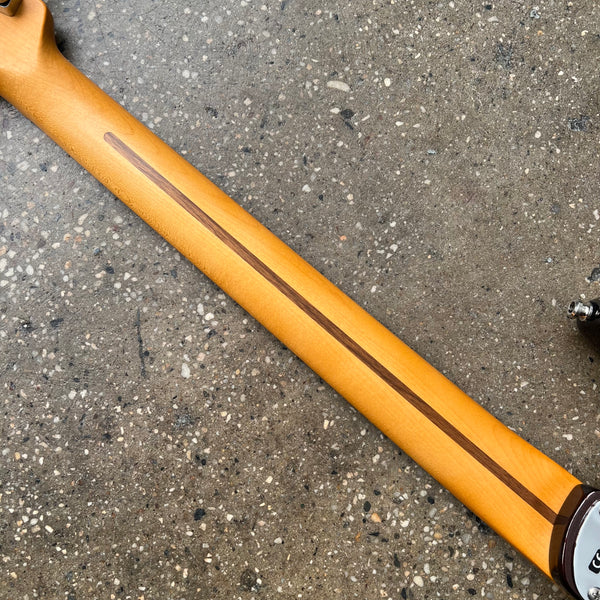

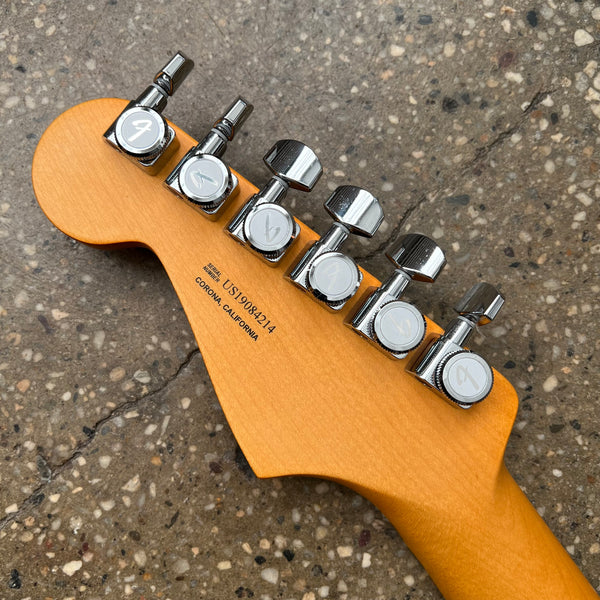

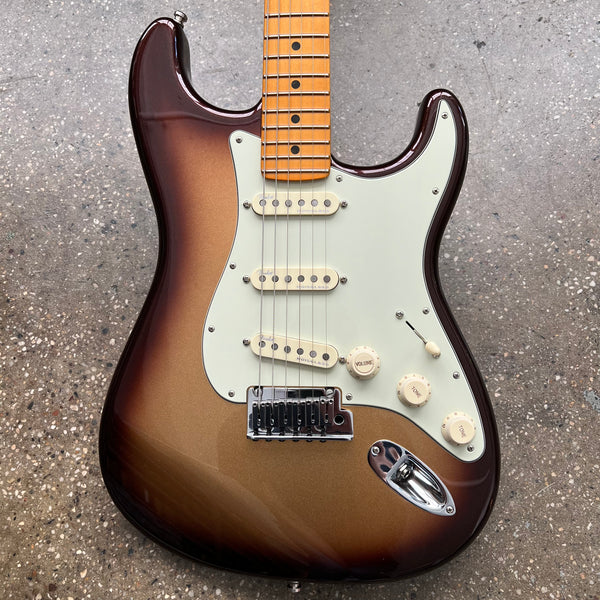

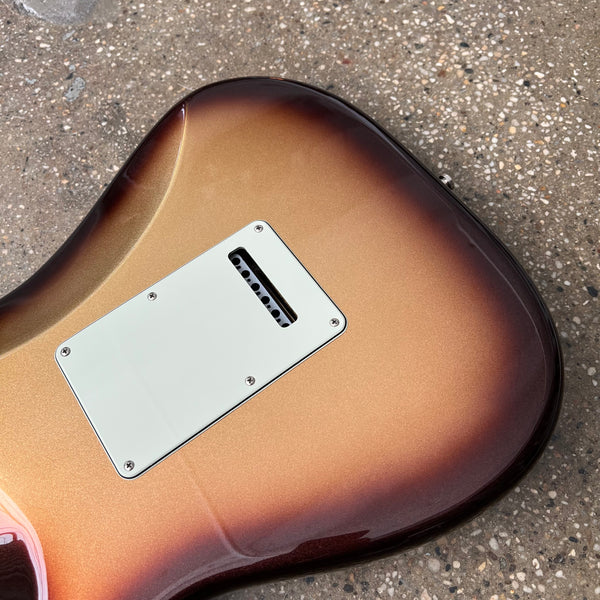

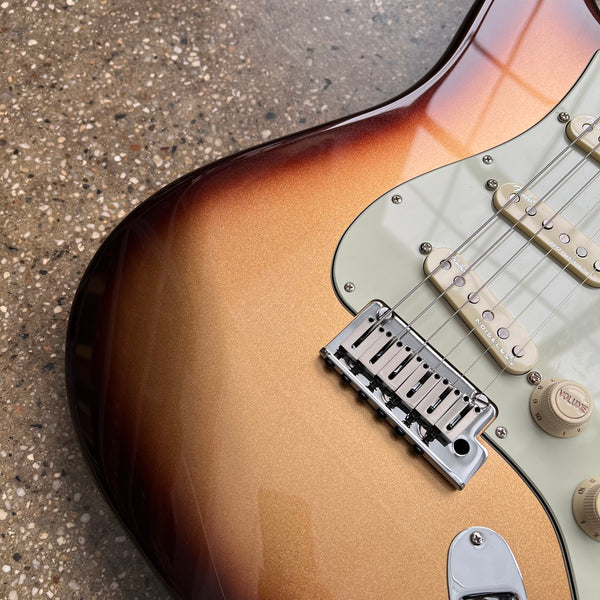

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the American Ultra Stratocaster Maple Fingerboard listed above. For larger pics, click on an image to open in a new tab.
