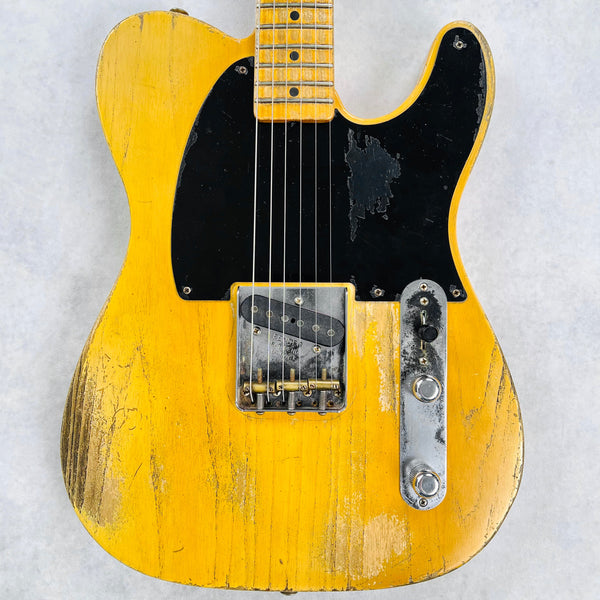

The 1950s Esquire Heavy Relic Masterbuilt By Dale Wilson is an electric guitar built by Fender Custom Shop. This solid body guitar was manufactured in the United States and is a Fender Custom Shop Masterbuilt Time Machine model. Key features include Ash Body, Quartersawn Maple Neck, 7.25" to 9.5" Compound Radius, Black Pickguard, Handwound Original Blackguard Pickup and Smoked Butterscotch Blonde finish. The specs listed below pertain to the 2016 product year model pictured on this page.
Factory Specs
- Ash Body
- Quartersawn Maple Neck
- 21 Frets
- Dot Inlays
- 1.650" Nut Width
- 7.25" to 9.5" Compound Radius
- 25.5" Scale Length
- Narrow Tall 6105 Fret Wire
- Bone Nut
- Deluxe Tuners
- String Through Body Vintage Style Bridge
- Brass Saddles
- Single Ply Black Pickguard
- Handwound Original Blackguard Bridge Pickup
- Full Throttle Wiring
- No Finish On Back Of Neck
- Heavy Roll Fingerboard Edges
- Body Sort For Lightweight
- Ultra Thin Finish
- Heavy Relic Aging
Reference Images

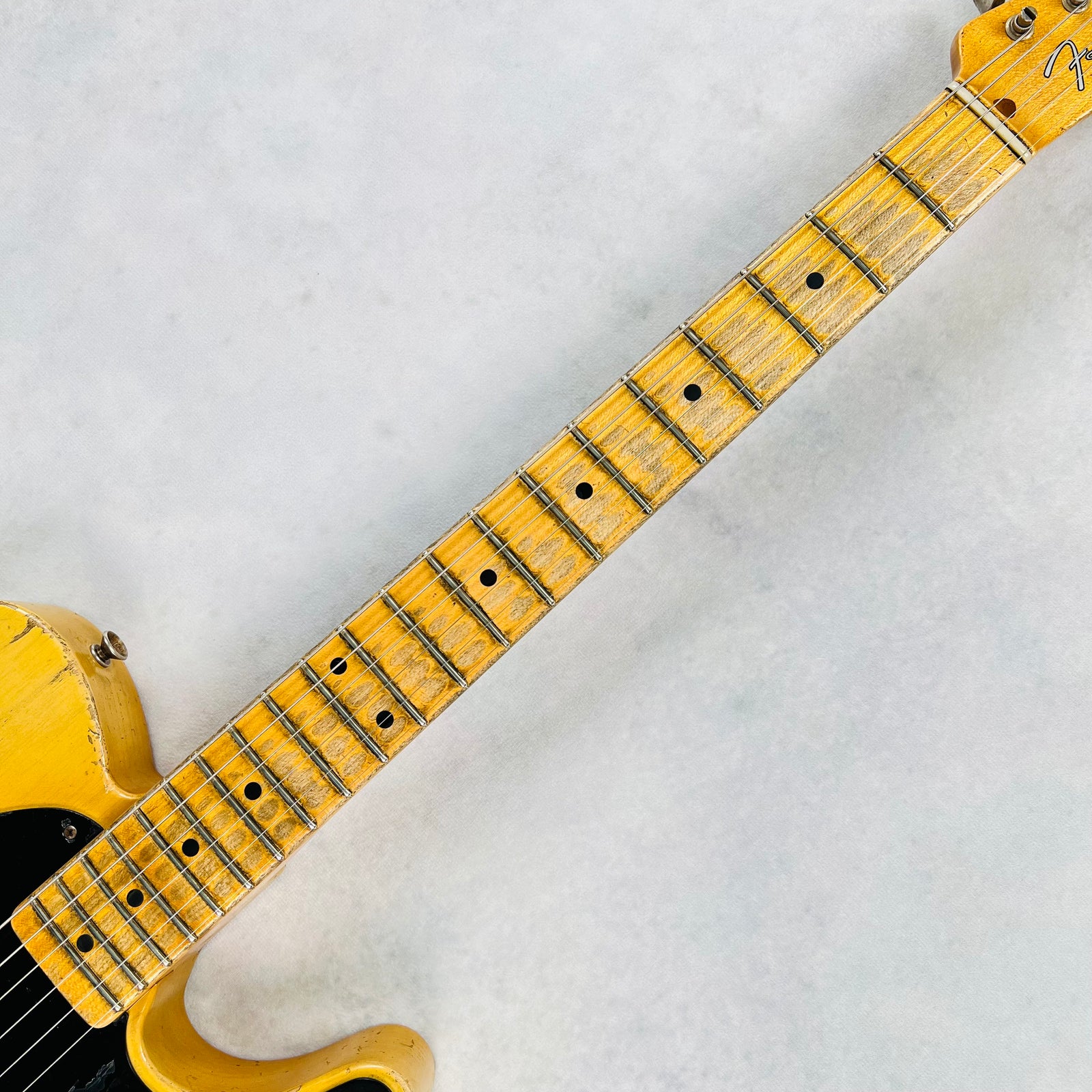

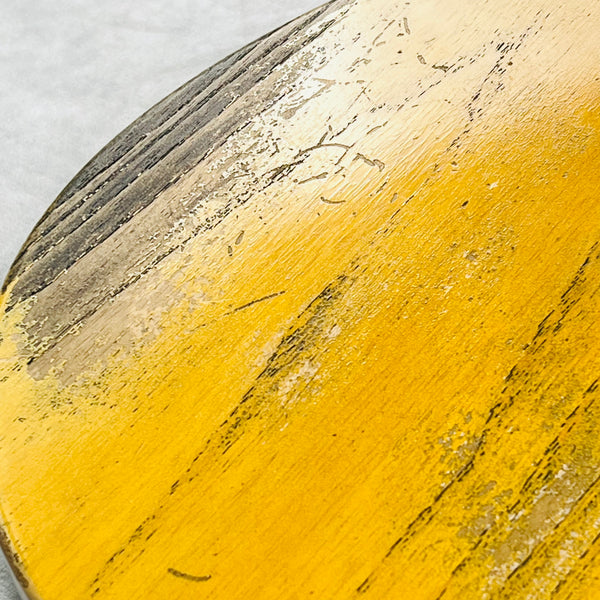

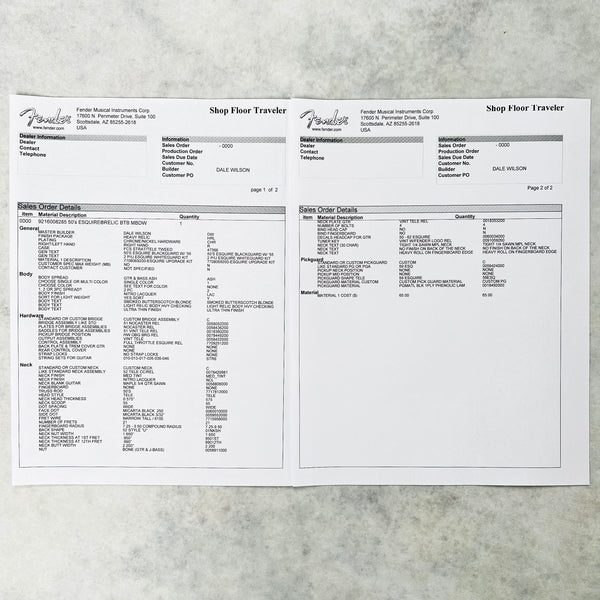

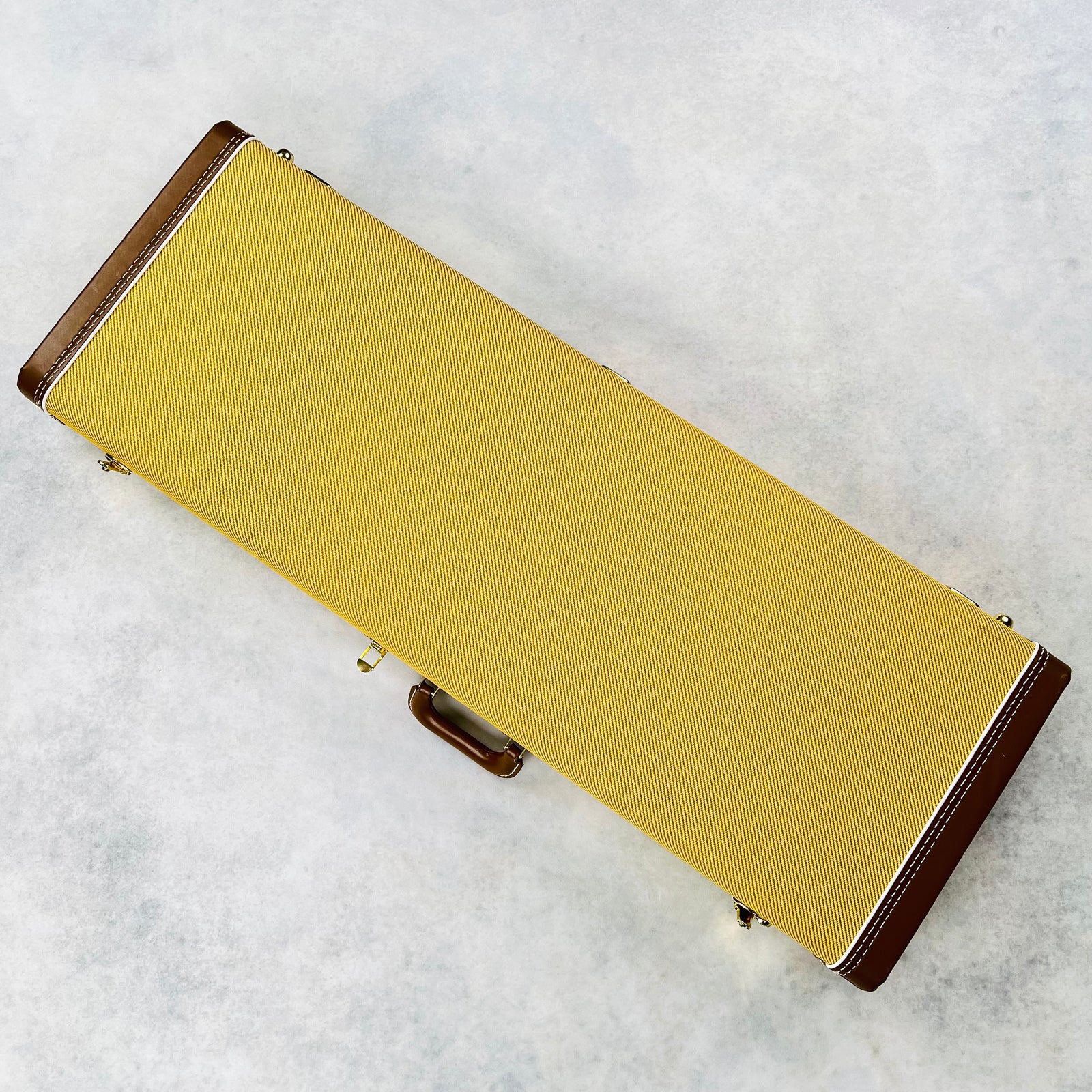

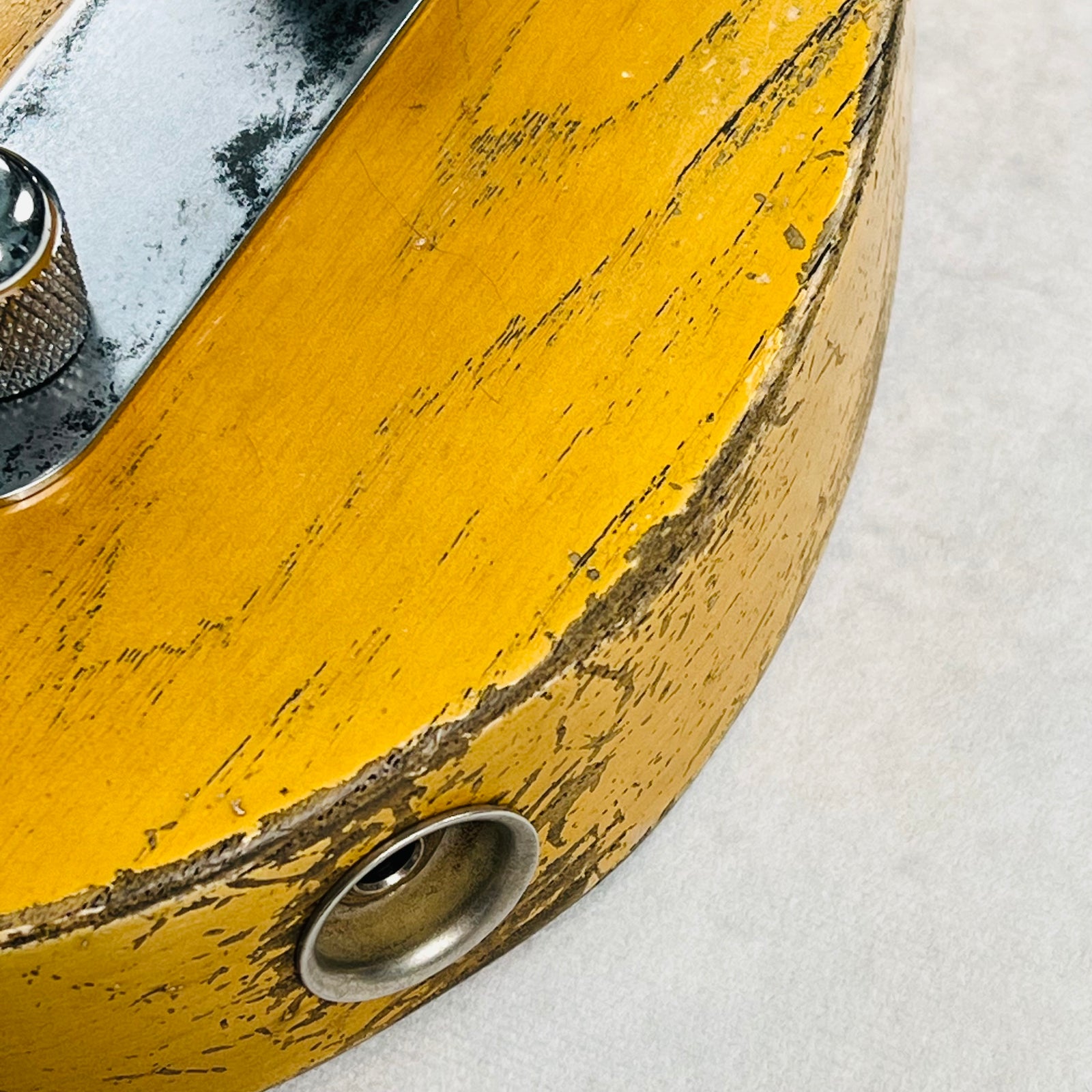

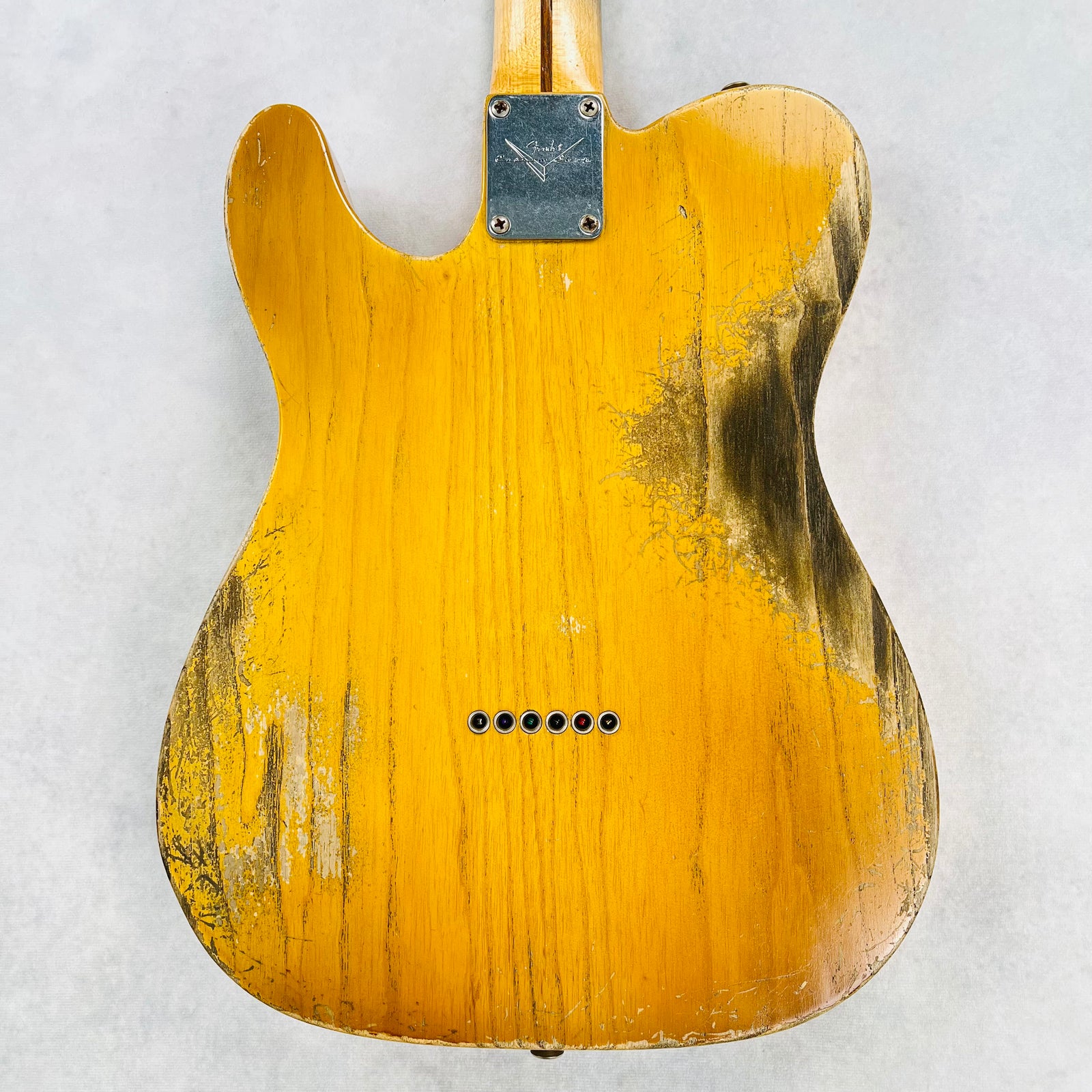

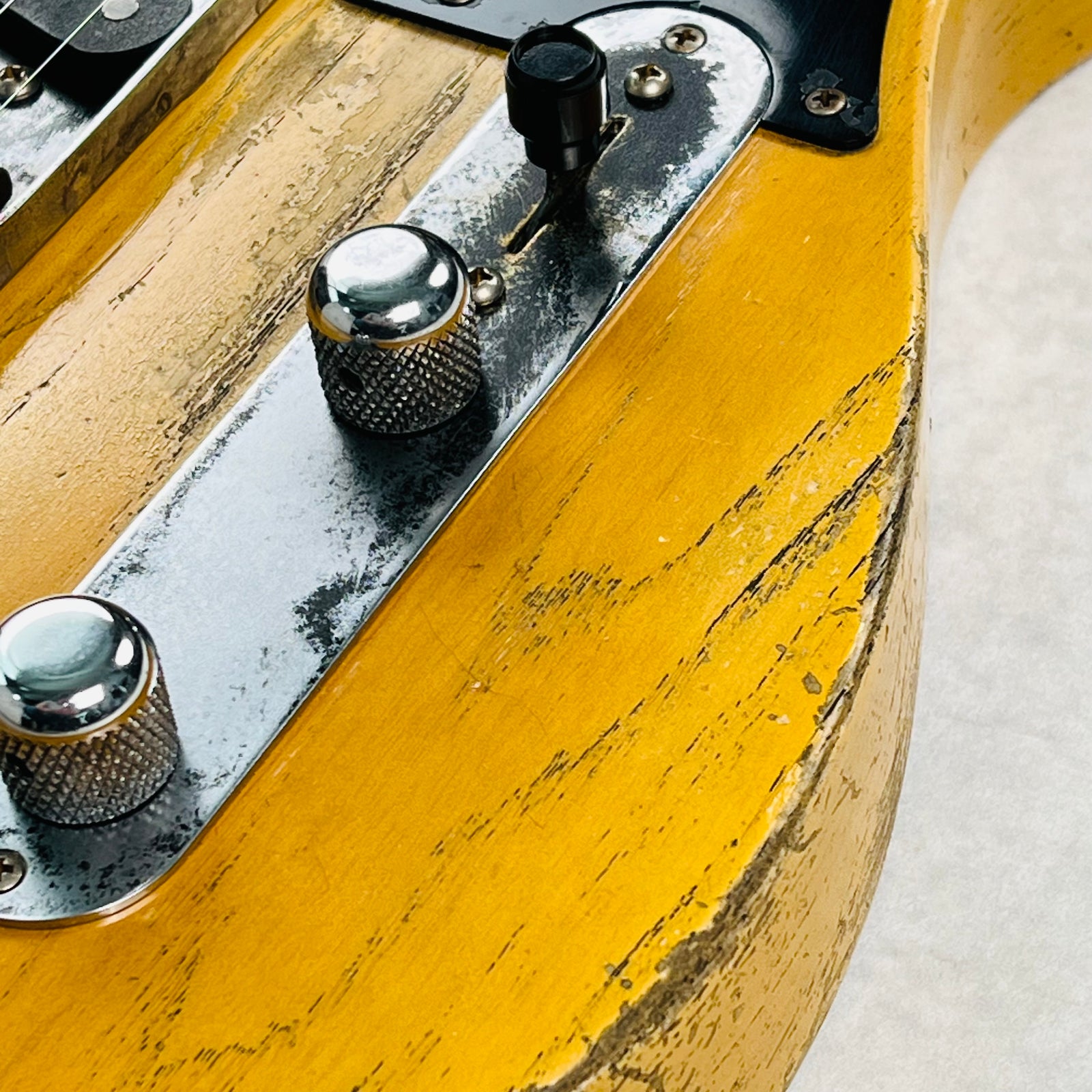

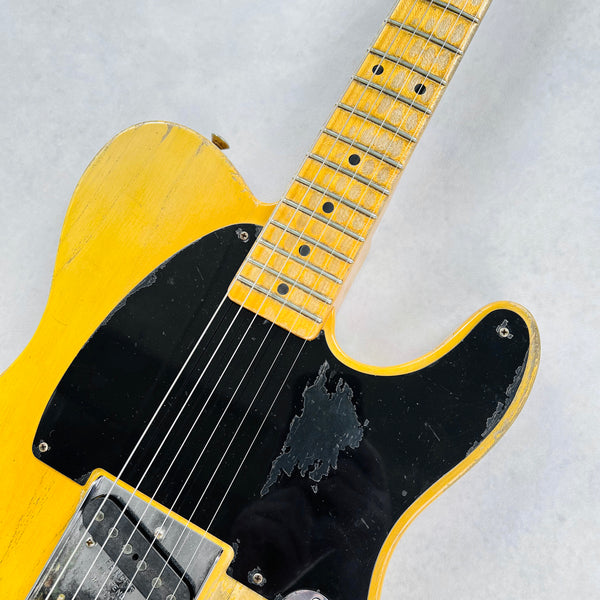

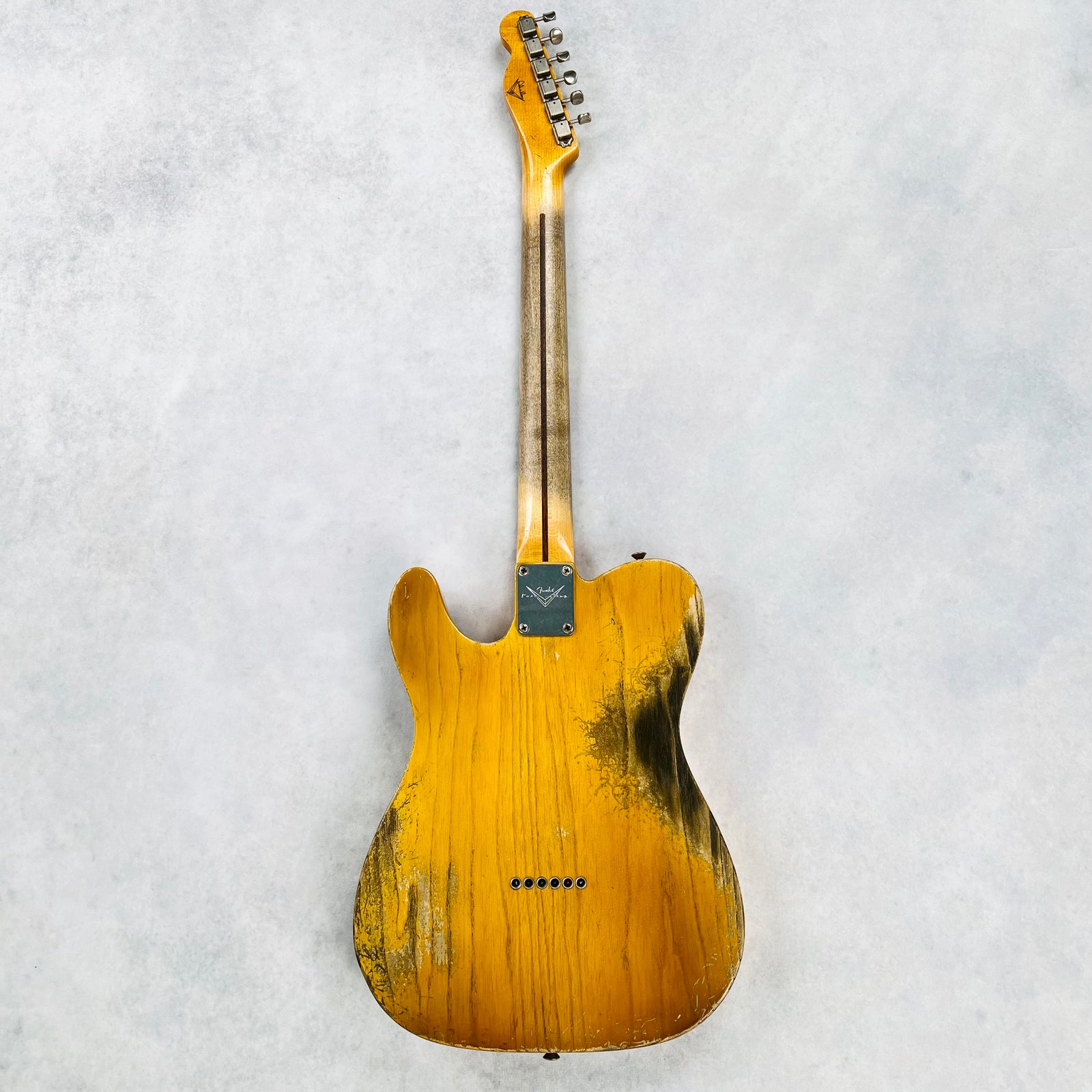

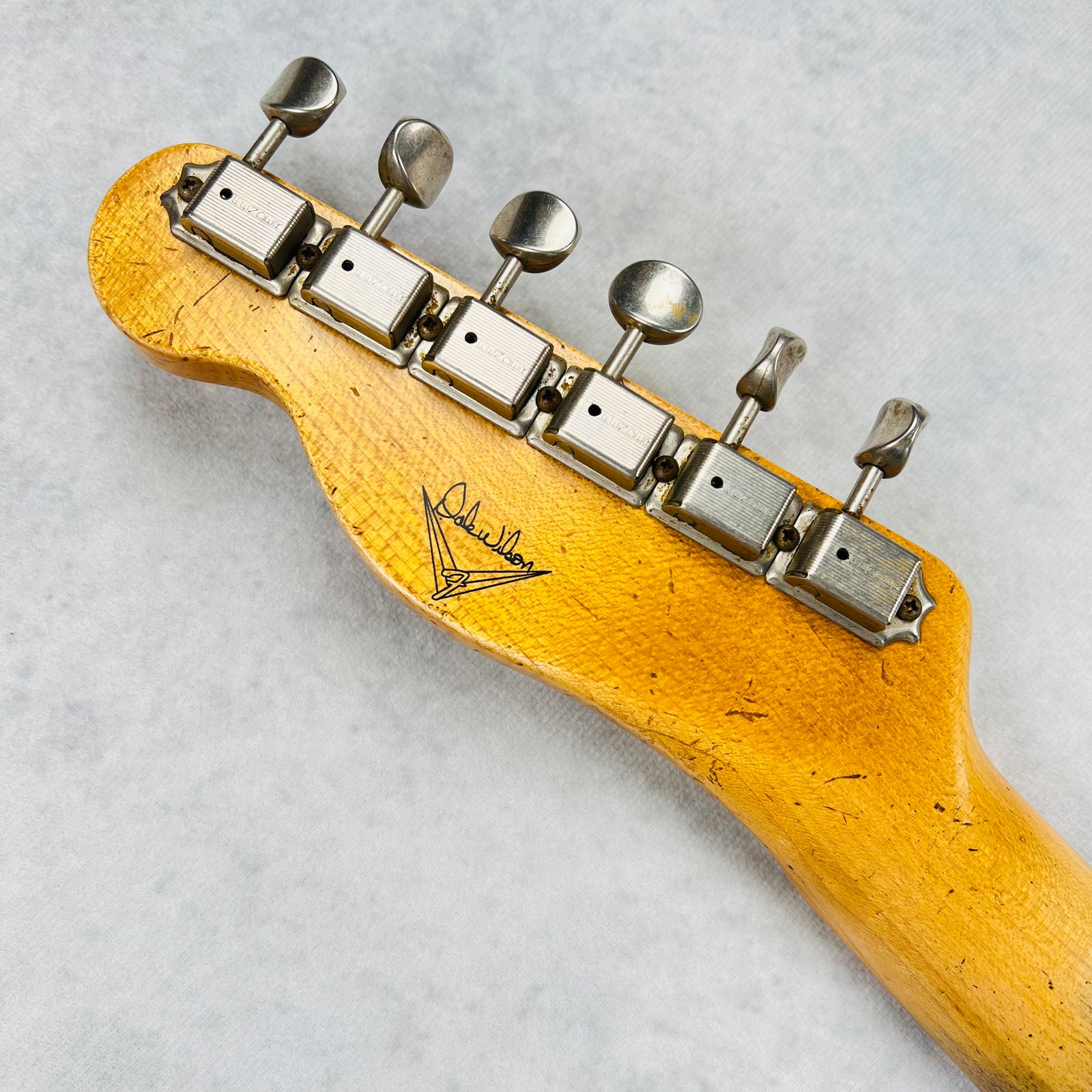

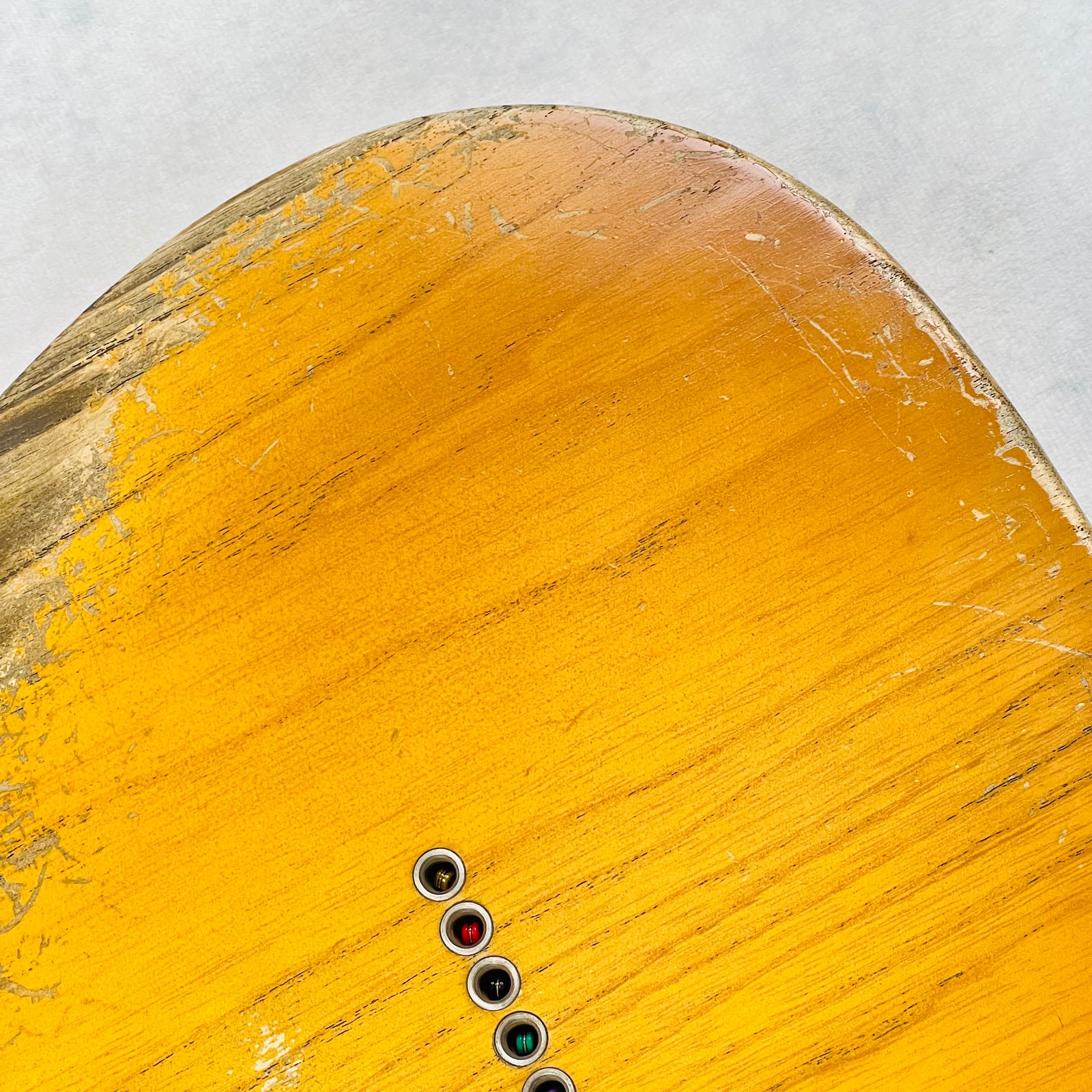

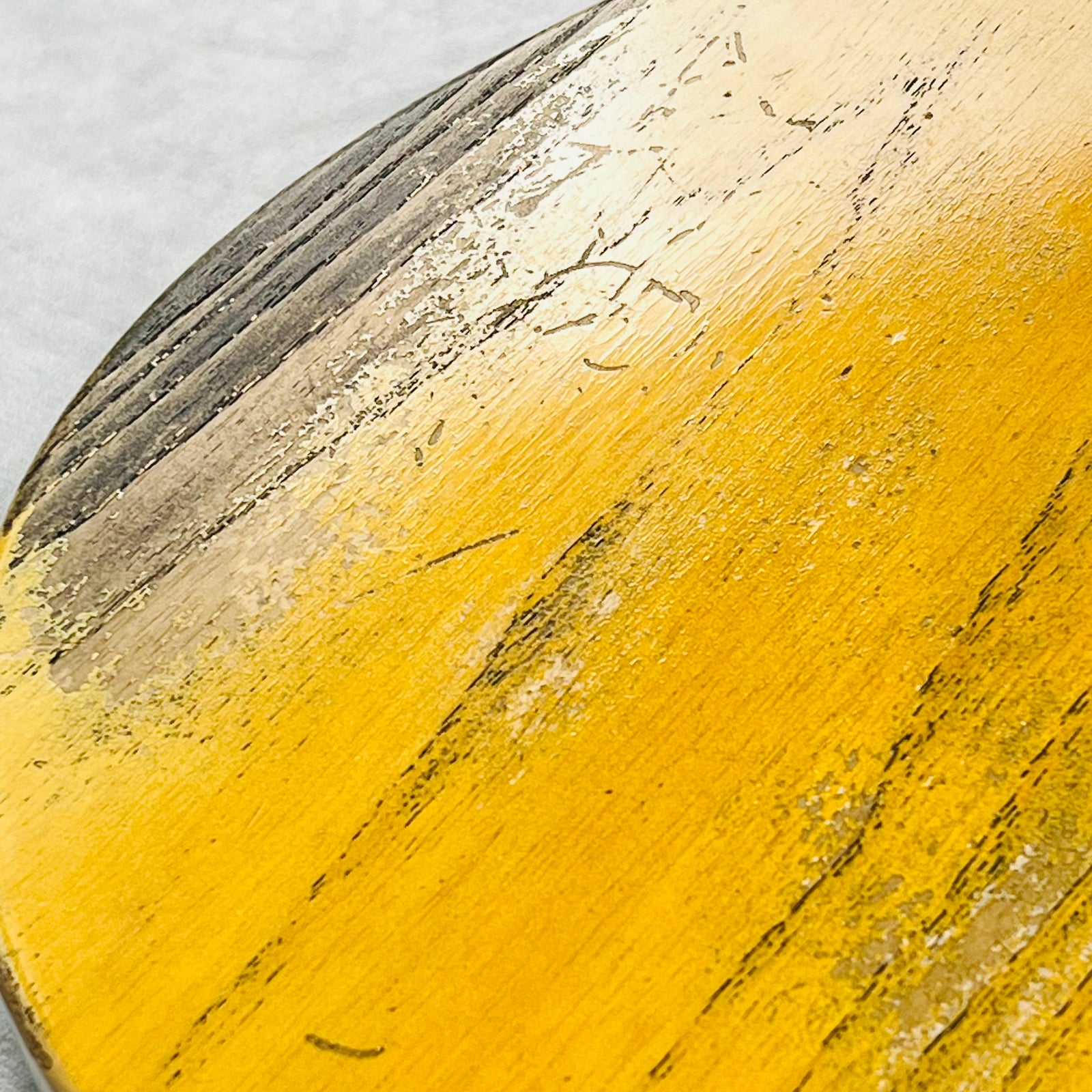

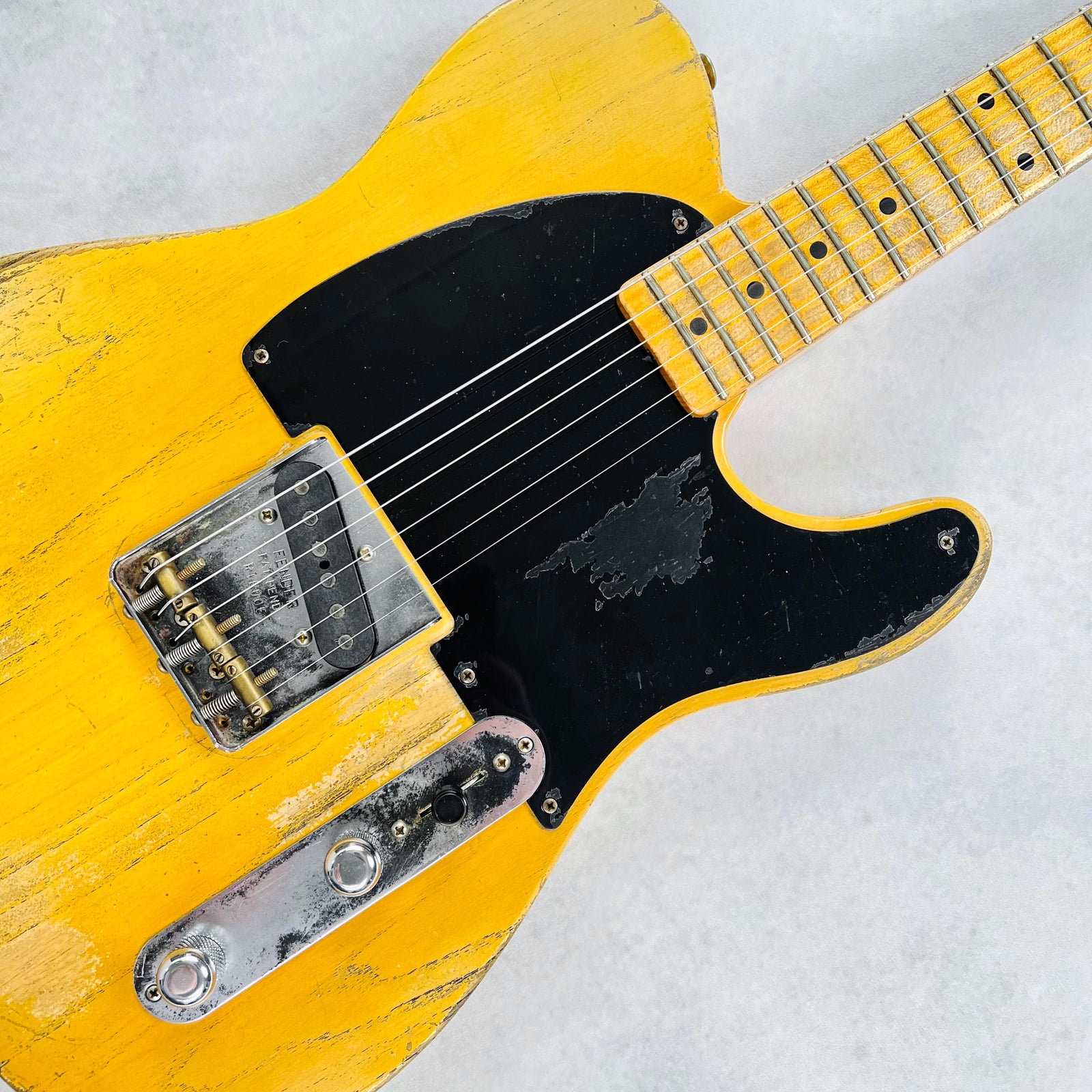

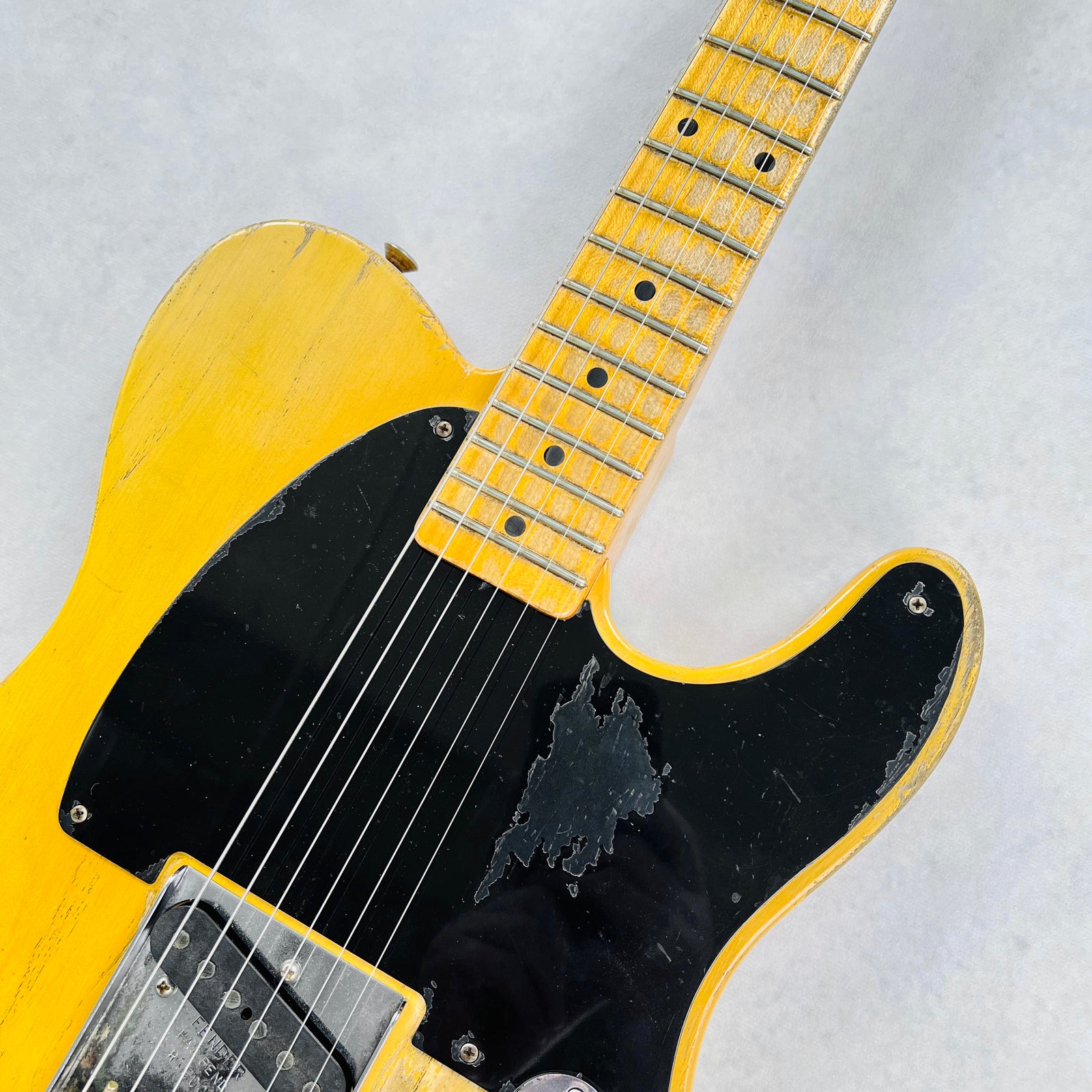

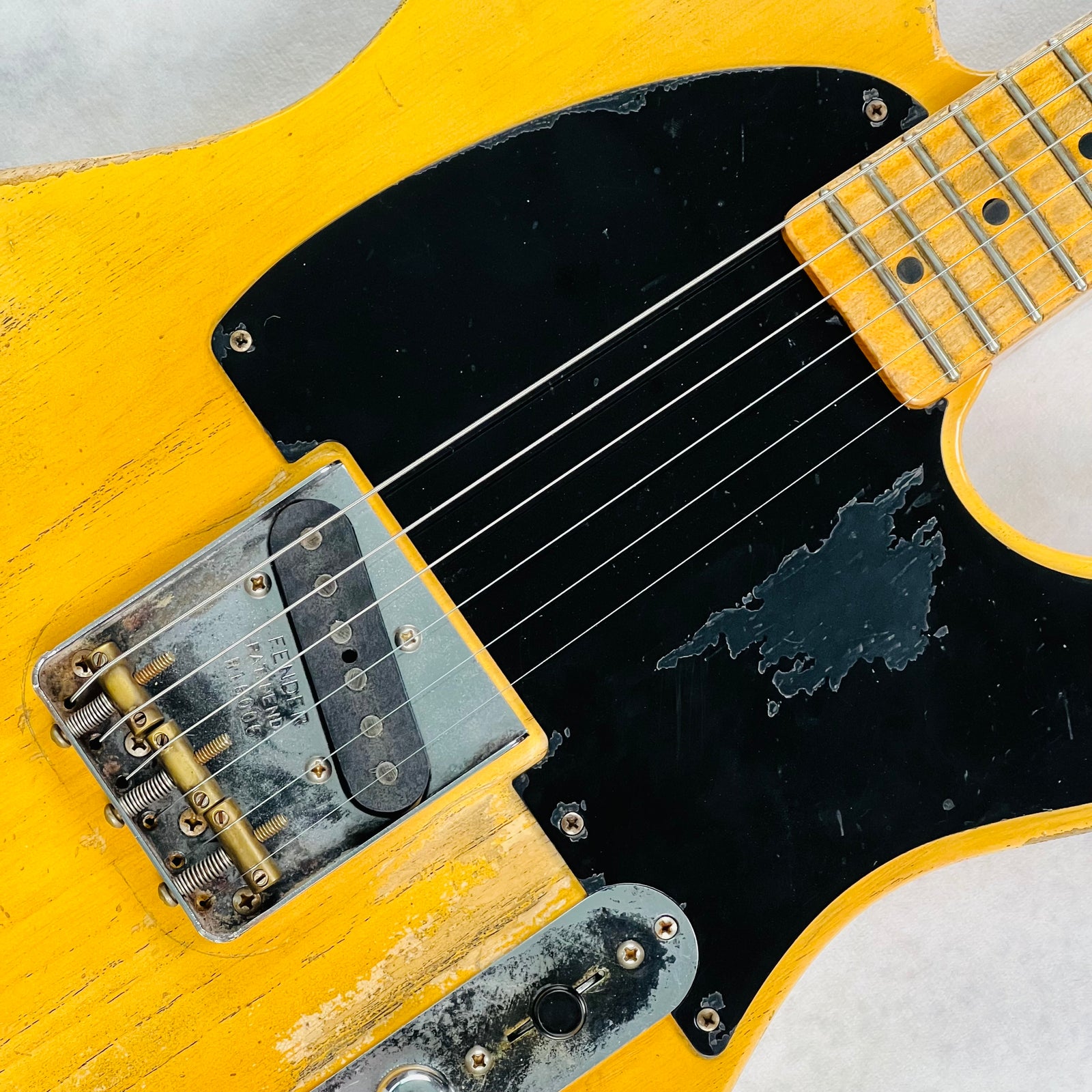

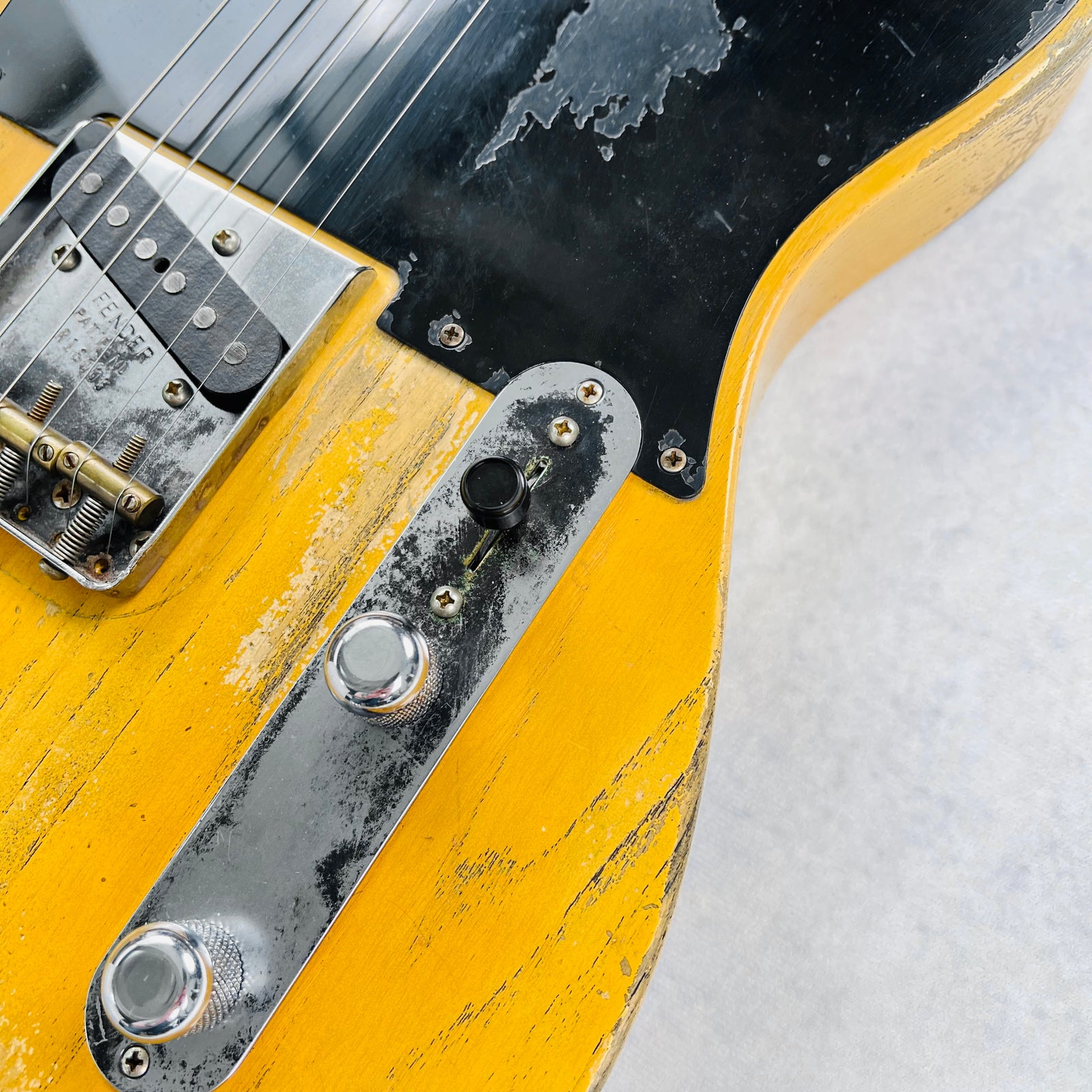

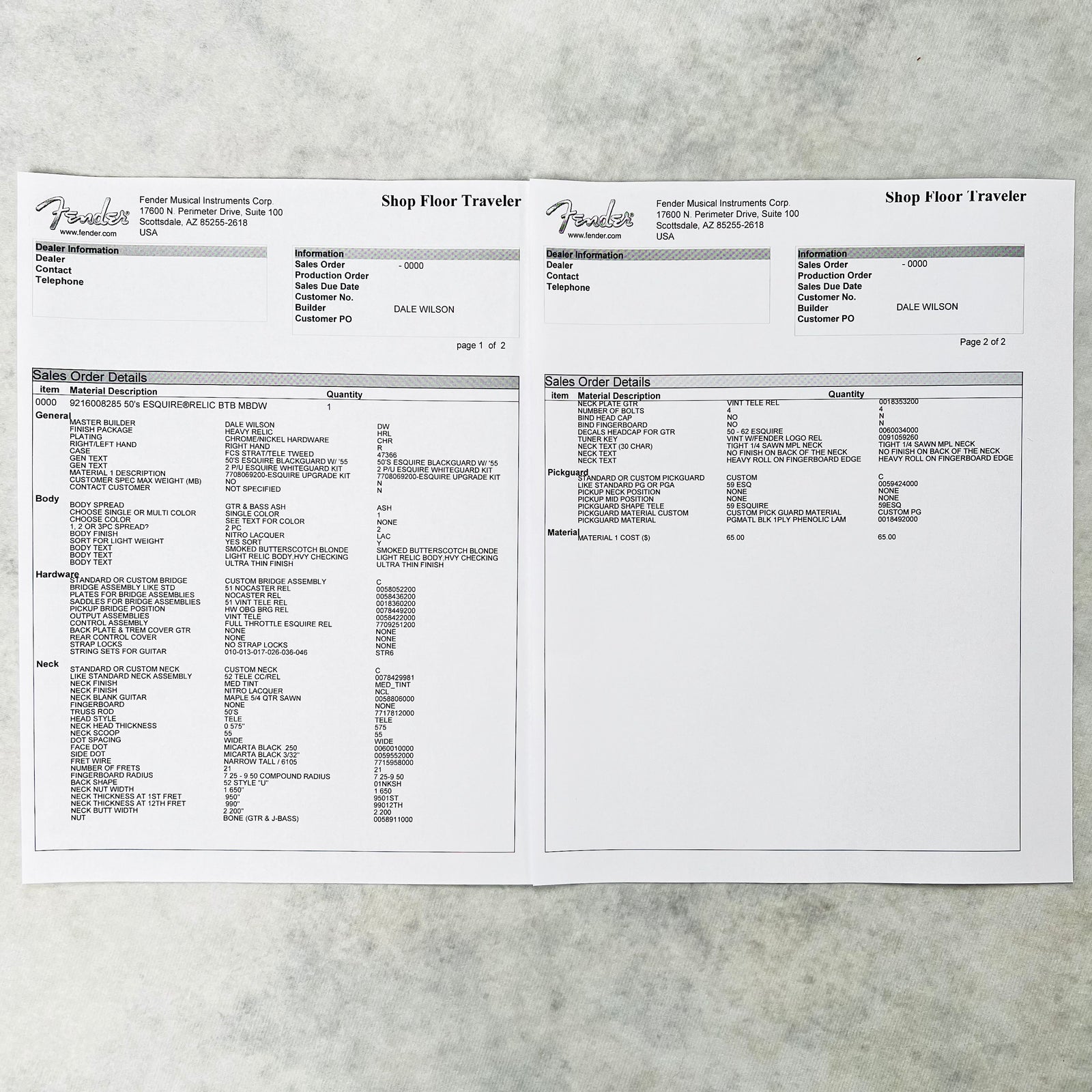

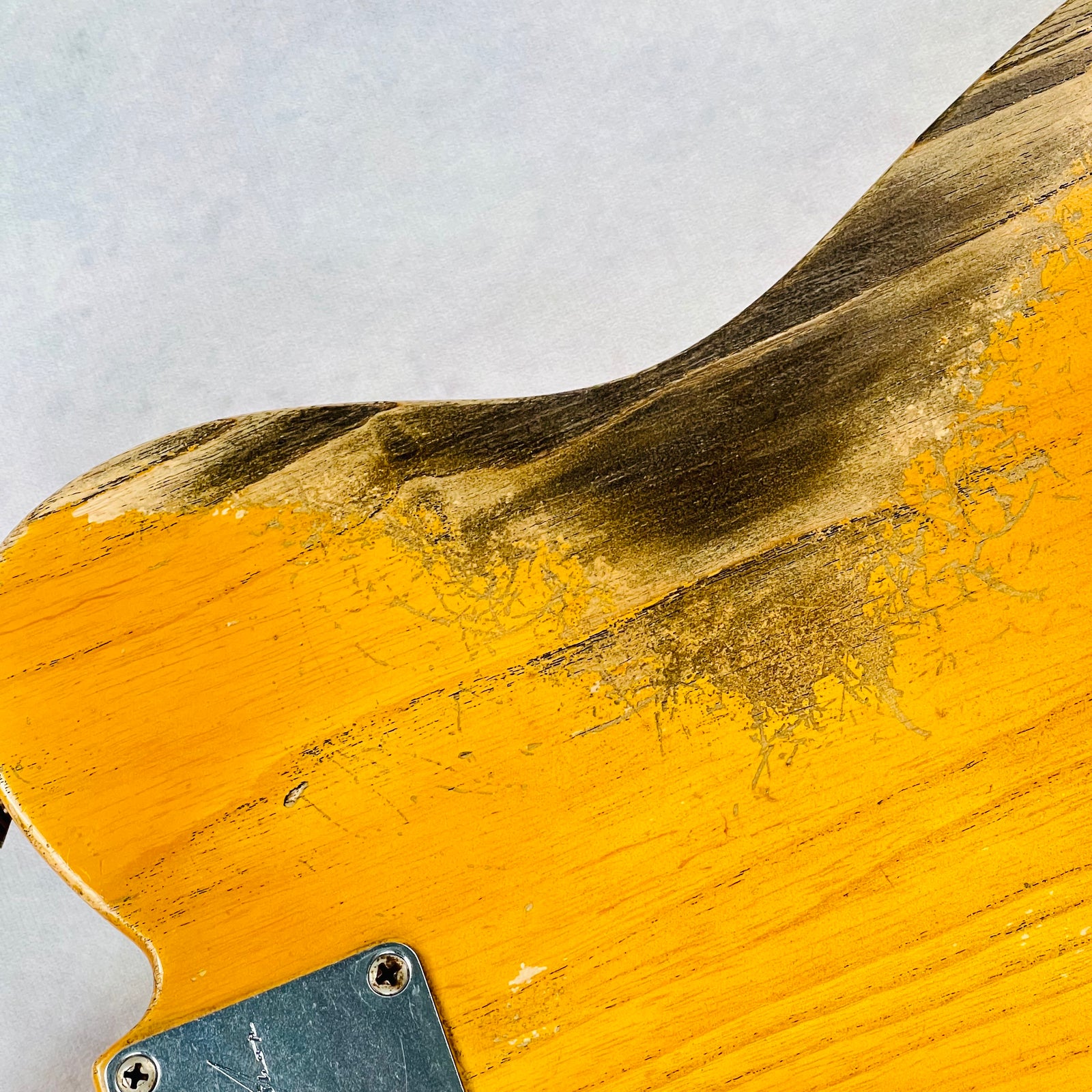

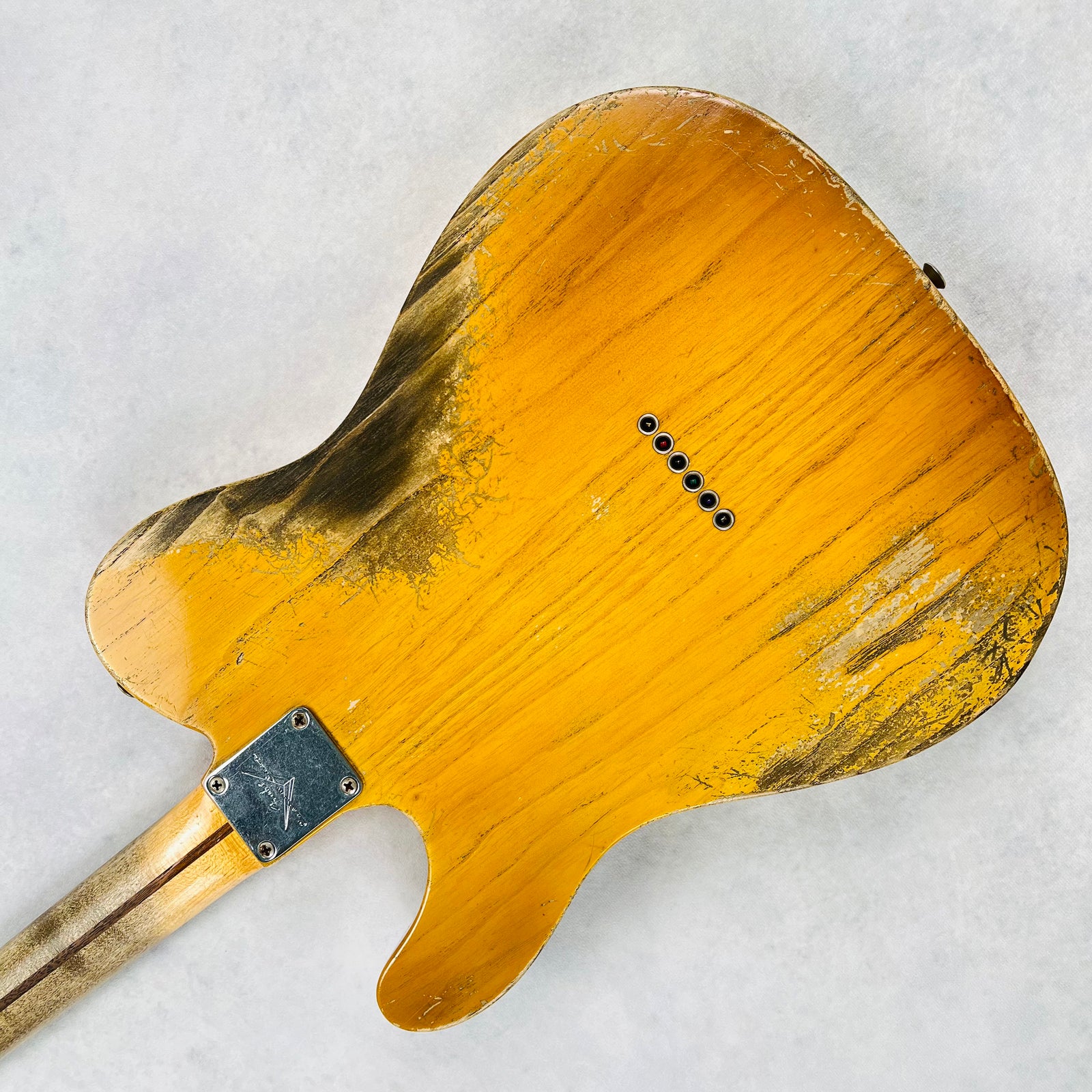

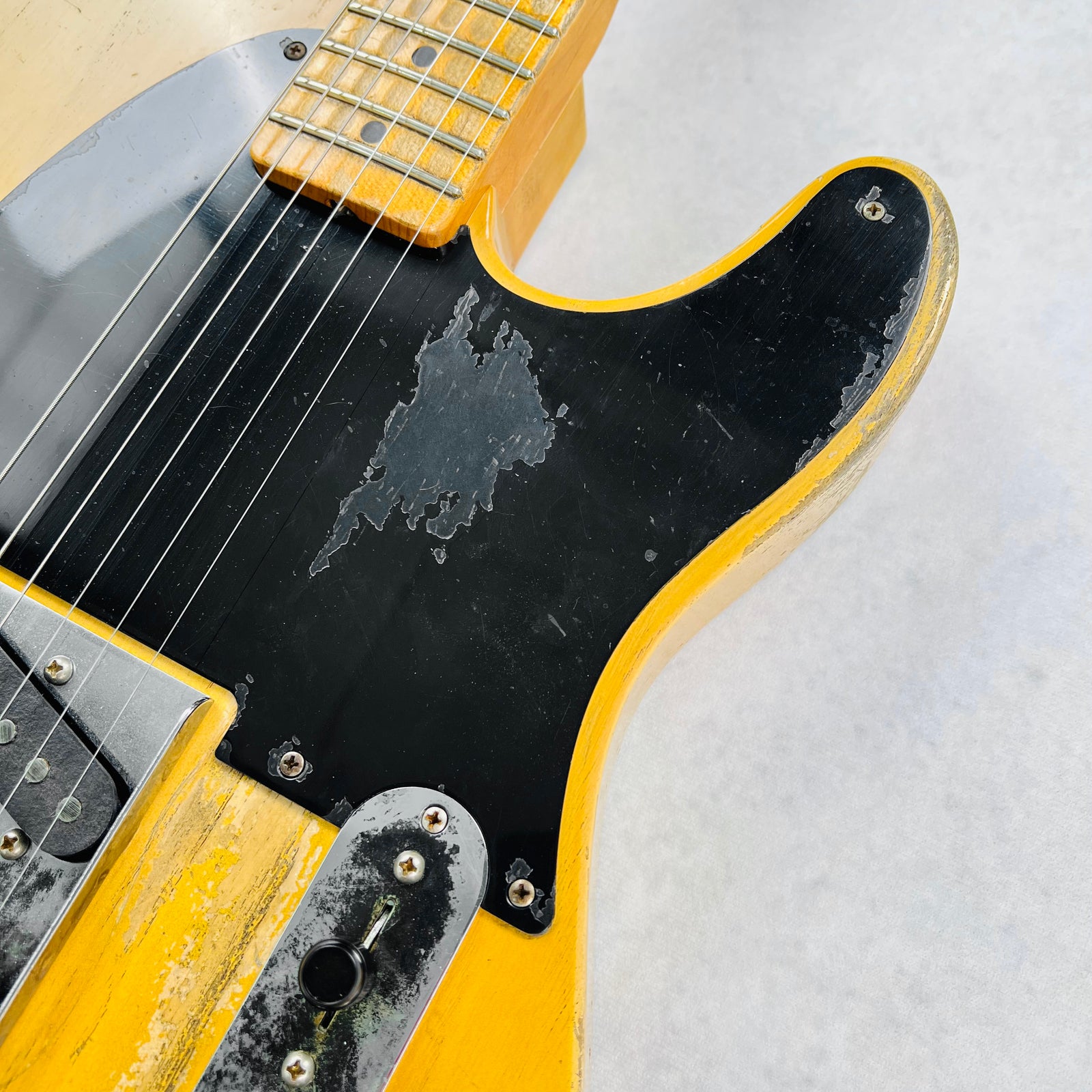

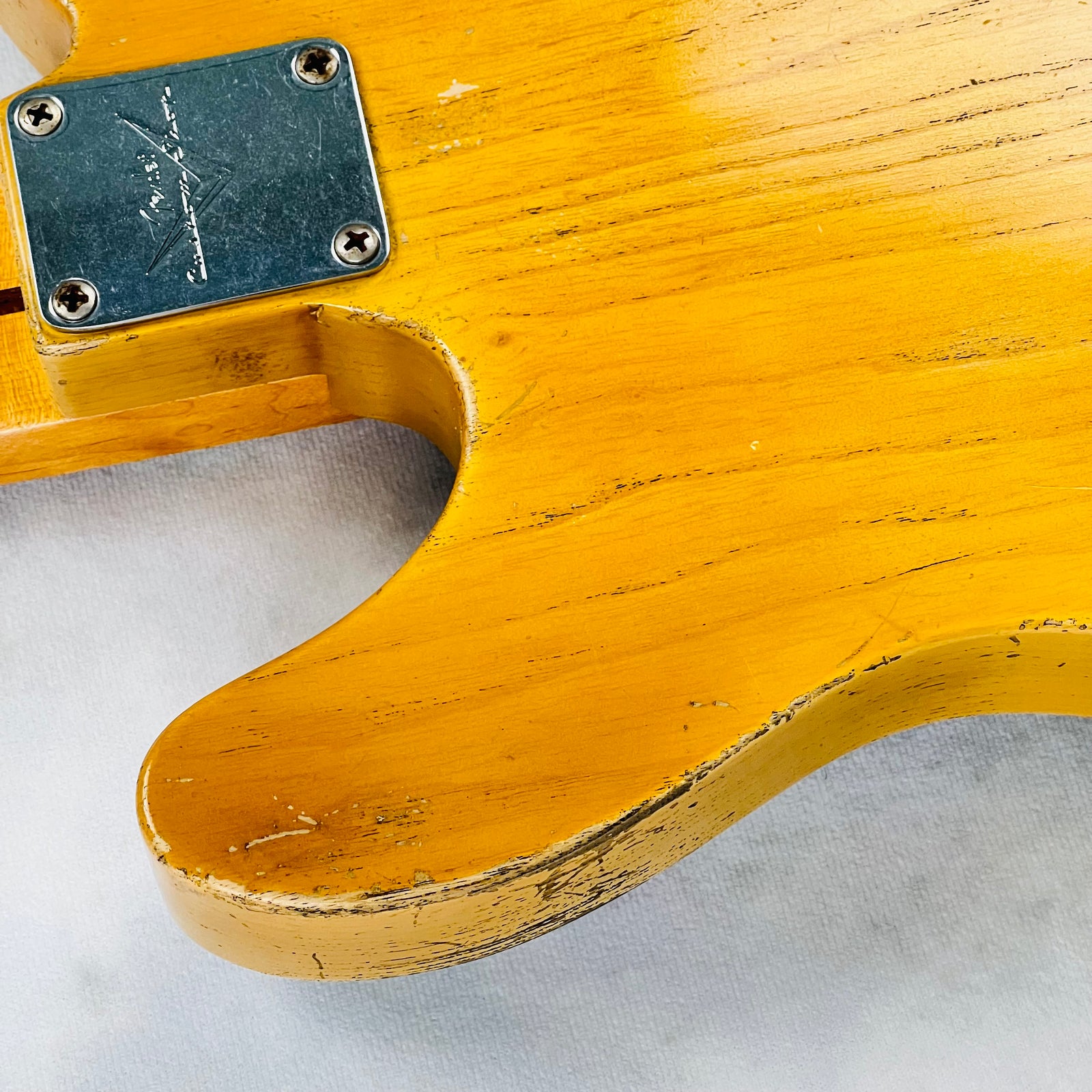

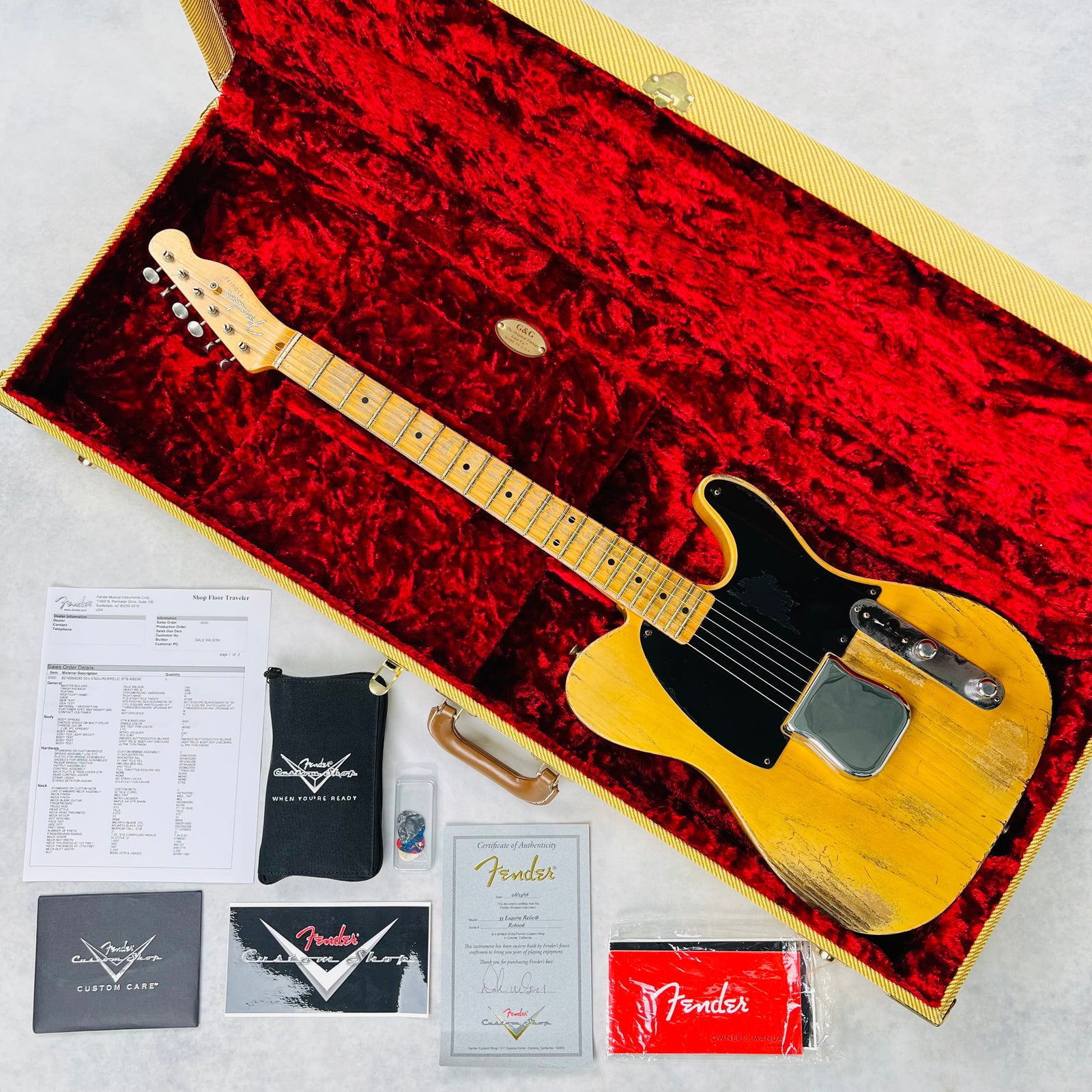

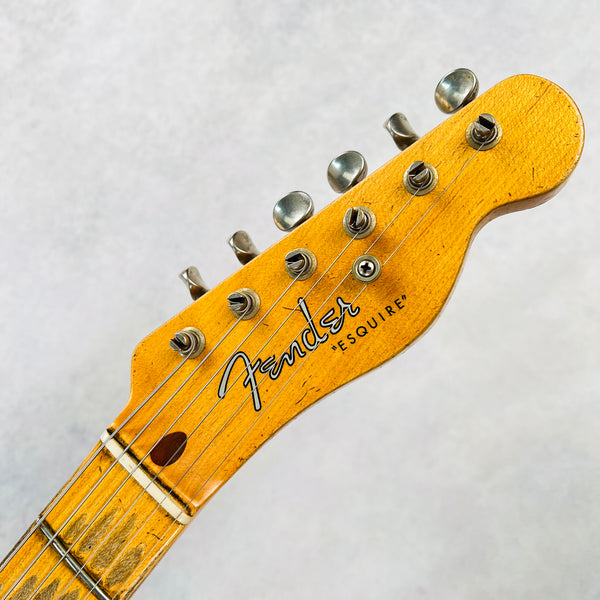

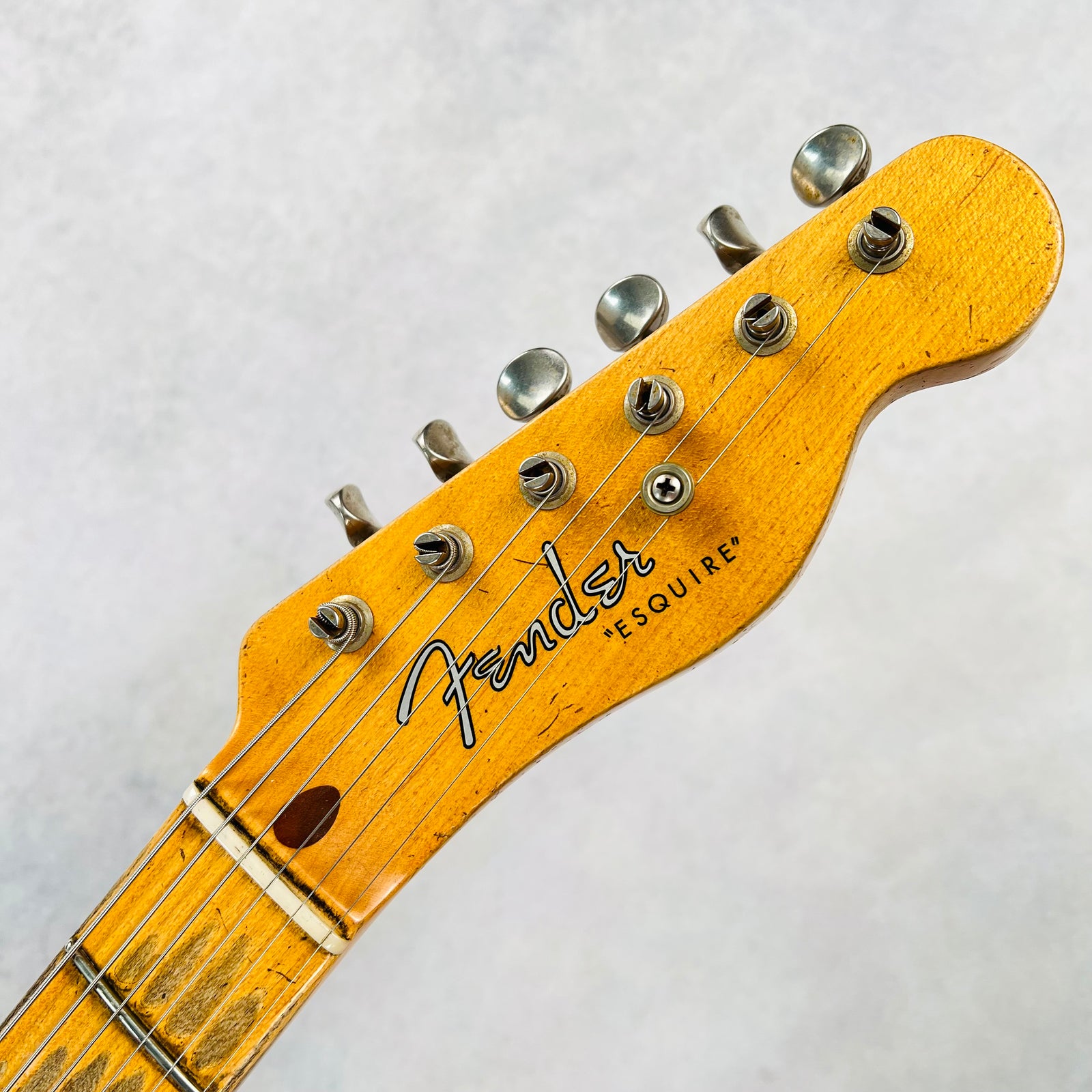

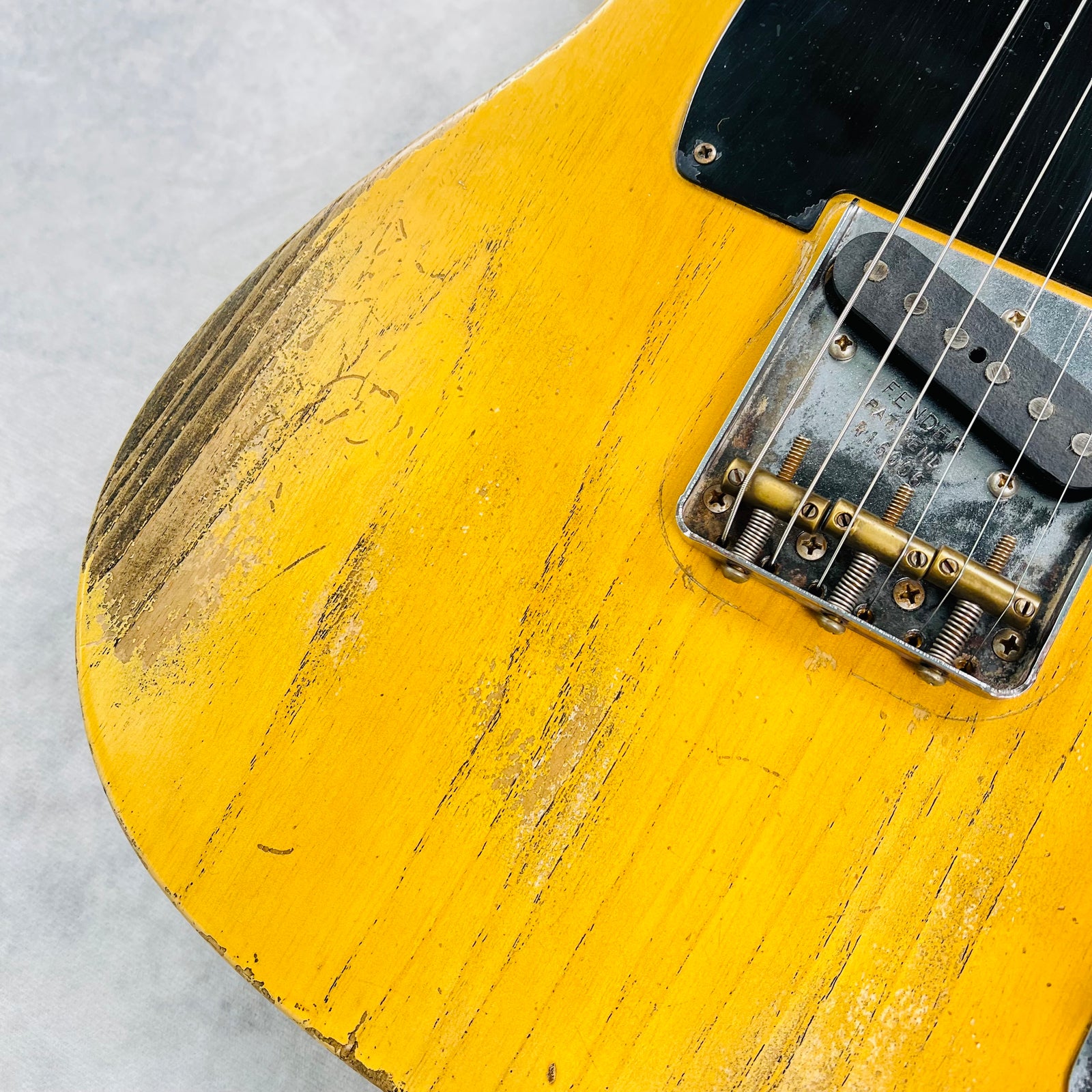

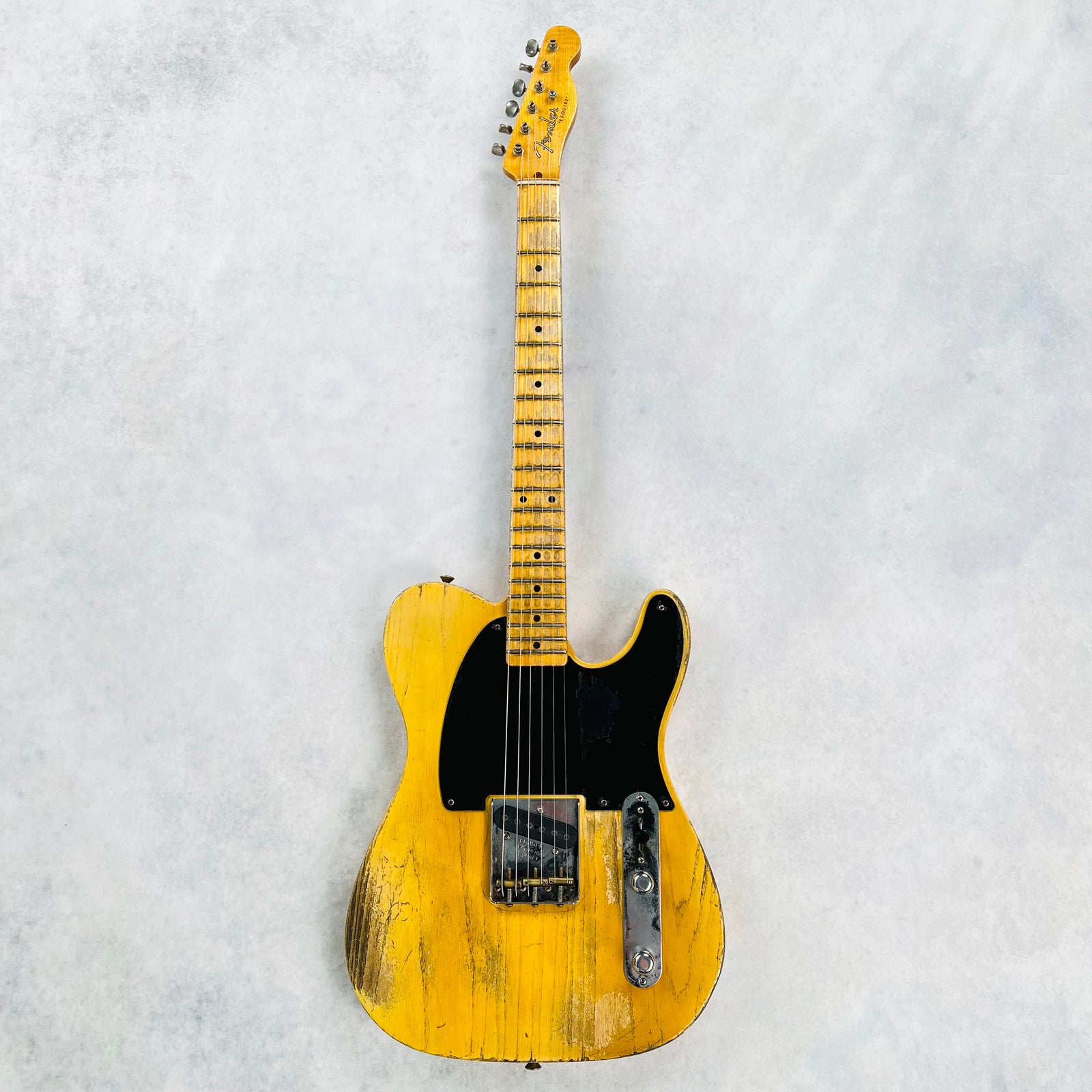

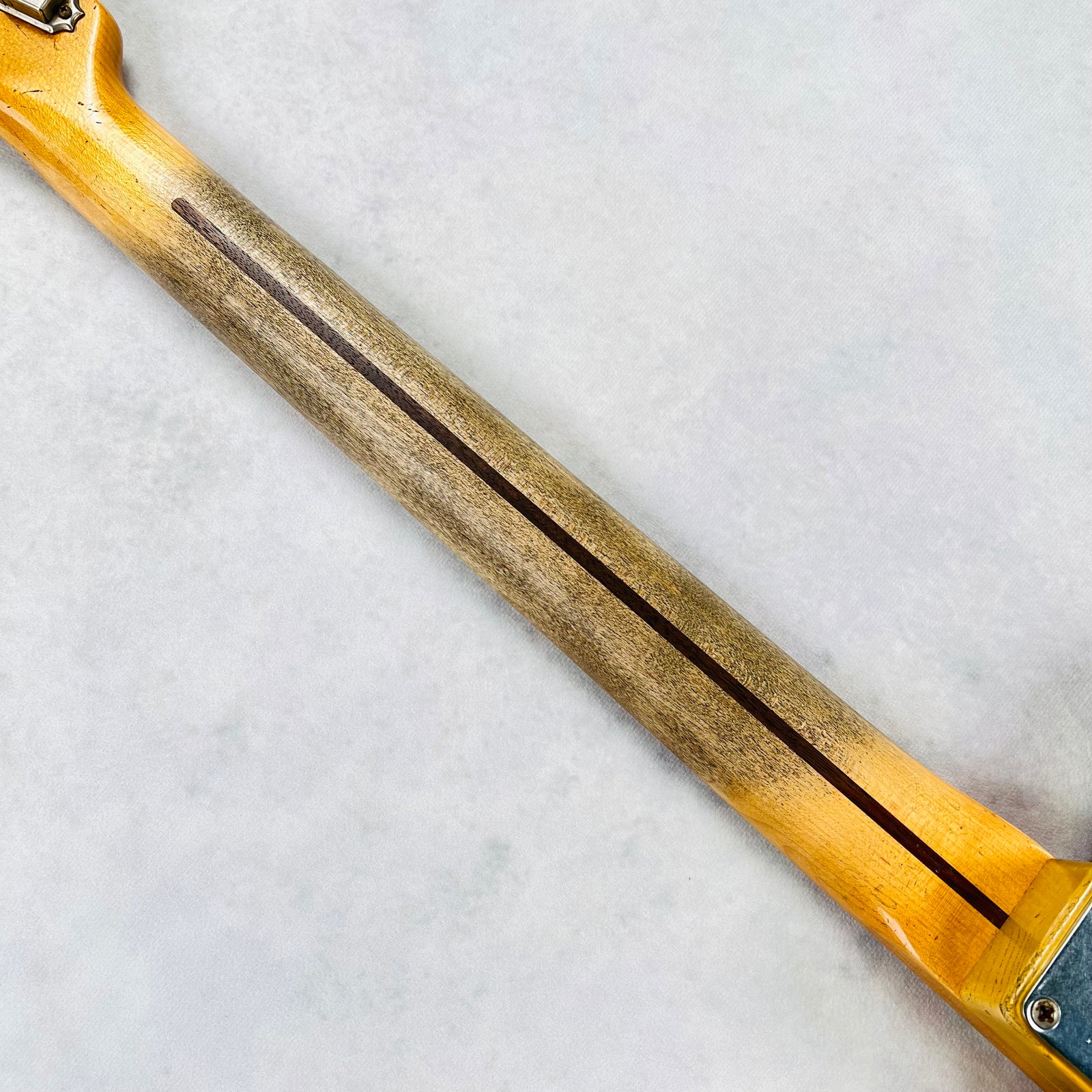

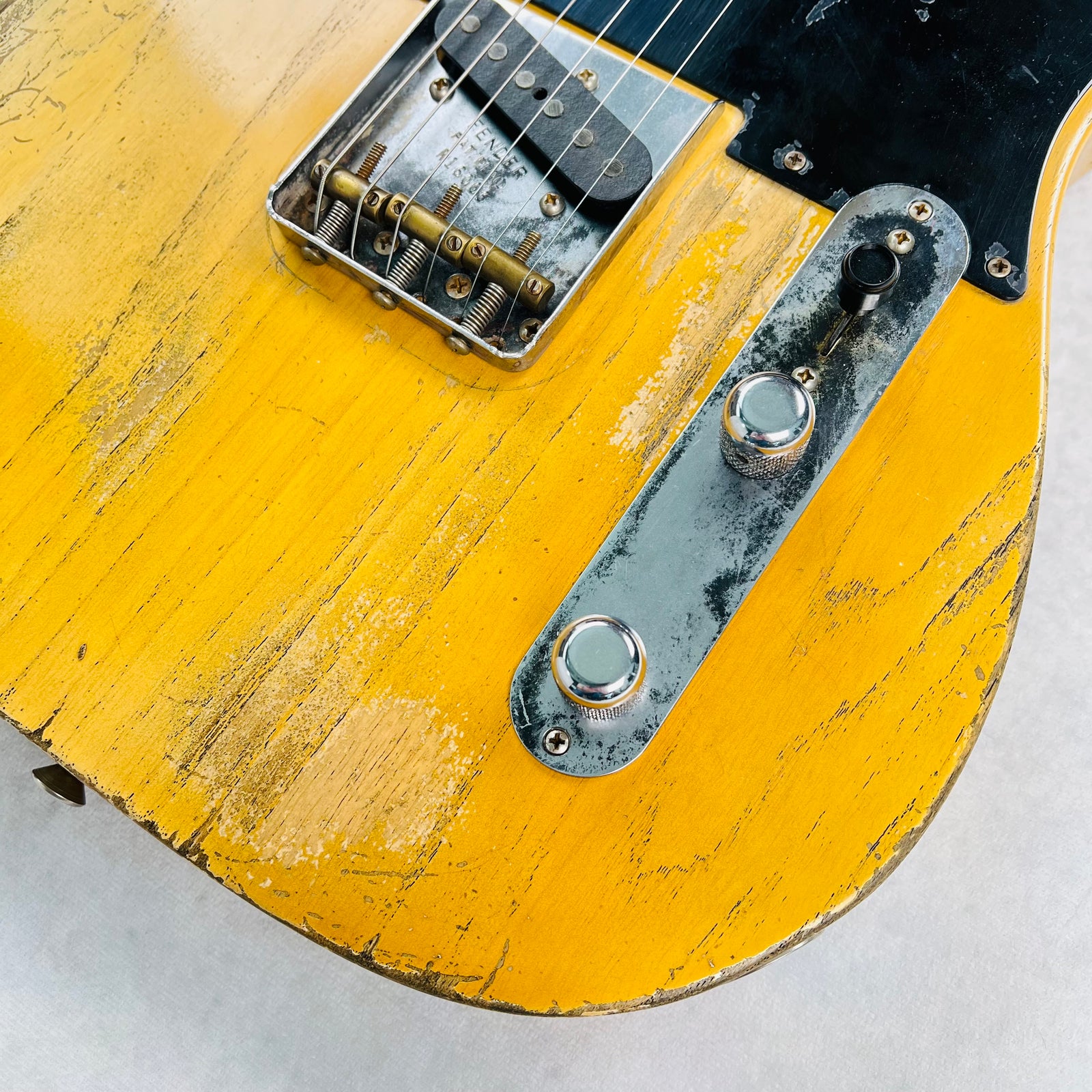

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the 1950s Esquire Heavy Relic Masterbuilt By Dale Wilson listed above. For larger pics, click on an image to open in a new tab.
