The Standard Carve Top Mahogany is a solid body electric guitar built by Suhr. This s-style bolt on guitar was manufactured in the United States and is a Suhr Custom model. Key features include a Mahogany Body, Mahogany Neck, Carved Mahogany Top, Ebony Fretboard, SSV Neck & SSV Plus Bridge Humbucker Pickiups and Natural finish. The specs listed below pertain to the 2013 product year model pictured on this page.
Factory Specs
- Mahogany Body
- Mahogany Neck
- Carved Mahogany Top
- Ebony Fretboard
- Neck & Headstock Ivoroid Binding
- Top Body Ivoroid Binding

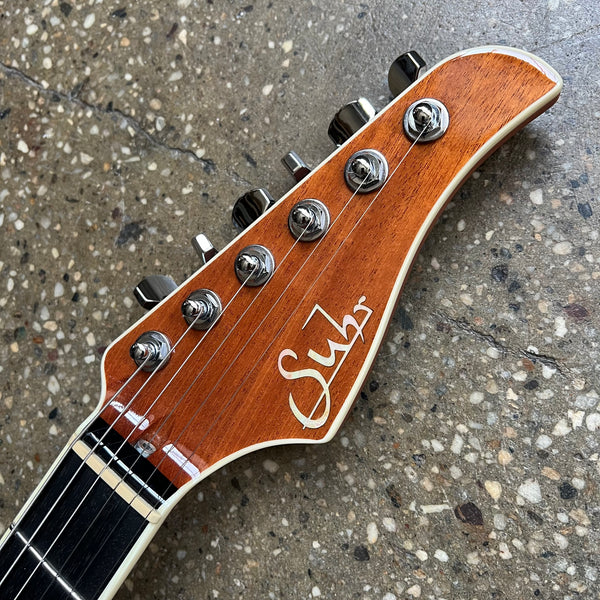

- Suhr Locking Tuners
- 22 Frets
- Stainless Steel Fret Wire
- Medium Jumbo Frets
- 10" to 14" Compound Radius
- 1.687" Nut Width
- 25.5" Scale Length
- Tusq Nut
- Mother of Pearl Inlaid Logo
- No Fretboard Inlays

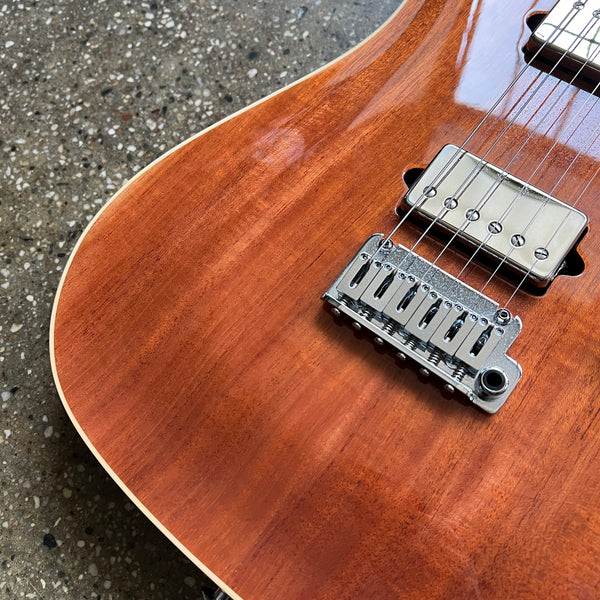

- Gotoh 510 2-Post Tremolo Bridge
- Solid Saddles
- Steel Block
- Chrome Hardware
- SSV Neck Pickup
- SSV Plus Bridge Pickup
- 5-Way Blade Switch
- One Volume & One Tone Control
- Natural Finish

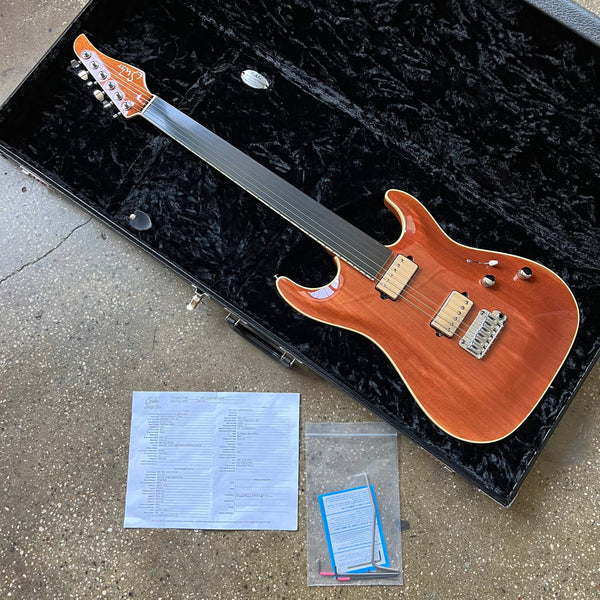

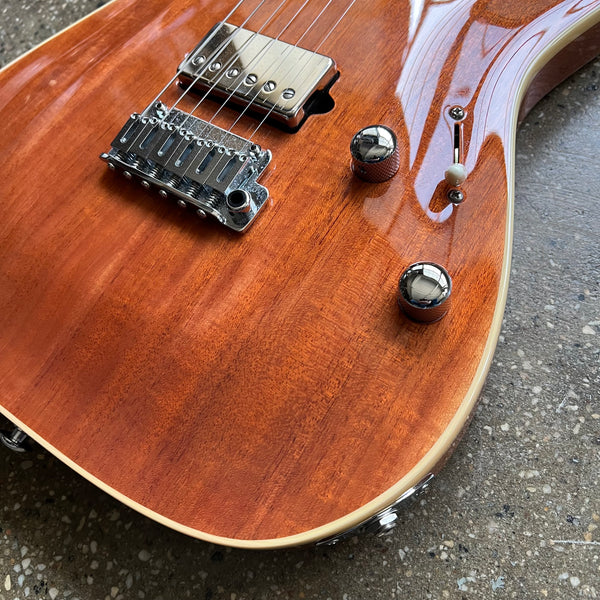

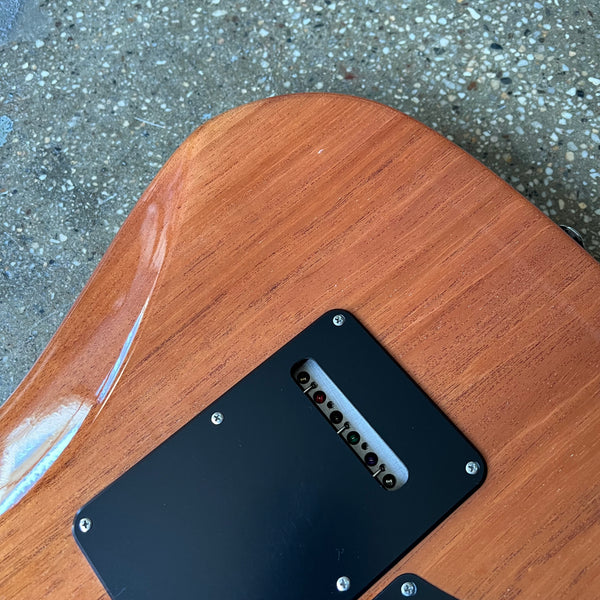

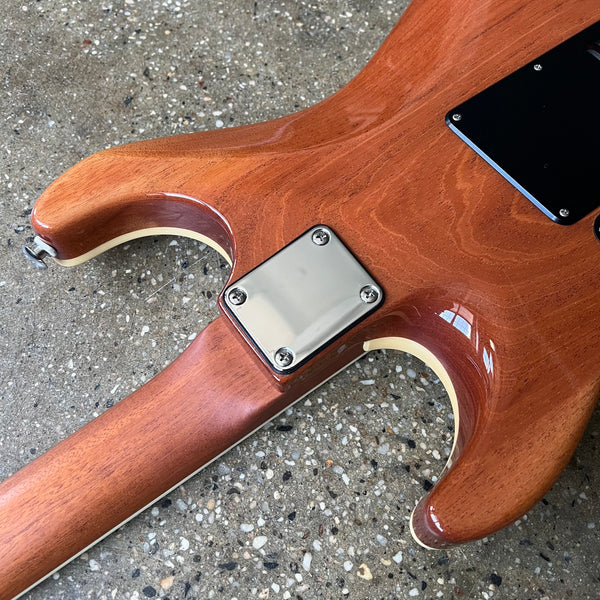

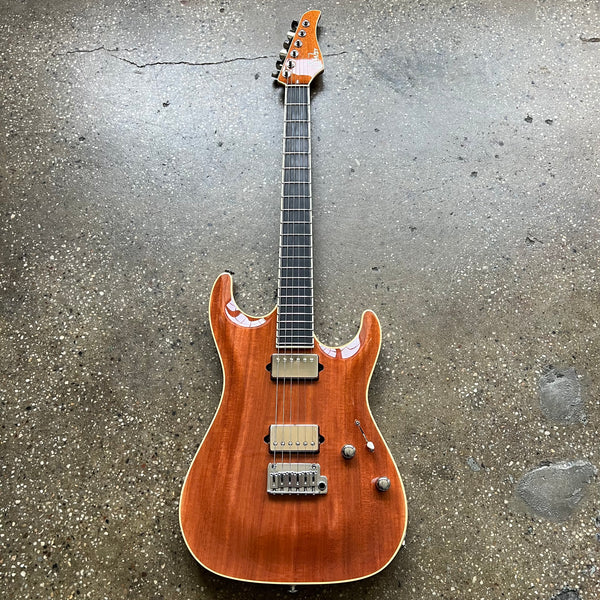

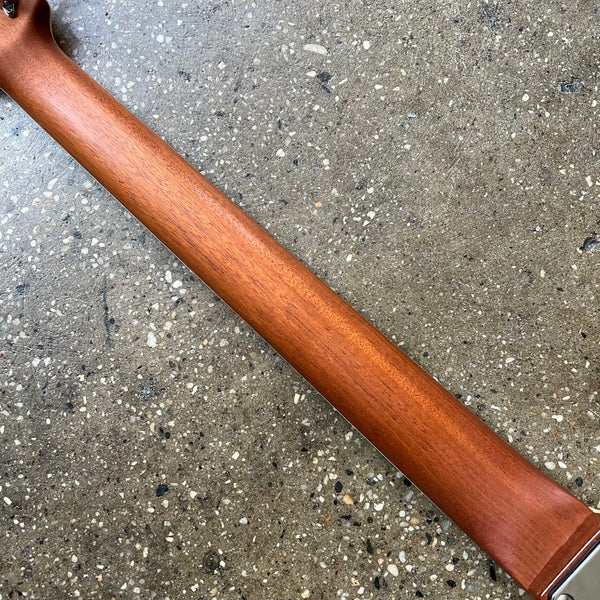

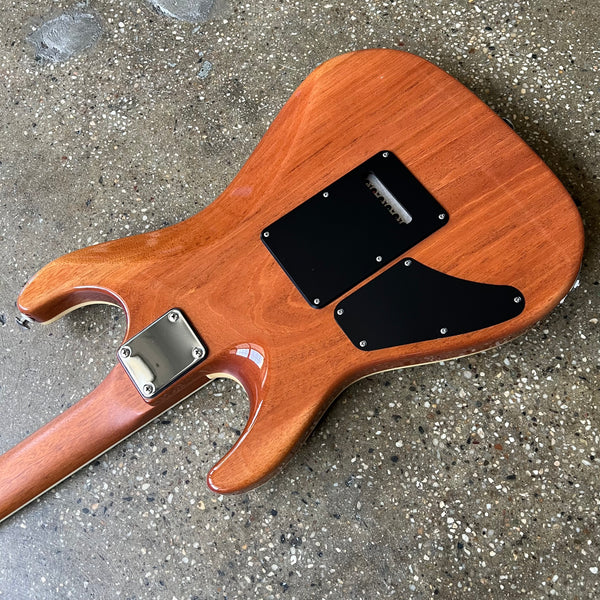

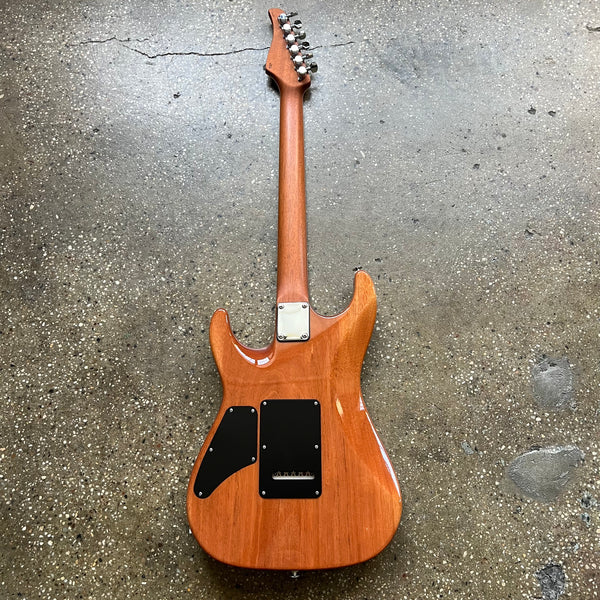

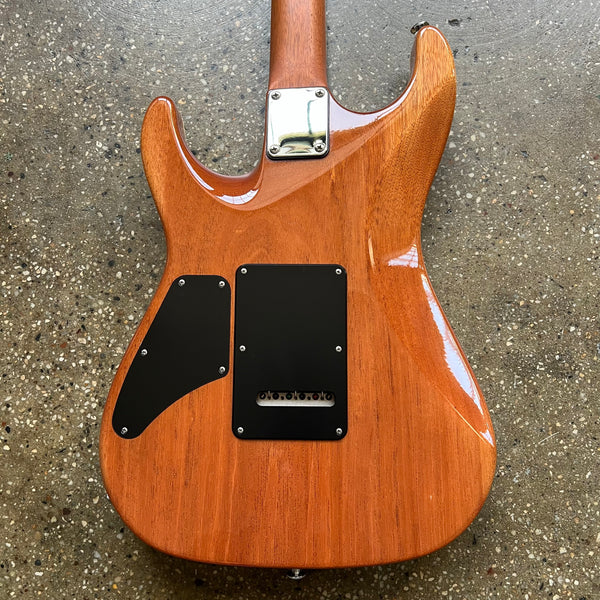

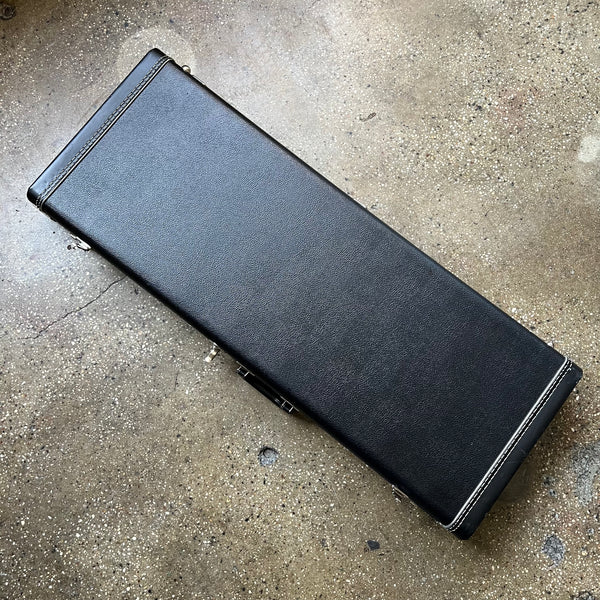

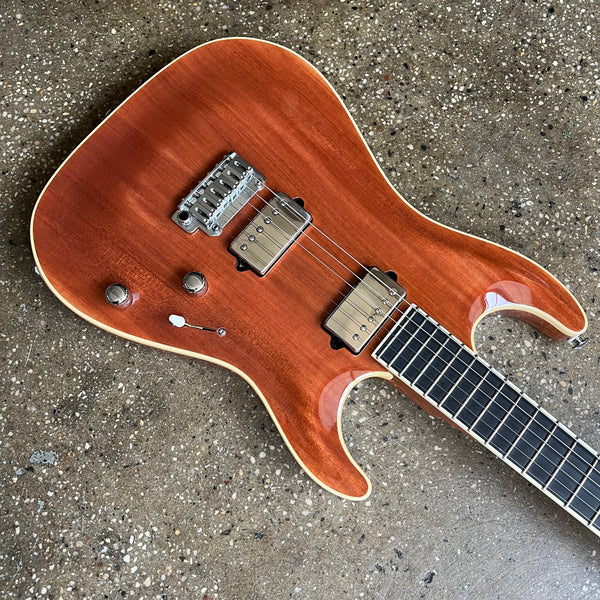

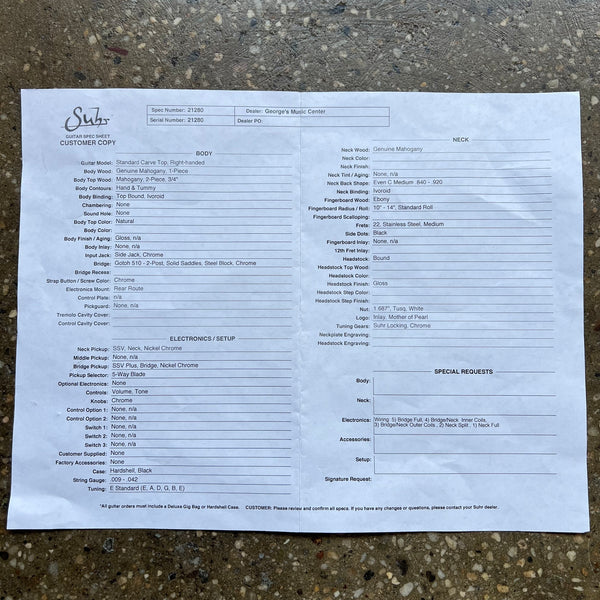

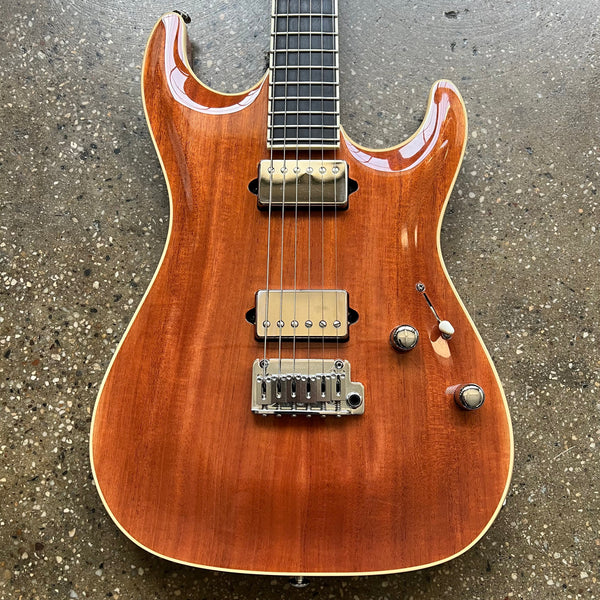

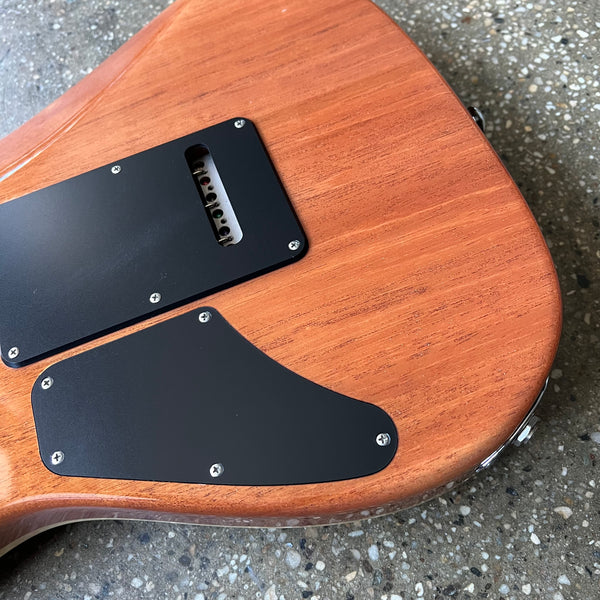

Reference Images

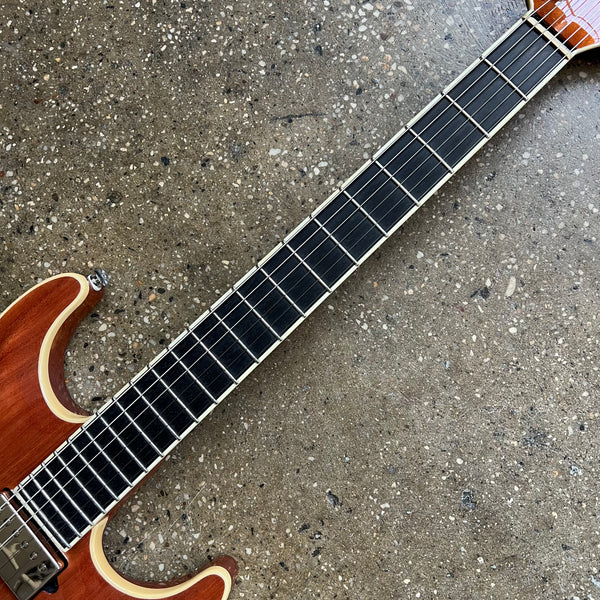

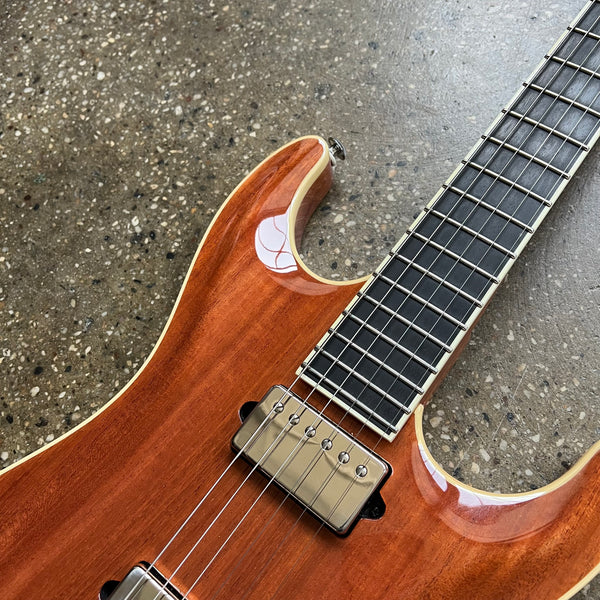

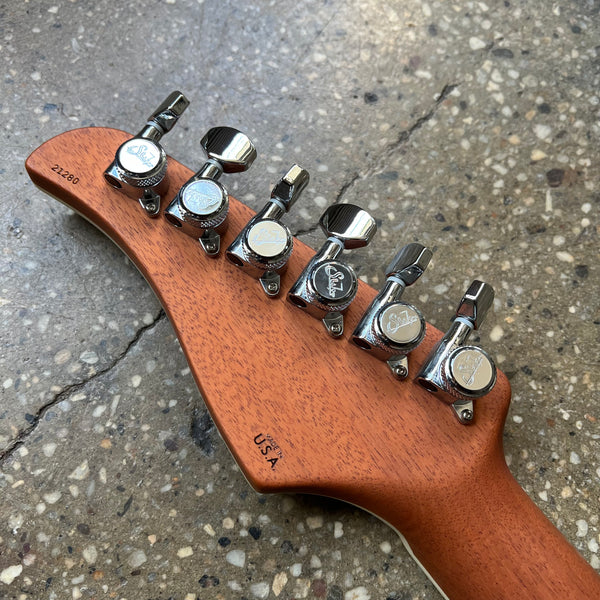

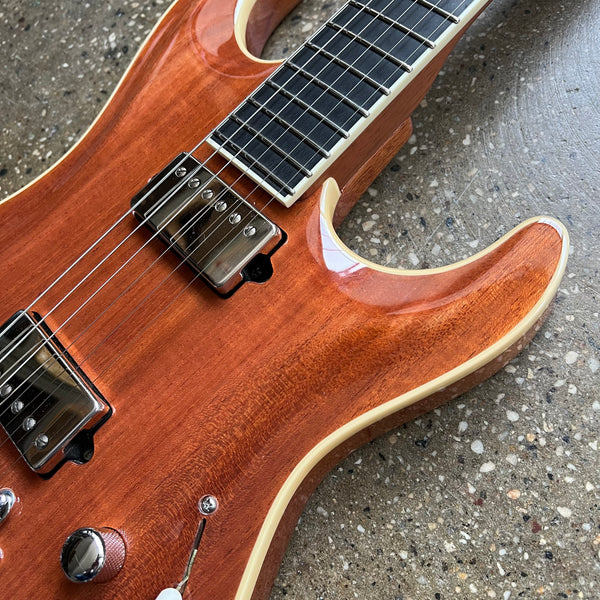

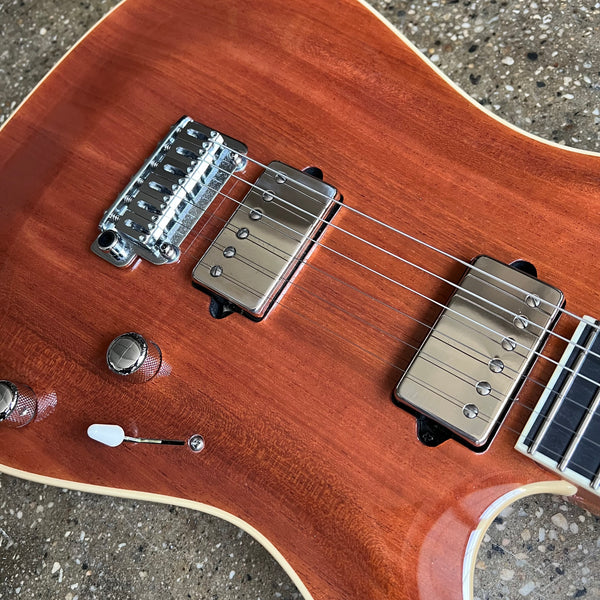

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Standard Carve Top Mahogany listed above. For larger pics, click on an image to open in a new tab.
