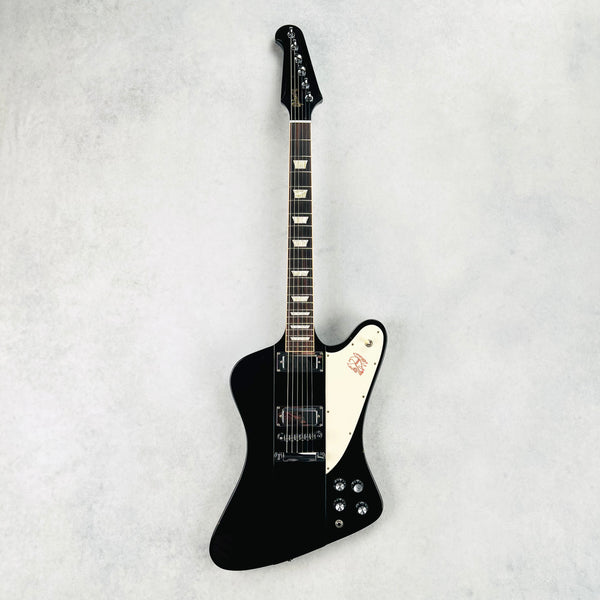

The Firebird V is an electric guitar built by Gibson. This solid body guitar was manufactured in the United States and is a Gibson Electric Guitars model. Key features include Mahogany Body Wings, 9-Ply Mahogany/Walnut Neck, Rosewood Fingerboard, Trapezoid Inlays, Dual Mini Humbucker Pickups and Ebony finish. The specs listed below pertain to the 2013 product year model pictured on this page.
Factory Specs
- Mahogany Body Wings
- 9-Ply Mahogany/Walnut Neck

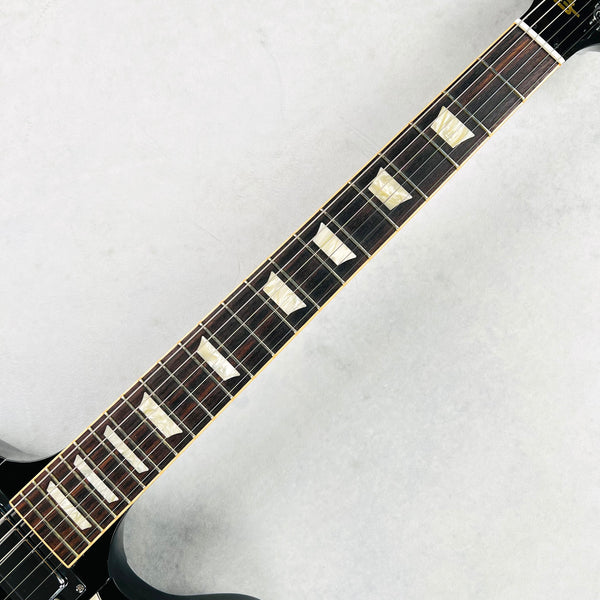

- Rosewood Fingerboard
- Neck Through Body Construction
- Bound Neck
- Trapezoid Inlays
- 22 Frets
- 24.75” Scale Length
- 1.6875” Nut Width
- 12” Radius

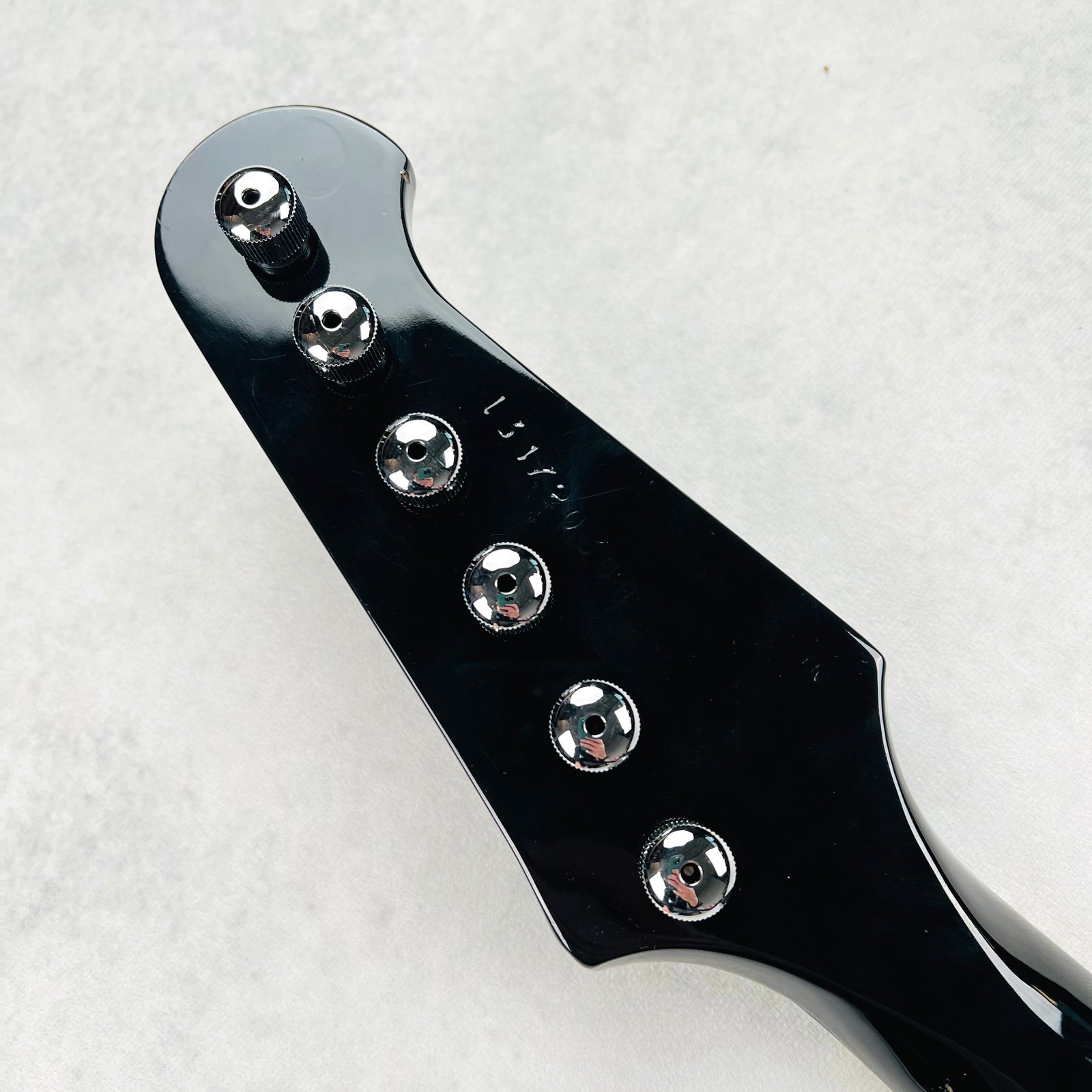

- Steinberger Gearless Tuners
- Stop Tailpiece
- Tune-O-Matic Bridge

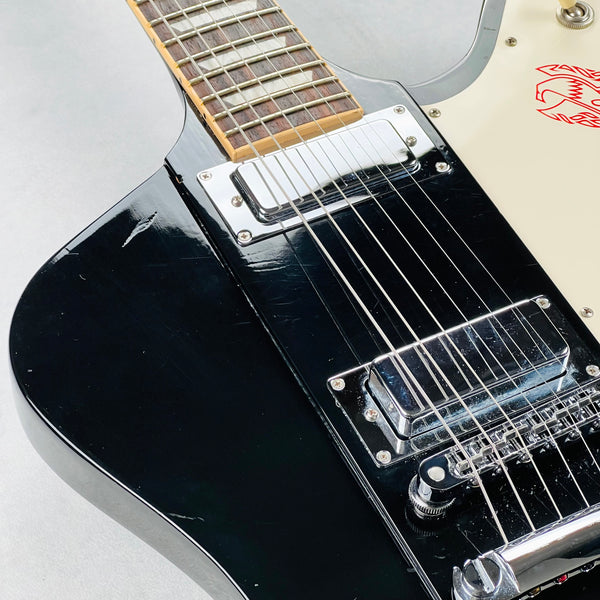

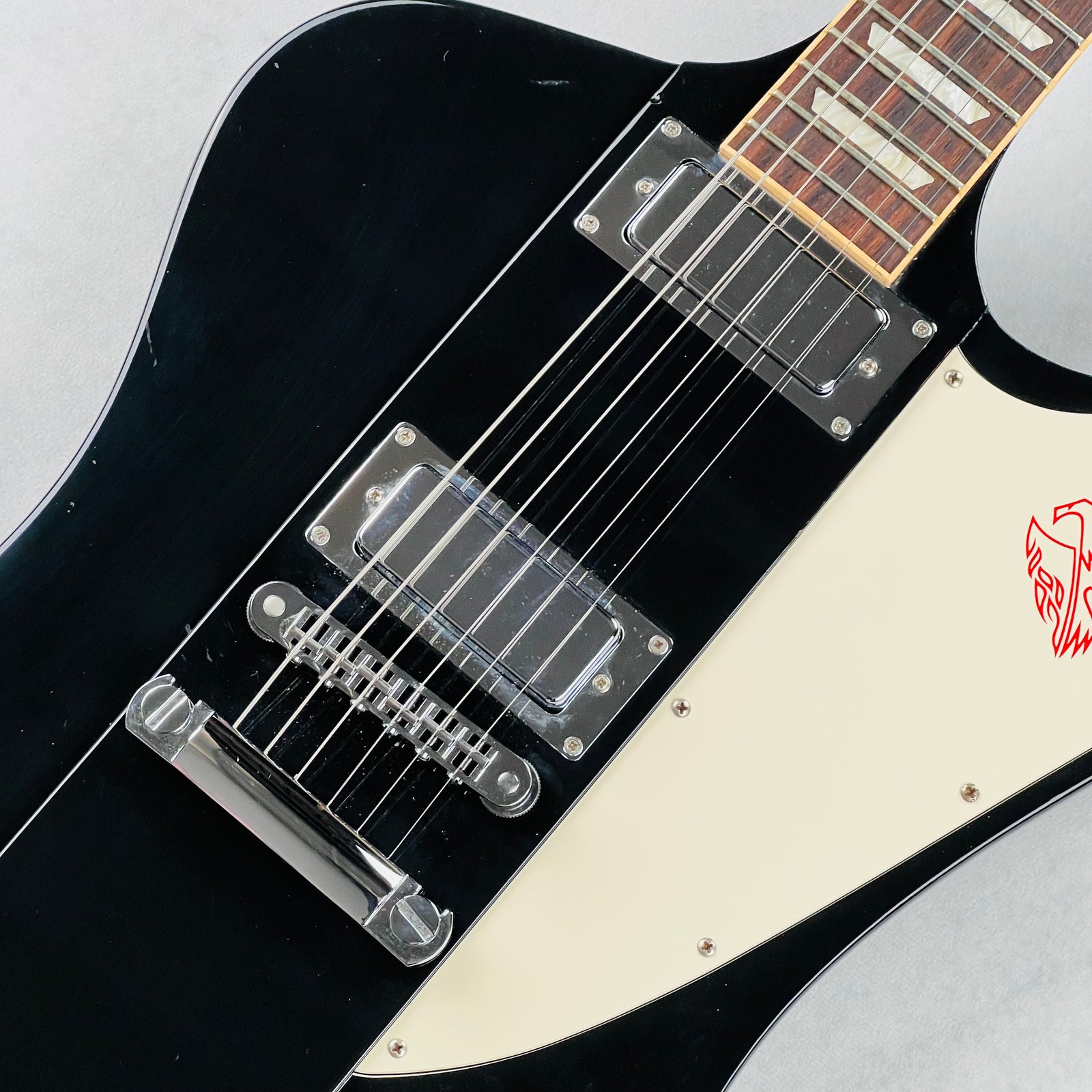

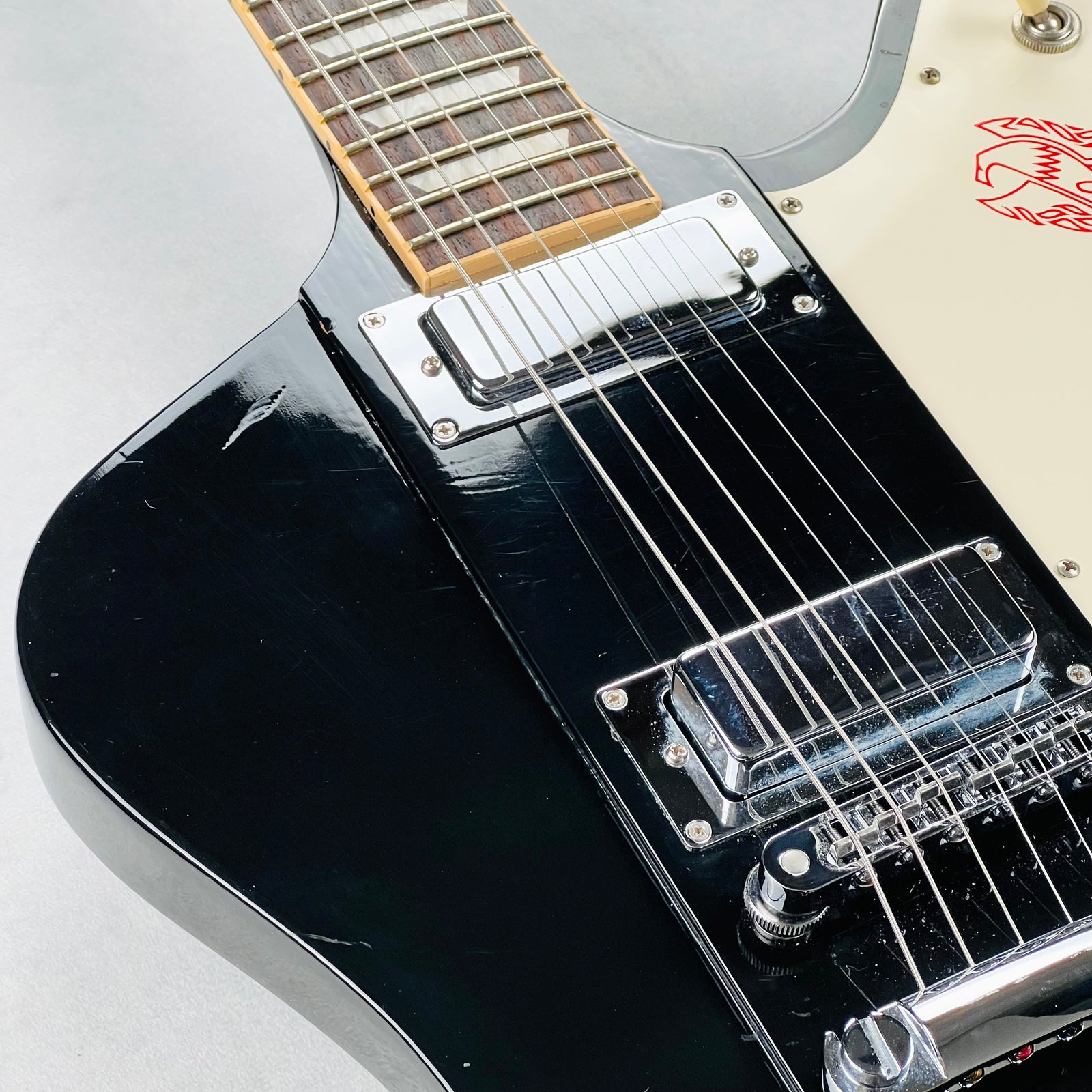

- Dual Mini Humbucker Pickups

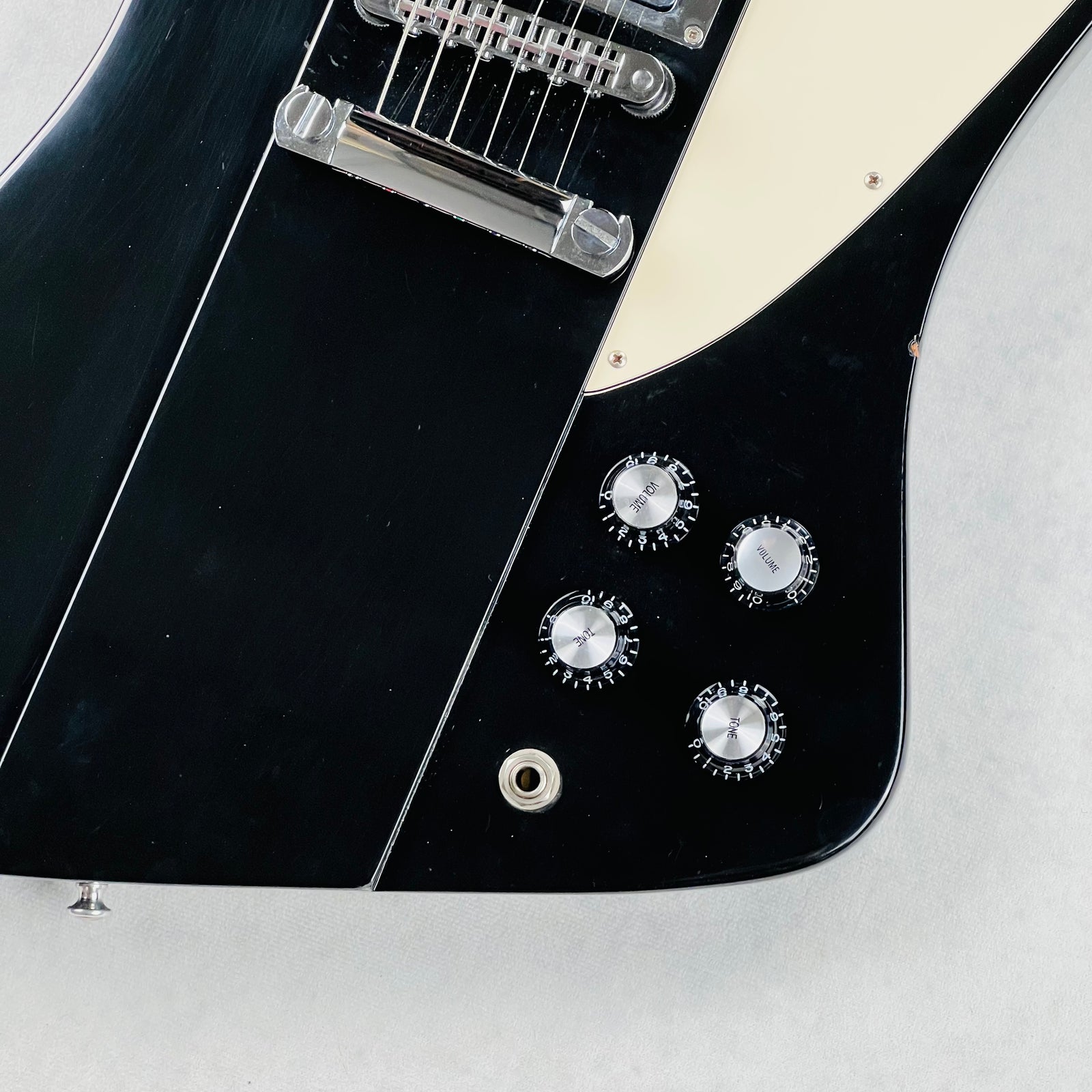

- Two Volume & Two Tone Controls
- 3-Way Toggle Switch
- White Pickguard
- Nitro Finish

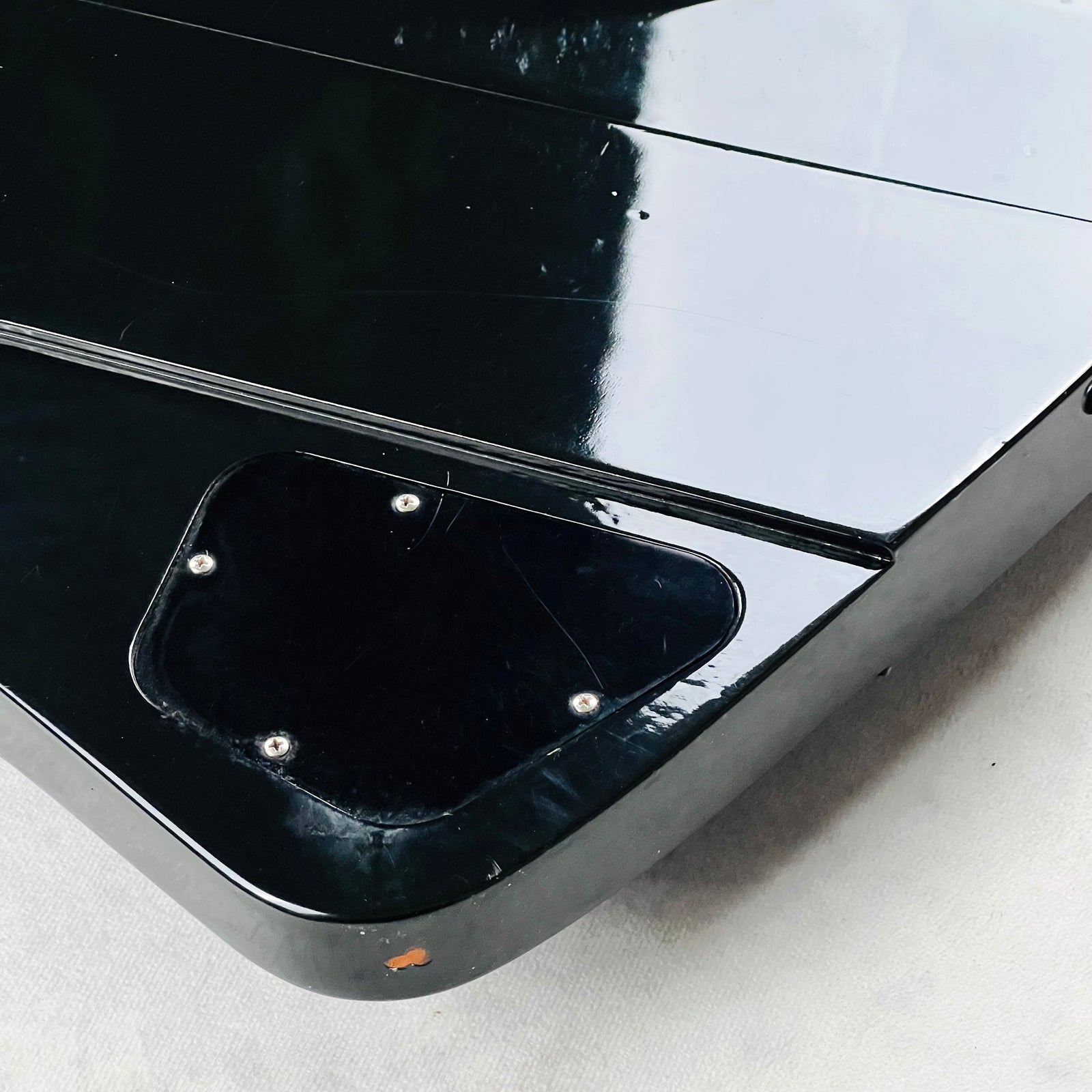

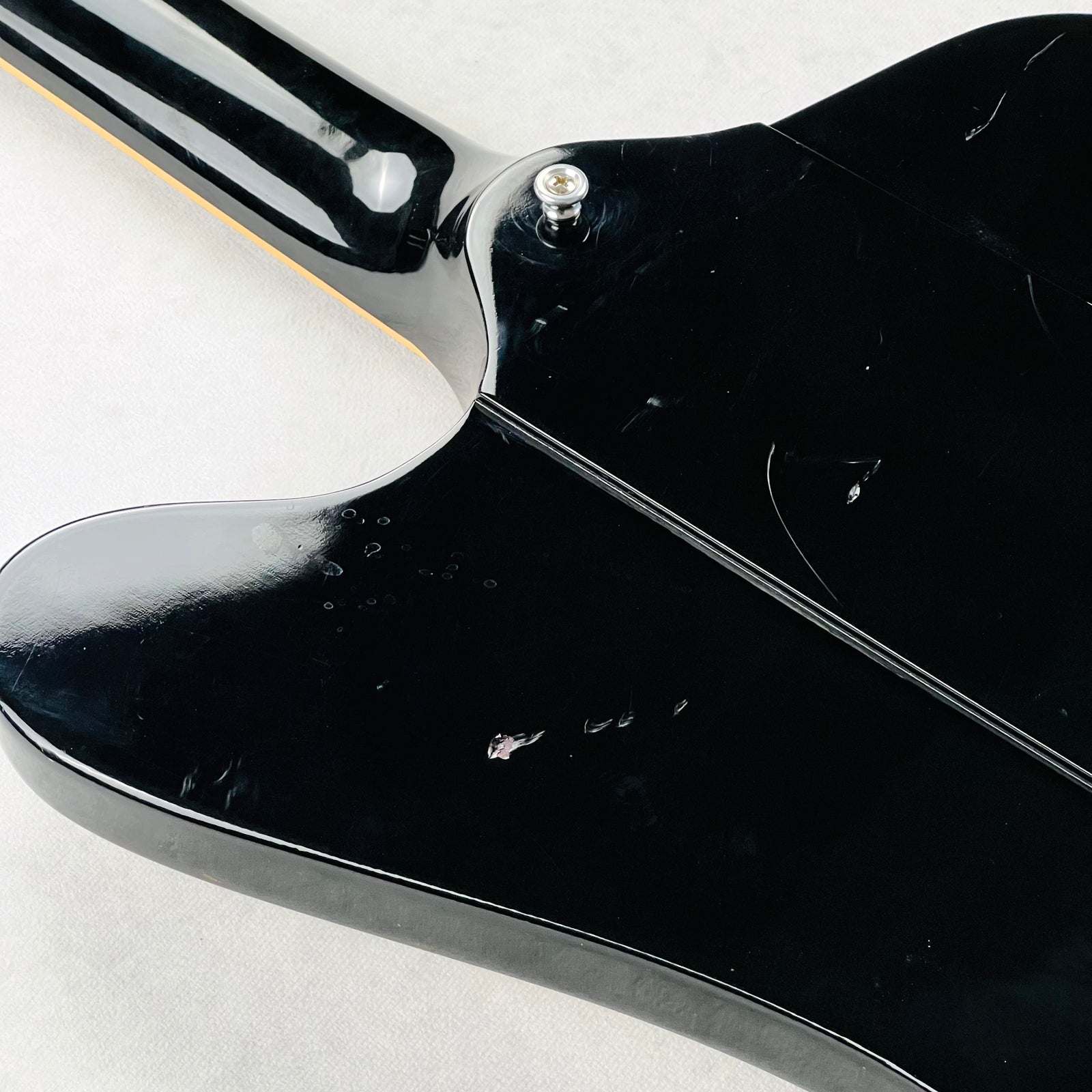

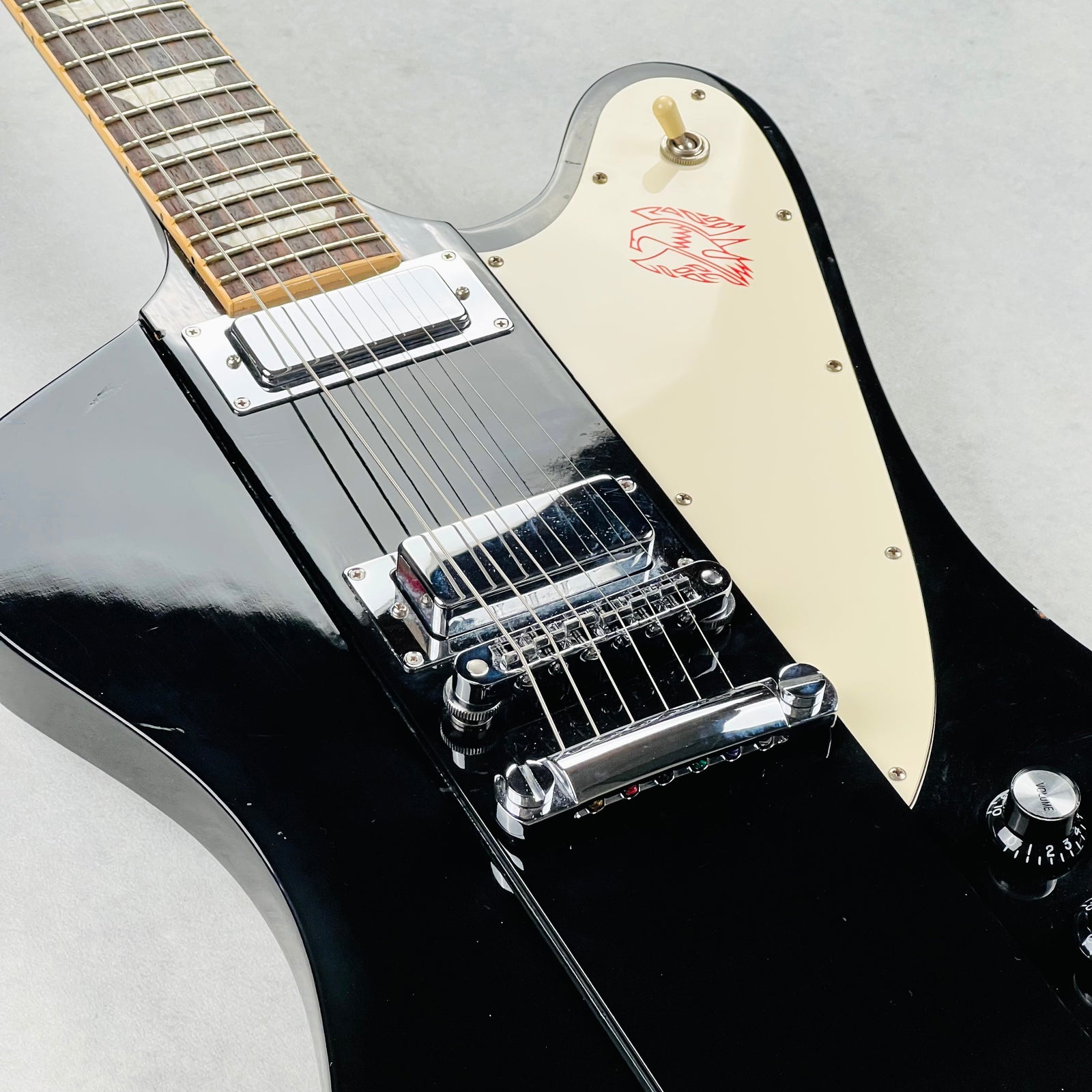

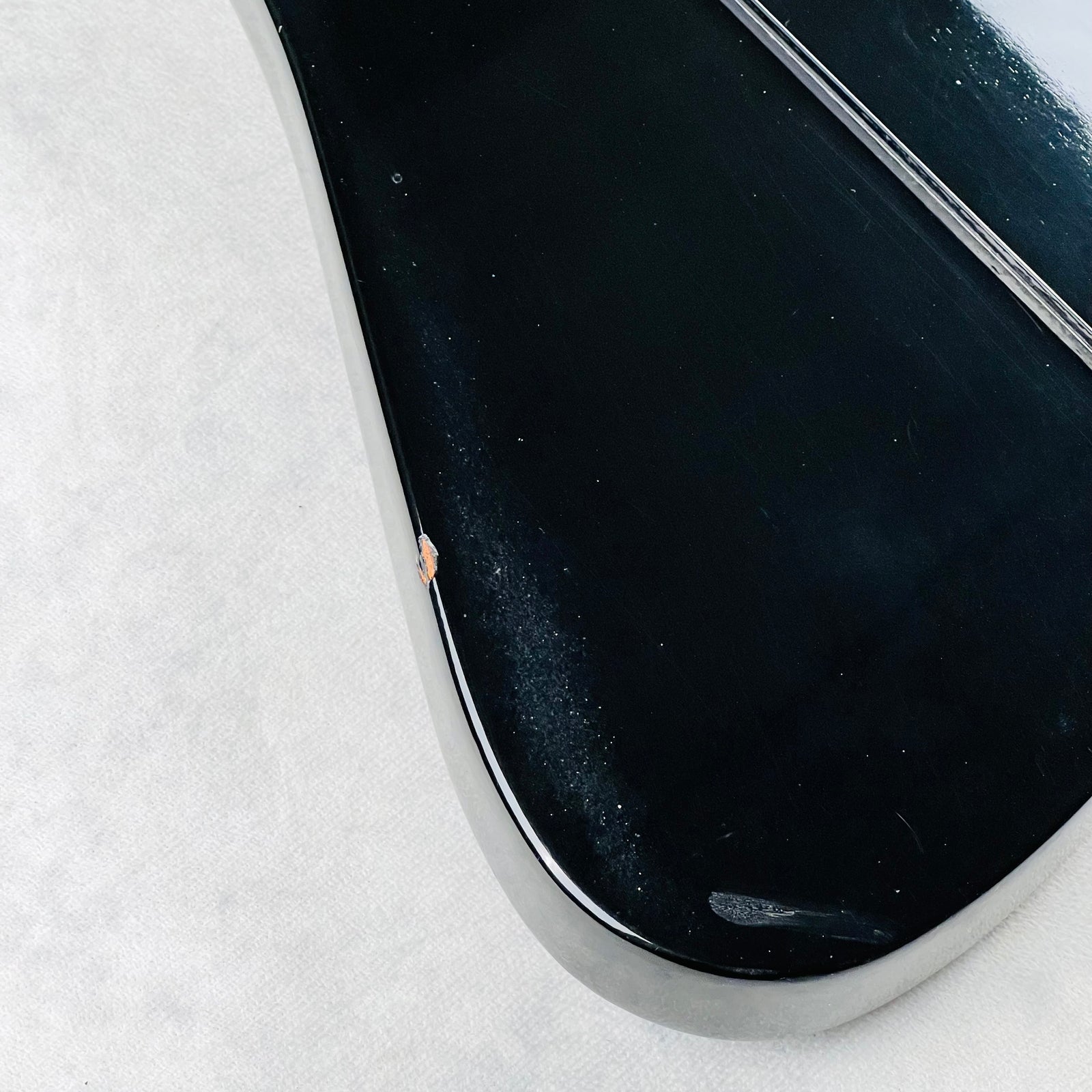

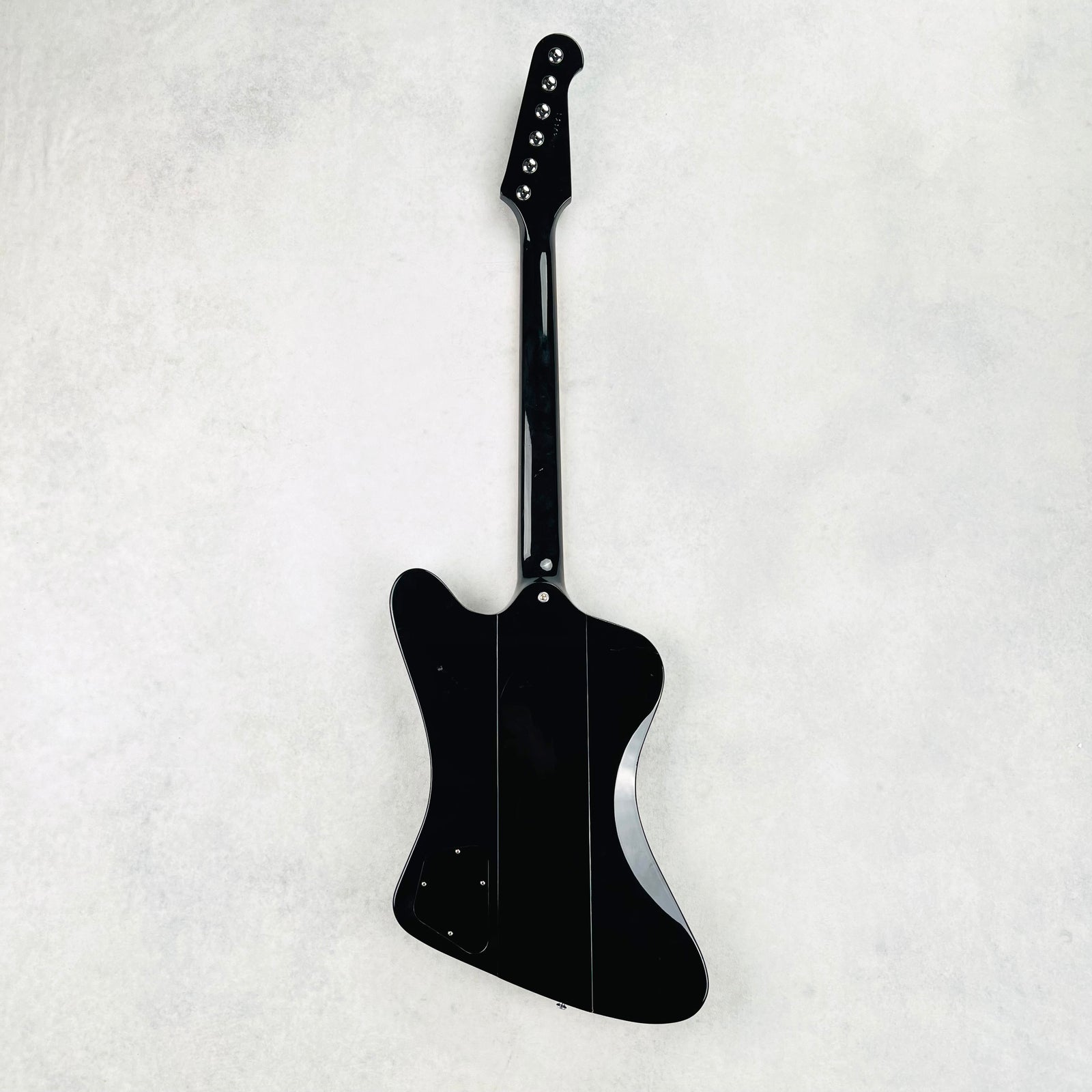

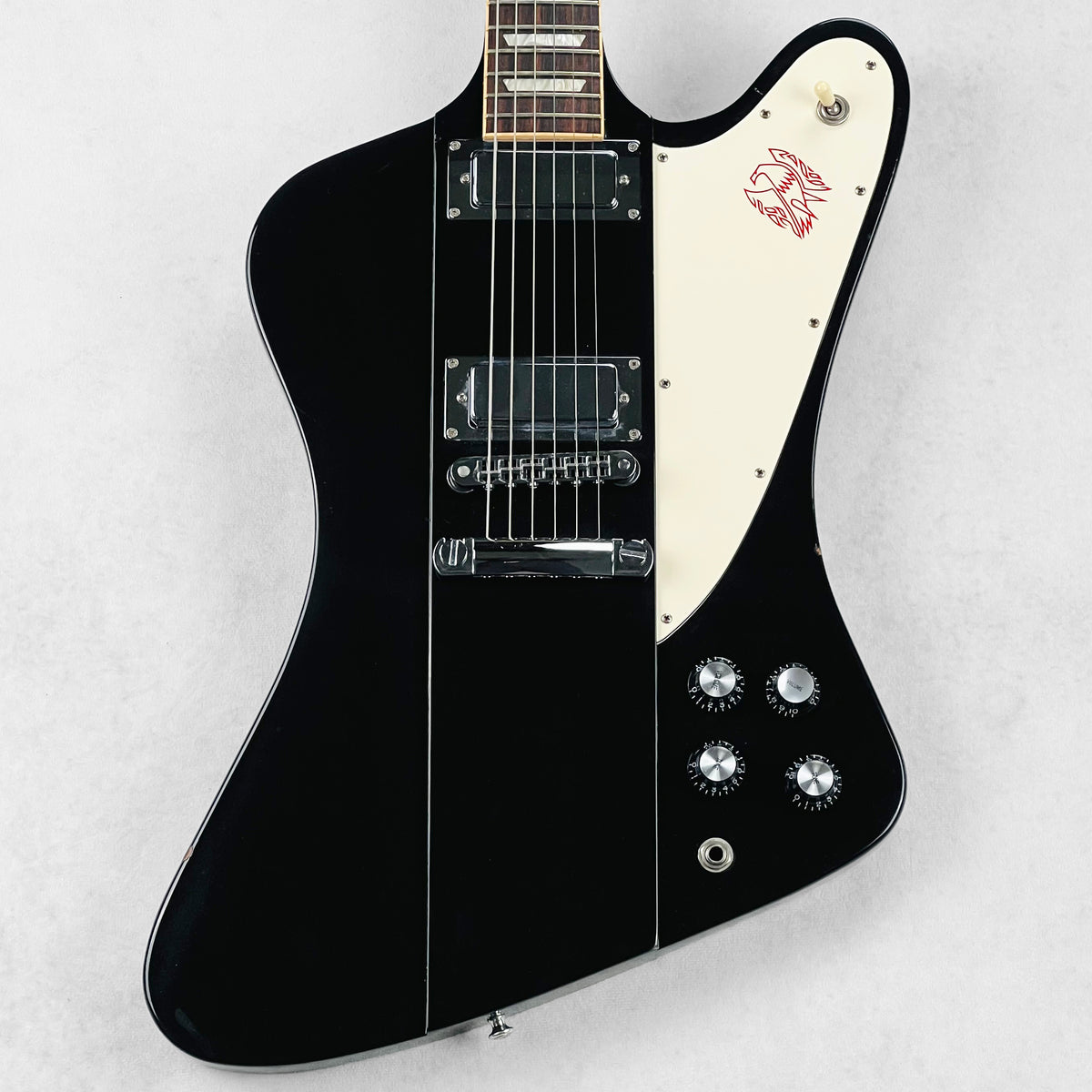

Reference Images

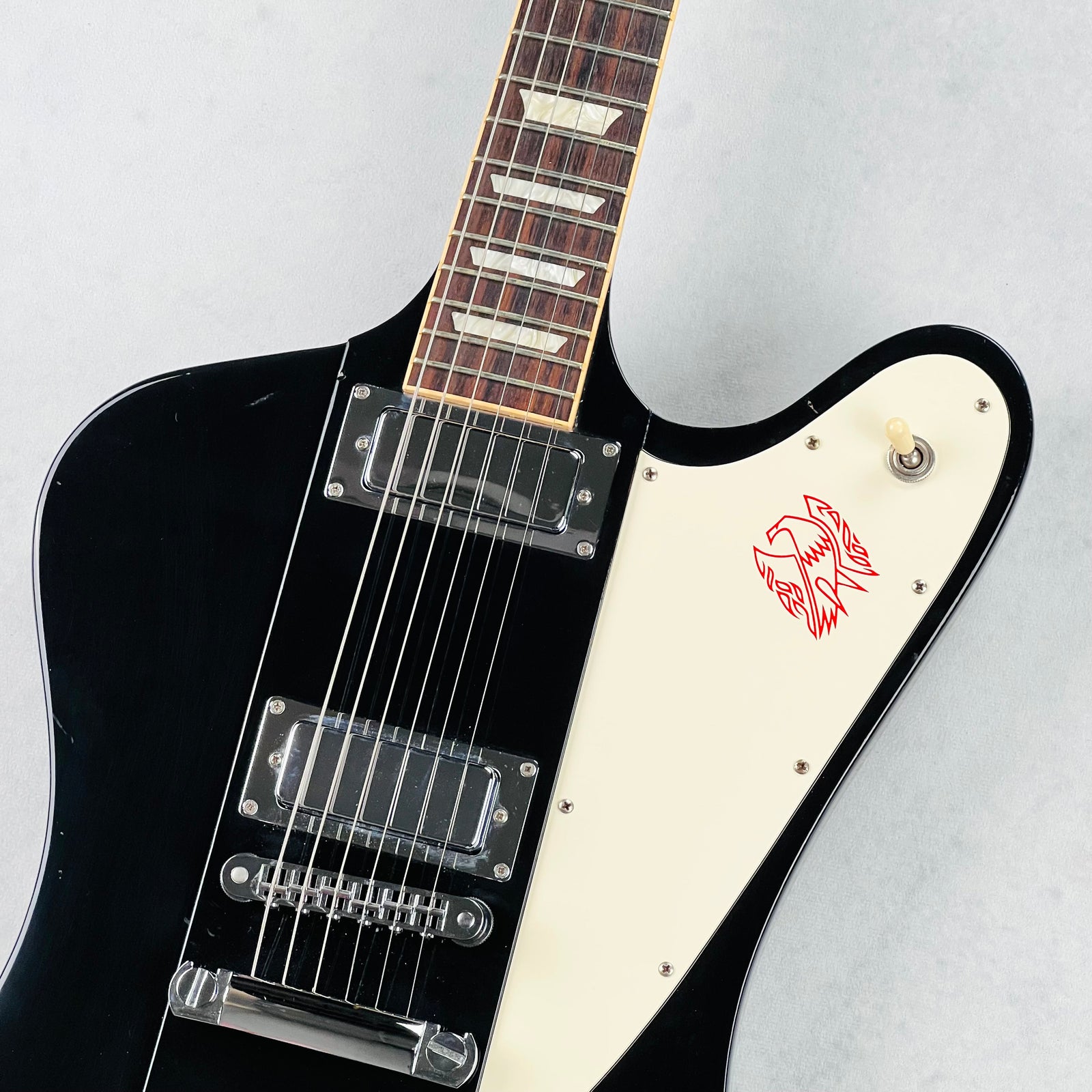

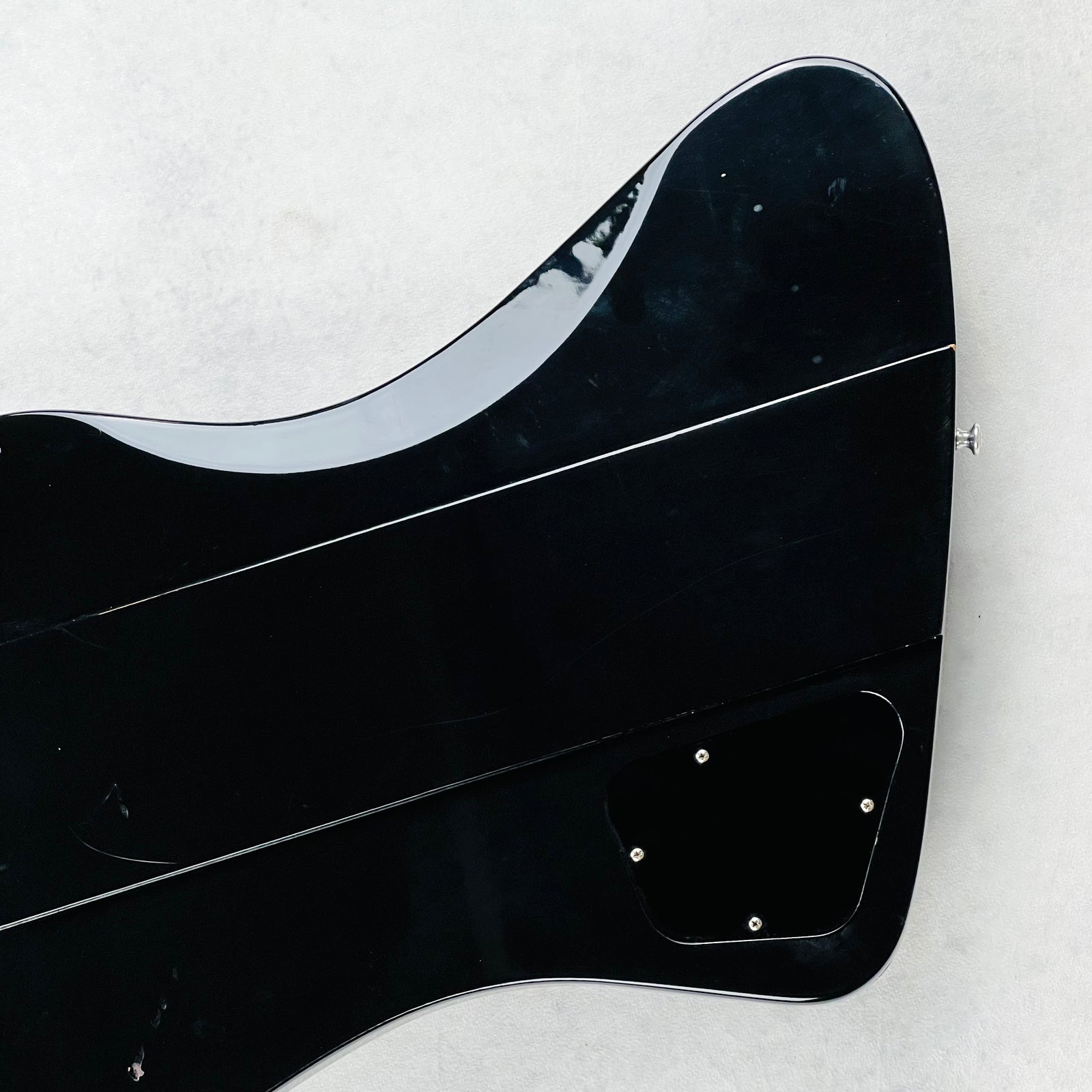

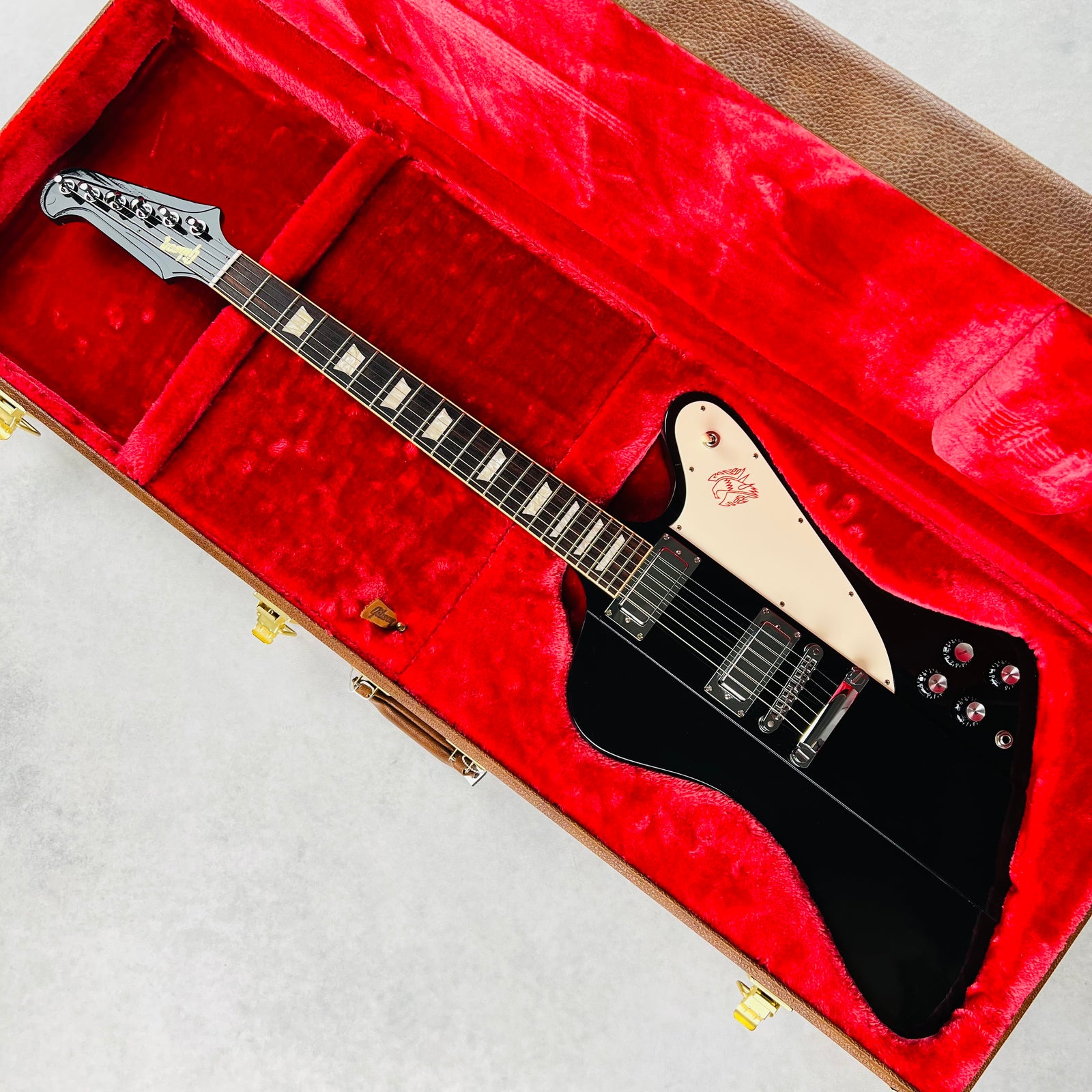

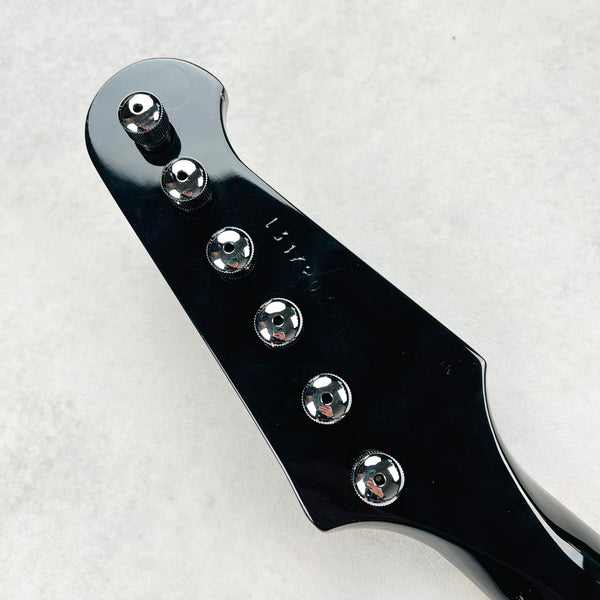

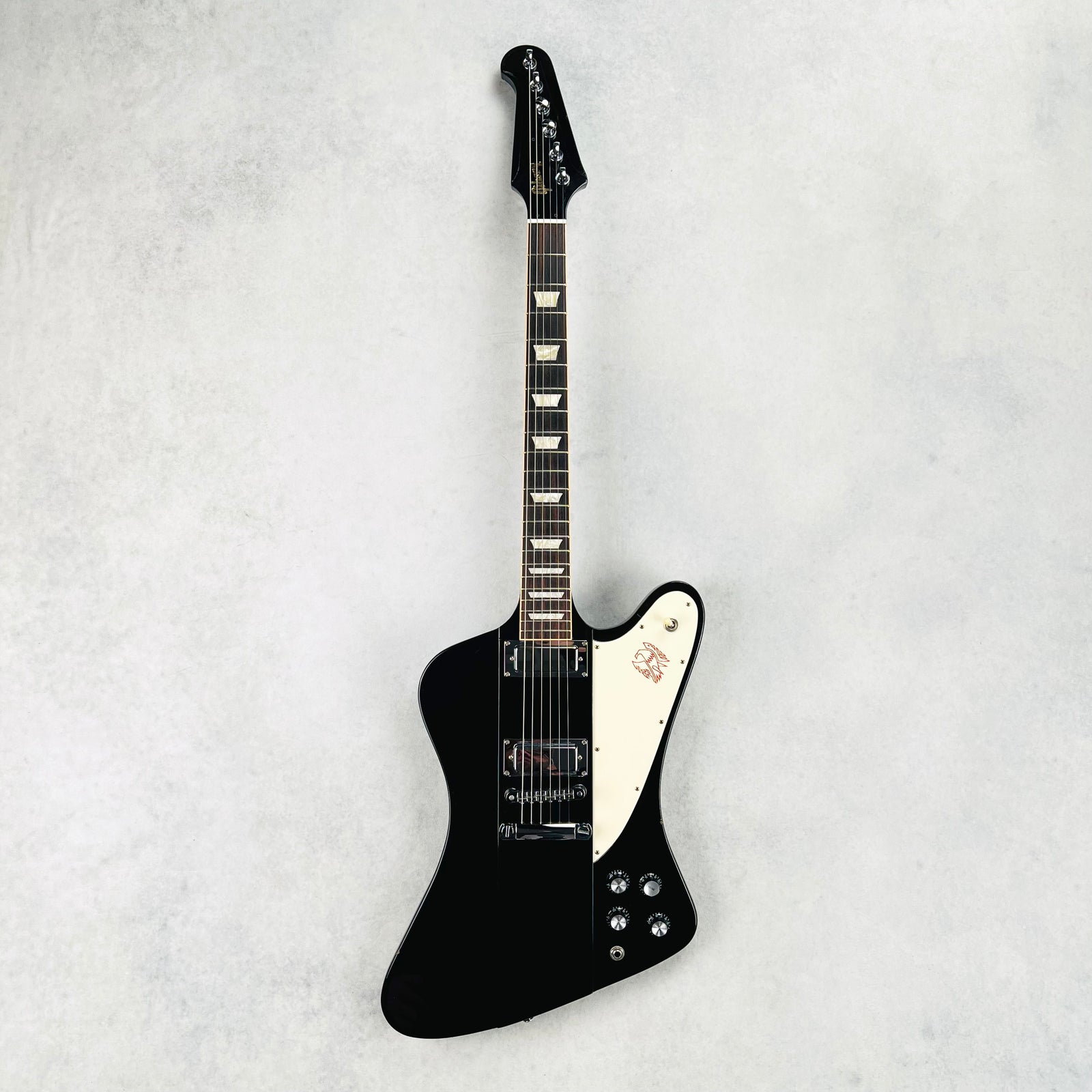

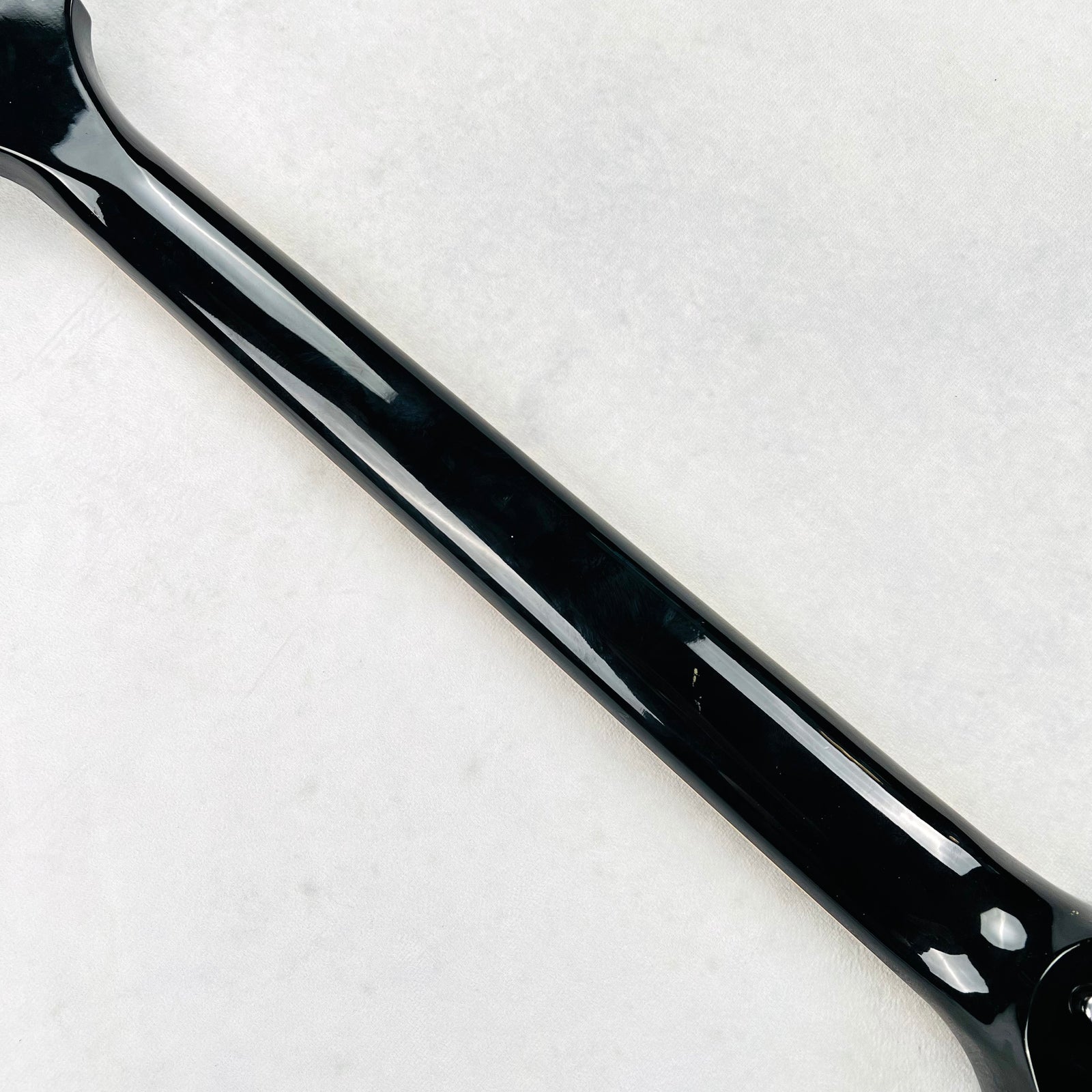

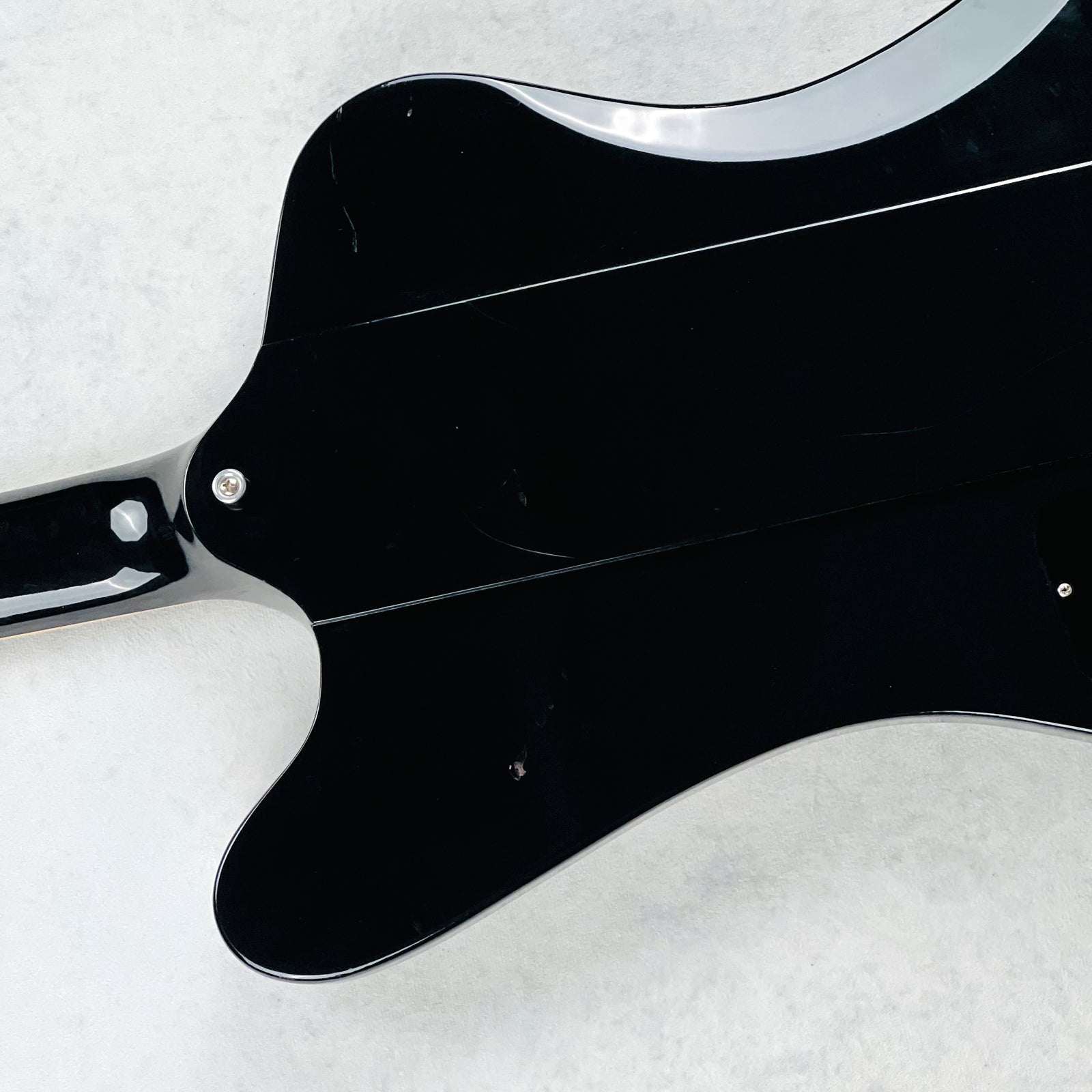

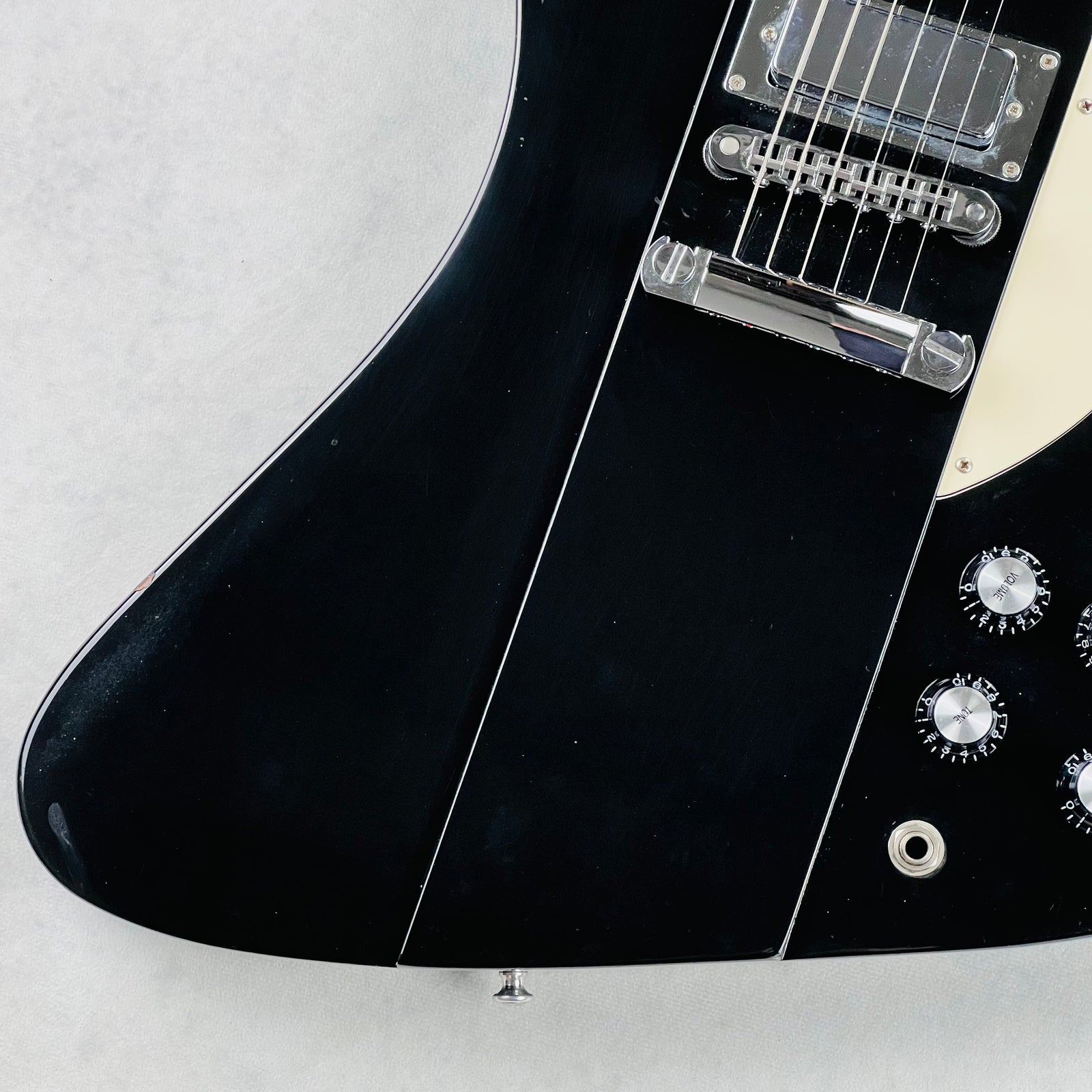

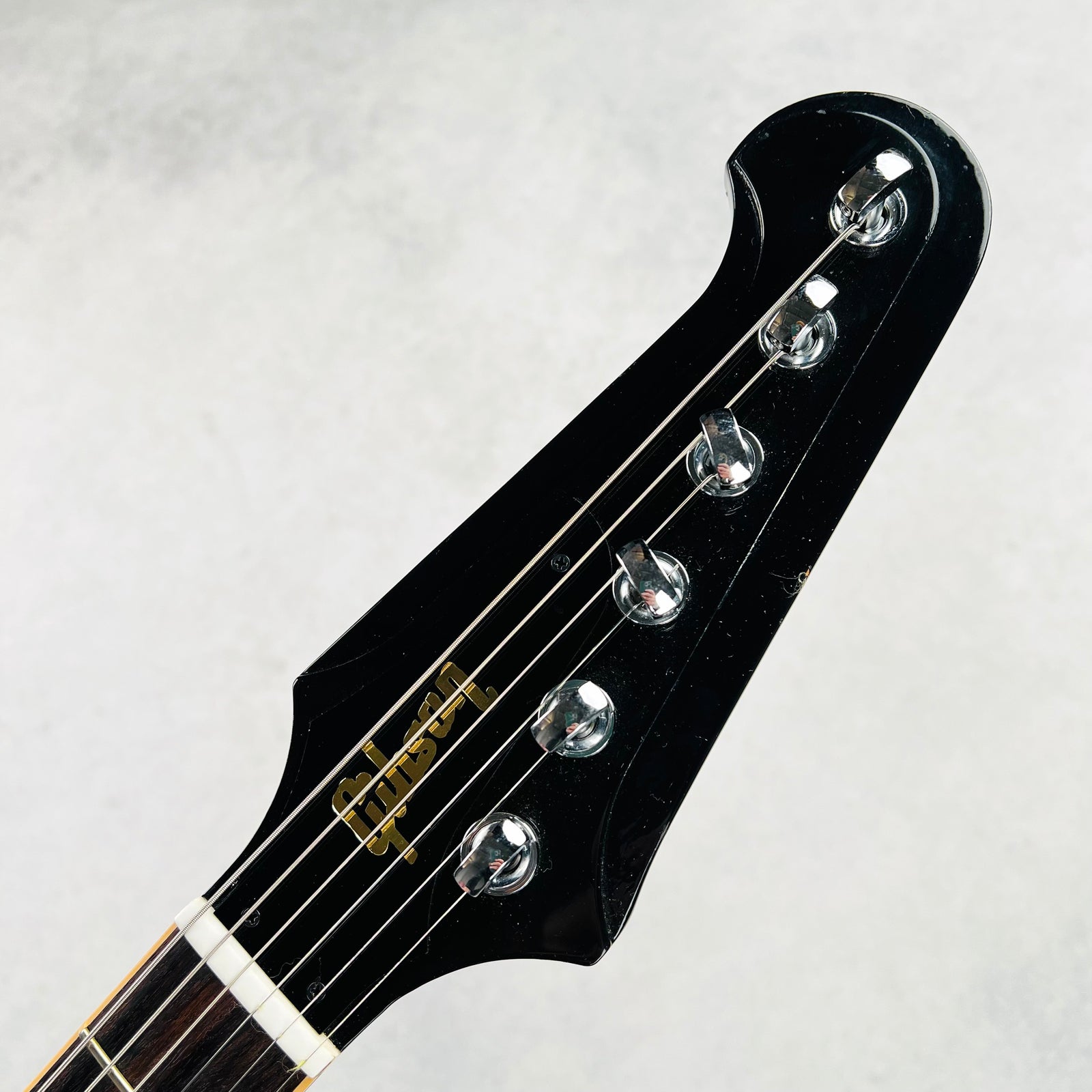

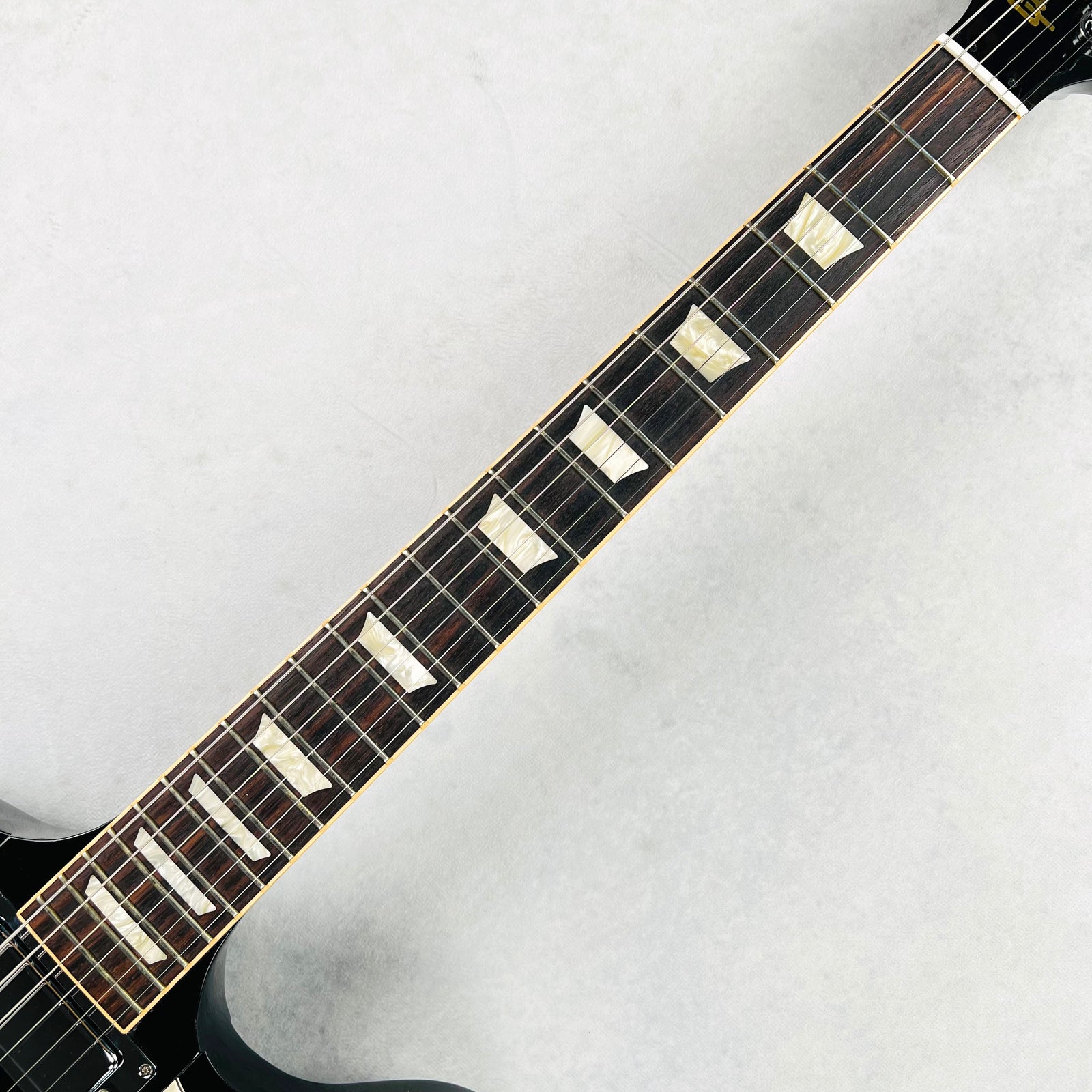

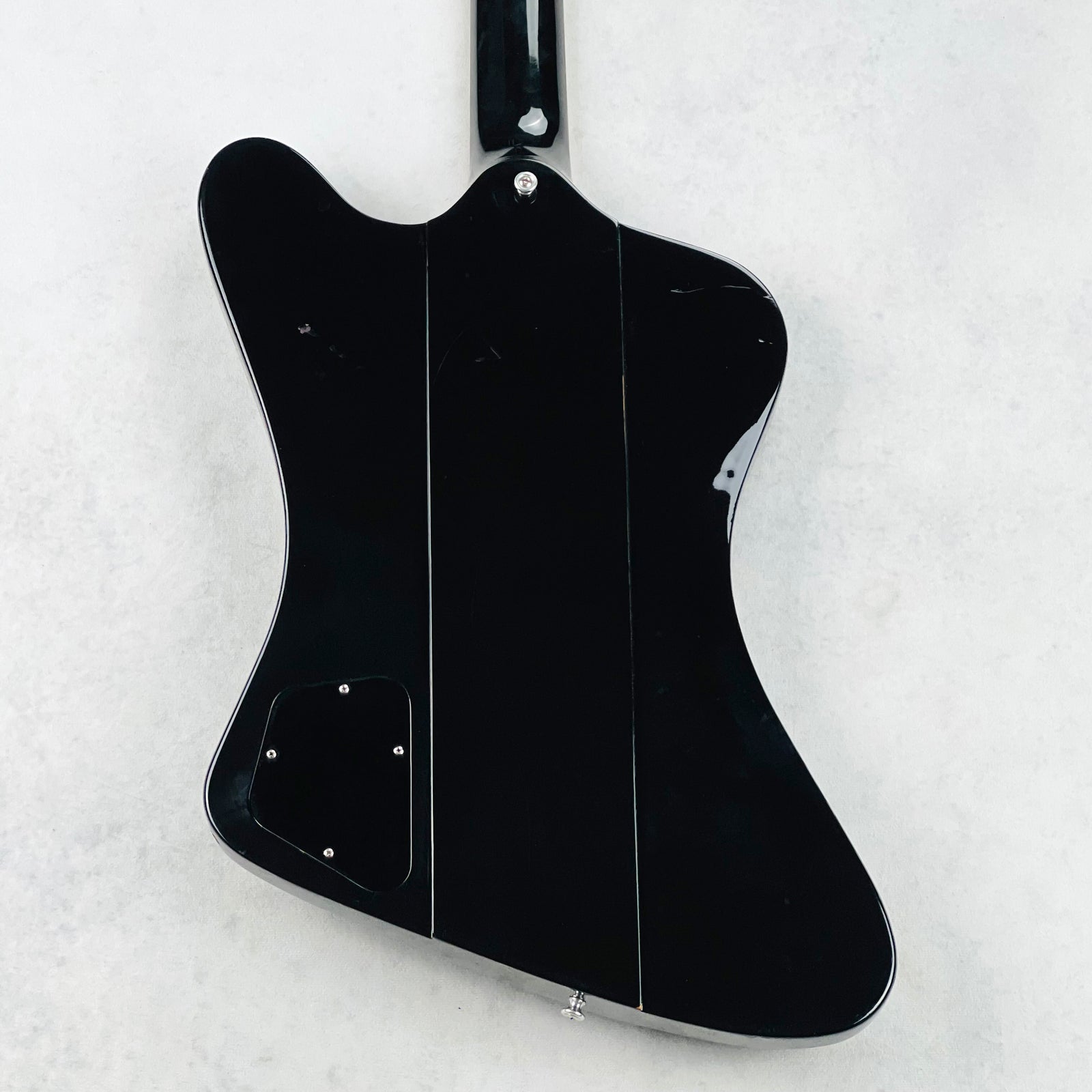

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Firebird V listed above. For larger pics, click on an image to open in a new tab.
