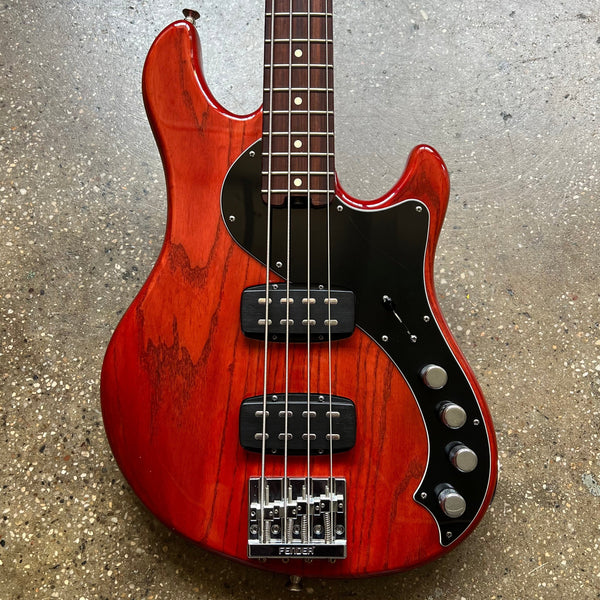

The American Deluxe Dimension Bass IV HH is a 4-string bass guitar built by Fender. This solid body bolt on guitar was manufactured in Corona, CA in the United States and is a Fender American Deluxe Series model. Key features include an Ash Body, Maple Neck, Rosewood Fretboard, Fender HiMass Bridge, Dual Dimension Humbucker Pickups and Cayenne Burst finish. The specs listed below pertain to the 2013 product year model pictured on this page.
Factory Specs
- Ash Body
- Maple Neck
- Rosewood Fretboard
- Dot Inlays
- 9.5" to 14" Compound Radius
- Medium Jumbo Fret Wire
- Asymmetrical C Shaped Neck
- 21 Frets
- Bone Nut
- 1.625" Nut Width
- 3-Ply Black Pickguard
- 34" Scale Length
- Fender "F" Light-Weight Tuners
- 18-Volt Preamp with Active 3-Band EQ
- Fender HiMass Bridge with Chrome Plated Brass Saddles
- Dual Dimension Humbucker Pickups
- hand Rubbed Oil Finish Neck
- Gloss Urethane Headstock Face
- Gloss Polyester Body Finish

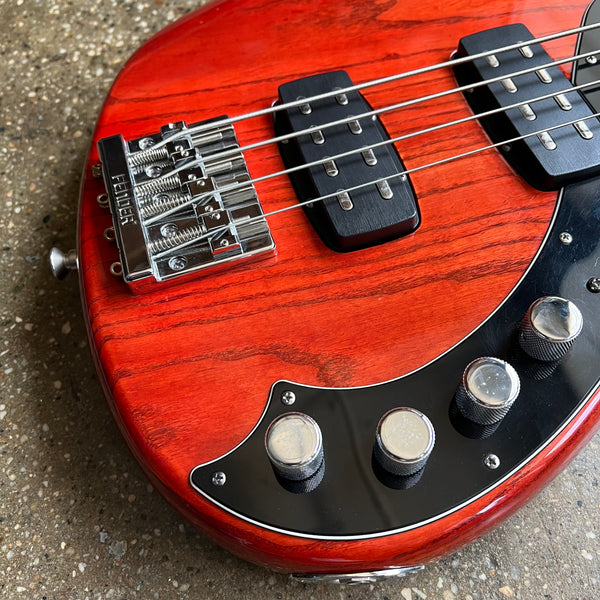

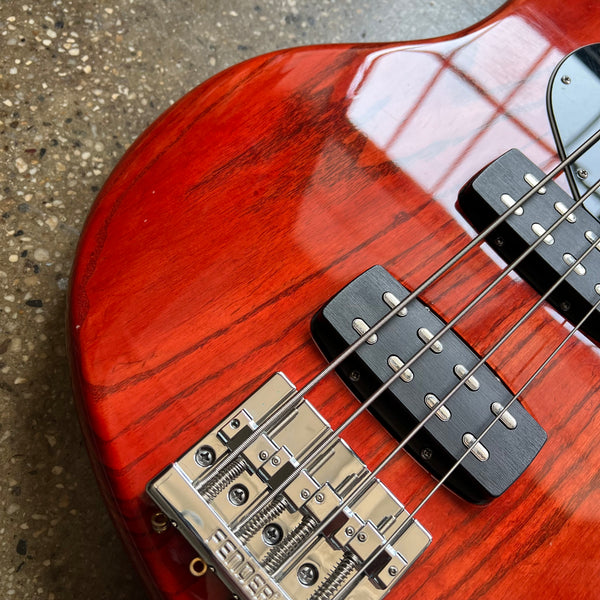

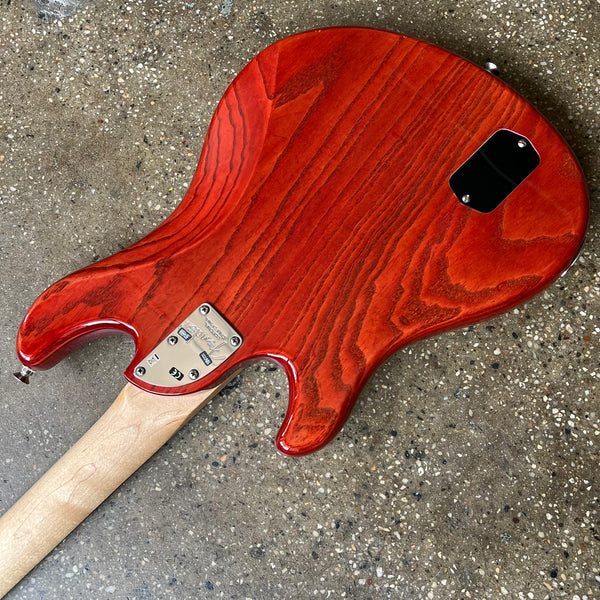

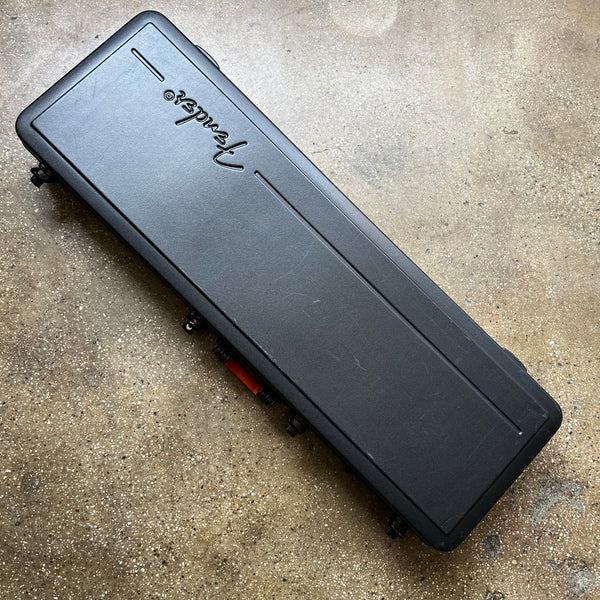

Reference Images

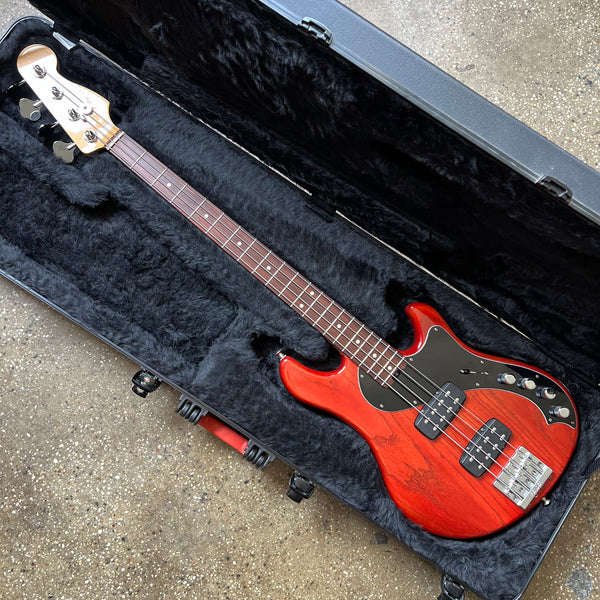

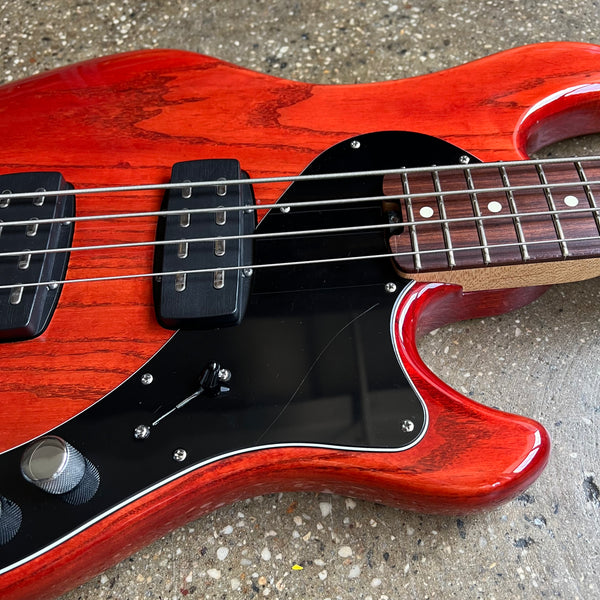

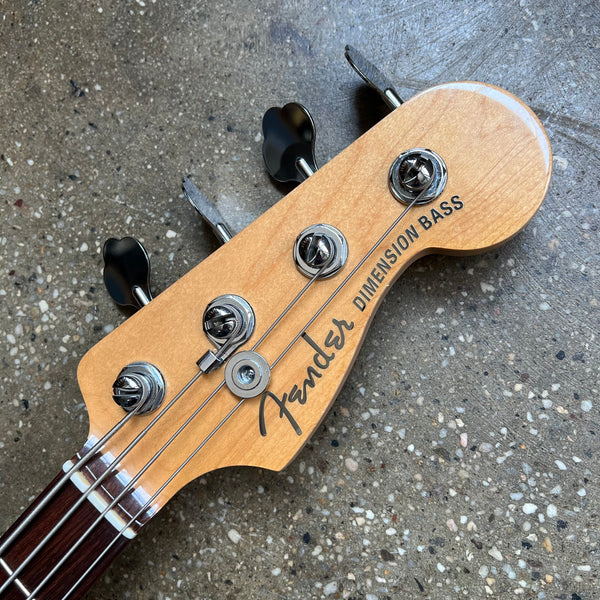

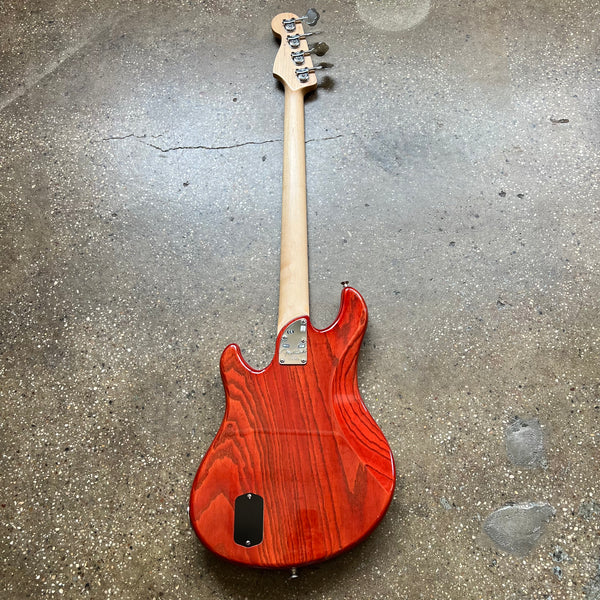

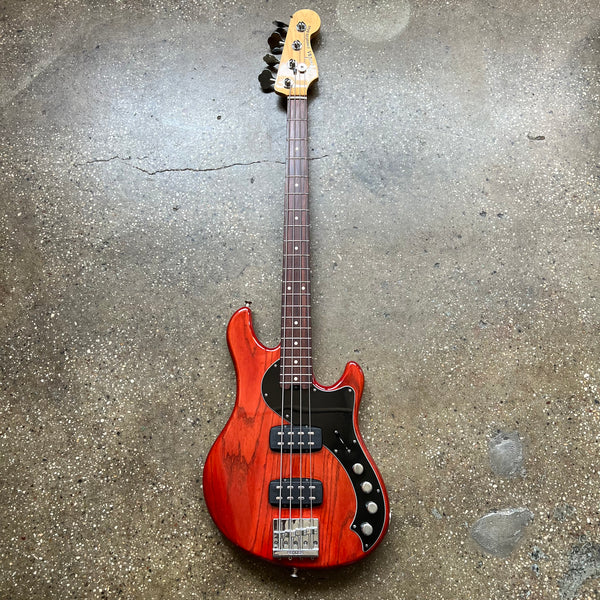

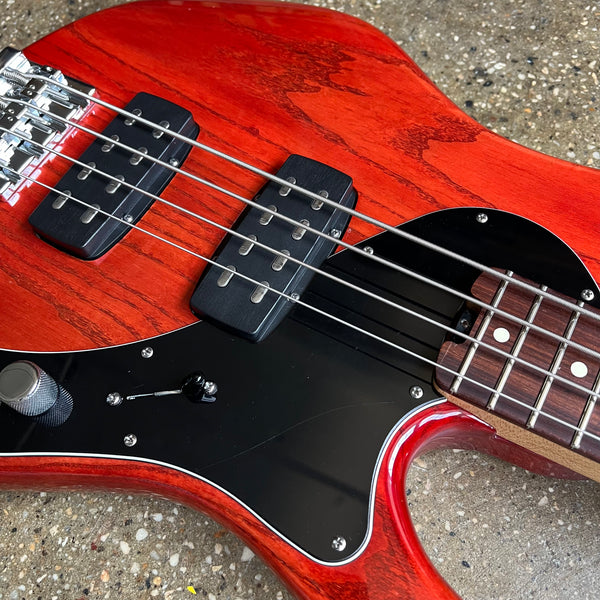

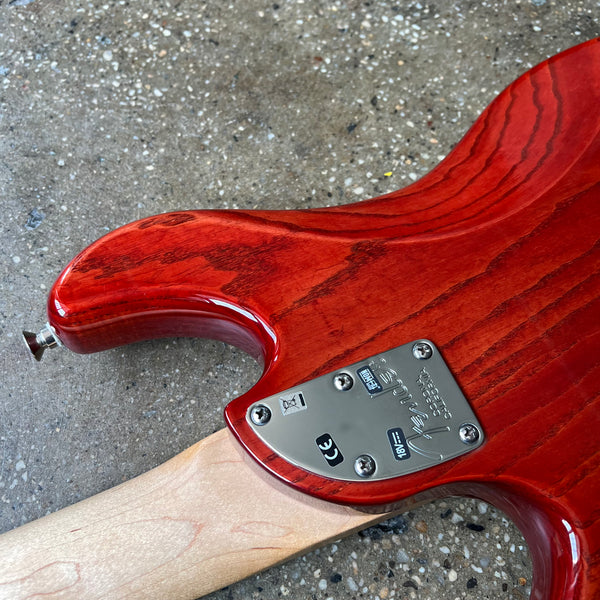

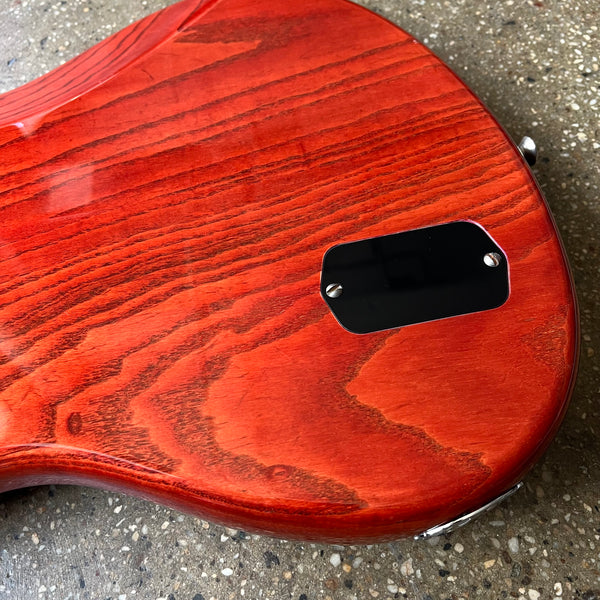

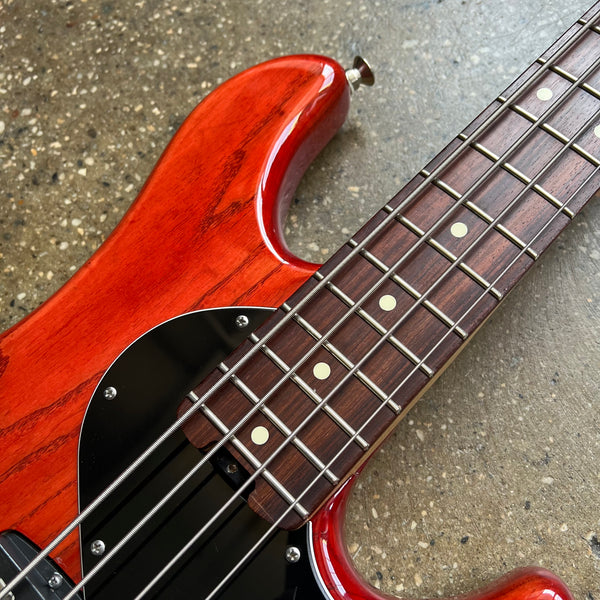

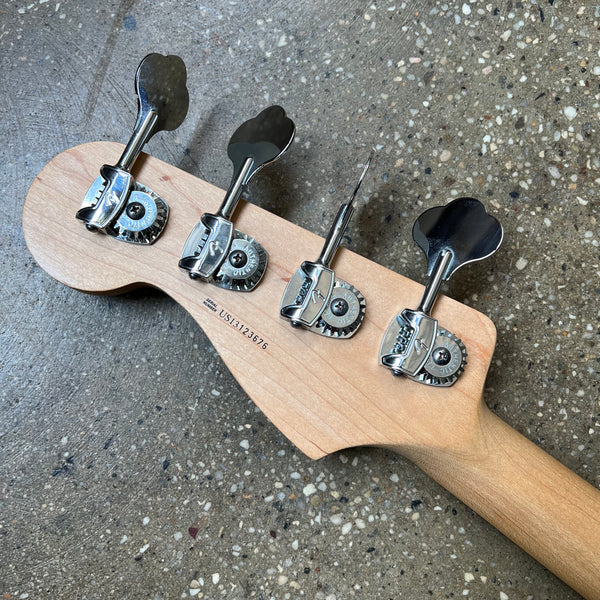

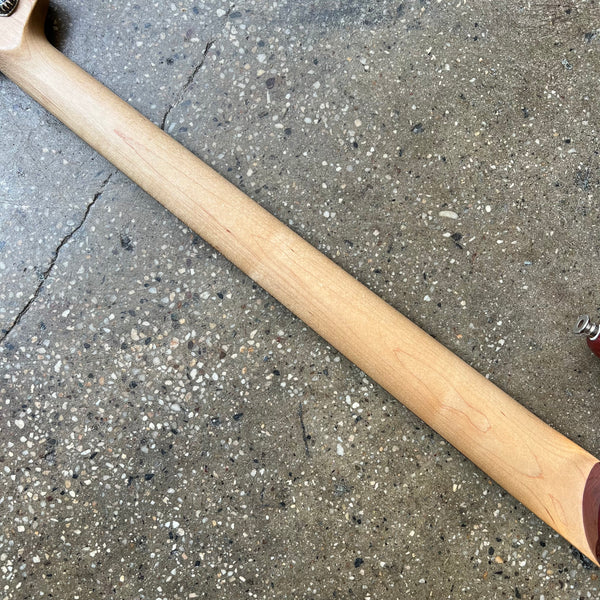

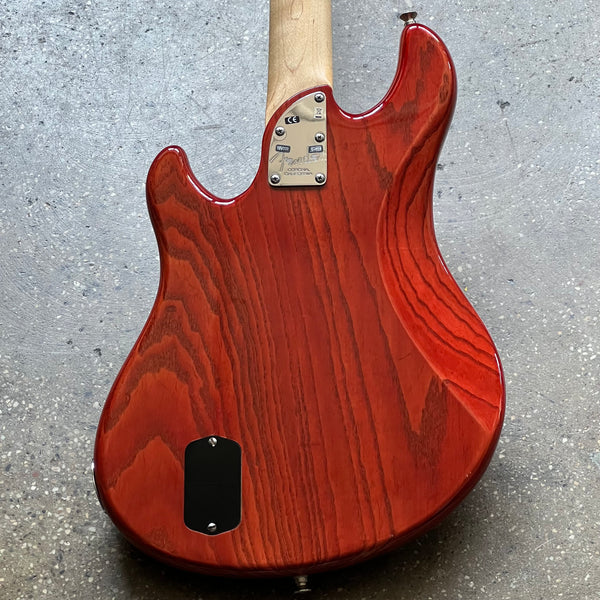

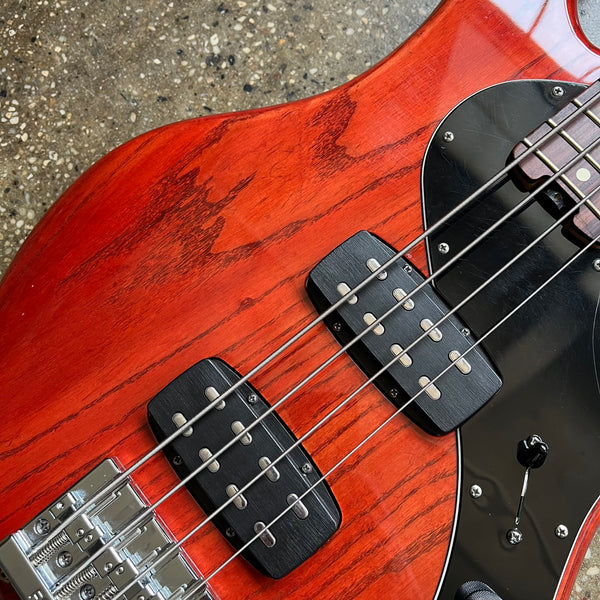

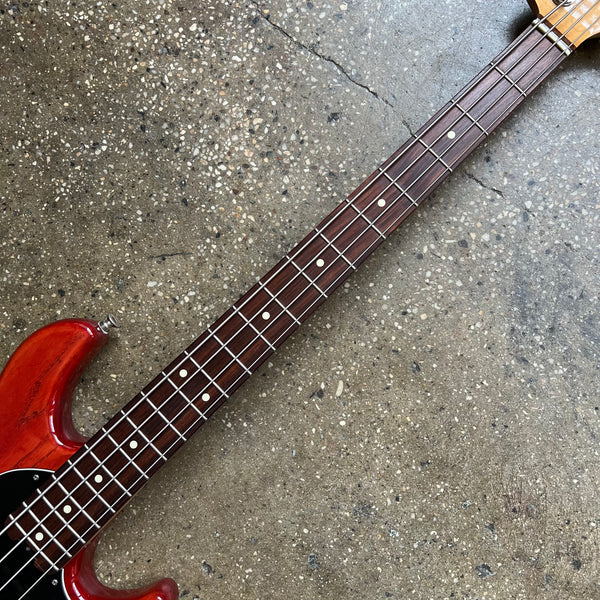

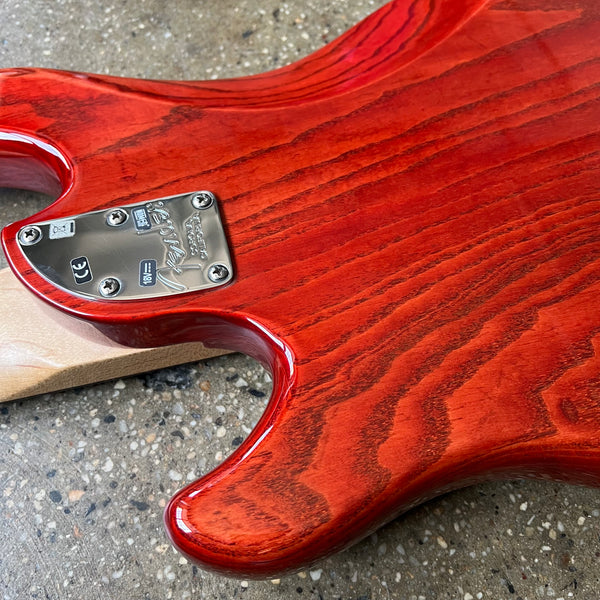

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the American Deluxe Dimension Bass IV HH listed above. For larger pics, click on an image to open in a new tab.
