The Jimmie Vaughan Tex-Mex Strat is a solid body electric guitar built by Fender. This s-style bolt on guitar was manufactured in Ensenada, Mexico and is a Fender Artist Signature Series model. Key features include an Alder Body, Maple Neck, Maple Fretboard, 9.5" Radius, Fender Tex-Mex Single Coil Pickups and Olympic White finish. The specs listed below pertain to the 2006 product year model pictured on this page.
Factory Specs
- Alder Body
- Maple Neck
- Maple Fretboard
- 9.5" Radius
- Medium Jumbo Fret Wire
- 21 Frets
- 1.65" Nut Width
- 25.5" Scale Length
- 6-Saddle American Vintage Synchronized Tremolo
- Vintage Style Tuning Machines
- Single Ply White Pickguard
- Chrome Hardware
- Fender Tex-Mex Single Coil Pickups
- Synthetic Bone Nut
- Soft V Neck Profile
- Black Dot Inlays
- One Volume & Two Tone Controls
- Gloss Polyester Body Finish
- Satin Urethane Neck Finish

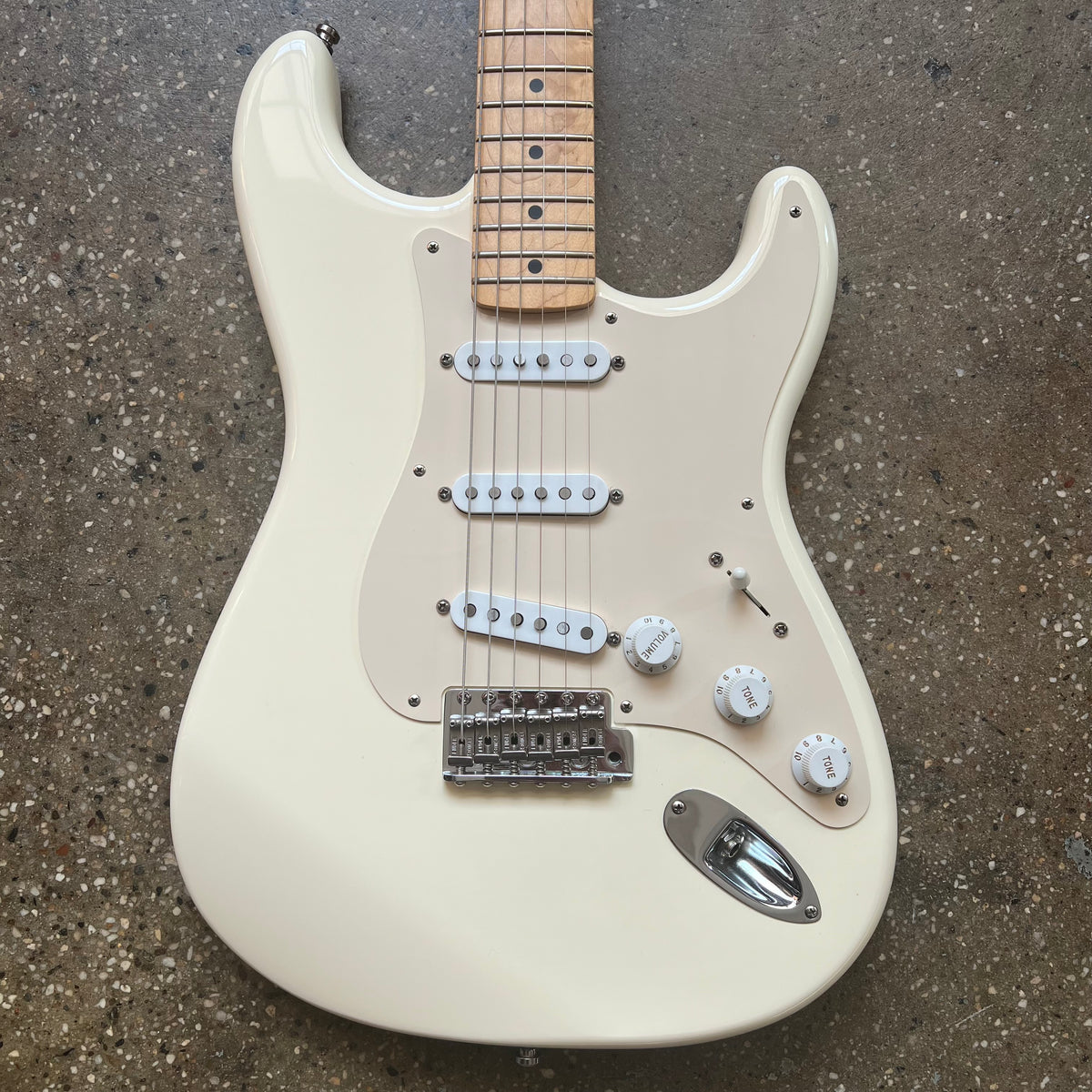

Reference Images
Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Jimmie Vaughan Tex-Mex Strat listed above. For larger pics, click on an image to open in a new tab.
