The Eric Johnson Stratocaster is an electric guitar built by Fender. This solid body guitar was manufactured in the United States and is a Fender Artist Signature Series model. Key features include Alder Body, Quartersawn Maple Neck, 12" Radius, Vintage Tremolo Bridge, Single Coil Pickups and 2-Tone Sunburst finish. The specs listed below pertain to the 2005 product year model pictured on this page.
Factory Specs
- Alder Body
- Quarter Sawn Maple Neck
- Black Dot Inlays
- 21 Frets
- Medium Jumbo Fret Wire
- 12" Radius
- 1.650" Nut Width
- 25.5" Scale Length
- Bone Nut
- Vintage Style Staggered Tuners
- Butt Adjust Truss Rod
- Soft V Neck Profile
- Nitro Lacquer Neck Finish
- Lacquer Body Finish
- American Vintage Tremolo Bridge
- Single Ply Parchment Guard
- Three Single Coil Pickups
- One Volume & Two Tone Controls
- 5-Way Selector Switch

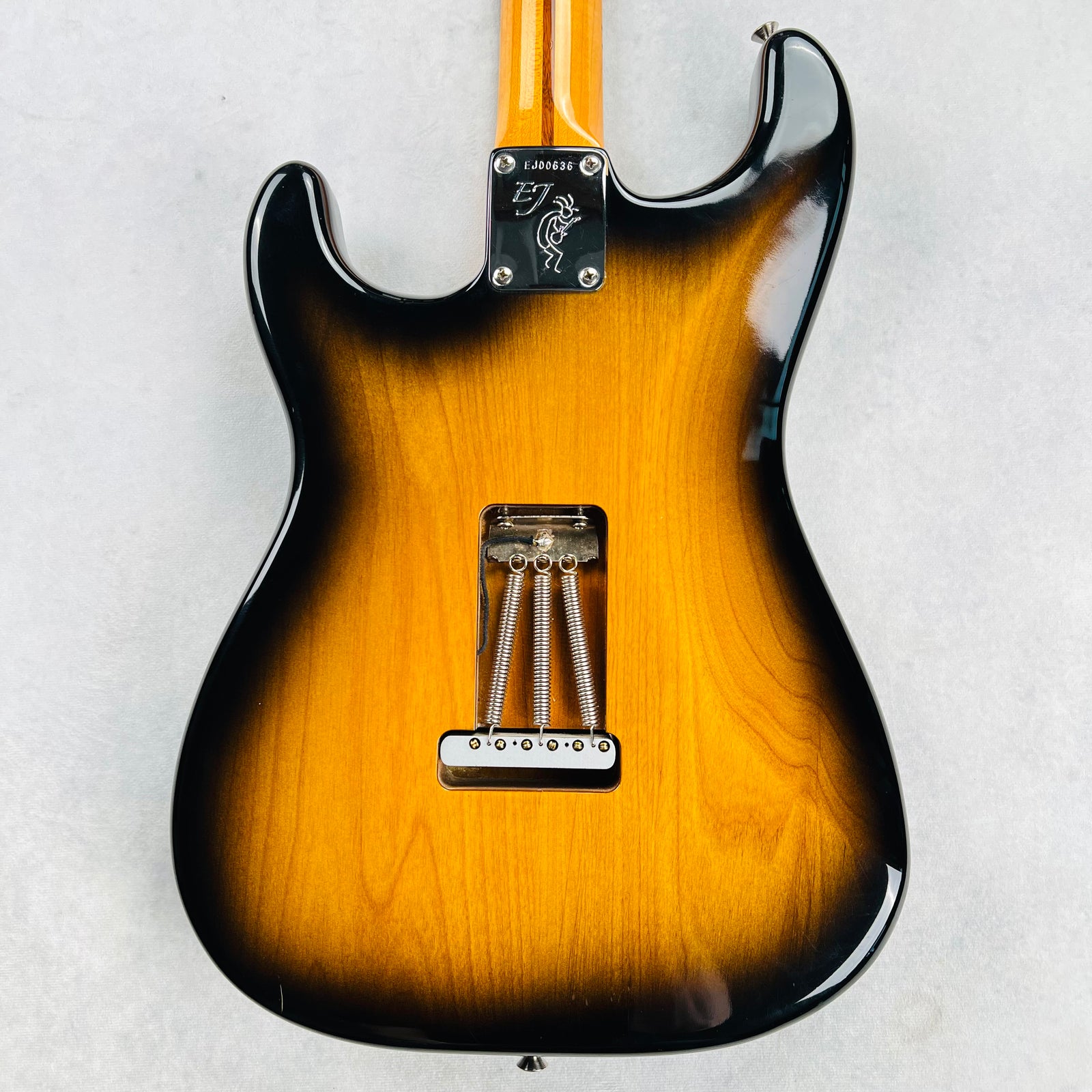

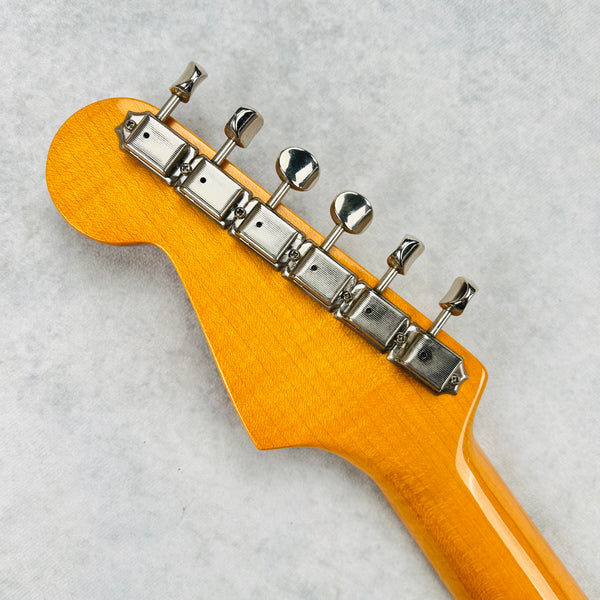

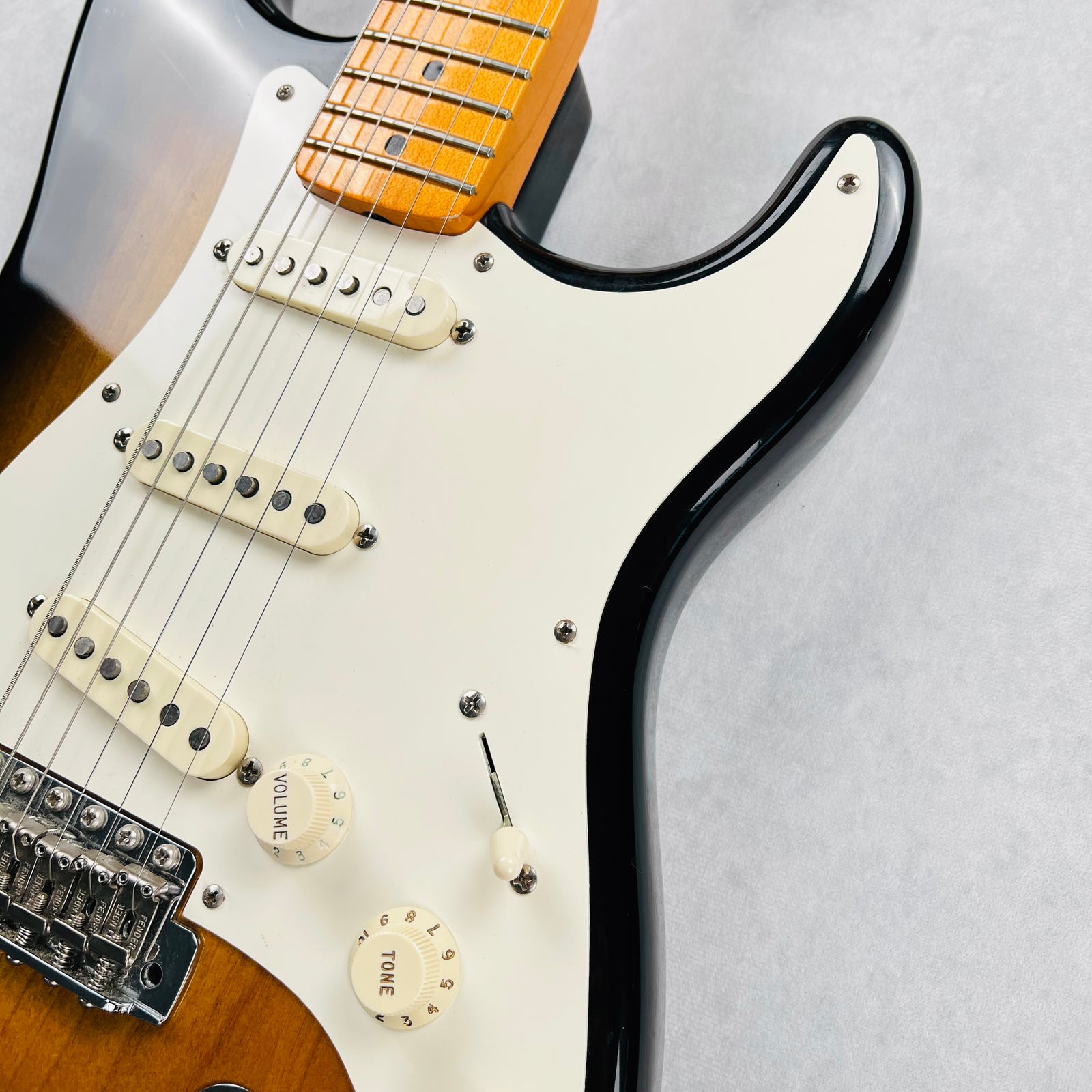

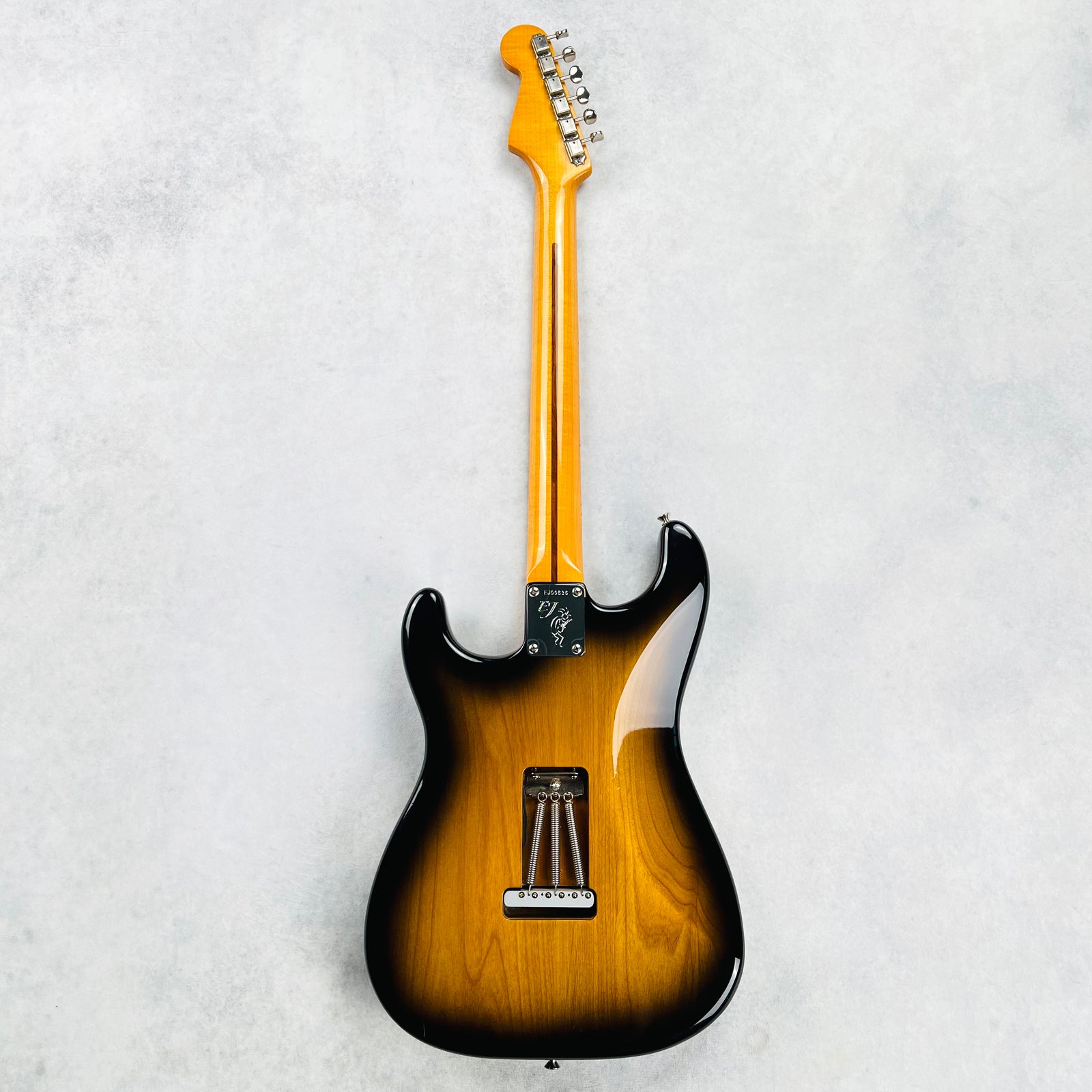

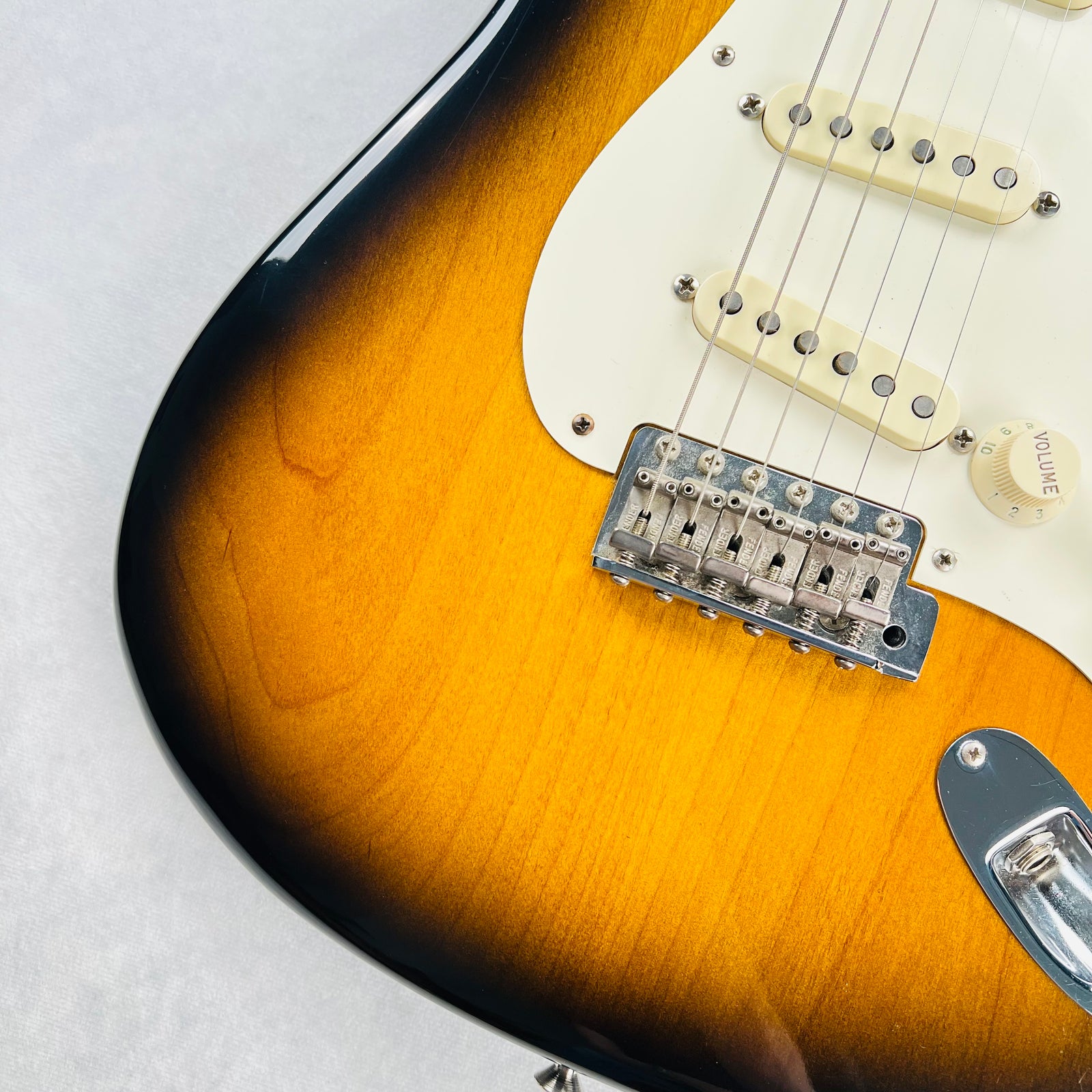

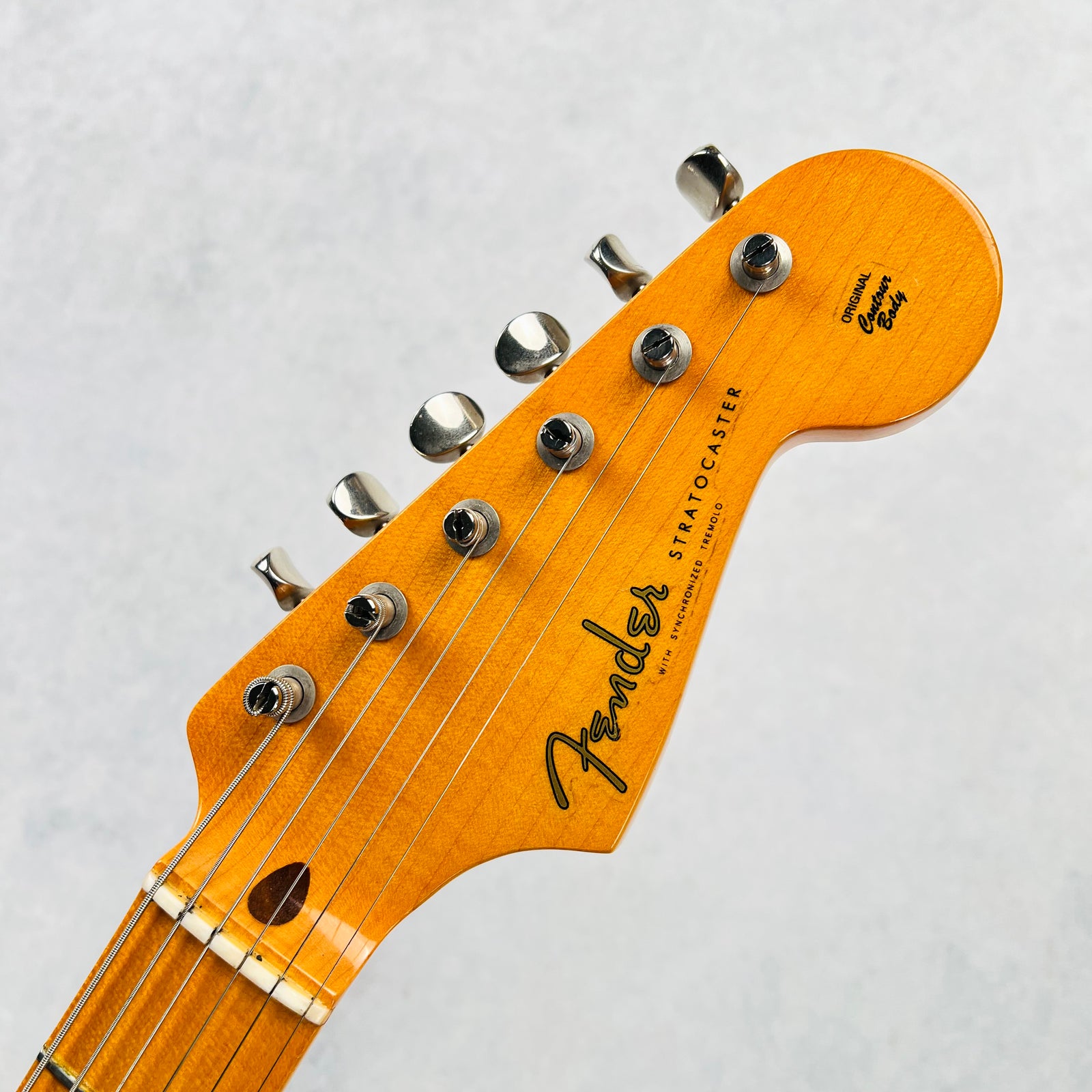

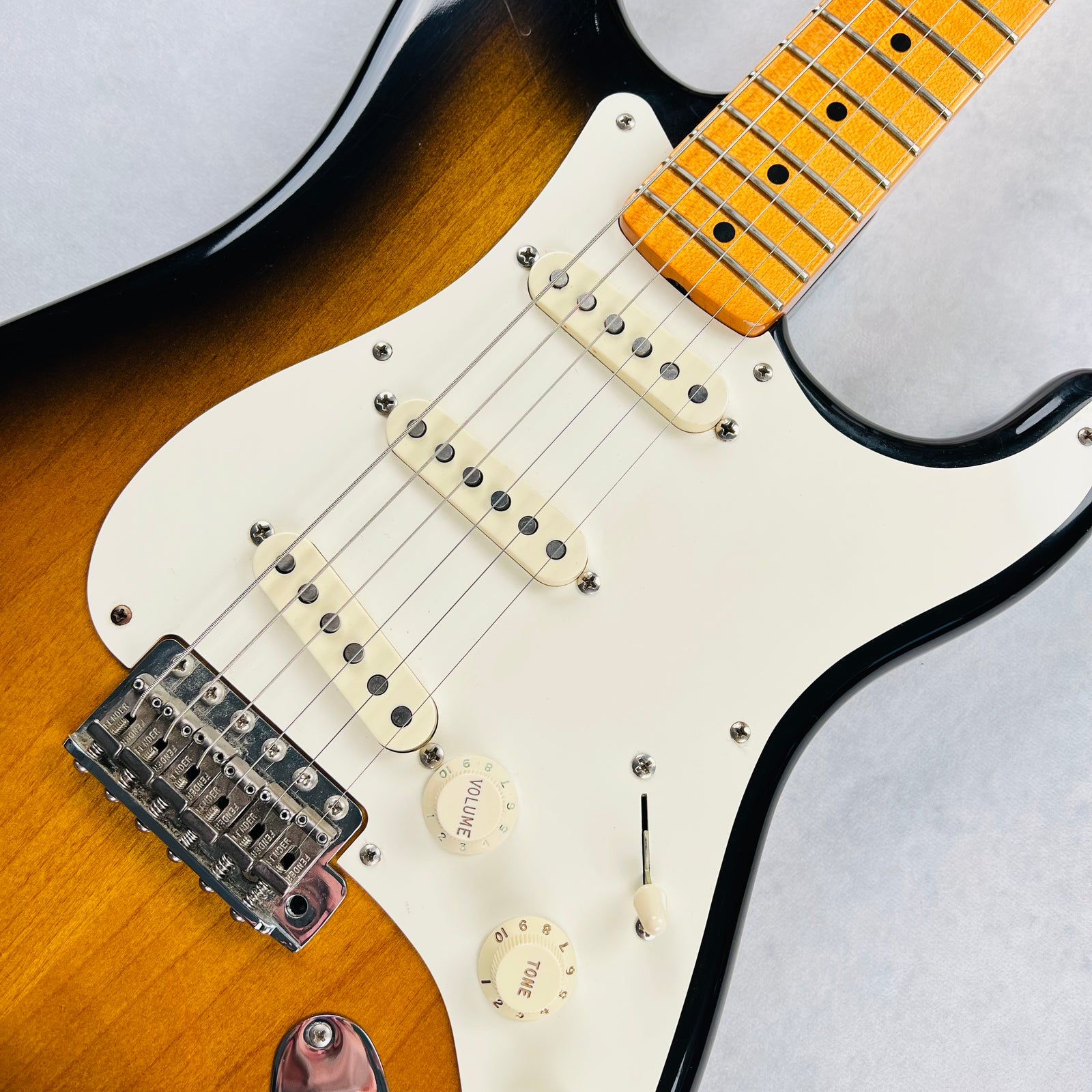

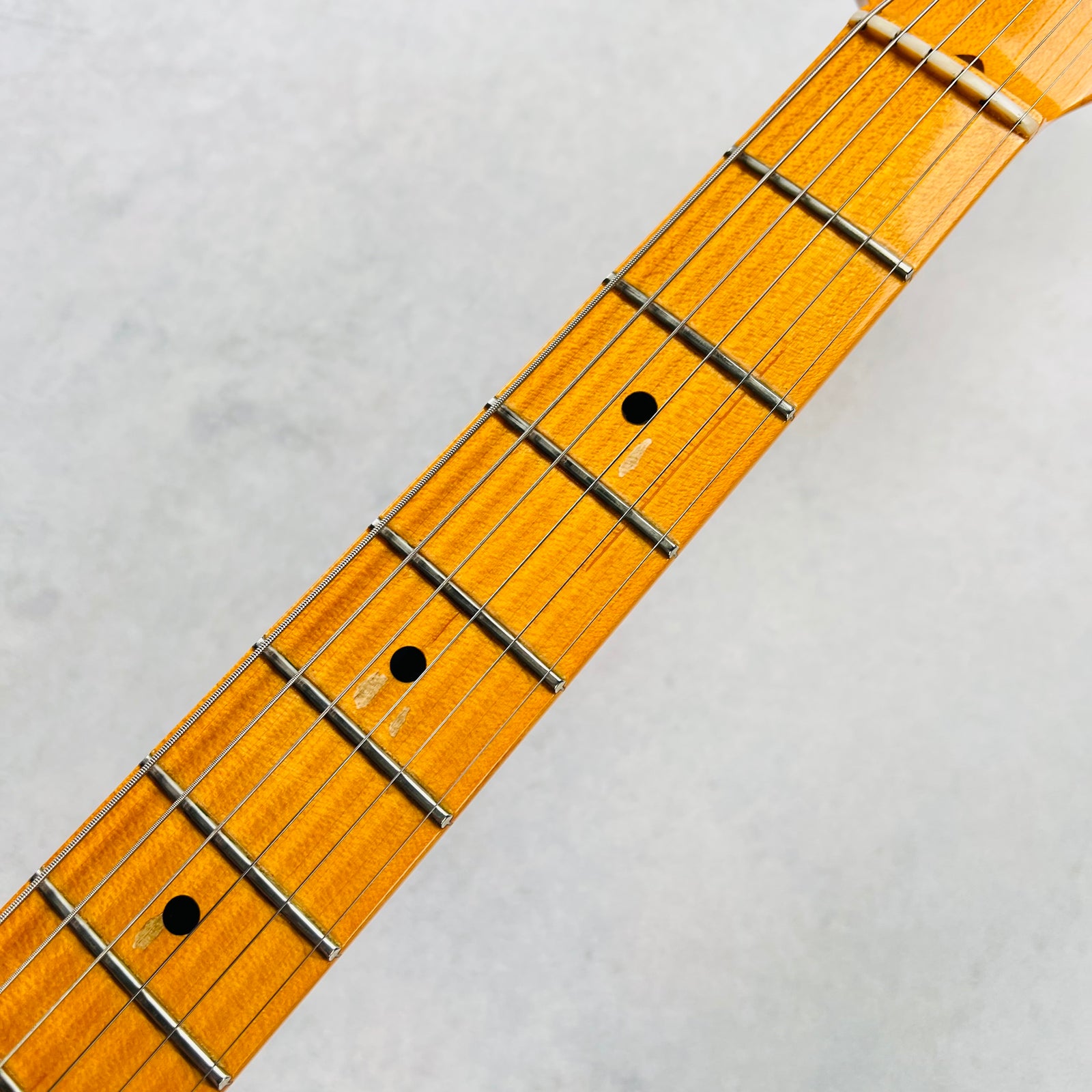

Reference Images

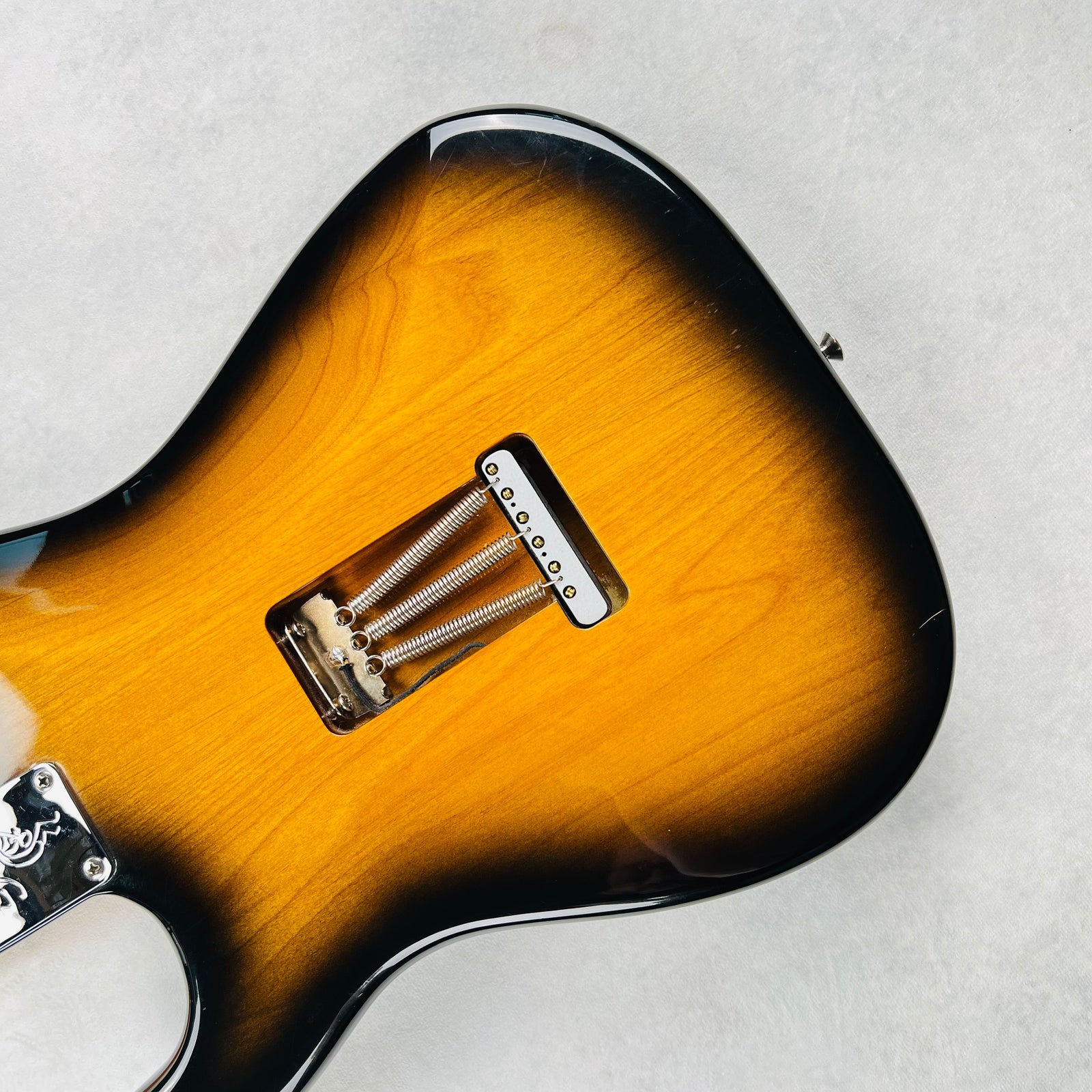

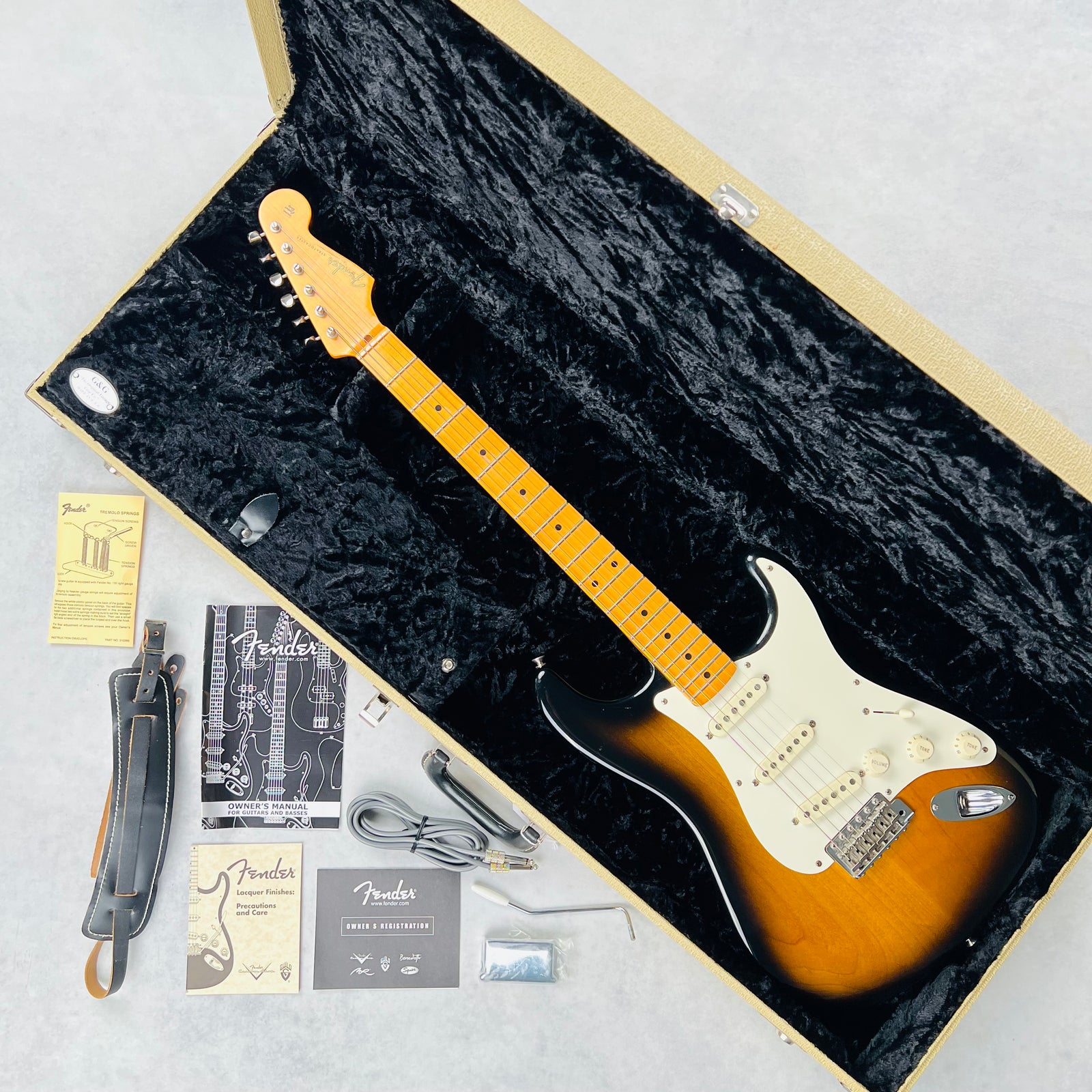

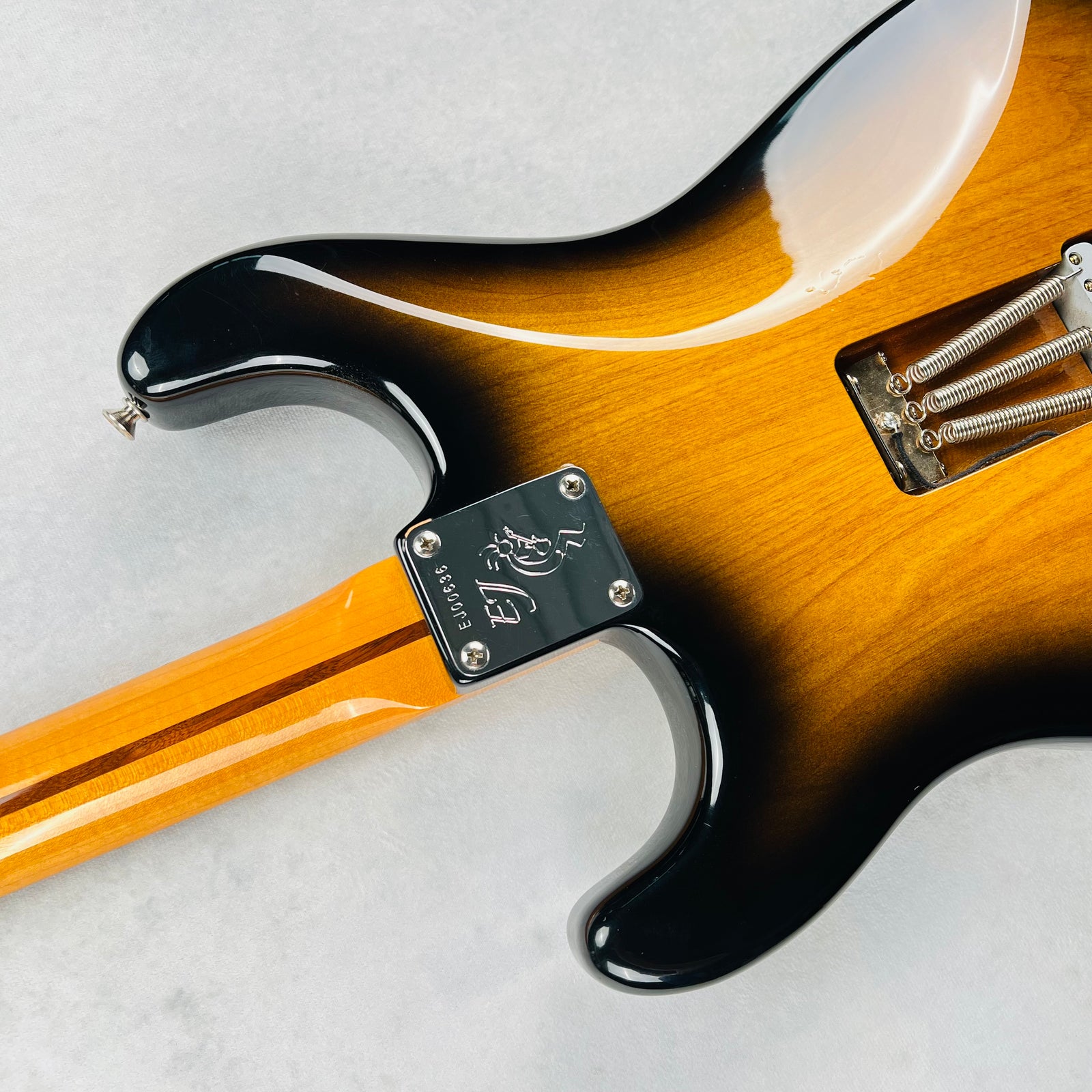

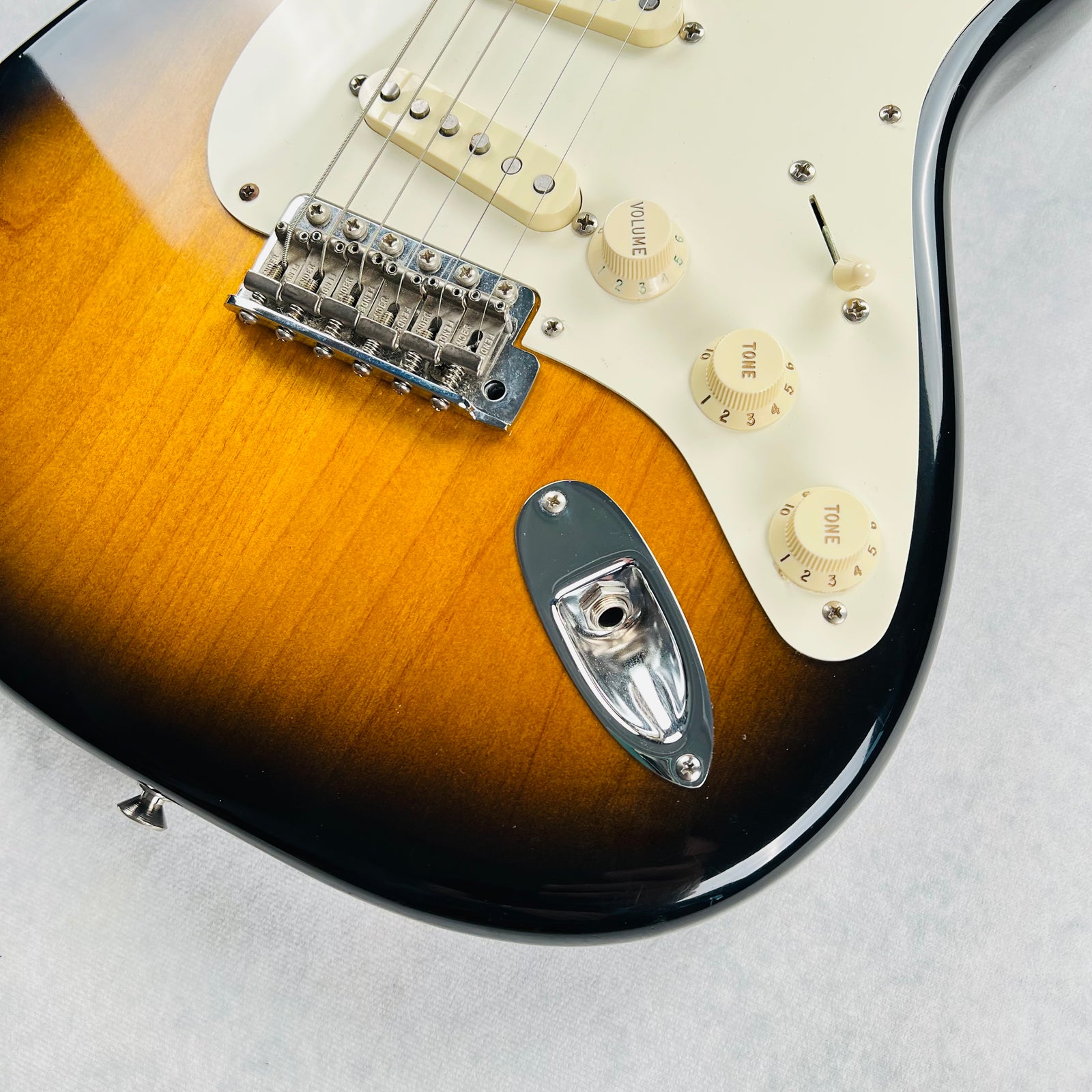

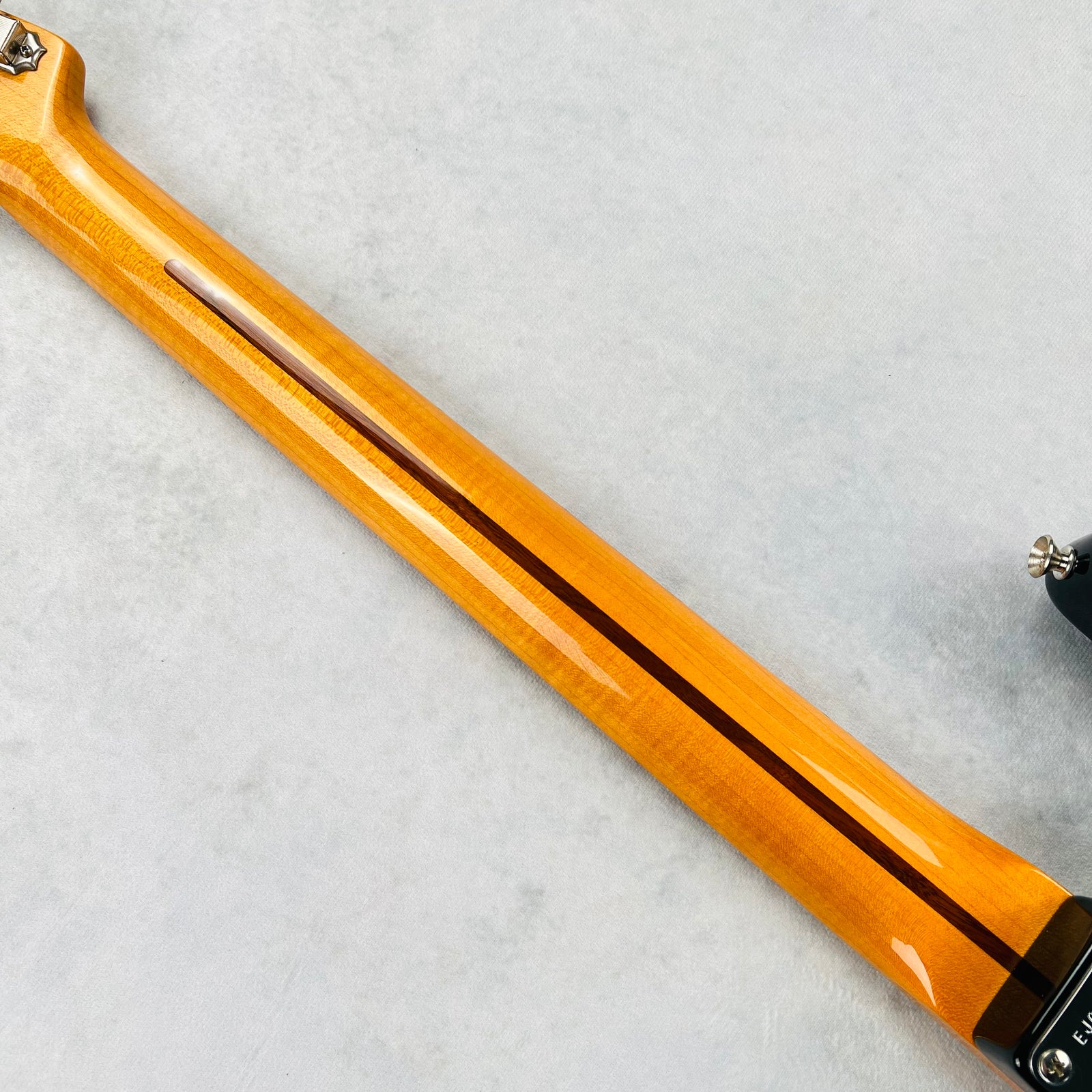

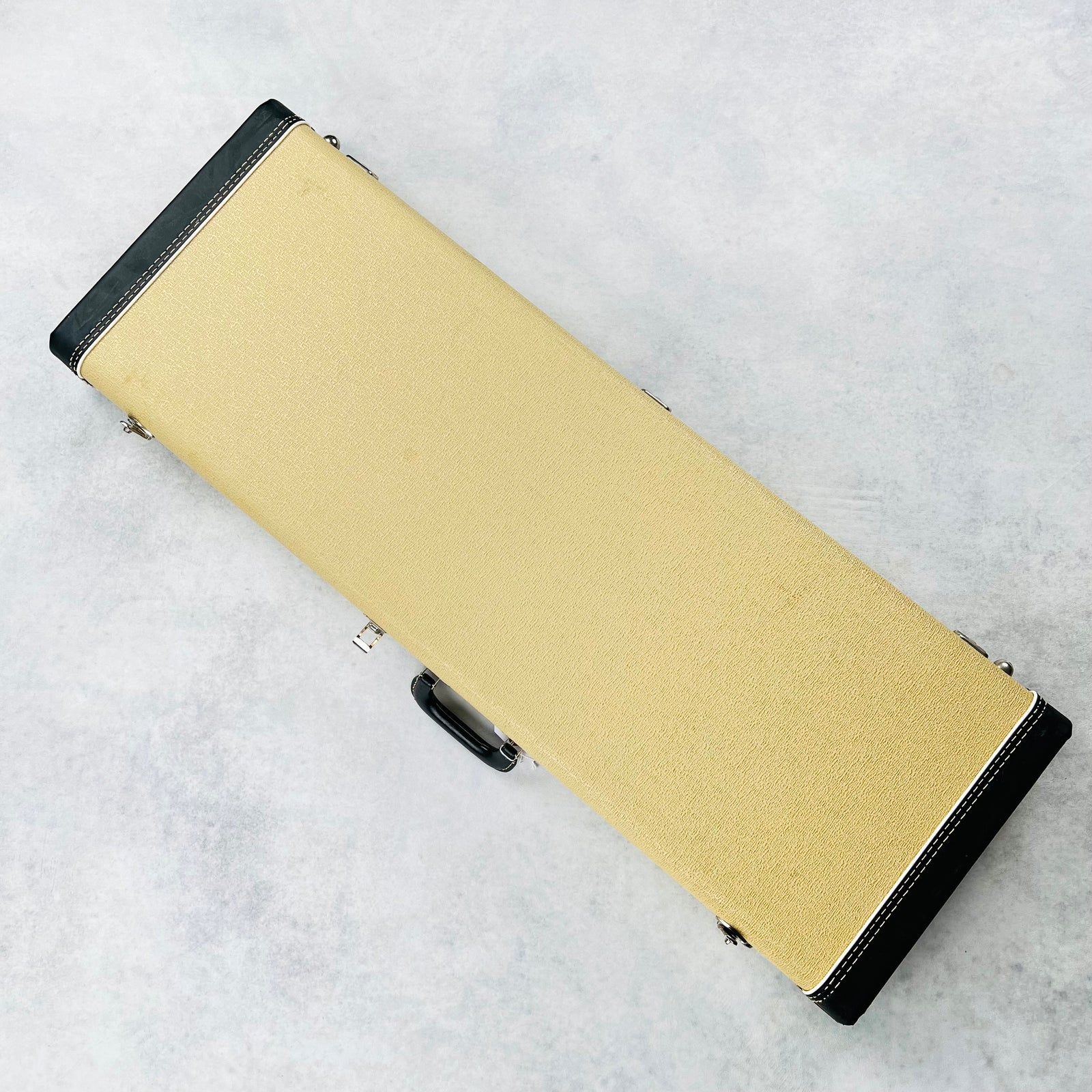

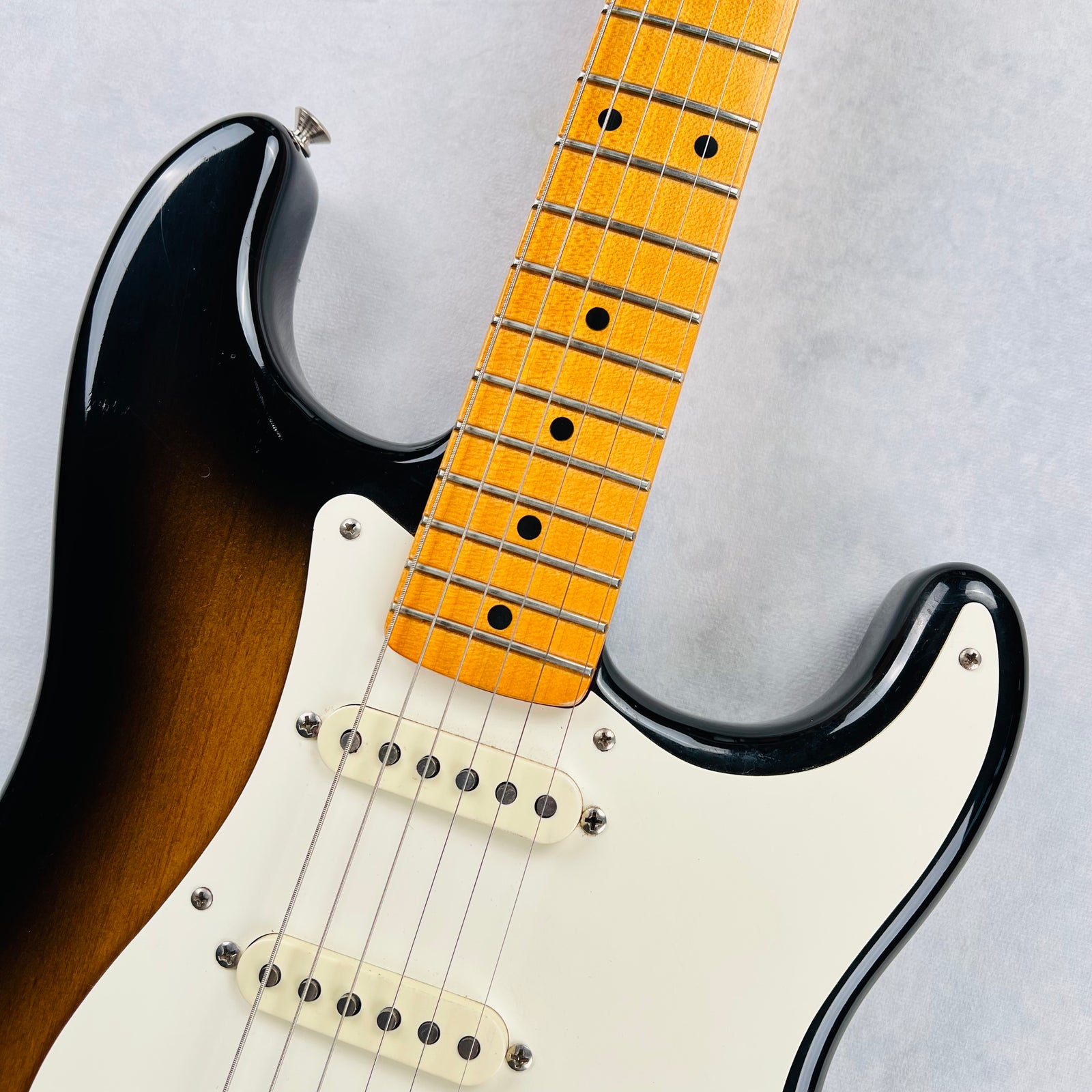

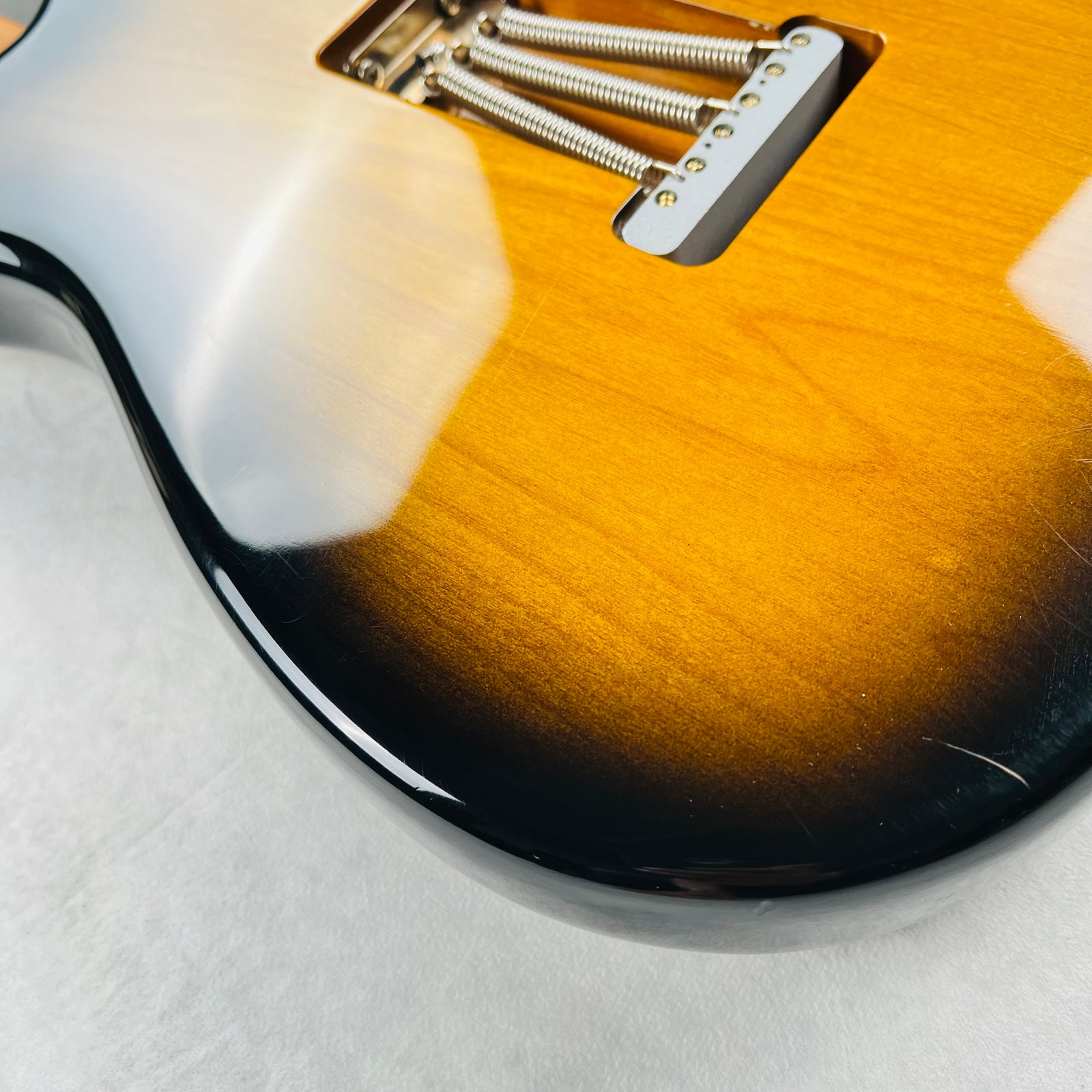

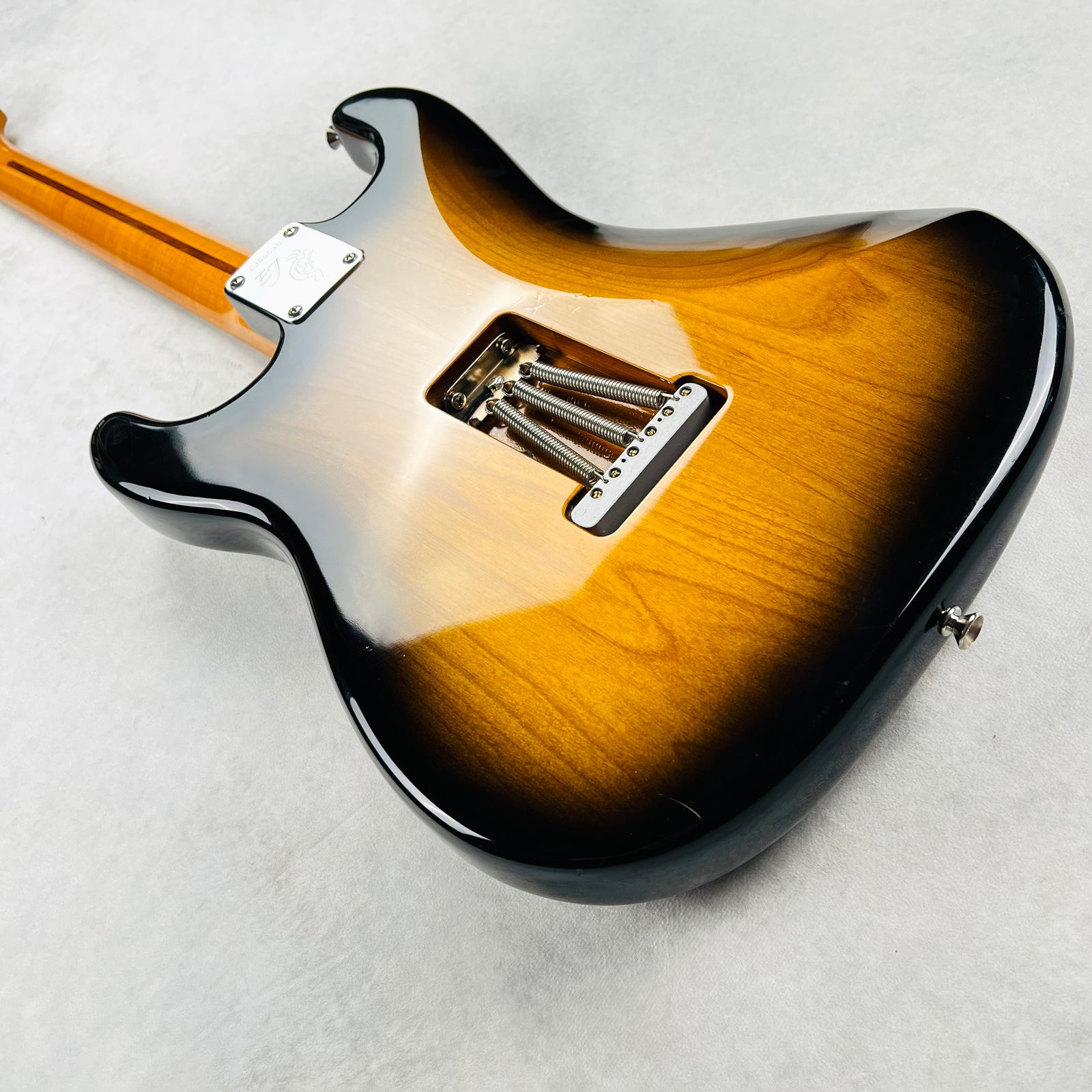

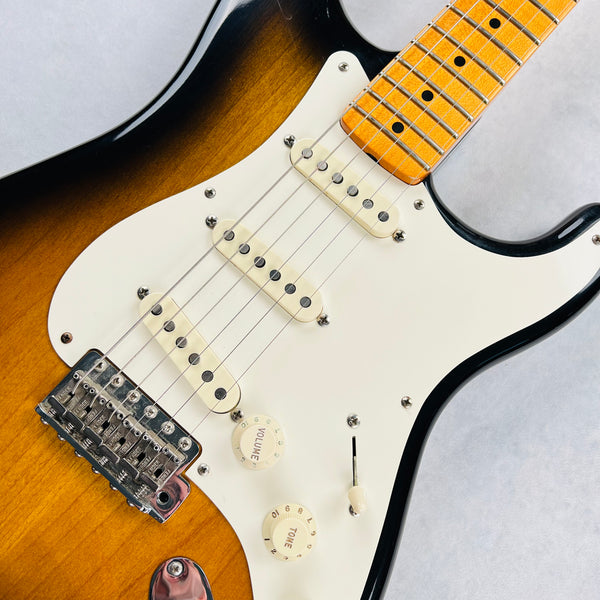

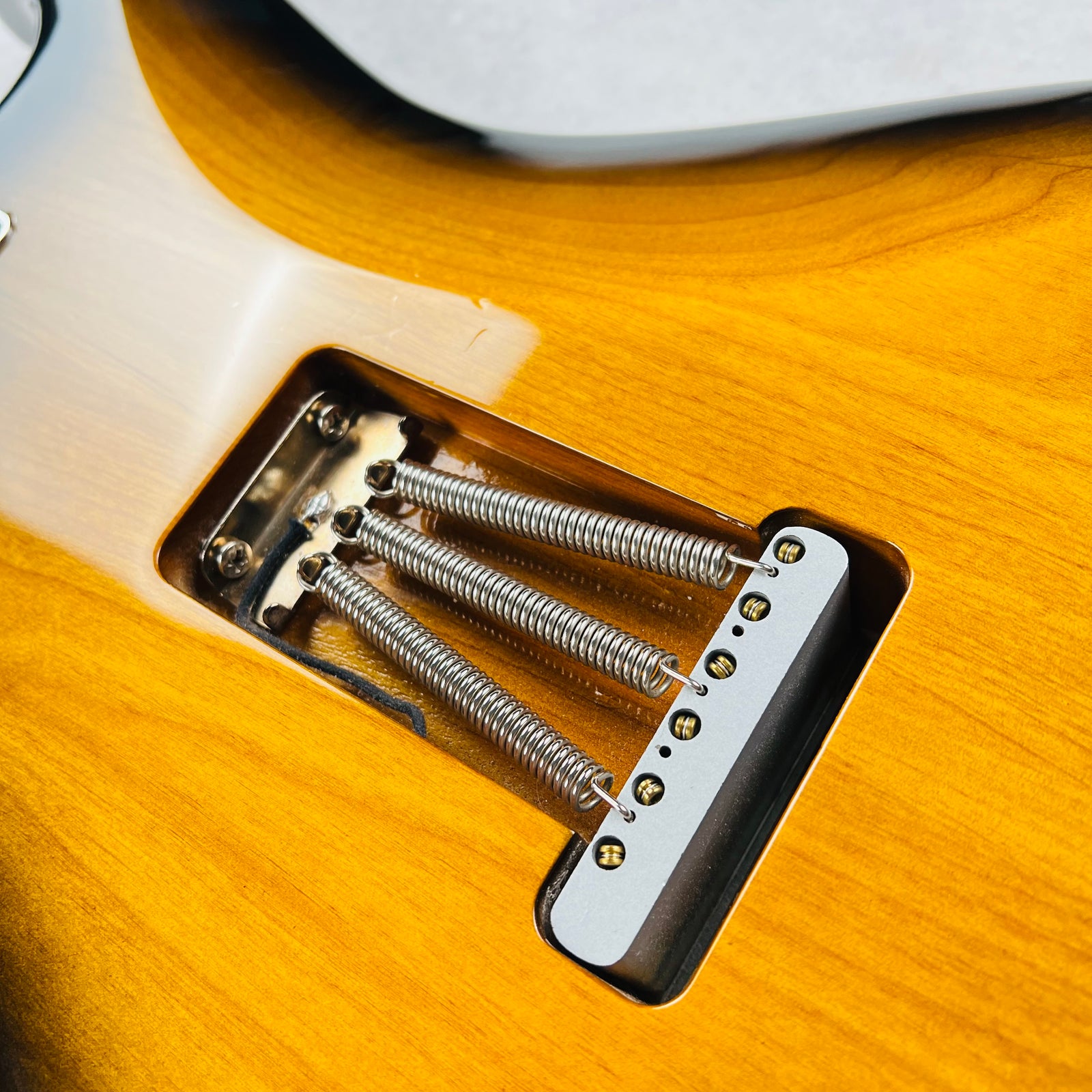

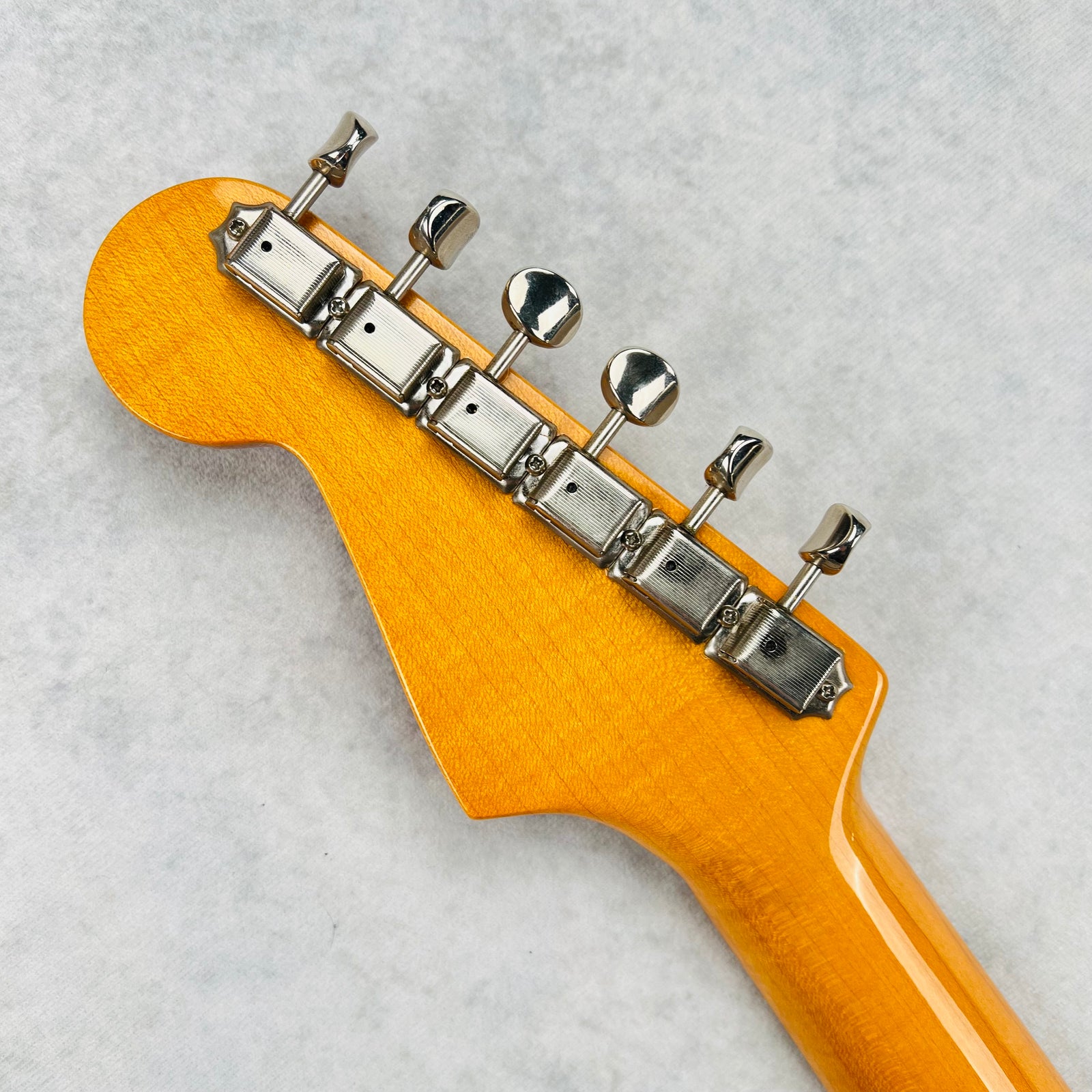

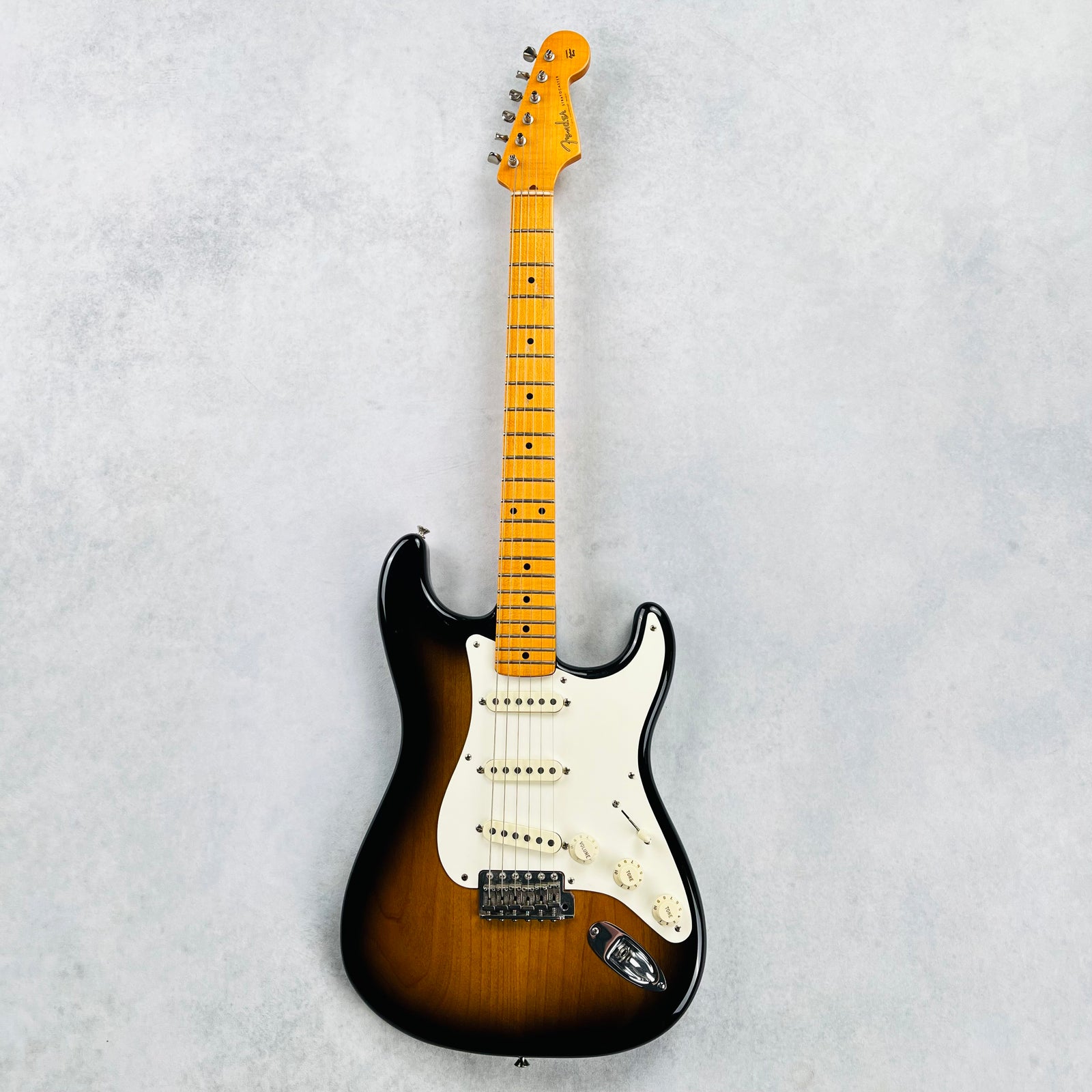

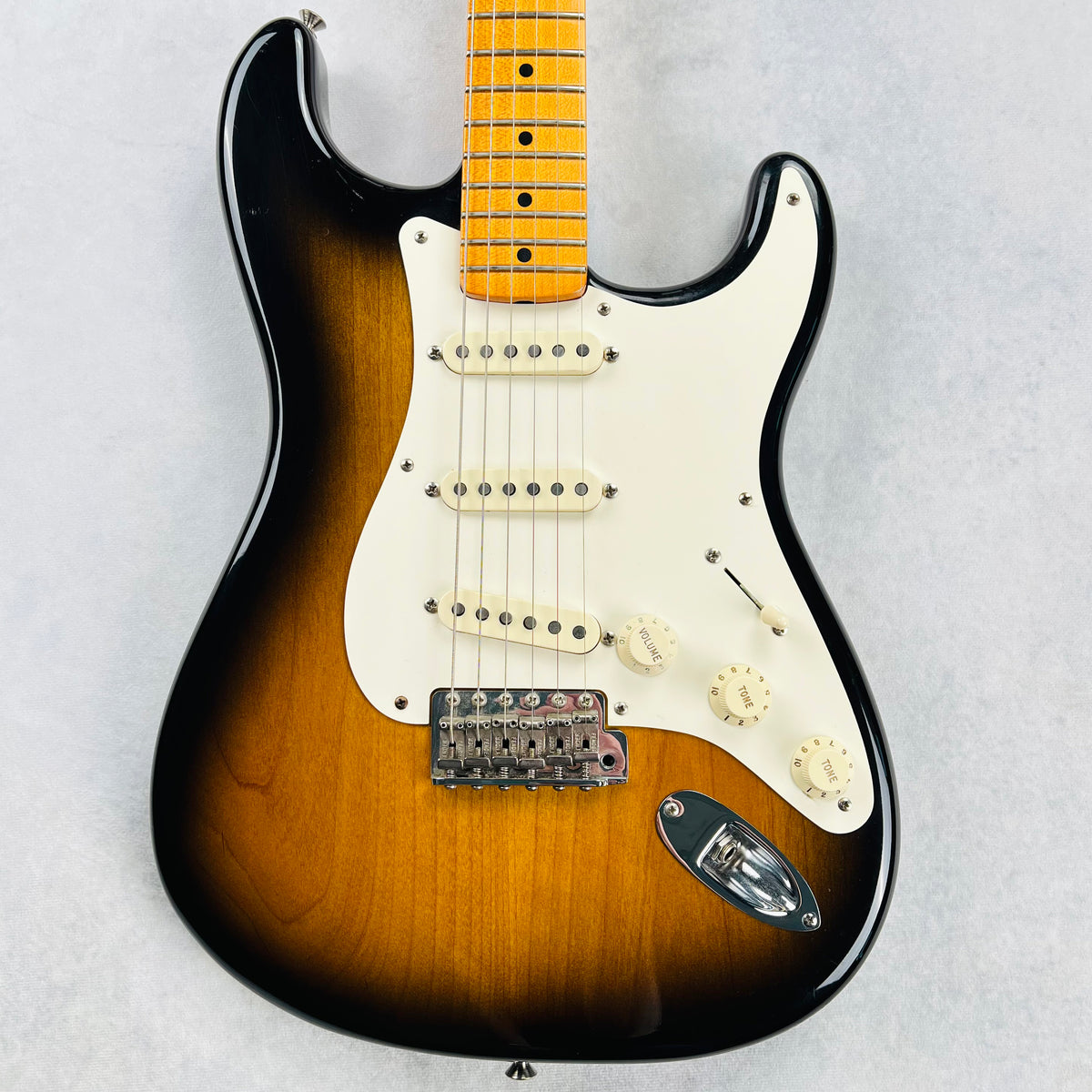

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Eric Johnson Stratocaster listed above. For larger pics, click on an image to open in a new tab.
