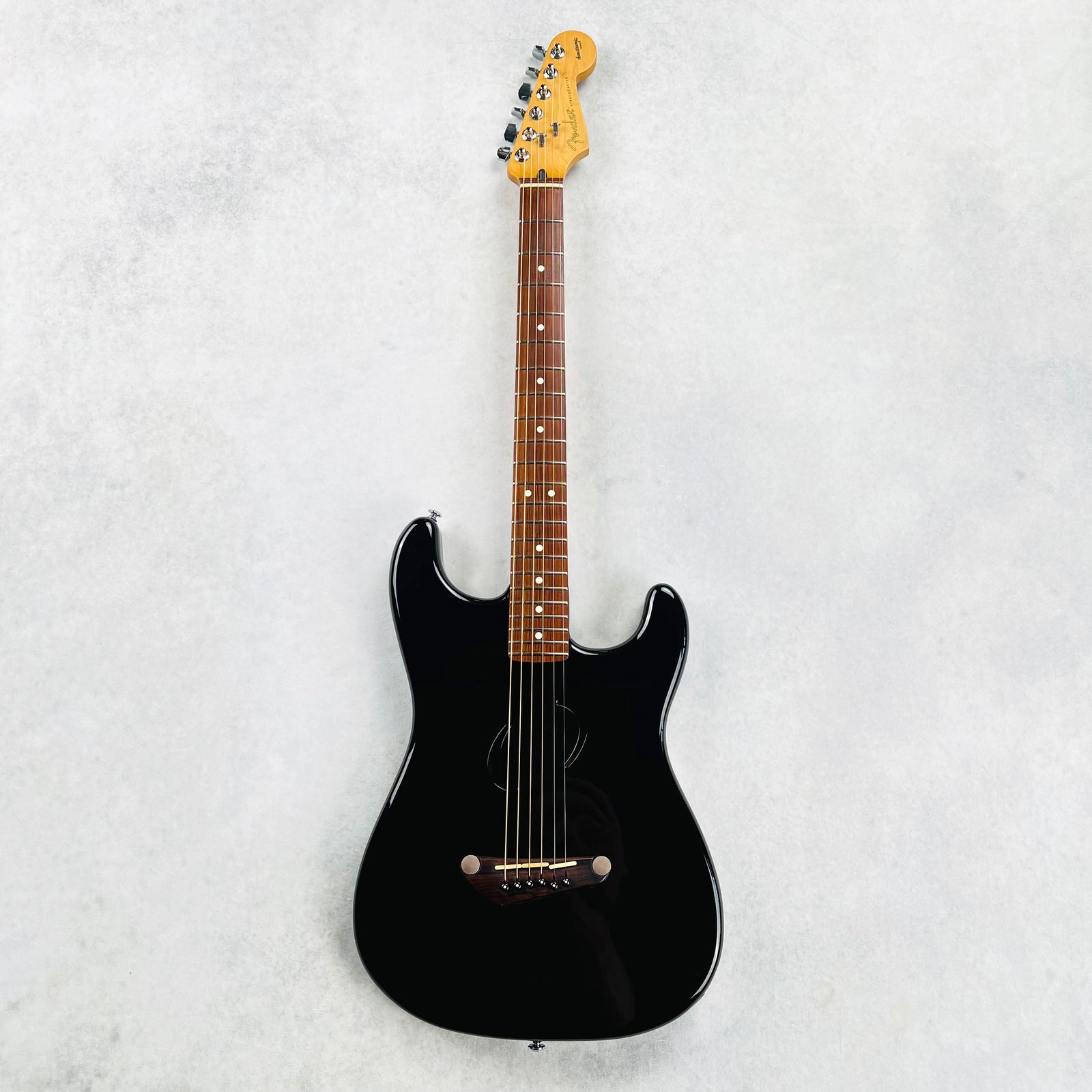

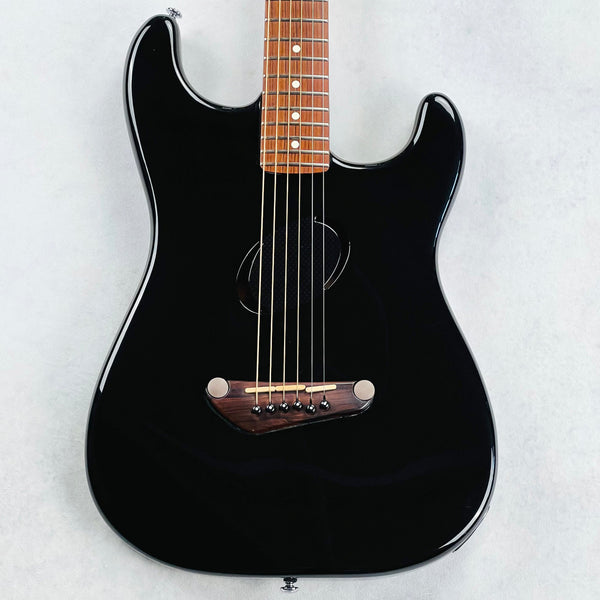

The Acoustasonic Stratocaster is an acoustic guitar built by Fender. This s-style guitar was manufactured in Mexico and is a Fender Acoustasonic Series model. Key features include Alder Body, Graphite Top, Maple Neck, Rosewood Fretboard, Fishman Piezo Pickup and Ebony Transparent finish. The specs listed below pertain to the 2004 product year model pictured on this page.
Factory Specs
- Alder Body
- Graphite Top
- Poly Finish

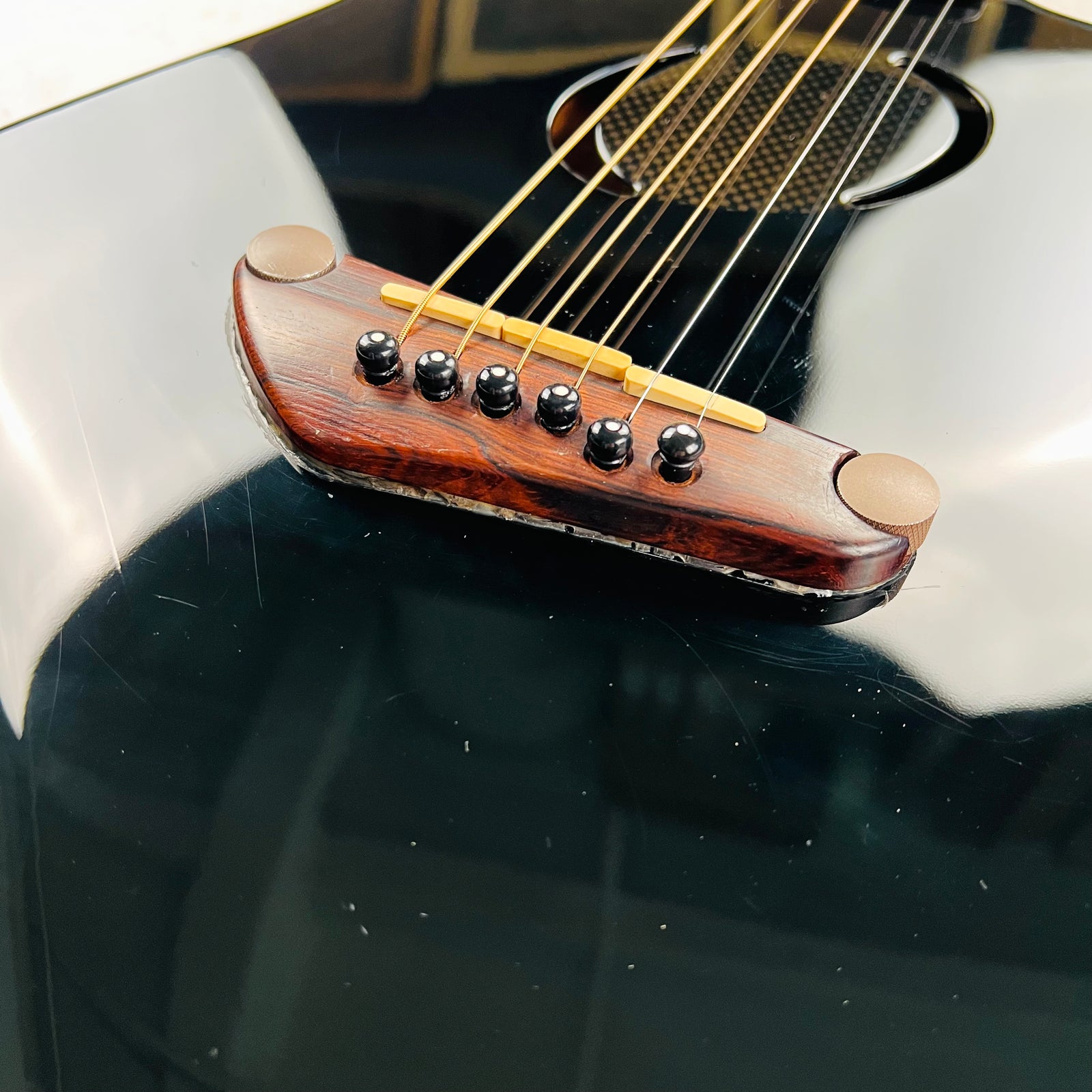

- Rosewood Base Bridge
- 3-Piece Compensated Plastic Saddle
- Three Individual In-Bridge Fishman Piezo Pickups
- Ebony Transparent Finish
- 9.5" Radius
- 1.6875" Nut Width
- 25.5" Scale Length
- Medium Jumbo Frets
- Chrome Hardware
- Synthetic Bone Nut
- 22 Frets
- Dot Inlays

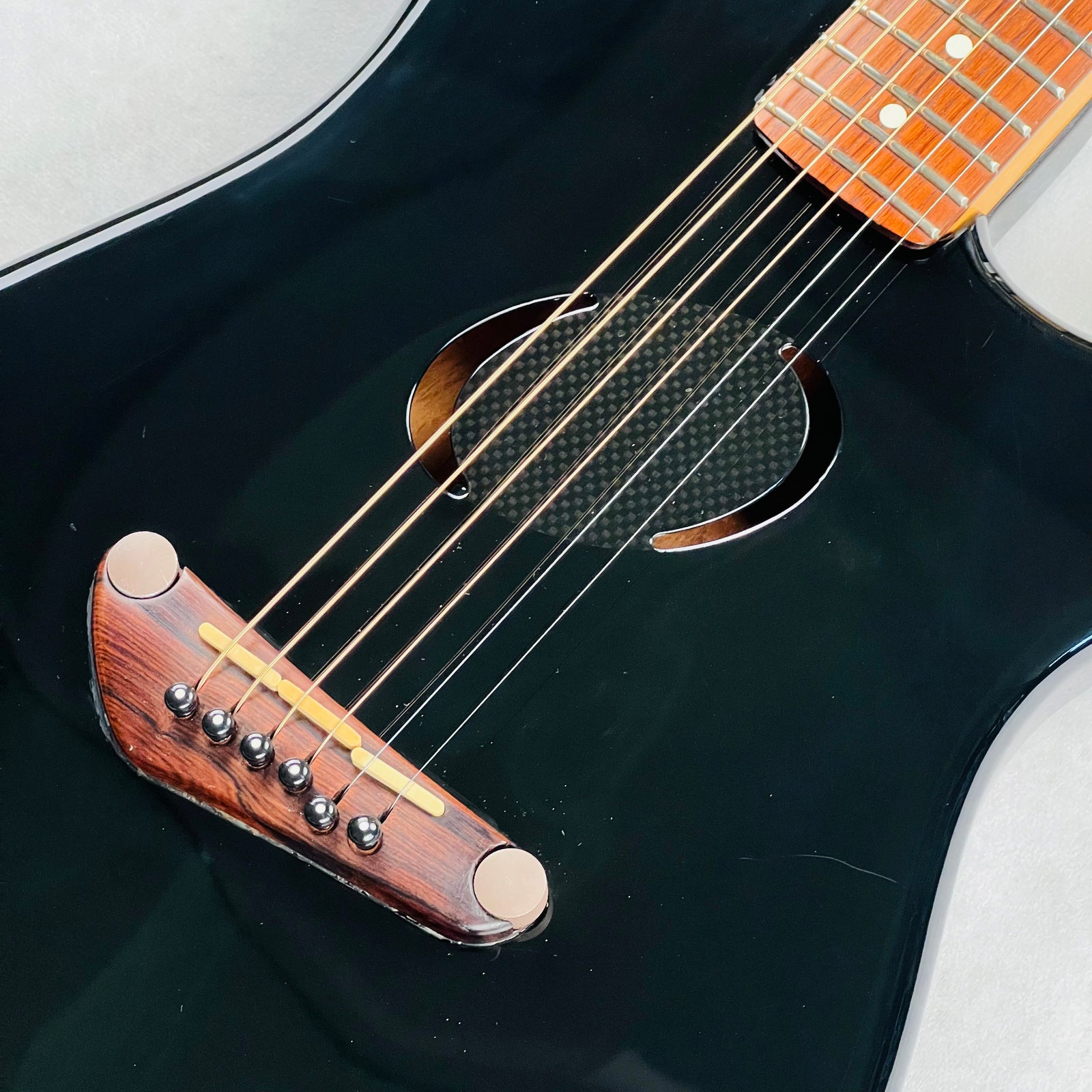

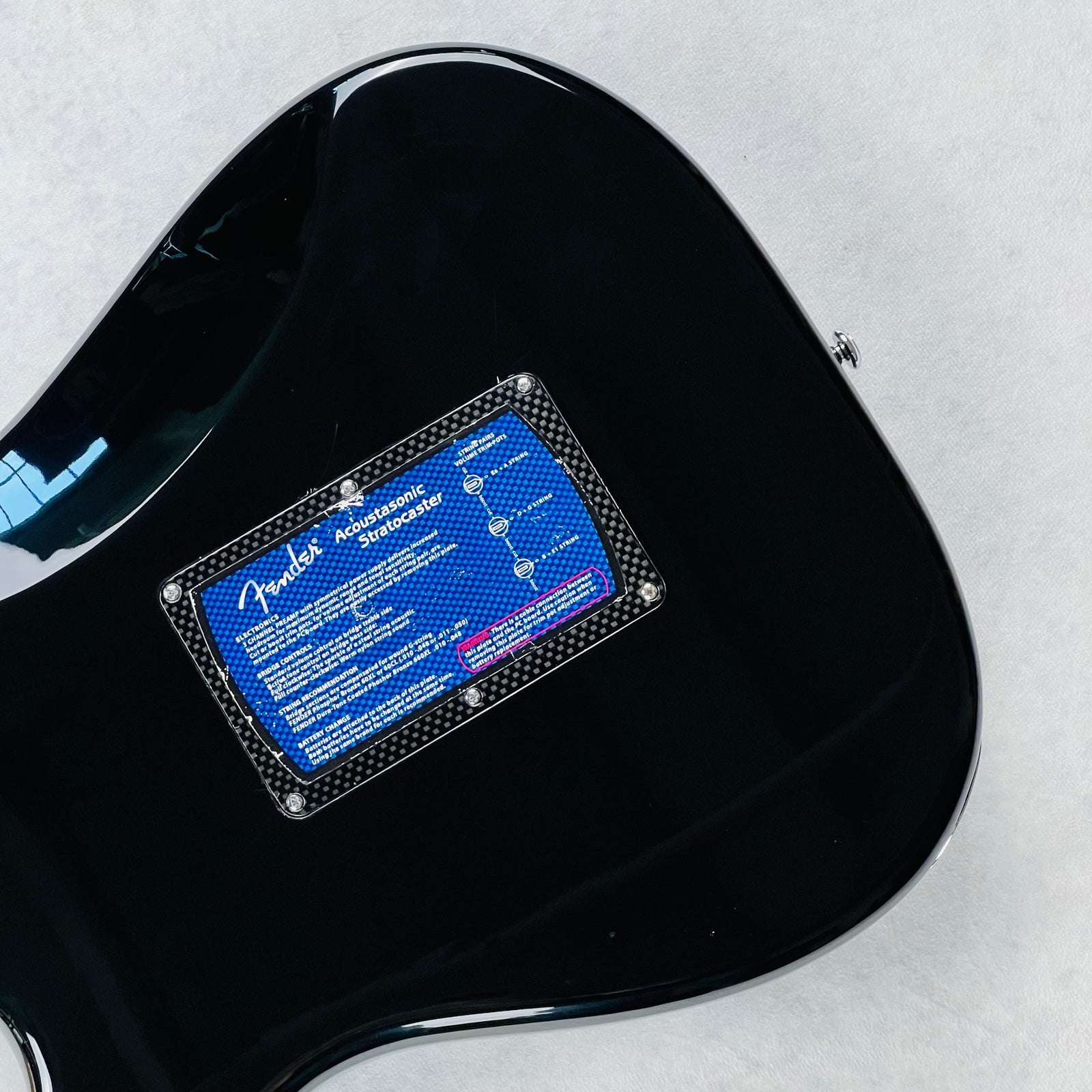

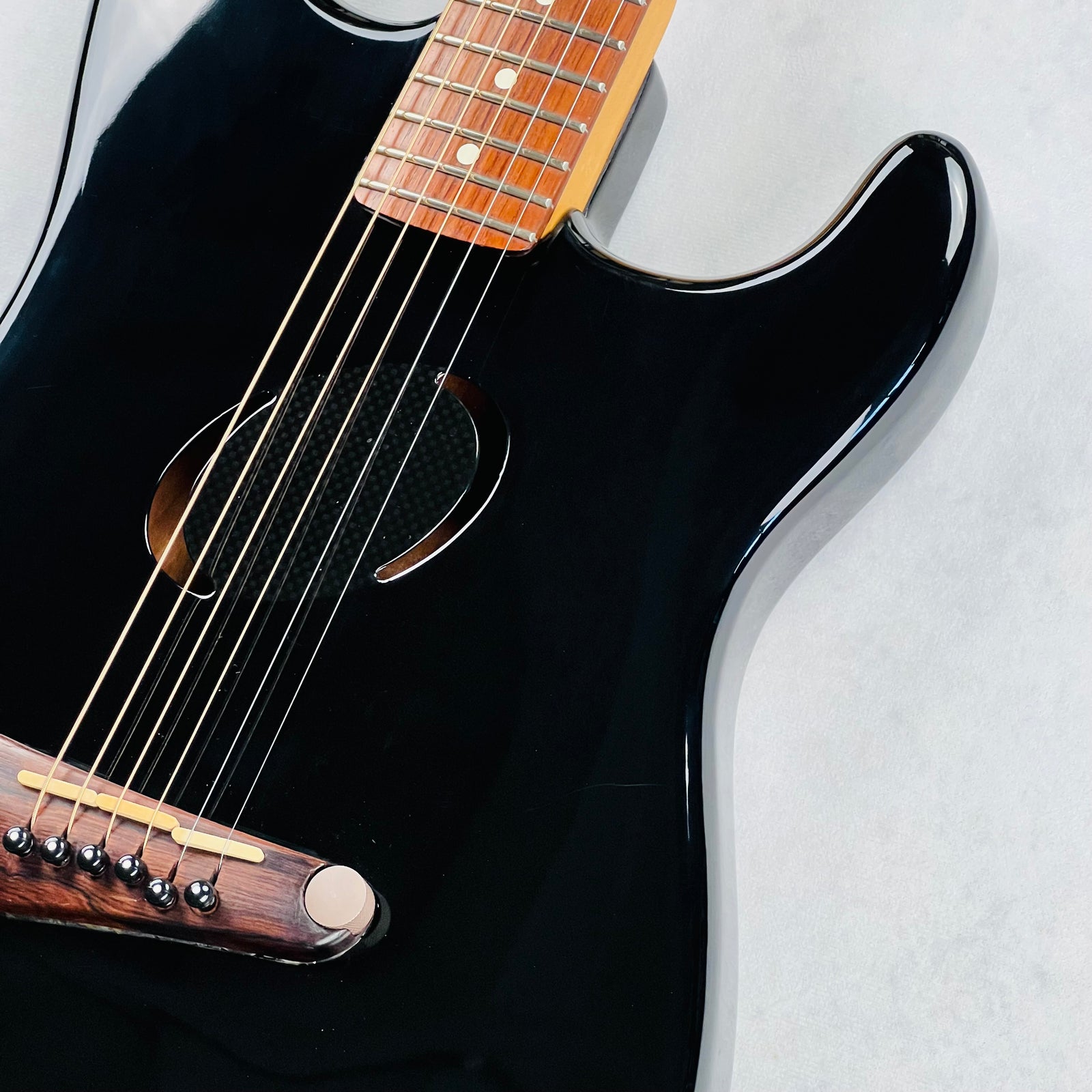

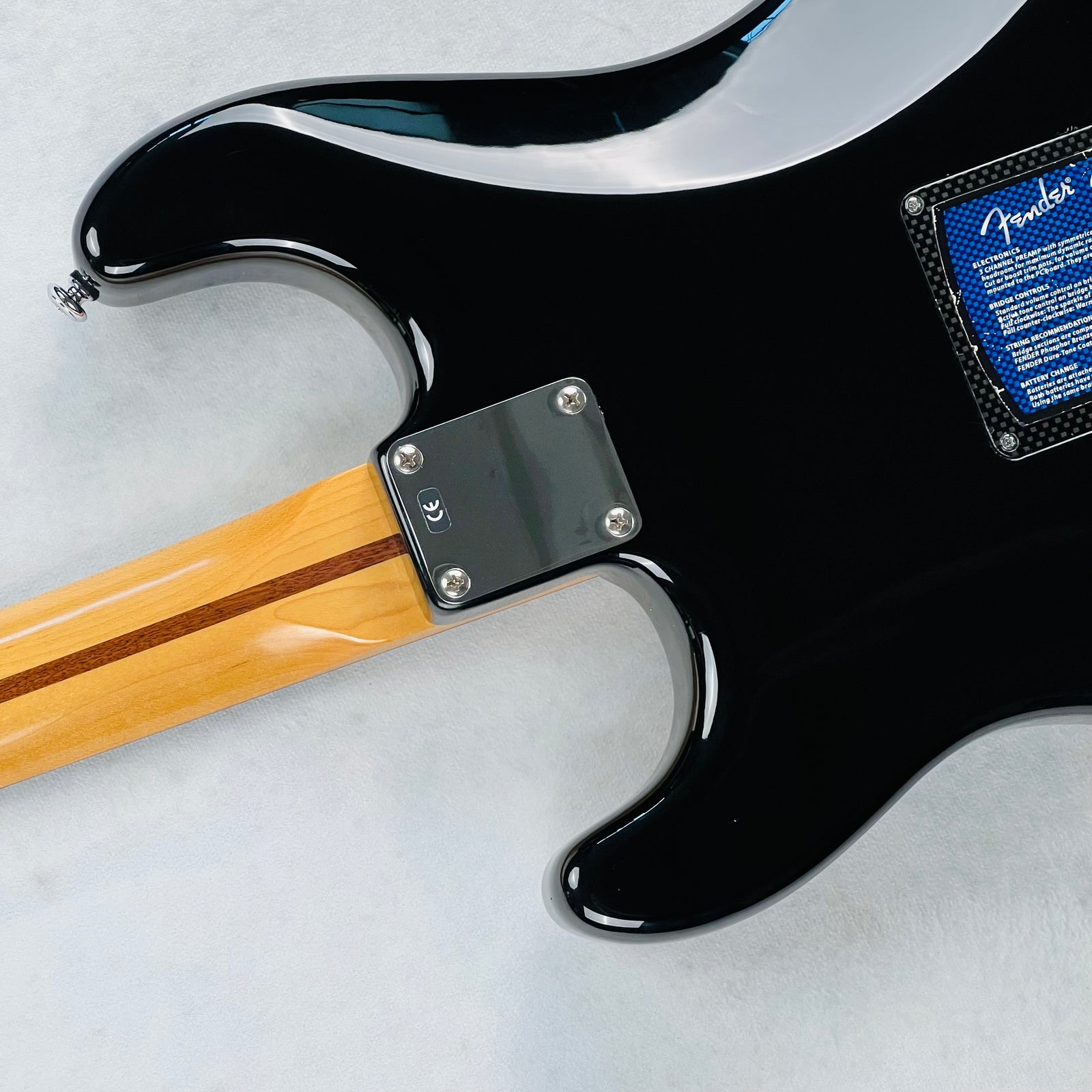

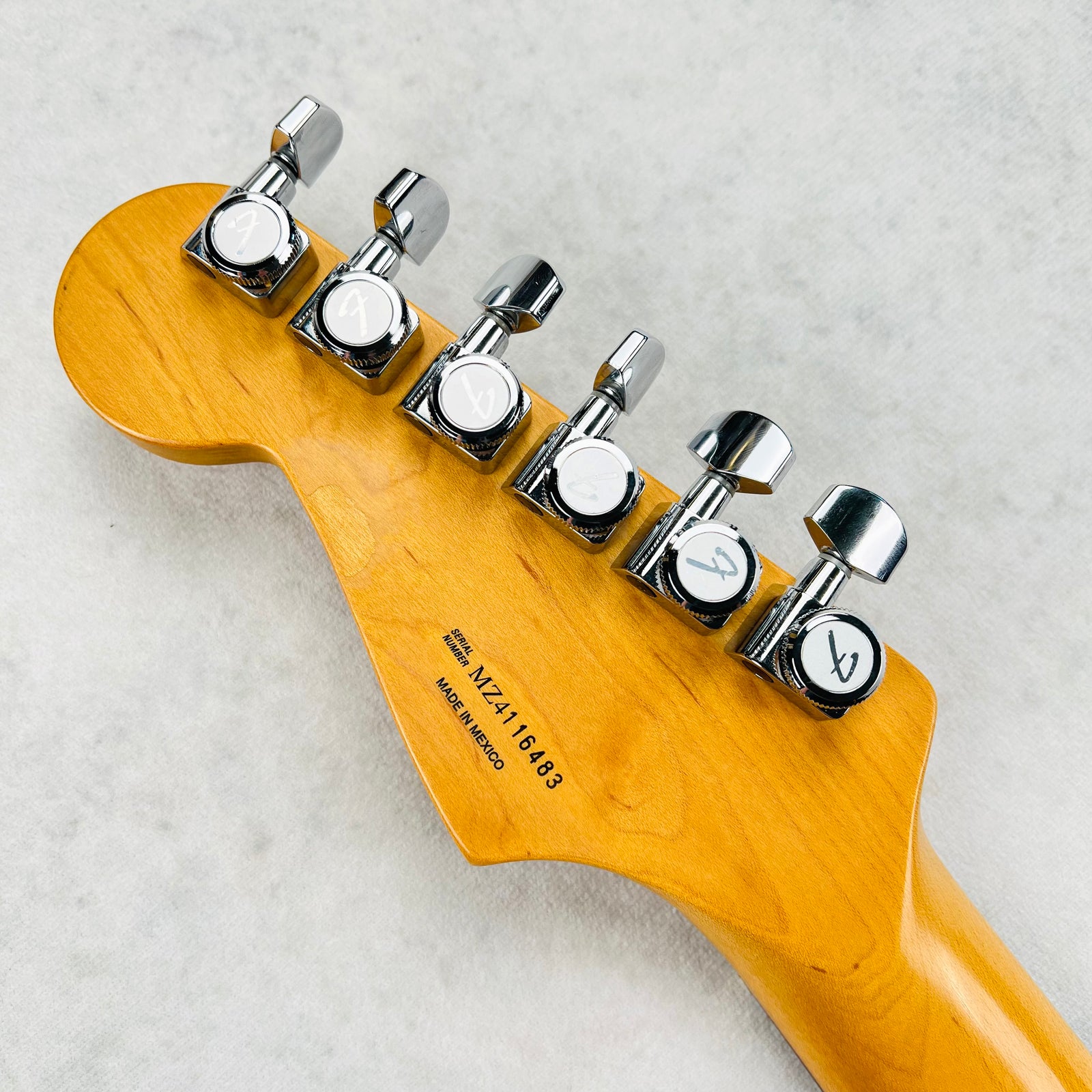

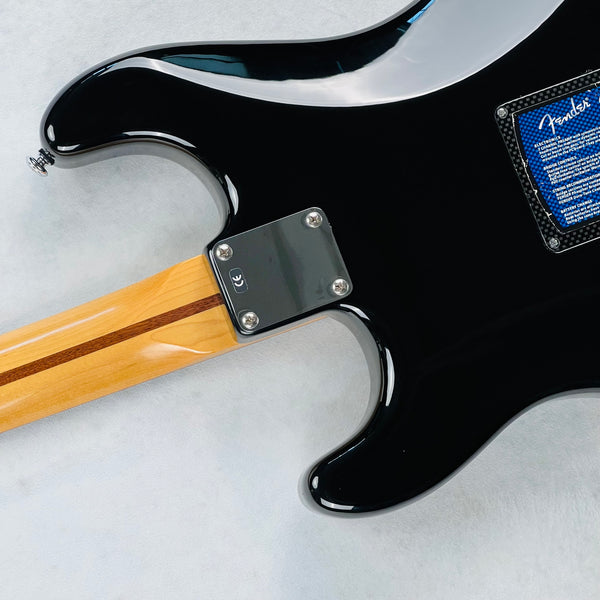

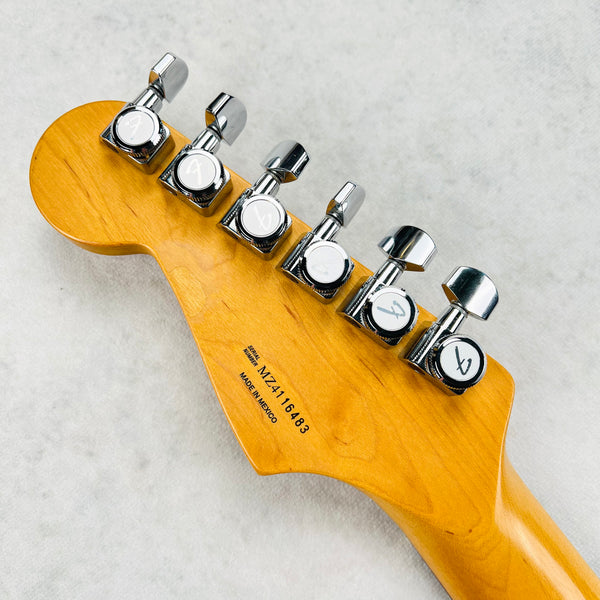

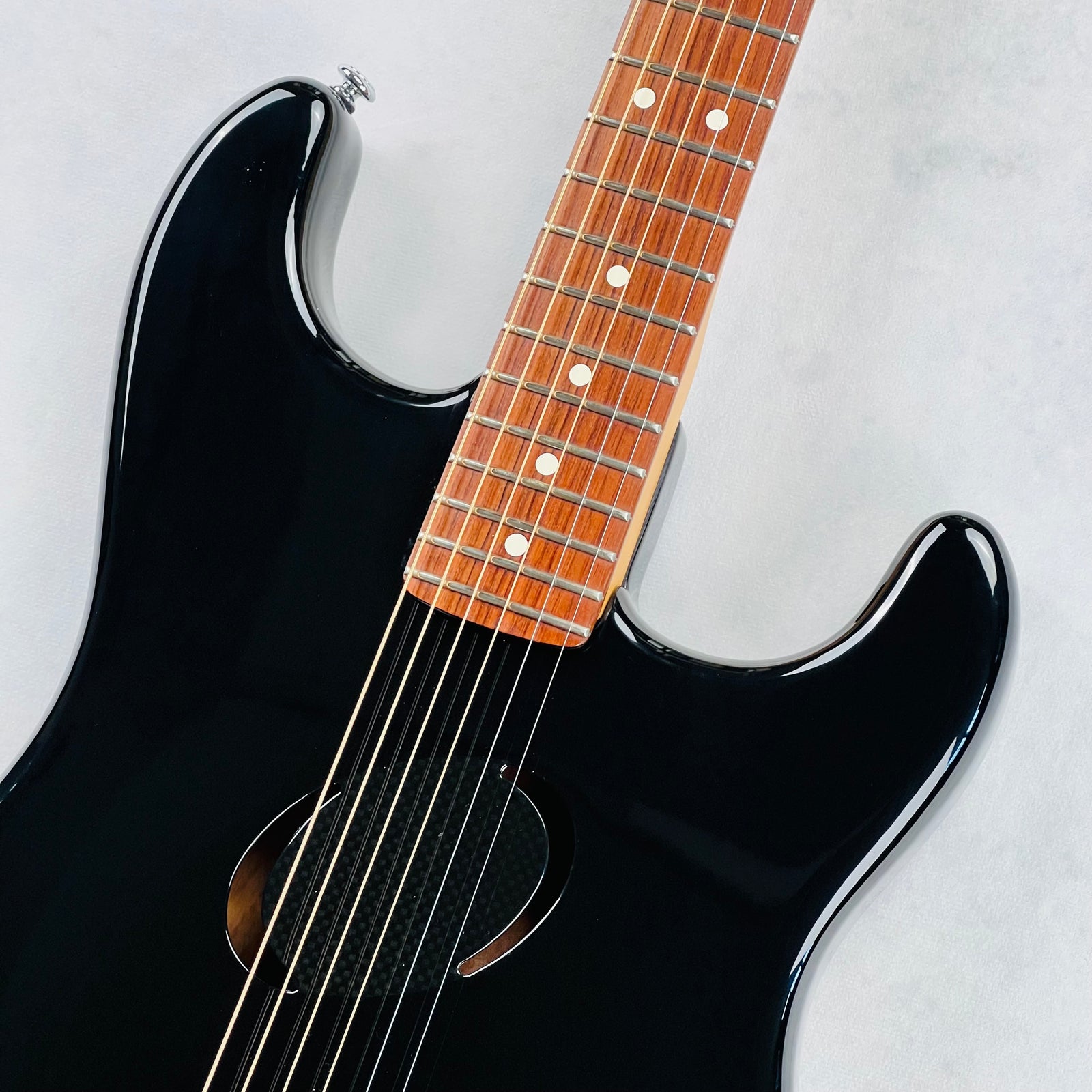

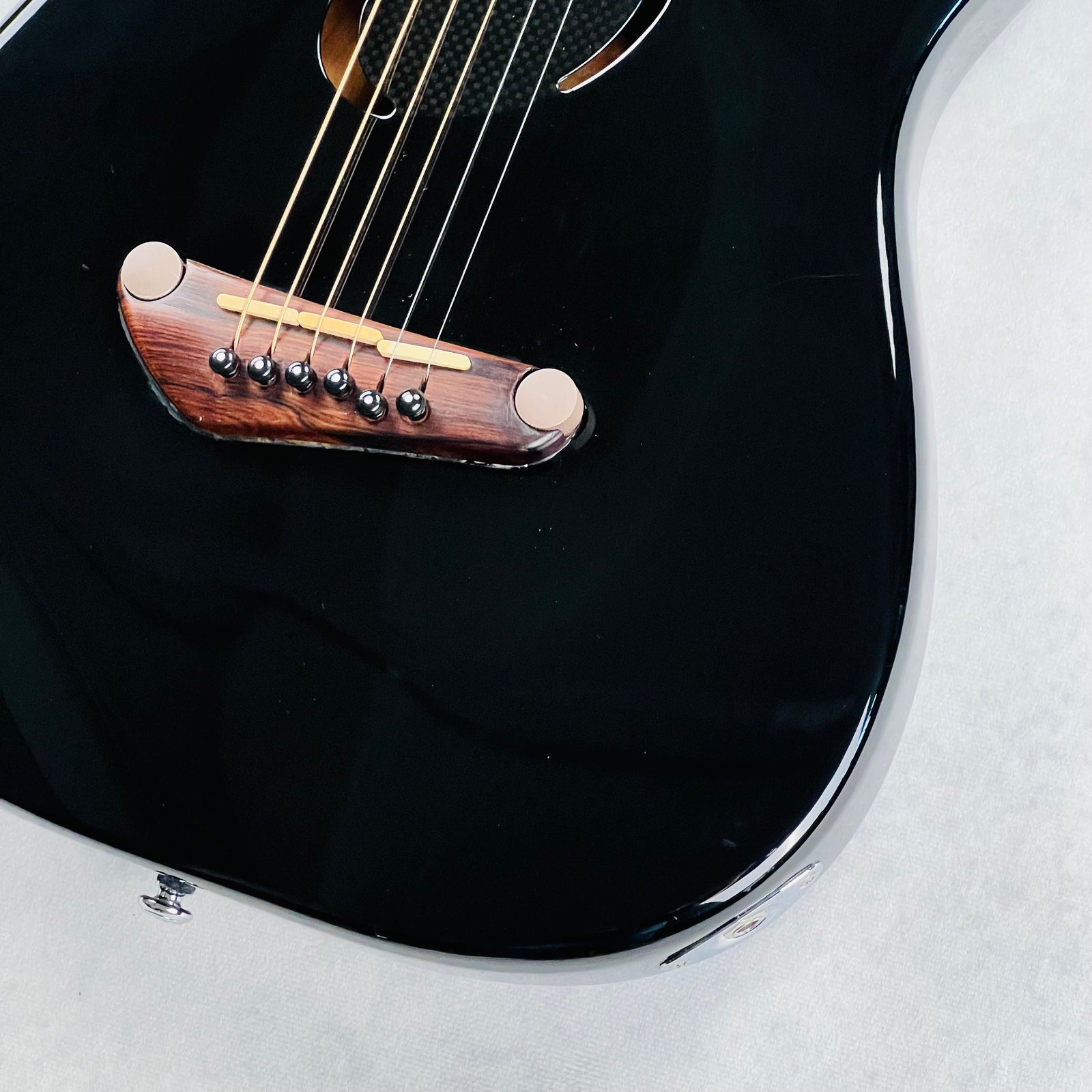

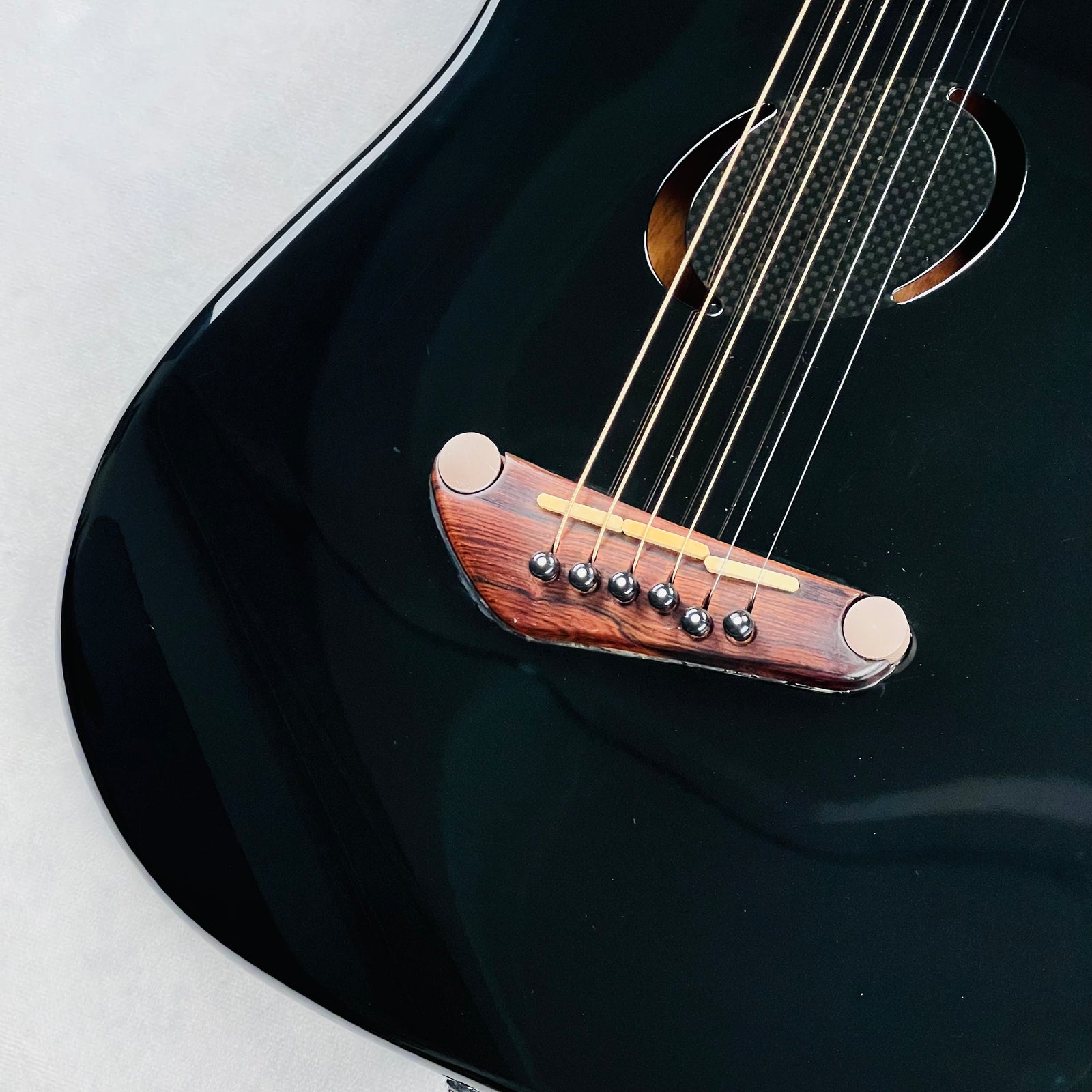

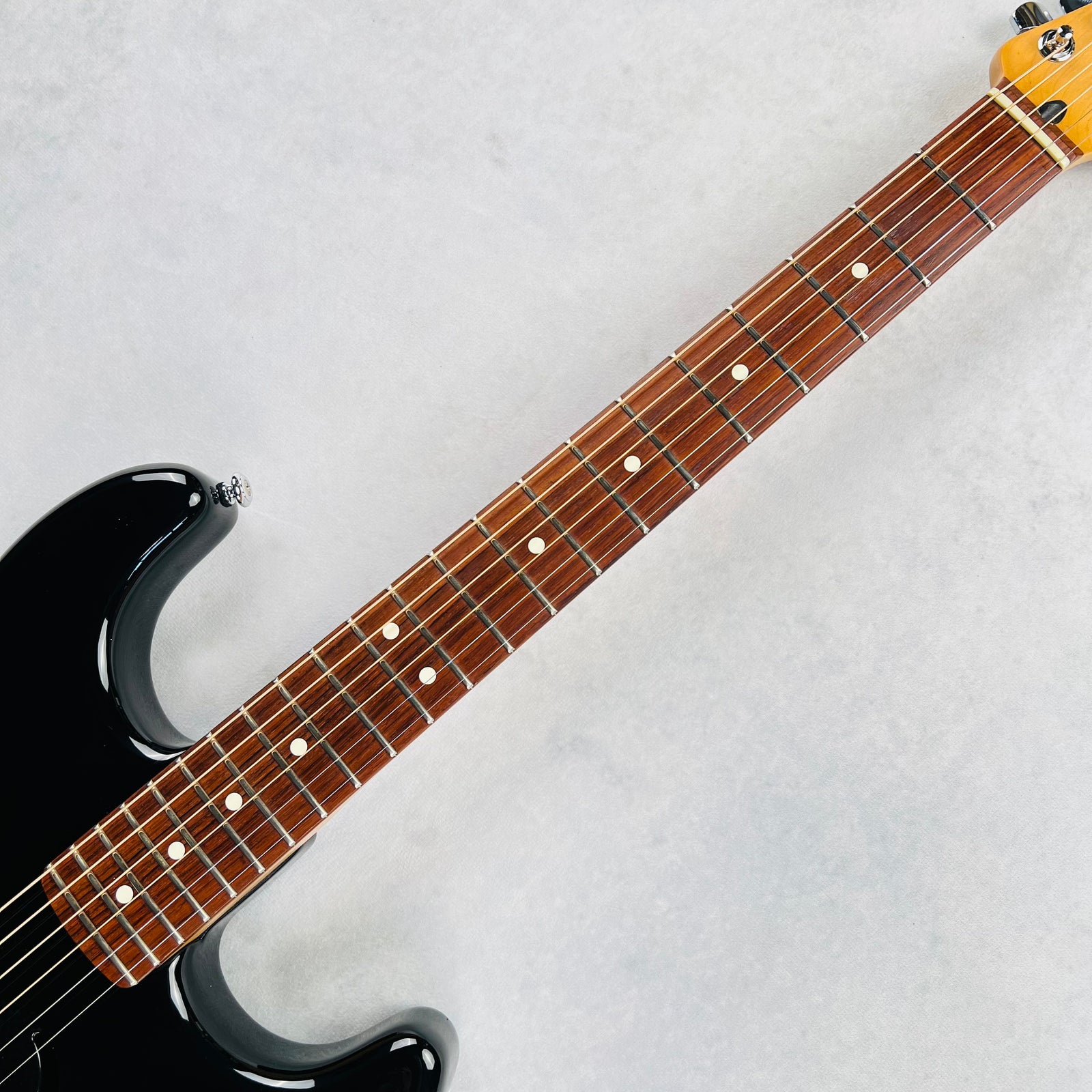

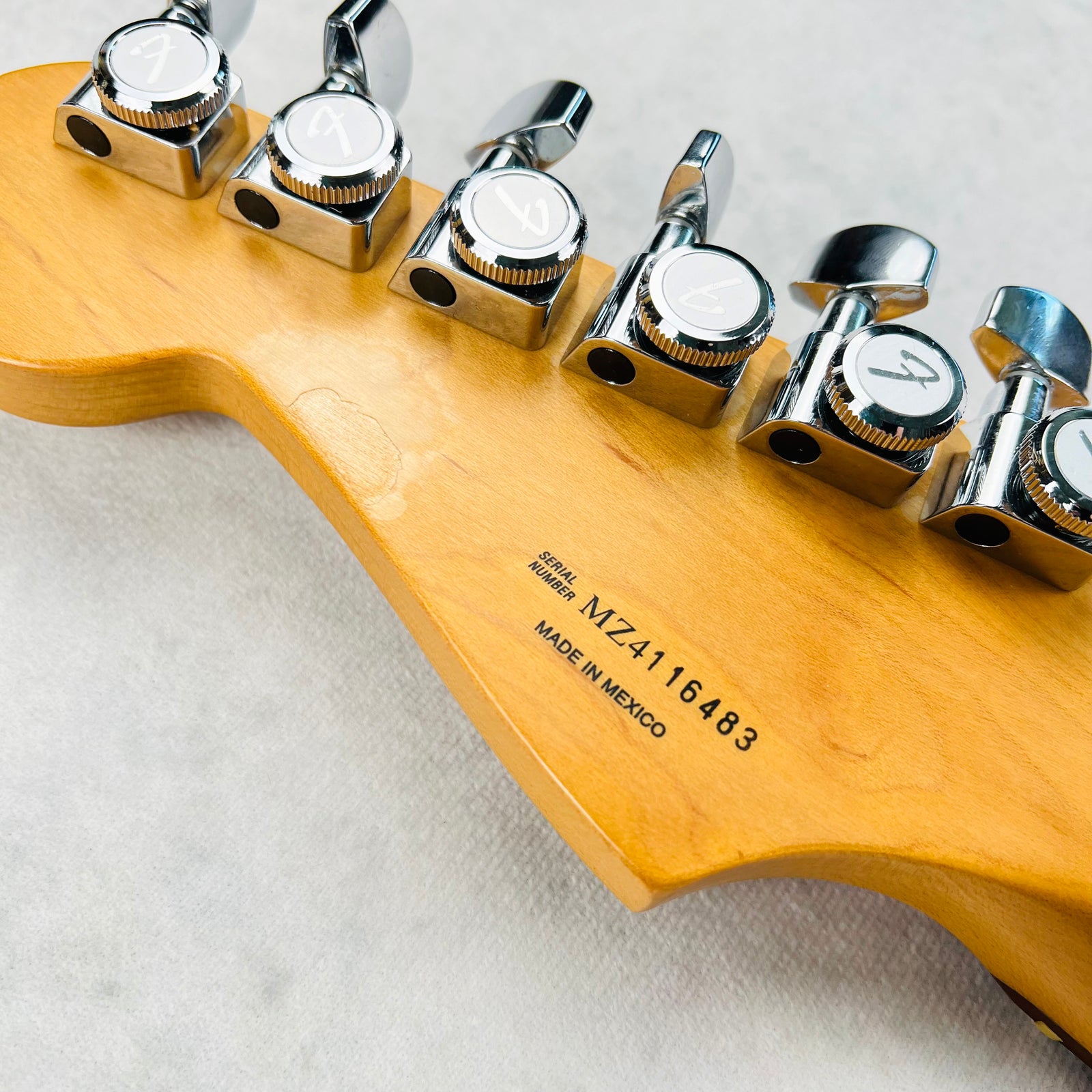

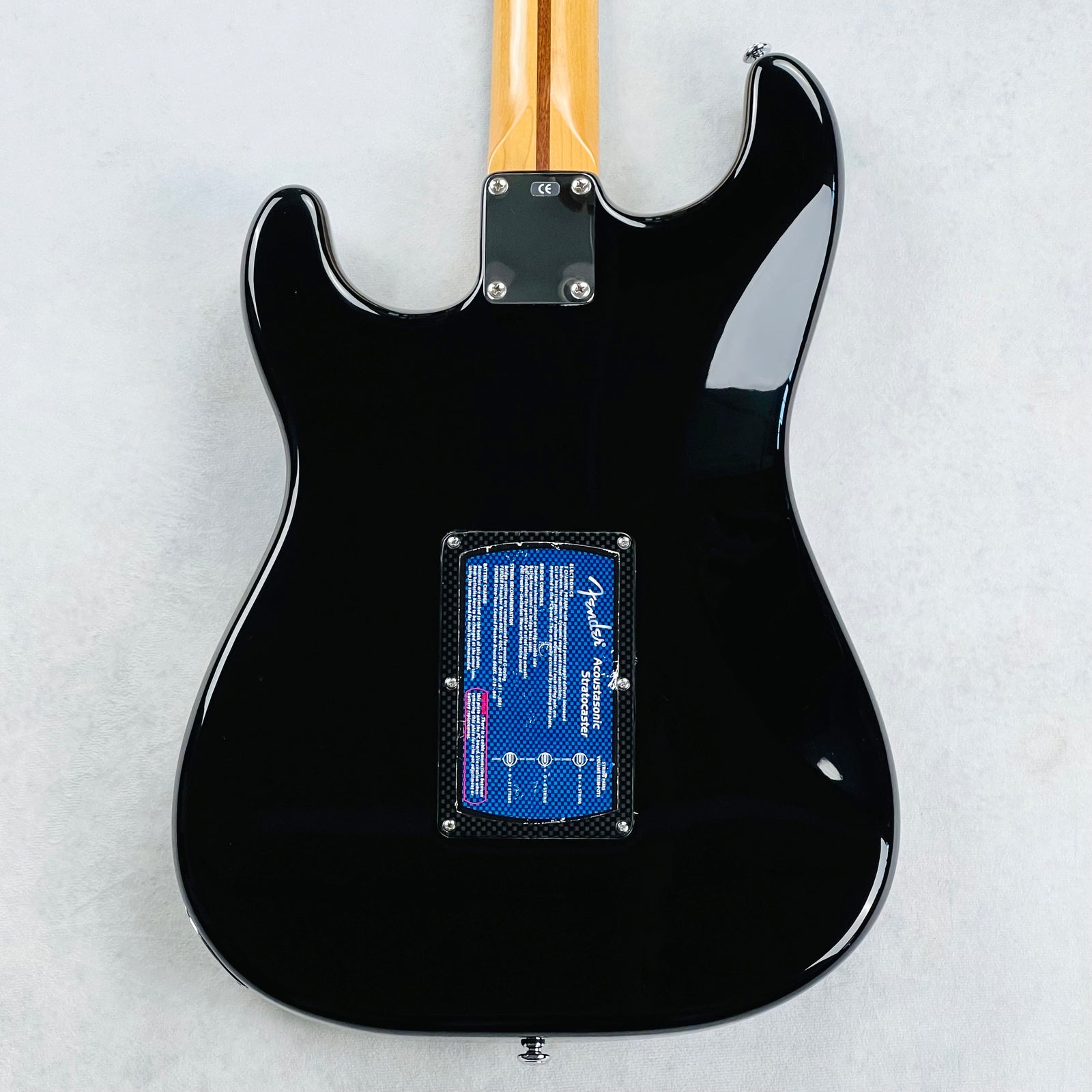

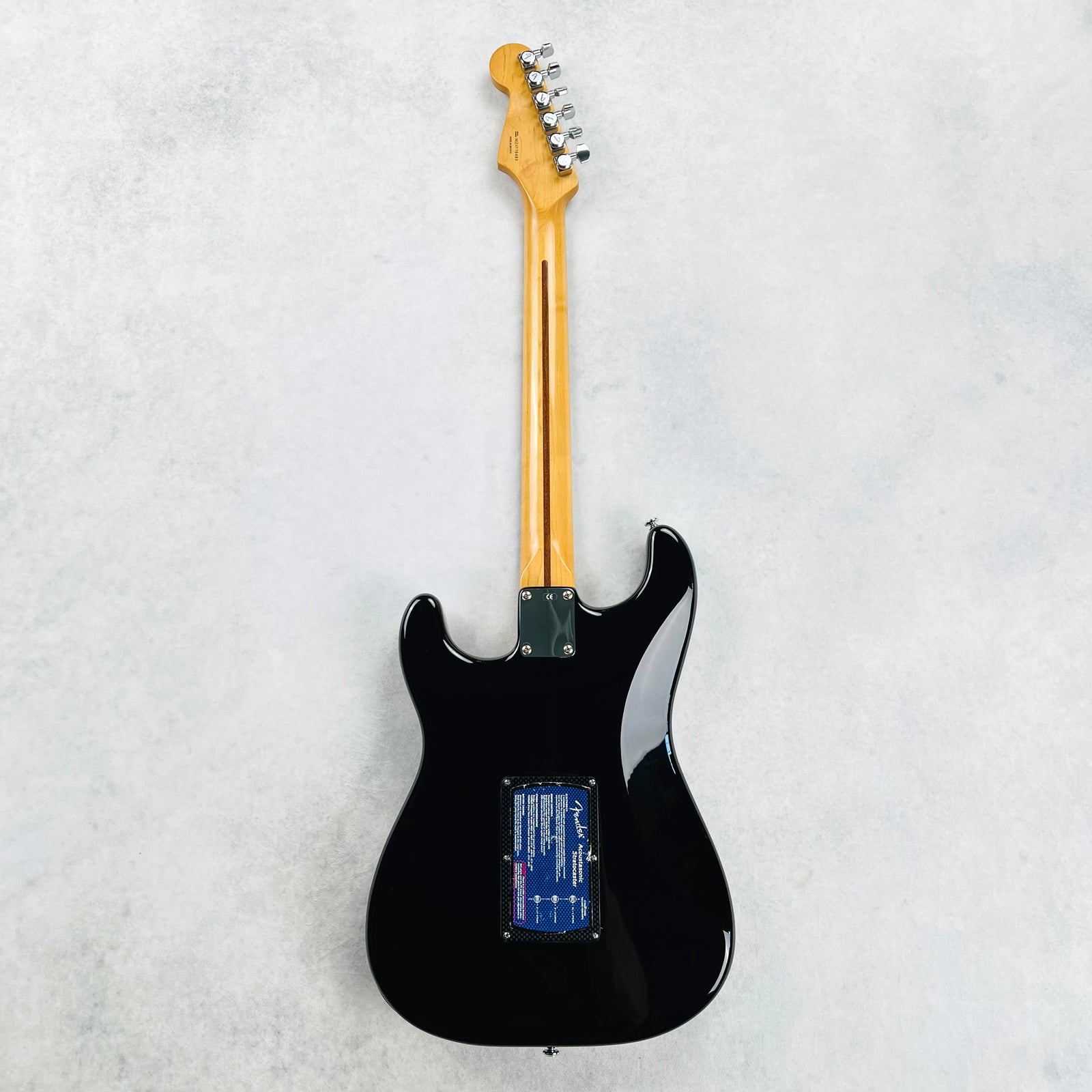

Reference Images

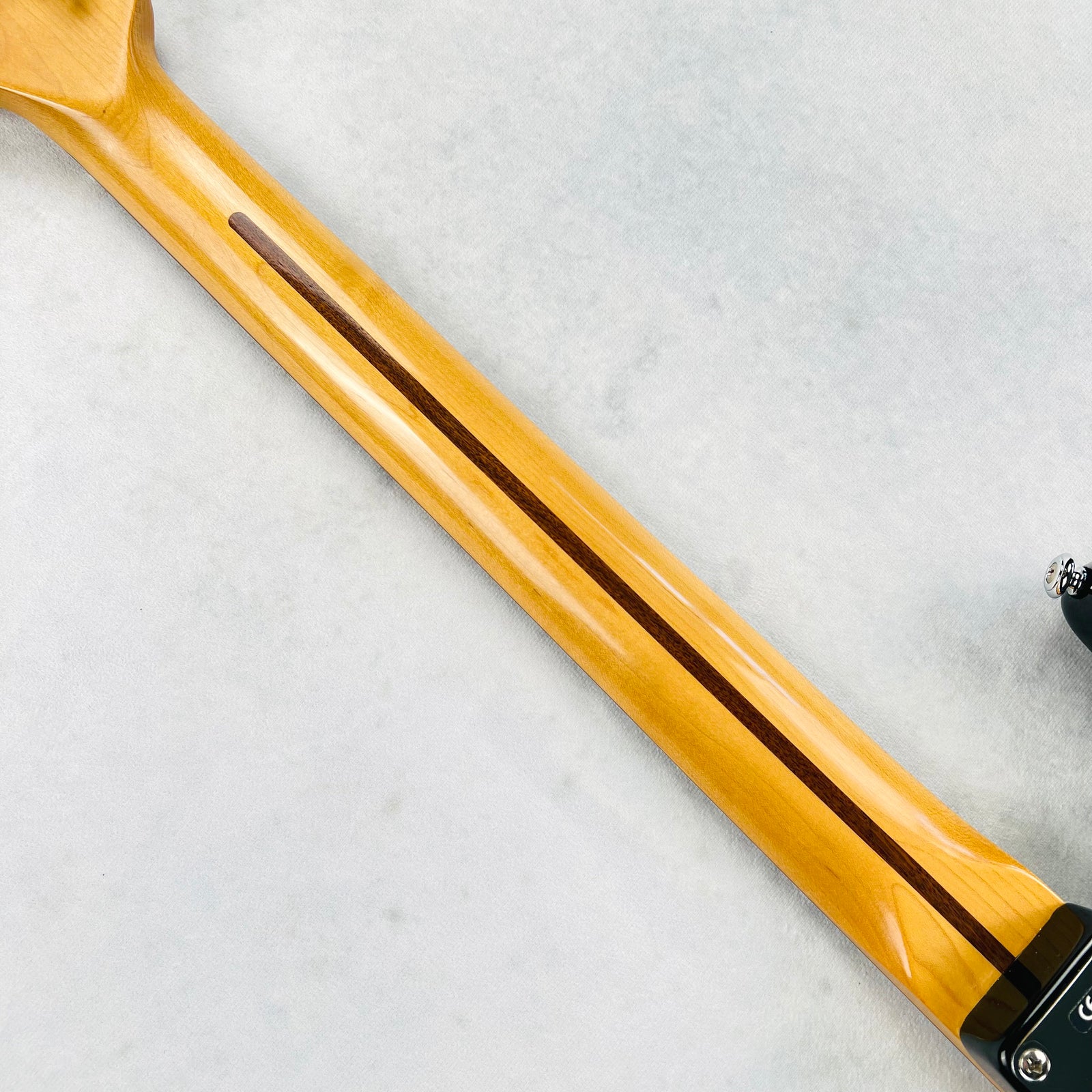

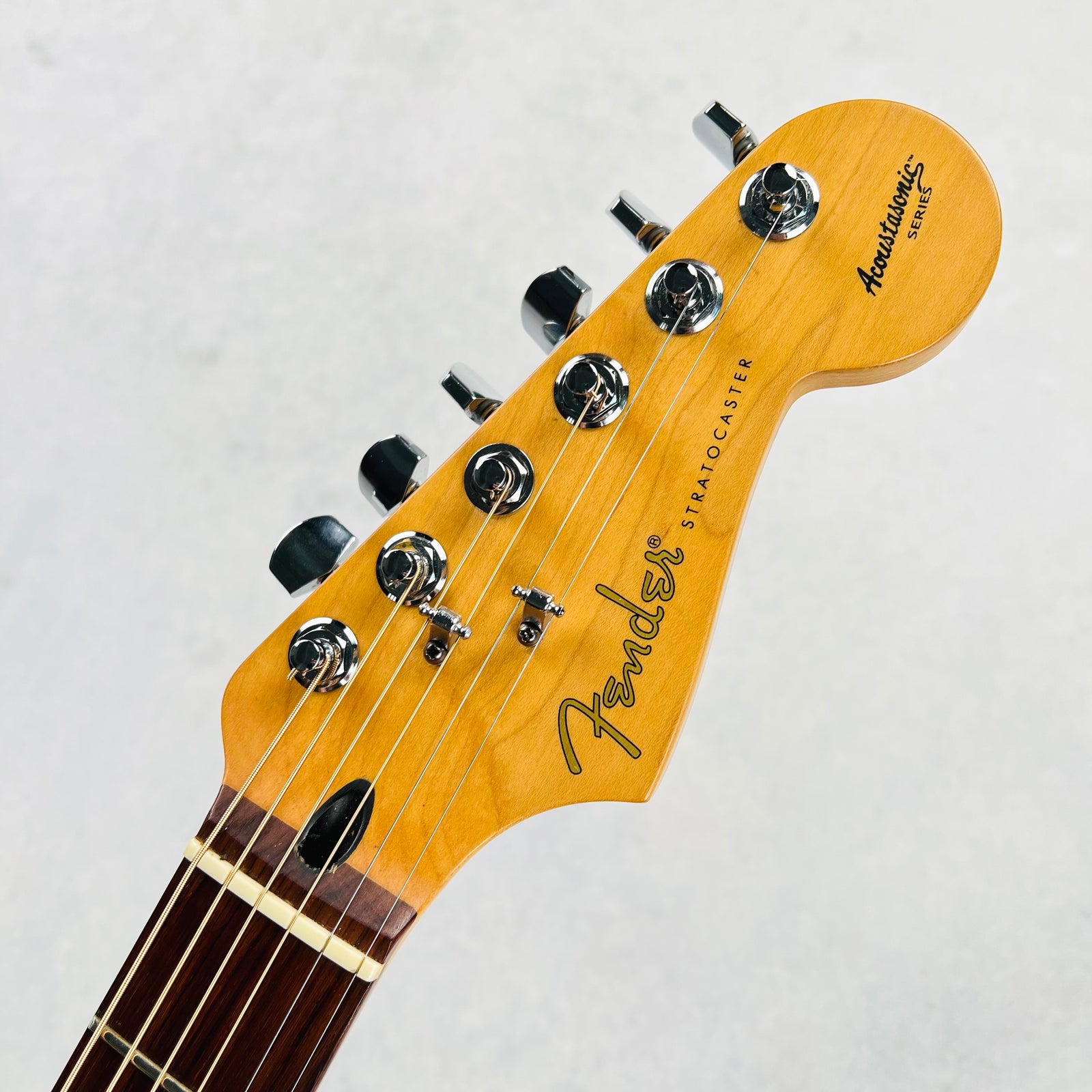

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Acoustasonic Stratocaster listed above. For larger pics, click on an image to open in a new tab.
