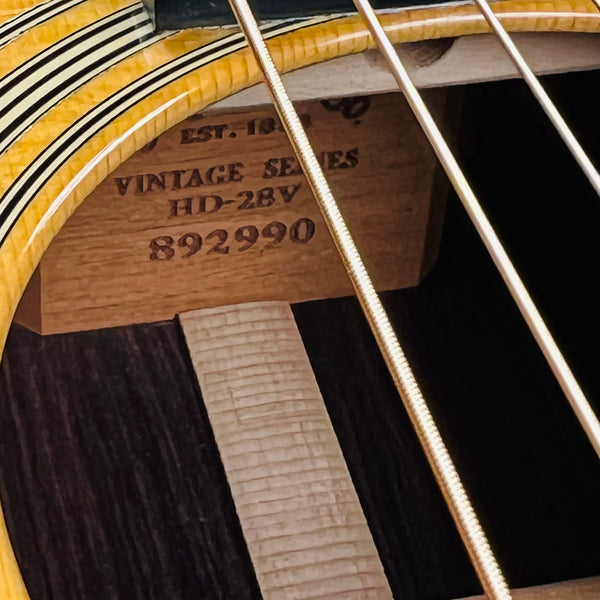

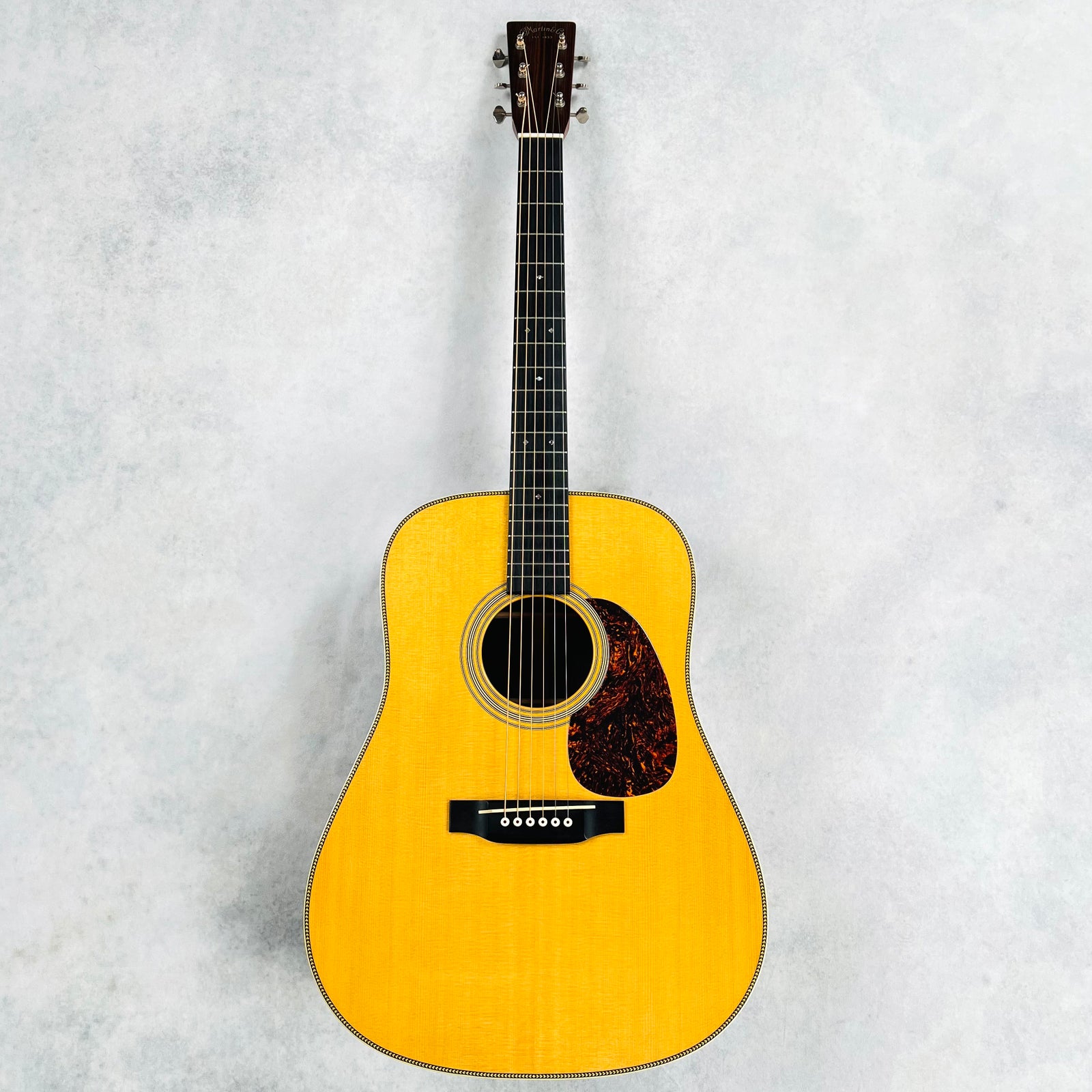

The 2002 HD-28V is a dreadnought acoustic guitar built by Martin. This square shoulder guitar was manufactured in the United States and is a Martin Vintage Series model. Key features include a Spruce Top, Rosewood Back & Sides, Mahogany Neck, Ebony Fretboard, Herringbone Top Purfling and Natural finish. The specs listed below pertain to the 2002 product year model pictured on this page.
Factory Specs
- Spruce Top

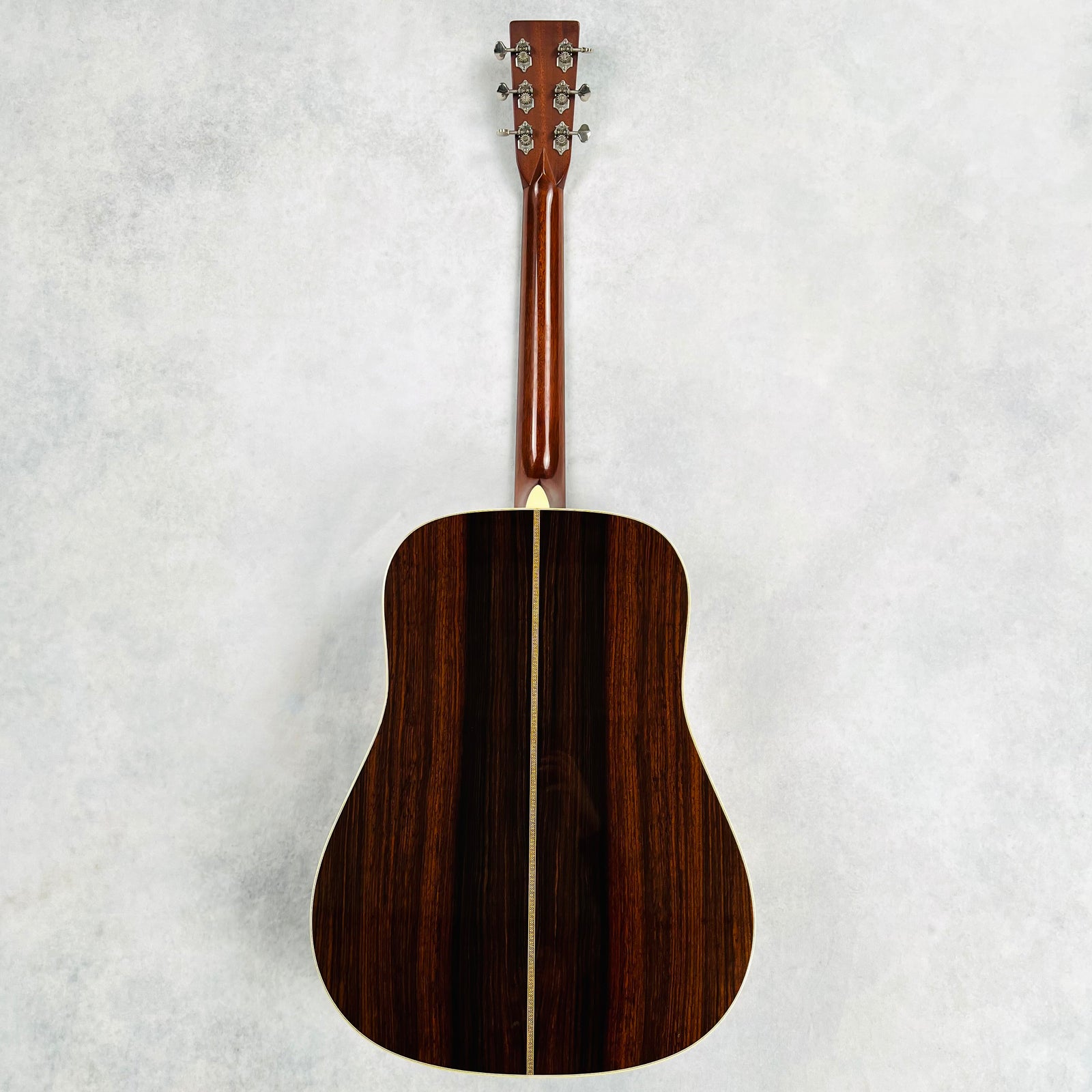

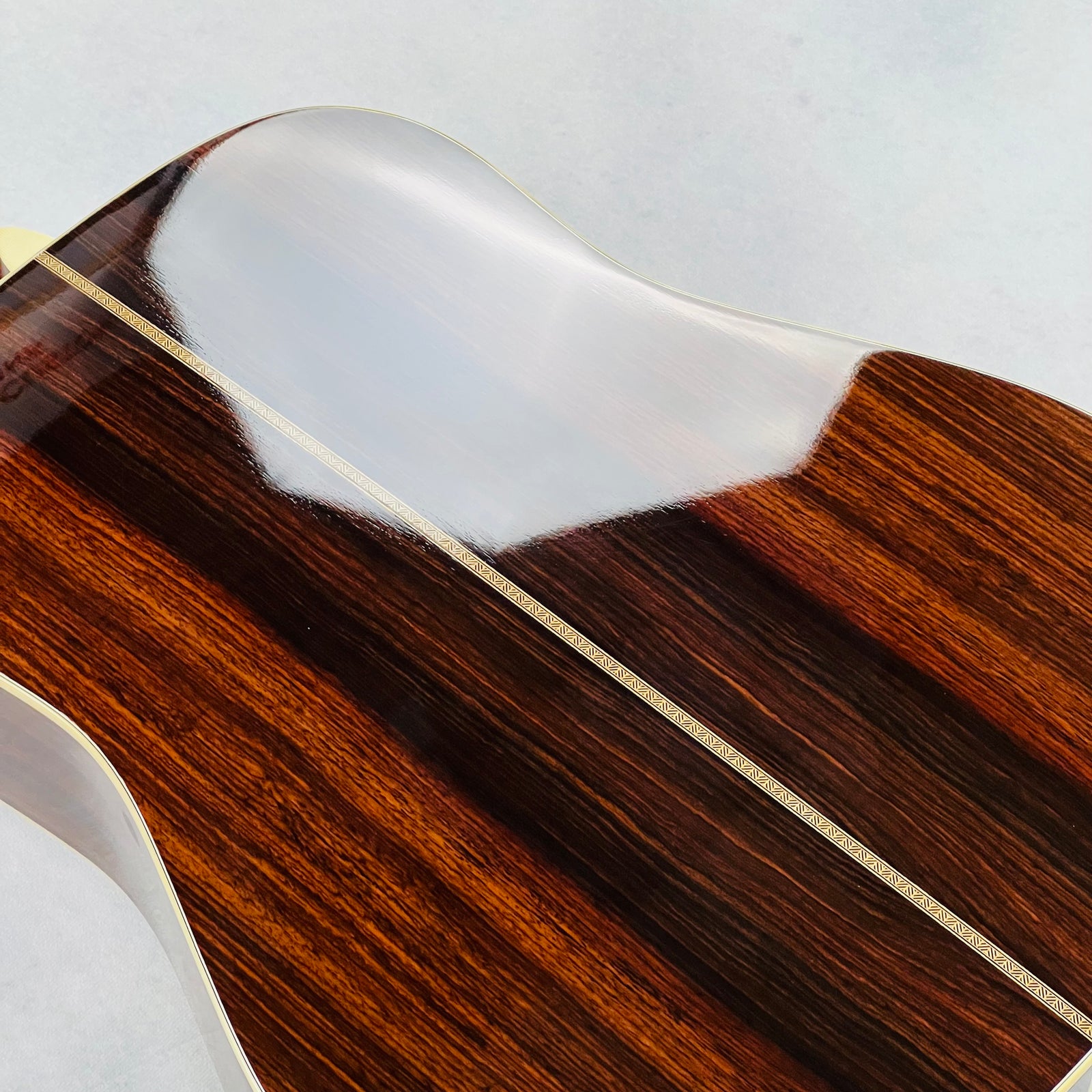

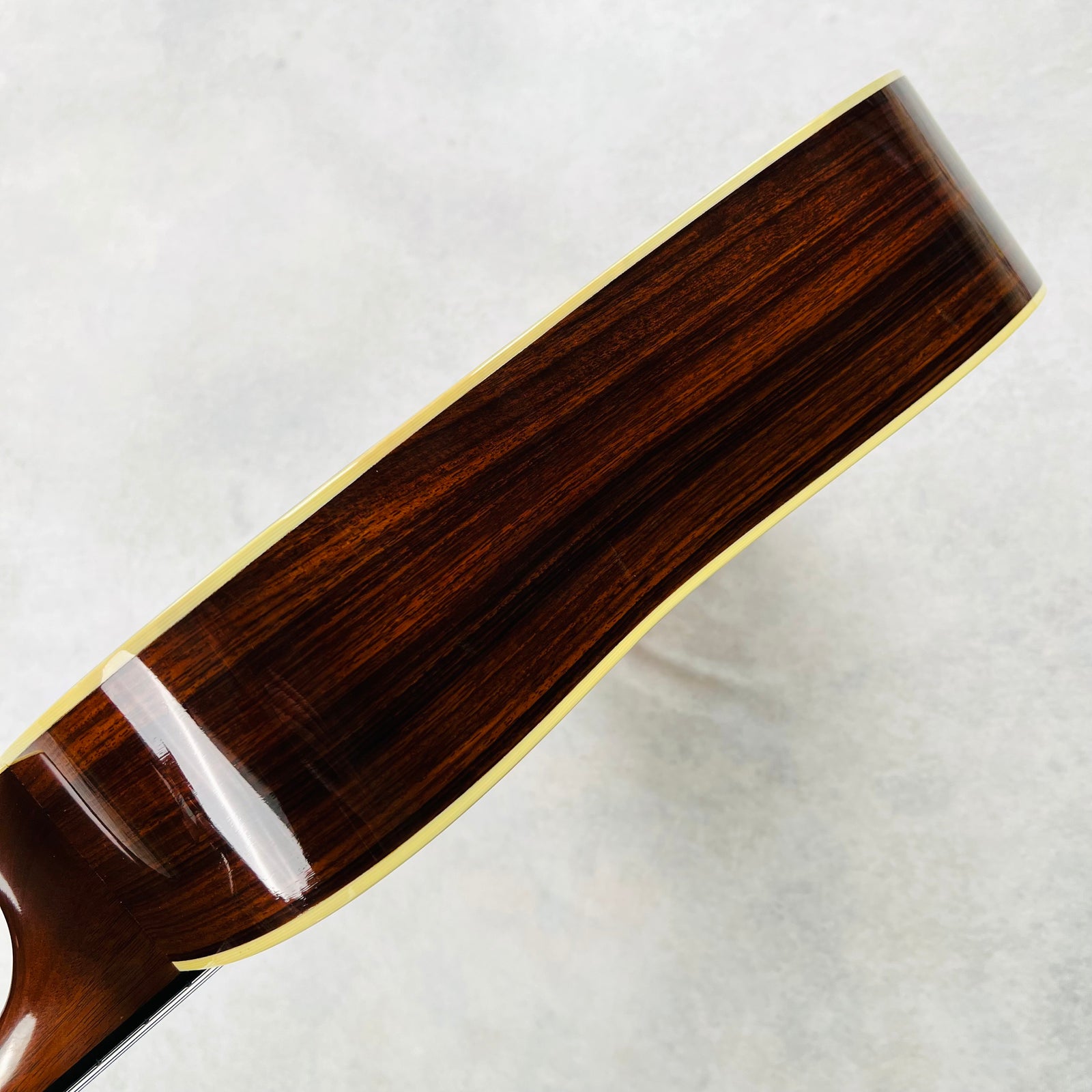

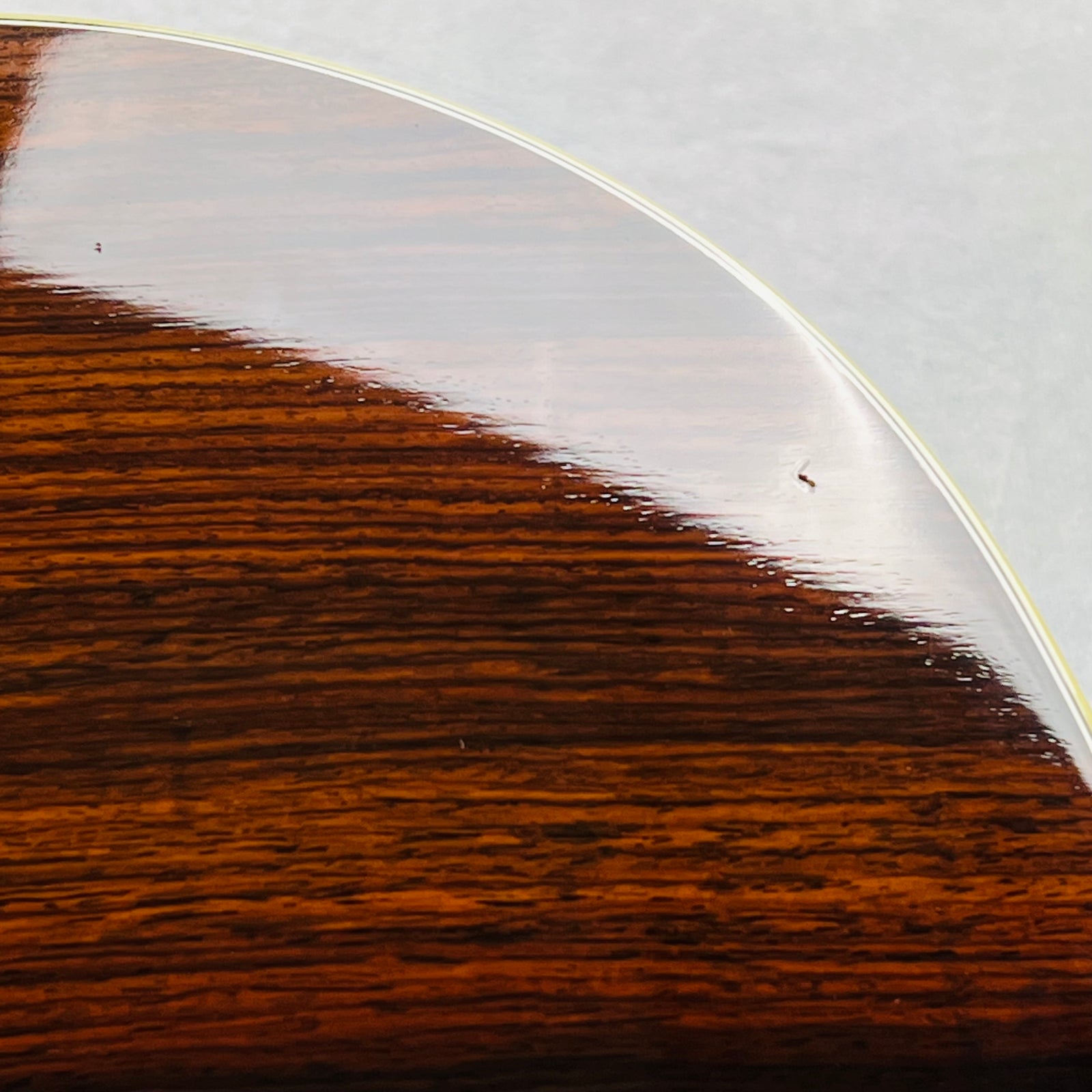

- Rosewood Back & Sides

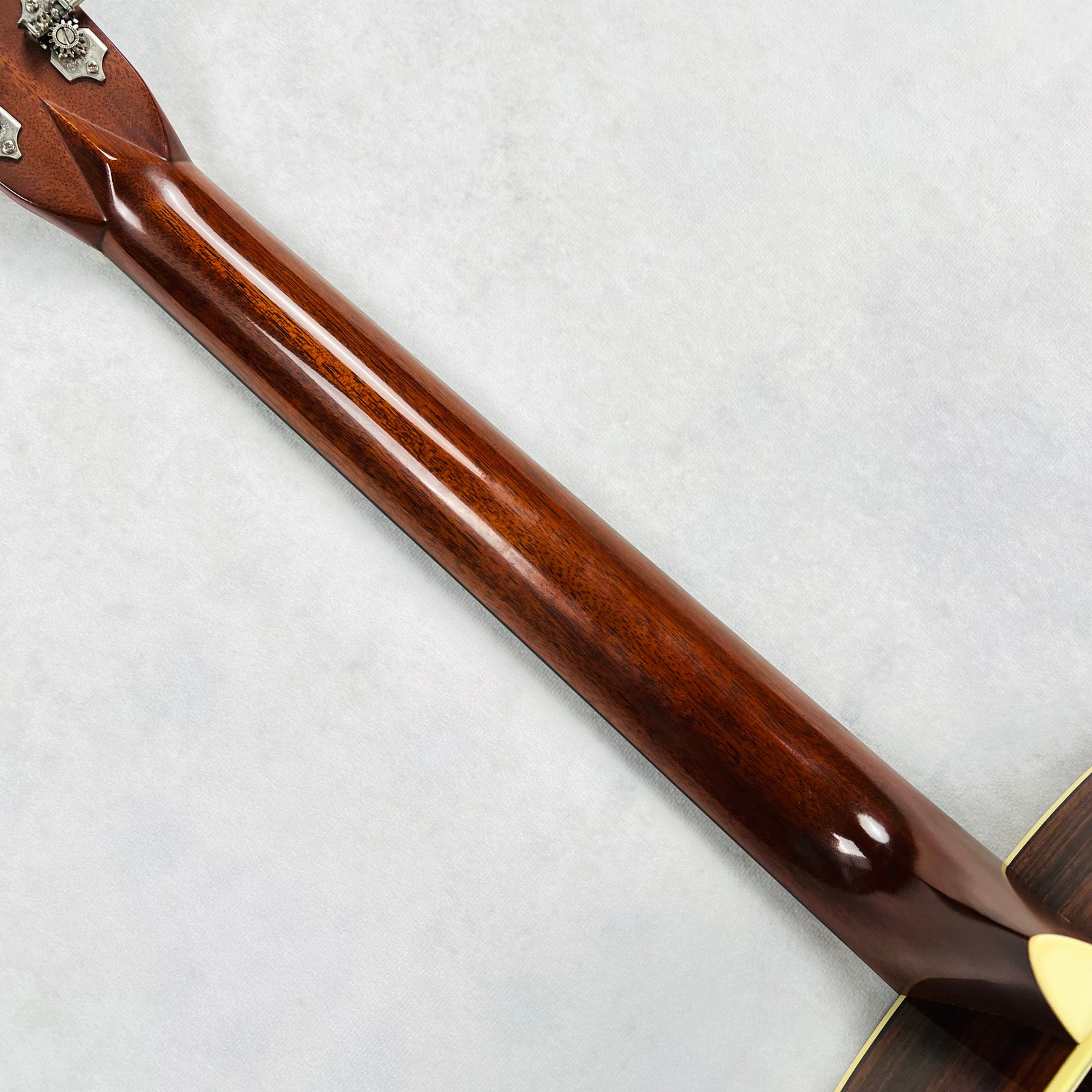

- Mahogany Neck

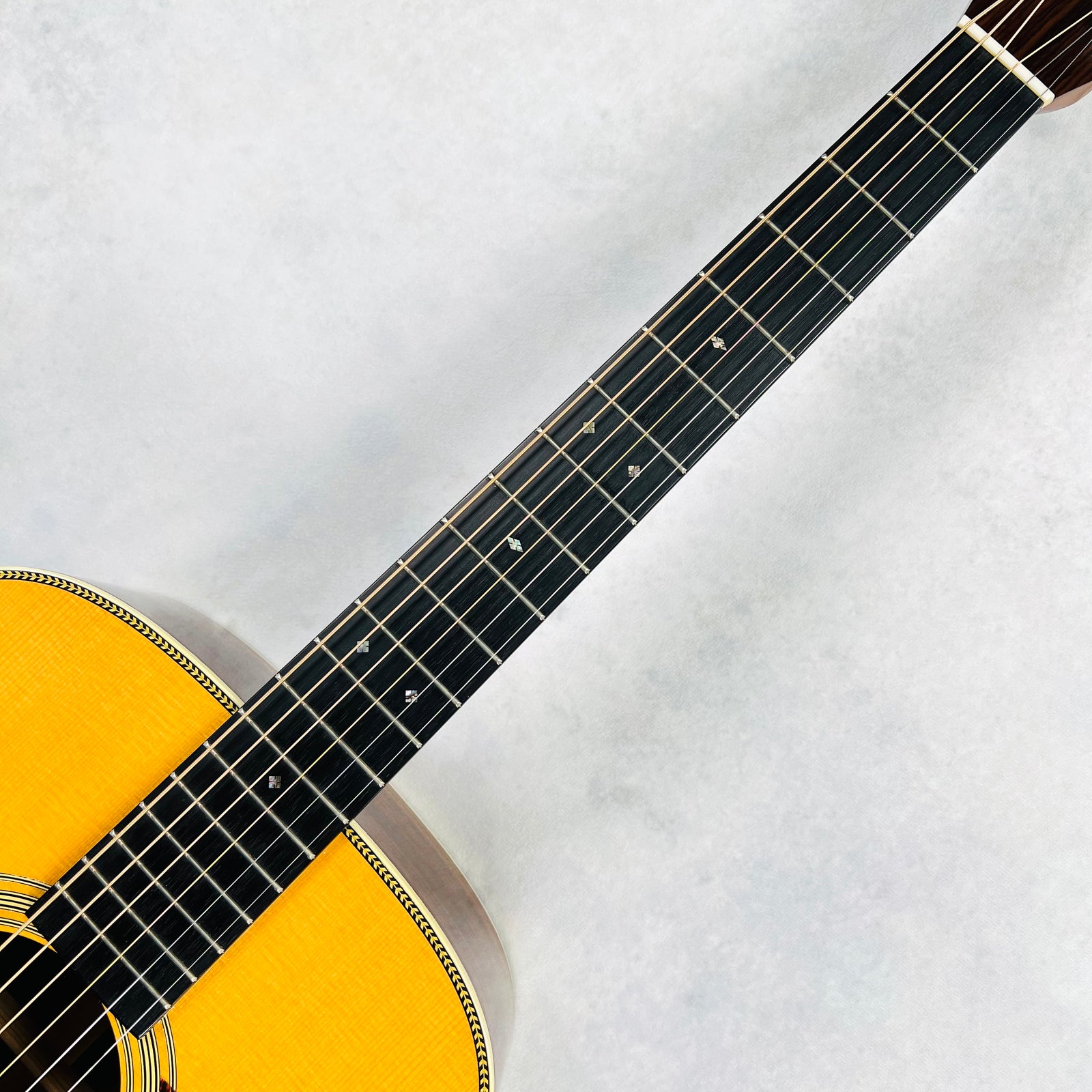

- Ebony Fretboard
- Diamond & Squares Inlay Pattern

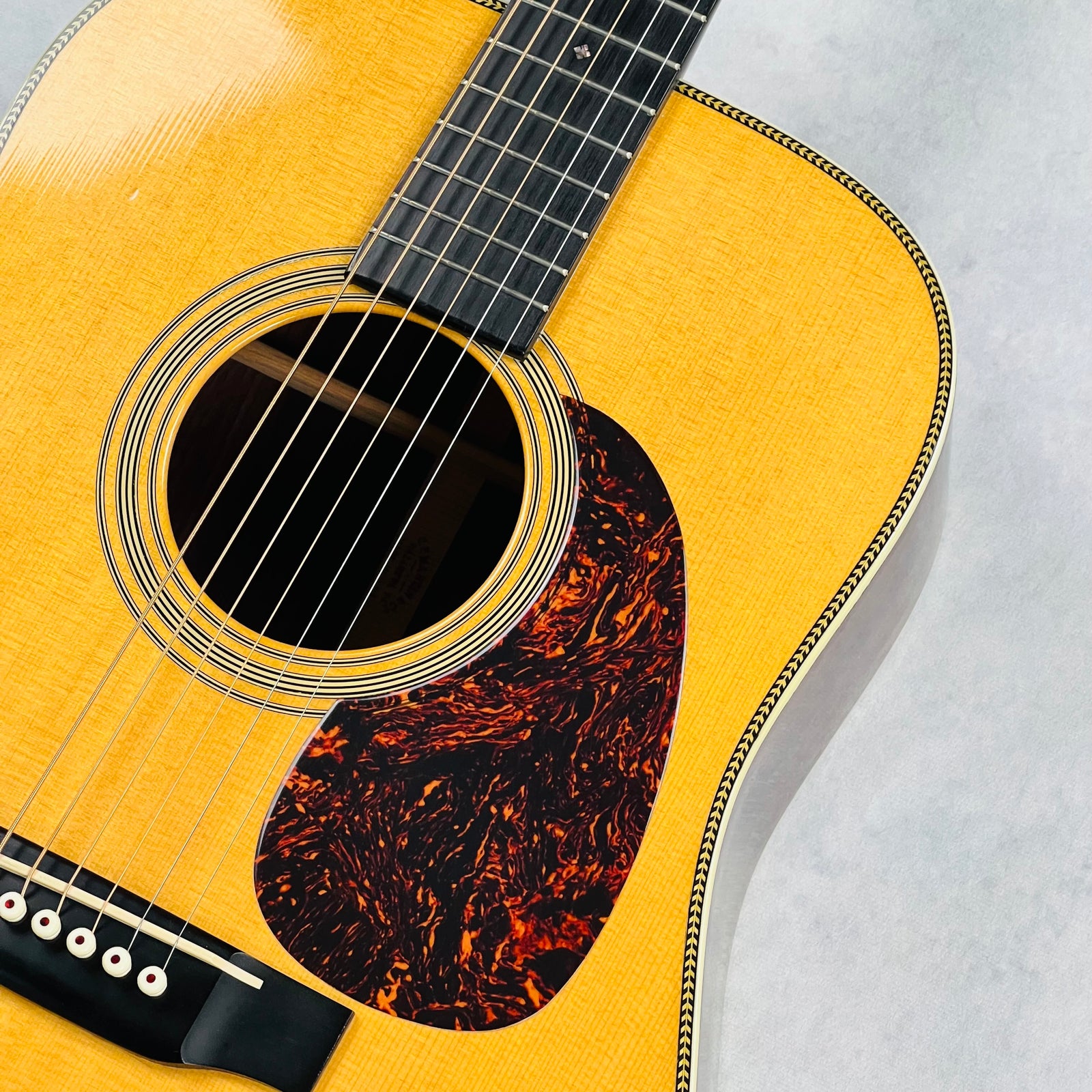

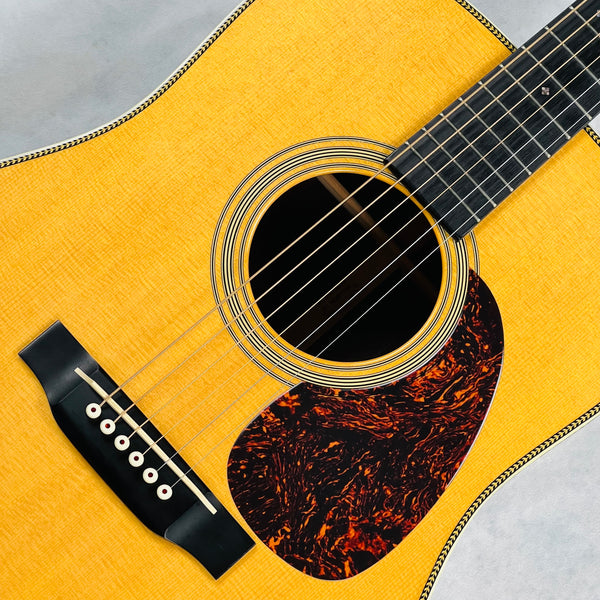

- Tortoise Guard

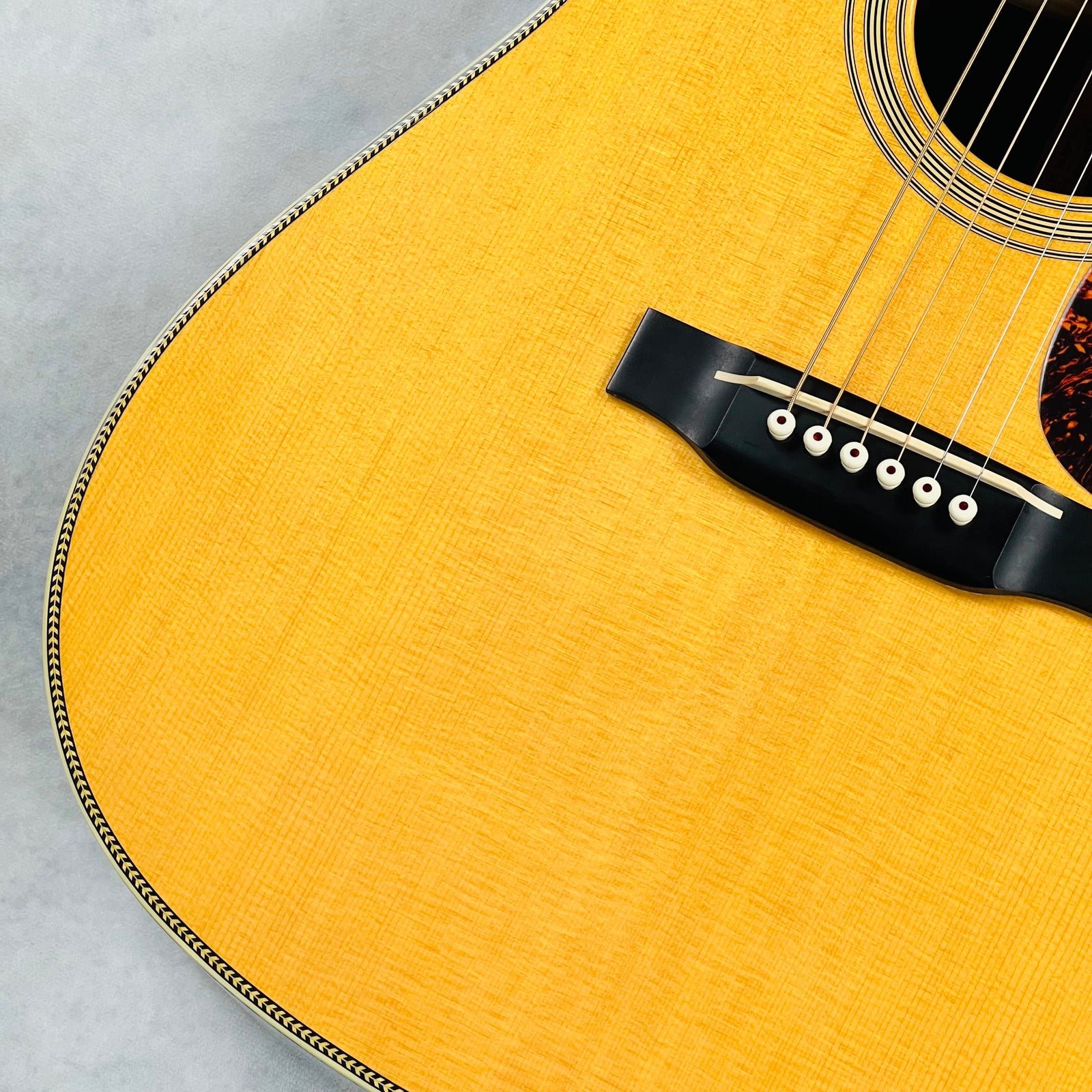

- Ebony Bridge

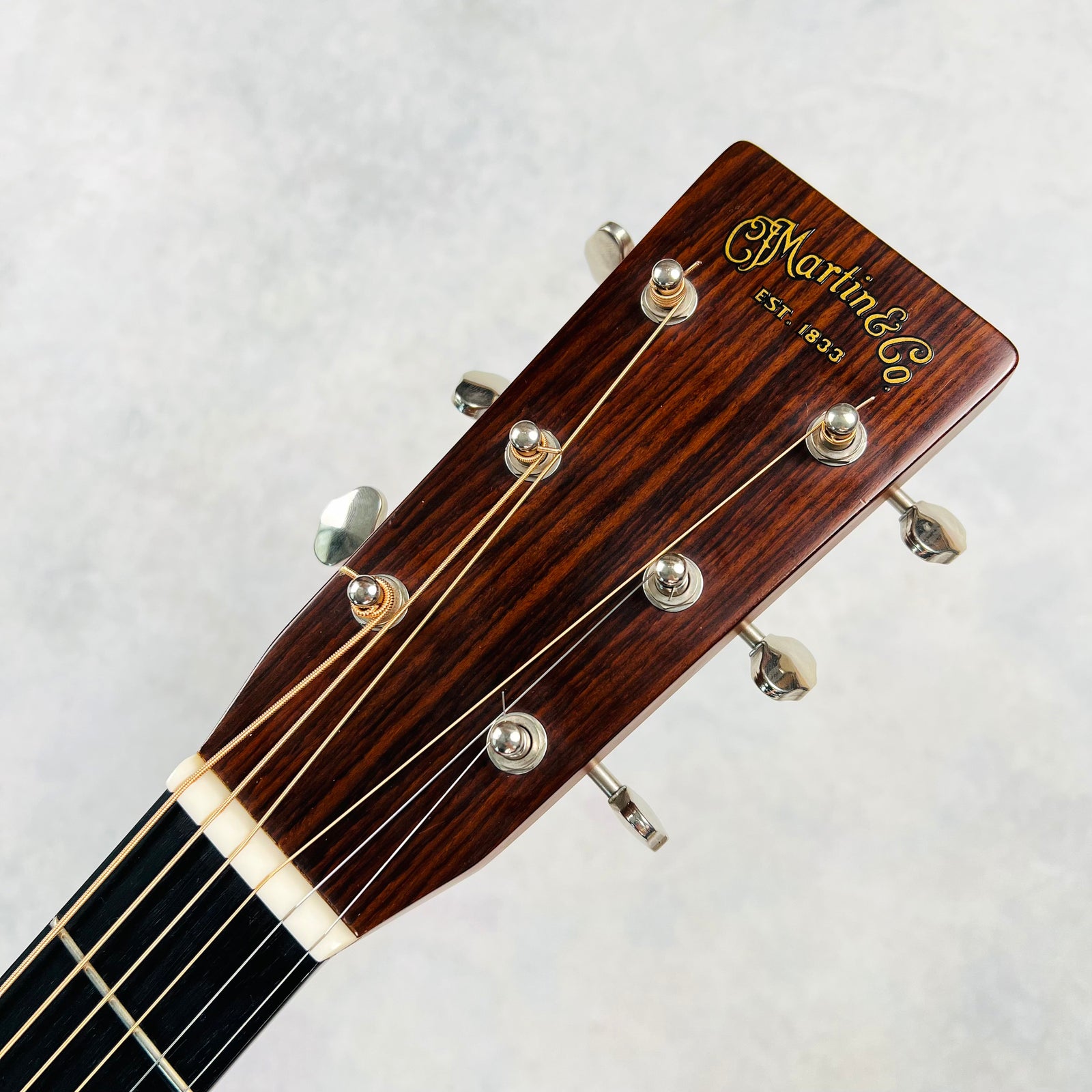

- Rosewood Headplate

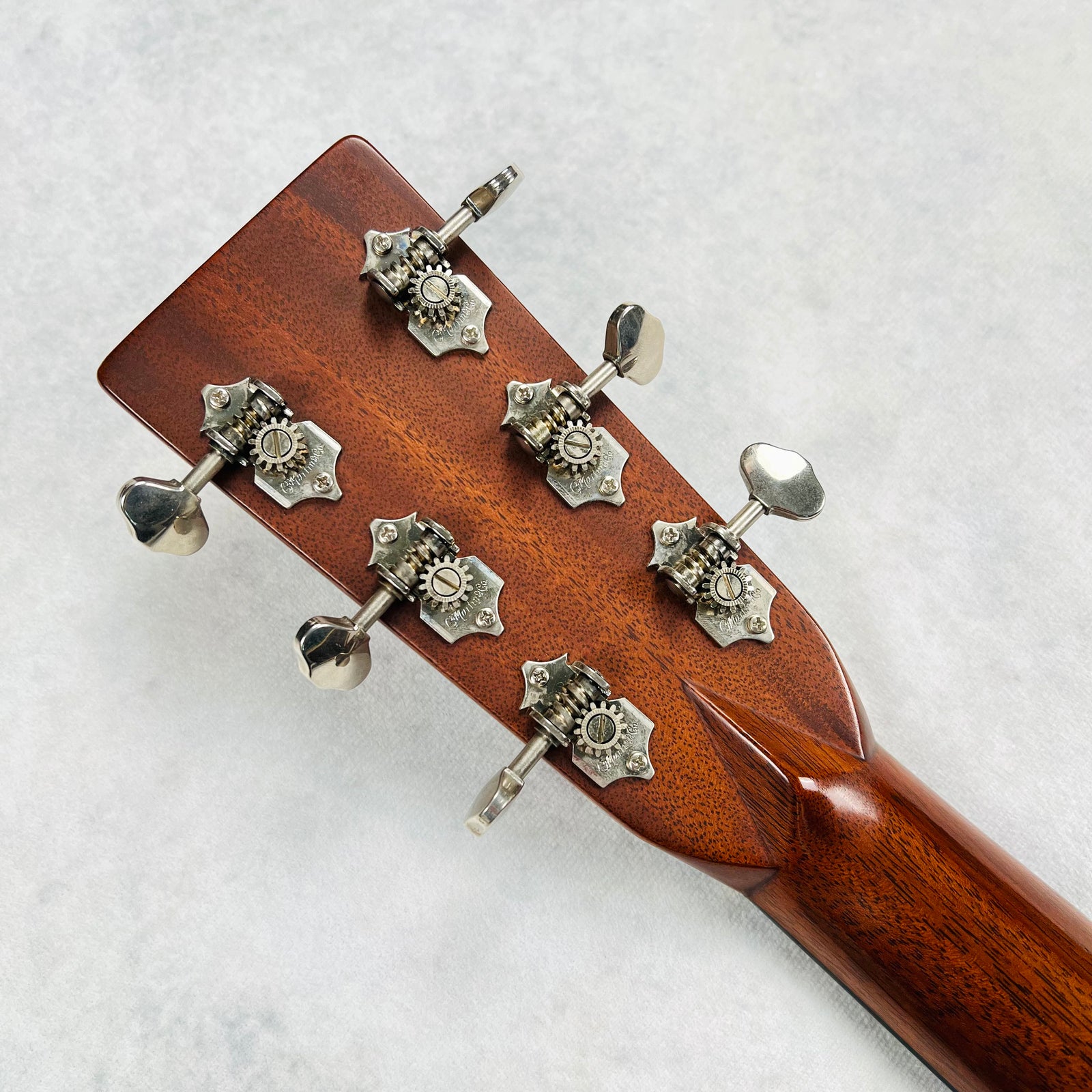

- Open Gear Tuners
- Ivoroid Body Binding
- Herringbone Top Purfling

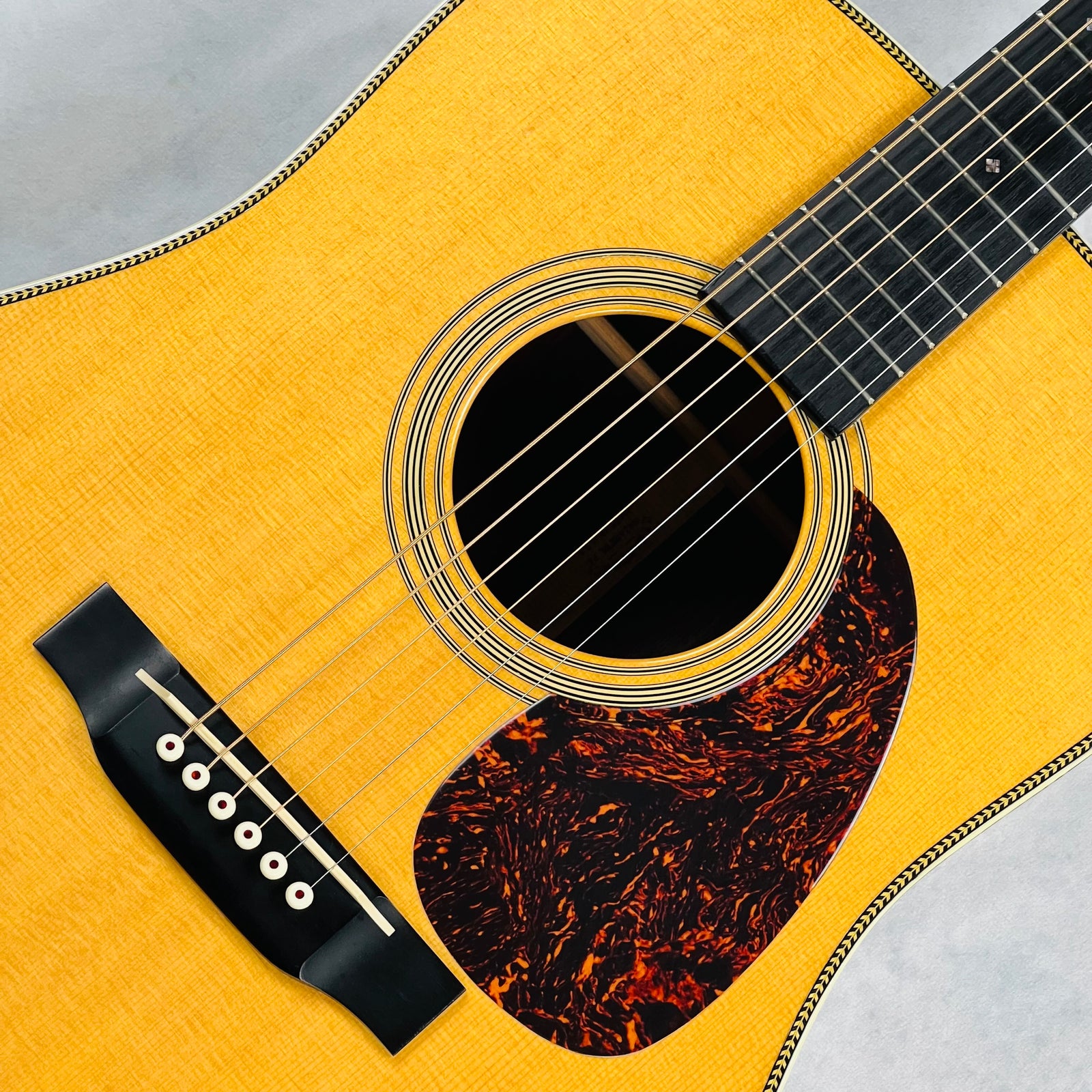

- 3 Ring Rosette
- 25.4" Scale Length
- 1 11/16" Nut Width
- 2 1/8" String Spacing
- 16" Radius

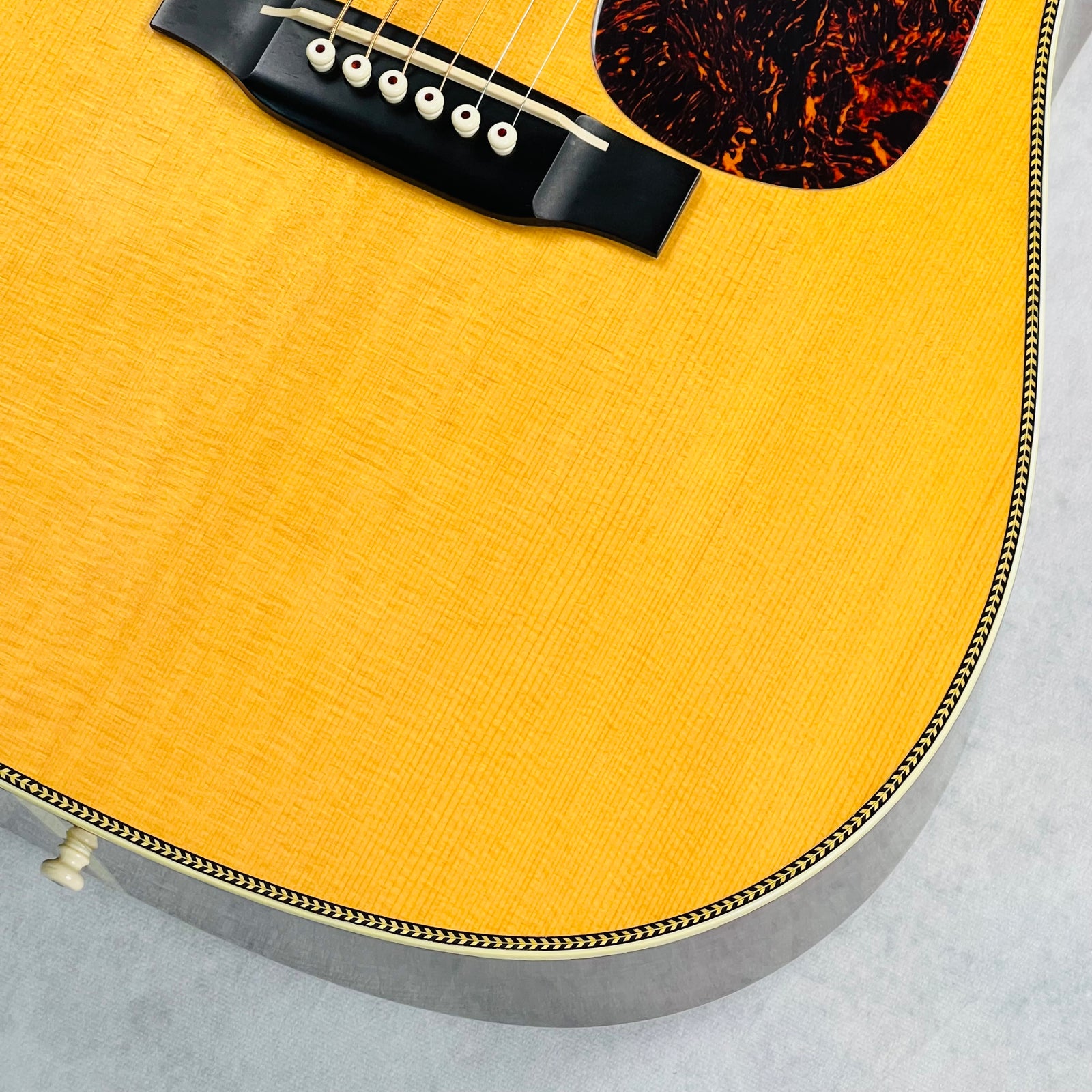

Reference Images

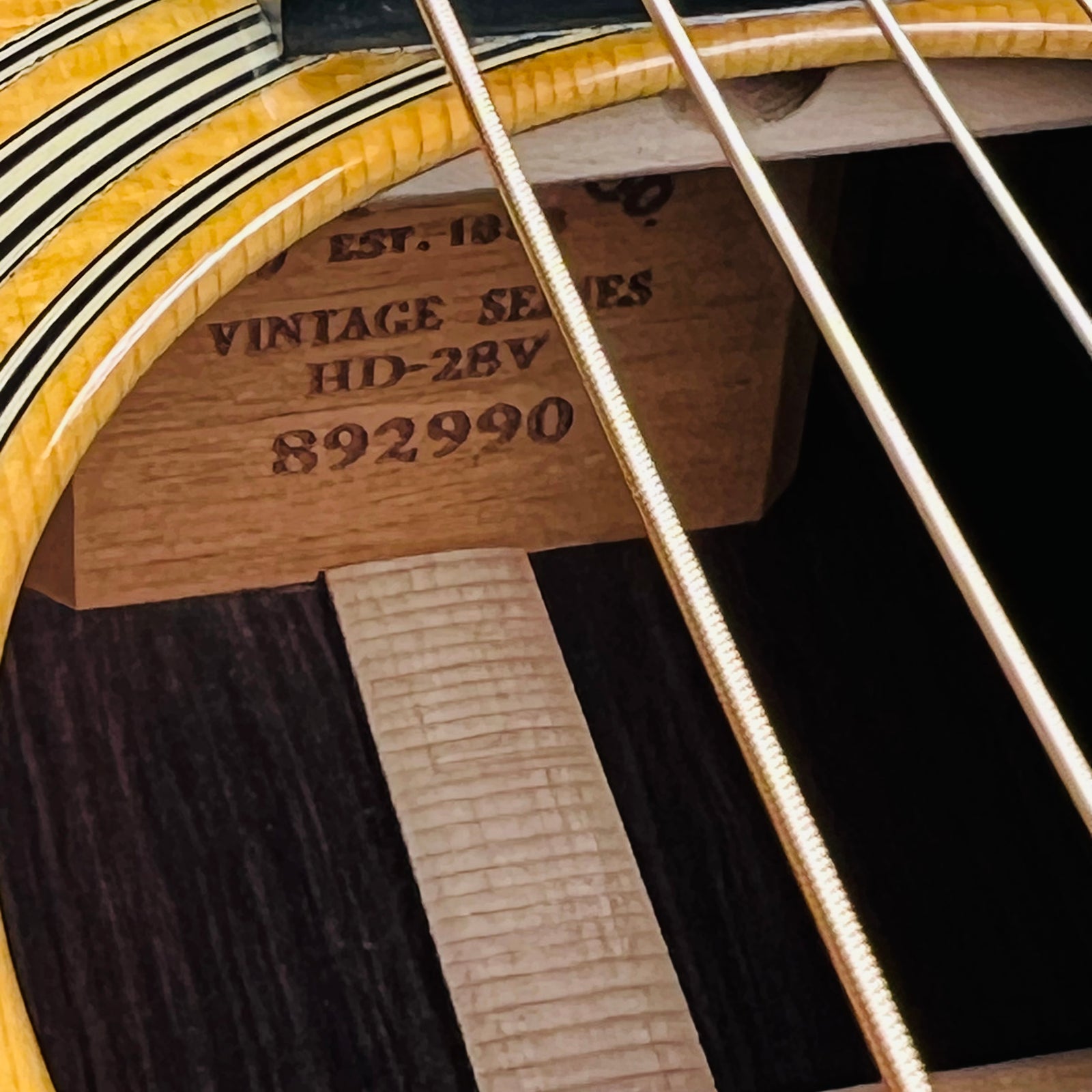

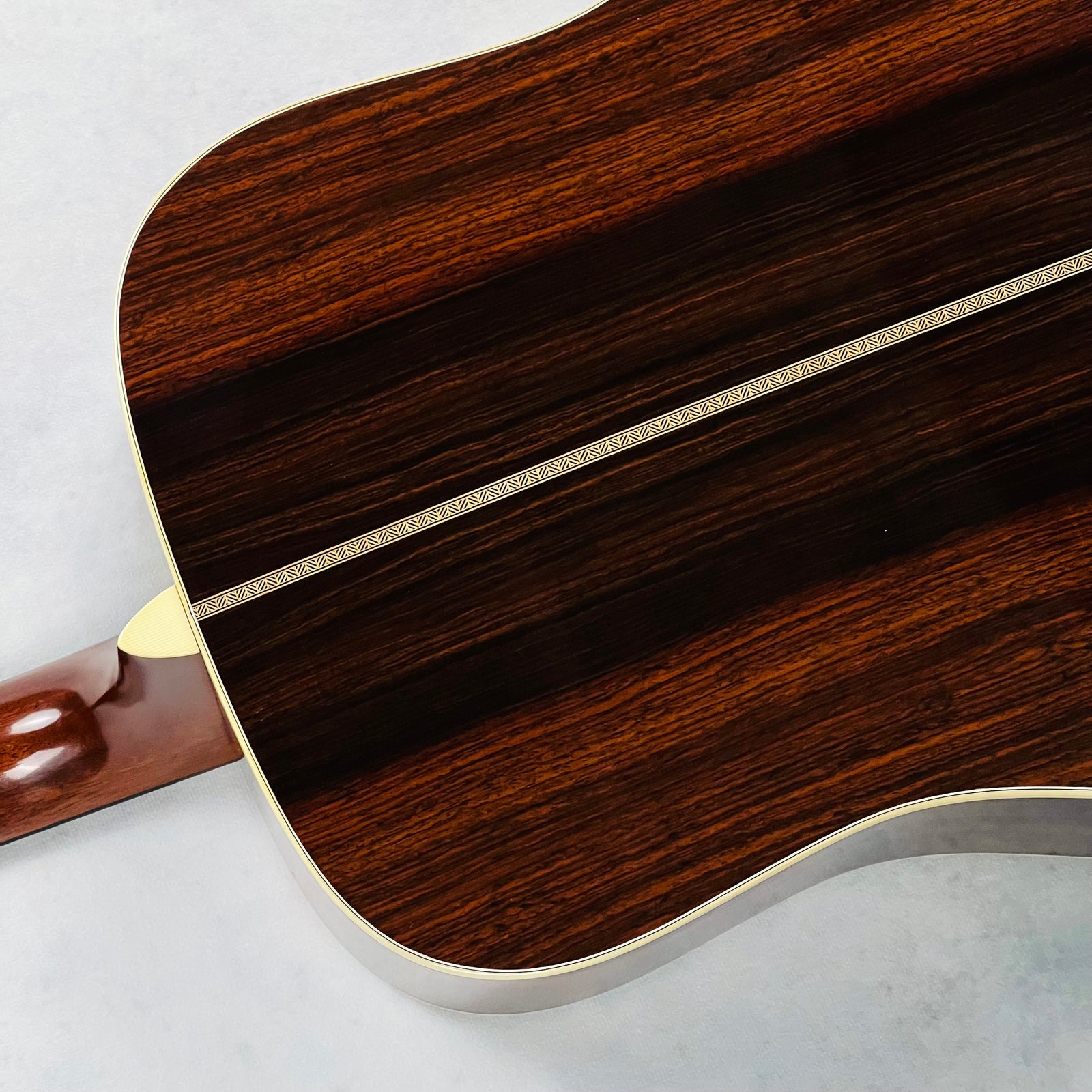

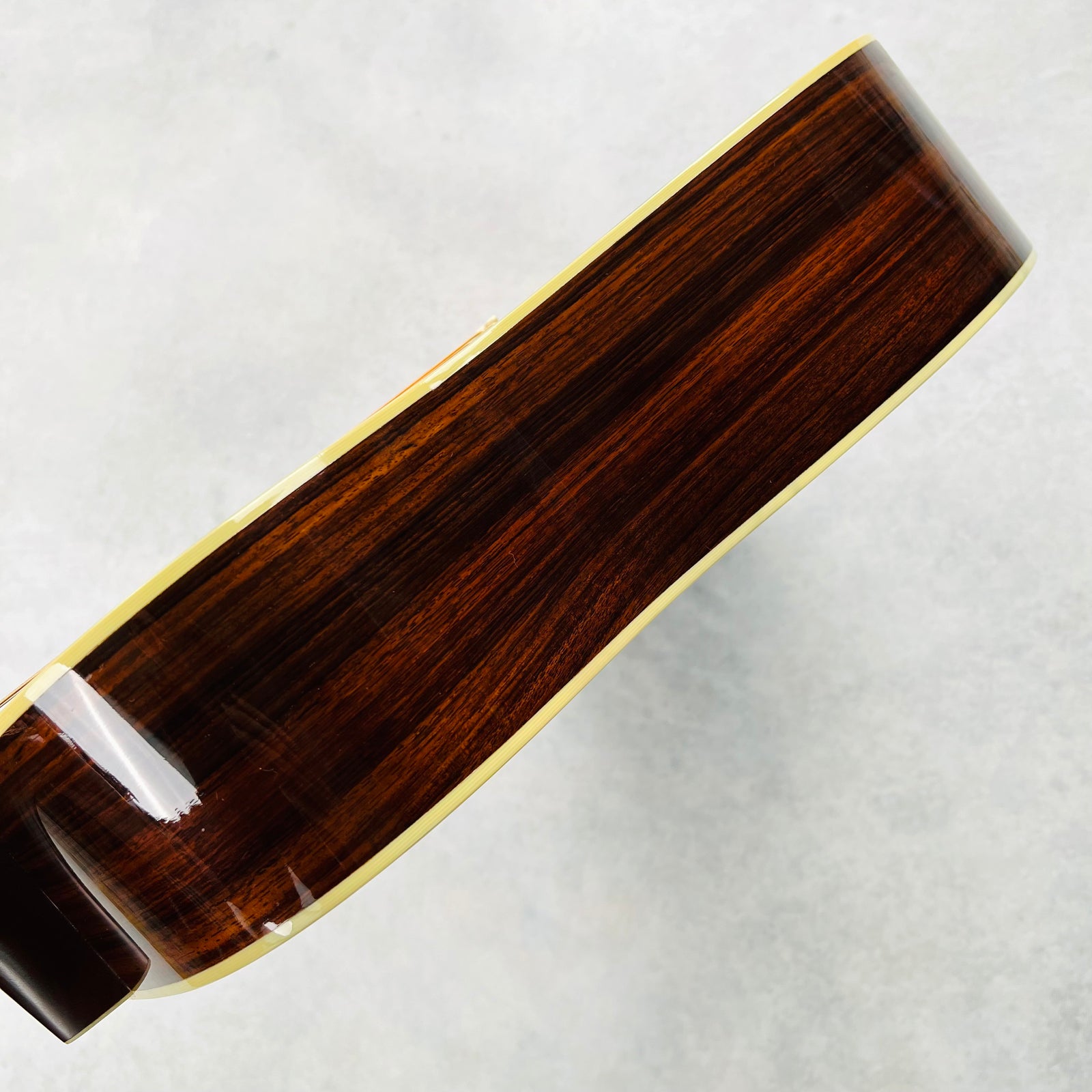

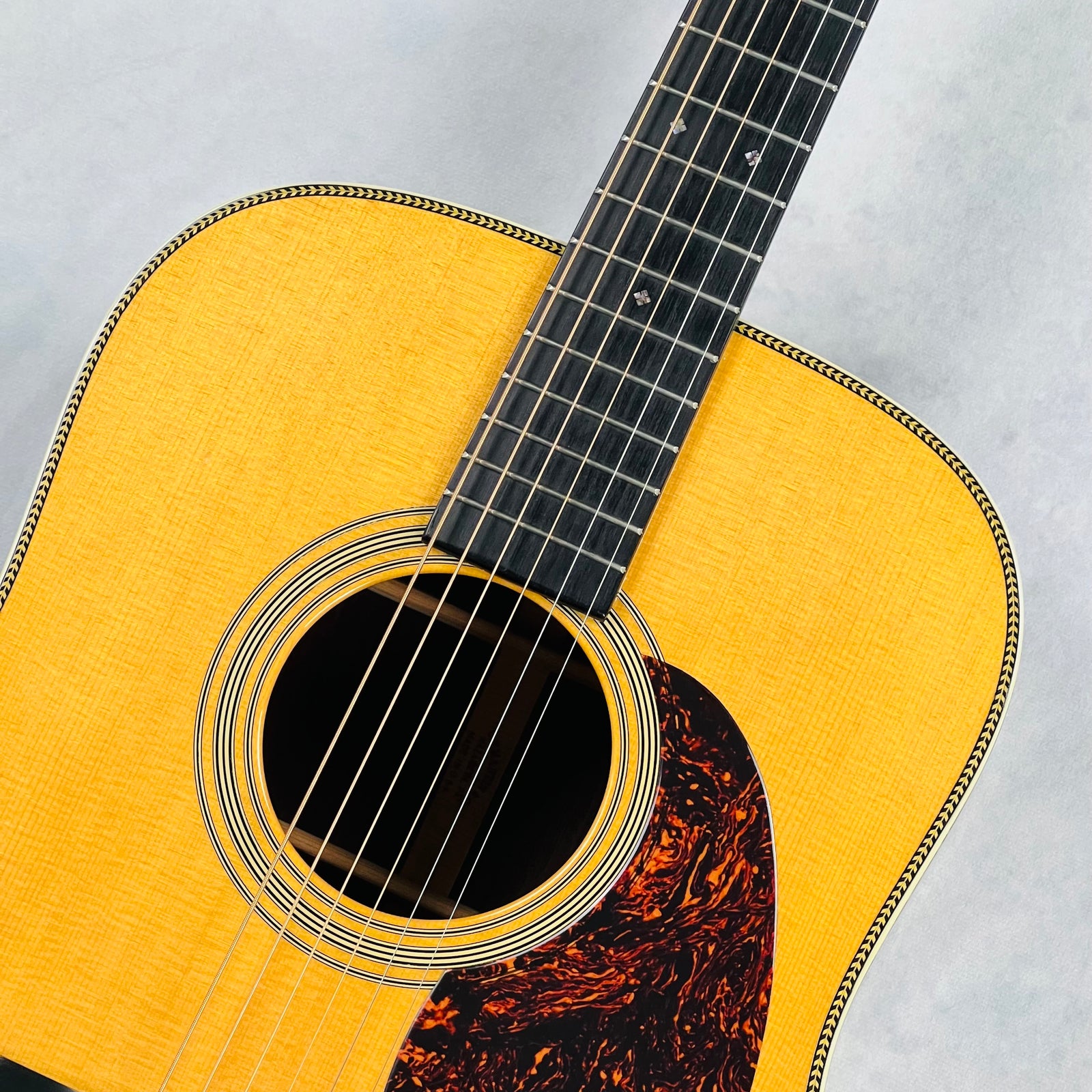

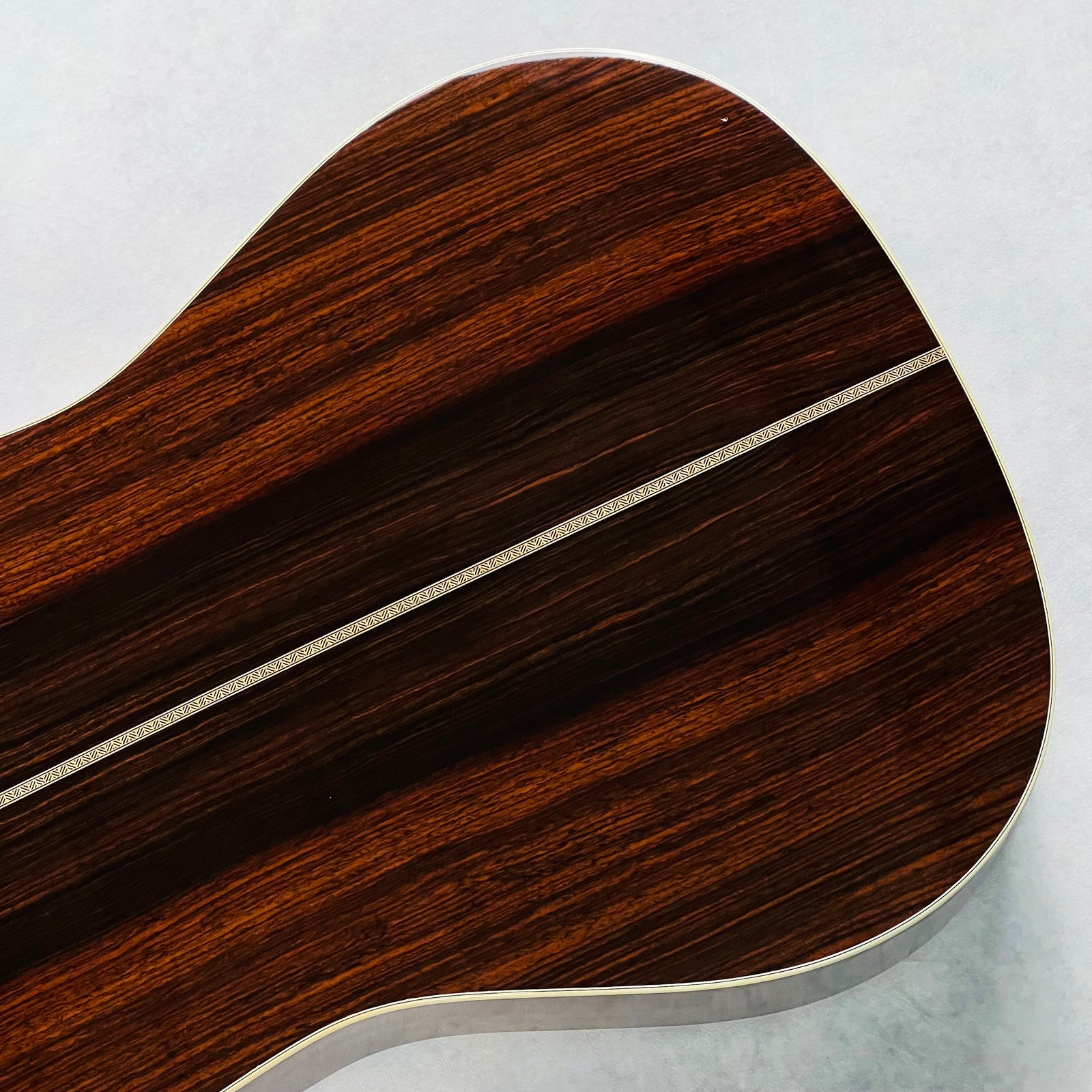

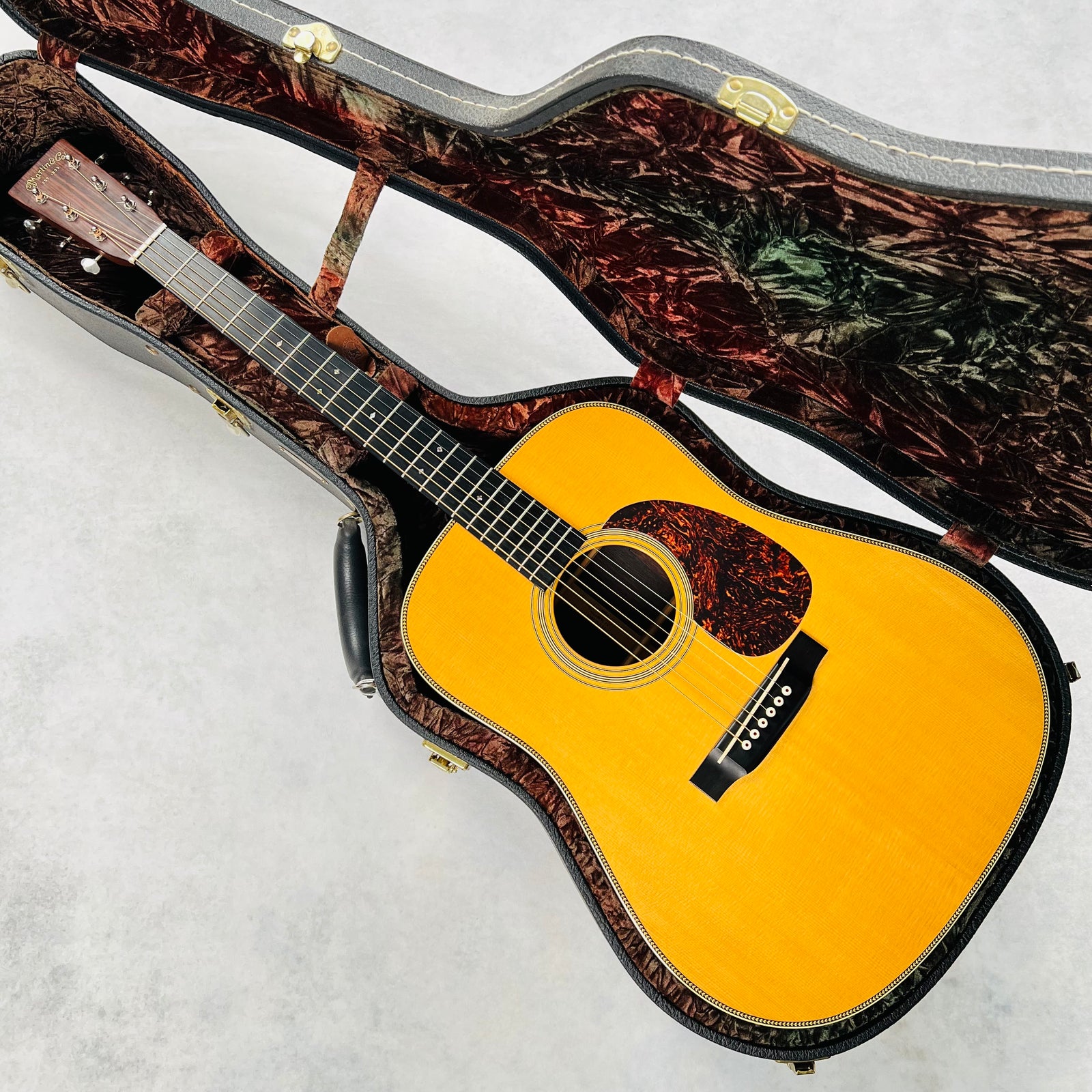

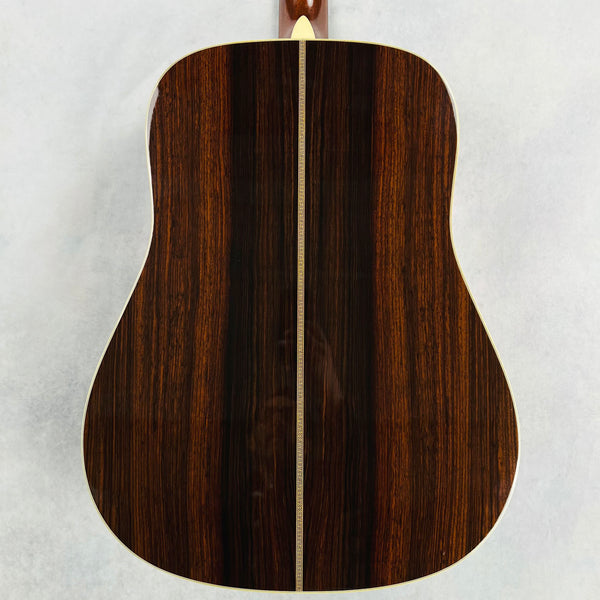

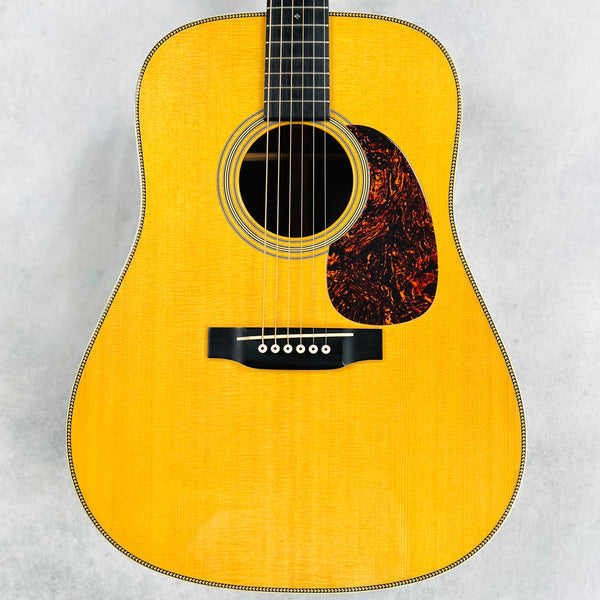

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the HD-28V listed above. For larger pics, click on an image to open in a new tab.
