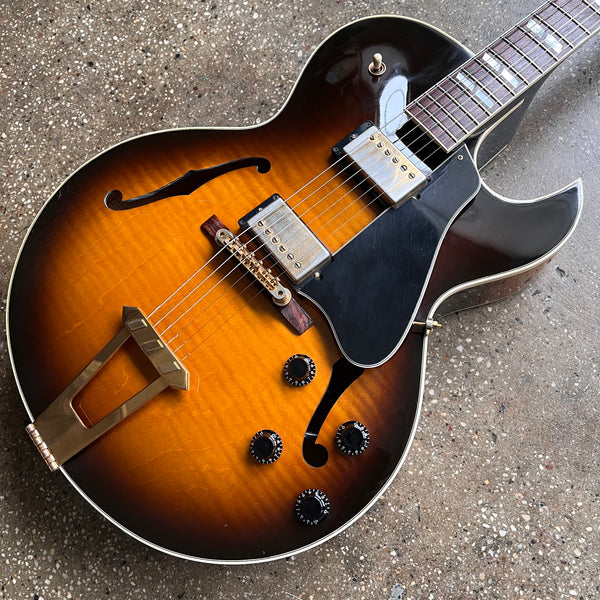

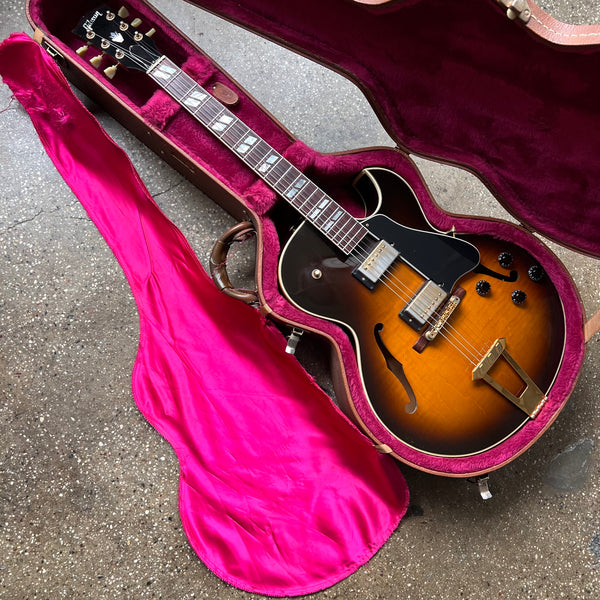

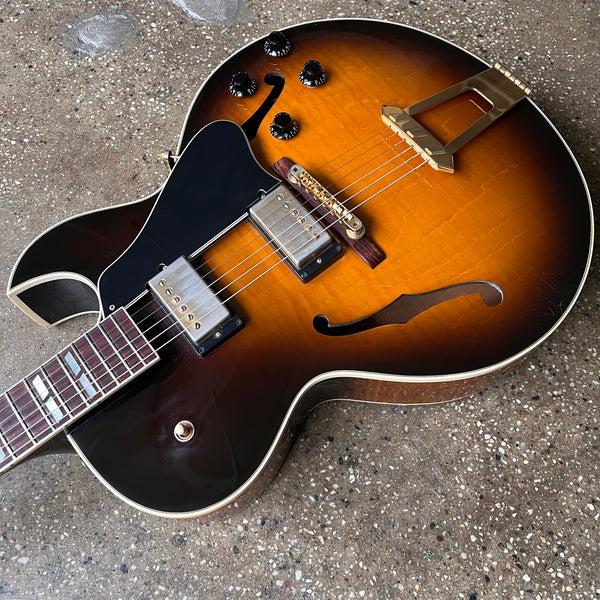

The ES-175 is a hollow body electric guitar built by Gibson. This archtop guitar was manufactured in Nashville, TN in the United States and is a Gibson ES model. Key features include a Figured Maple Top, Figured Maple Back, Mahogany Neck, Rosewood Fretboard, Dual Humbucker Pickups and Vintage Sunburst finish. The specs listed below pertain to the 1998 product year model pictured on this page.
Factory Specs

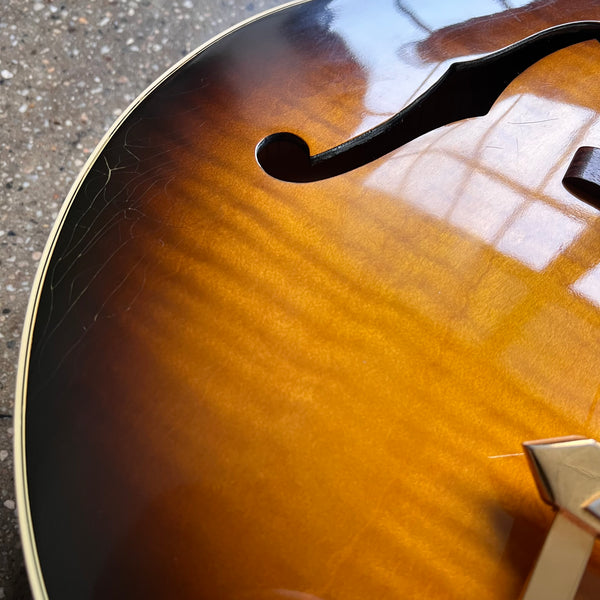

- Figured Maple Top

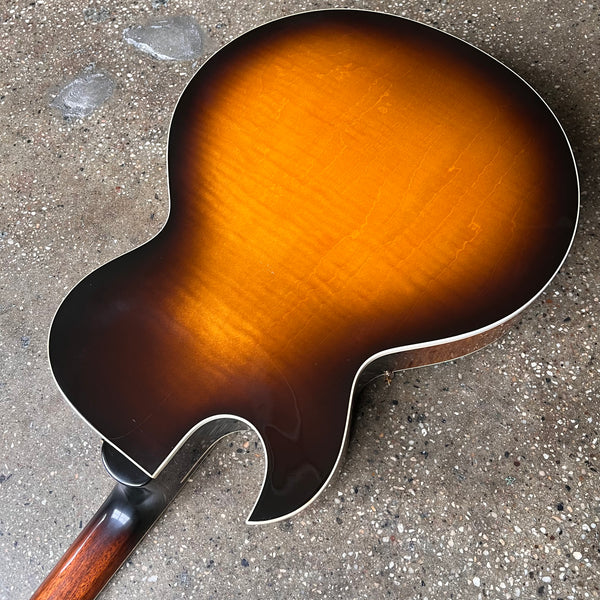

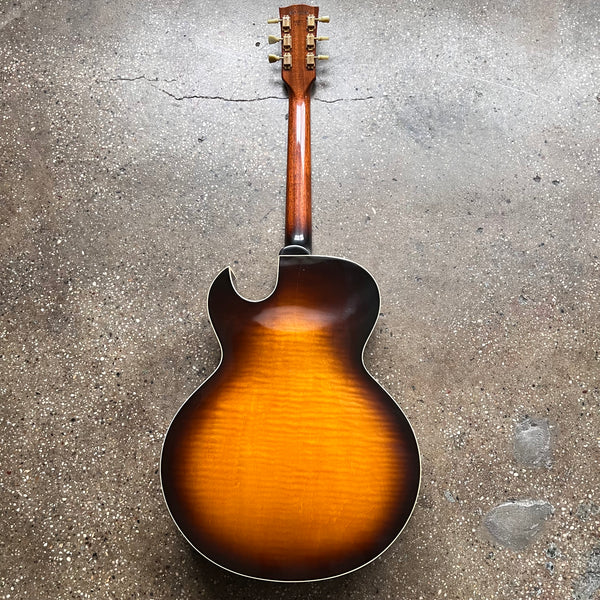

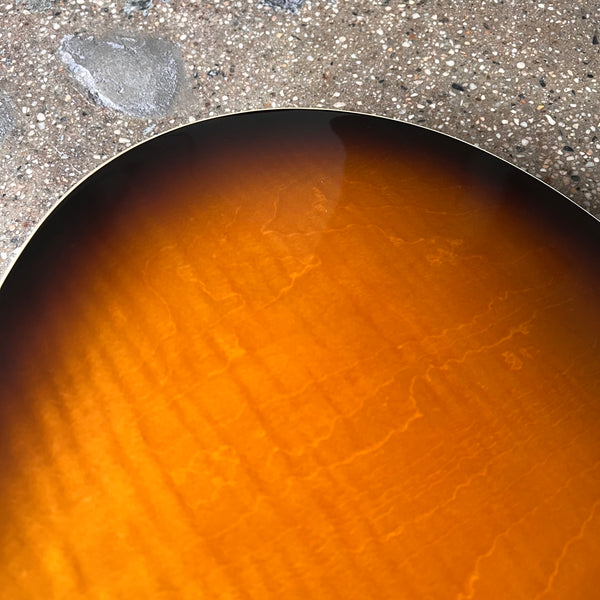

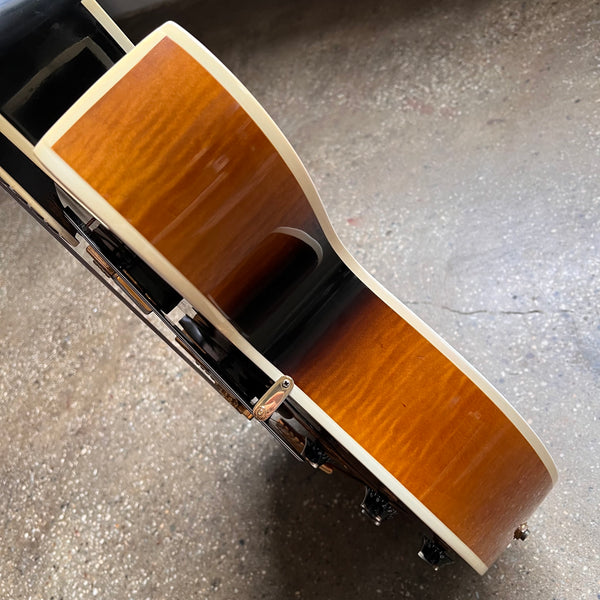

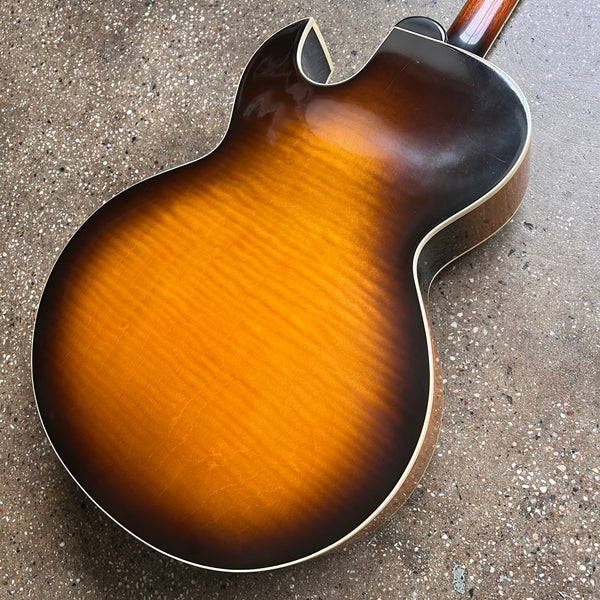

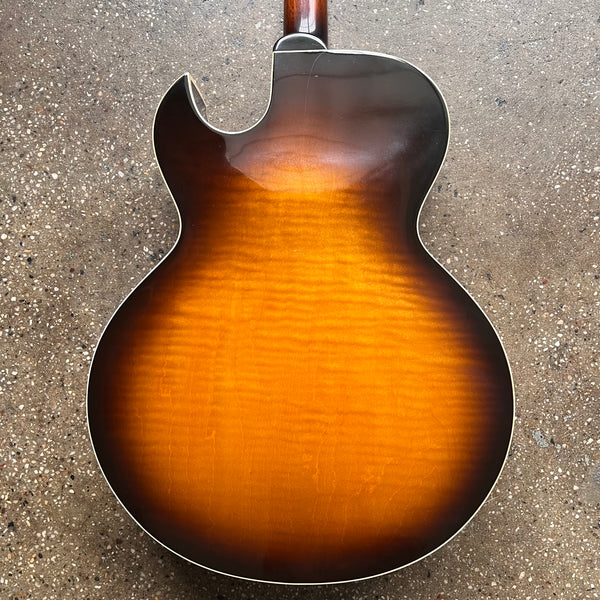

- Figured Maple Back & Sides
- Mahogany Neck

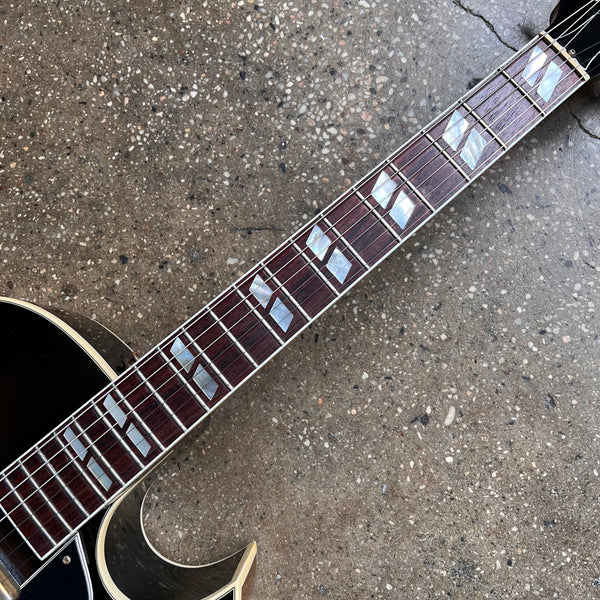

- Rosewood Fretboard

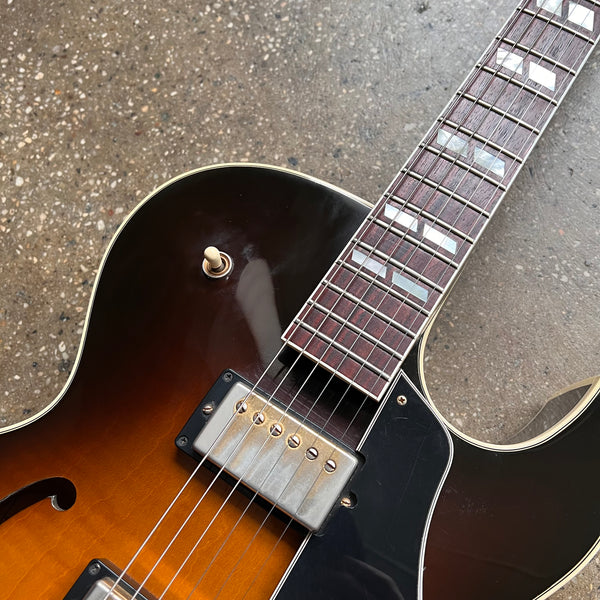

- Parallel-o-gram Inlays
- 20 Frets
- Medium Jumbo Fret Wire
- 12" Radius
- 1.6875" Nut Width
- 24.75" Scale Length
- Crown Headstock Inlay
- Bound Neck
- Gibson Deluxe Tuners with Green Buttons
- Gold Hardware
- Multiply Top Binding

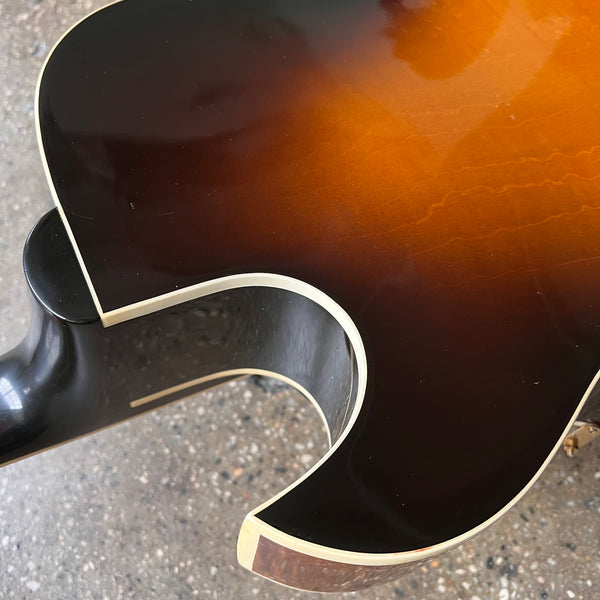

- Single Ply Back Binding
- Unbound Painted F Holes

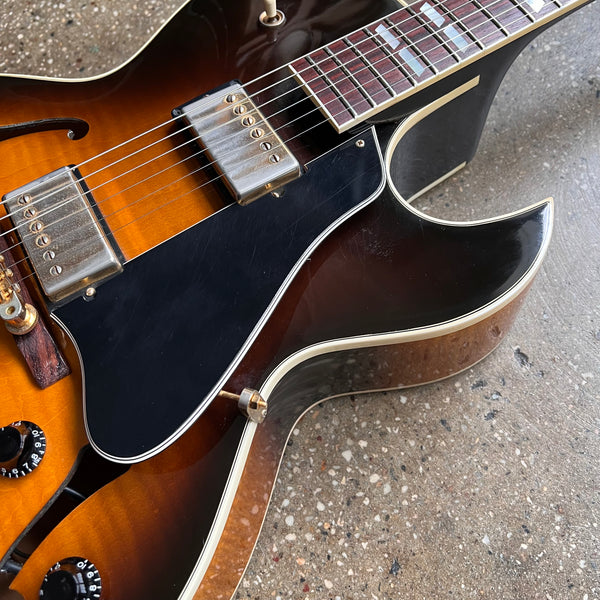

- Multiply Black Pickguard

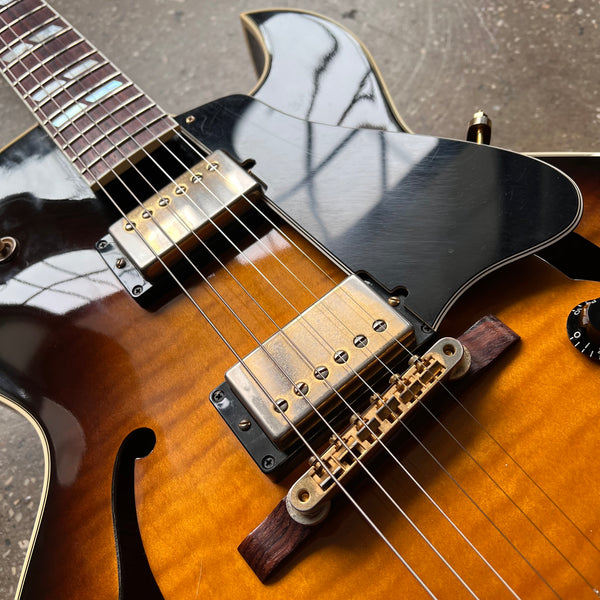

- ABR-1 Bridge with Rosewood Base

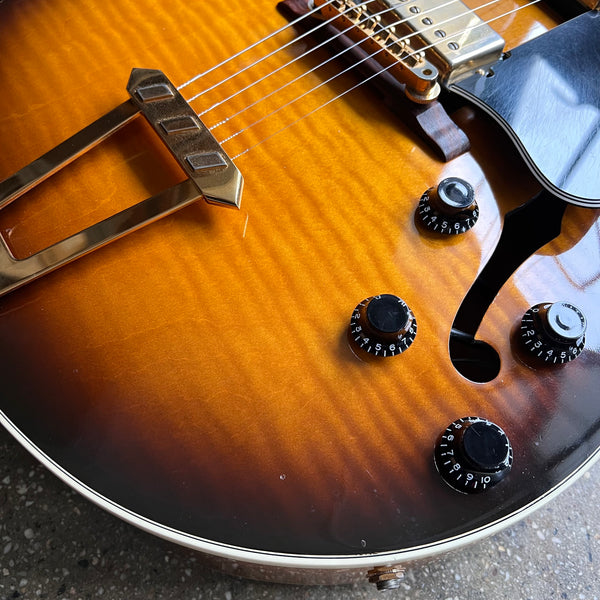

- Hinged Trapeze Tailpiece
- Two Volume & Two Tone Controls
- 3-Way Toggle Switch
- Lacquer Finish

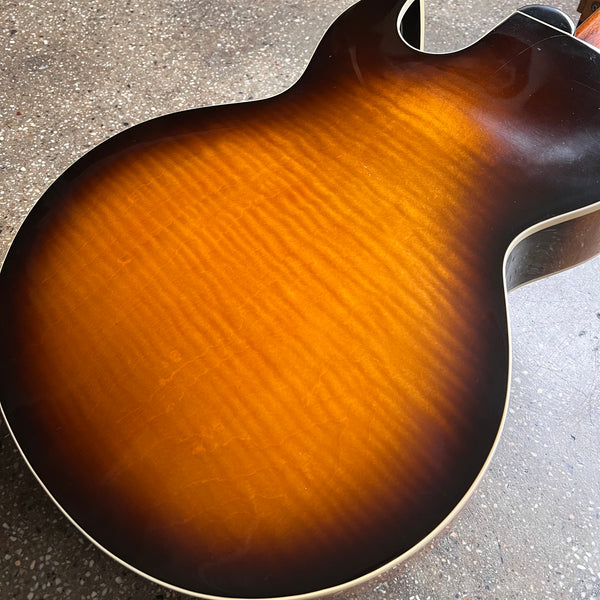

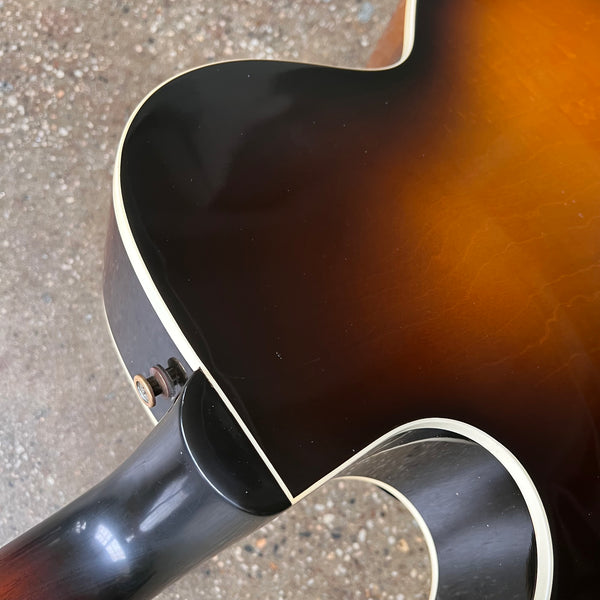

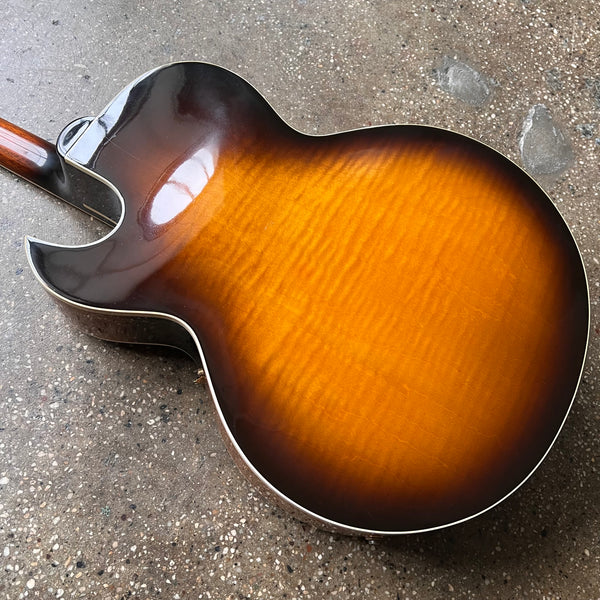

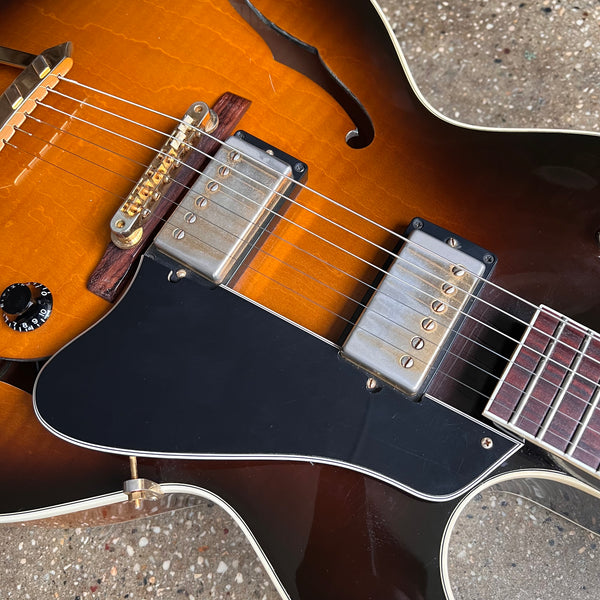

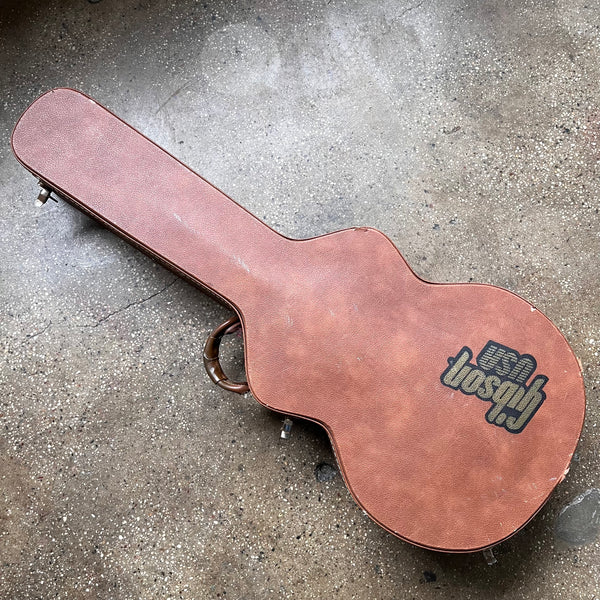

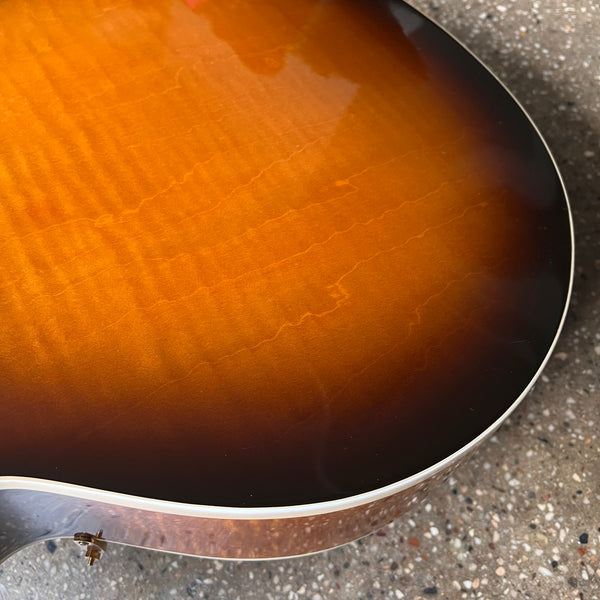

Reference Images

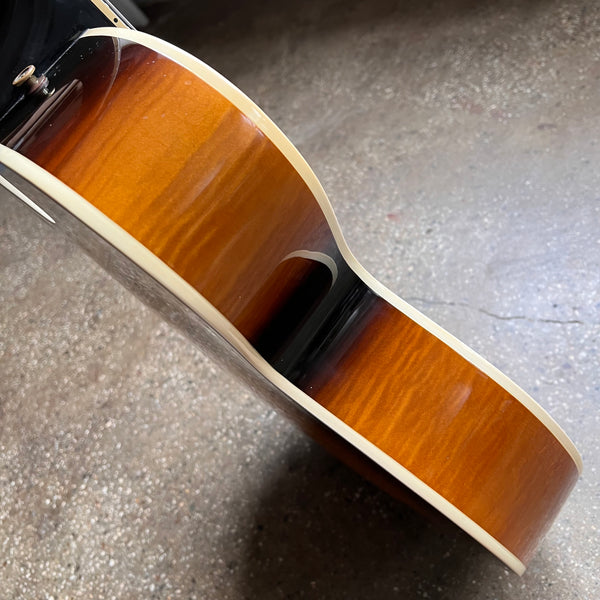

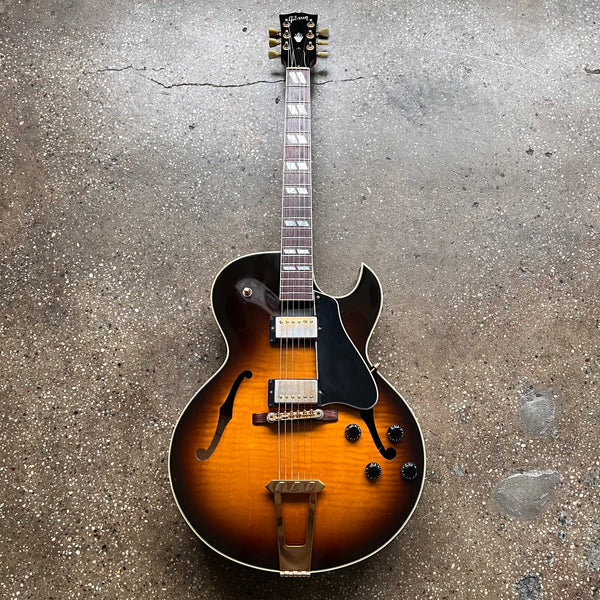

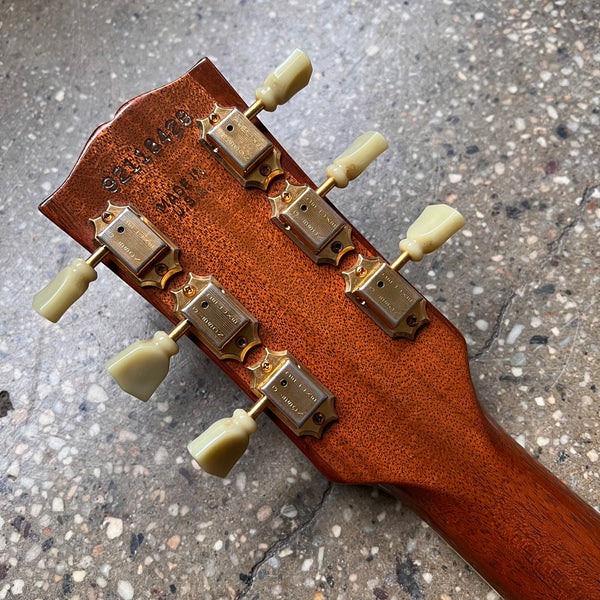

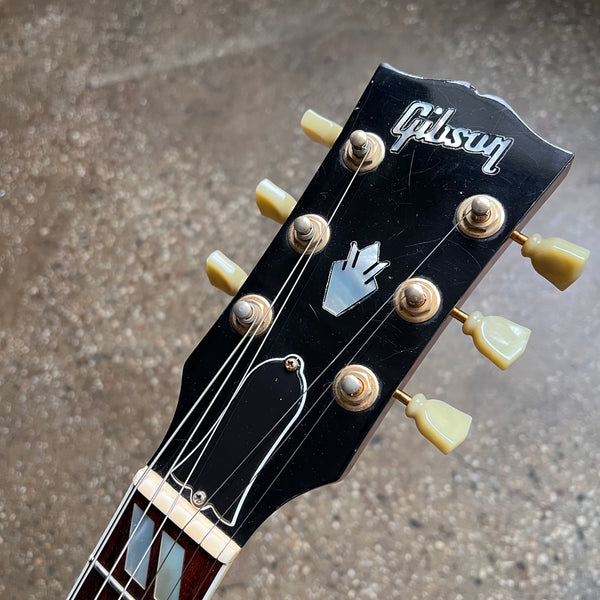

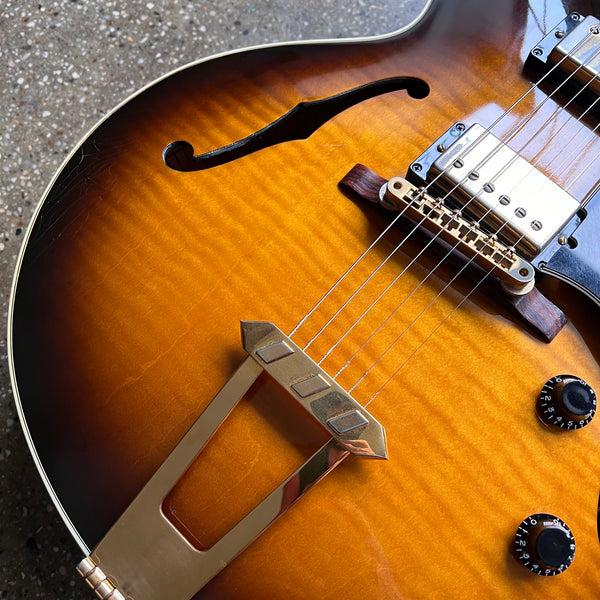

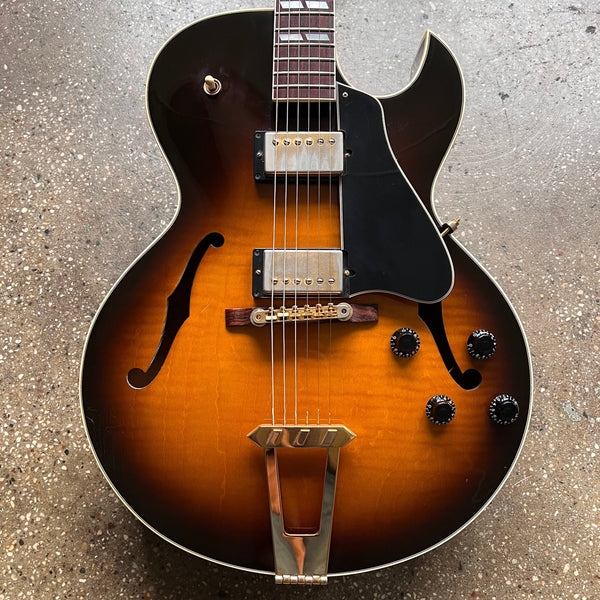

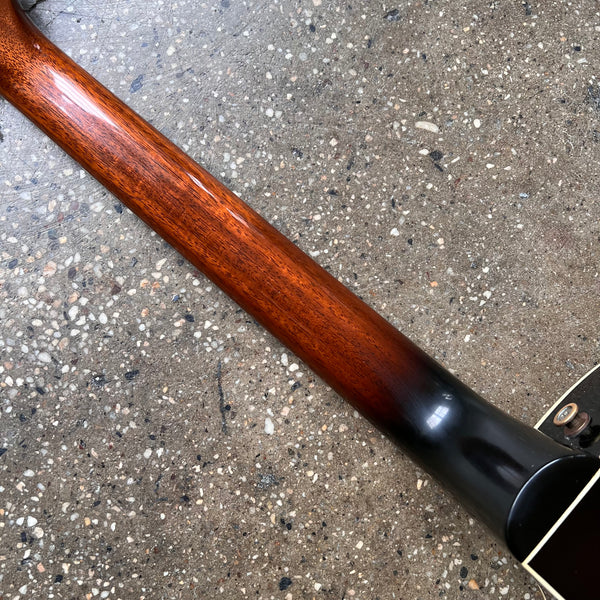

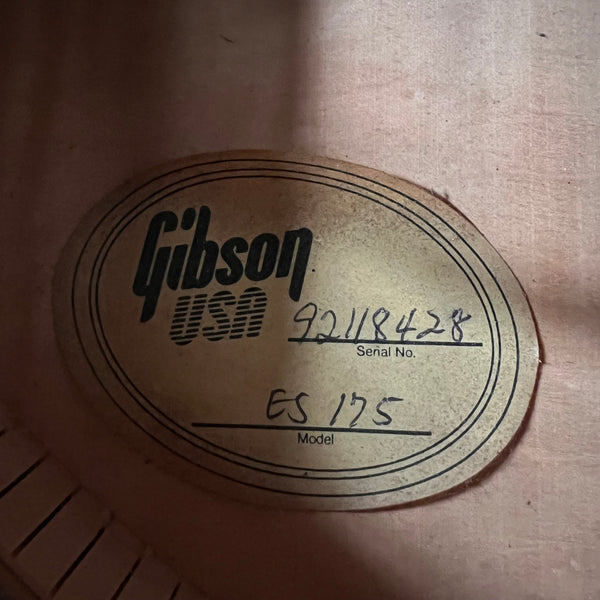

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the ES-175 listed above. For larger pics, click on an image to open in a new tab.
