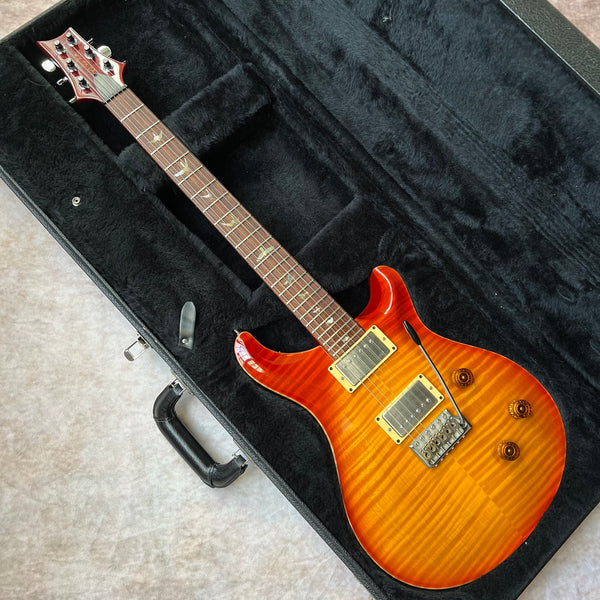

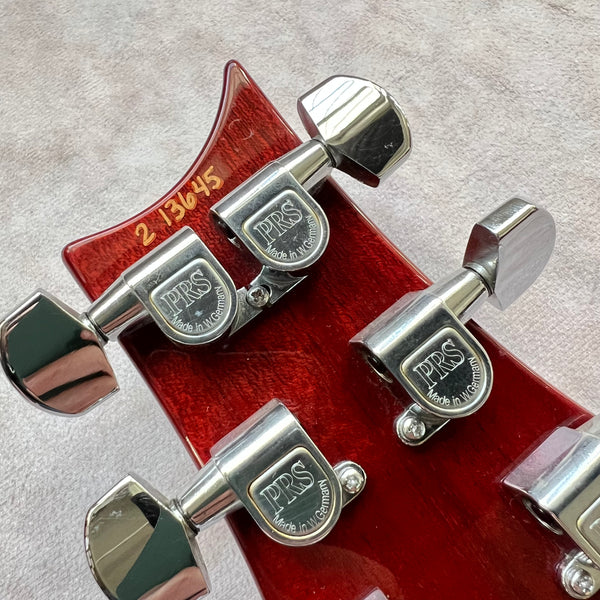

The 1992 Custom 24 10-Top is a solid body electric guitar built by PRS. This double cutaway set neck guitar was manufactured in Stevensville, MD in the United States. Key features include a Flame Maple 10-Top, Mahogany Body, Mahogany Neck, Rosewood Fretboard, Dual Humbucker Pickups and Cherry Sunburst finish. The specs listed below pertain to the 1992 product year model pictured on this page. Note than this example instrument has upgraded 57/08 humbuckers, as opposed to the original PRS humbuckers. This era instrument also features a rotary knob as opposed to a toggle switch. The "10-Top" designation is a 10 stamped into the wood on the back of the headstock instead of written in a similar font to the serial number like on later model years. Also of note are the "West German" made tuners.
Factory Specs
- Flame Maple 10-Top
- Mahogany Body

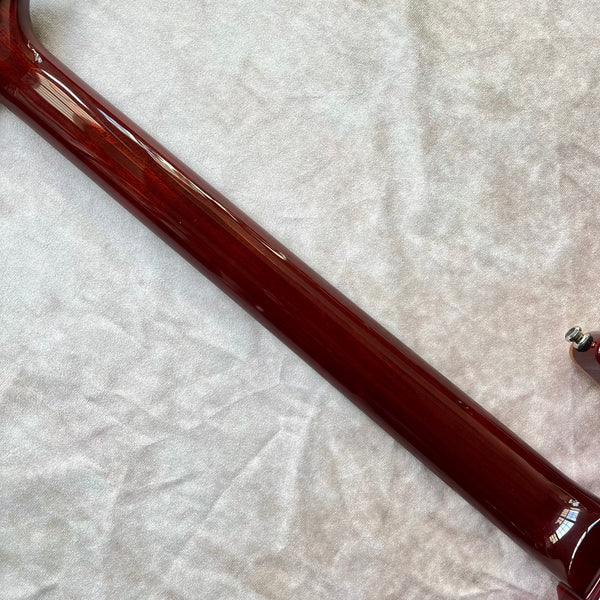

- Mahogany Neck
- Rosewood Fretboard

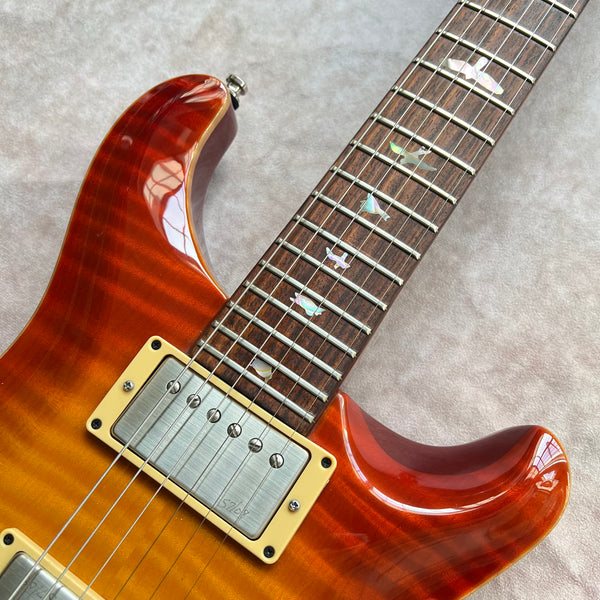

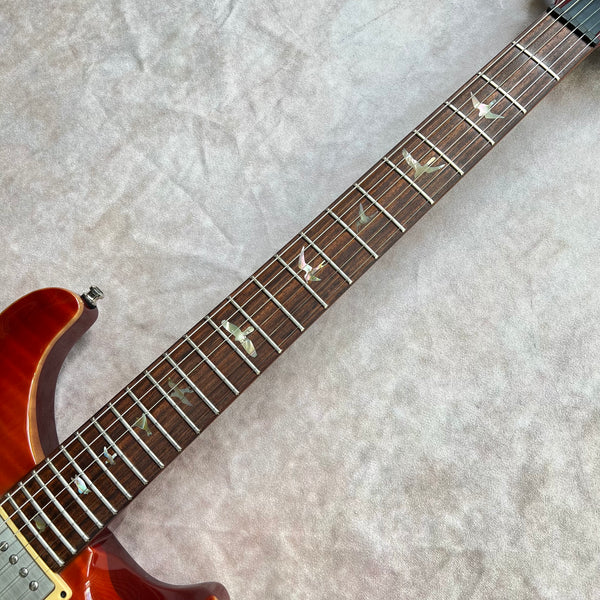

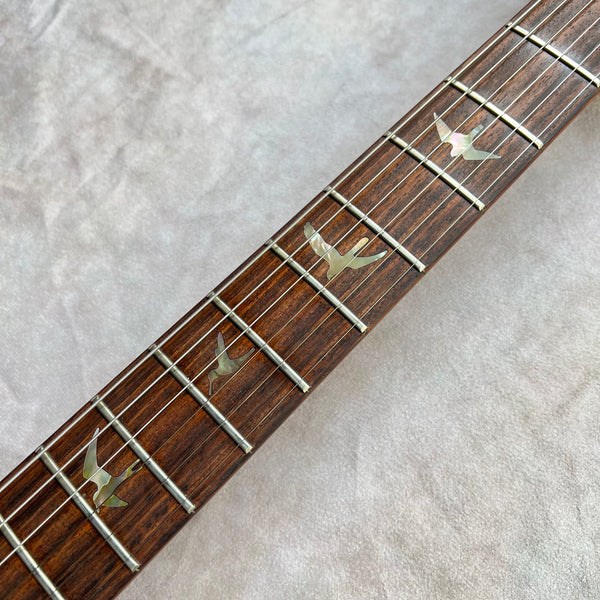

- Bird Inlays
- 24 Frets
- Medium Jumbo Fret Wire

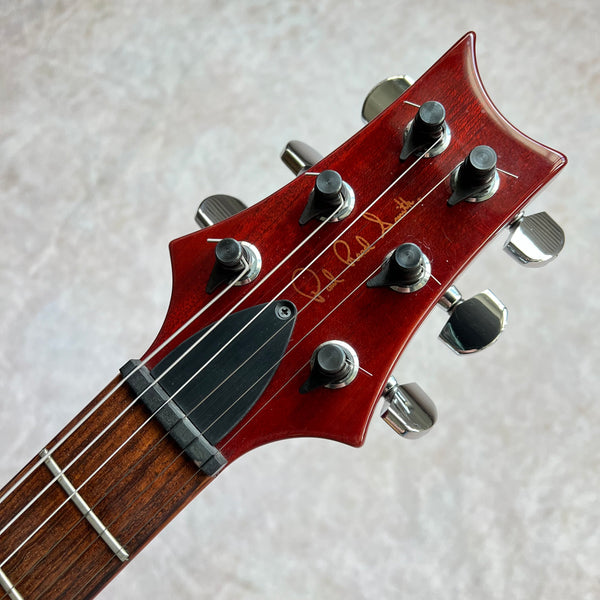

- Small PRS Signature Headstock Logo
- PRS Tuners

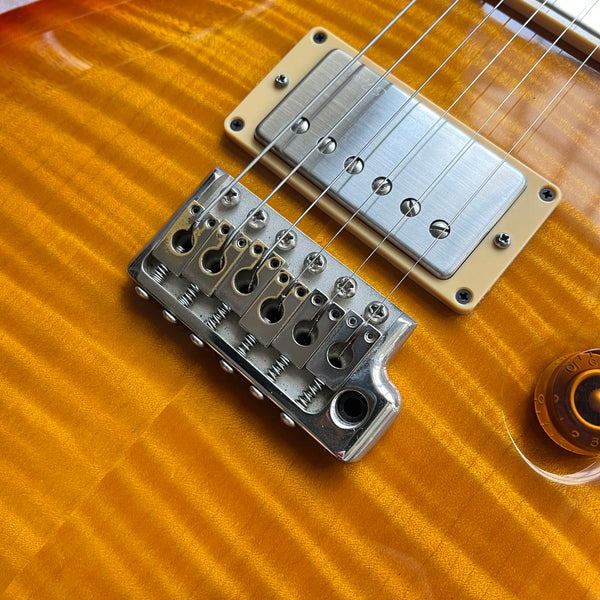

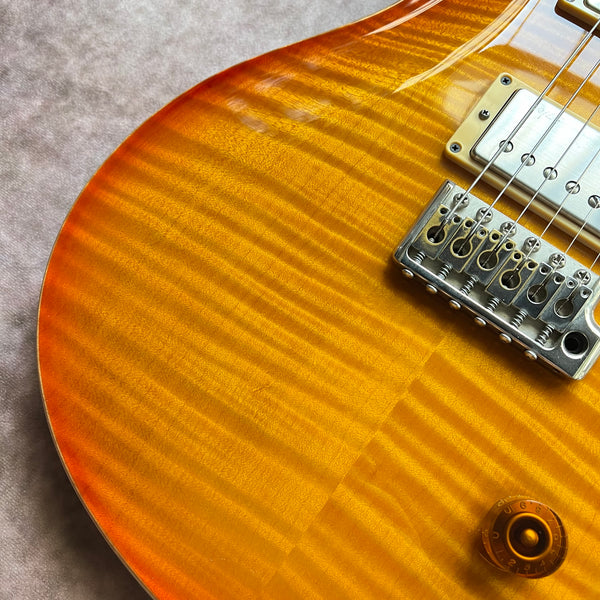

- PRS Tremolo Bridge

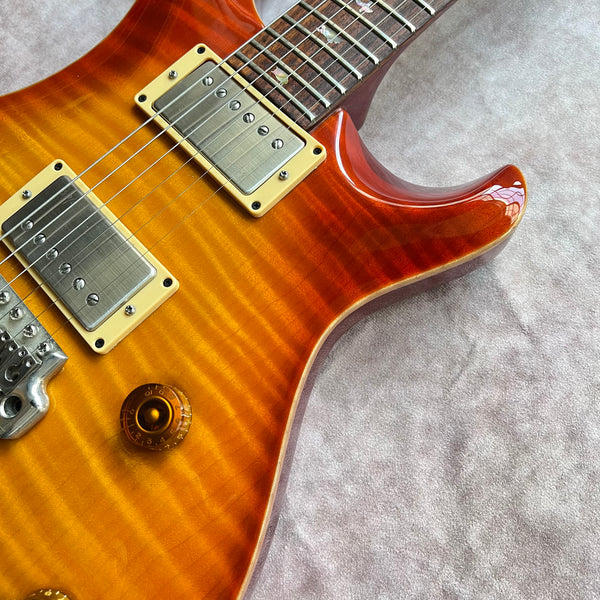

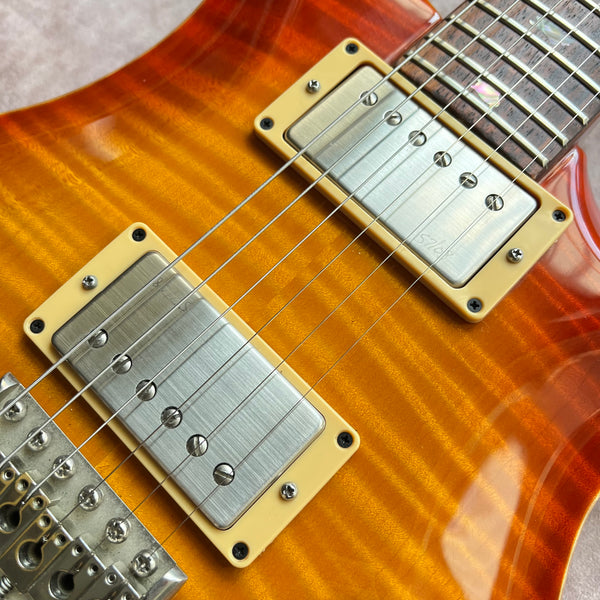

- PRS 57/08 Humbuckers

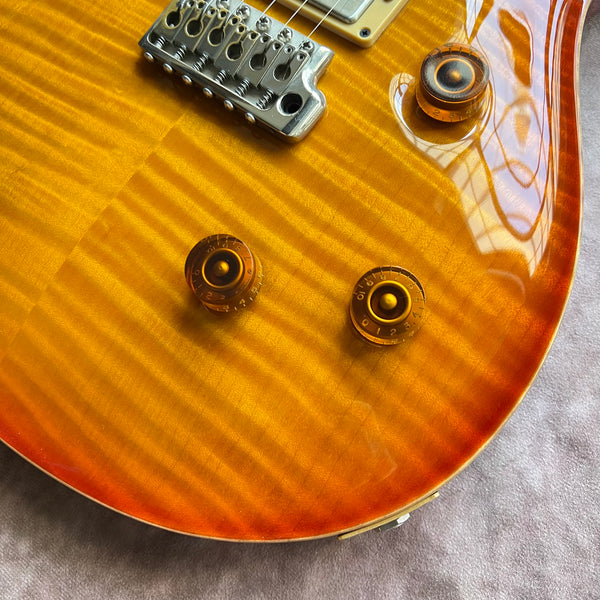

- One Volume & One Tone Control
- 5-Way Rotary Switch
- 25" Scale Length
- 10" Radius
- 1 11/16" Nut Width
- Scraped Binding
- Polyurethane Finish
Reference Images

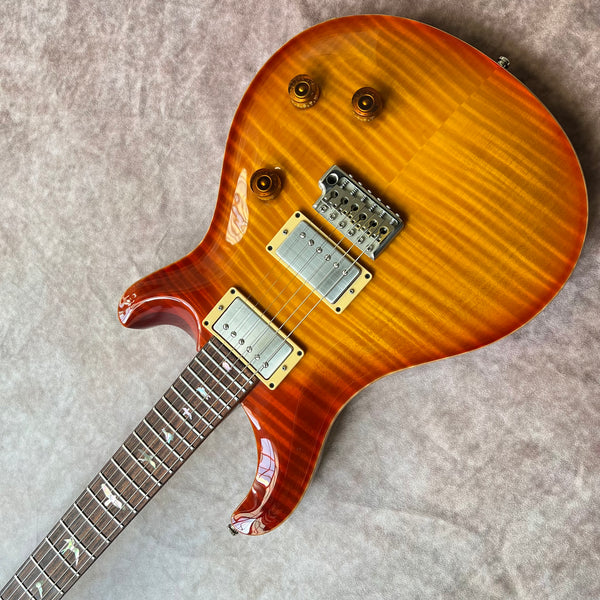

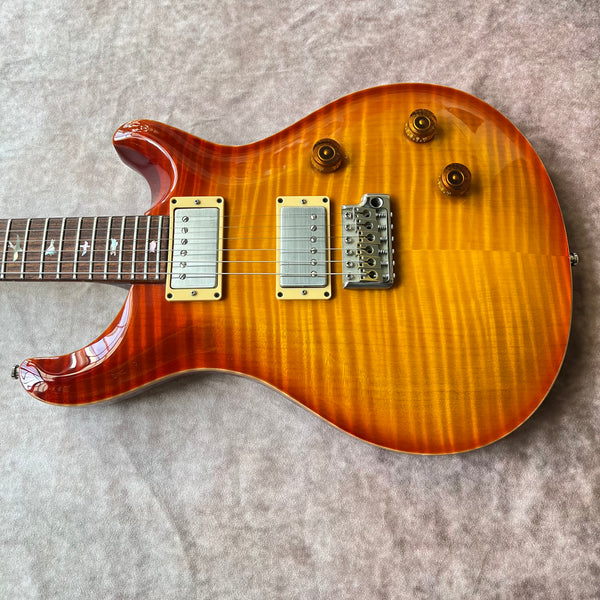

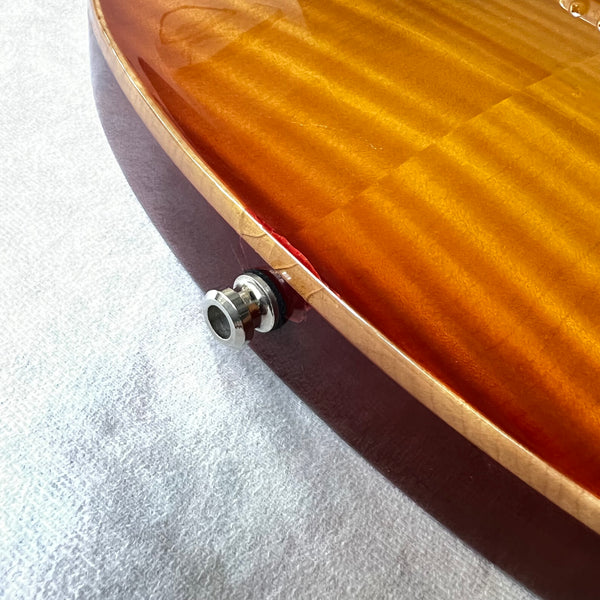

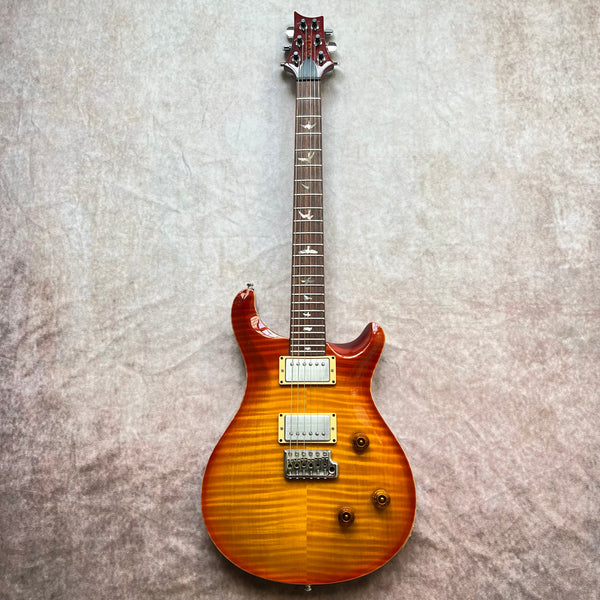

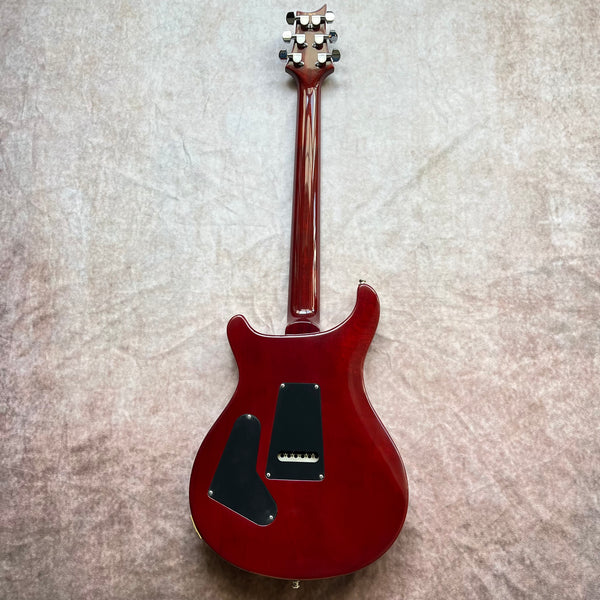

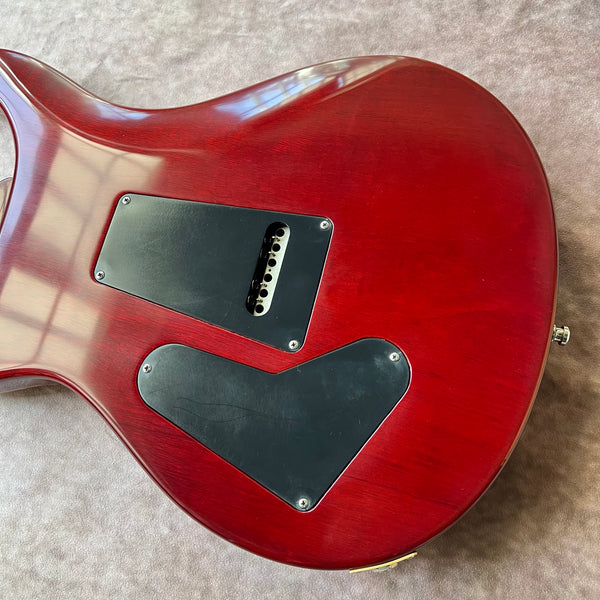

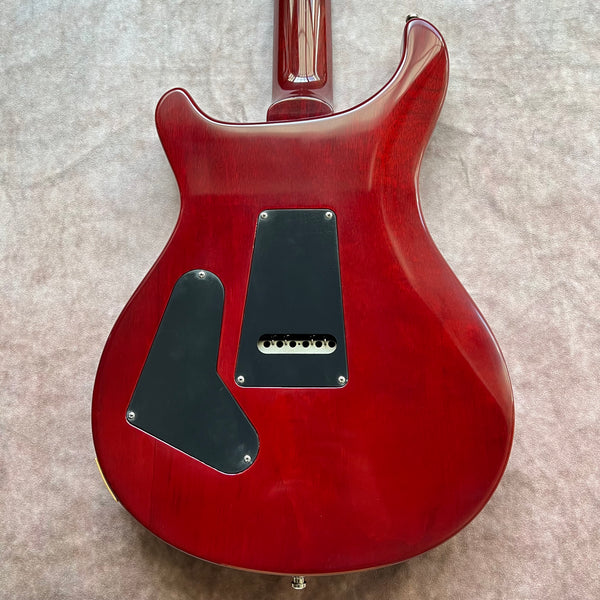

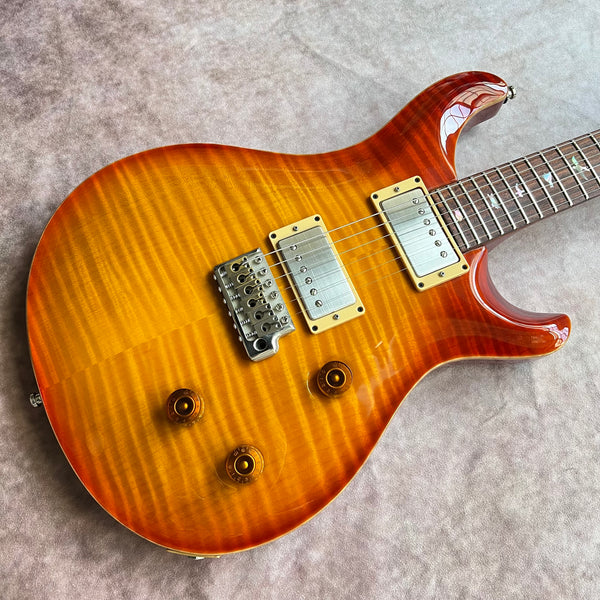

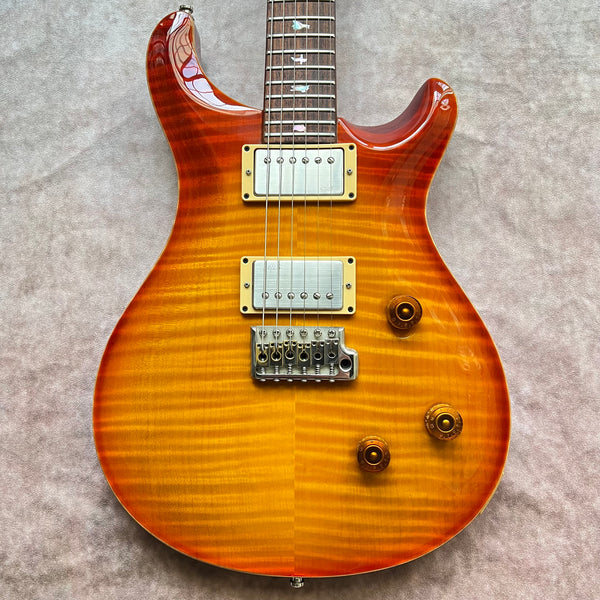

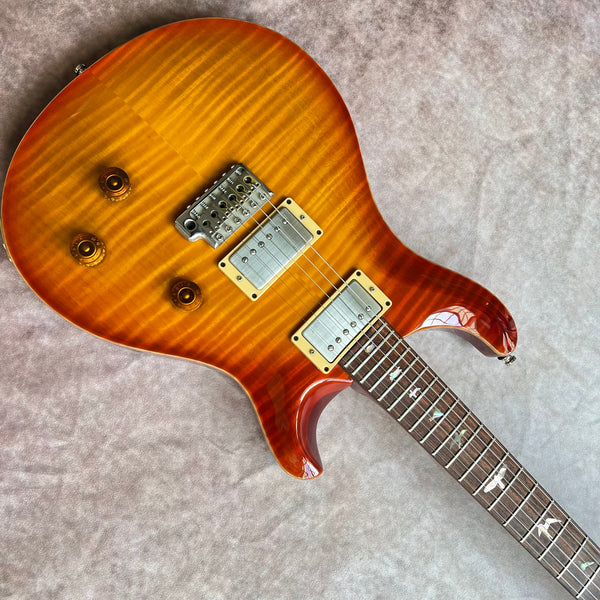

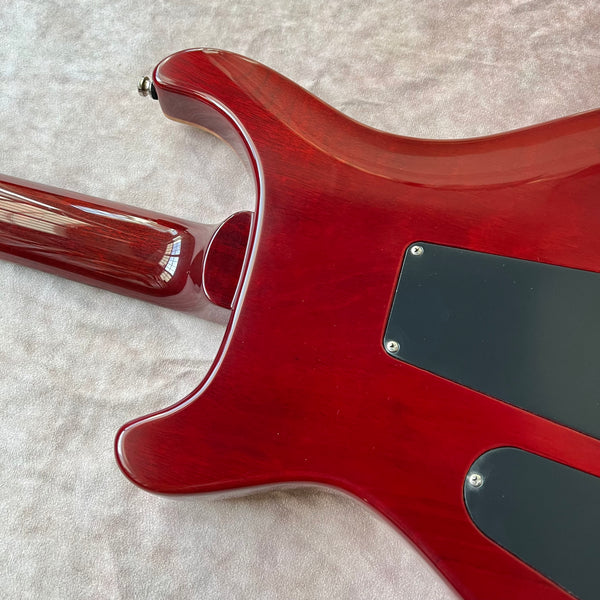

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the 1992 Custom 24 10-Top listed above. For larger pics, click on an image to open in a new tab.
