The Orchestra Model Brazilian Rosewood is an acoustic guitar built by Franklin. This orchestra guitar was manufactured in the United States and is a Franklin Guitar Company OM model. Key features include European Spruce Top, Brazilian Rosewood Back & Sides, Mahogany Neck, Ebony Fingerboard, Ebony Bridge and Natural finish. The specs listed below pertain to the 1984 product year model pictured on this page.
Factory Specs
- European Spruce Top

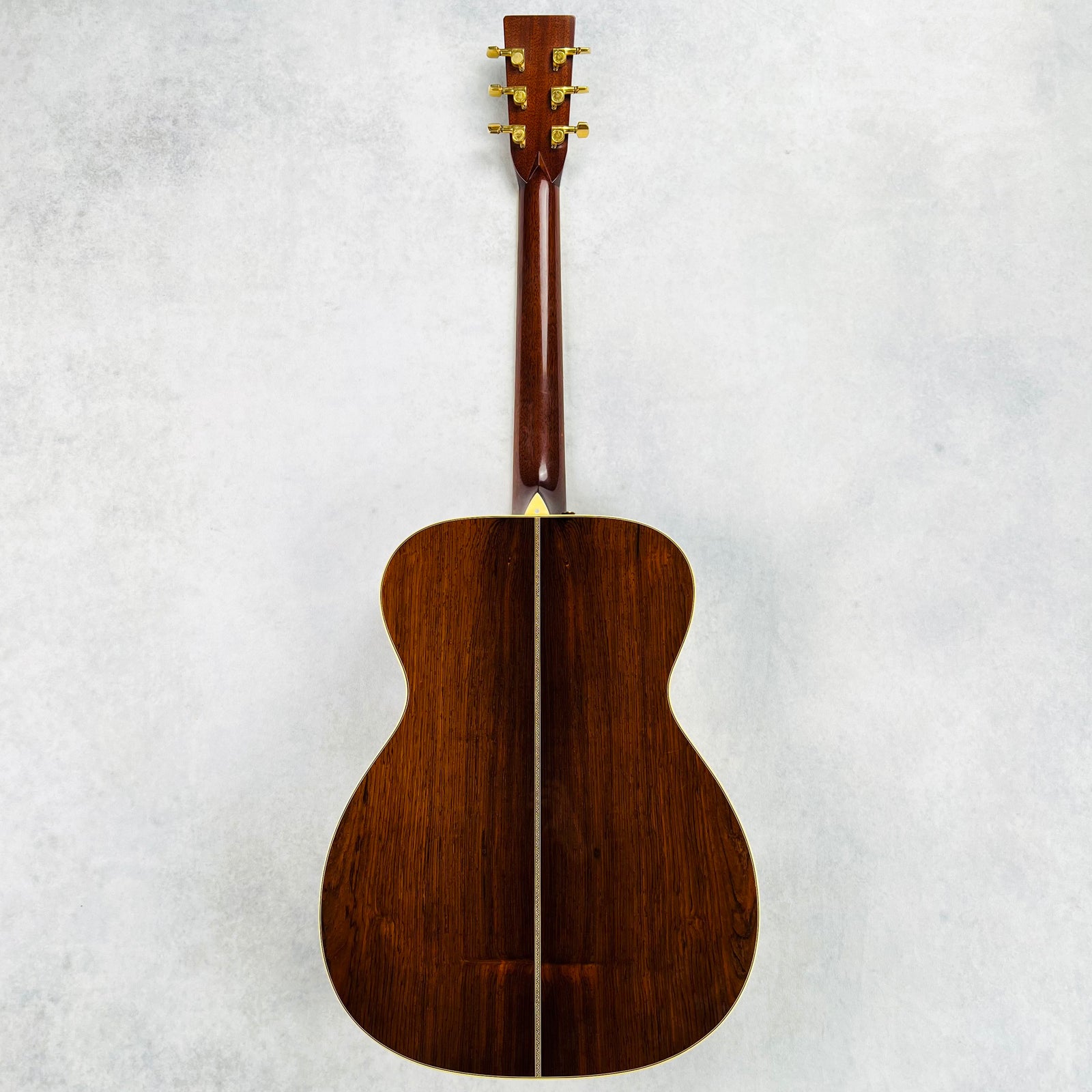

- Brazilian Rosewood Back & Sides

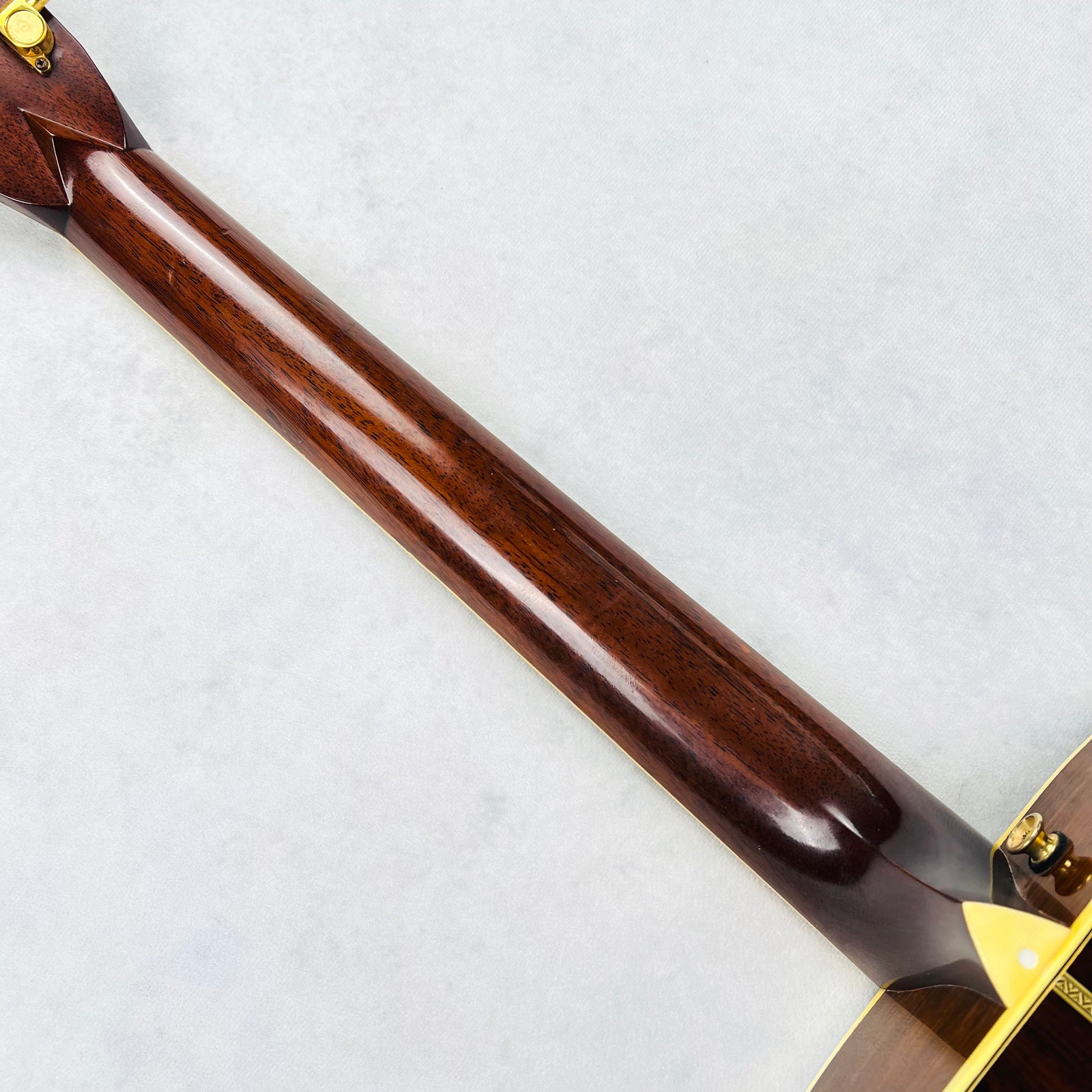

- Mahogany Neck
- Ebony Fingerboard
- Diamonds & Squares Short Pattern Inlay

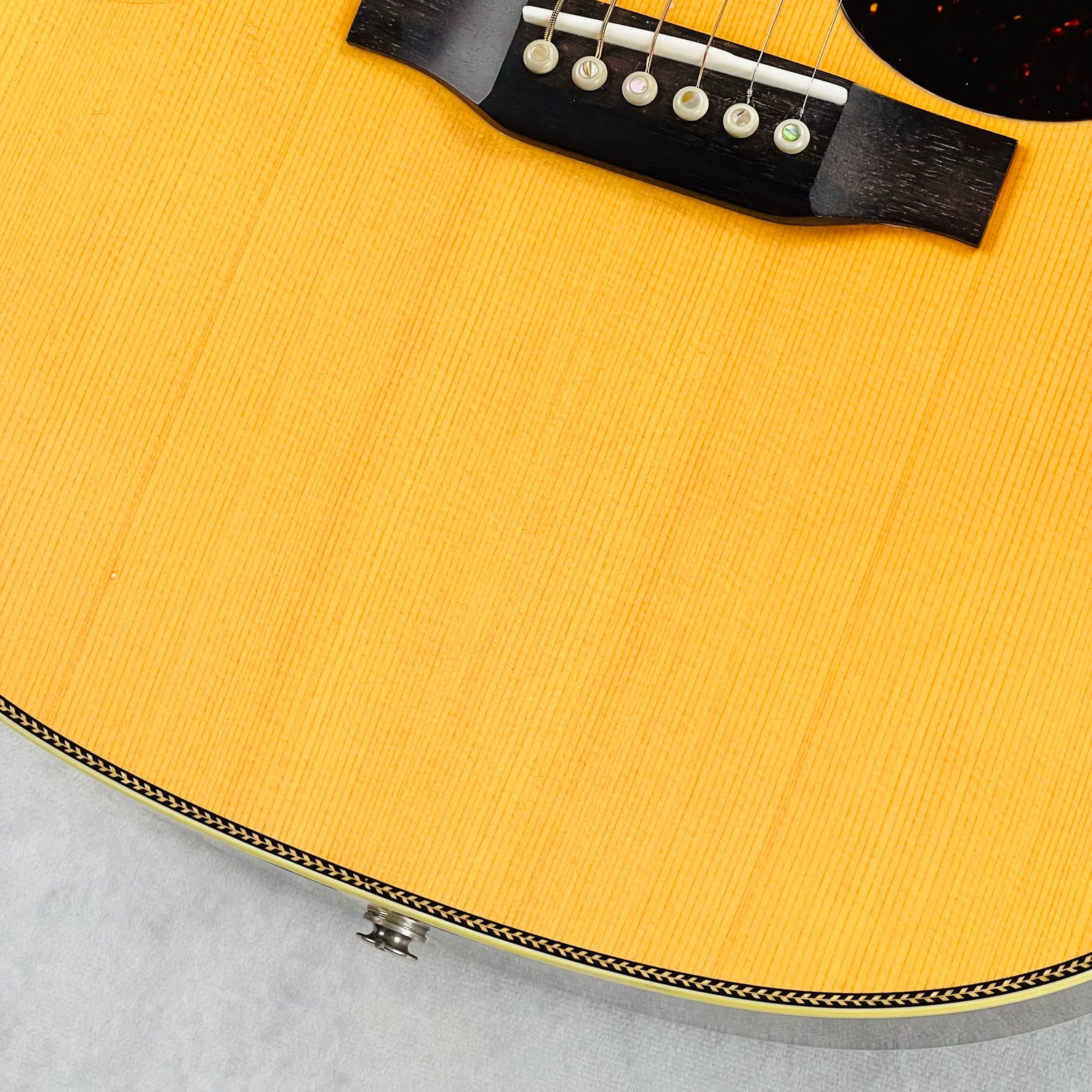

- Ebony Bridge
- Bound Headstock
- Bound Neck

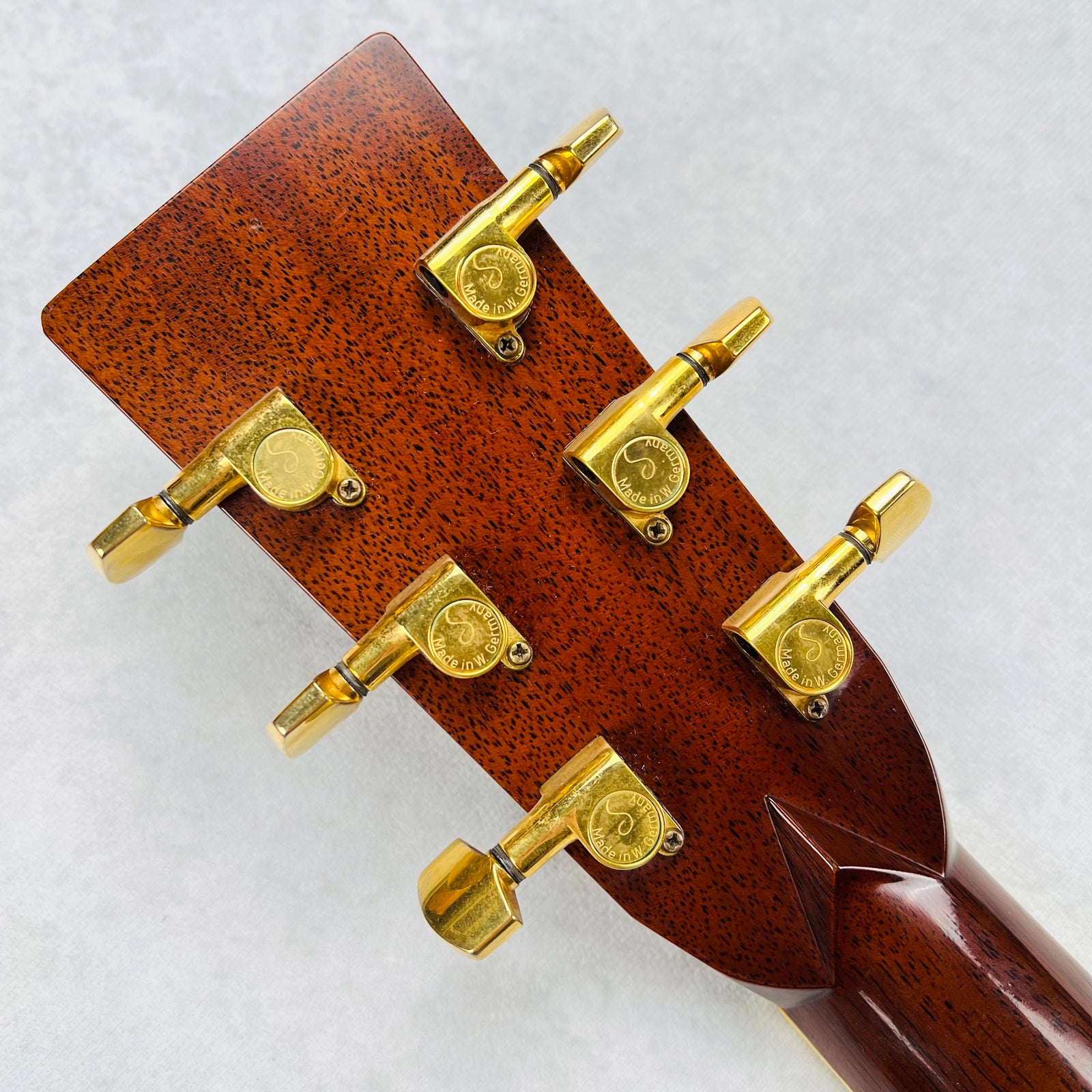

- Schaller Tuners
- Herringbone Top Purfling

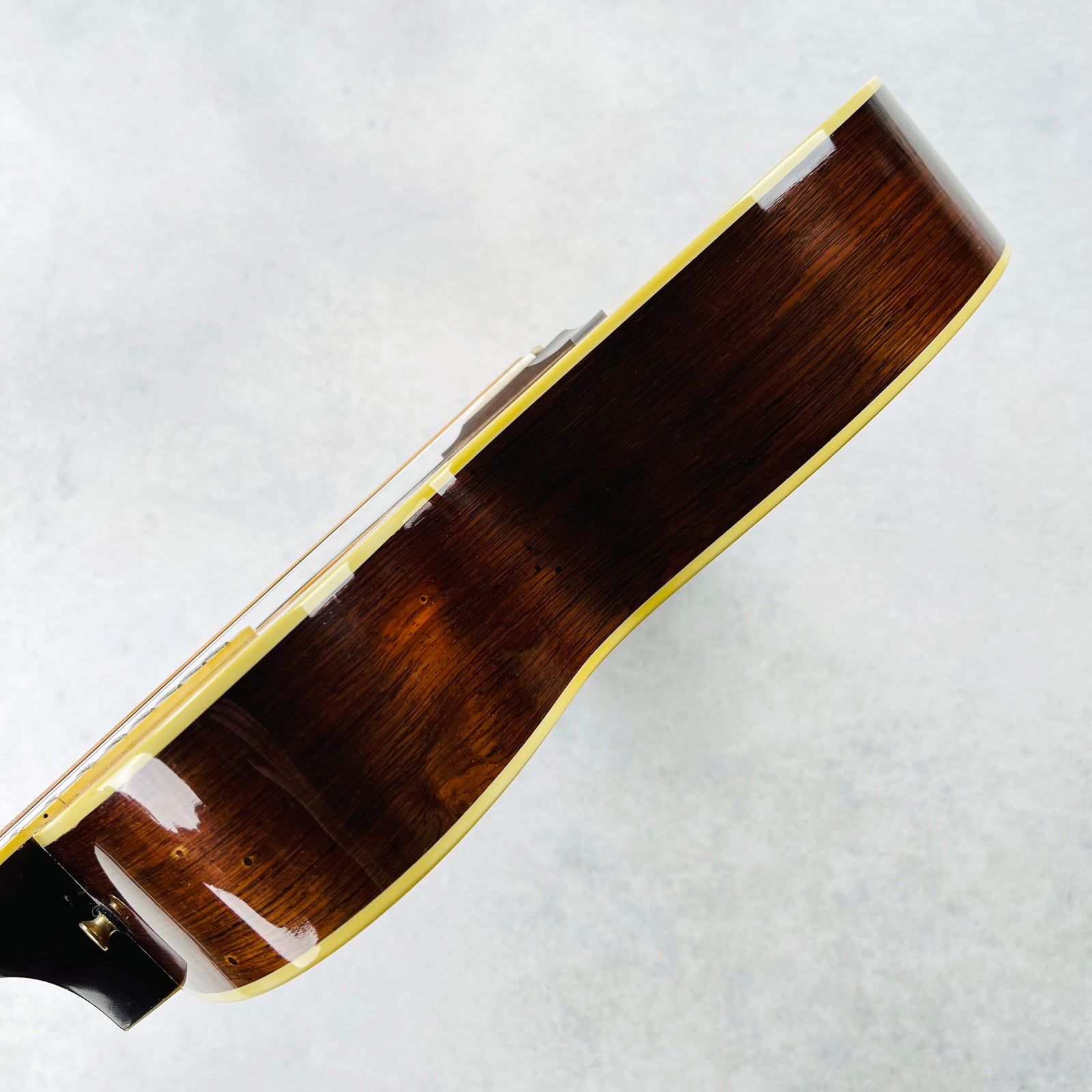

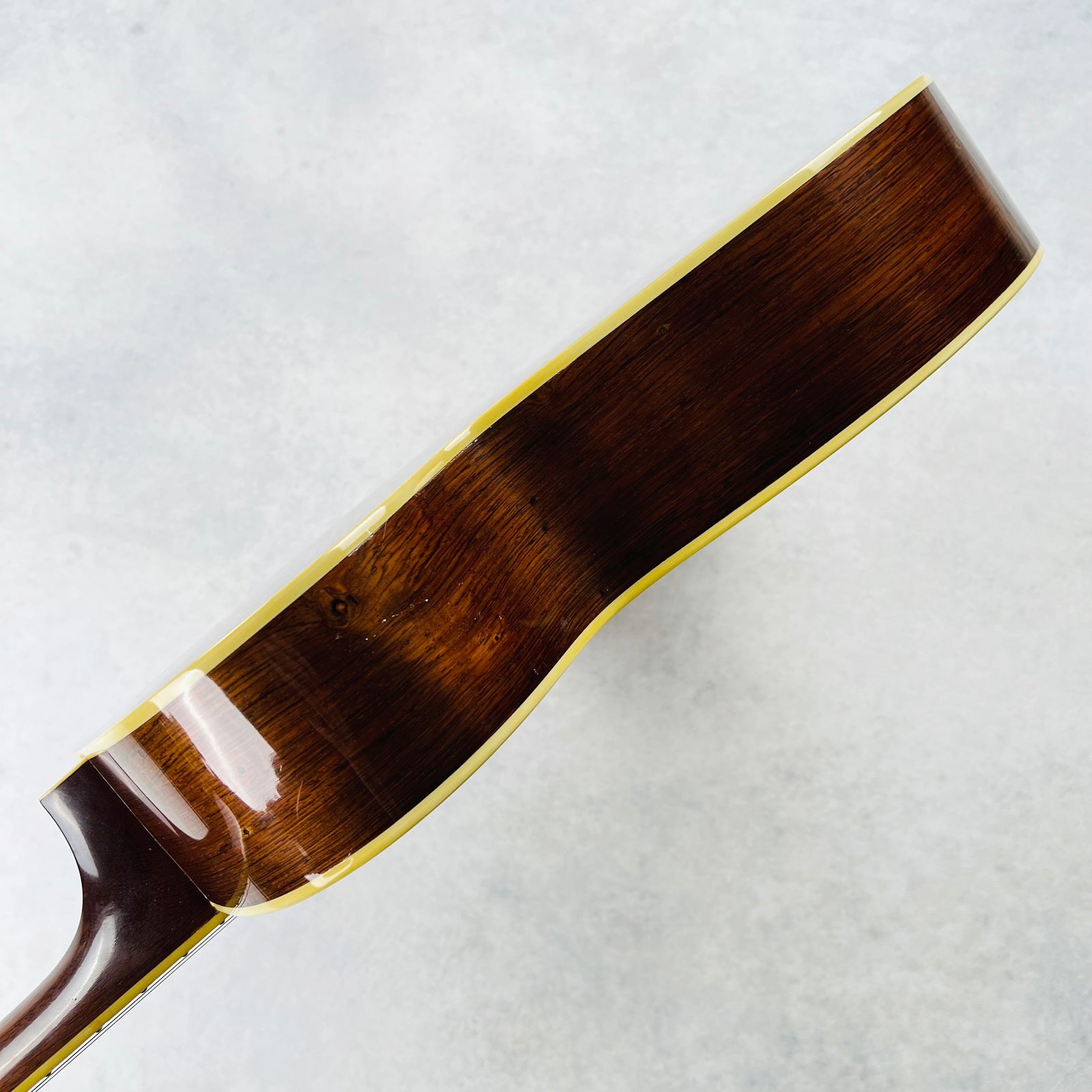

- Top & Back Body Binding

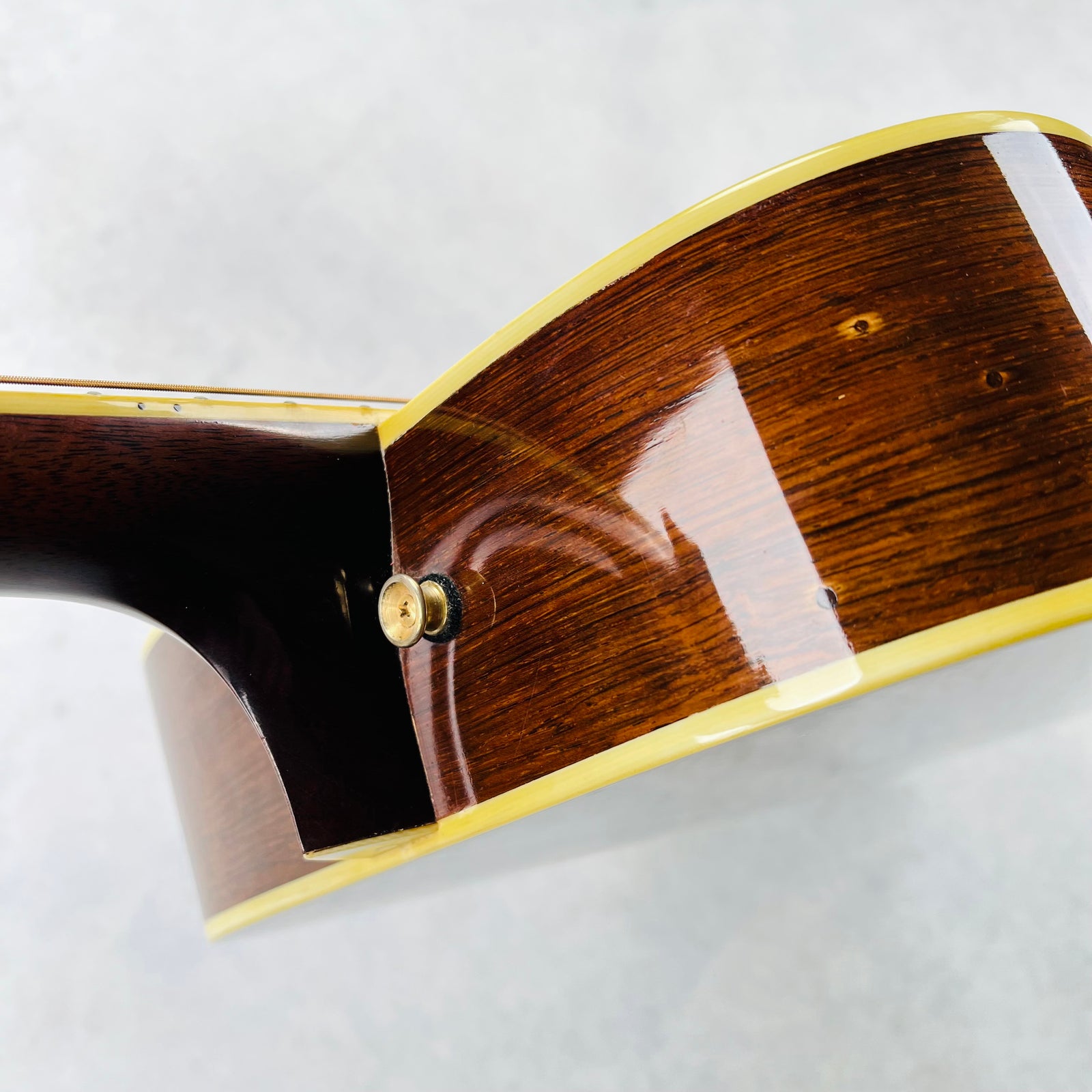

- Ivoroid Heel Cap with MOP Inlay

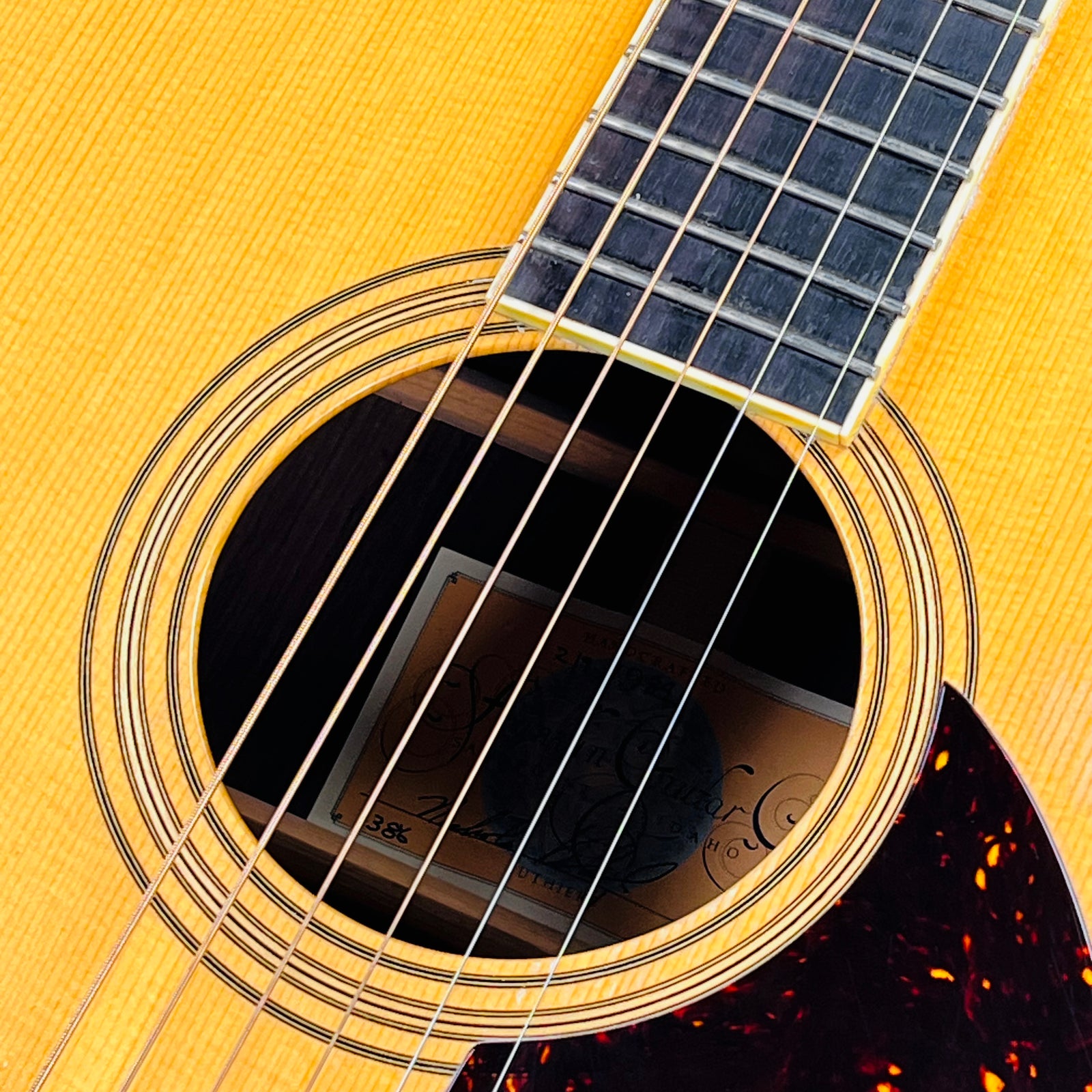

- 3-Ring Rosette
- Small Tortoise Guard
- Tapered X Brace
- Rosewood Bridge Plate
- Two Tone Bars
- 25.4” Scale Length
- 1 11/16” Nut Width
- 15” Lower Bout Width
- 3 3/4” Body Depth
- Under Saddle Piezo
- Endpin Jack
Reference Images

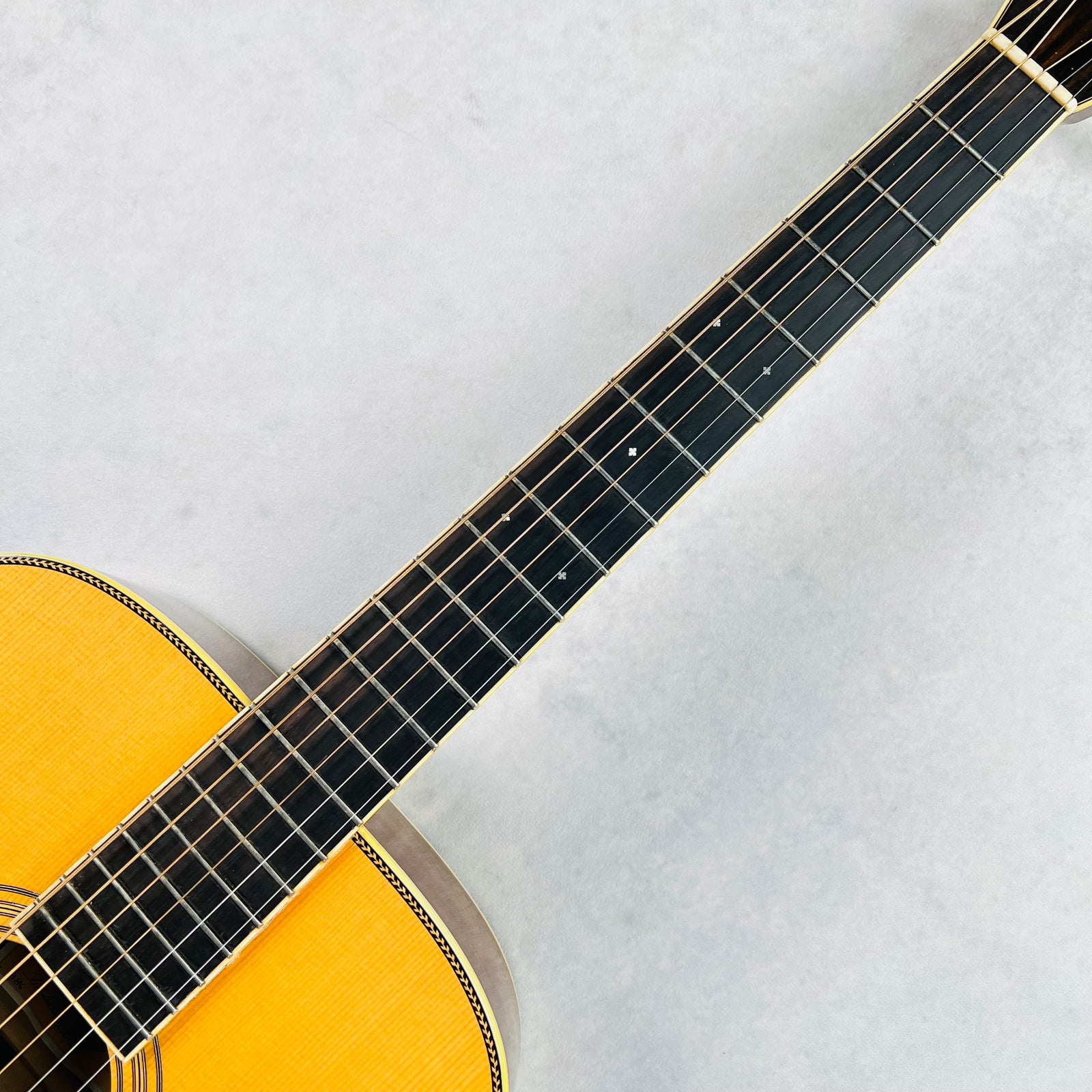

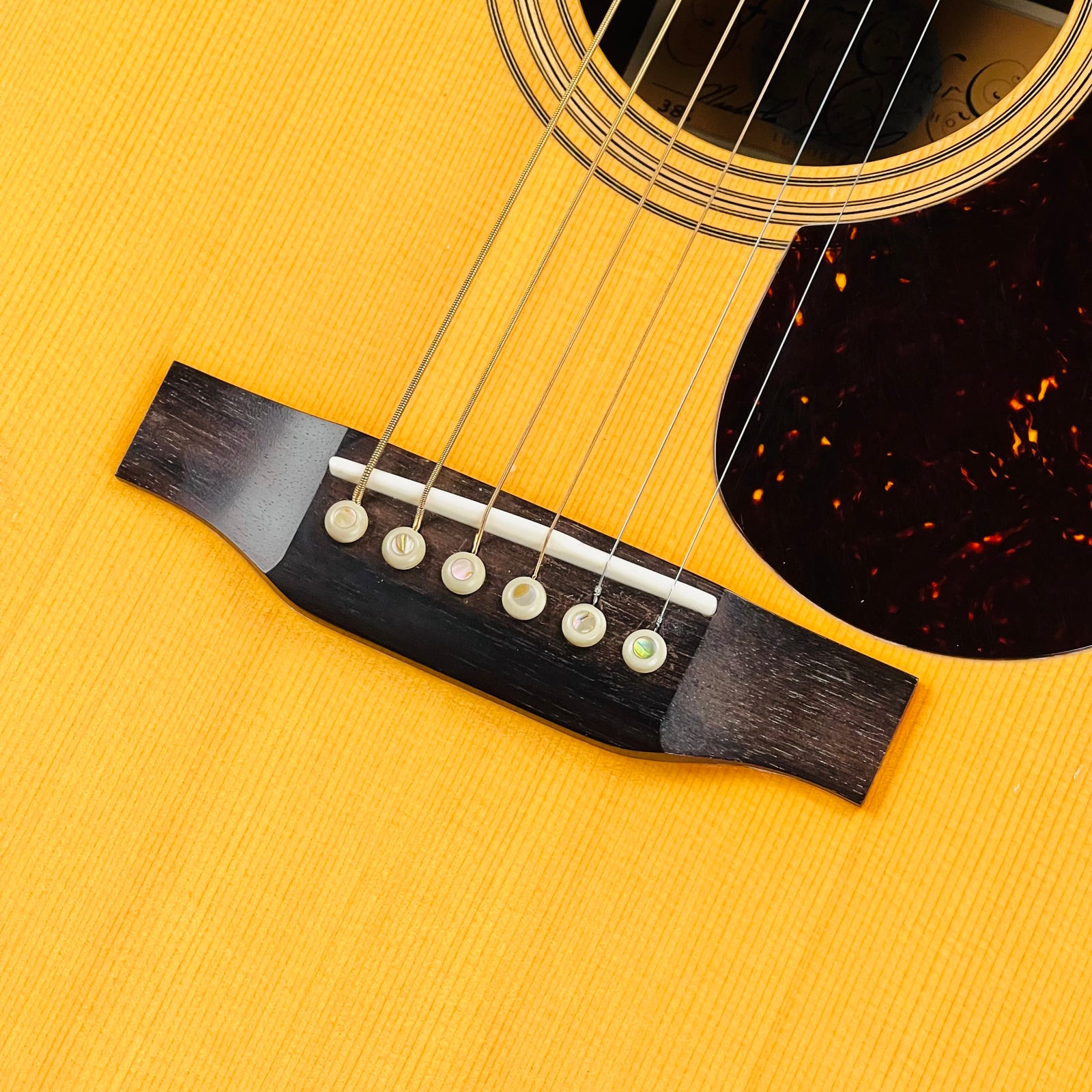

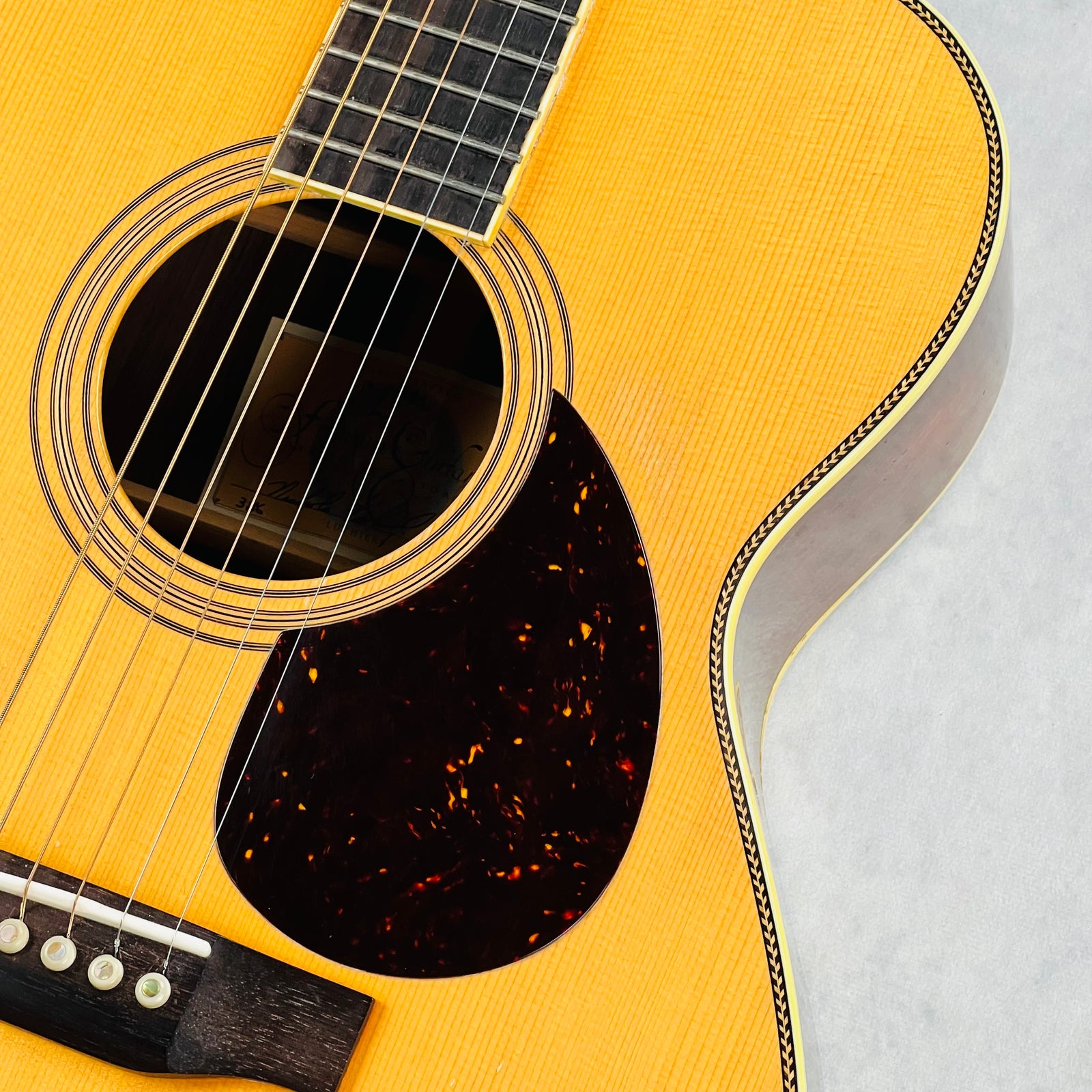

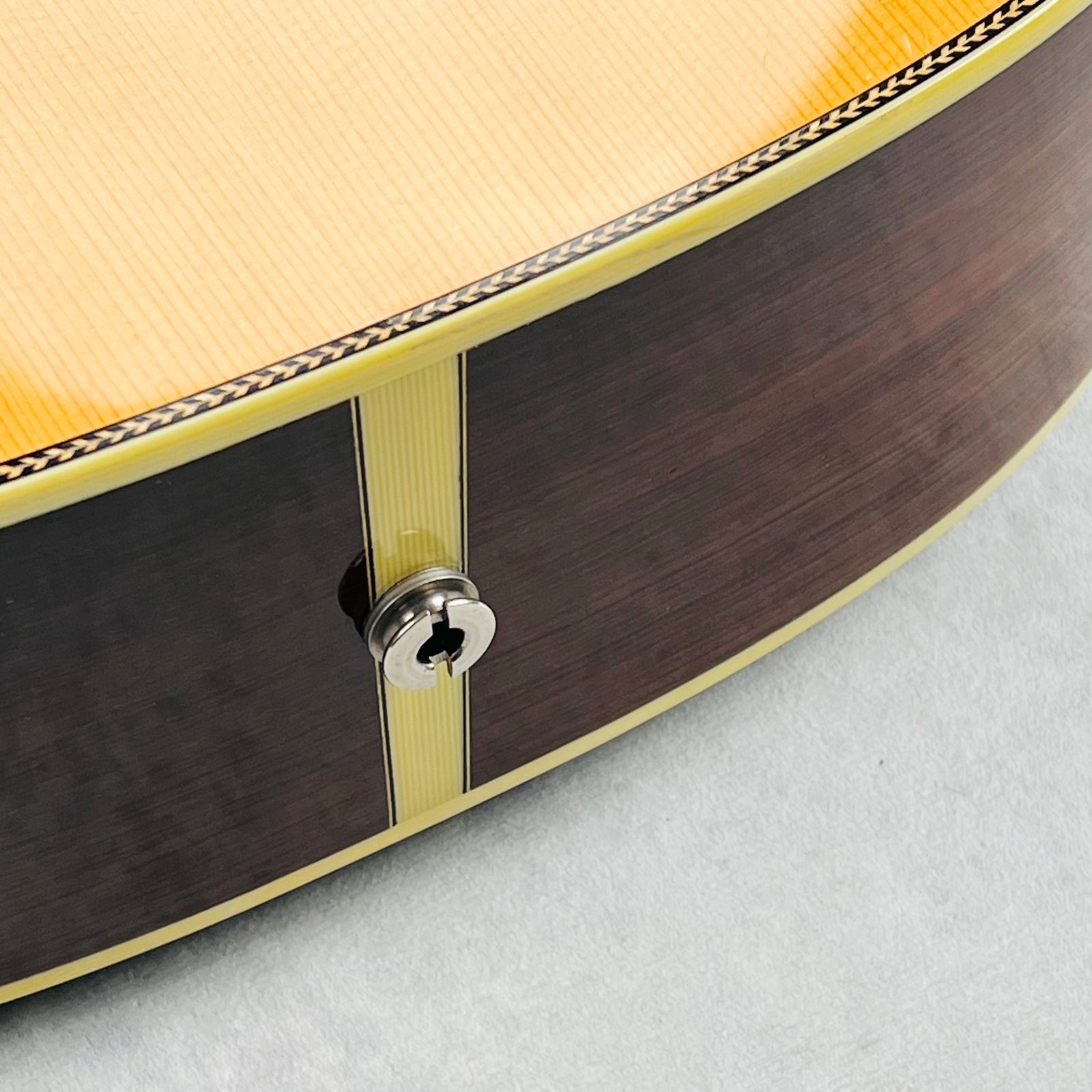

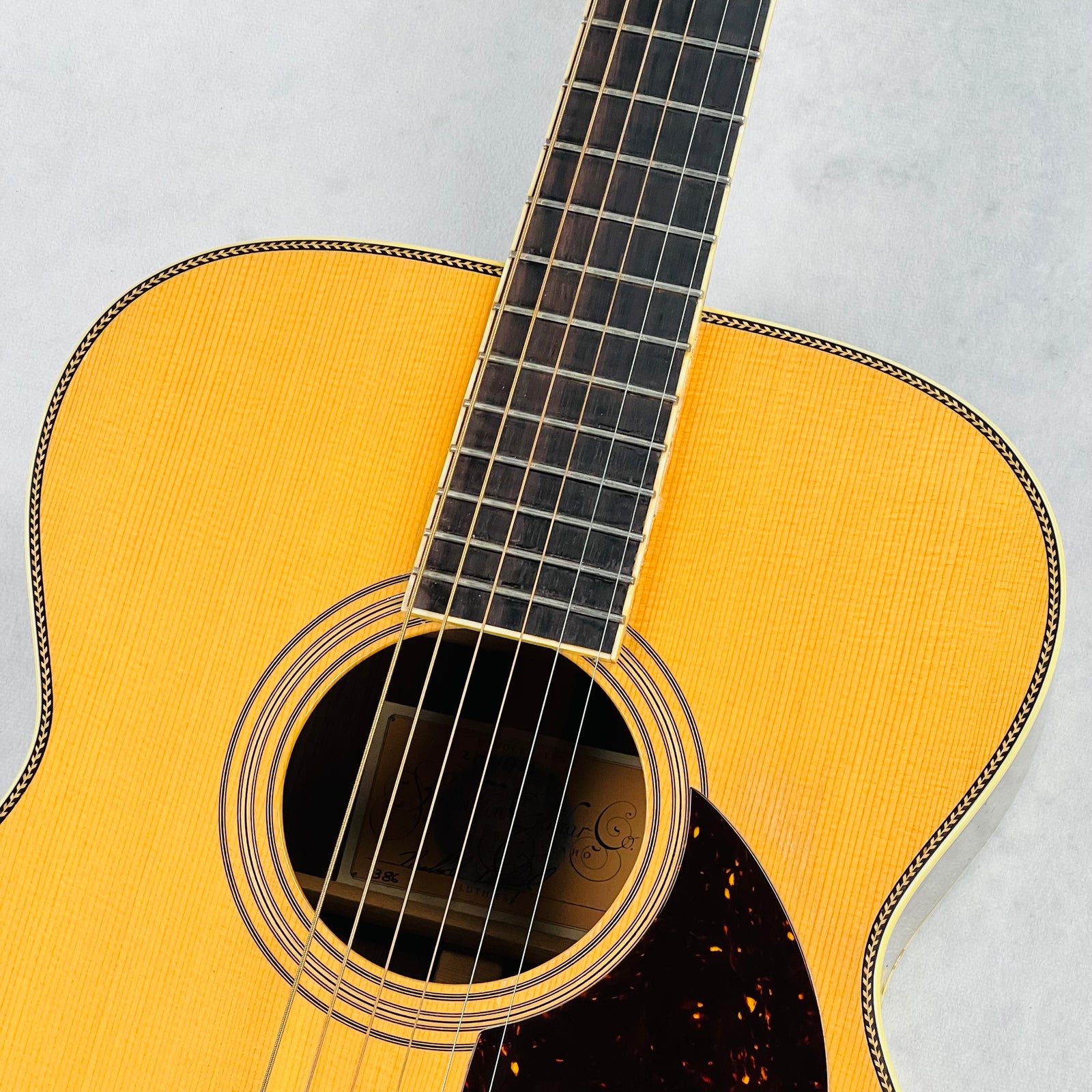

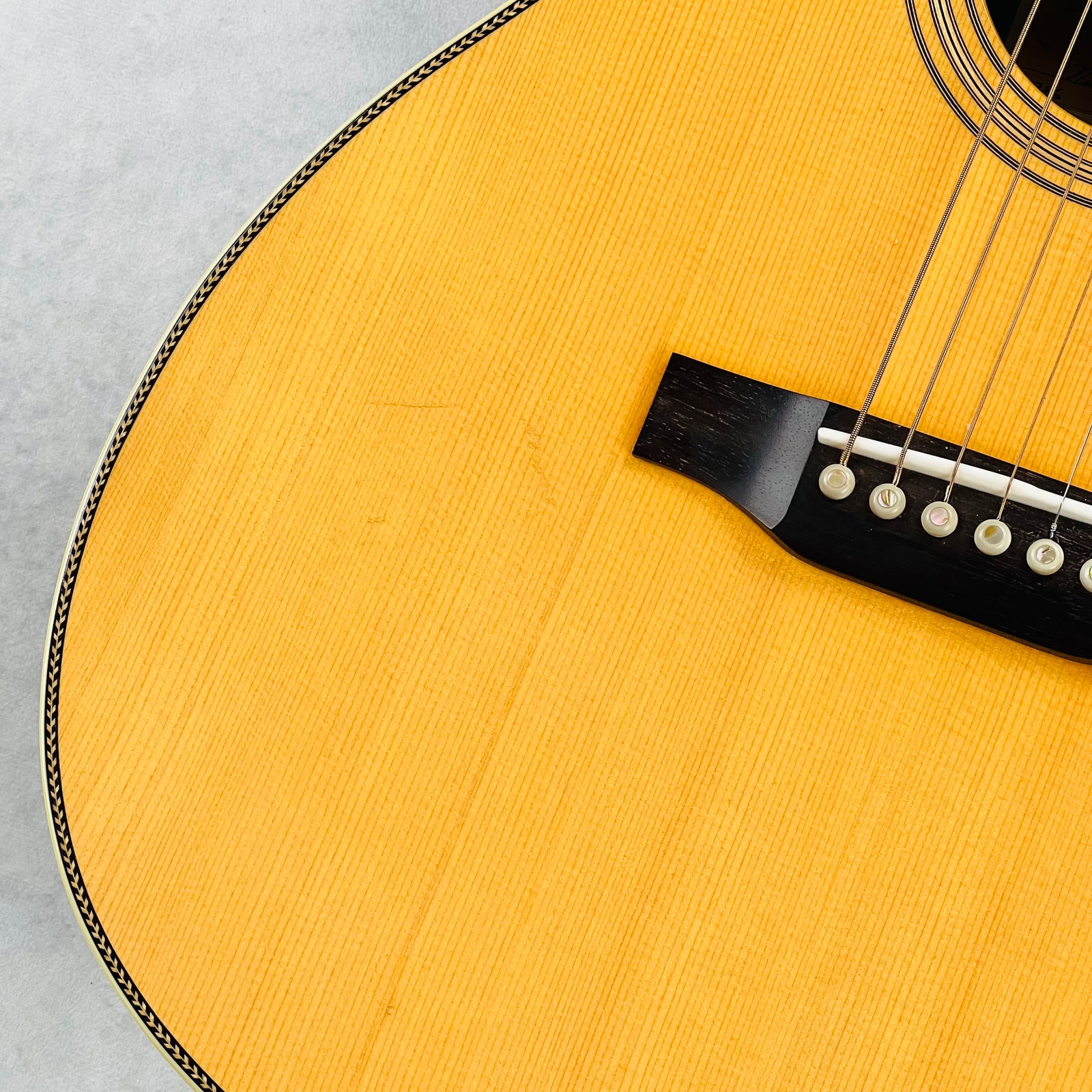

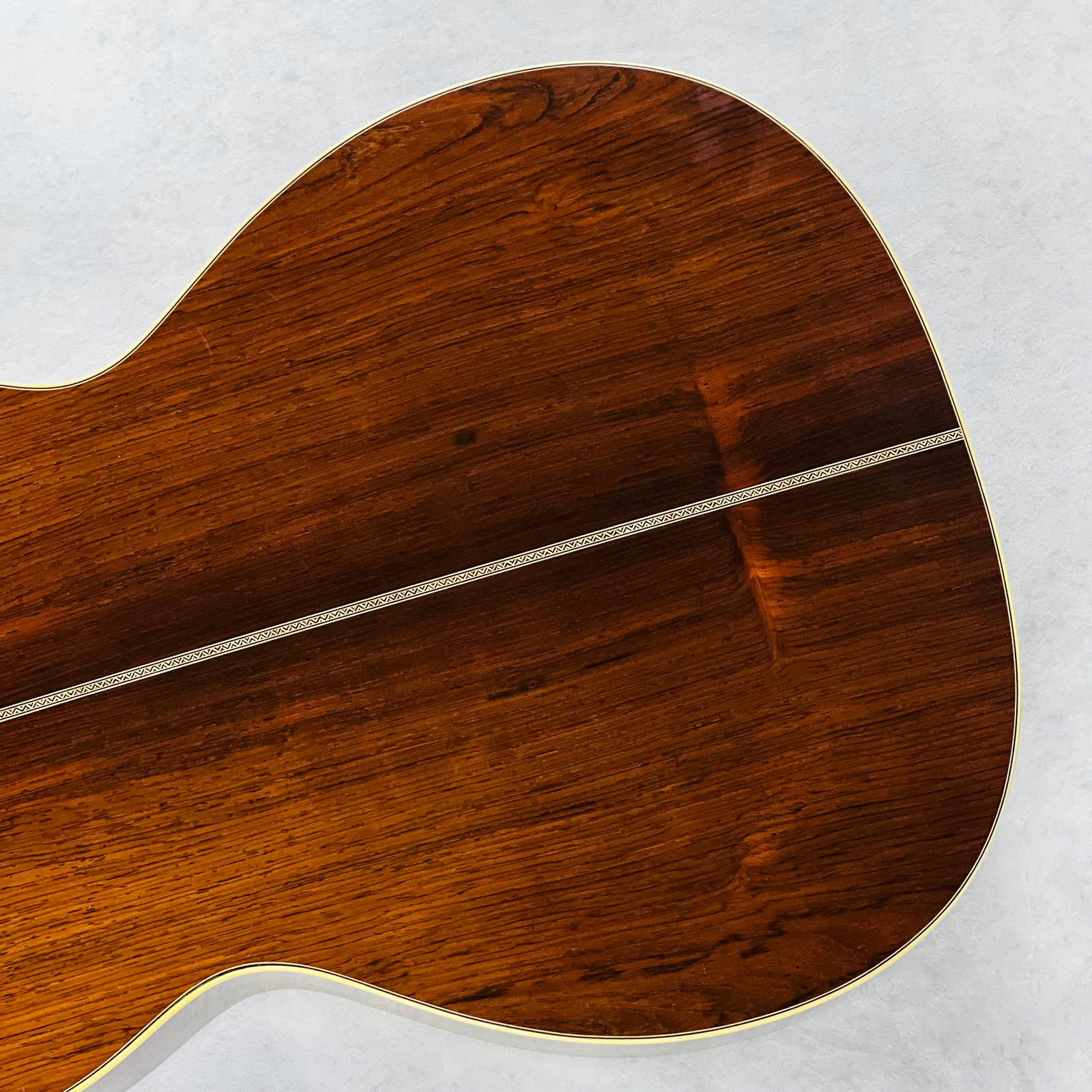

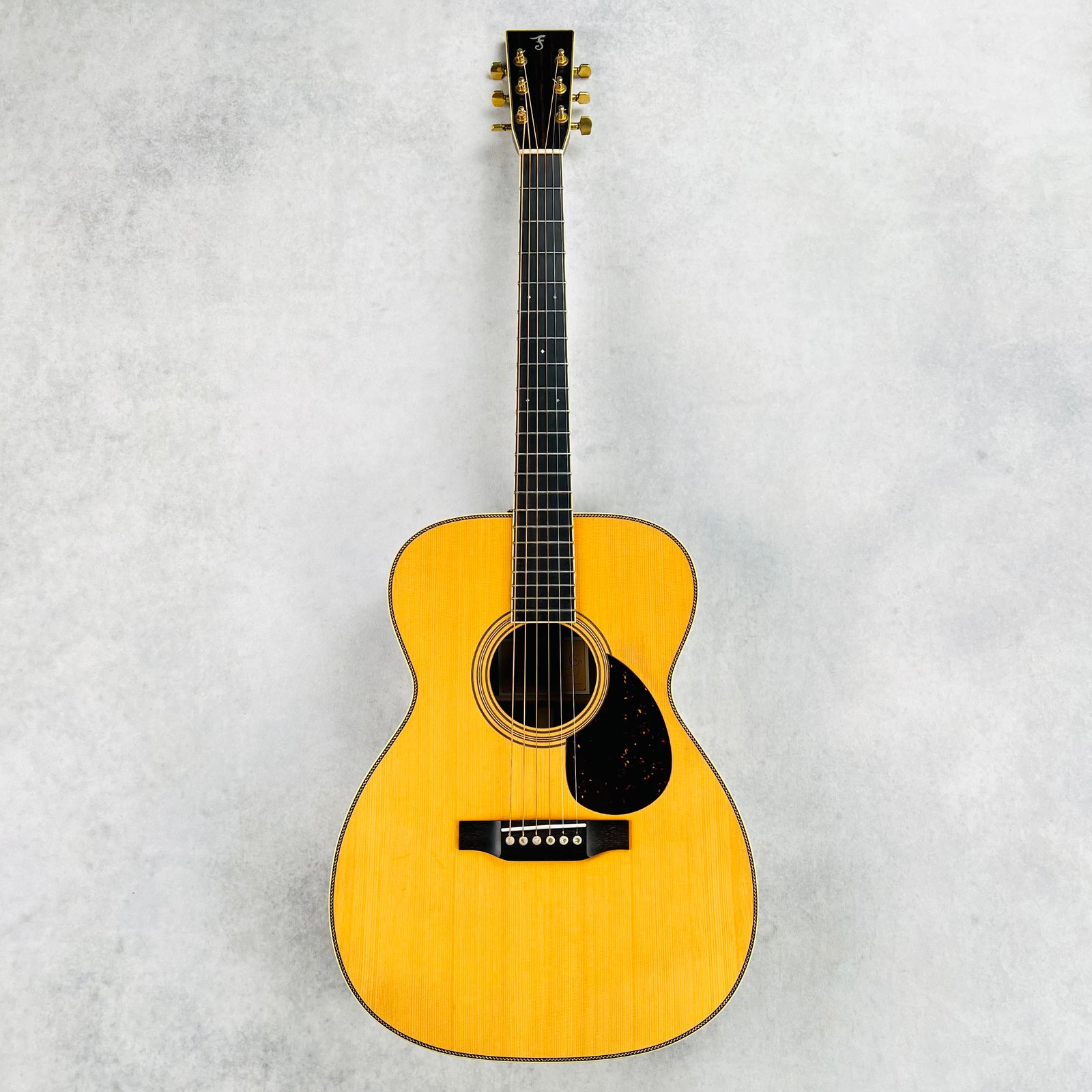

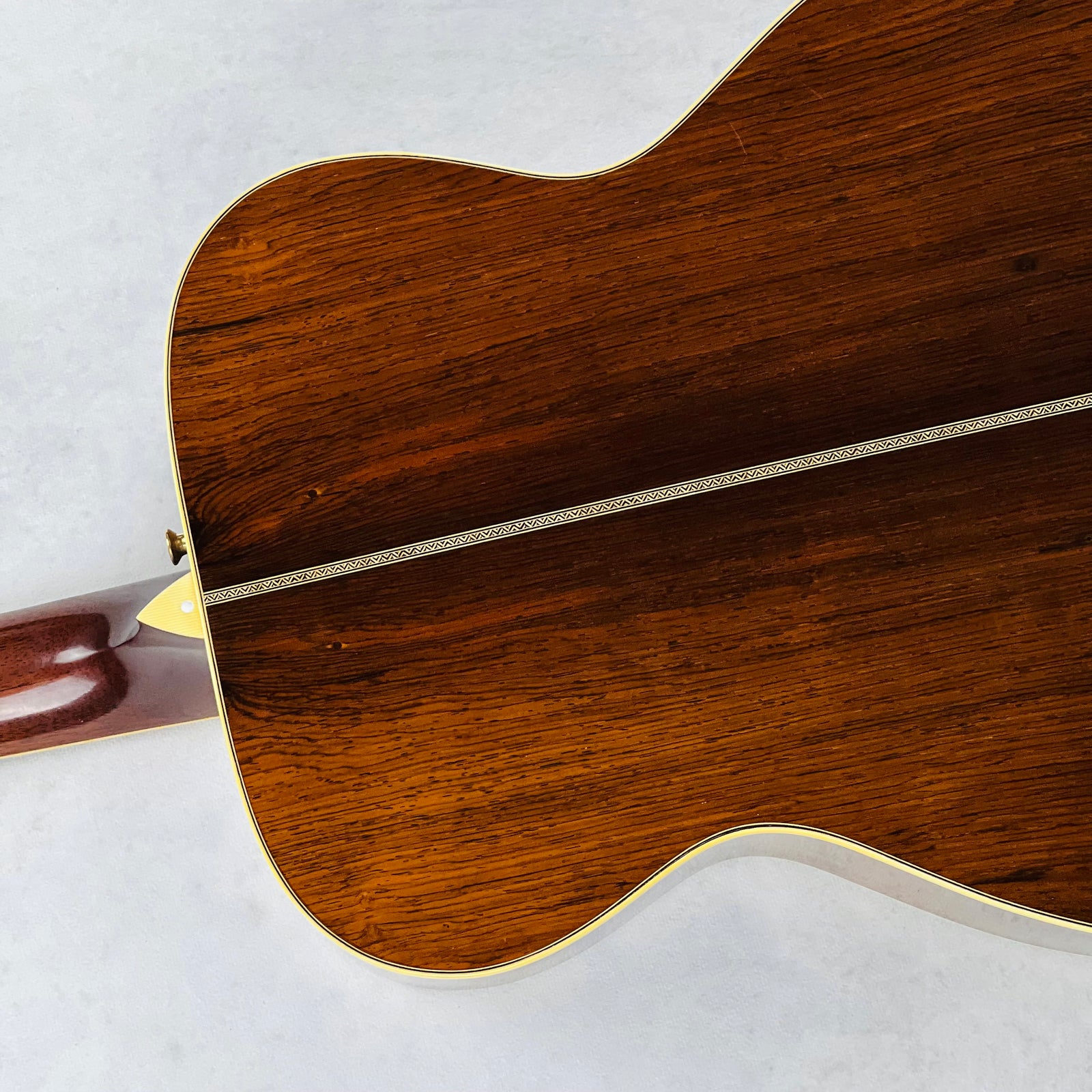

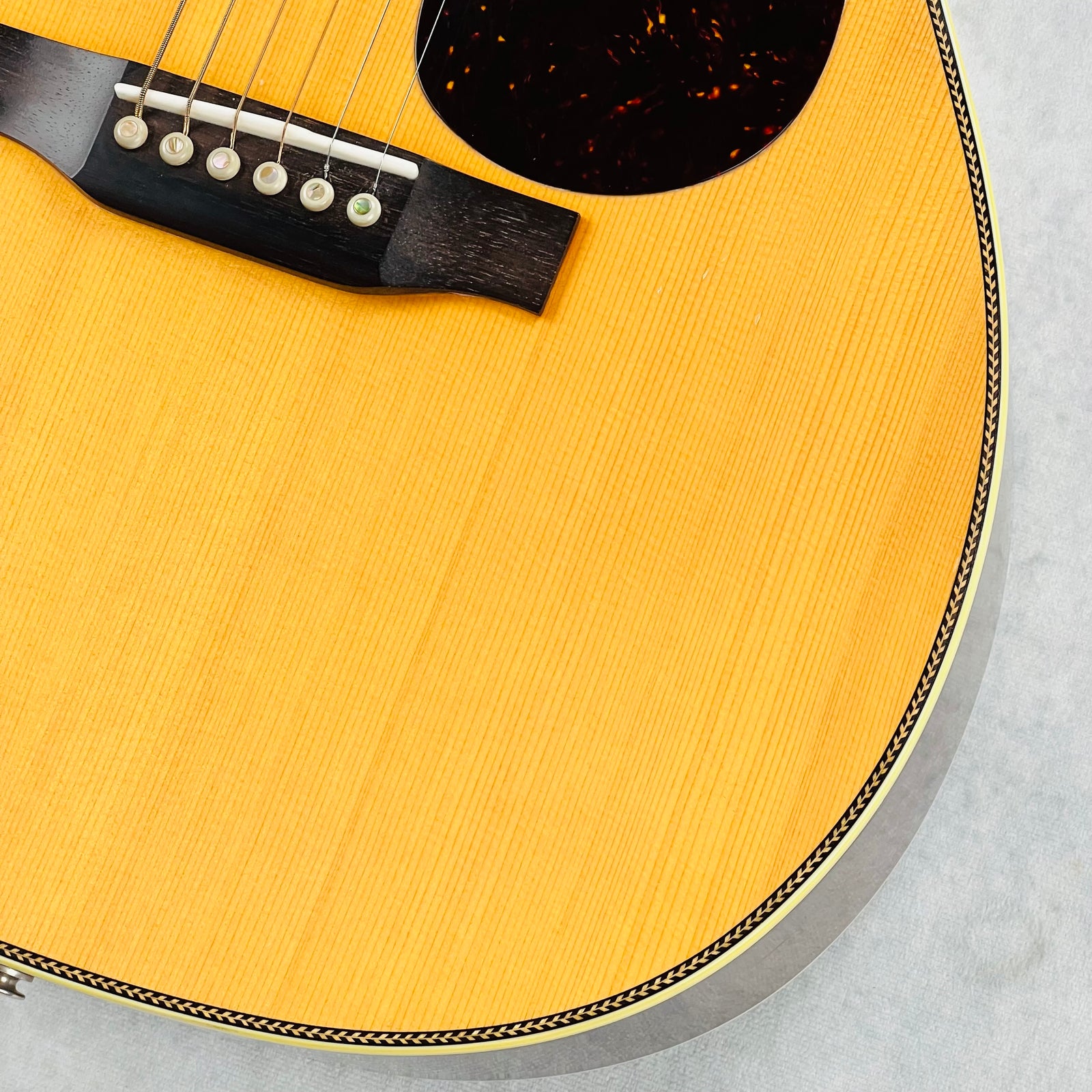

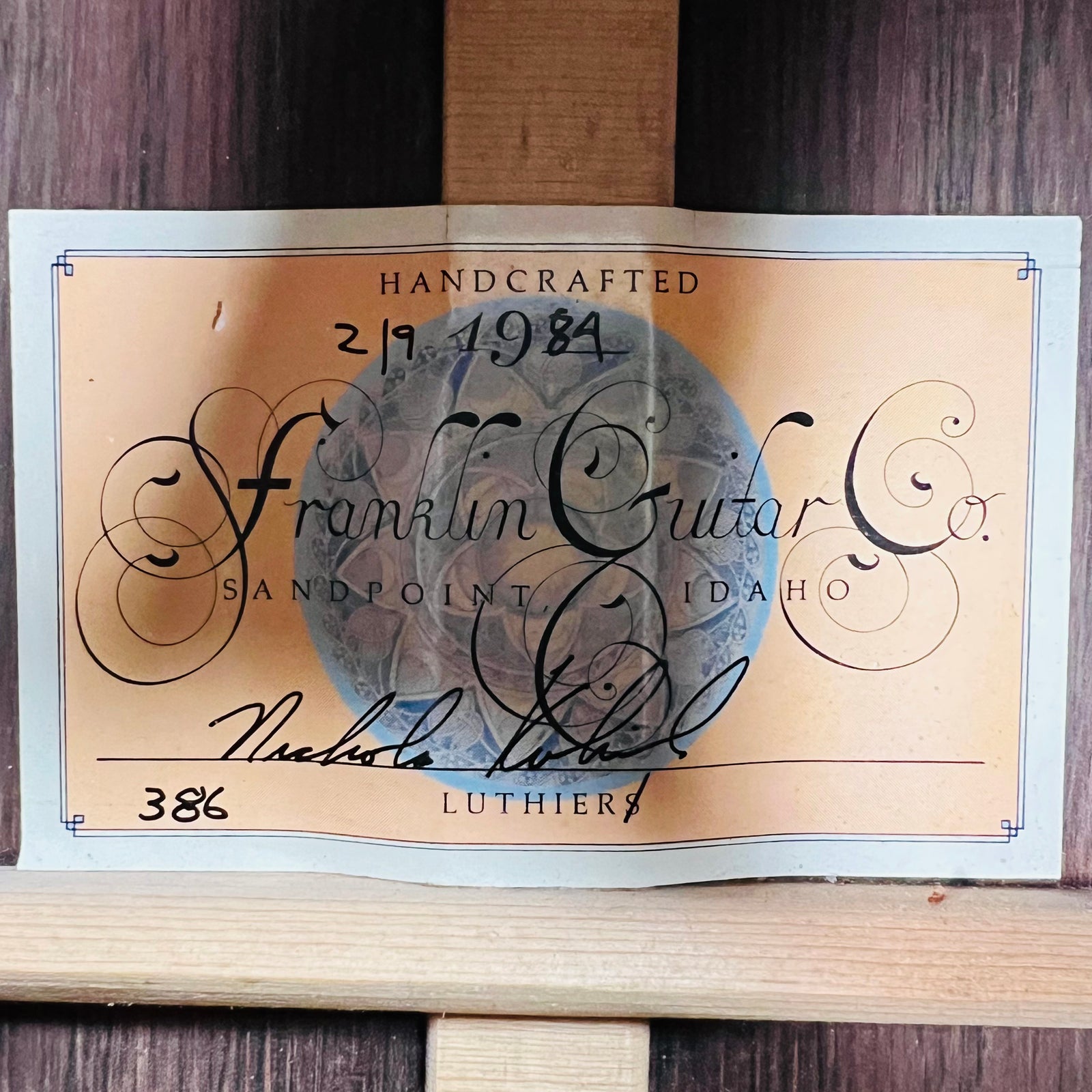

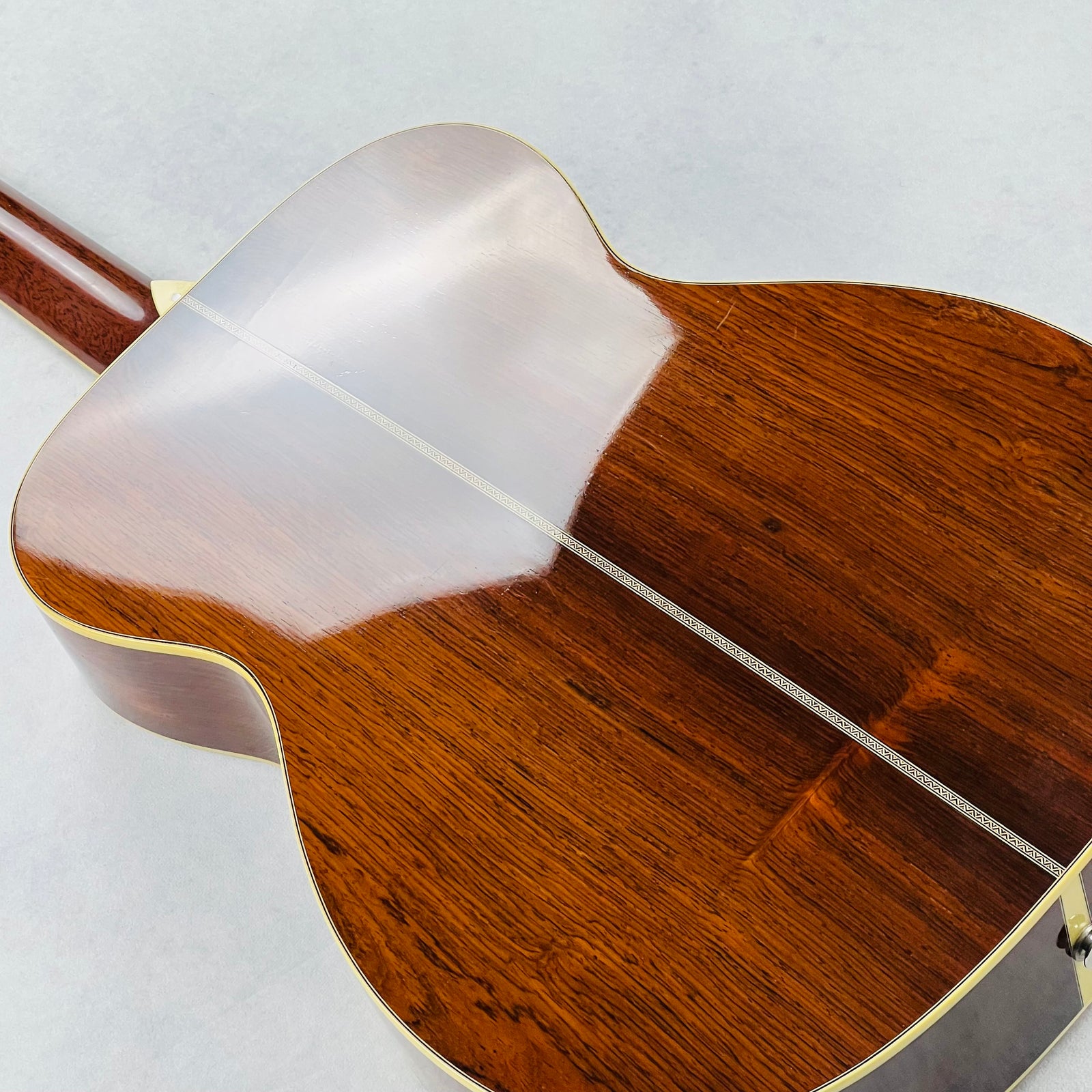

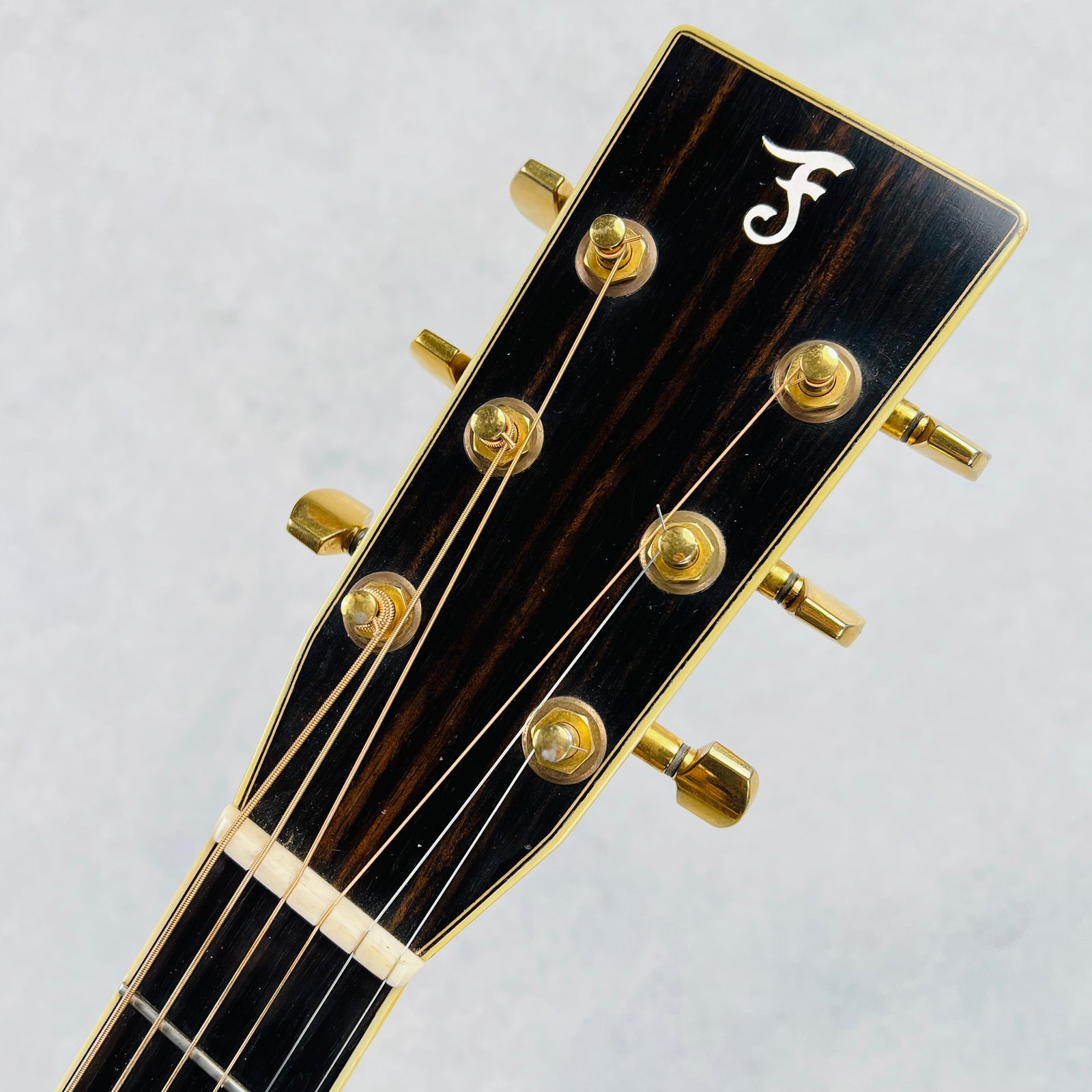

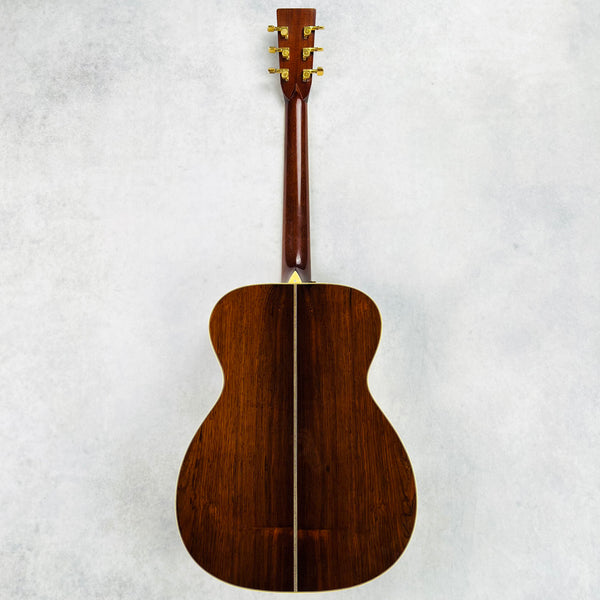

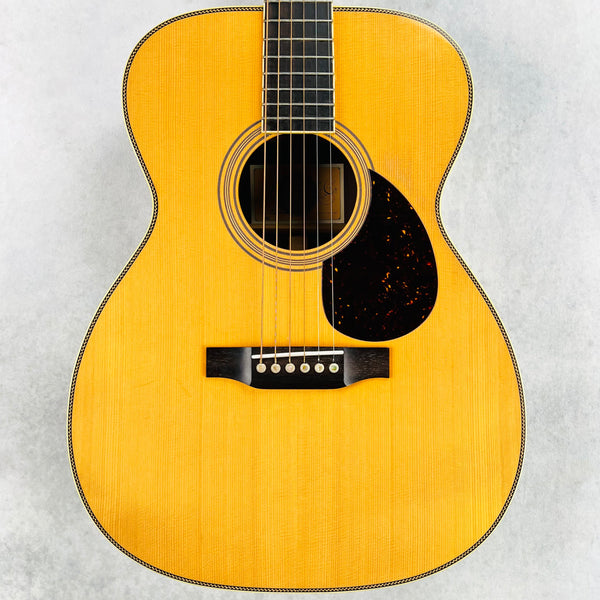

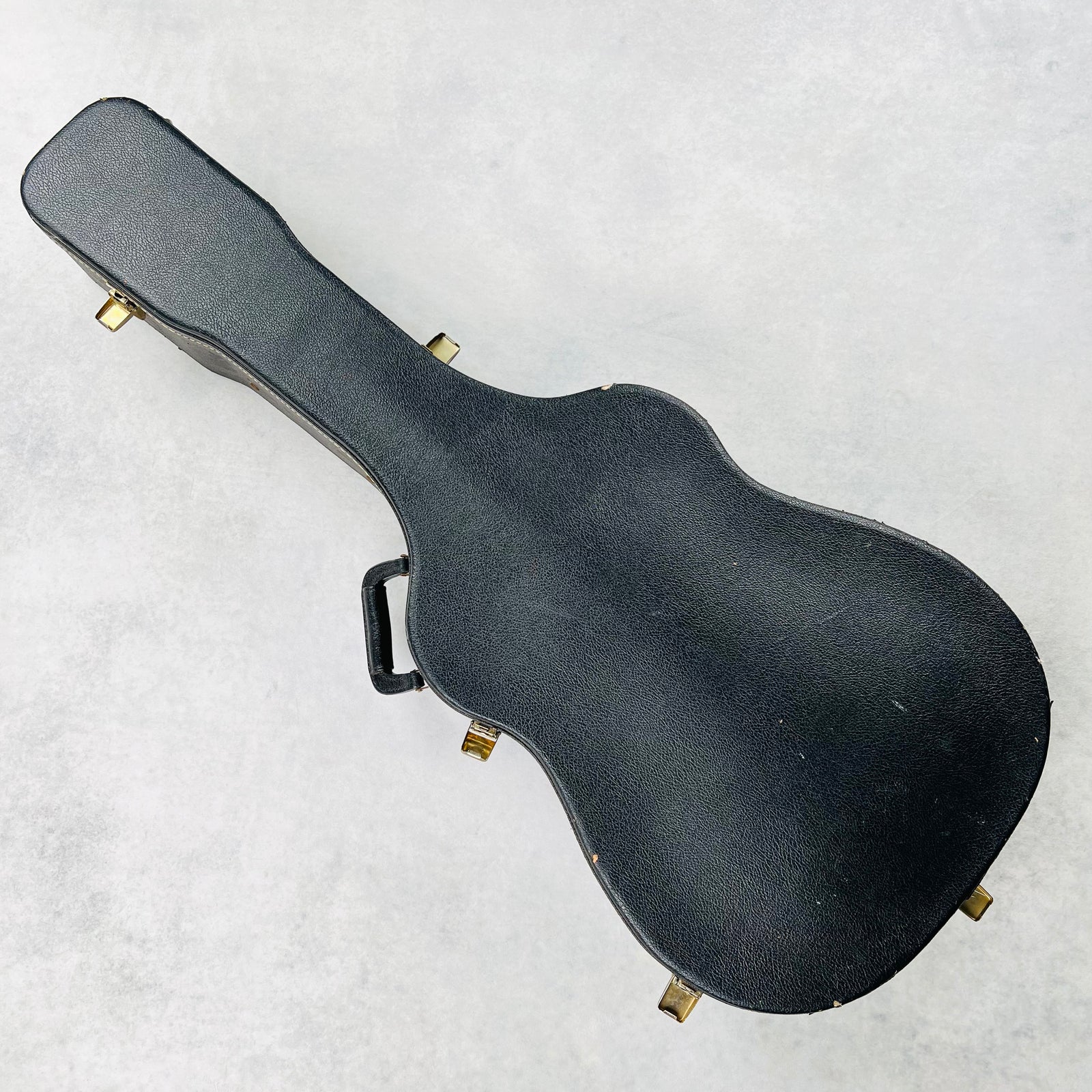

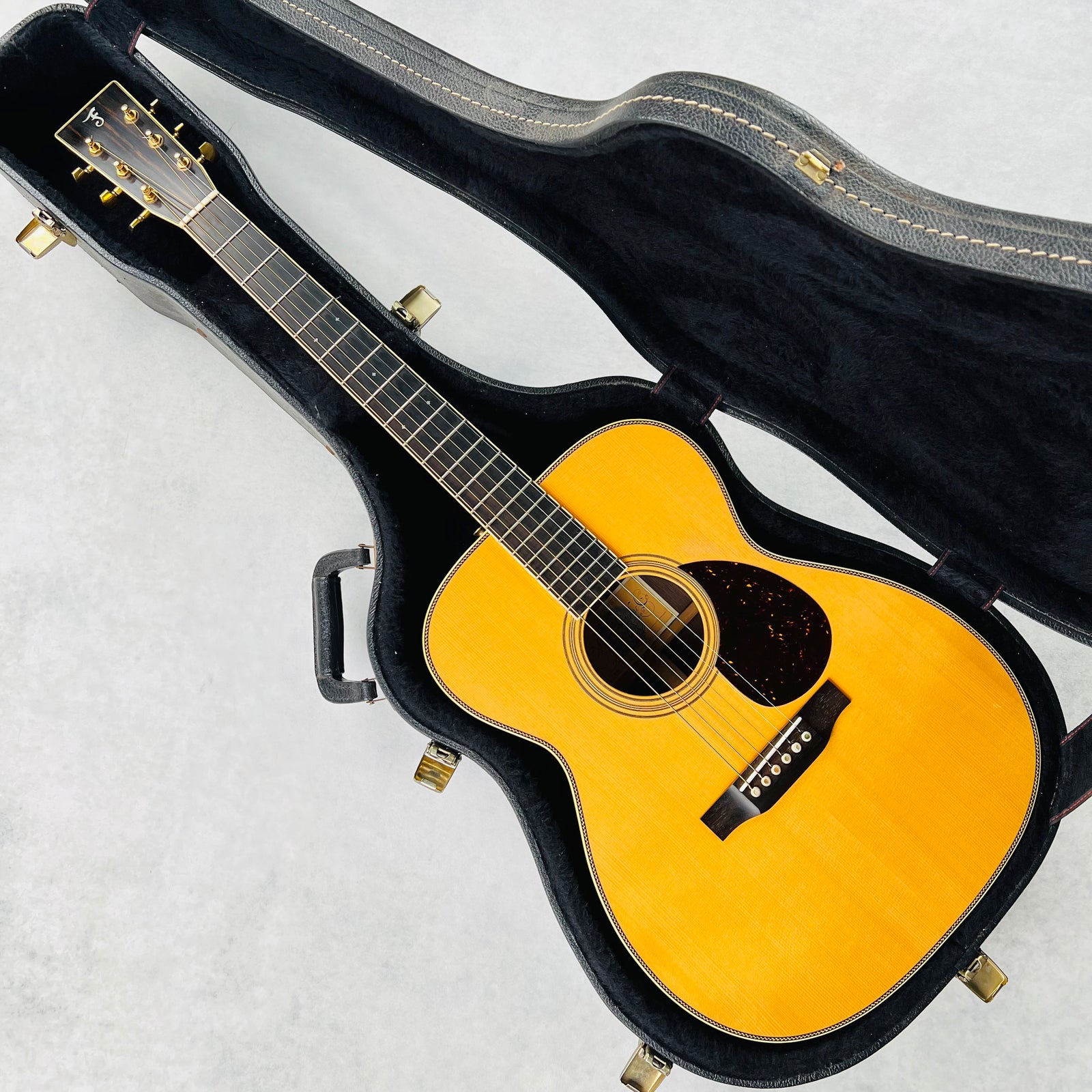

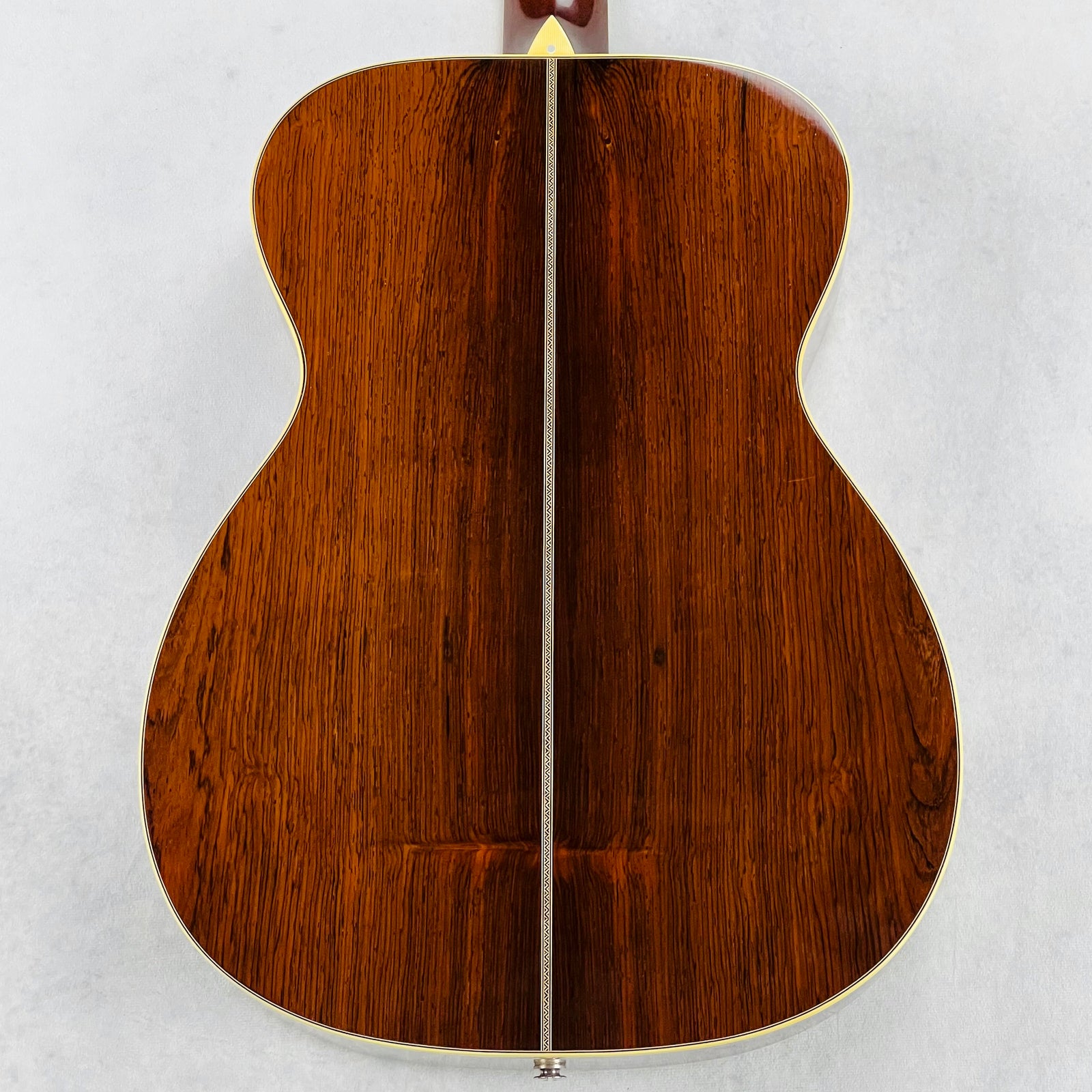

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Orchestra Model Brazilian Rosewood listed above. For larger pics, click on an image to open in a new tab.
