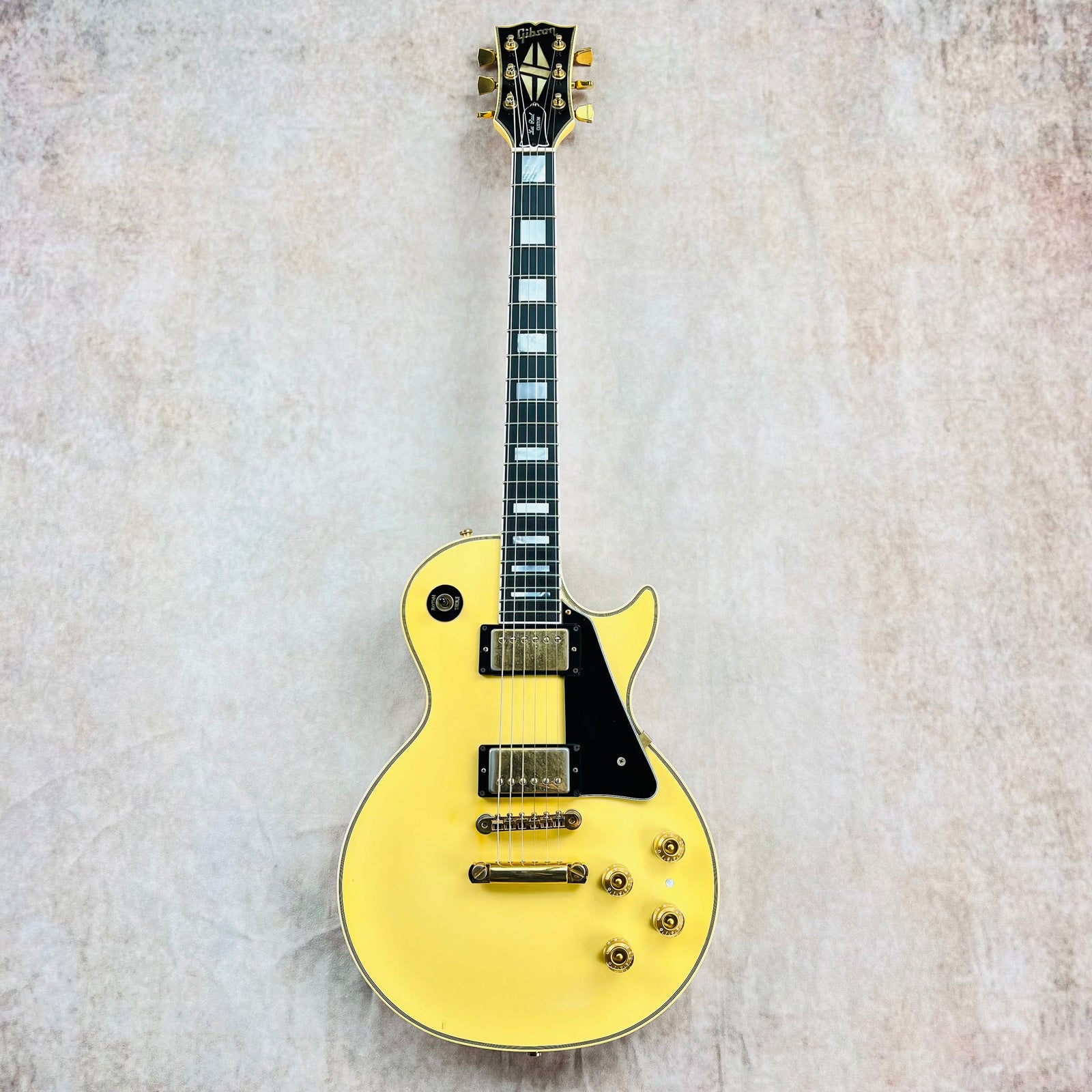

The 1983 Les Paul Custom is a solid body electric guitar built by Gibson. This single cutaway set neck guitar was manufactured in Kalamazoo, MI in the United States and is a Gibson Vintage Electric Guitar model. Key features include a Maple Top, Mahogany Body, Mahogany Neck, Ebony Fretboard, Dual Humbucker Pickups and White finish. The specs listed below pertain to the 1983 product year model pictured on this page.
Factory Specs
- Maple Top
- Mahogany Body

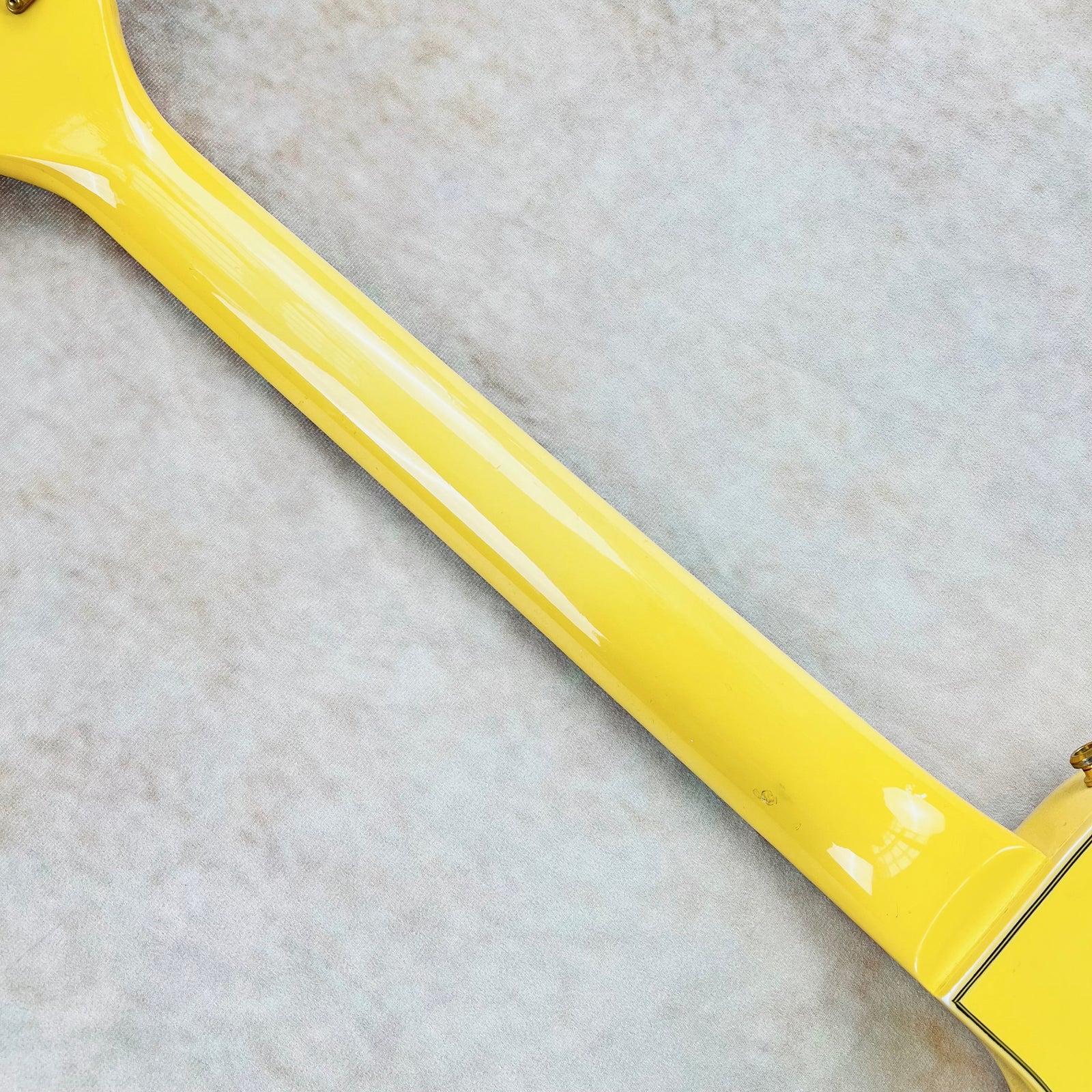

- Mahogany Neck

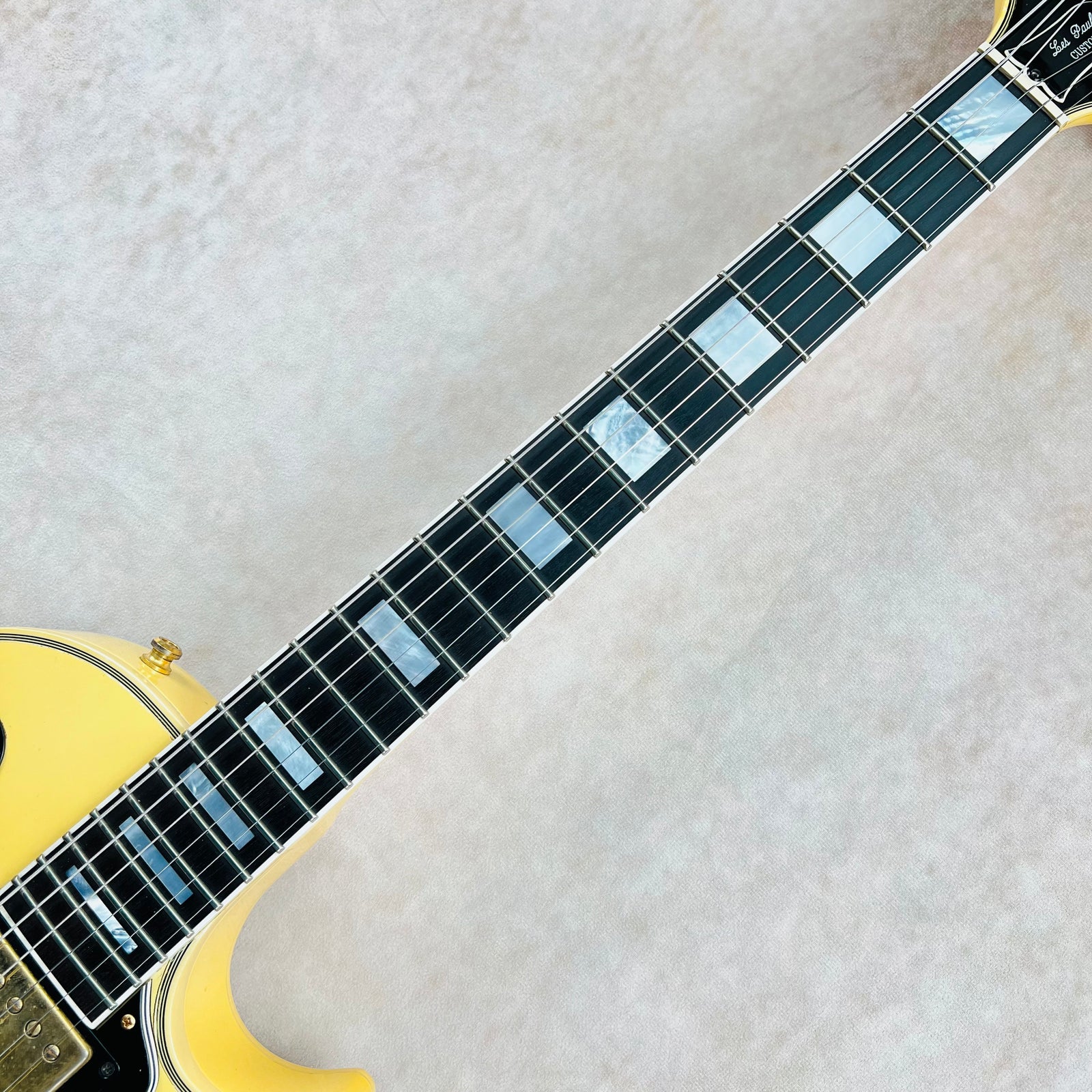

- Ebony Fretboard
- 22 Frets
- Block Inlays
- Medium Jumbo Fret Wire
- 1.6875" Nut Width
- 12" Radius
- 24.75" Scale Length

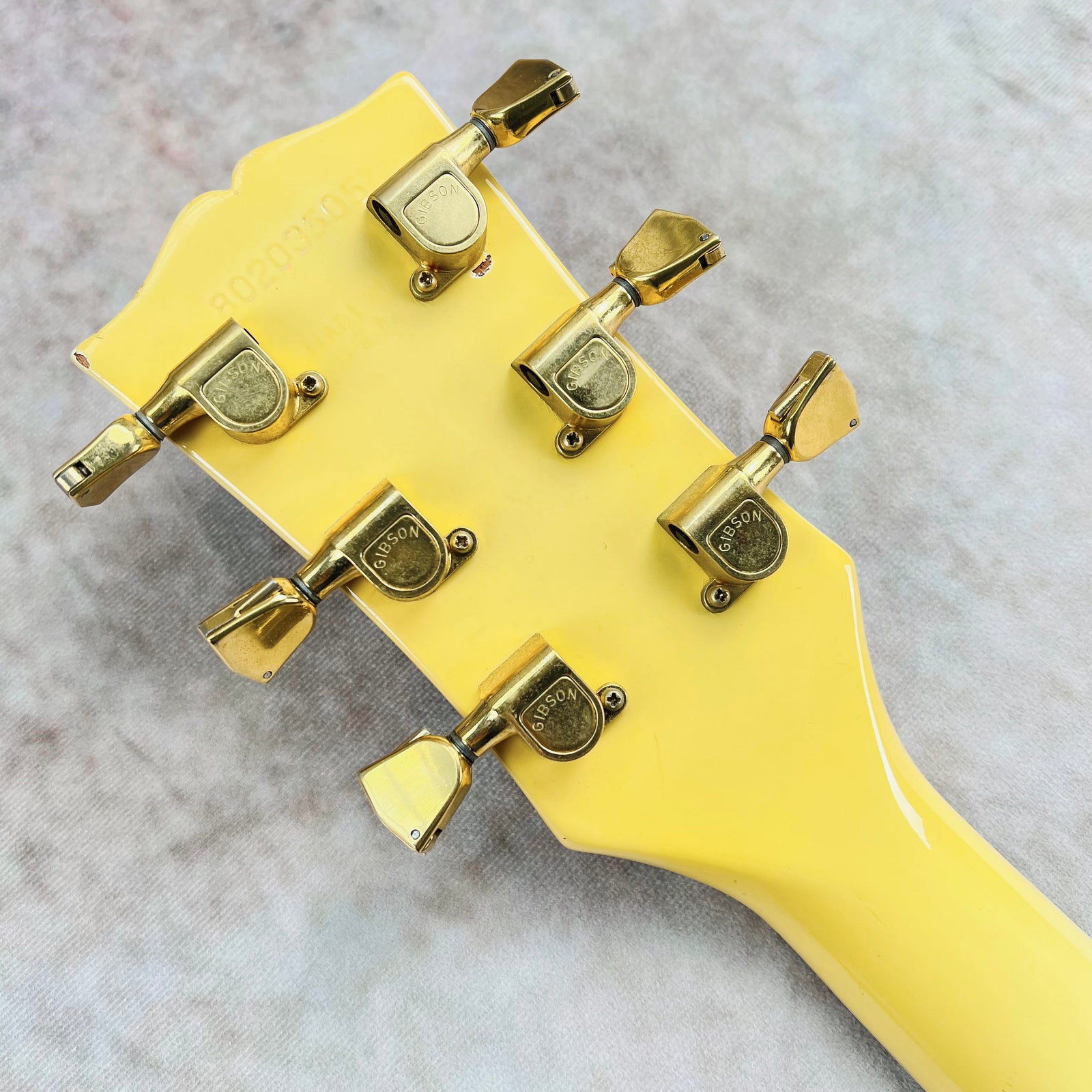

- Schaller Style Tuners with Built-In Winders

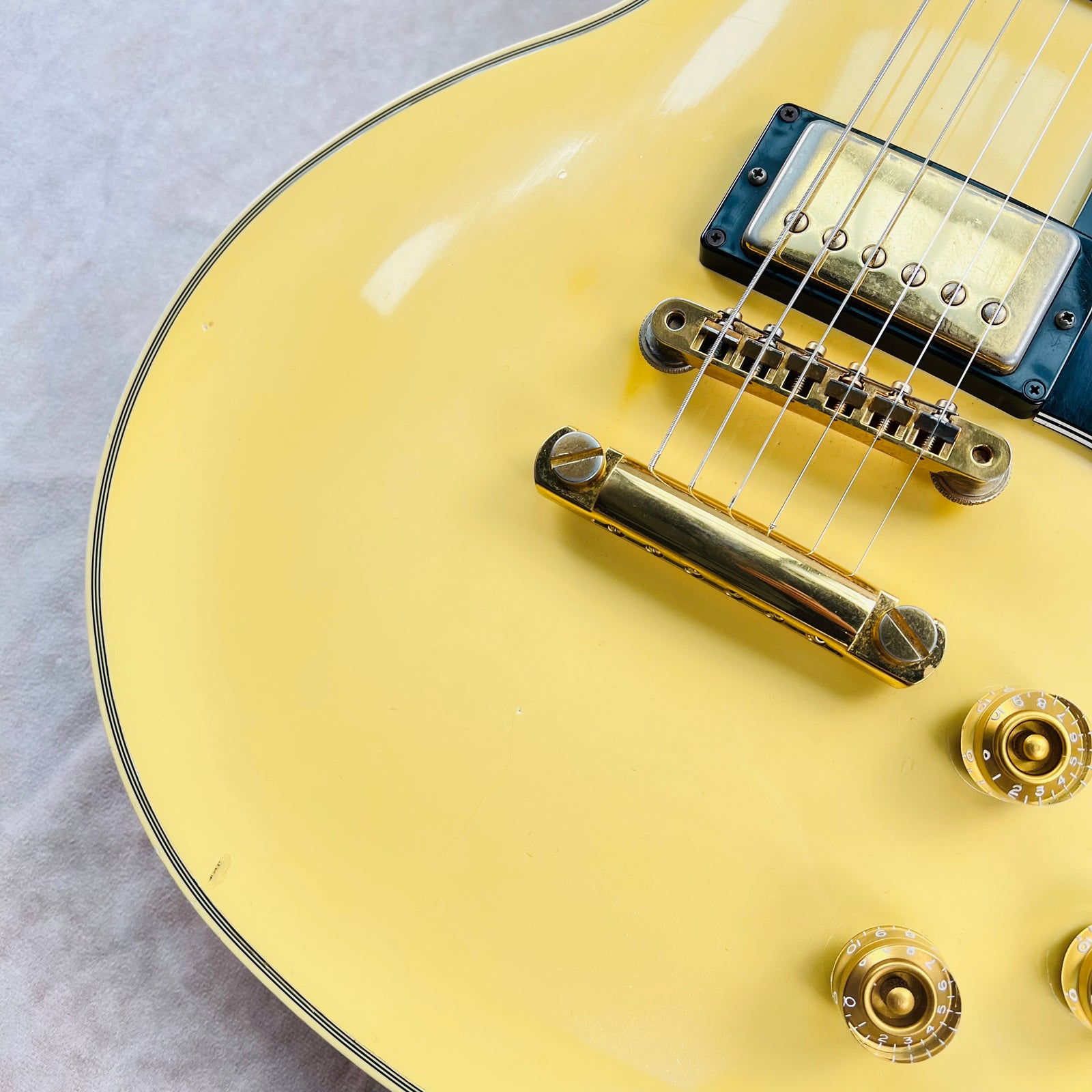

- Stop Tailpiece
- Adjustable Bridge

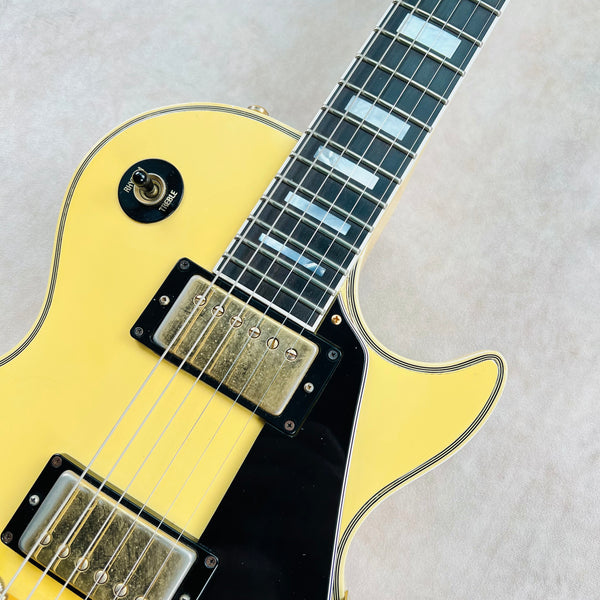

- Dual Stamped Patent Number Humbuckers
- Black Pickguard

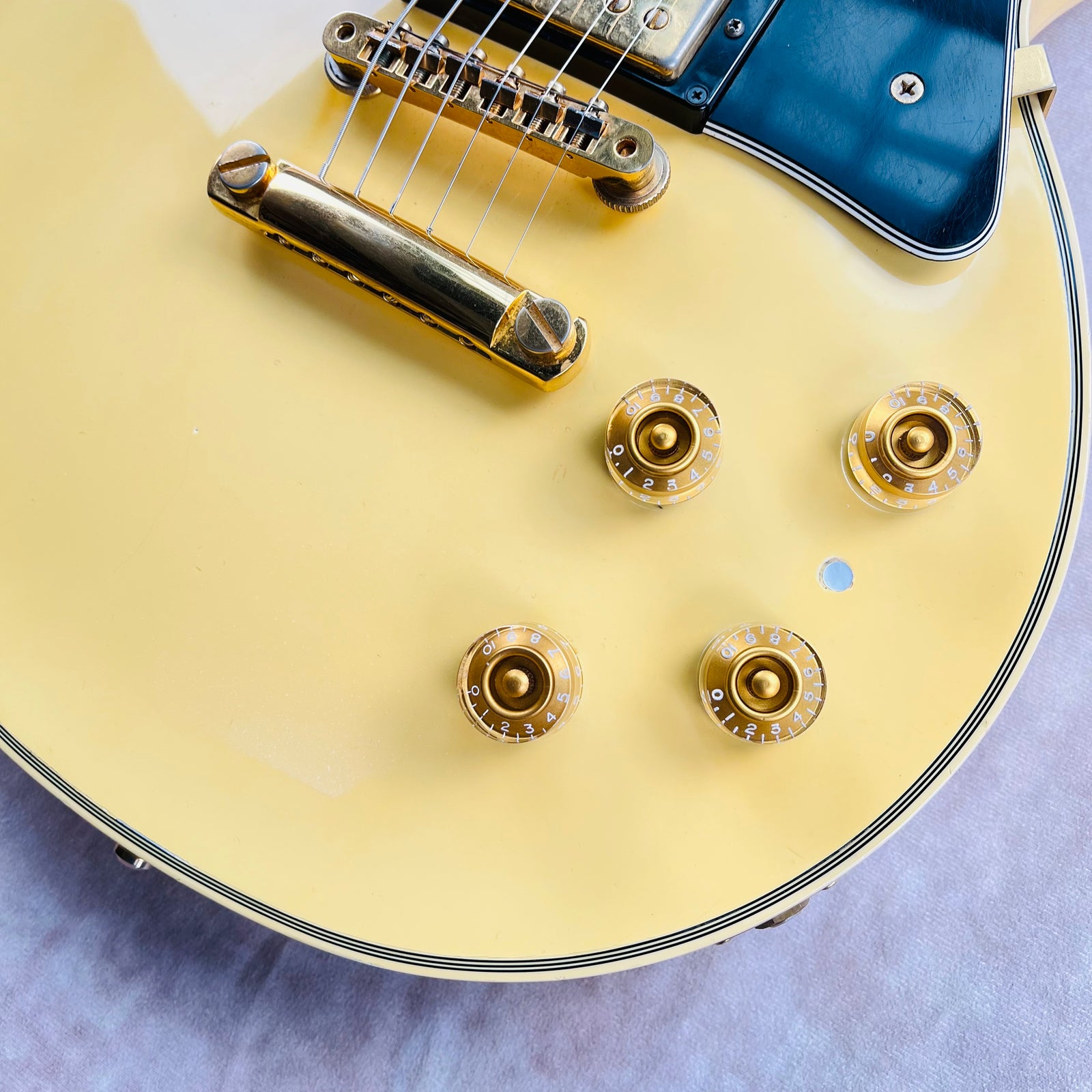

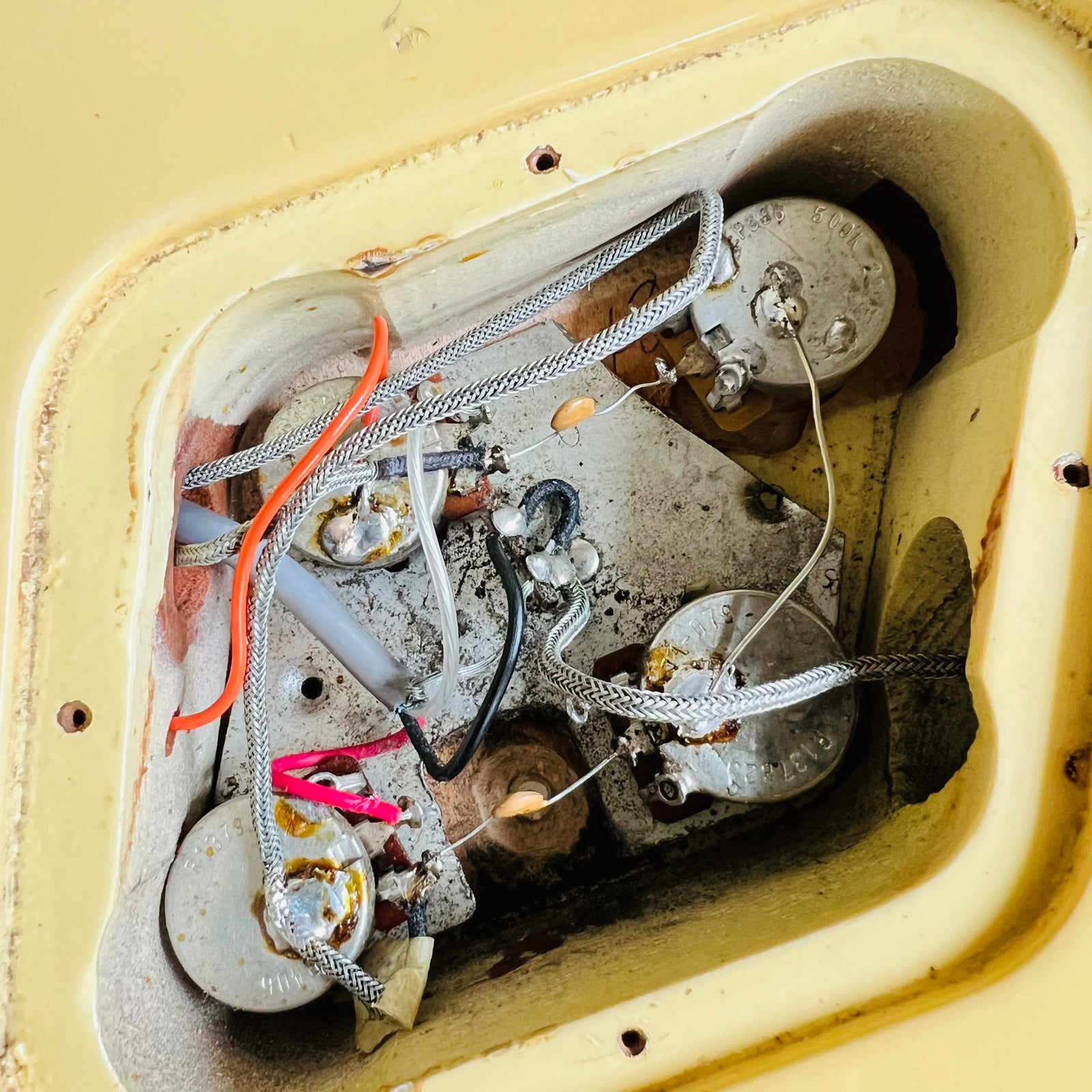

- Two Volume & Two Tone Controls
- 3-Way Toggle Switch
- Gold Hardware
- Lacquer Finish

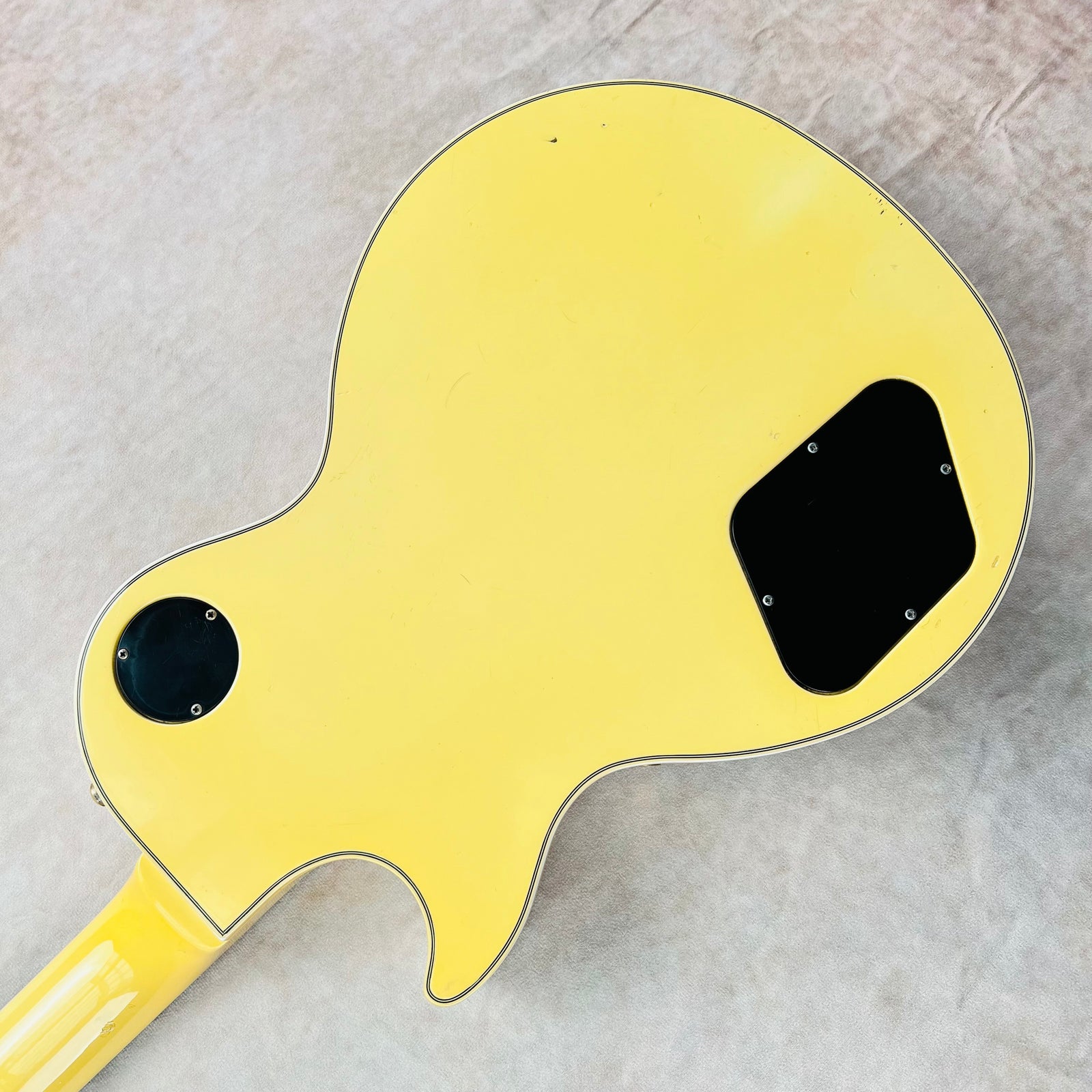

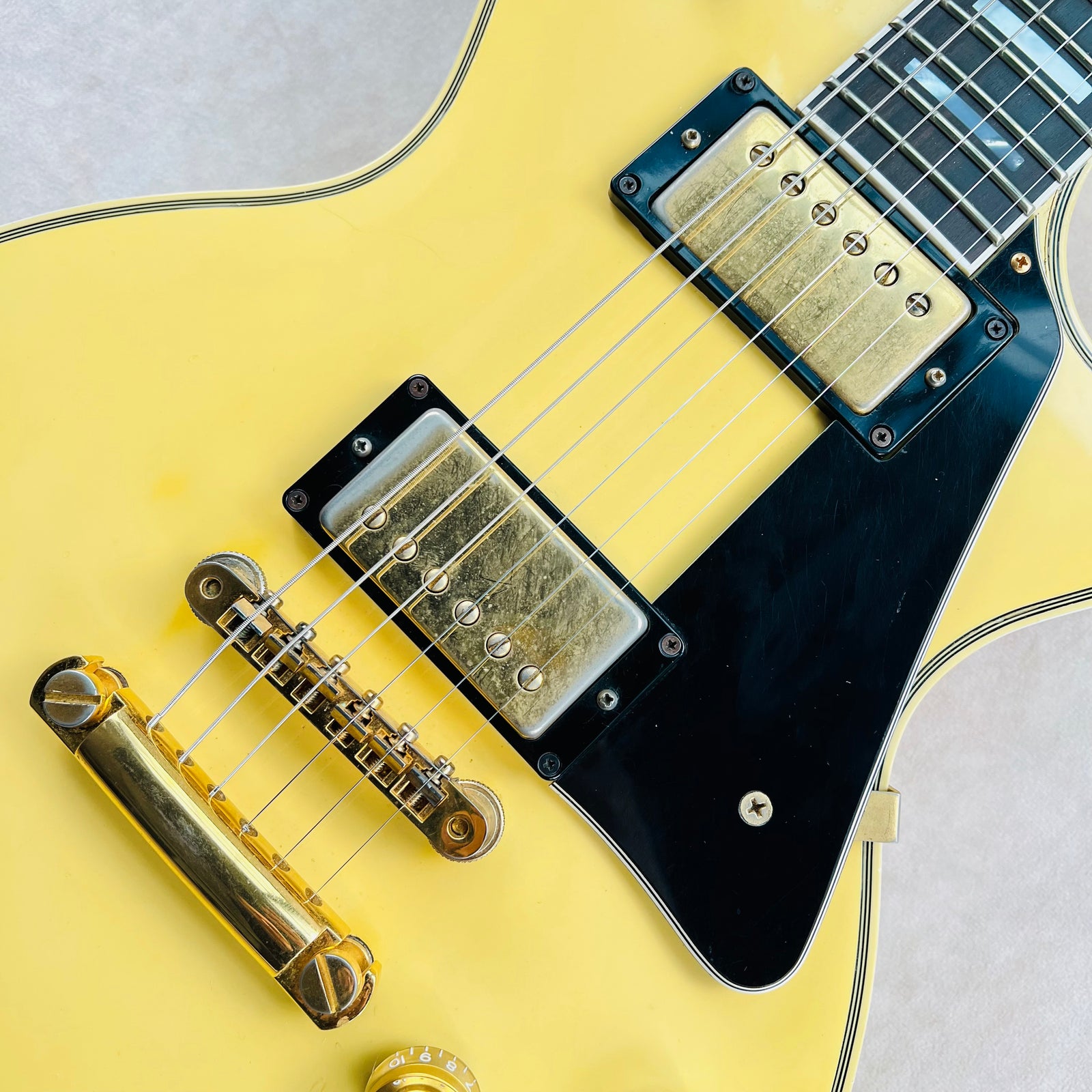

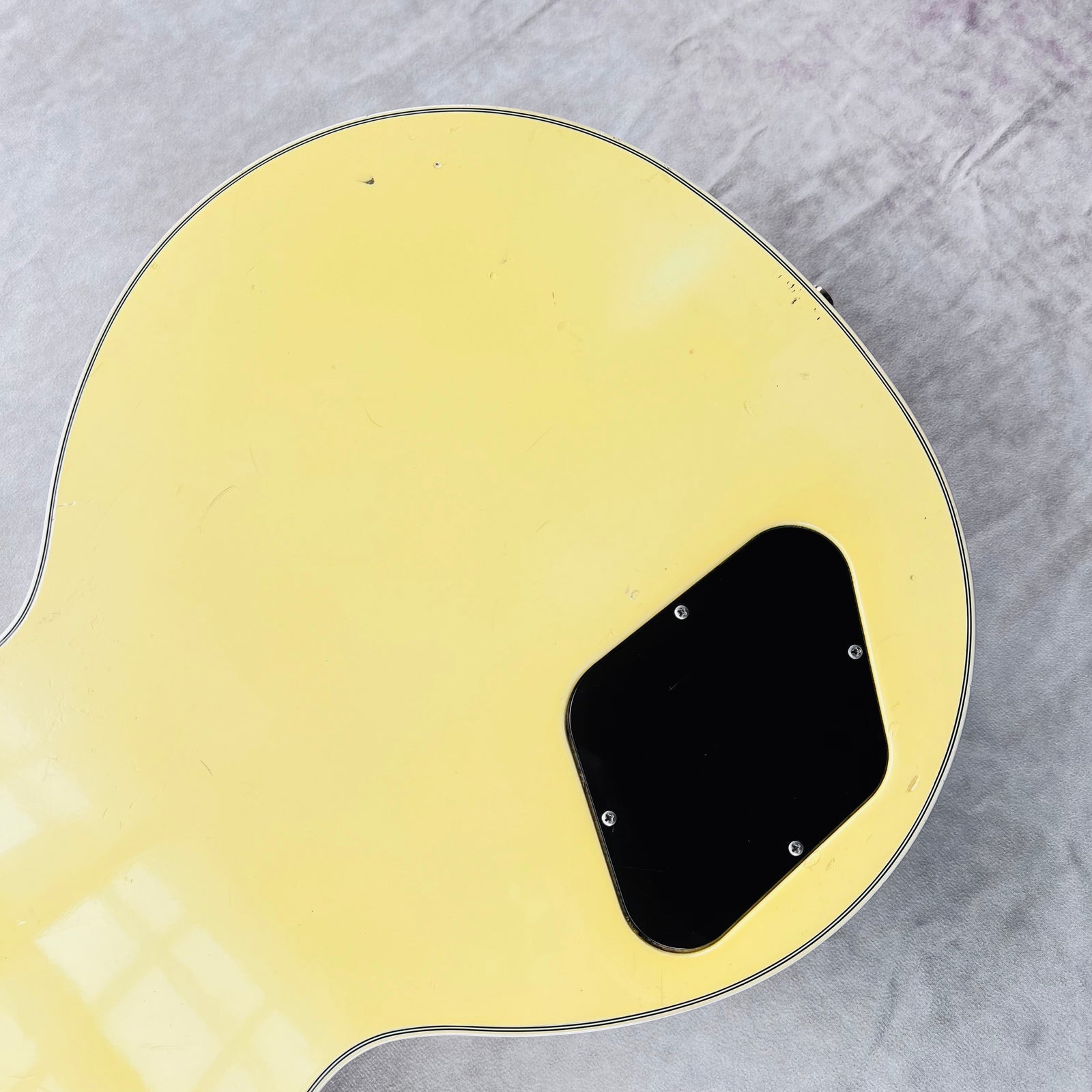

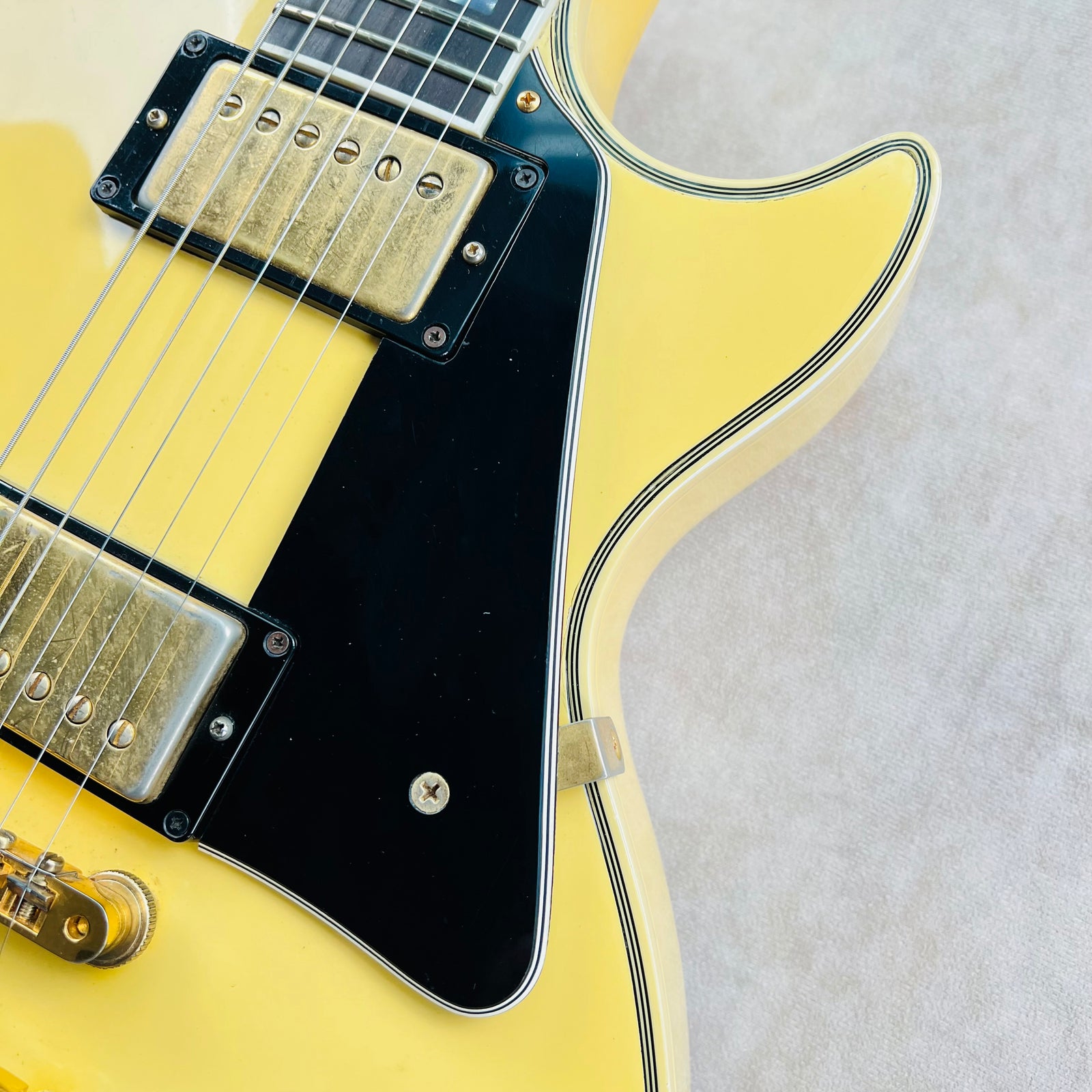

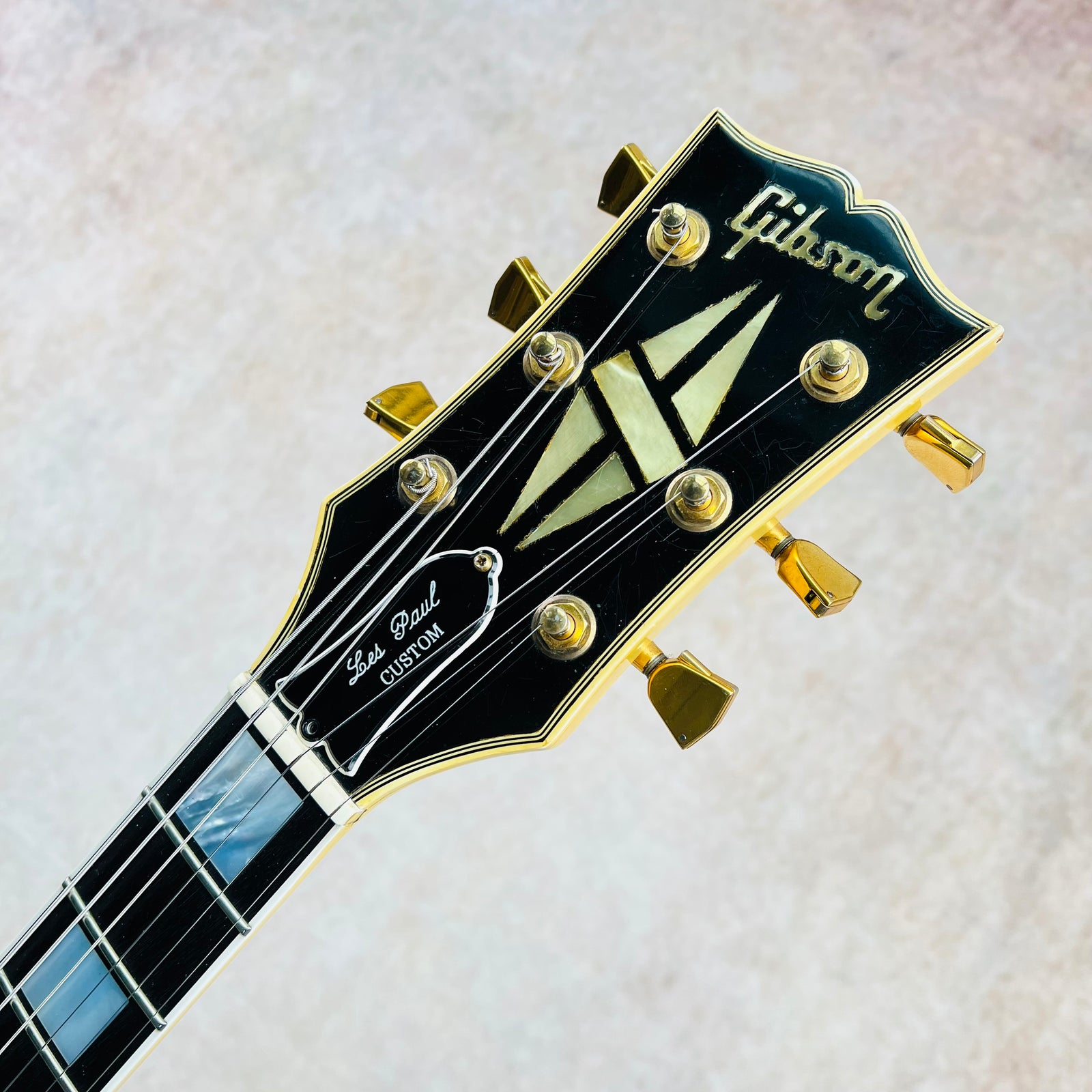

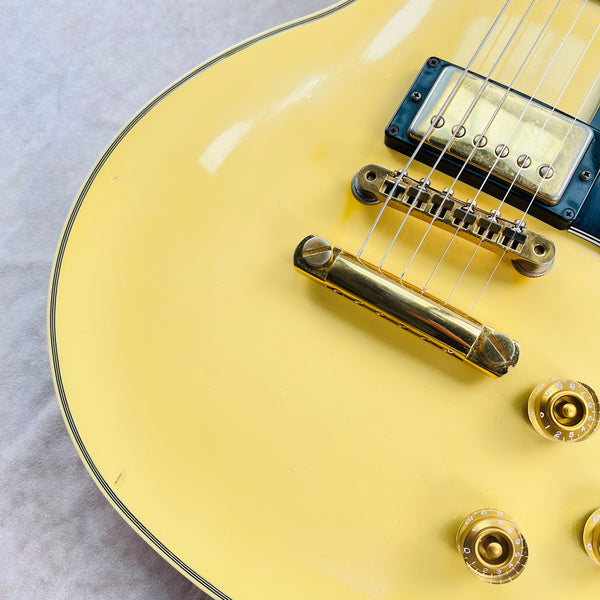

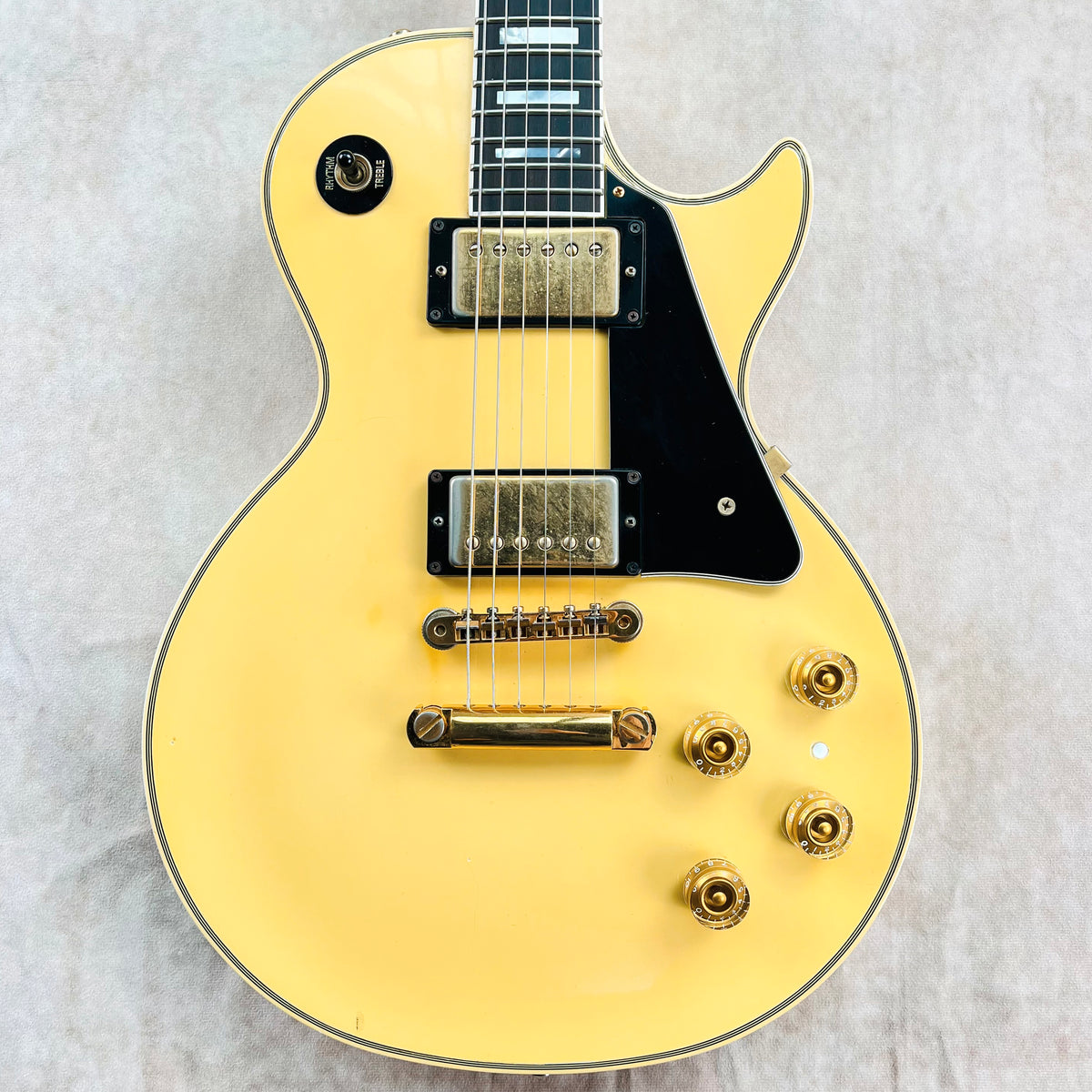

Reference Images

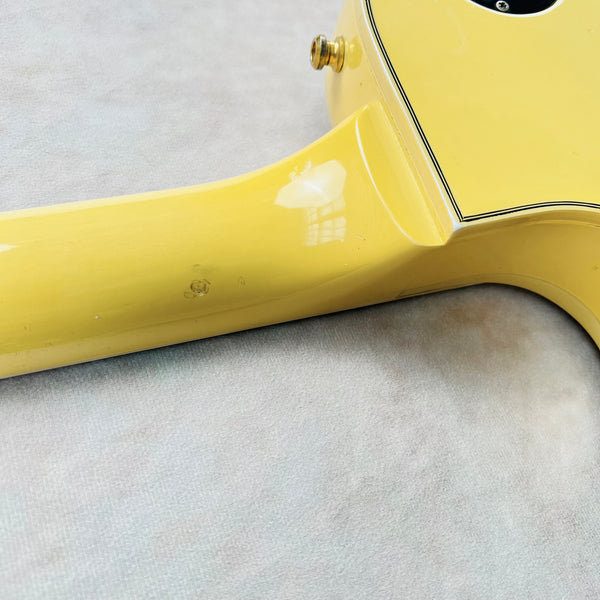

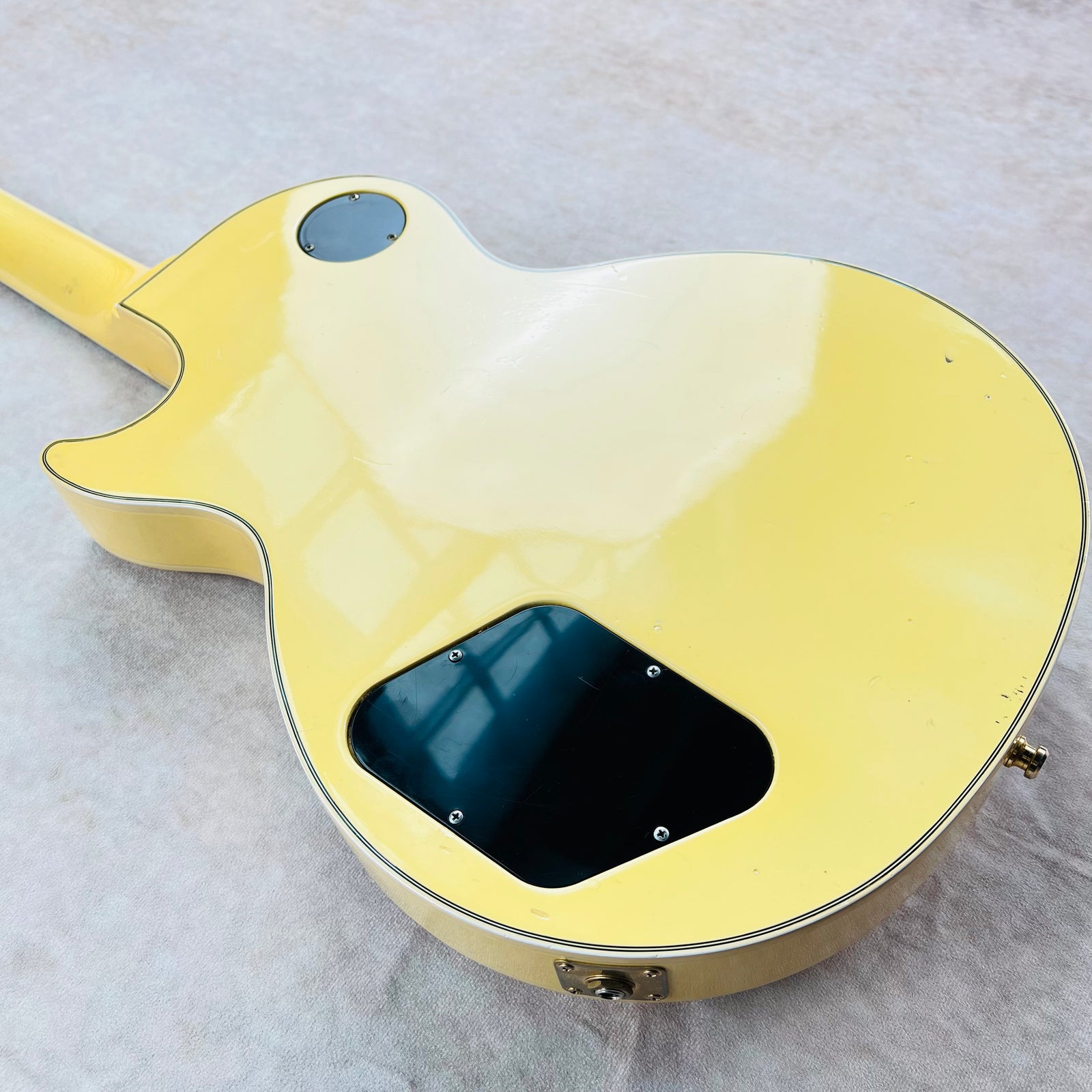

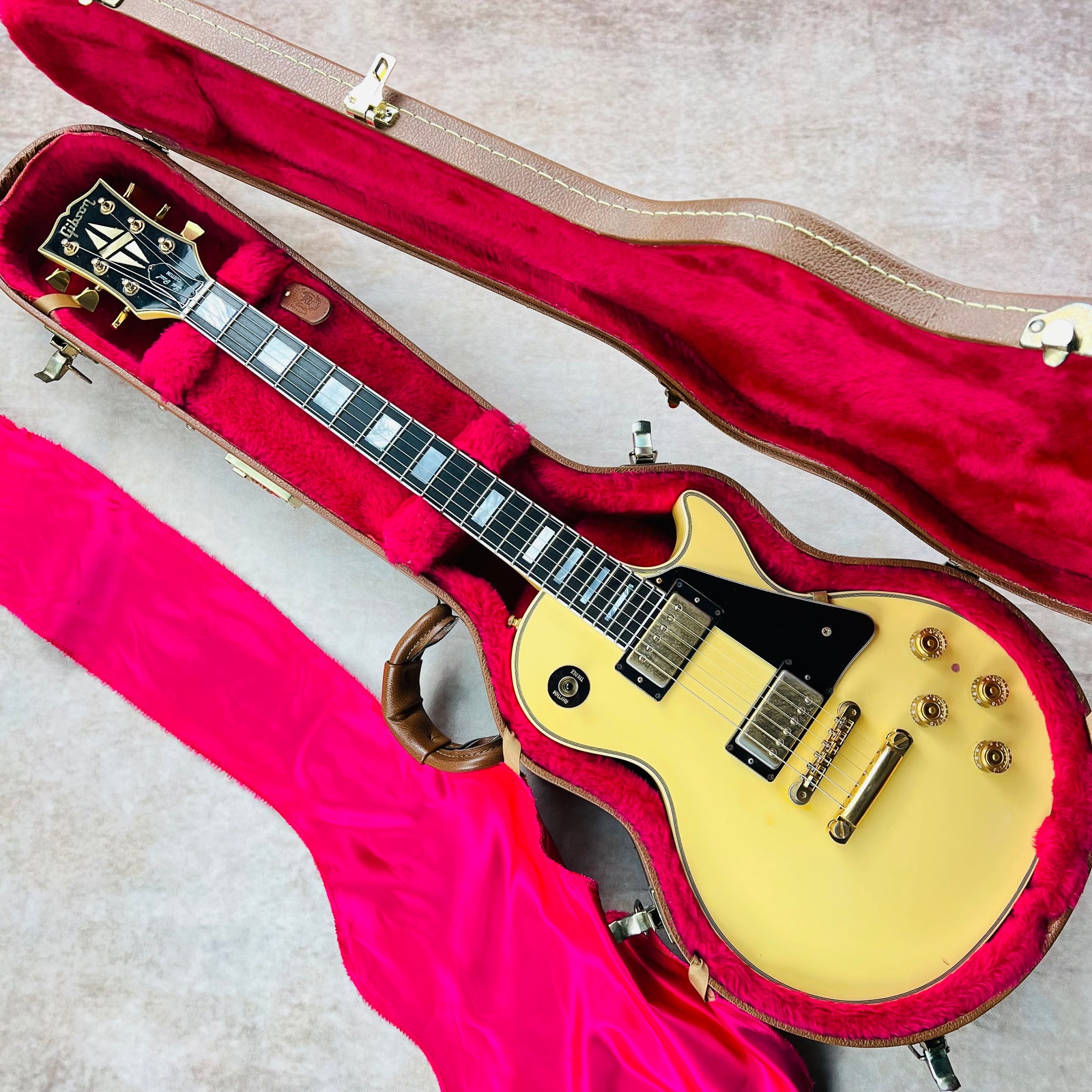

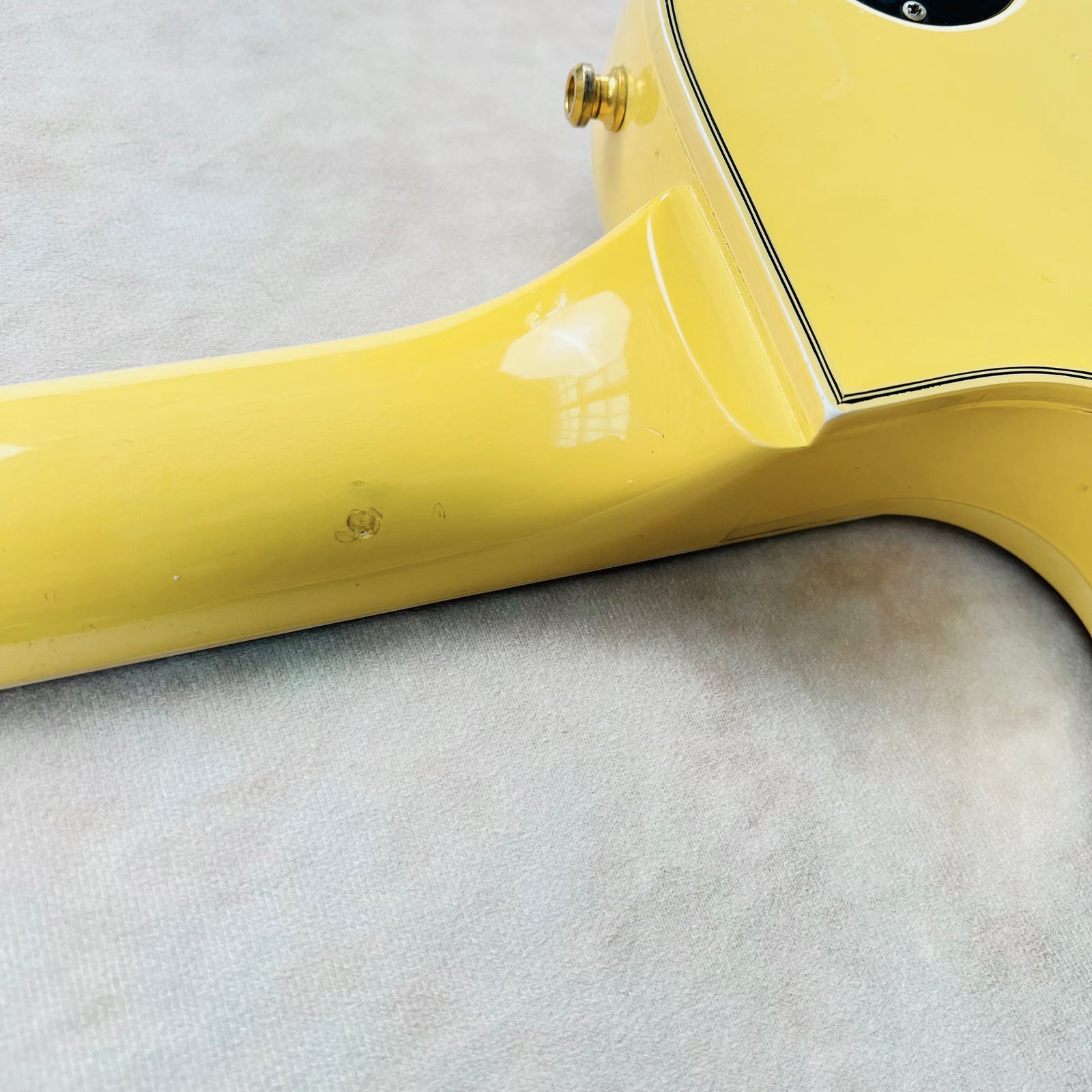

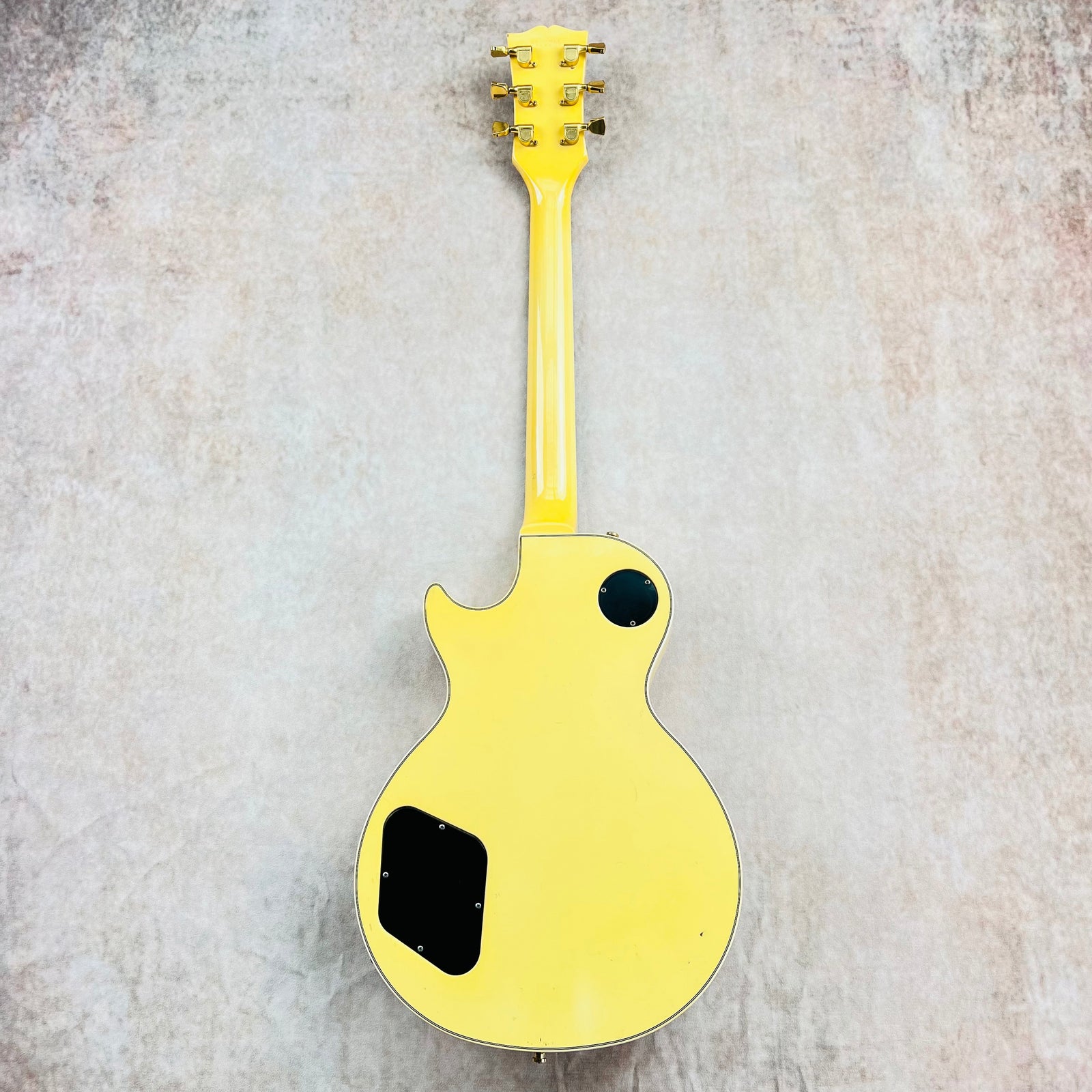

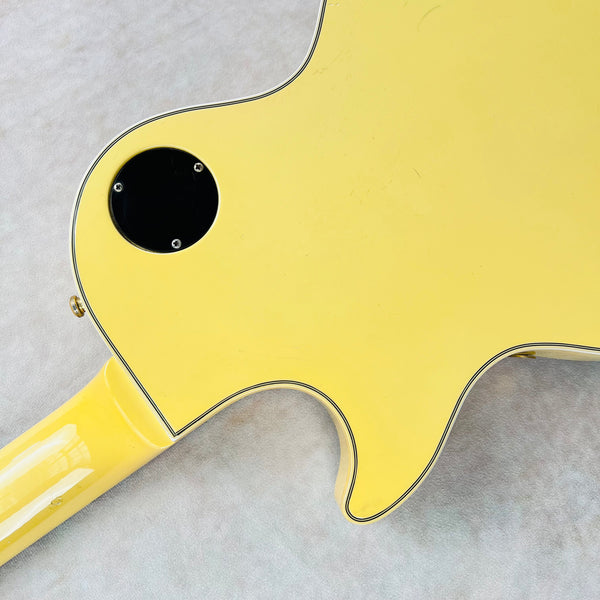

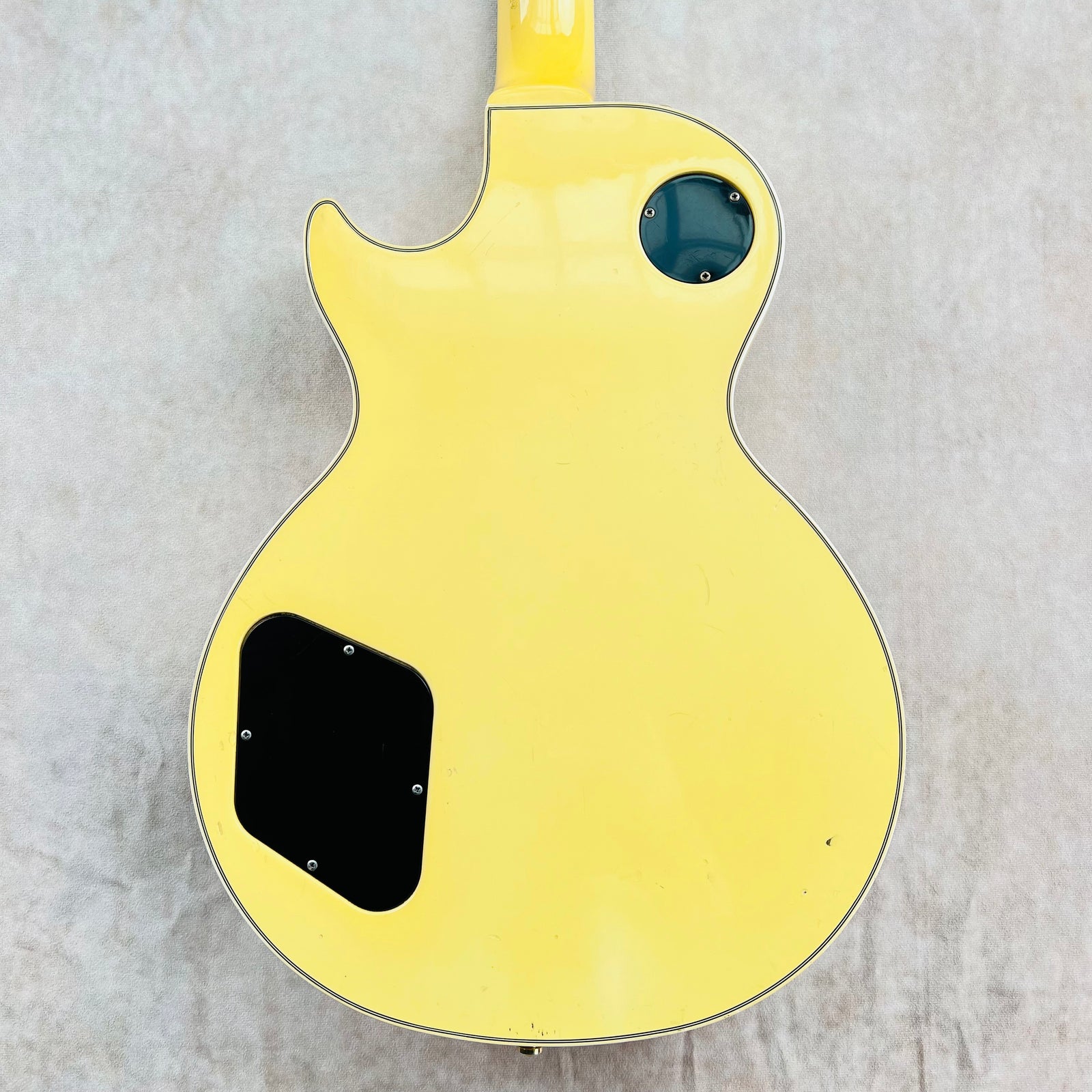

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Les Paul Custom listed above. For larger pics, click on an image to open in a new tab.
