The 1966 ES-120T is a hollow body electric guitar built by Gibson. This non-cutaway set neck guitar was manufactured in Kalamazoo, MI in the United States and is a Gibson Vintage Electric Guitar model. Key features include a Maple Body, Mahogany Neck, Rosewood Fretboard, Rosewood Bridge, Single Coil Neck Pickup and Sunburst finish. The specs listed below pertain to the 1966 product year model pictured on this page.
Factory Specs
- Maple Body
- Mahogany Neck
- Rosewood Fretboard
- Dot Inlays
- 20 Frets
- 14 Frets Clear of the Body
- Strip Tuners with White Buttons
- 1 9/16" Nut Width
- 12" Radius
- 24.75" Scale Length
- Trapeze Tailpiece
- Rosewood Bridge & Base
- One Neck Single Coil Pickup
- One Volume & One Tone Control
- Top Mount Molded Pickguard
- Non-Cutaway Hollow Body
- Set Neck Construction
- Lacquer Finish

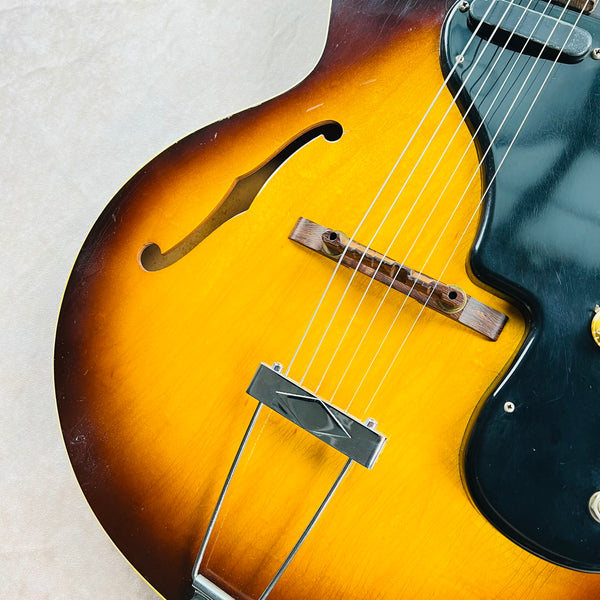

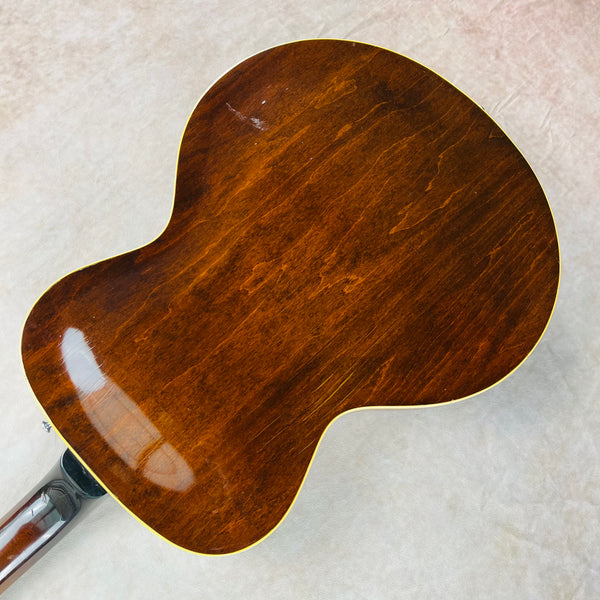

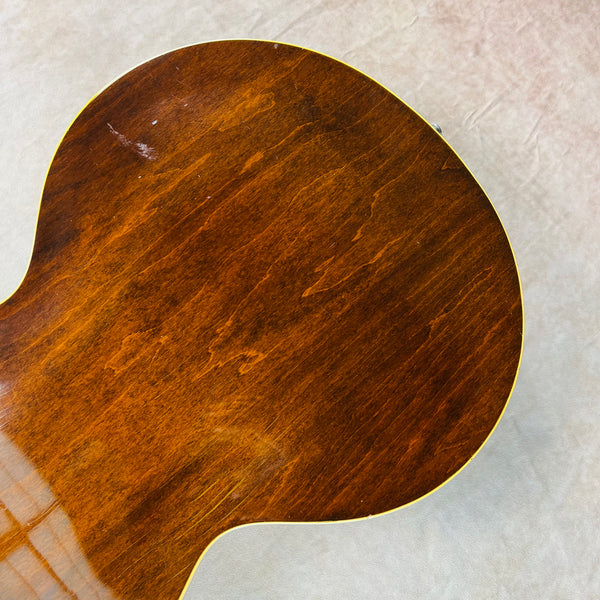

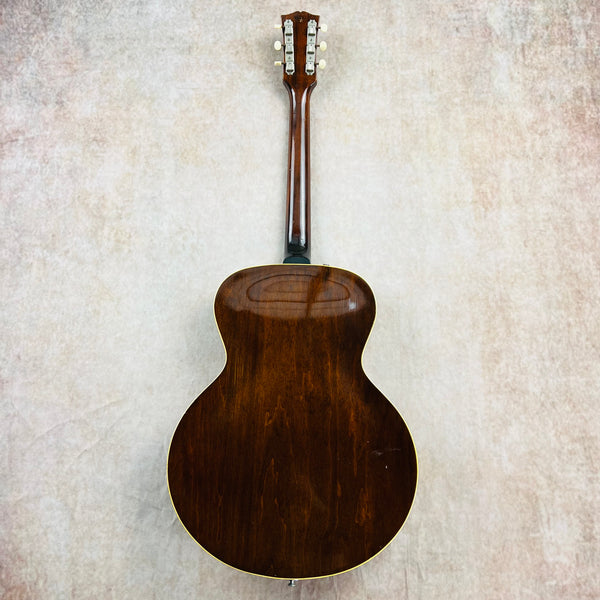

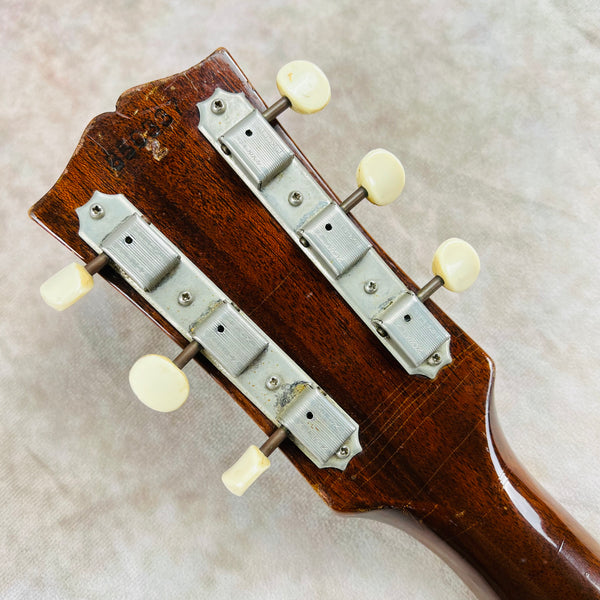

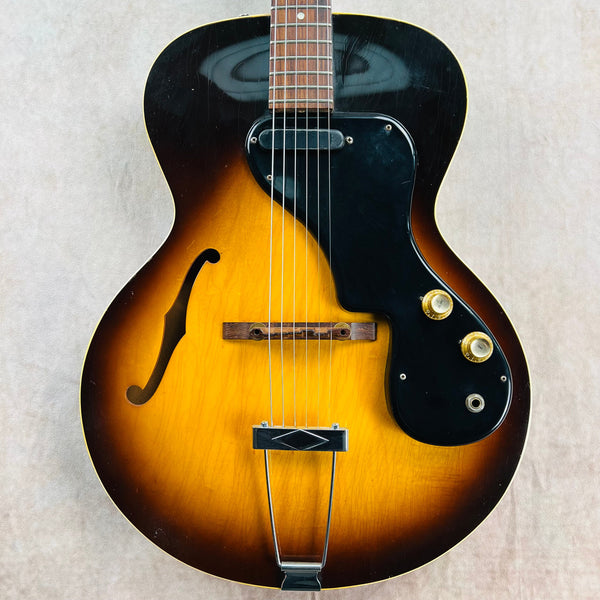

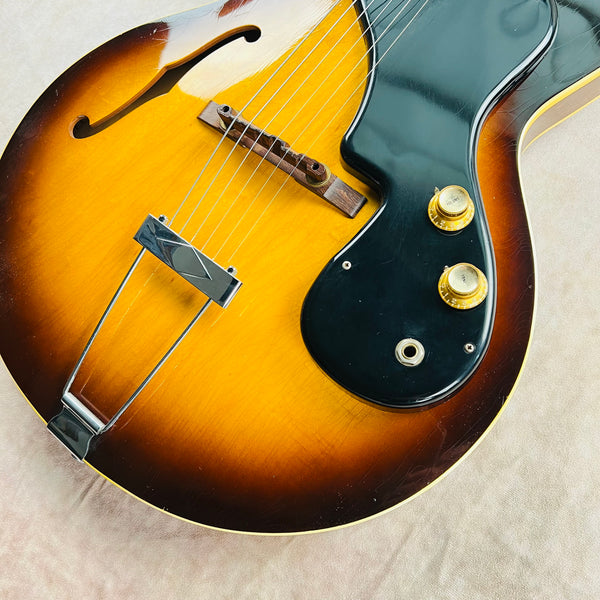

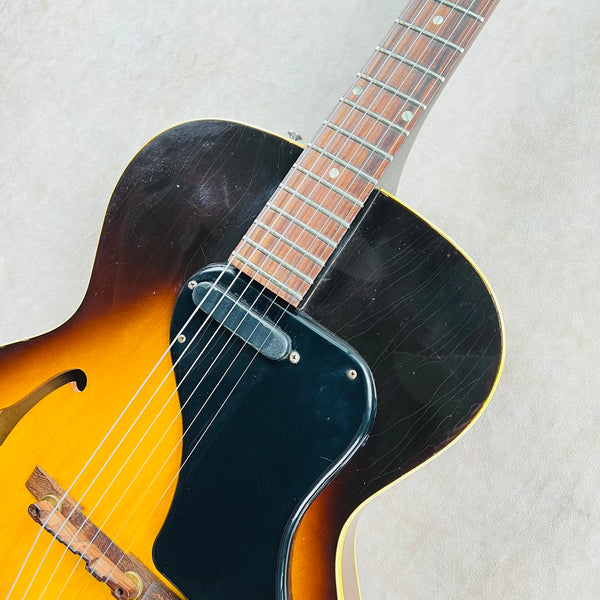

Reference Images

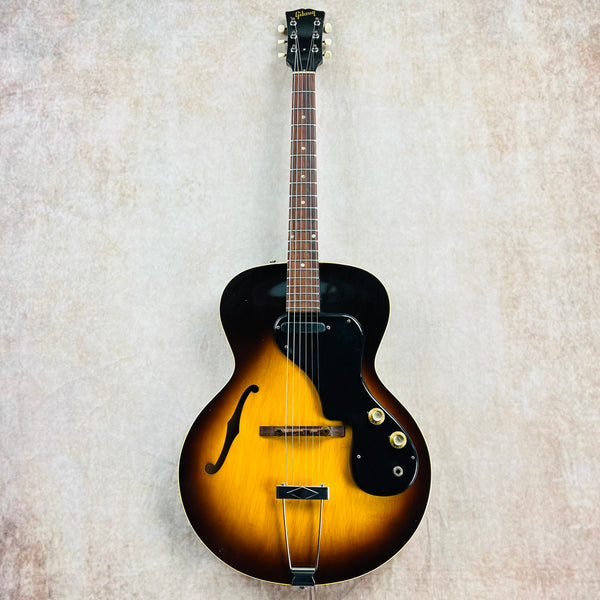

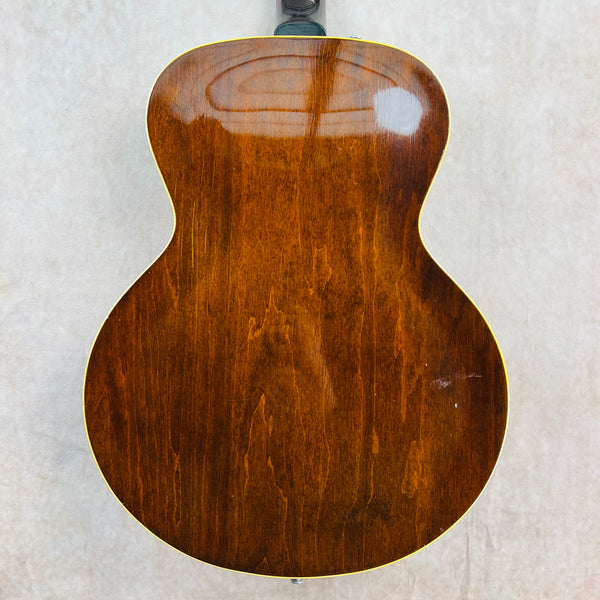

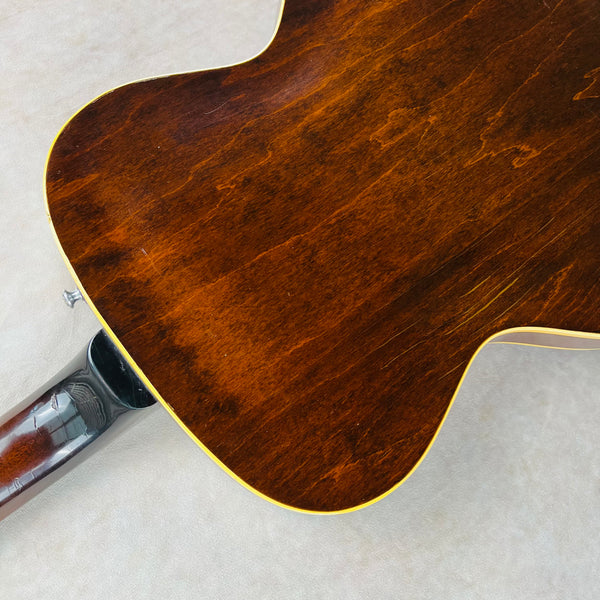

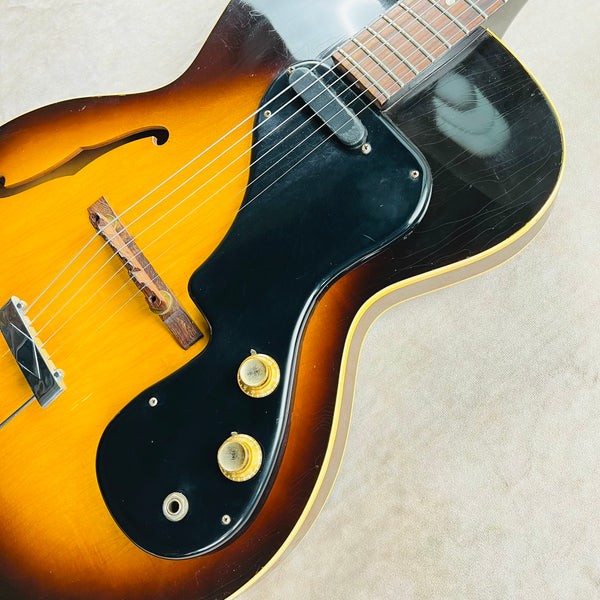

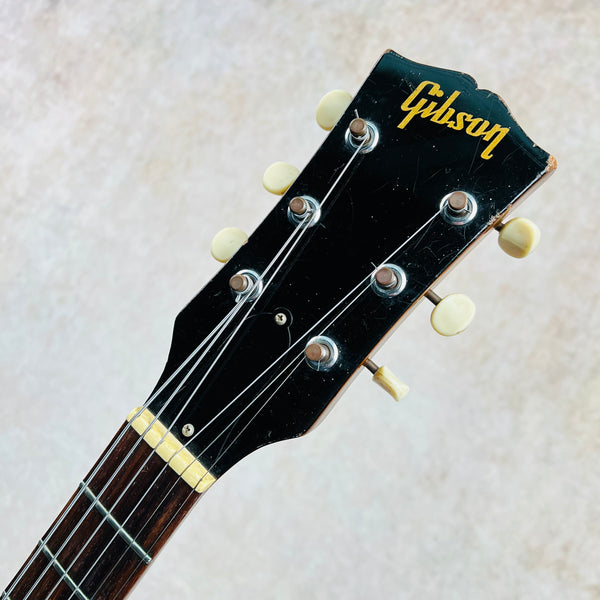

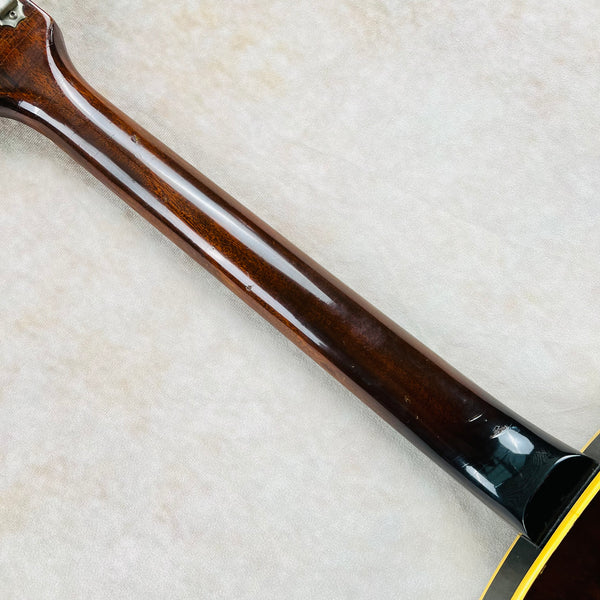

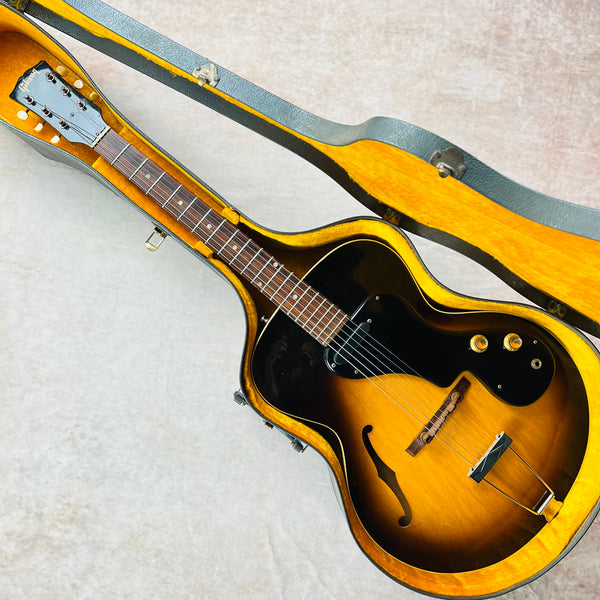

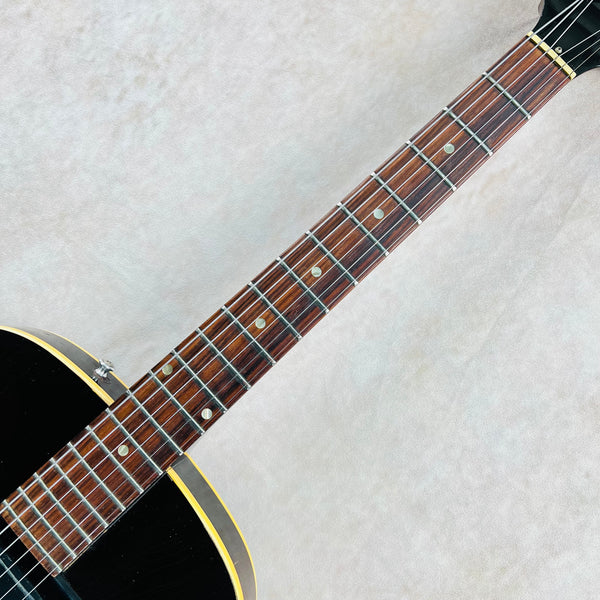

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the ES-120T listed above. For larger pics, click on an image to open in a new tab.
