The 1966 Duo-Sonic II is a solid body electric guitar built by Fender. This offset bolt on guitar was manufactured in Fullerton, CA in the United States and is a Fender Vintage Electric Guitar model. Key features include an Alder Body, Maple Neck, Rosewood Fretboard, 24" Scale Length, Dual Single Coil Pickups and Red finish. The specs listed below pertain to the 1966 product year model pictured on this page. The "II" denotes the longer scale length than the earlier non-II version. It also features the Mustang-style offset body waist. It was available in Red, White, and Blue finishes.
Factory Specs
- Alder Body
- Maple Neck
- Rosewood Fretboard
- Pearl Dot Inlays
- 22 Frets
- Kluson Deluxe Tuners
- White Tuner Buttons
- 24" Scale Length
- 1 5/8" Nut Width
- 7.25" Radius
- Vintage Fret Wire
- Multiply Pearloid Guard
- Top Load Bridge
- Three Grooved Steel Saddles
- Dual Single Coil Pickups
- Offset Body
- Bolt On Construction
- Lacquer Finish
Reference Images

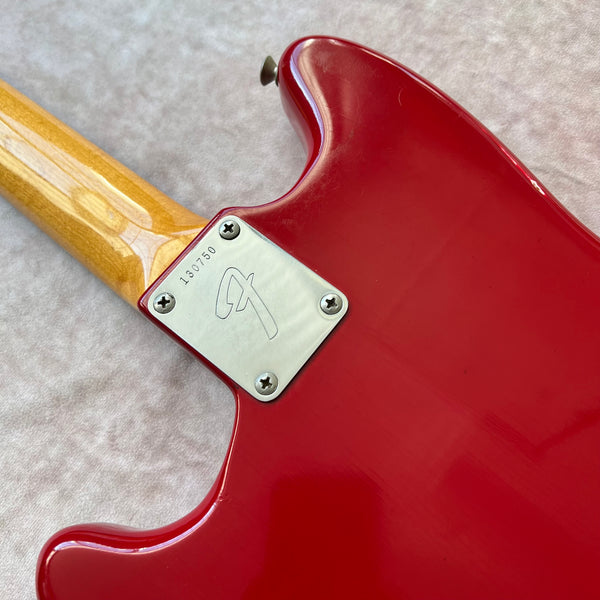

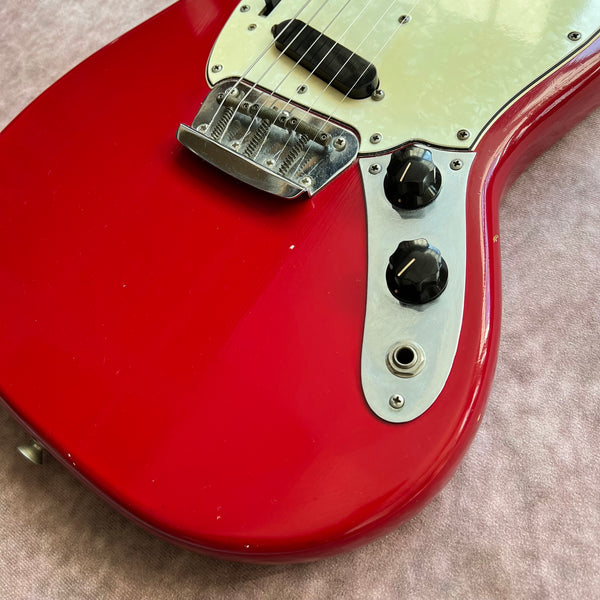

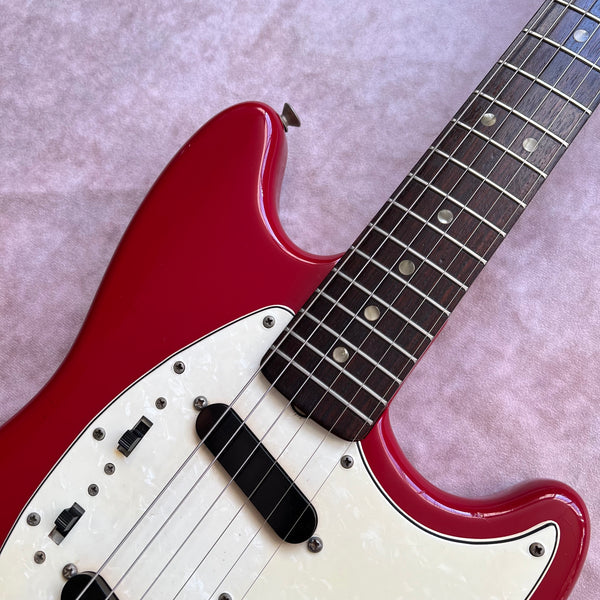

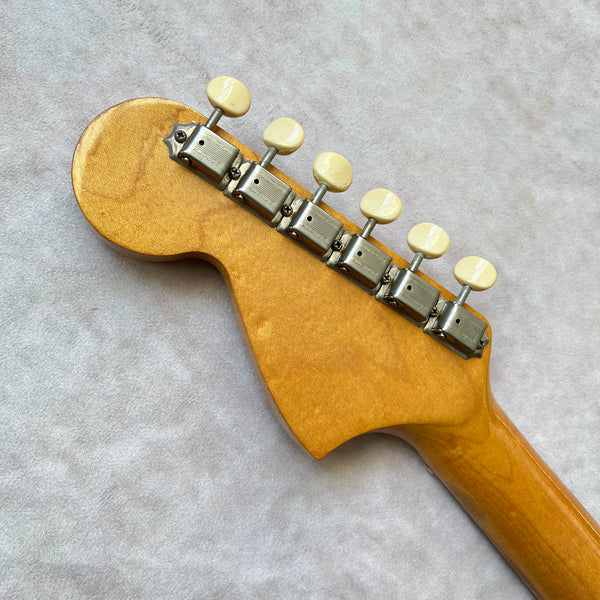

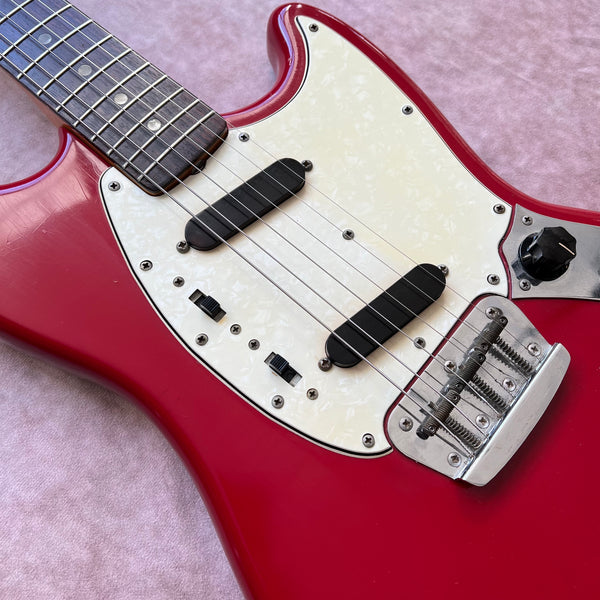

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the 1966 Duo-Sonic II listed above. For larger pics, click on an image to open in a new tab.
