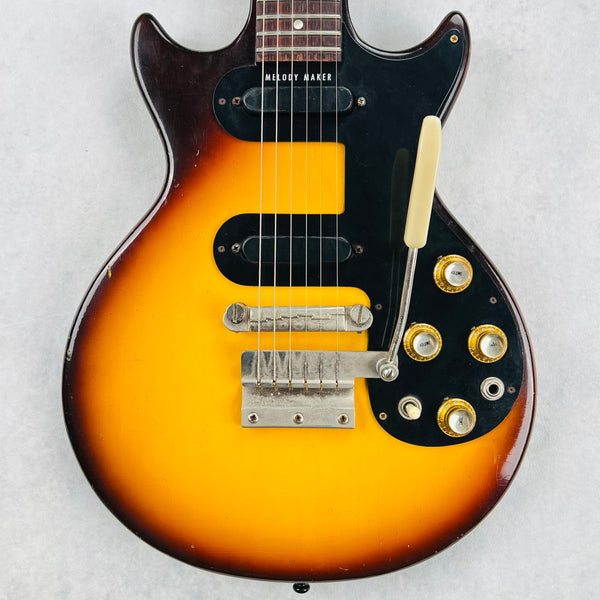

The Melody Maker Double Cutaway 2-Pickup Vibrola is an electric guitar built by Gibson. This solid body guitar was manufactured in the United States and is a Gibson Vintage Electric Guitar model. Key features include Mahogany Body, Mahogany Neck, Rosewood Fingerboard, Vibrola Tailpiece, Dual Single Coil Pickups and Sunburst finish. The specs listed below pertain to the 1964 product year model pictured on this page.
Factory Specs

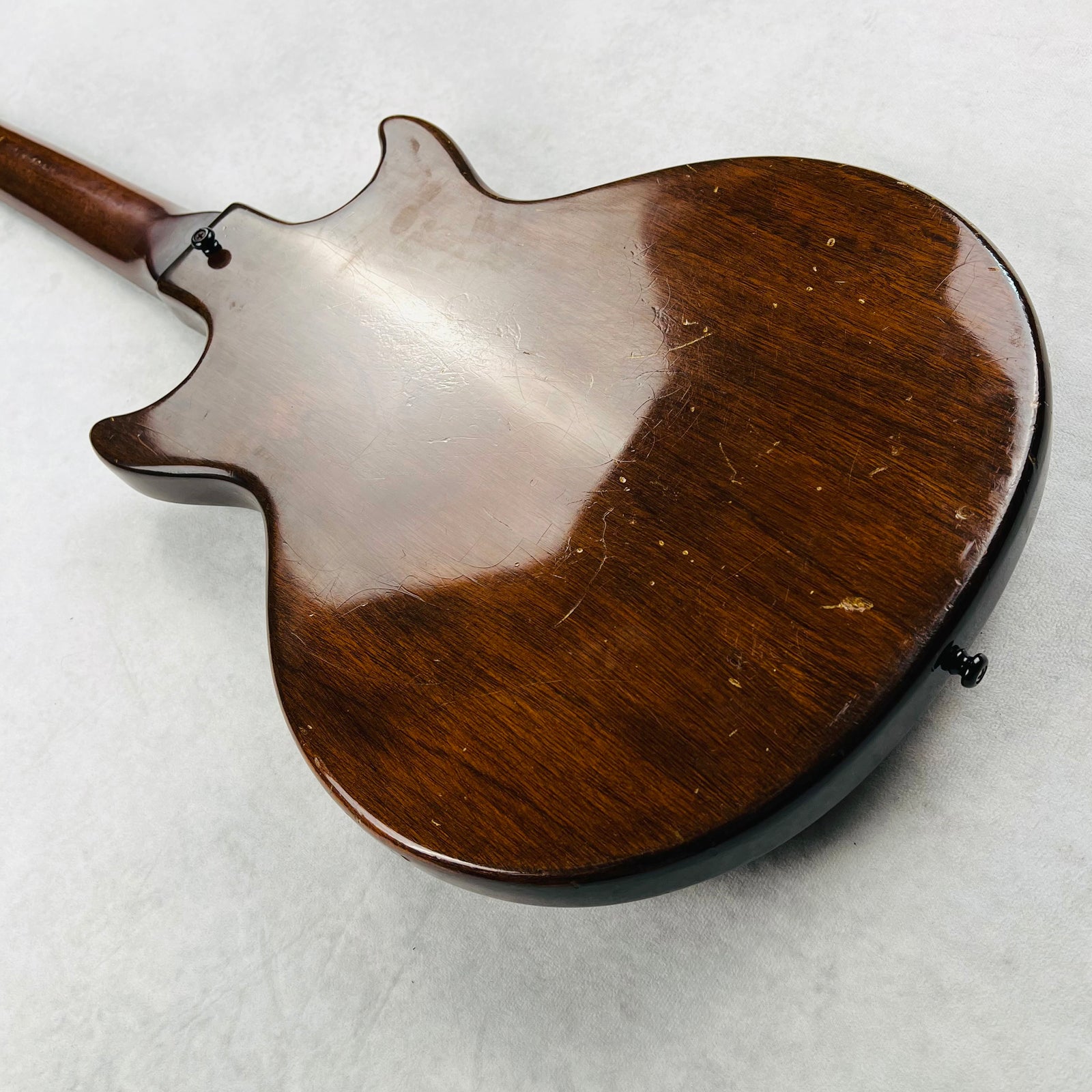

- Mahogany Body
- Mahogany Neck

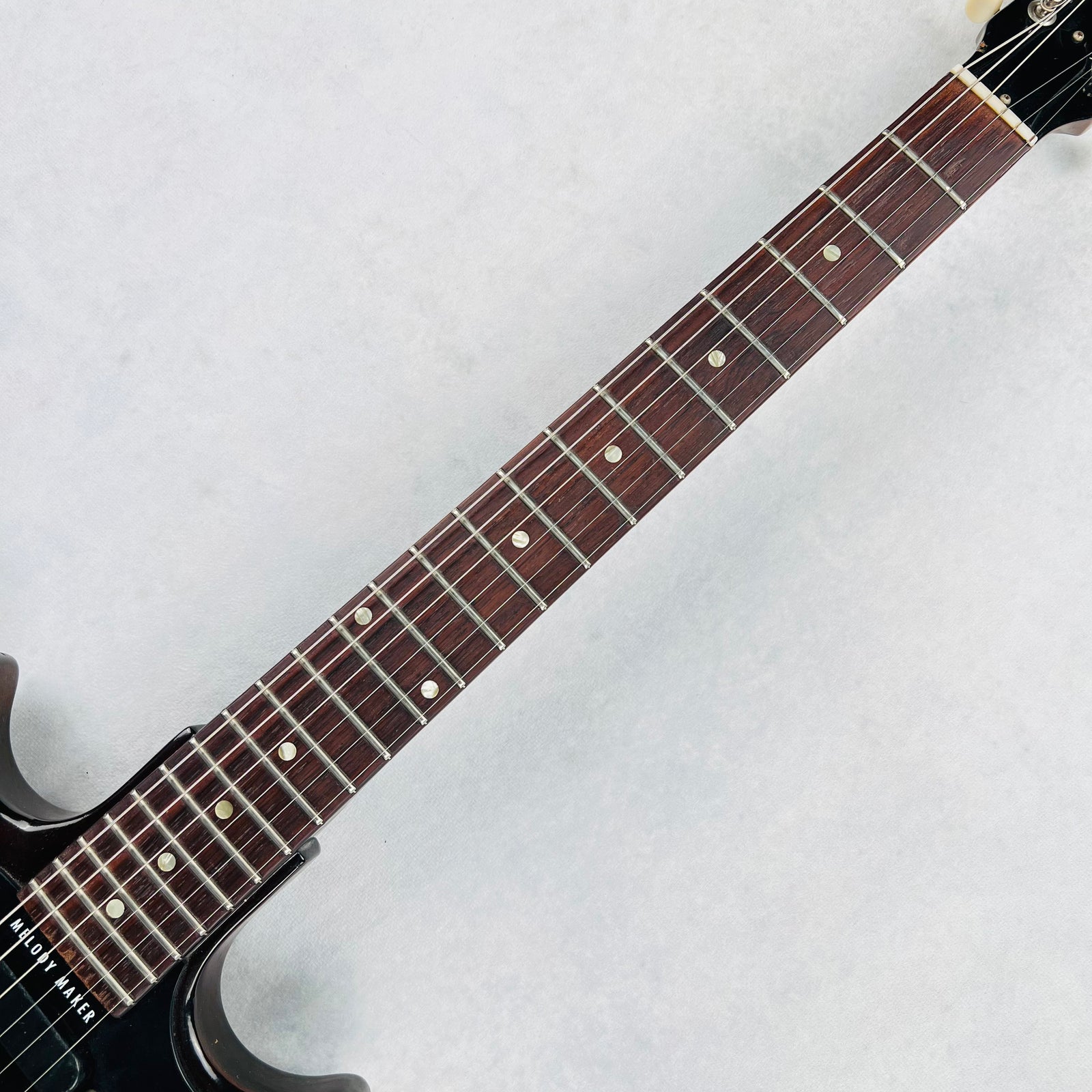

- Rosewood Fingerboard
- Dot Inlays
- 22 Frets
- Medium Jumbo Fret Wire
- 12" Radius
- 1 11/16" Nut Width
- 24 3/4" Scale Length

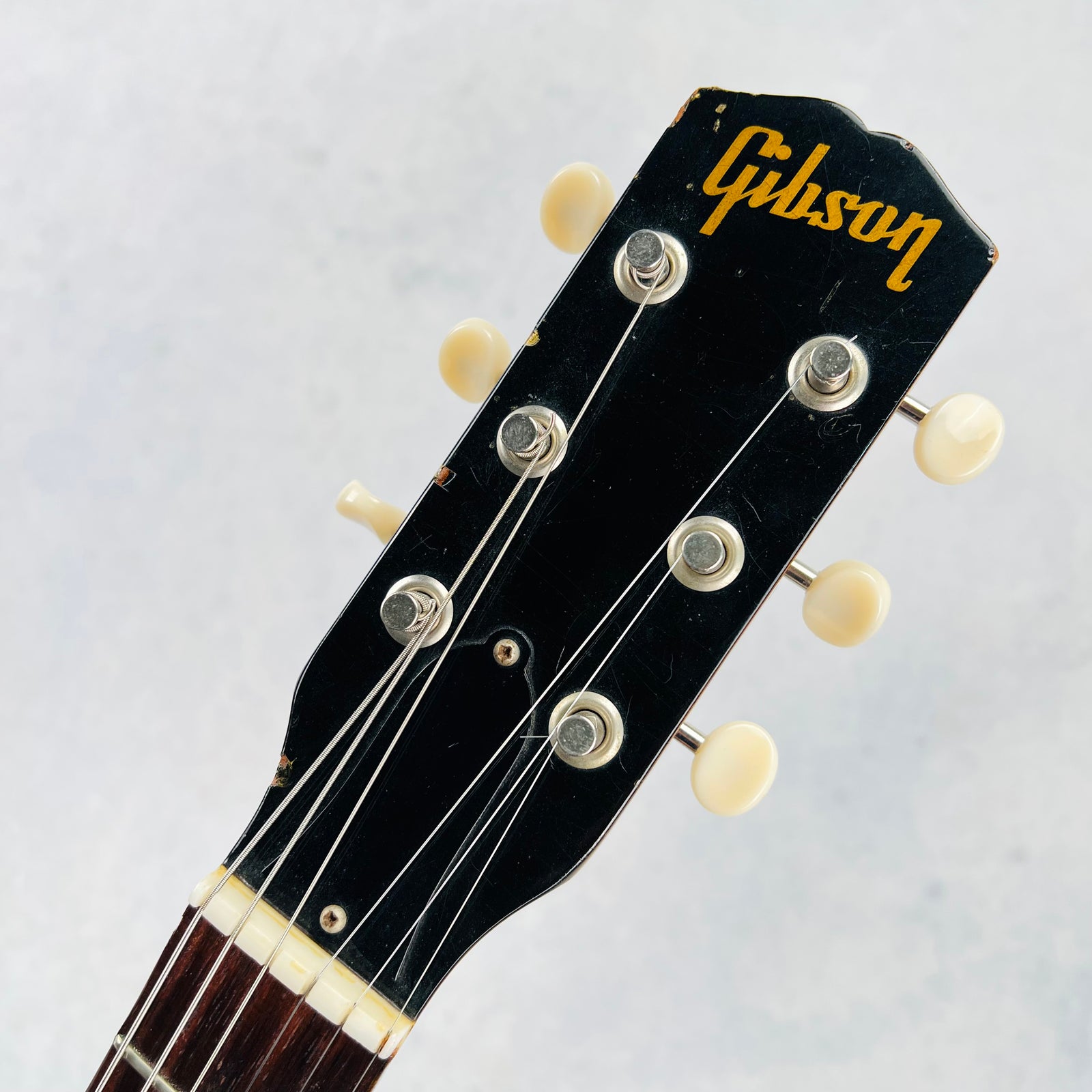

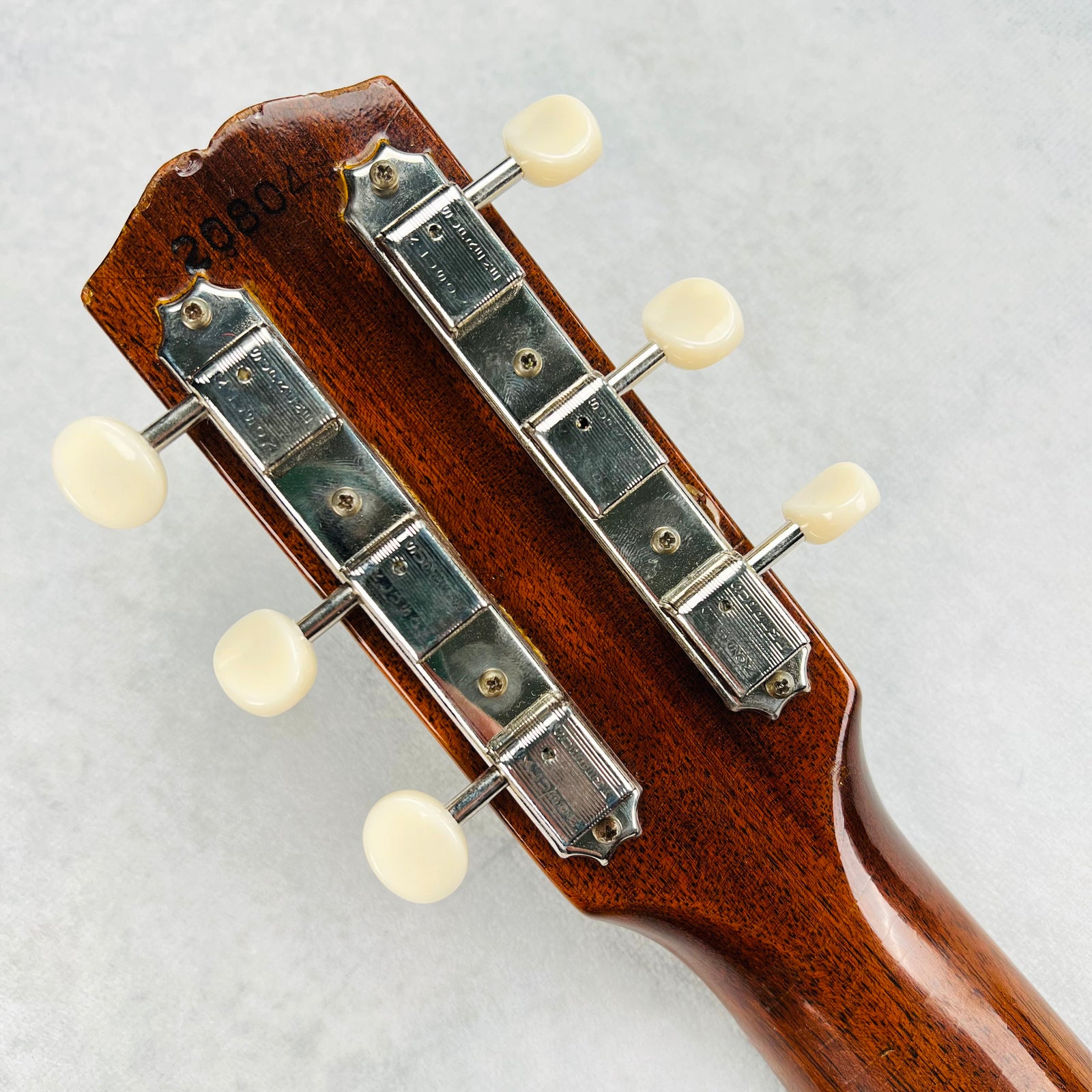

- Strip Tuners with White Buttons

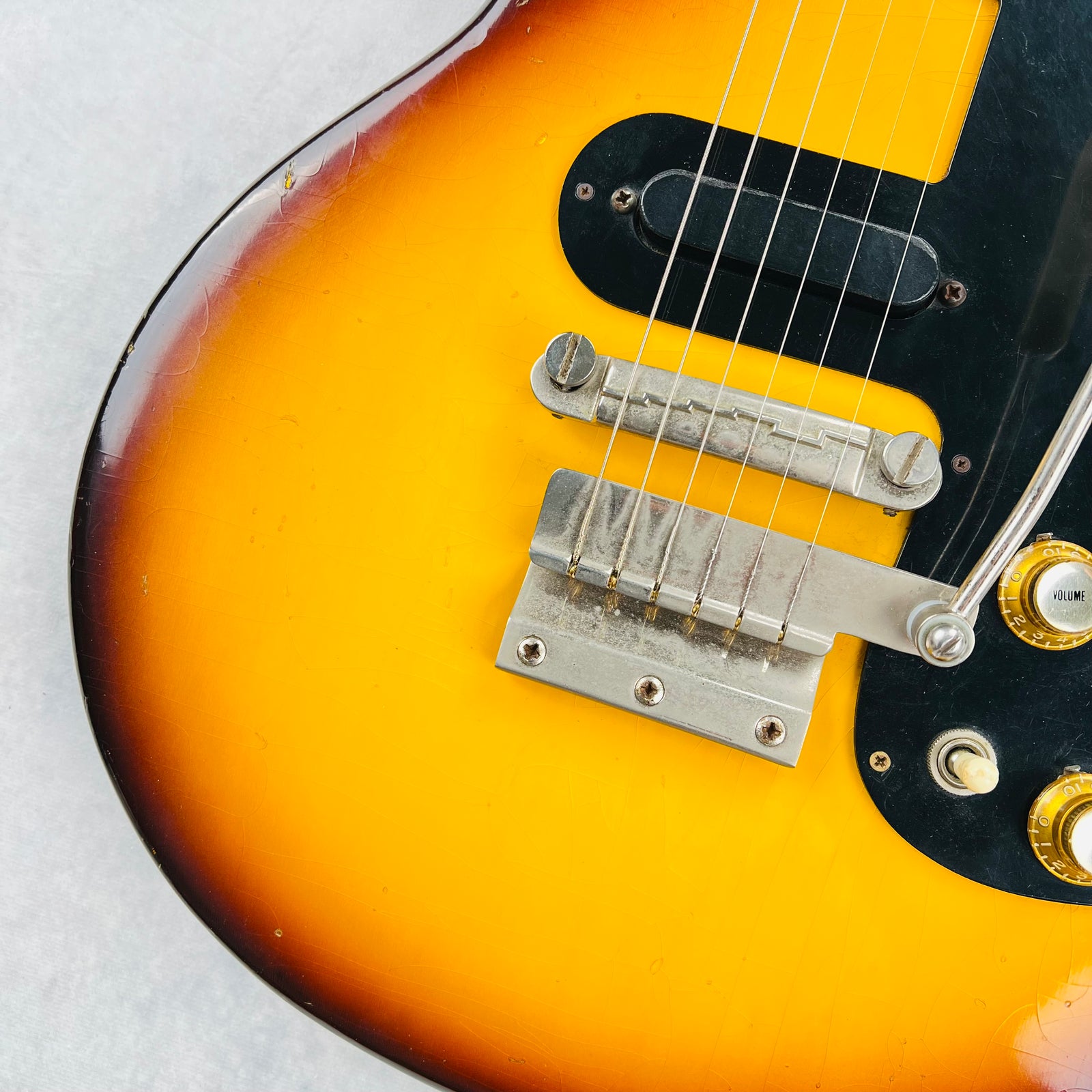

- Vibrola Tailpiece
- Compensated Bridge

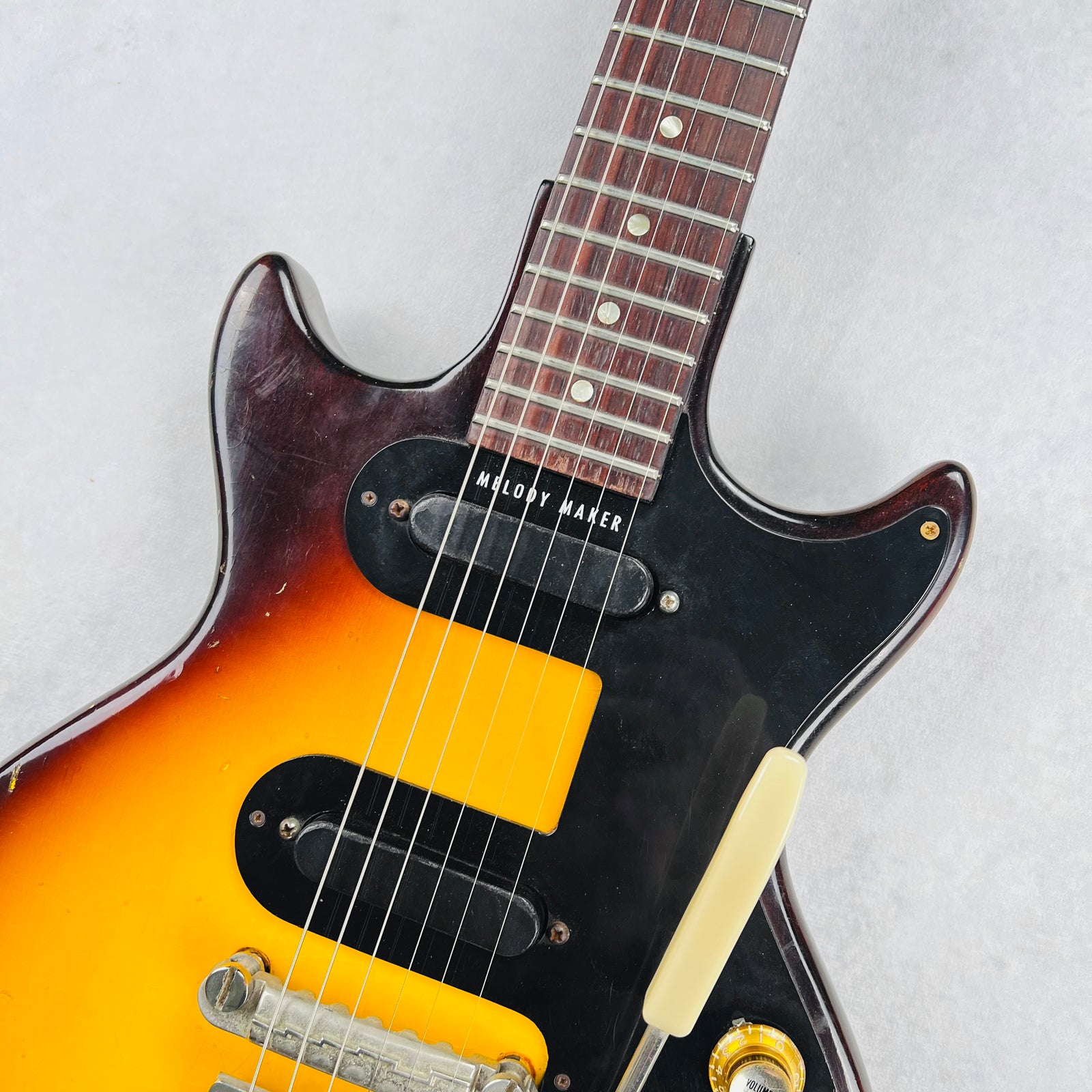

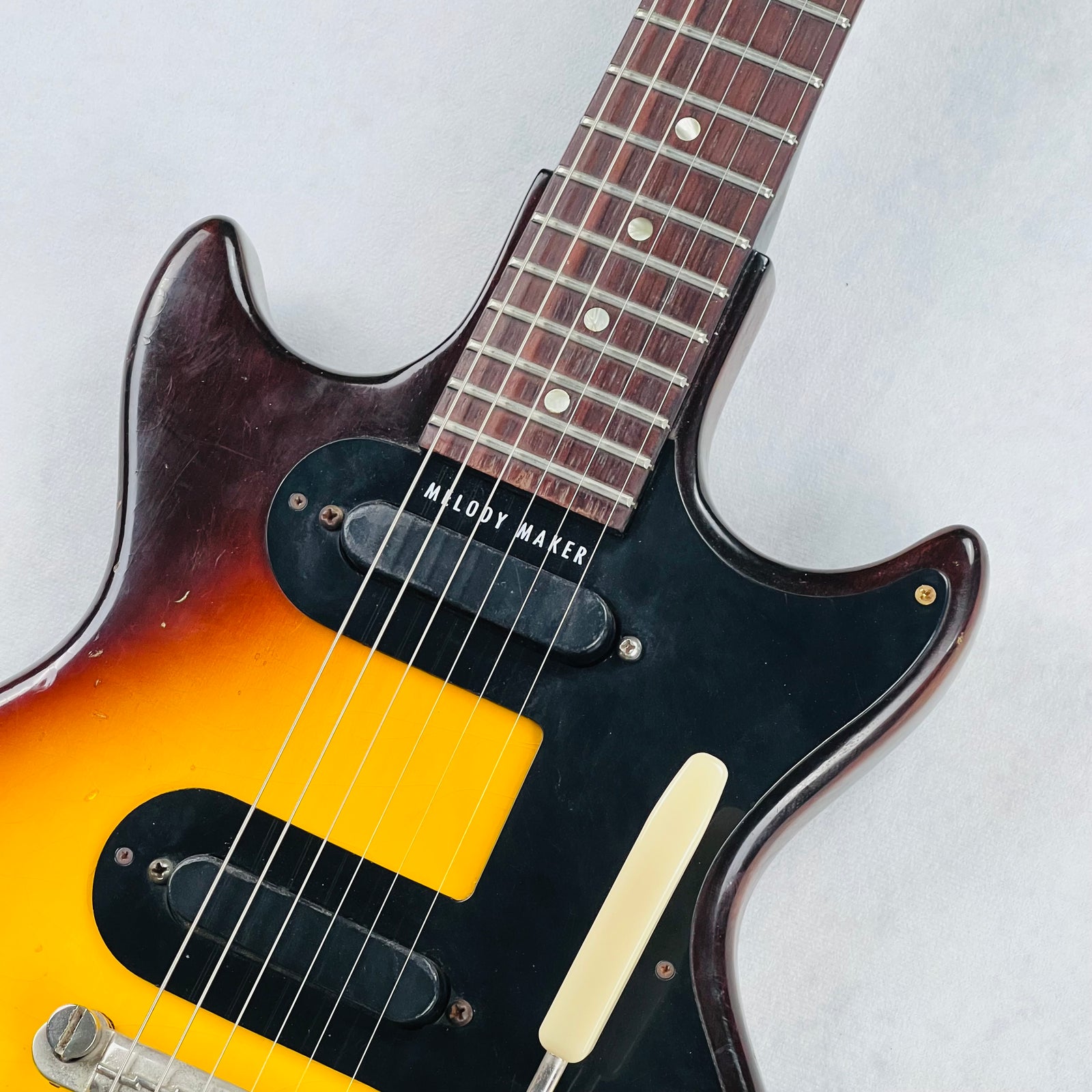

- Dual Single Coil Pickups
- Black Pickguard
- Two Volume & Two Tone Controls
- 3-Way Toggle Switch
- Double Cutaway Body
- Set Neck Construction
- Lacquer Finish

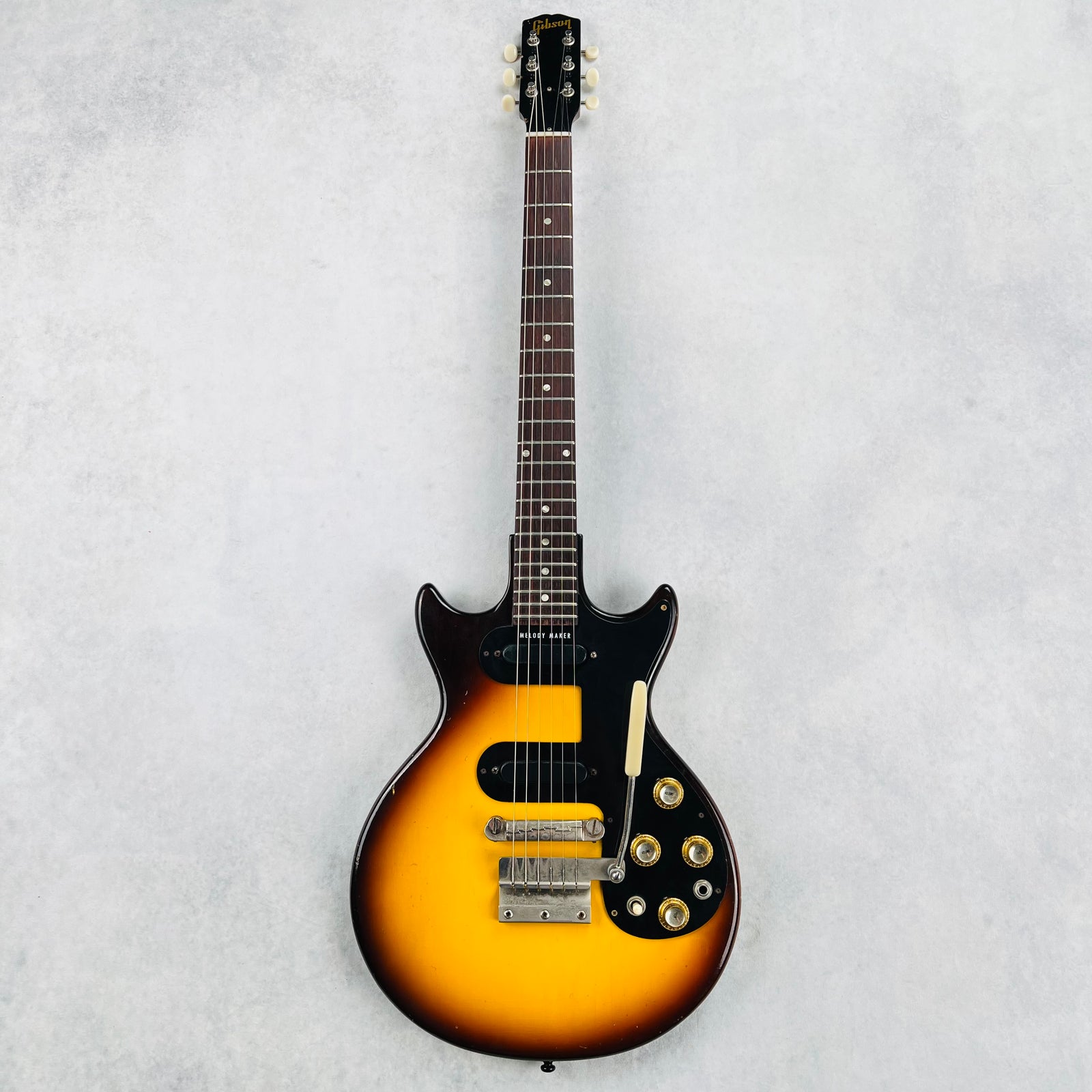

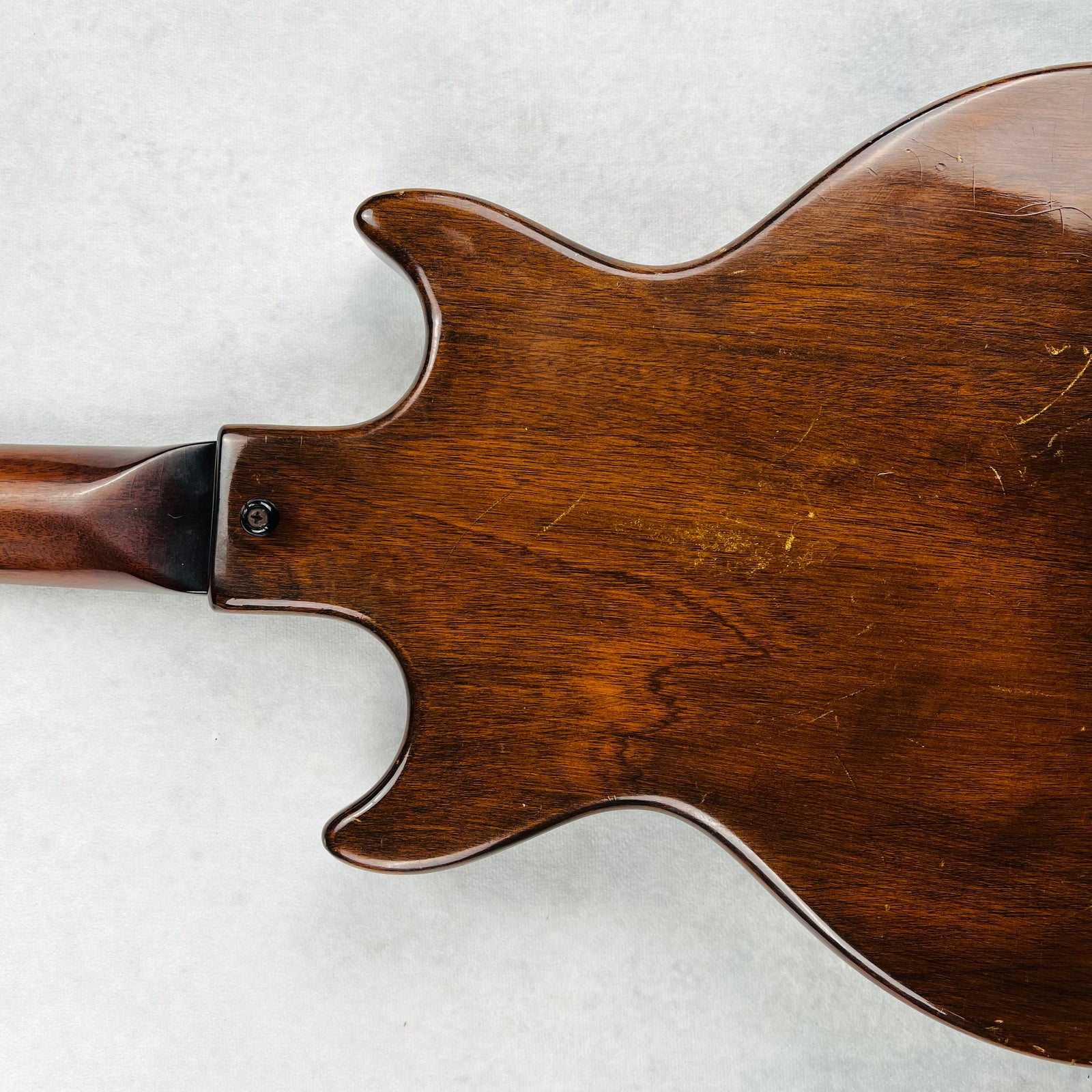

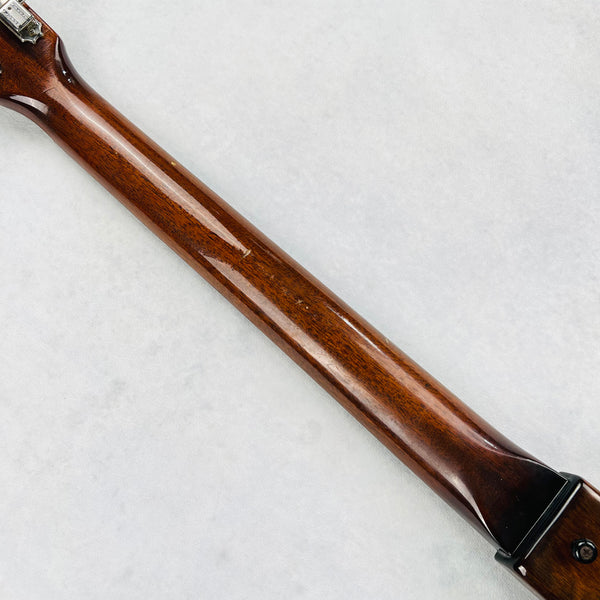

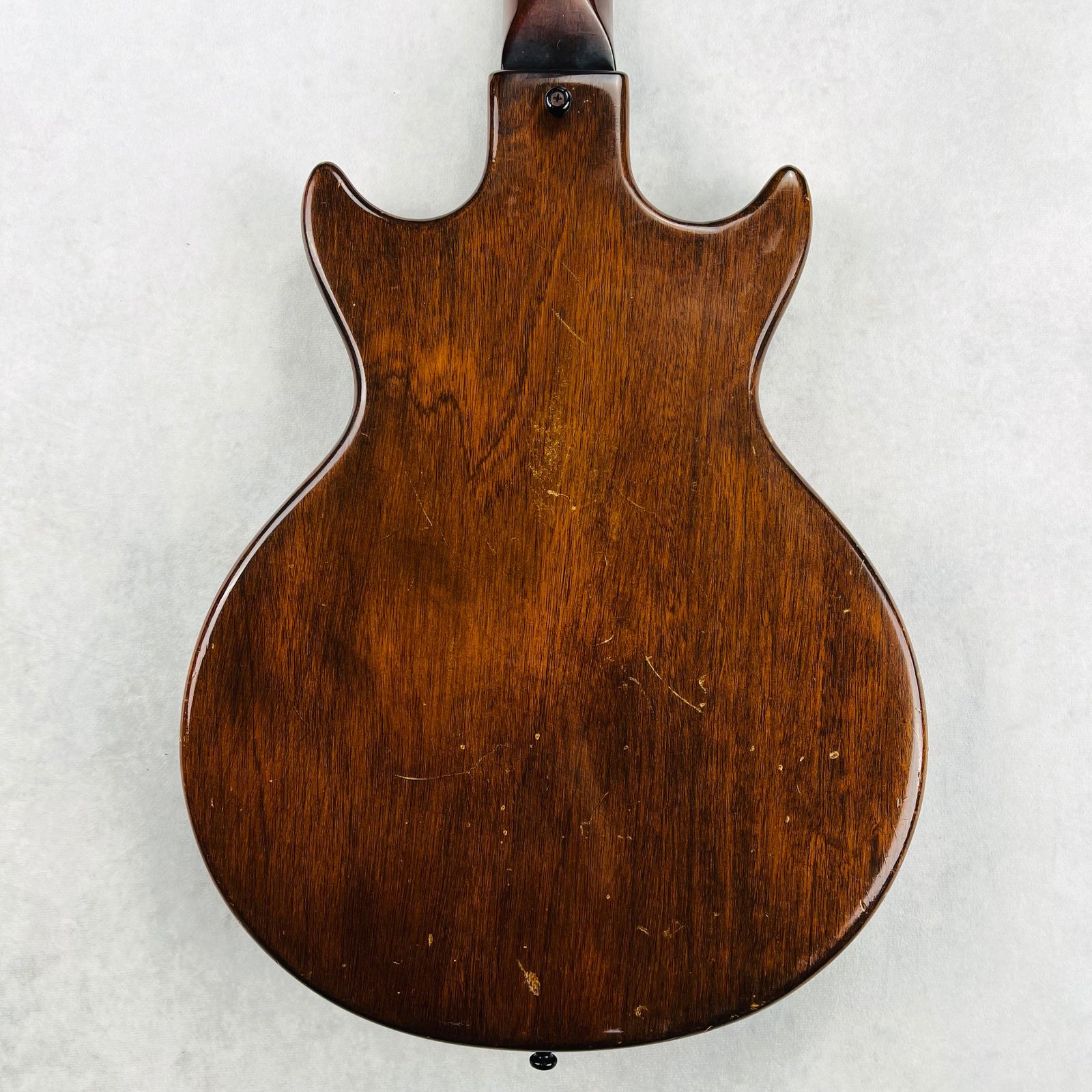

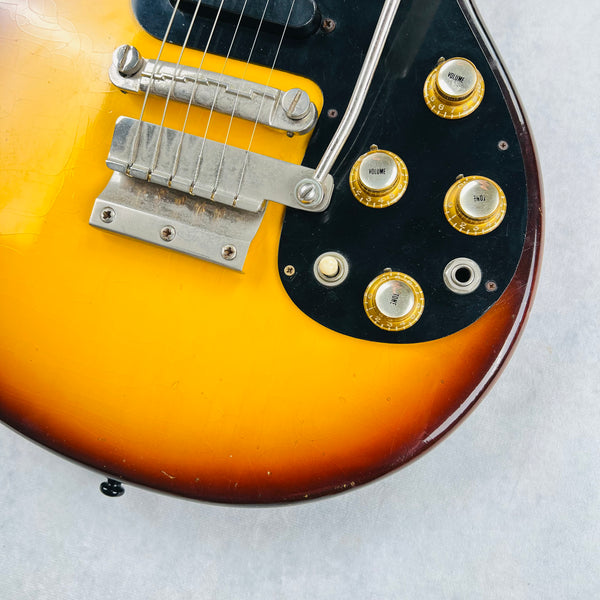

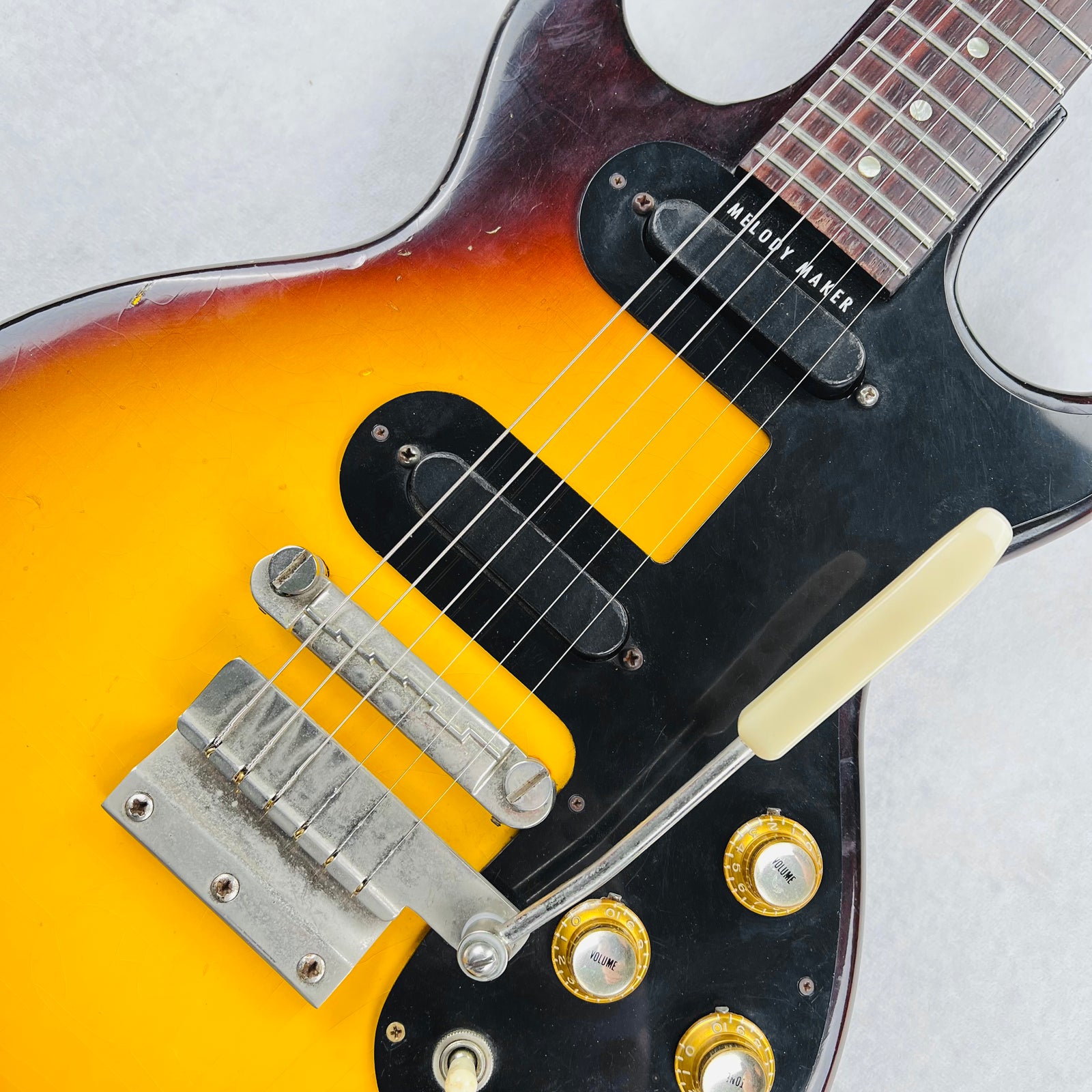

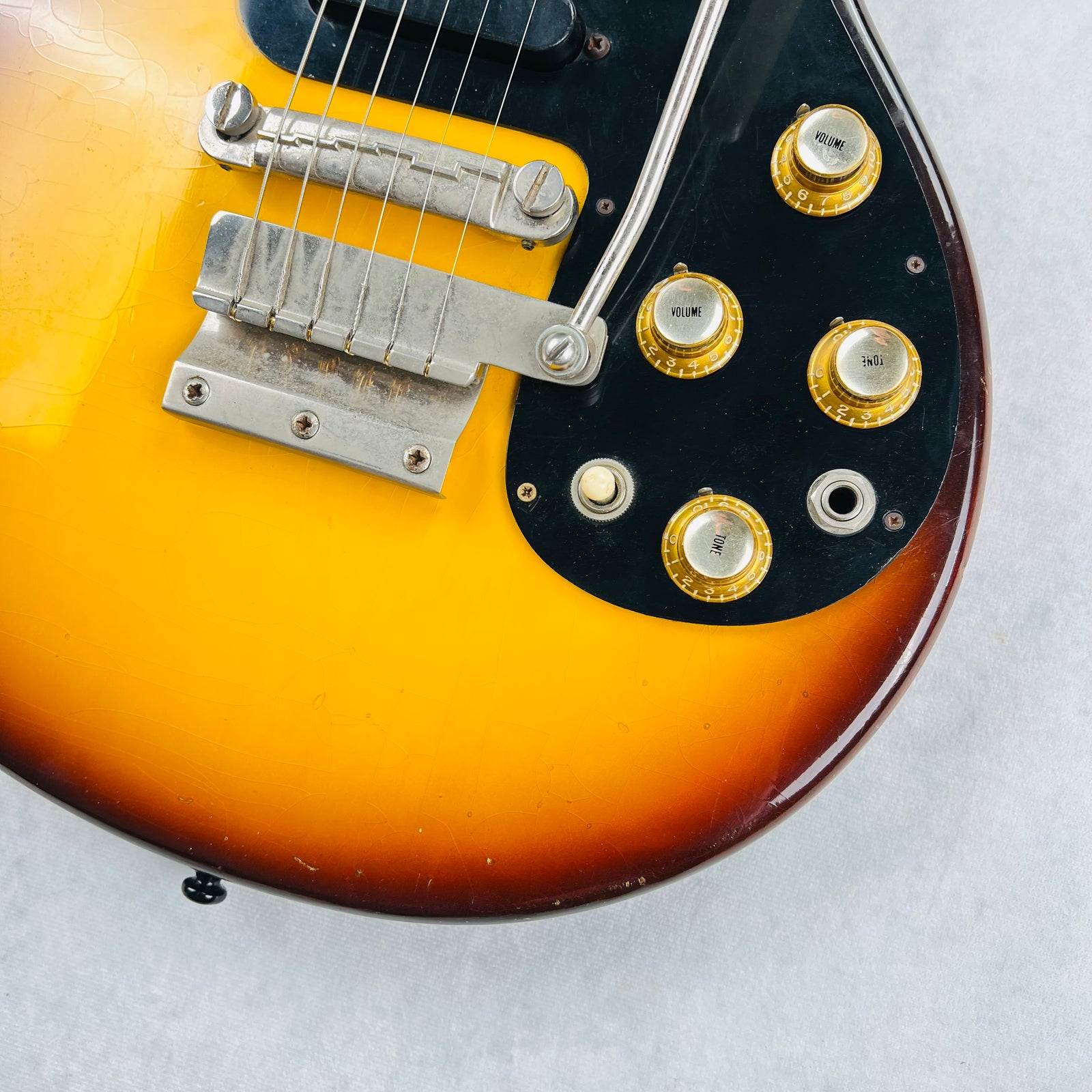

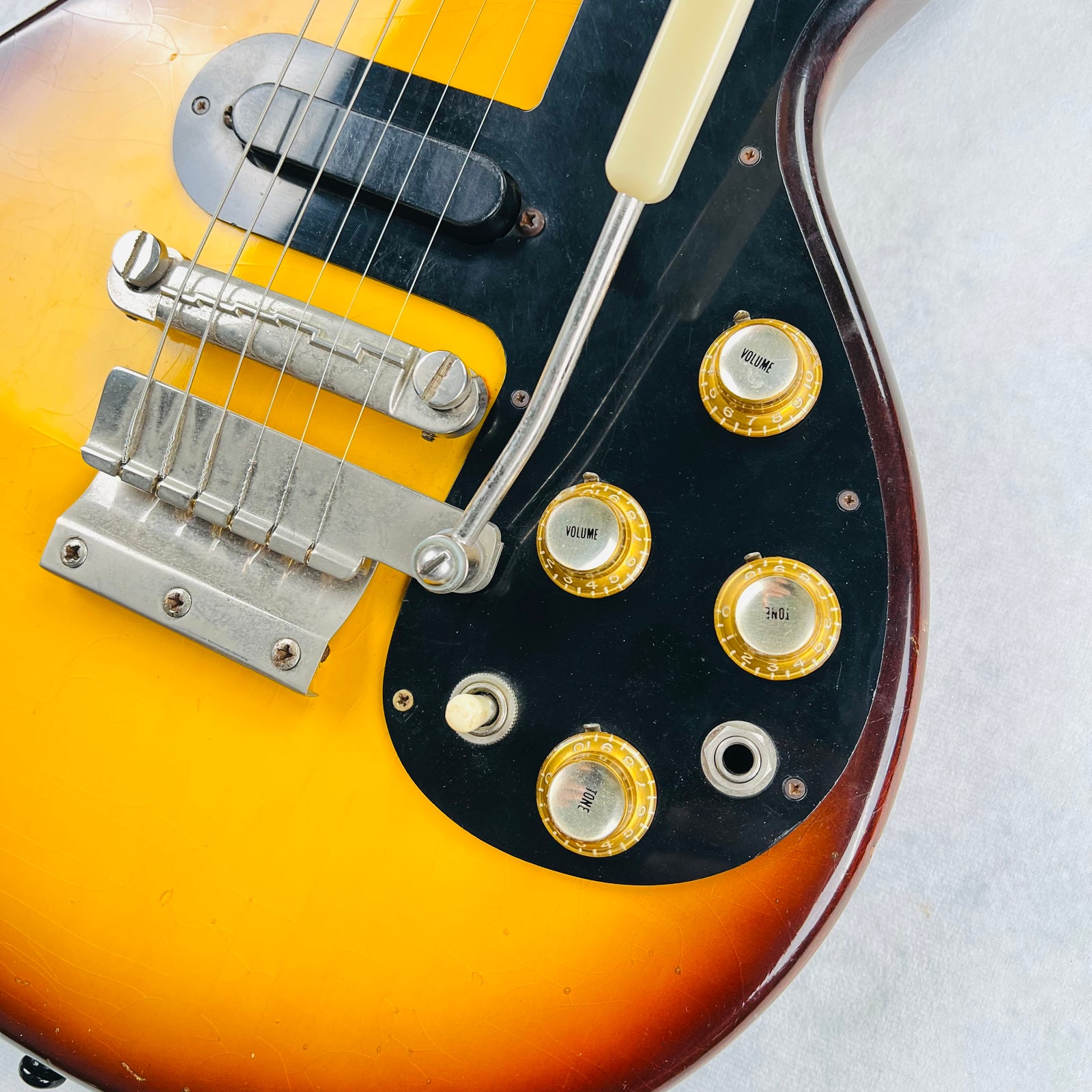

Reference Images

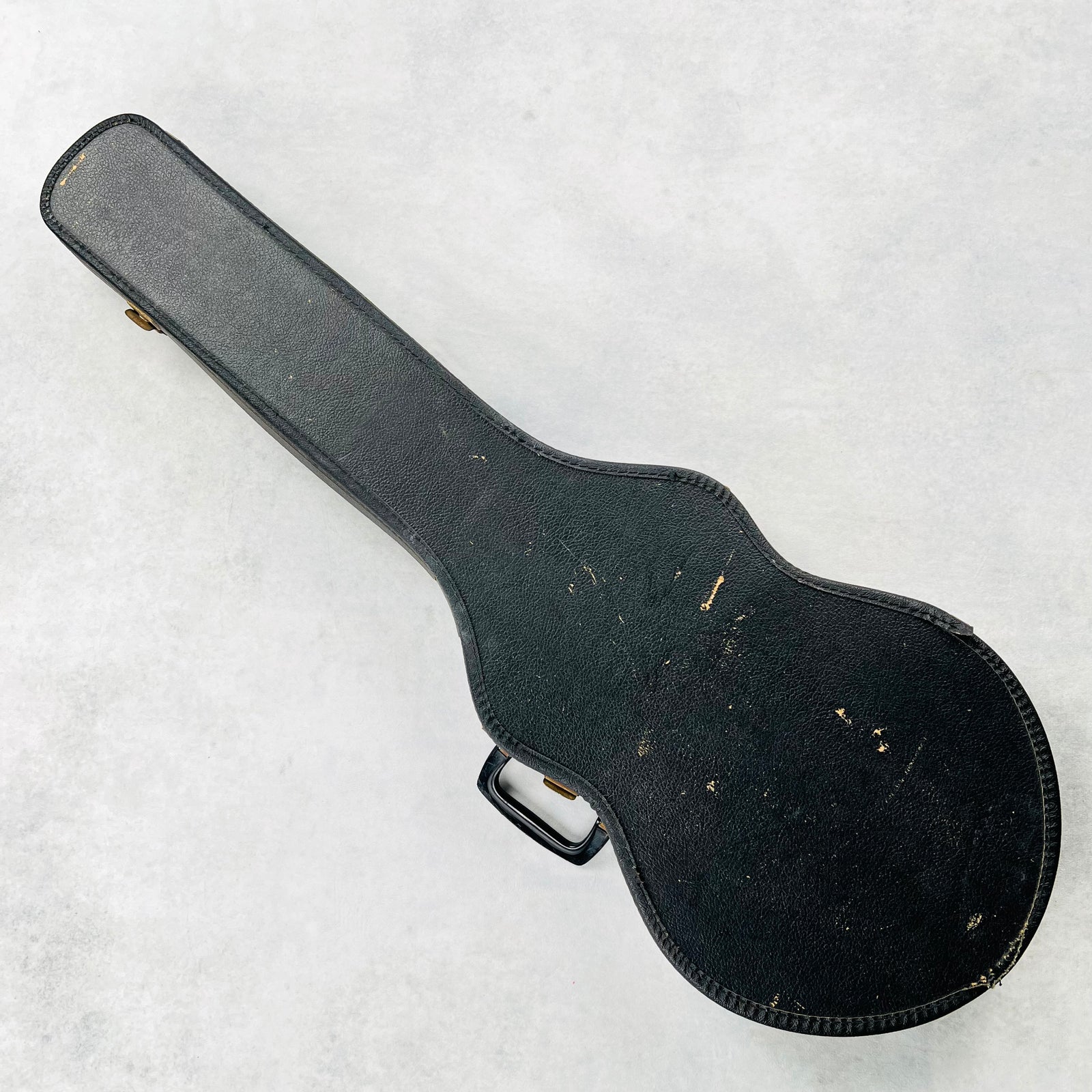

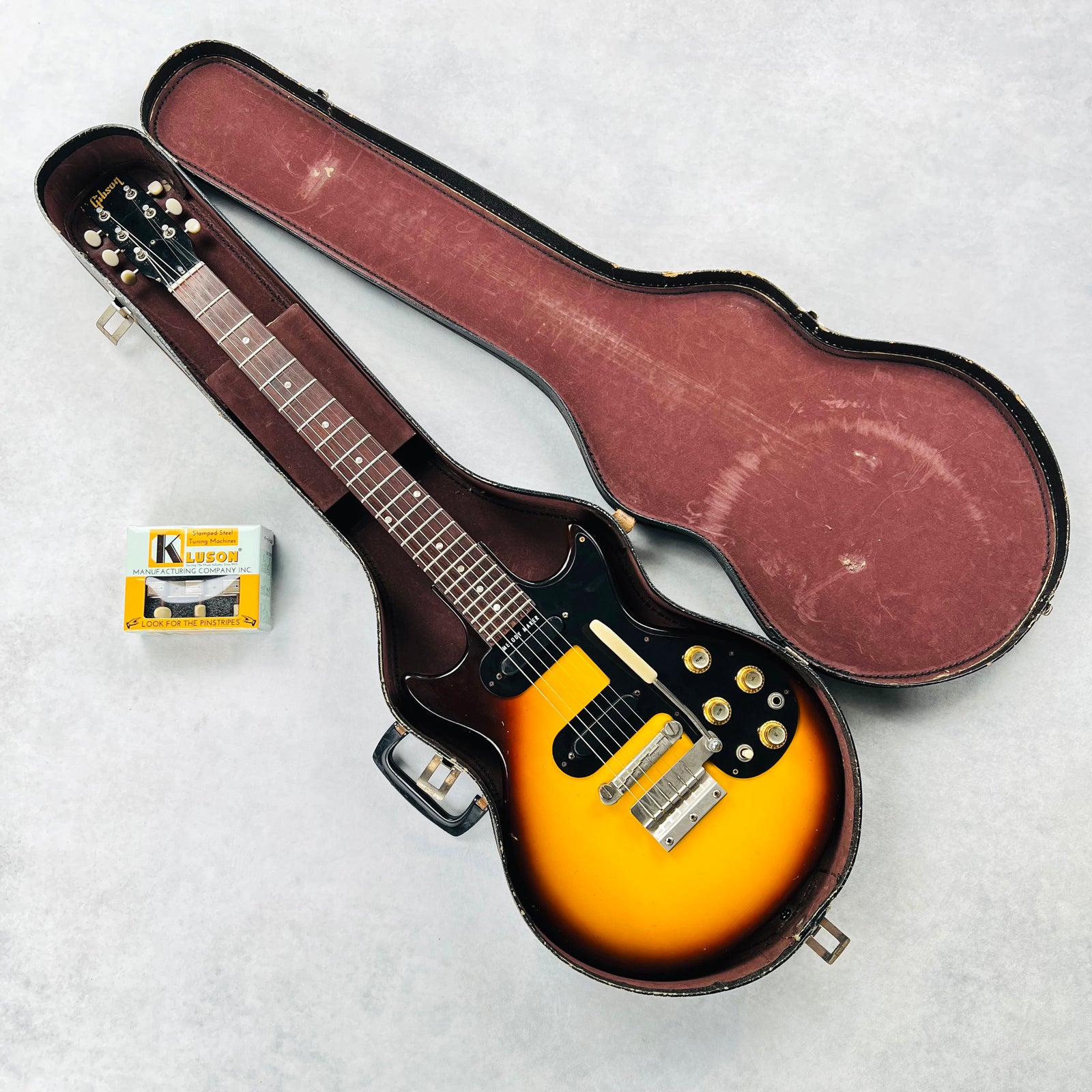

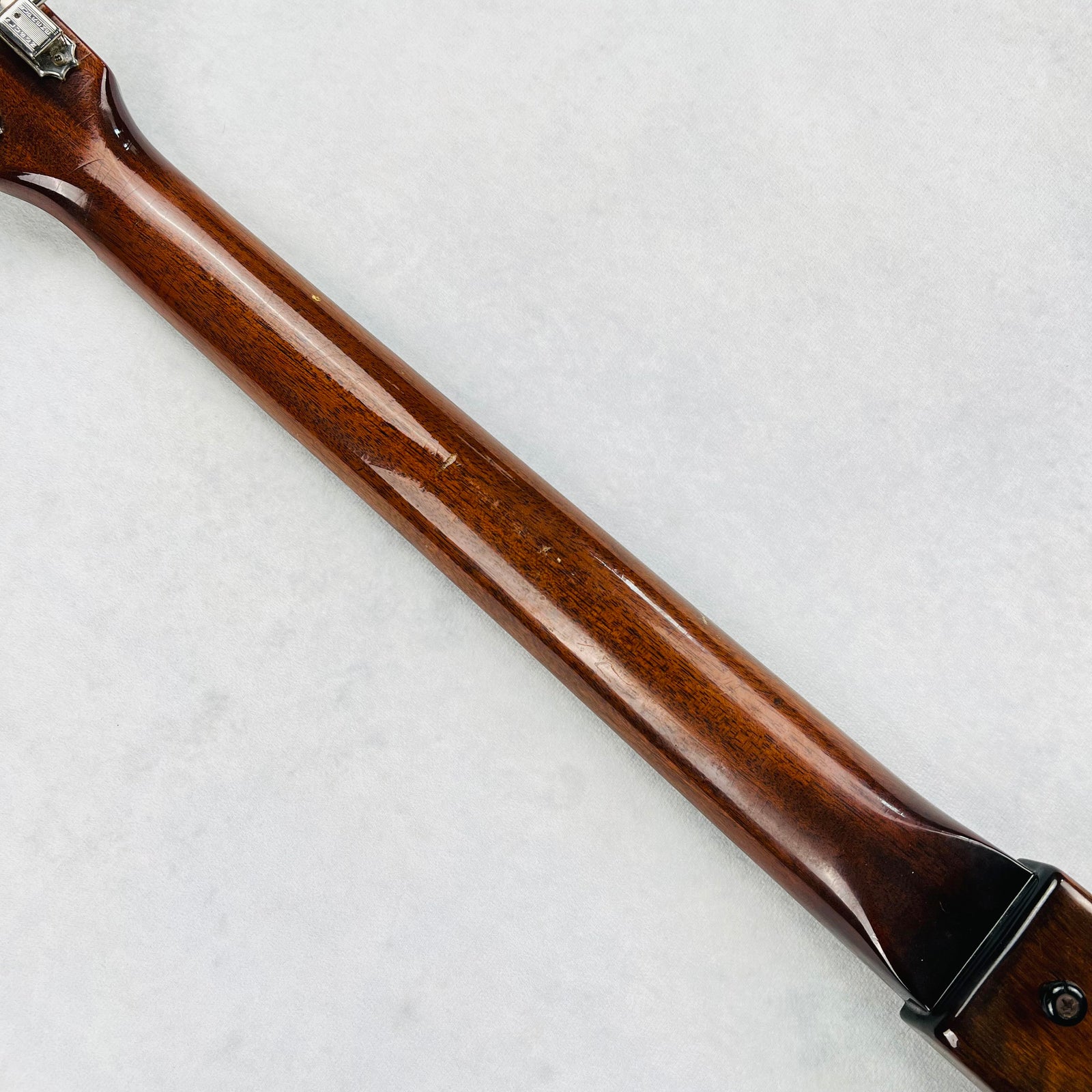

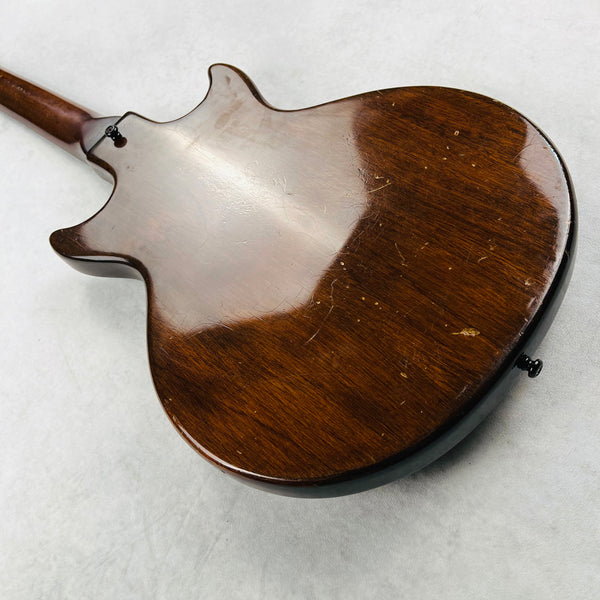

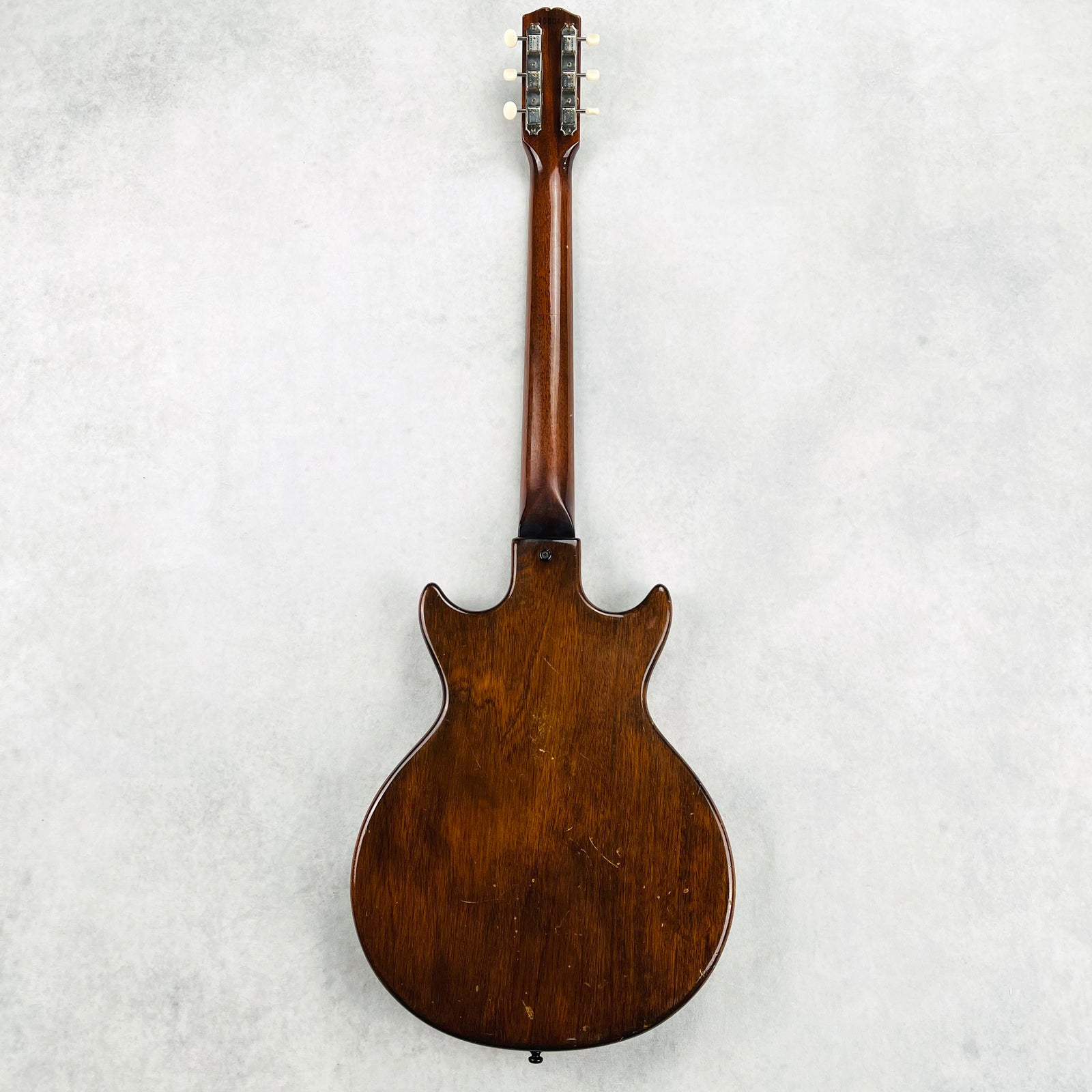

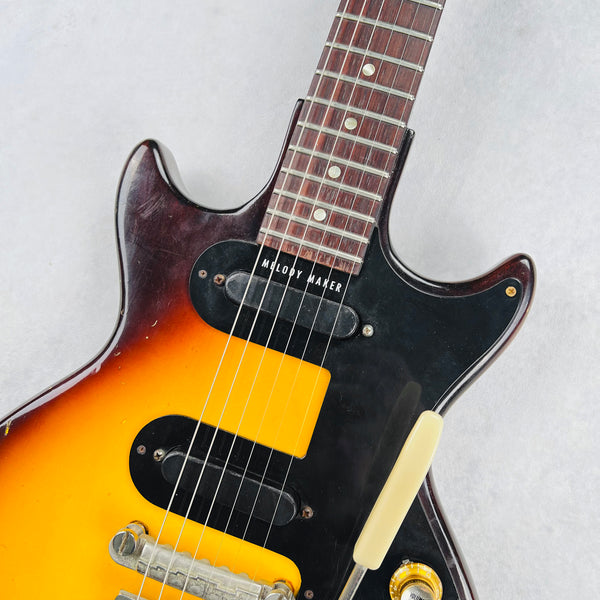

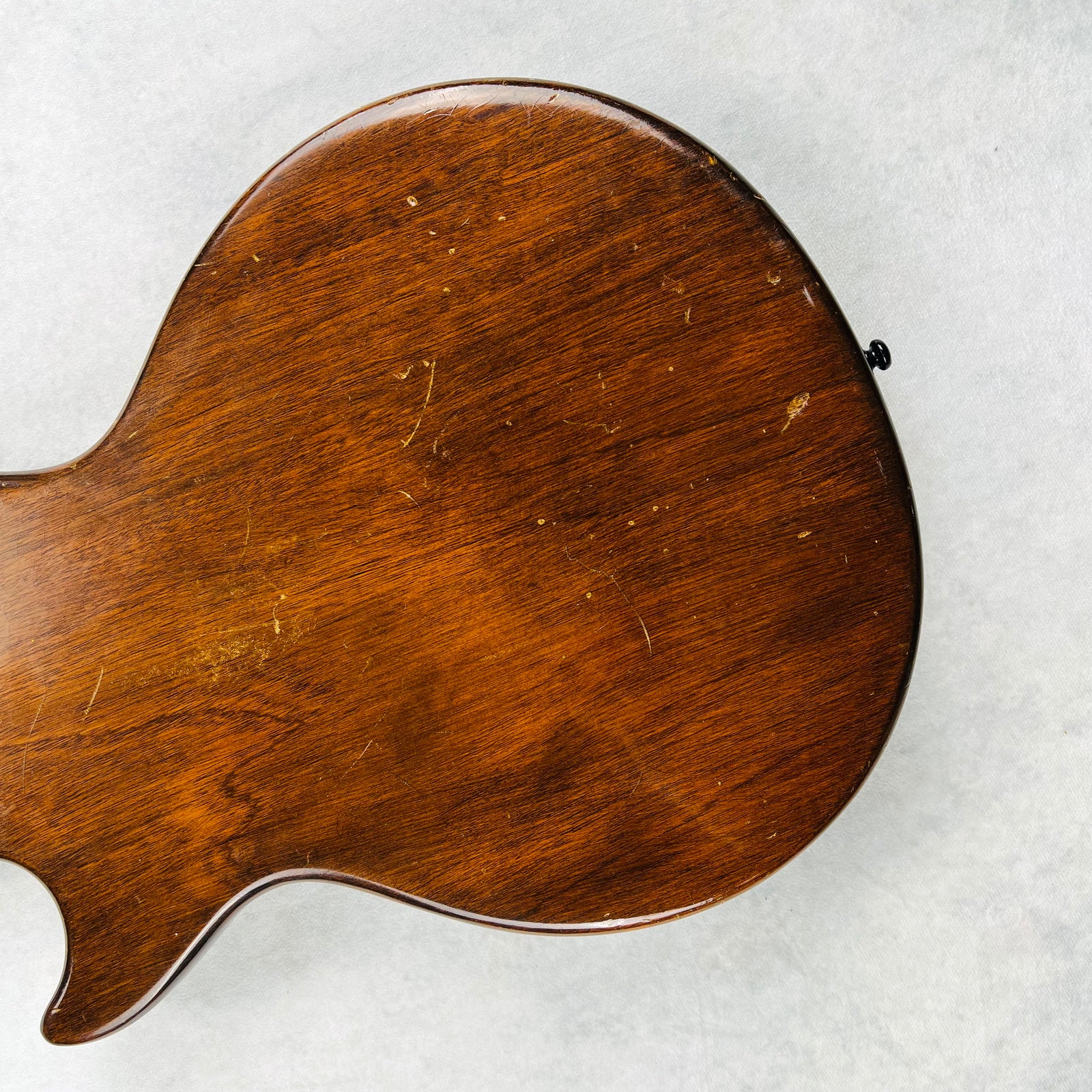

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Melody Maker Double Cutaway 2-Pickup Vibrola listed above. For larger pics, click on an image to open in a new tab.
