The 1963 ES-335TD is a semi-hollow electric guitar built by Gibson. This thinline set neck guitar was manufactured in Kalamazoo, MI in the United States and is a Vintage Electric Guitar model. Key features include a Maple Thinline Body, Mahogany Neck, Rosewood Fingerboard with Block Inlays, Bigsby Vibrato Tailpiece, Two Patent Number Humbuckers and Cherry finish. The specs listed below pertain to the 1963 product year model pictured on this page.
Factory Specs
- Maple Thinline Body
- Maple Center Block
- Mahogany Neck
- Rosewood Fingerboard
- Mother of Pearl Block Fingerboard Inlays

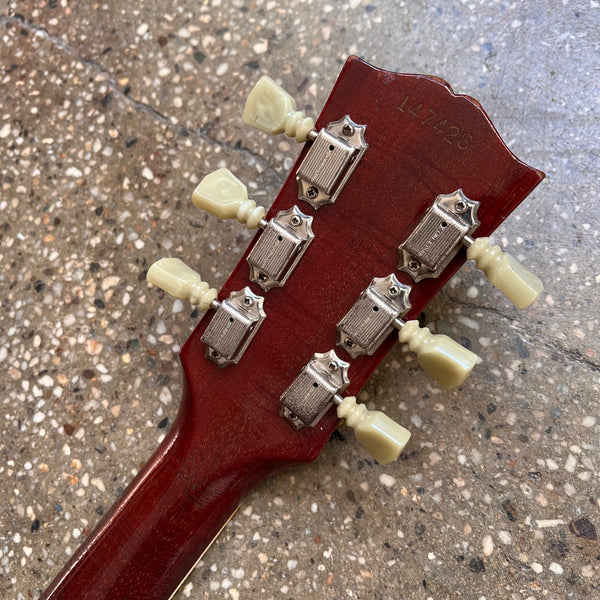

- Double Ring Kluson Tuners
- 24 3/4" Scale Length
- 1 11/16" Nut Width
- Dual Patent Number Pickups
- ABR-1 Bridge with Nylon Saddle

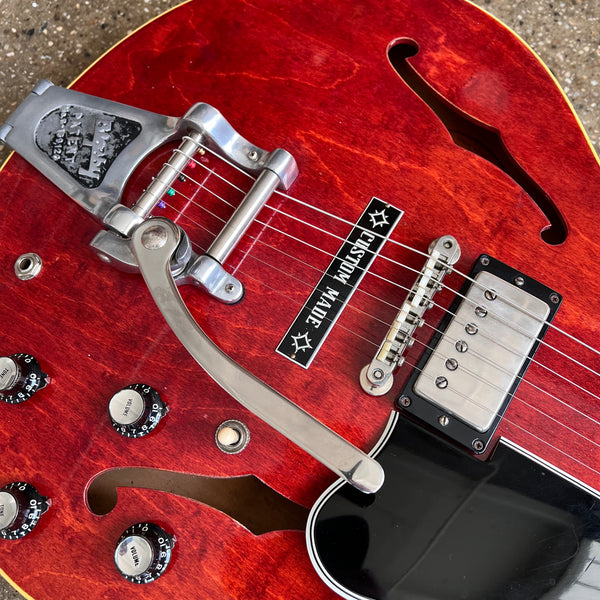

- Bigsby Vibrato Tailpiece
- Two Volume and Two Tone Controls
- 3-Way Toggle Switch
- Transparent Cherry Lacquer Finish

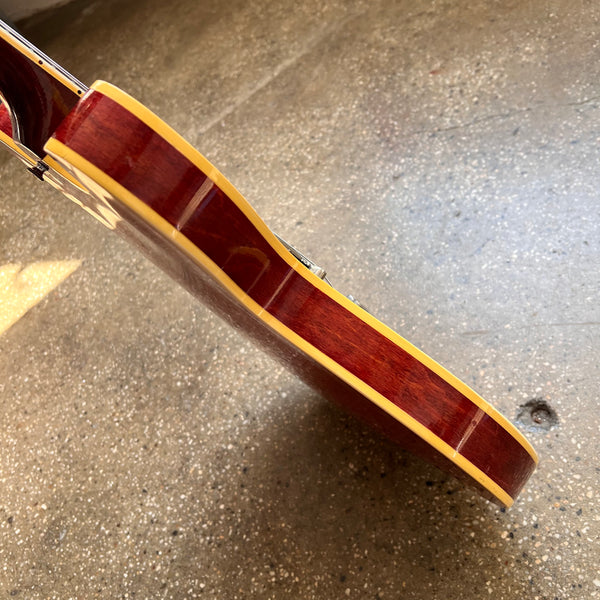

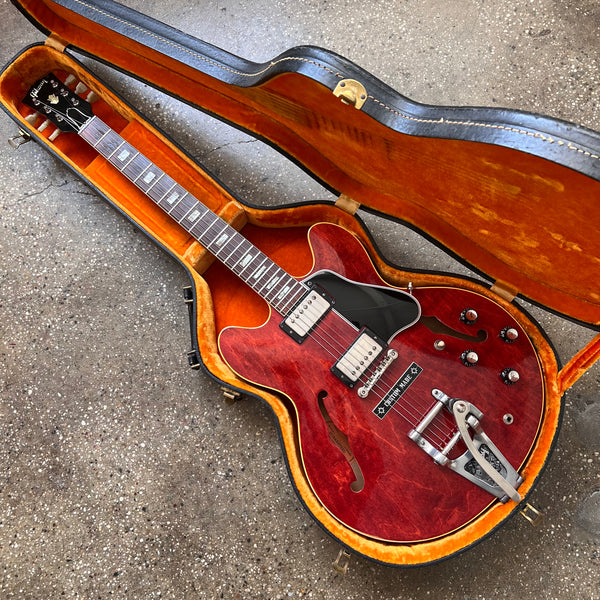

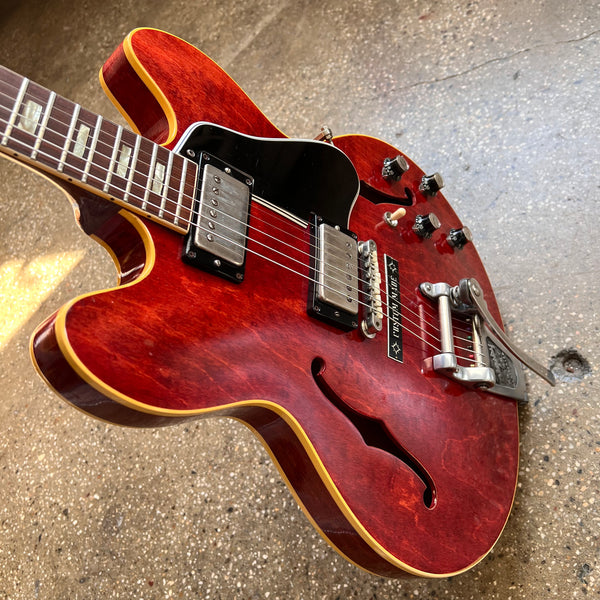

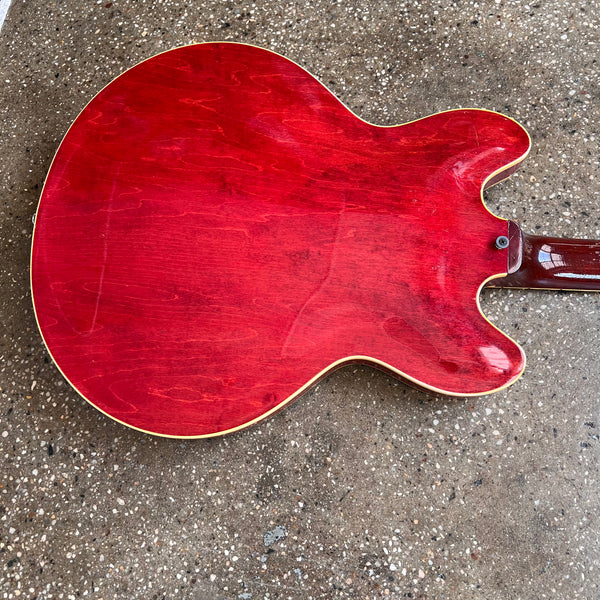

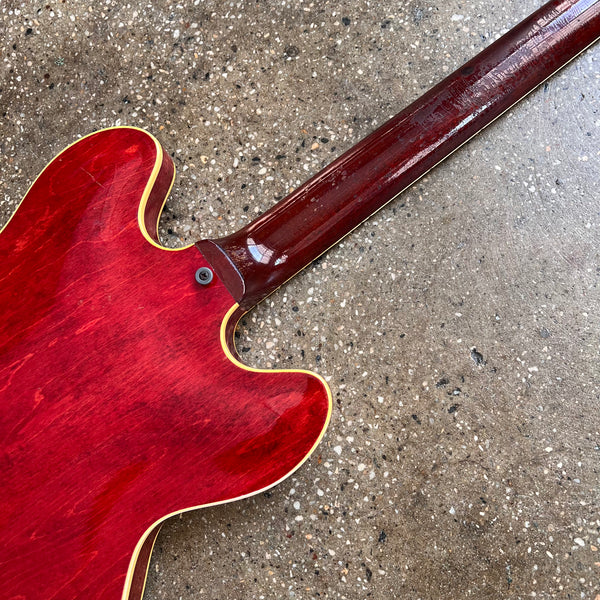

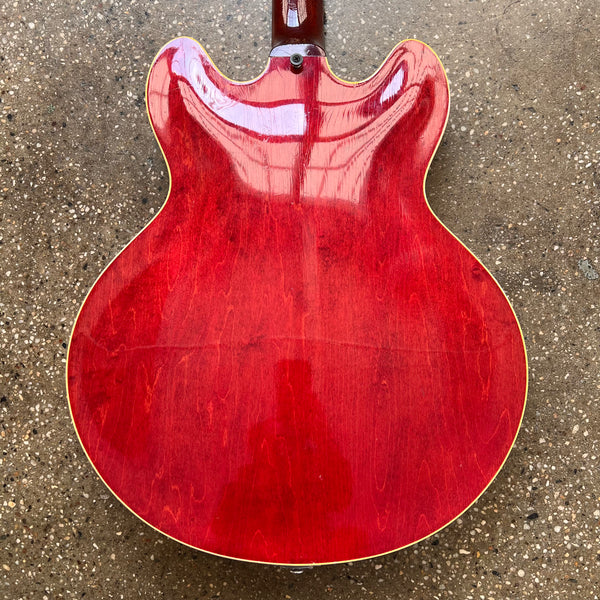

Reference Images

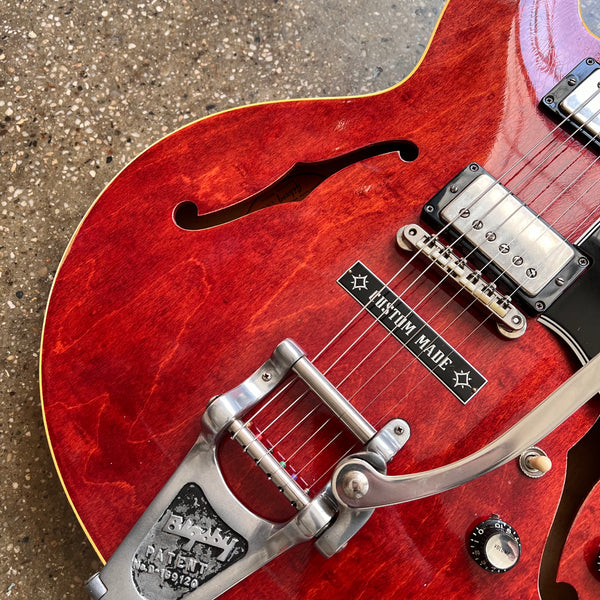

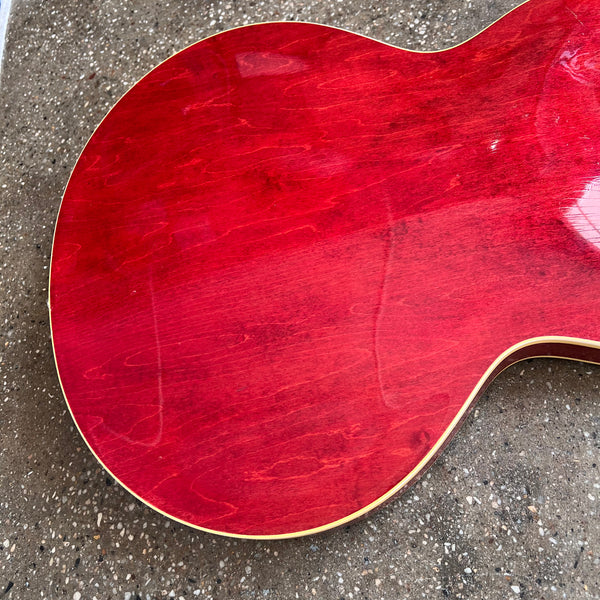

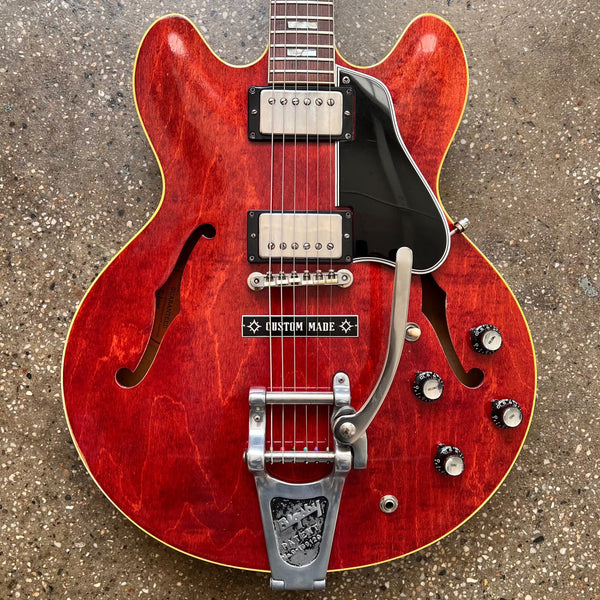

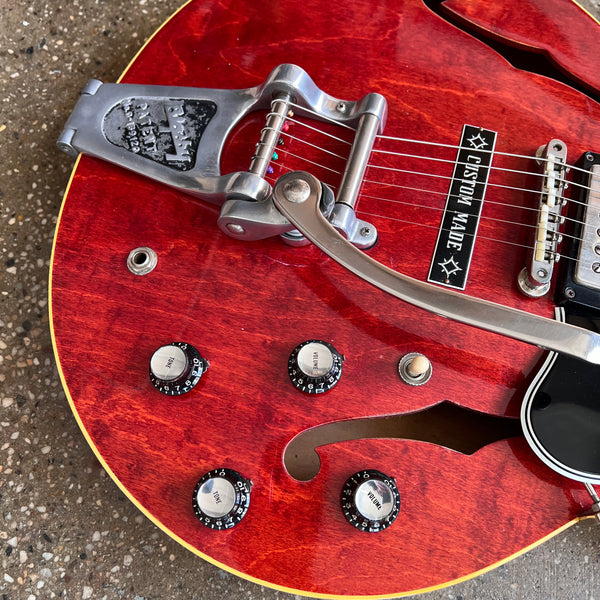

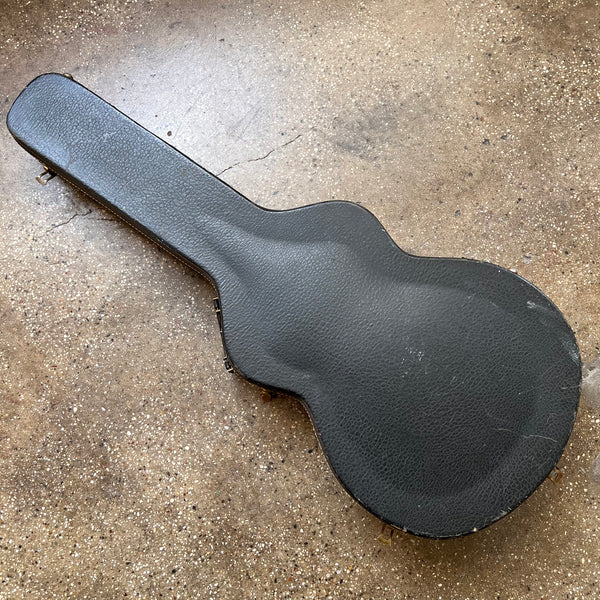

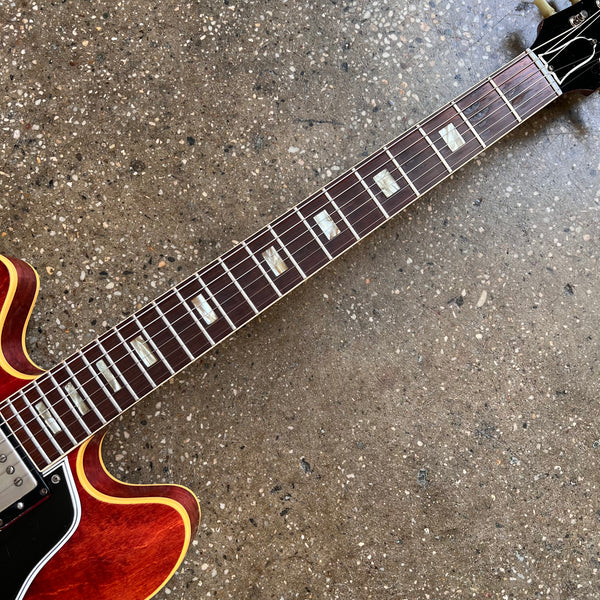

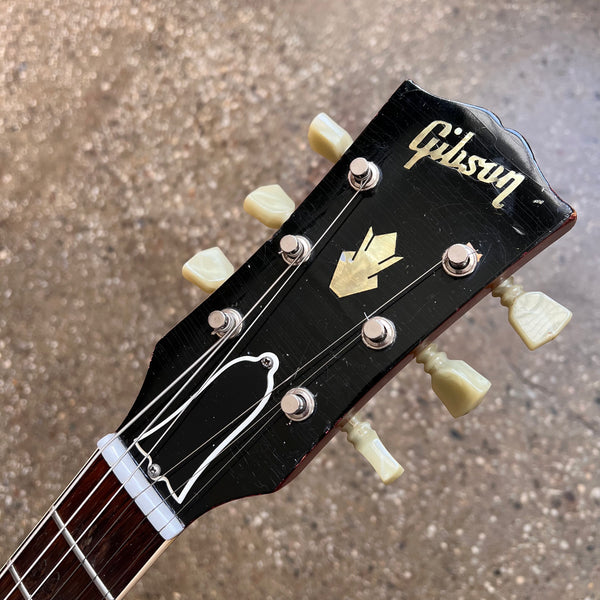

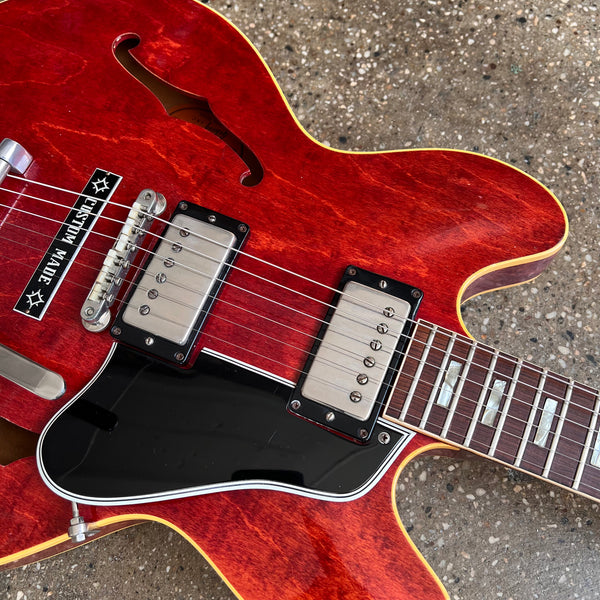

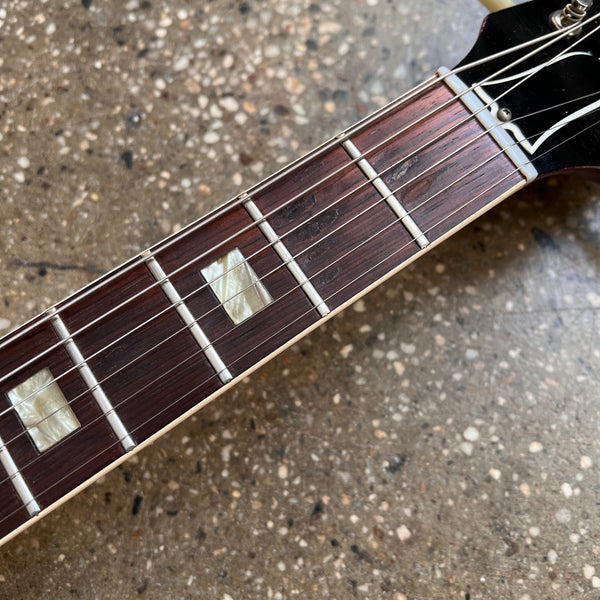

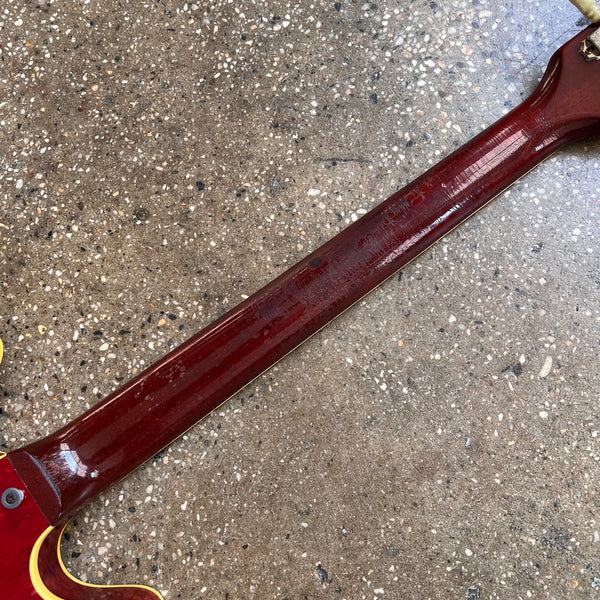

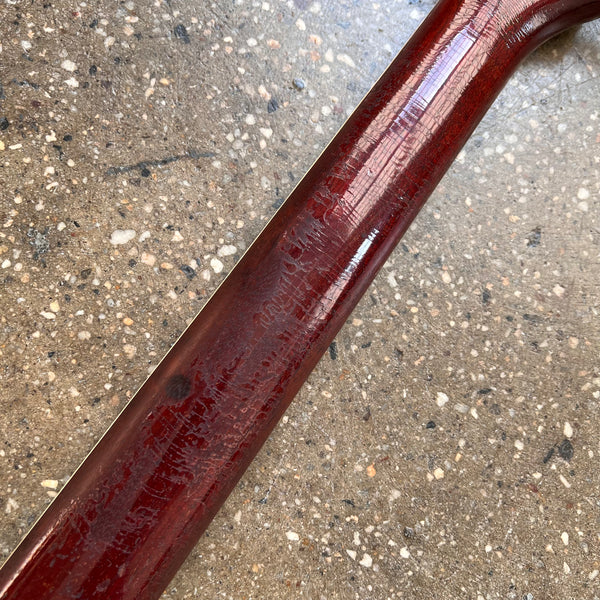

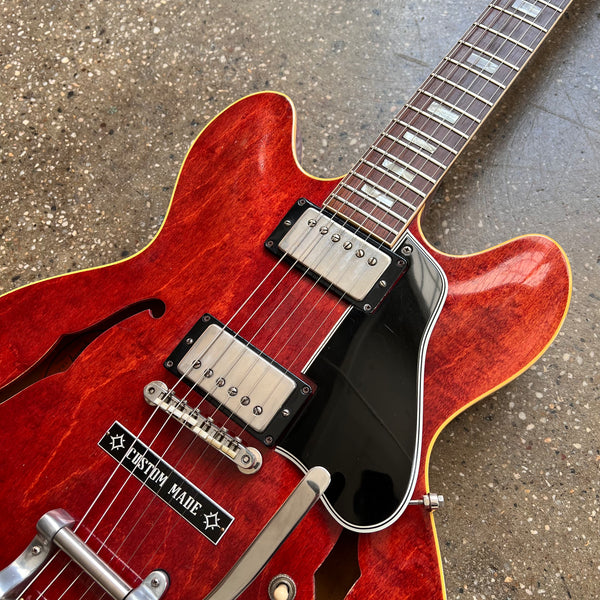

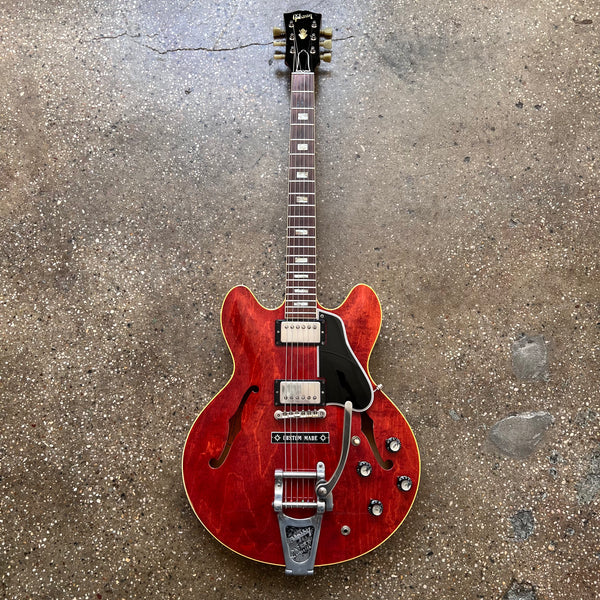

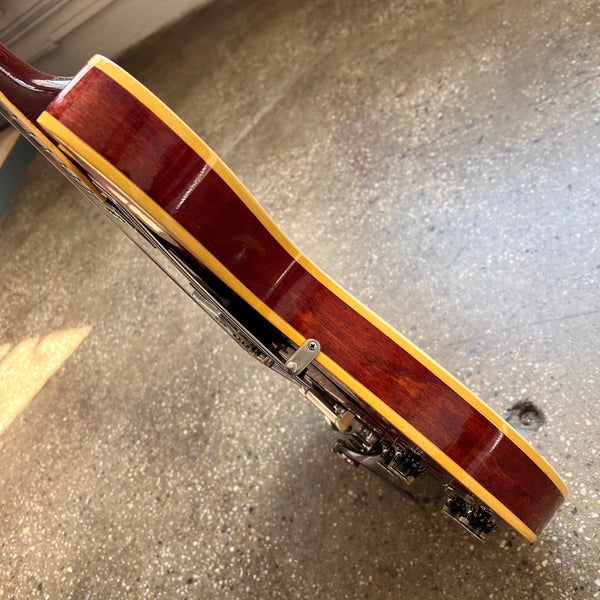

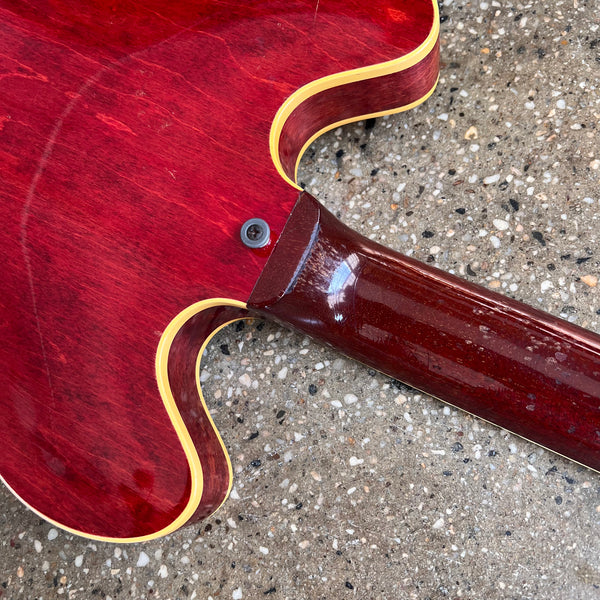

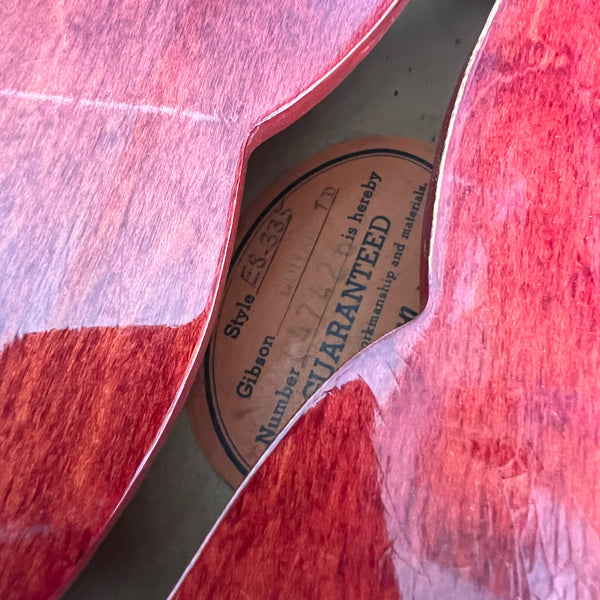

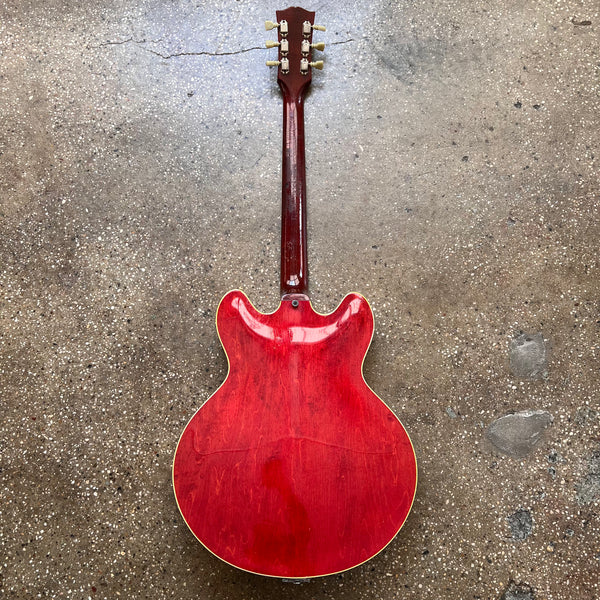

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the 1963 ES-335TD listed above. For larger pics, click on an image to open in a new tab.
