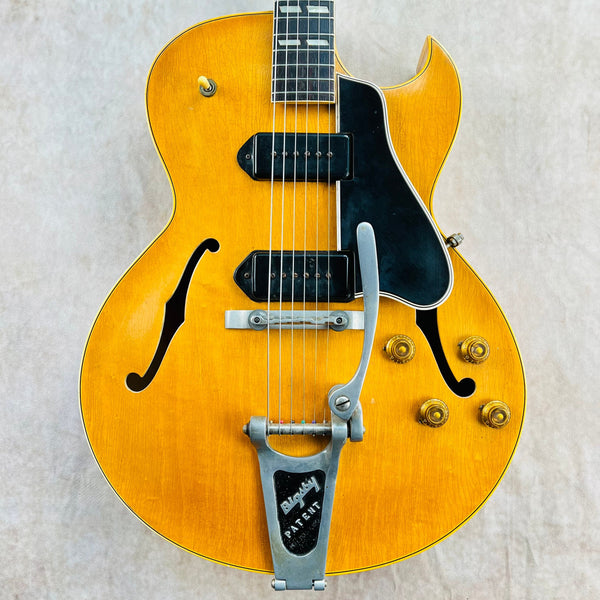

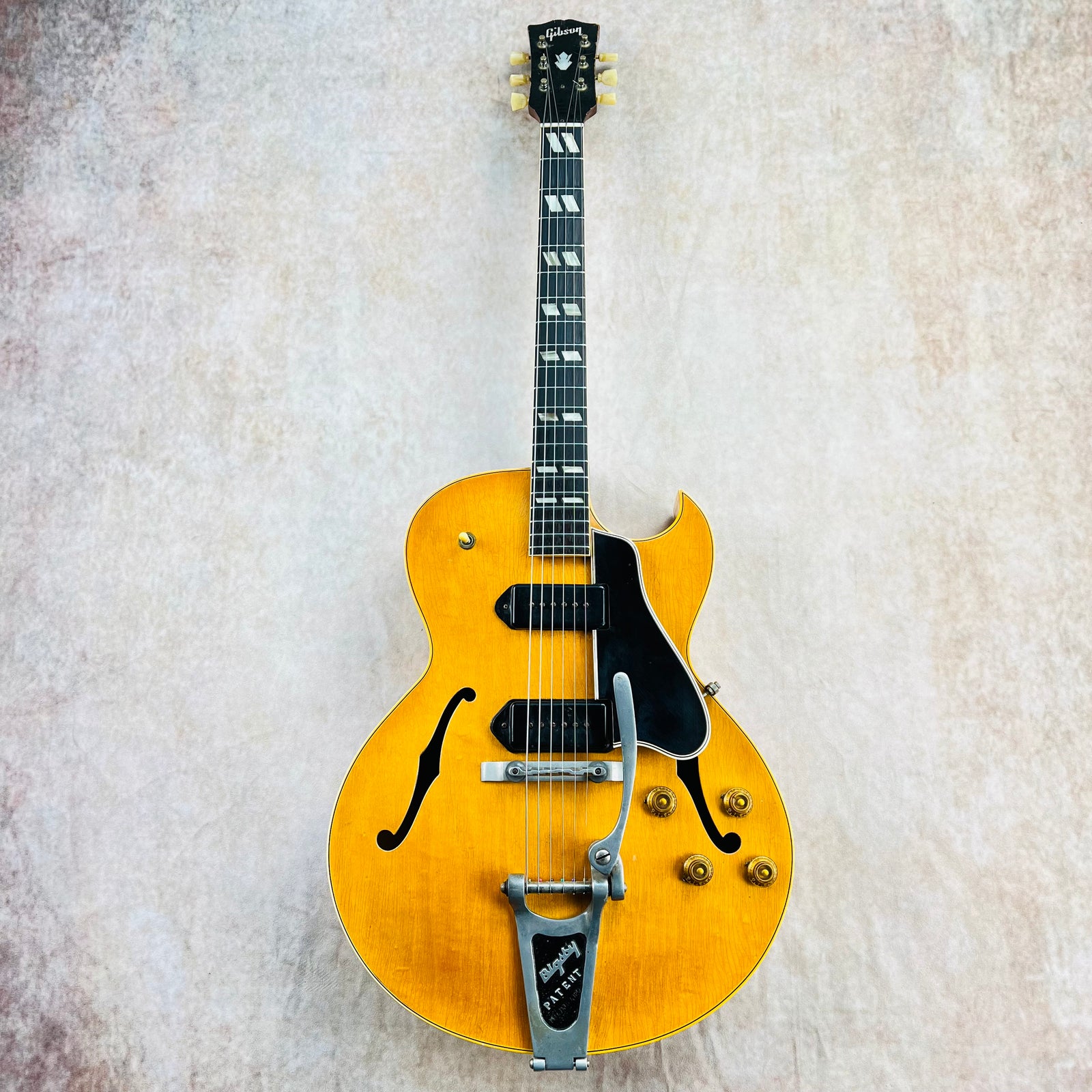

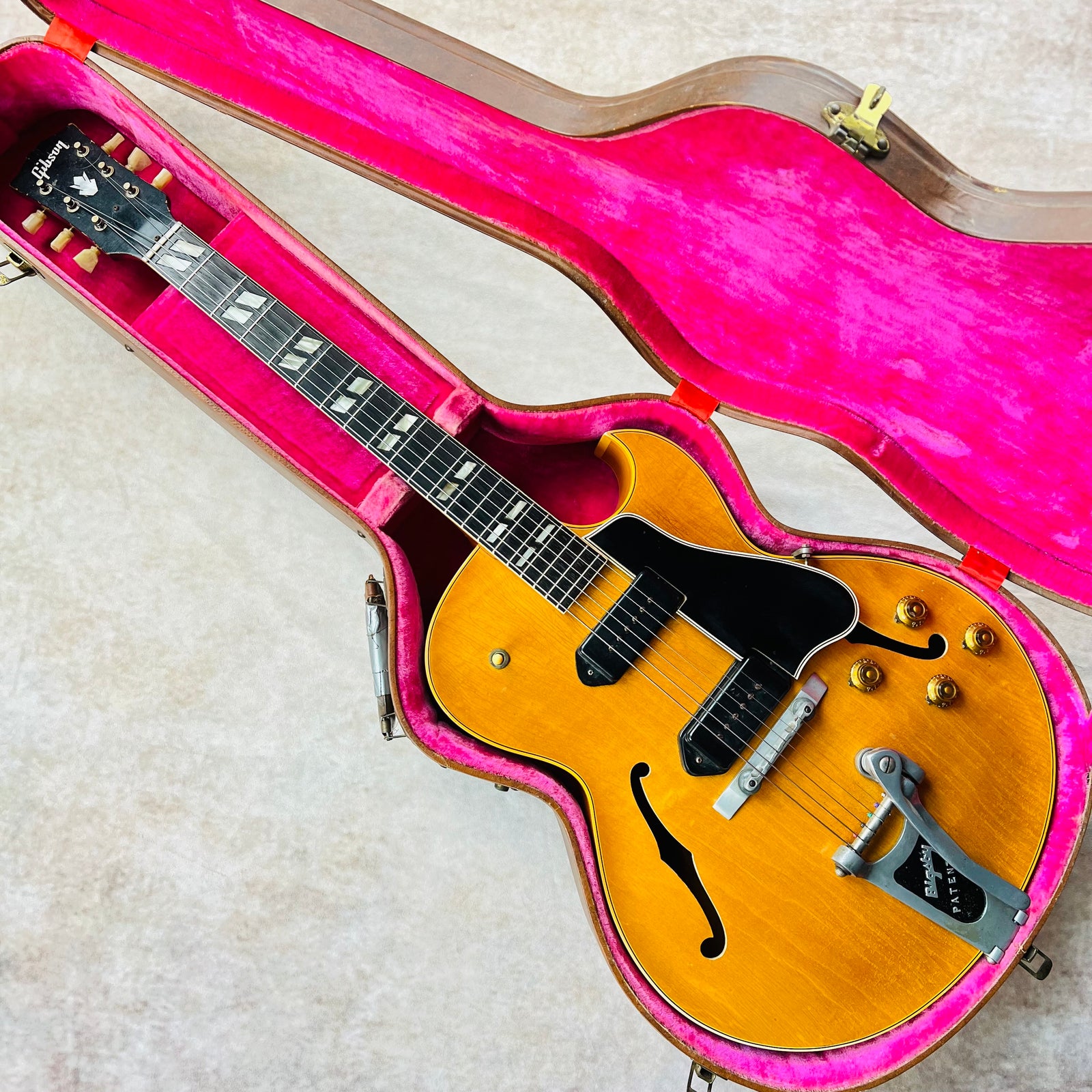

The 1955 ES-175DN is a hollow body electric guitar built by Gibson. This single cutaway set neck guitar was manufactured in Kalamazoo, MI in the United States and is a Gibson Vintage Electric Guitar model. Key features include a Laminate Maple Body, Mahogany Neck, Brazilian Rosewood Fretboard, Bigsby Vibrato Tailpiece, Dual Dogear P-90 Pickups and Natural finish. The specs listed below pertain to the 1955 product year model pictured on this page.
Factory Specs

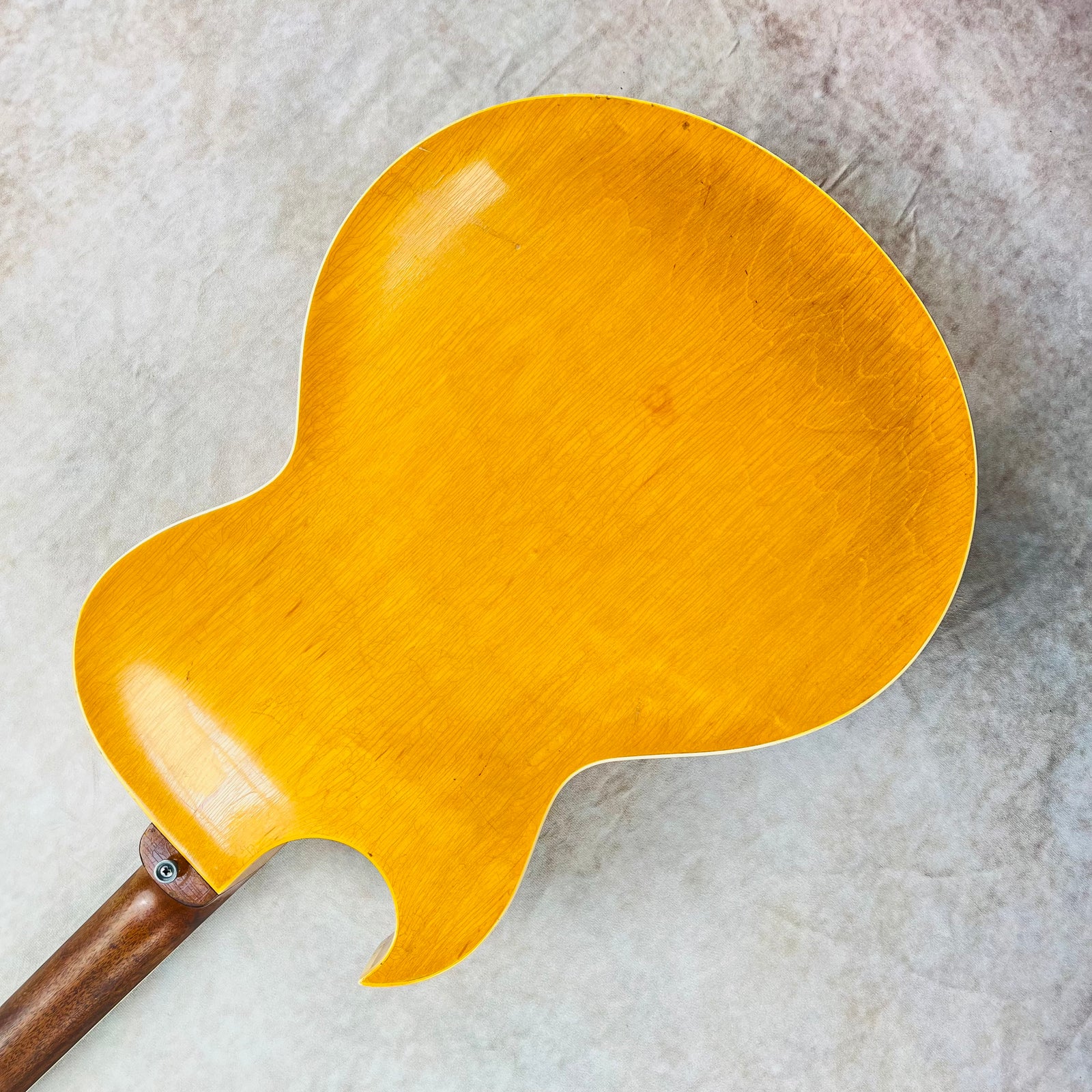

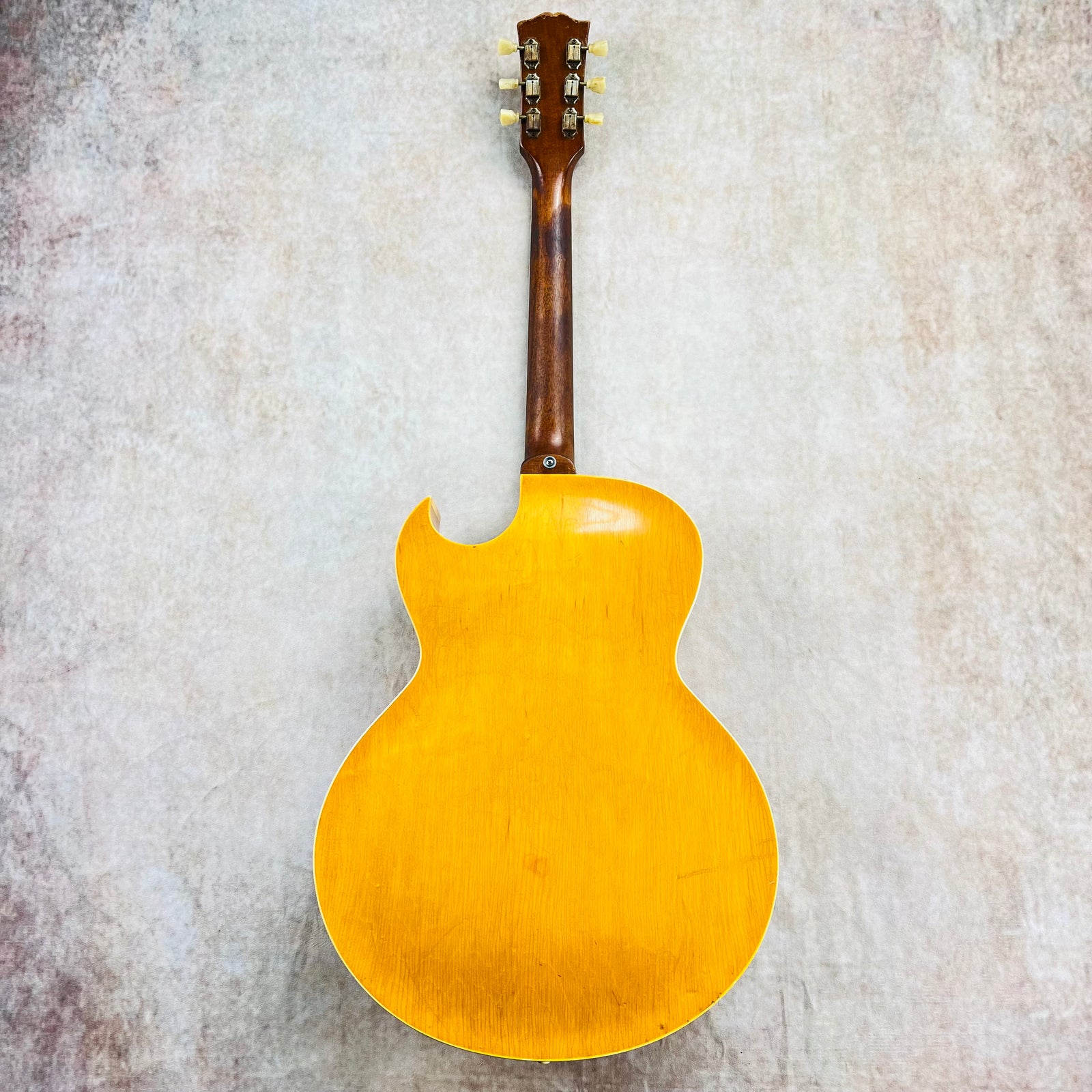

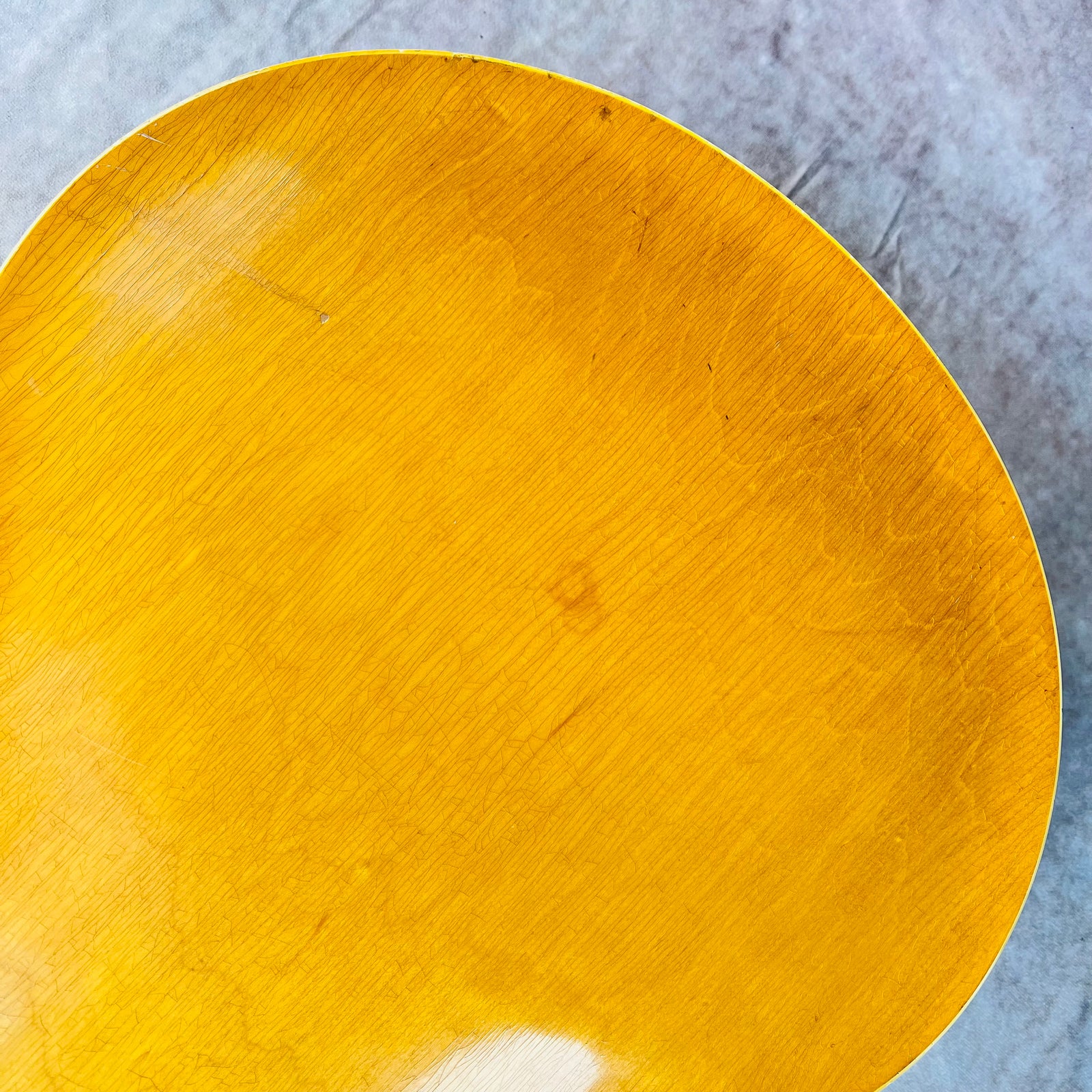

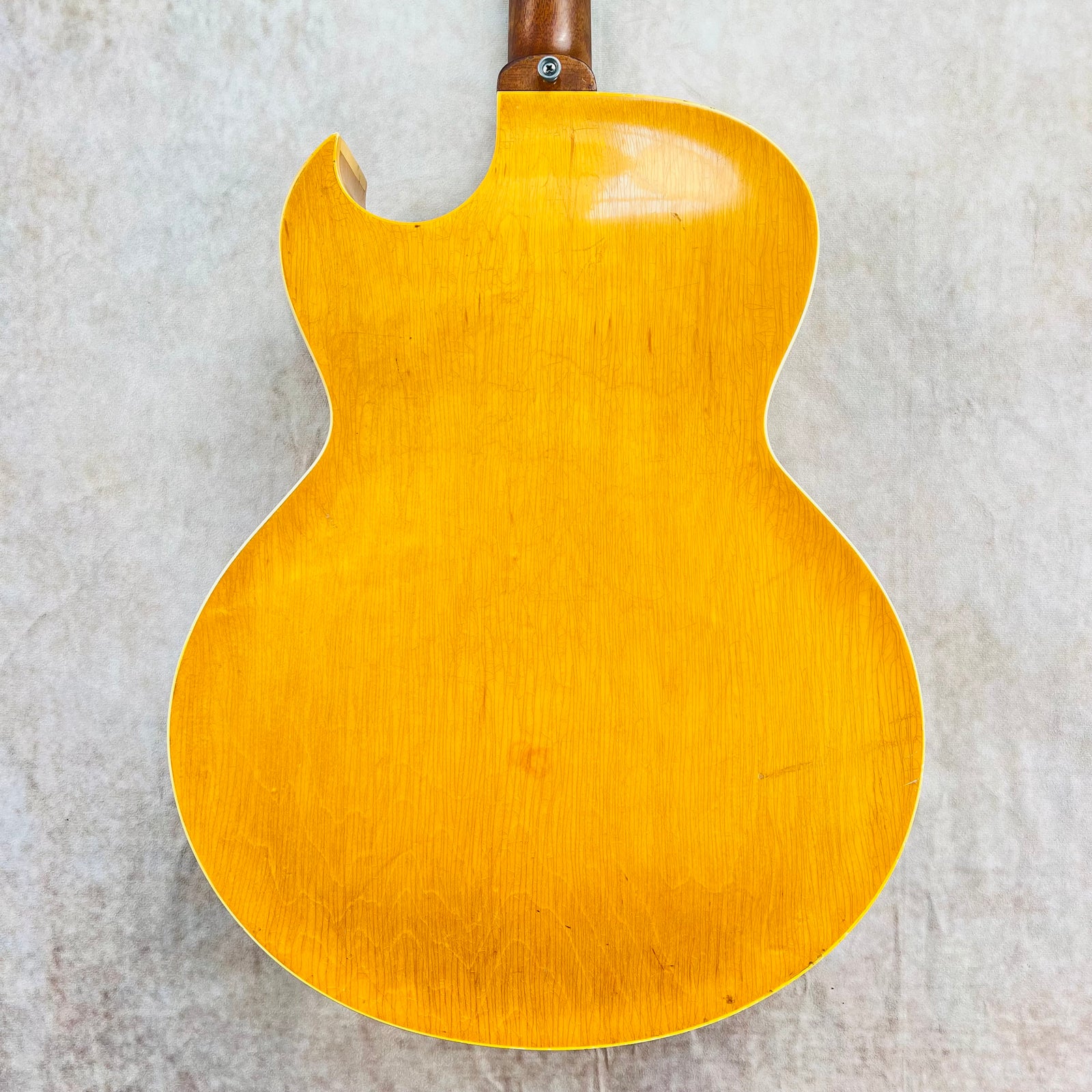

- Laminate Hollow Maple Body

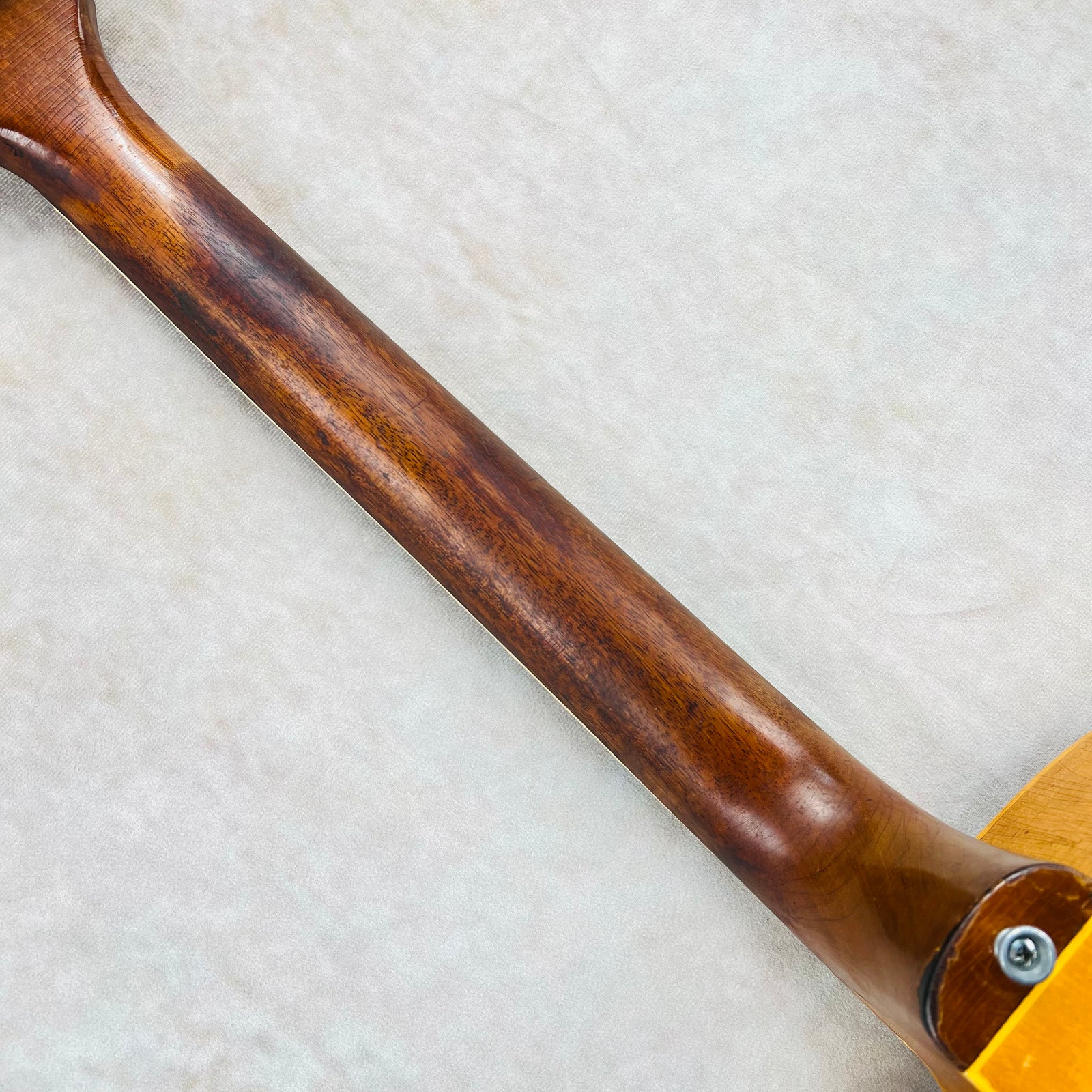

- Mahogany Neck
- Brazilian Rosewood Fretboard
- 20 Frets
- Vintage Fret Wire

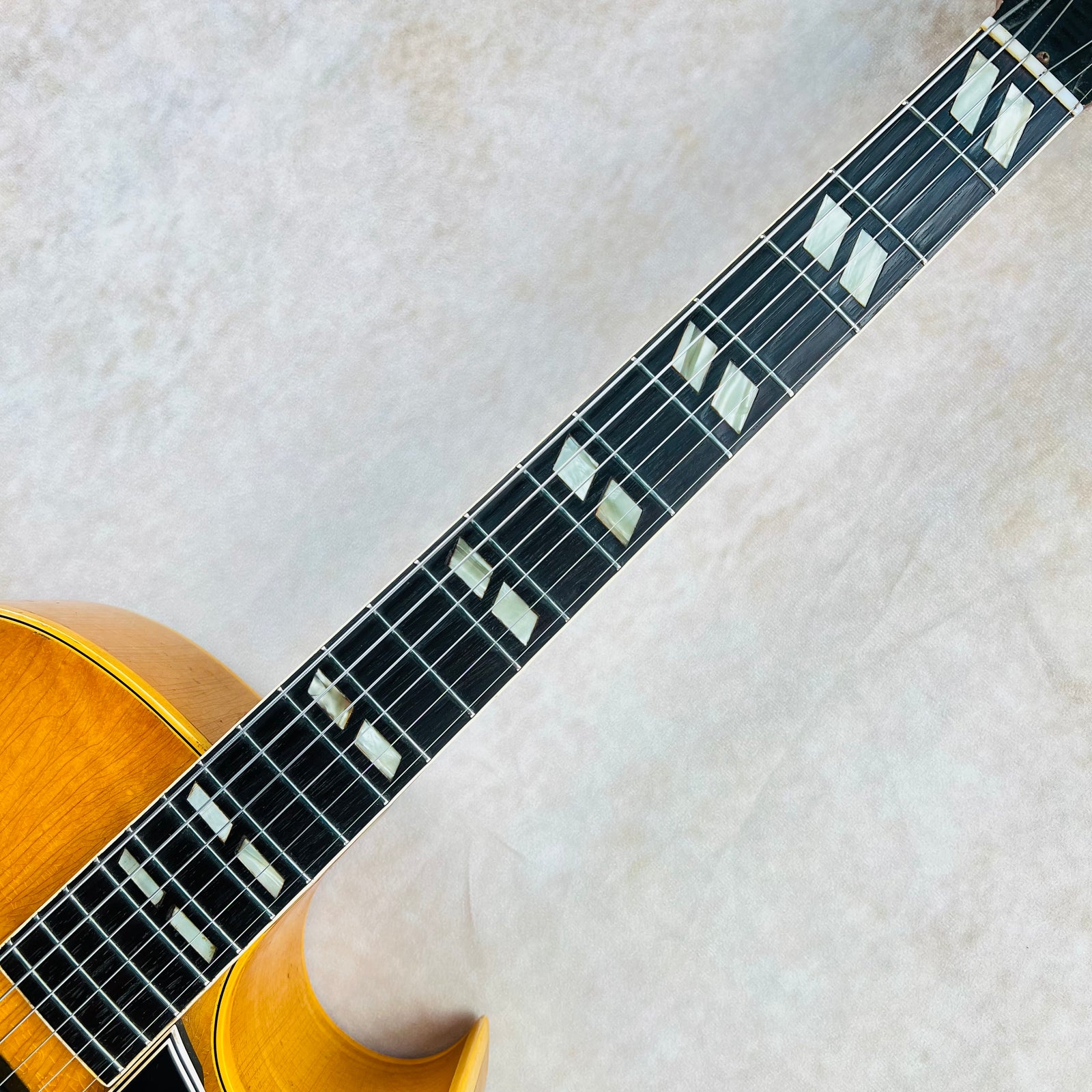

- Parallel-o-gram Inlays

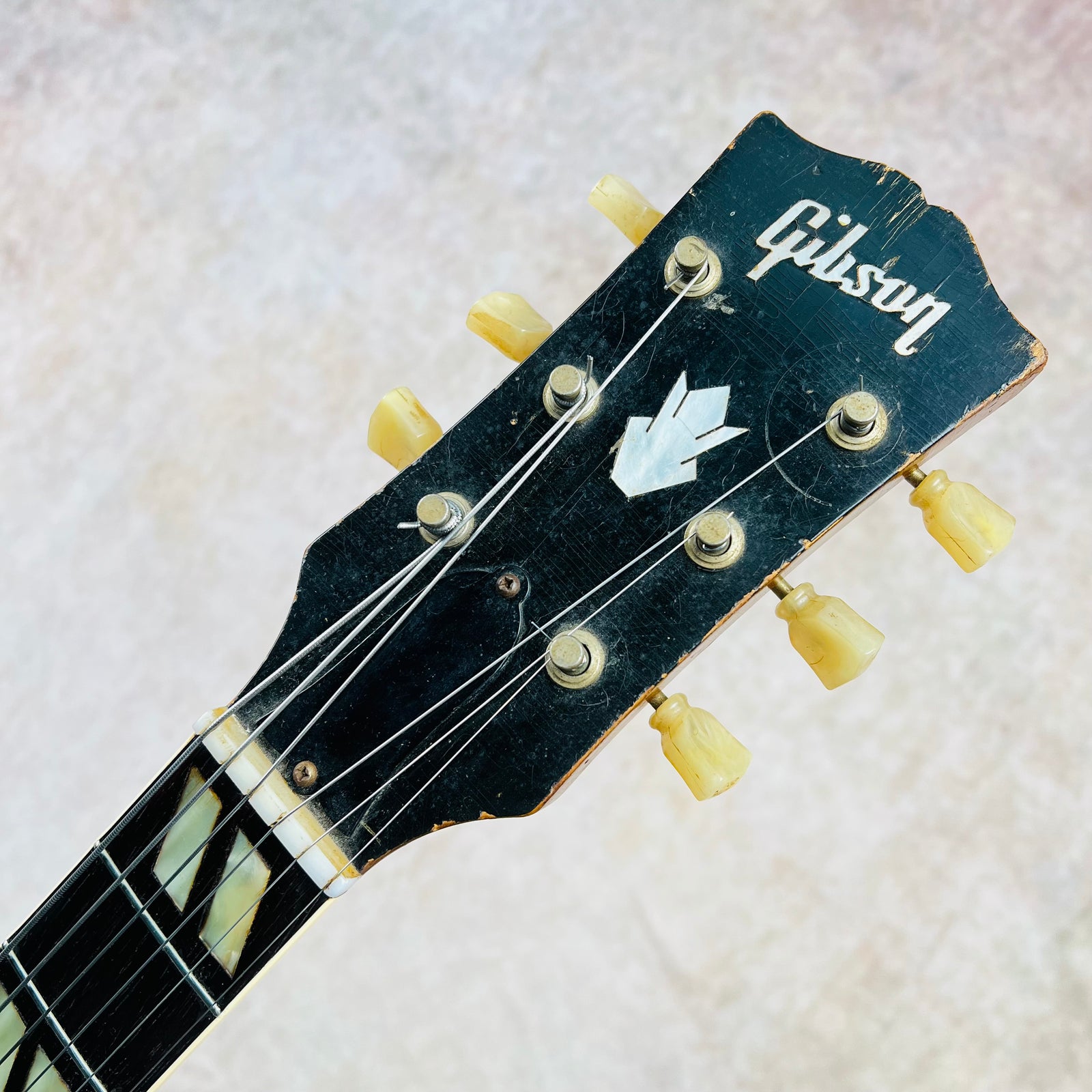

- Crown Headstock Inlay

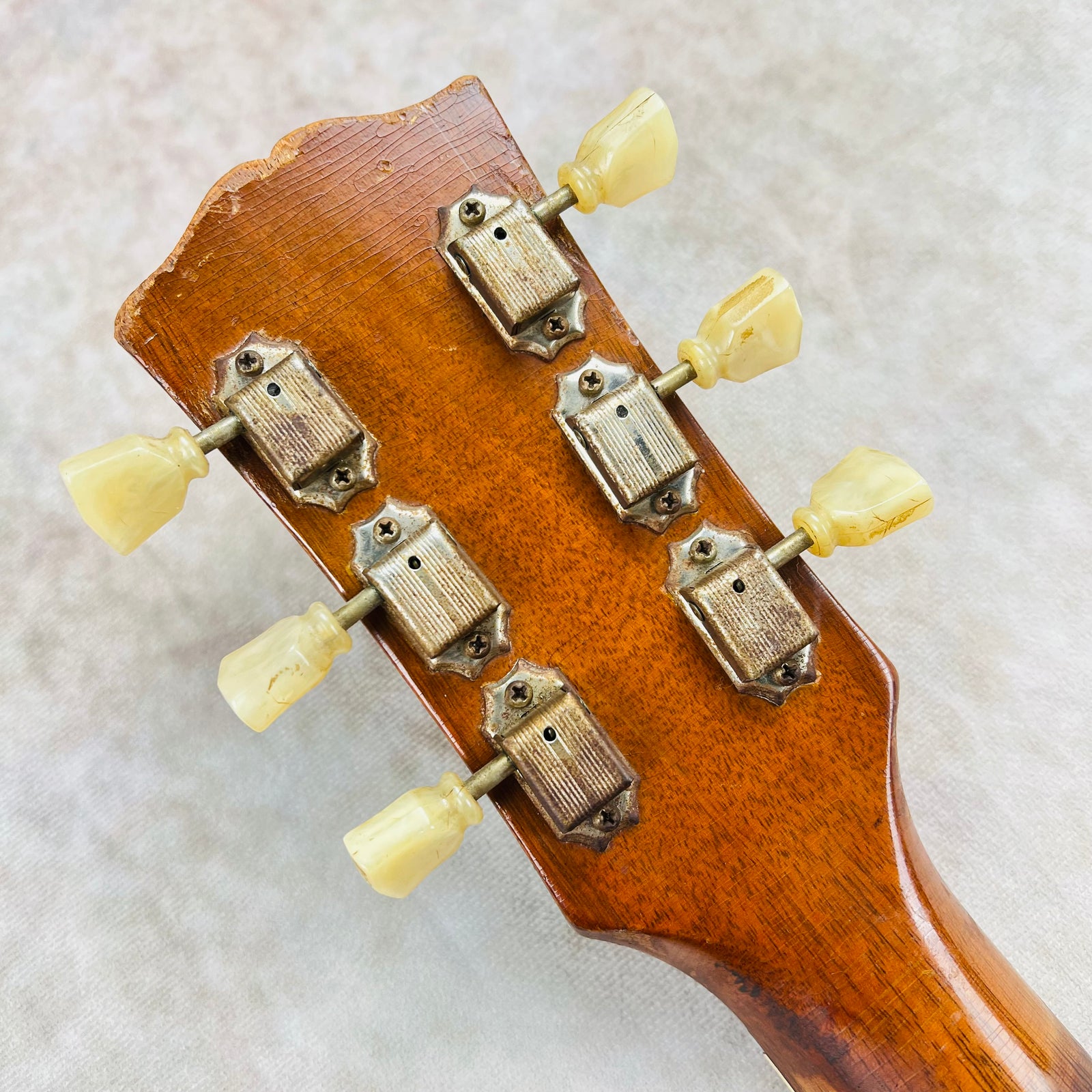

- Kluson Deluxe Tuners with Keystone Buttons
- 24.75" Scale Length
- 1.6875" Nut Width
- 12" Radius

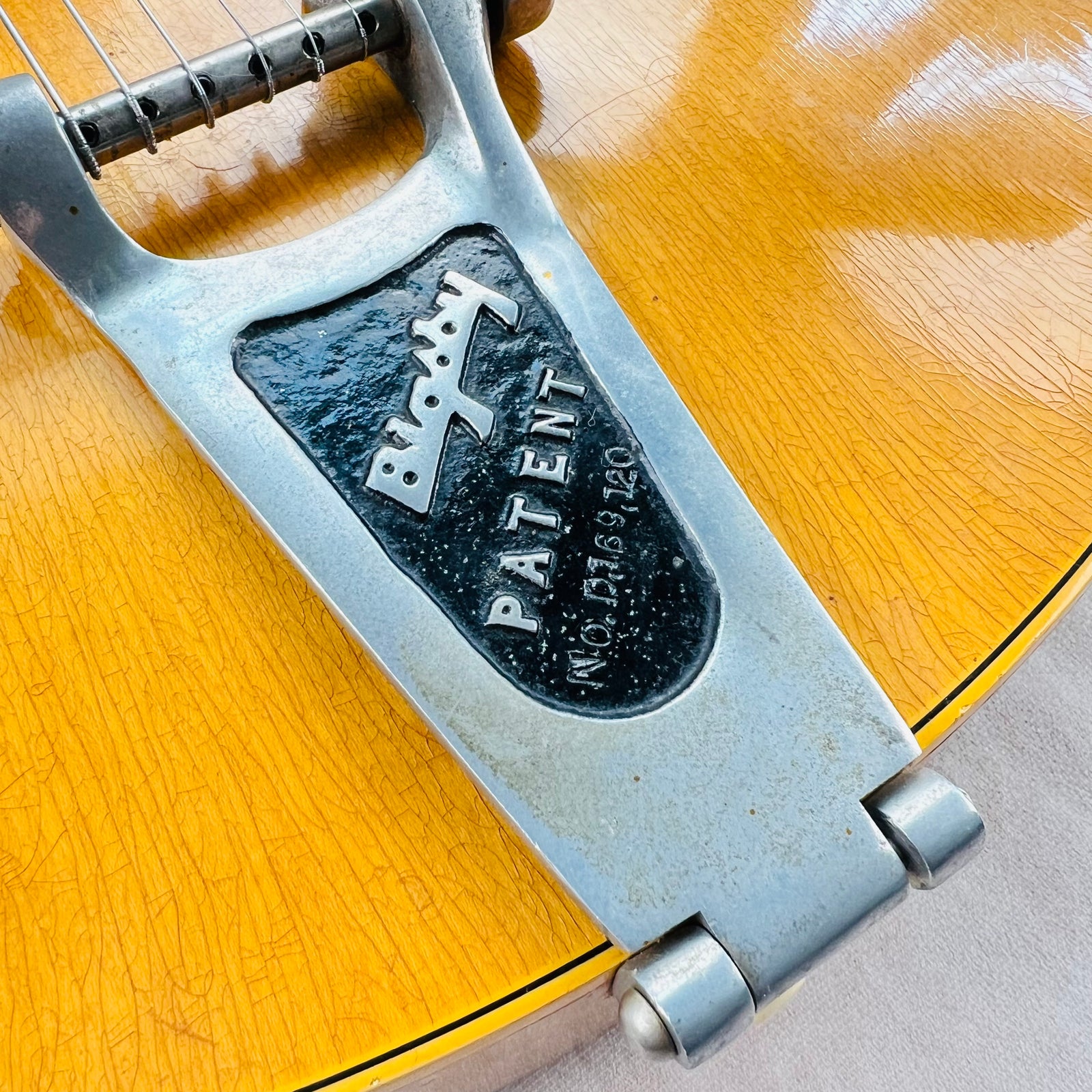

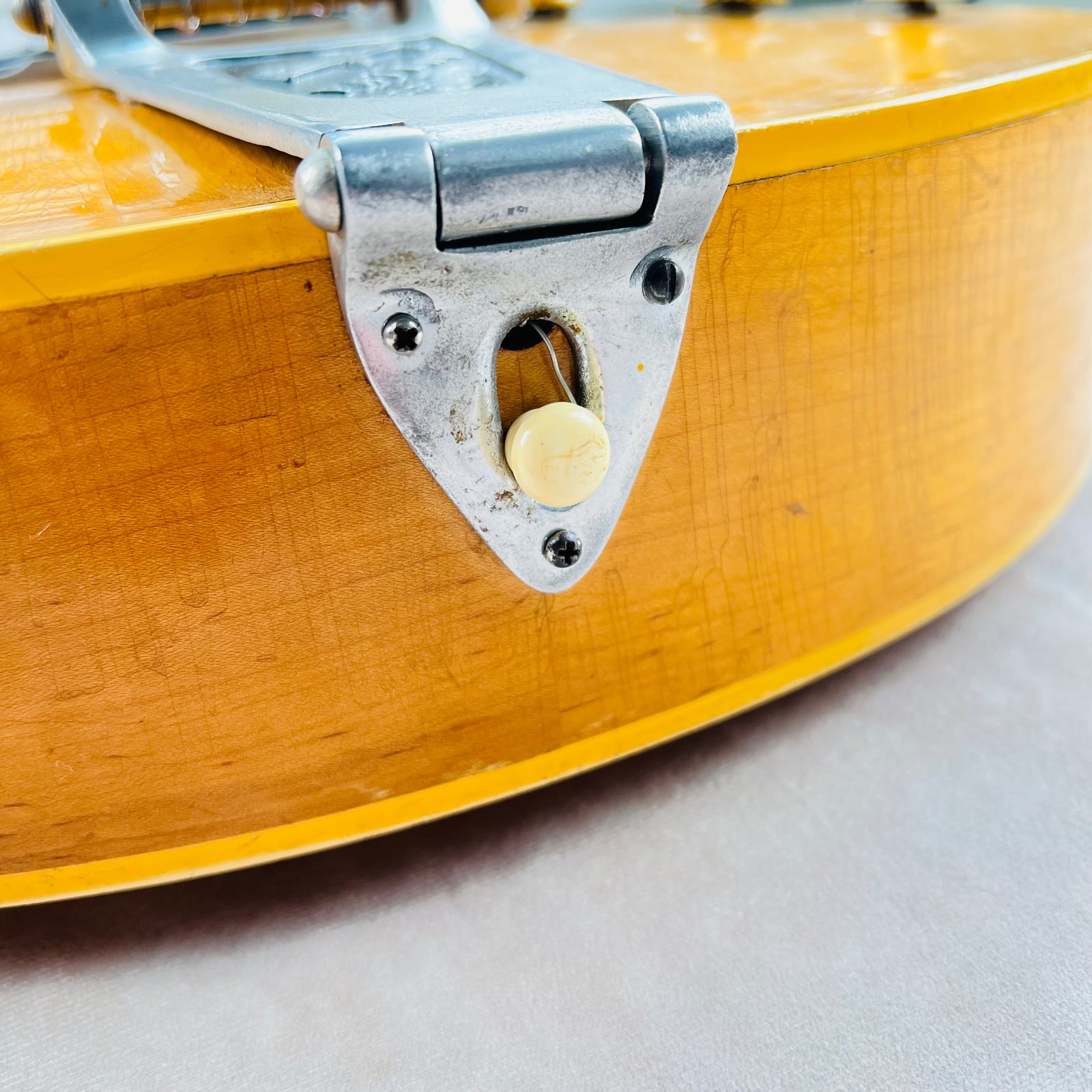

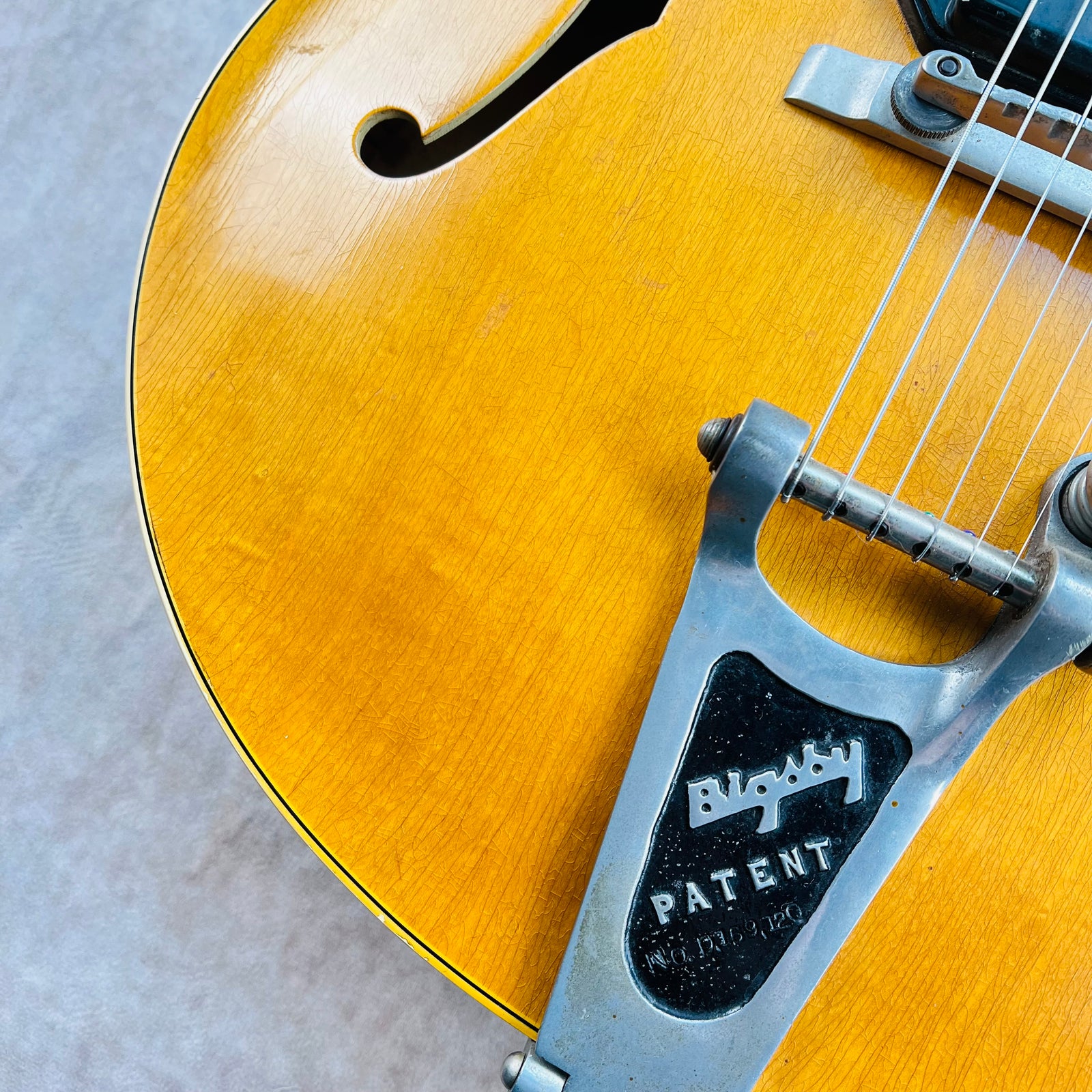

- Bigsby Vibrato Tailpiece
- Bigsby Aluminum Bridge & Base

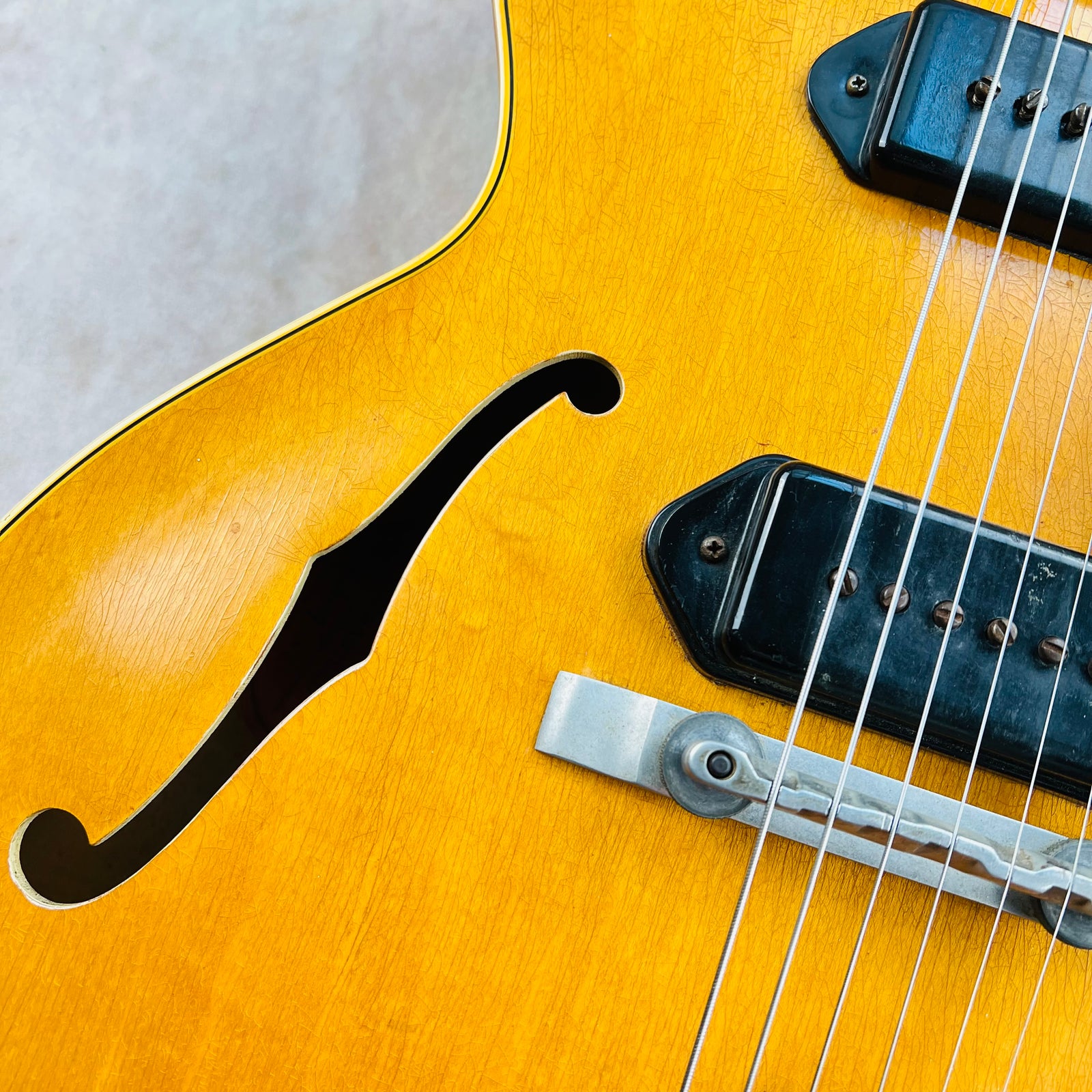

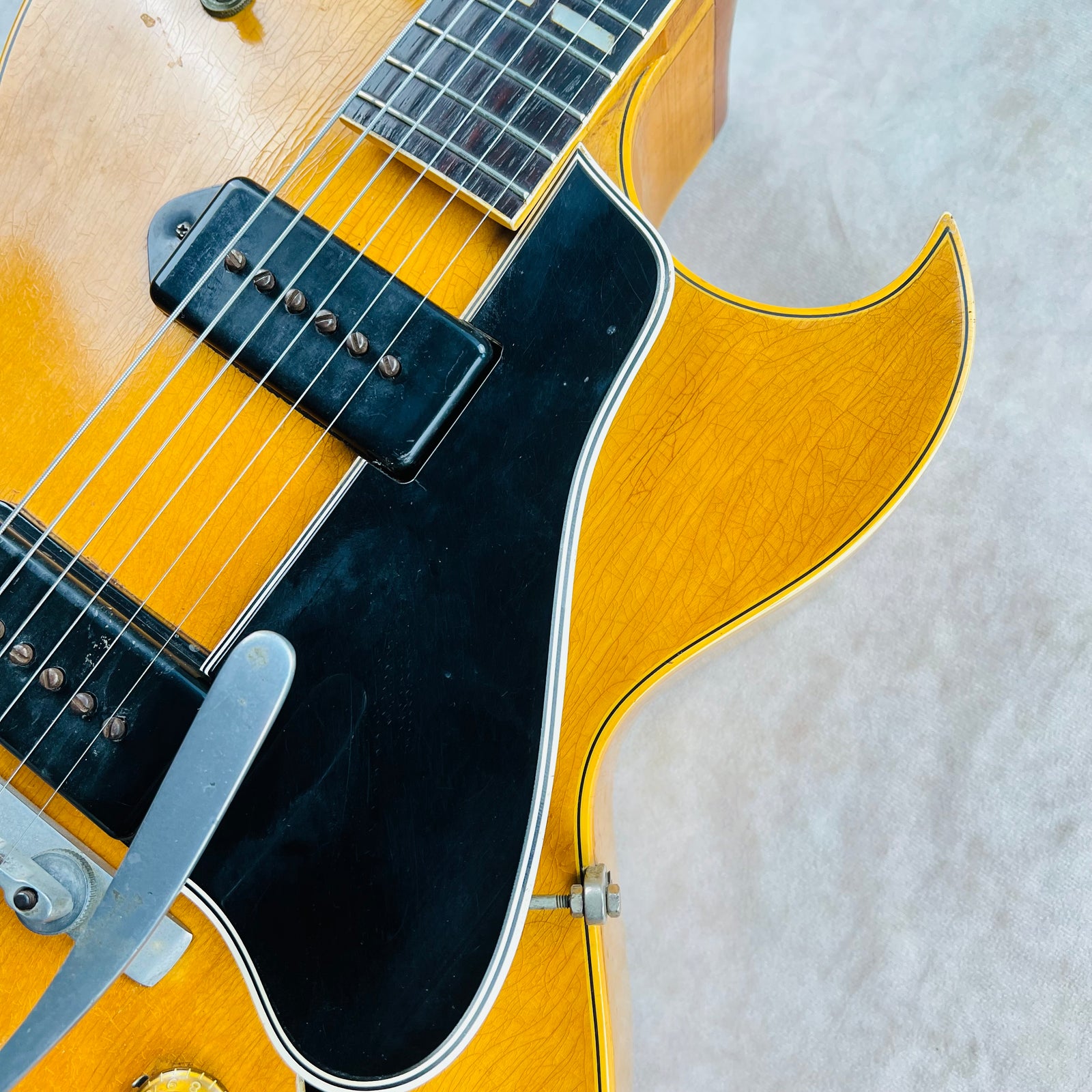

- Dual Dogear P-90 Pickups
- Multi-ply Black Pickguard

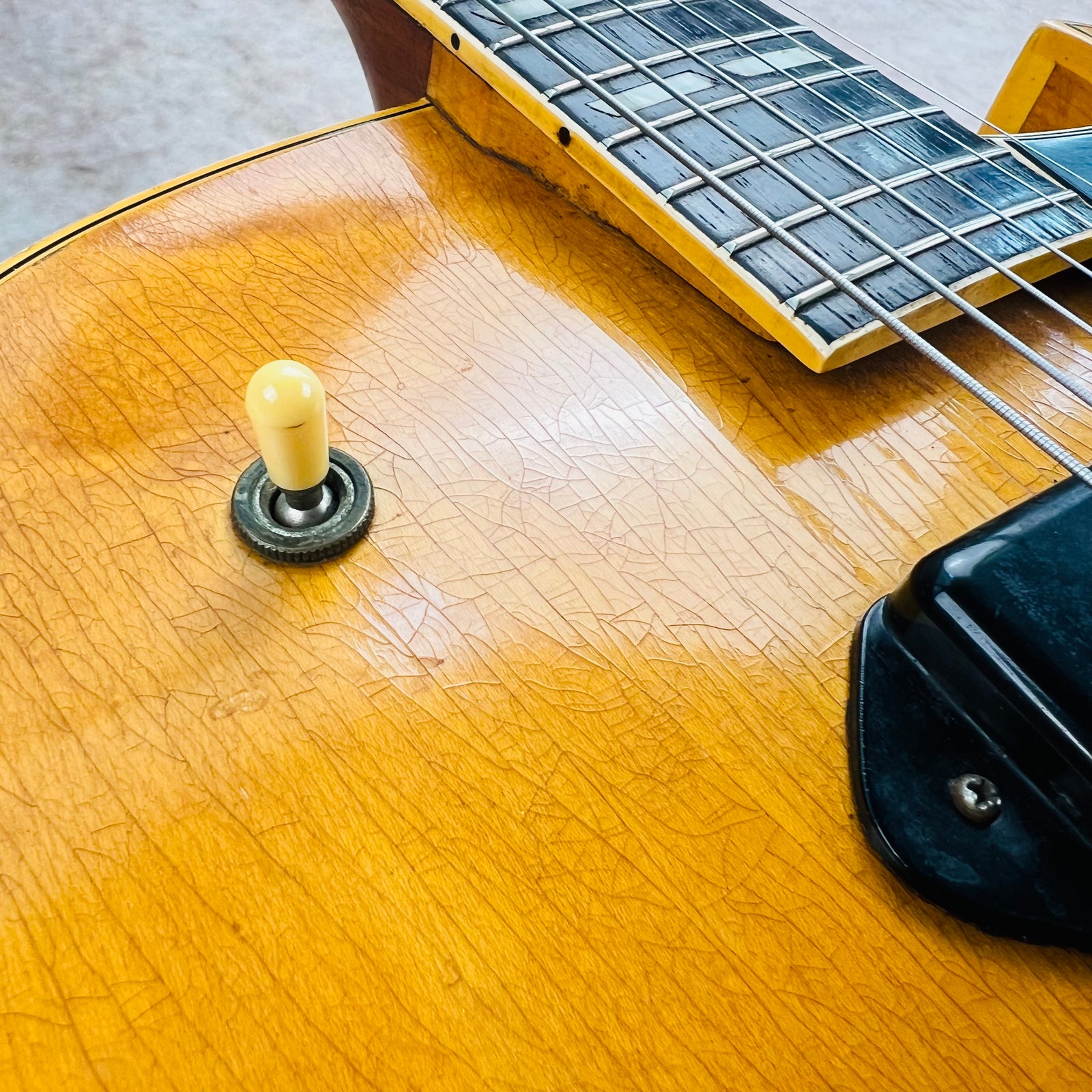

- 3-Way Toggle Switch

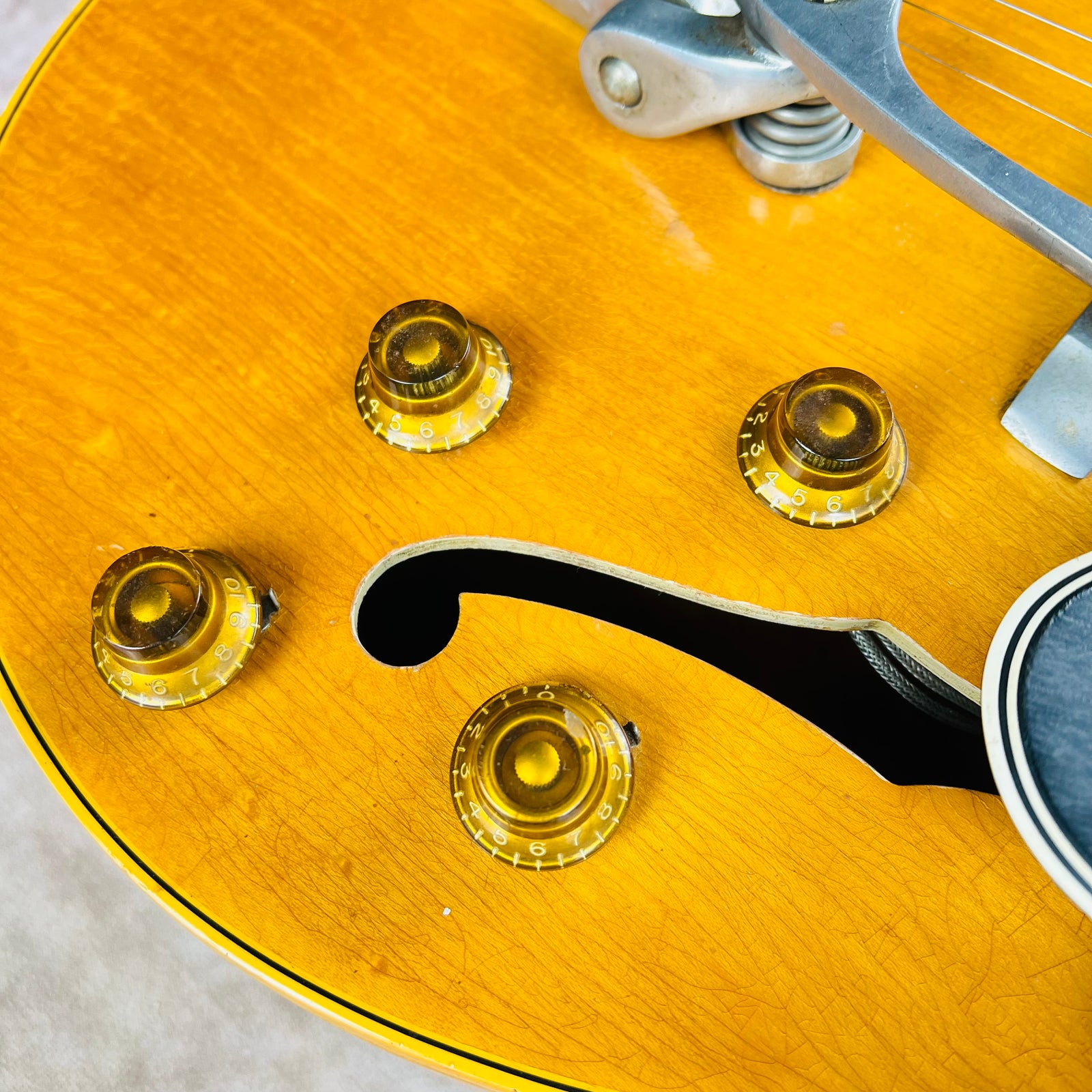

- Two Volume & Two Tone Controls
- 16 1/4" Lower Bout Width

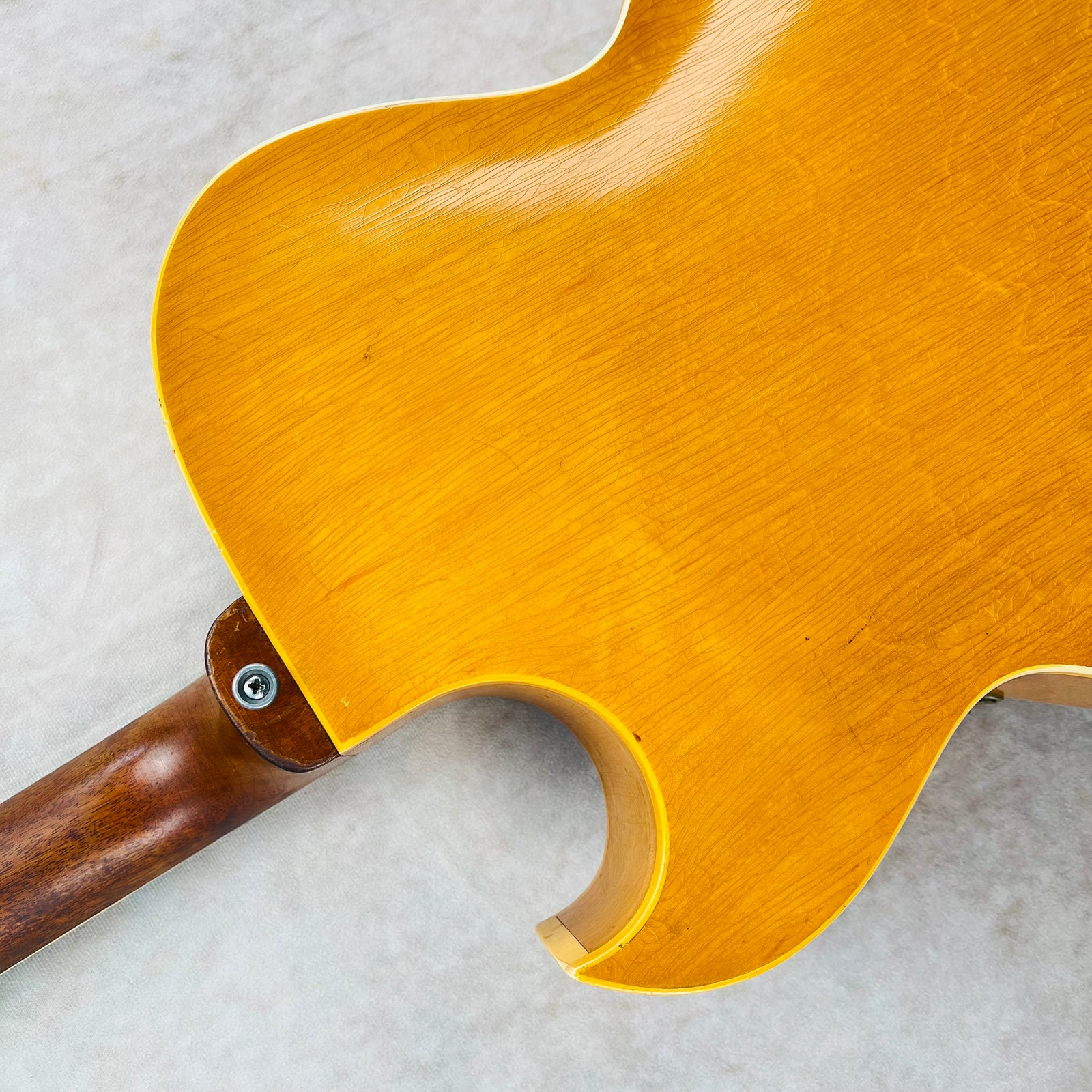

- Sharp Body Cutaway

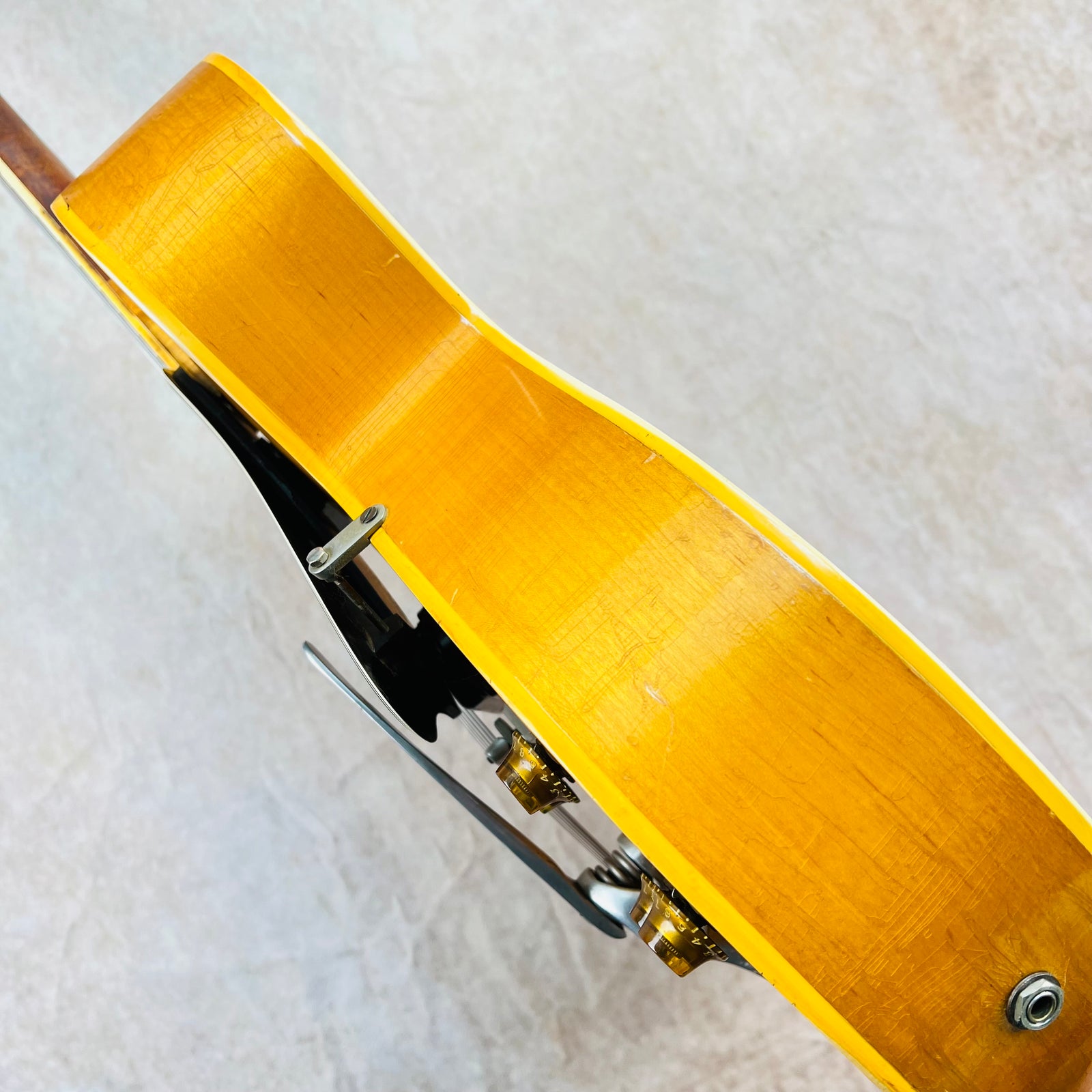

- Triple Bound Top
- Single Ply Back & Neck Binding
- Painted F Holes
- Blonde Lacquer Finish
Reference Images

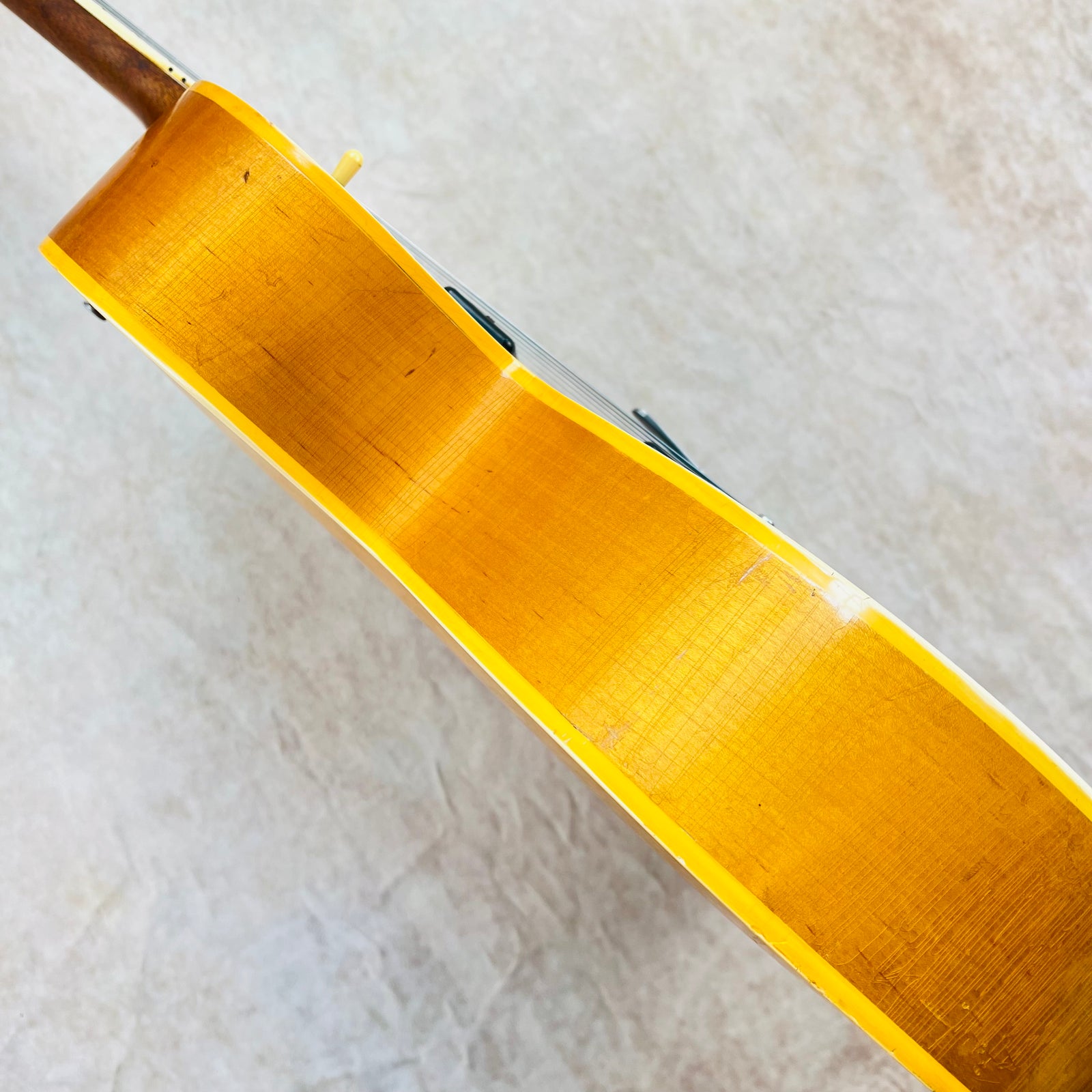

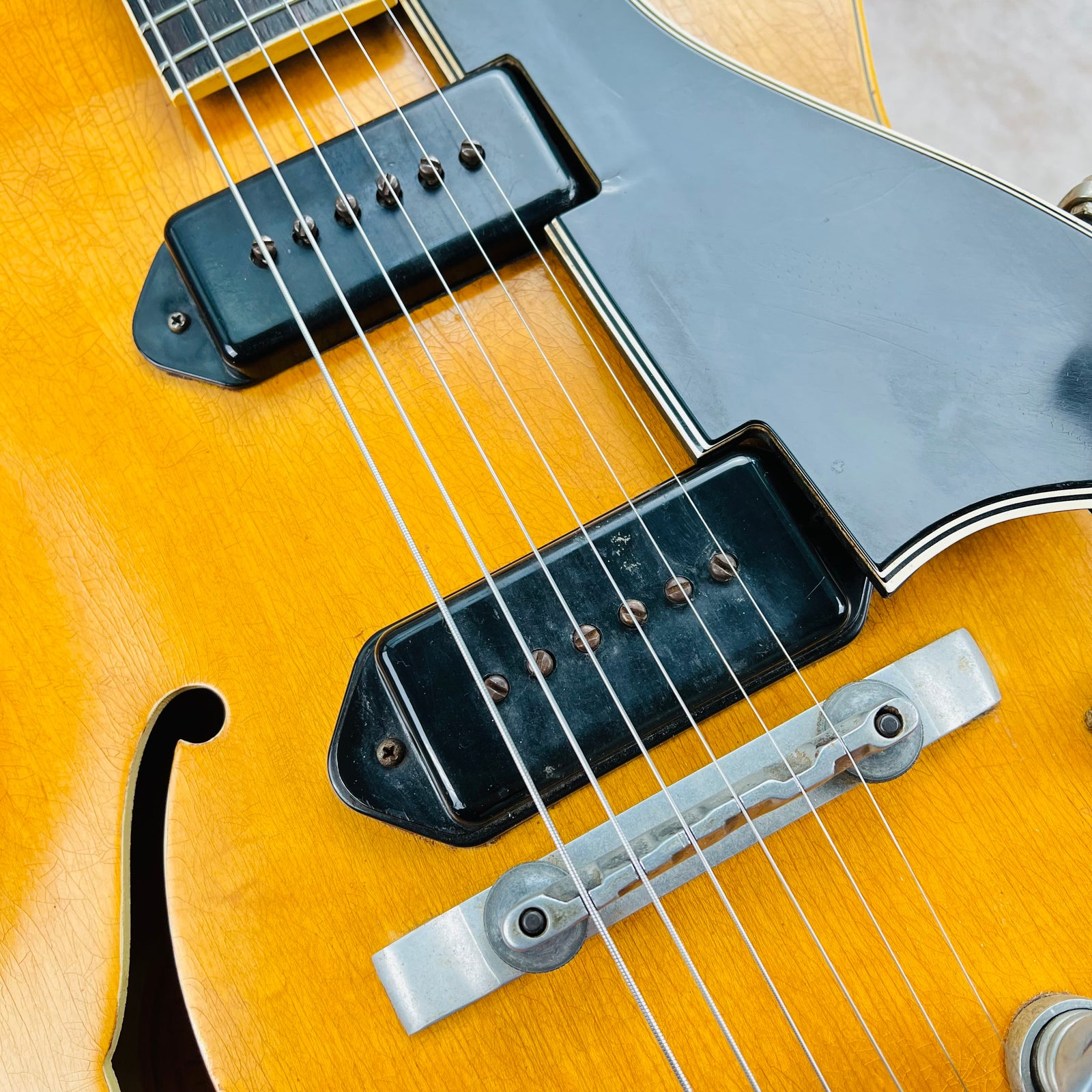

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the ES-175DN listed above. For larger pics, click on an image to open in a new tab.
