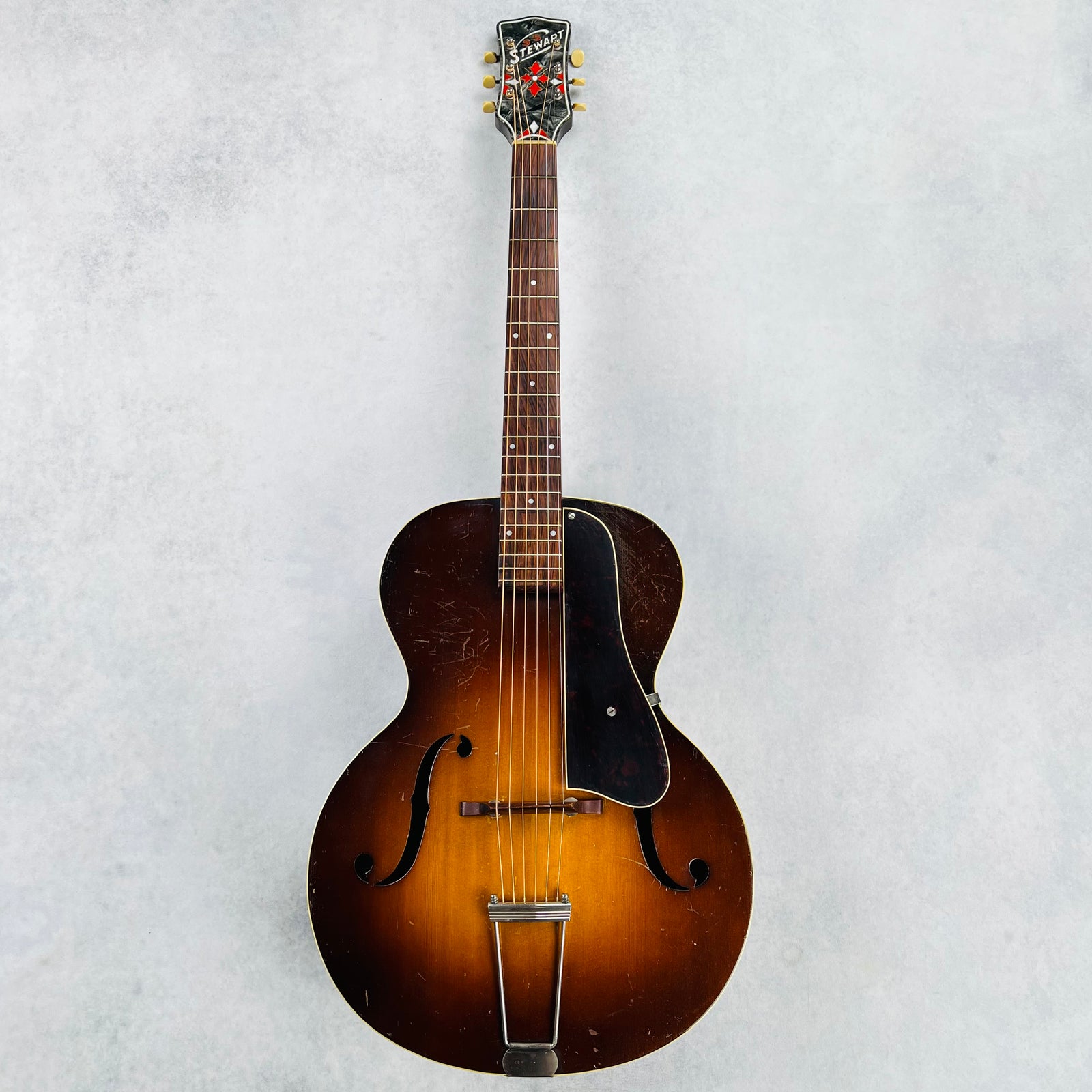

The Archtop Guitar is an acoustic guitar built by S.S. Stewart. This archtop guitar was manufactured in the United States and is a S.S. Stewart Vintage Guitar model. Key features include Spruce Top, Laminate Birch/Maple Body, Rosewood Bridge, Trapeze Tailpiece, Rosewood Fingerboard and Sunburst finish. The specs listed below pertain to the 1940s product year model pictured on this page.
Factory Specs
- Spruce Top

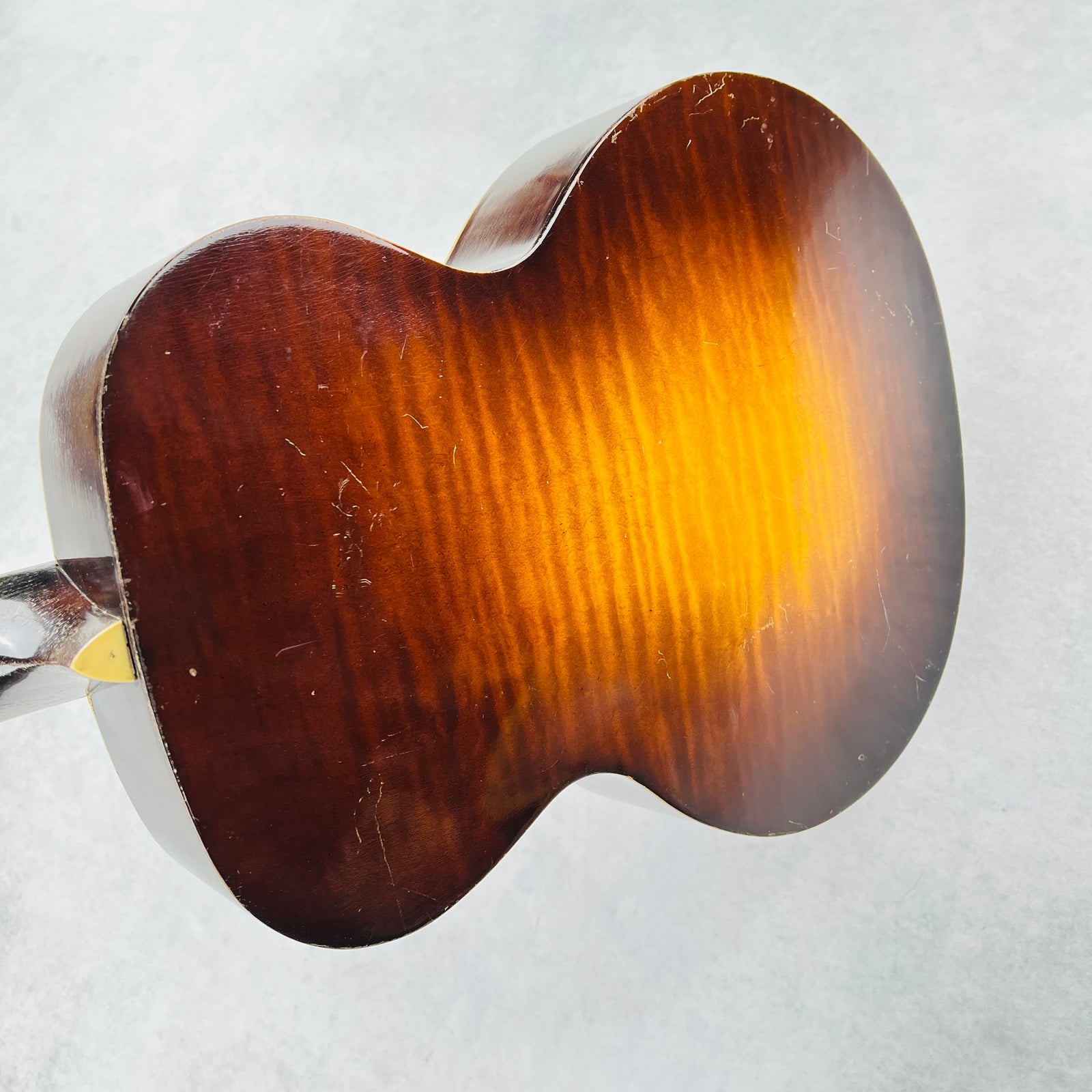

- Laminate Birch/Maple Body

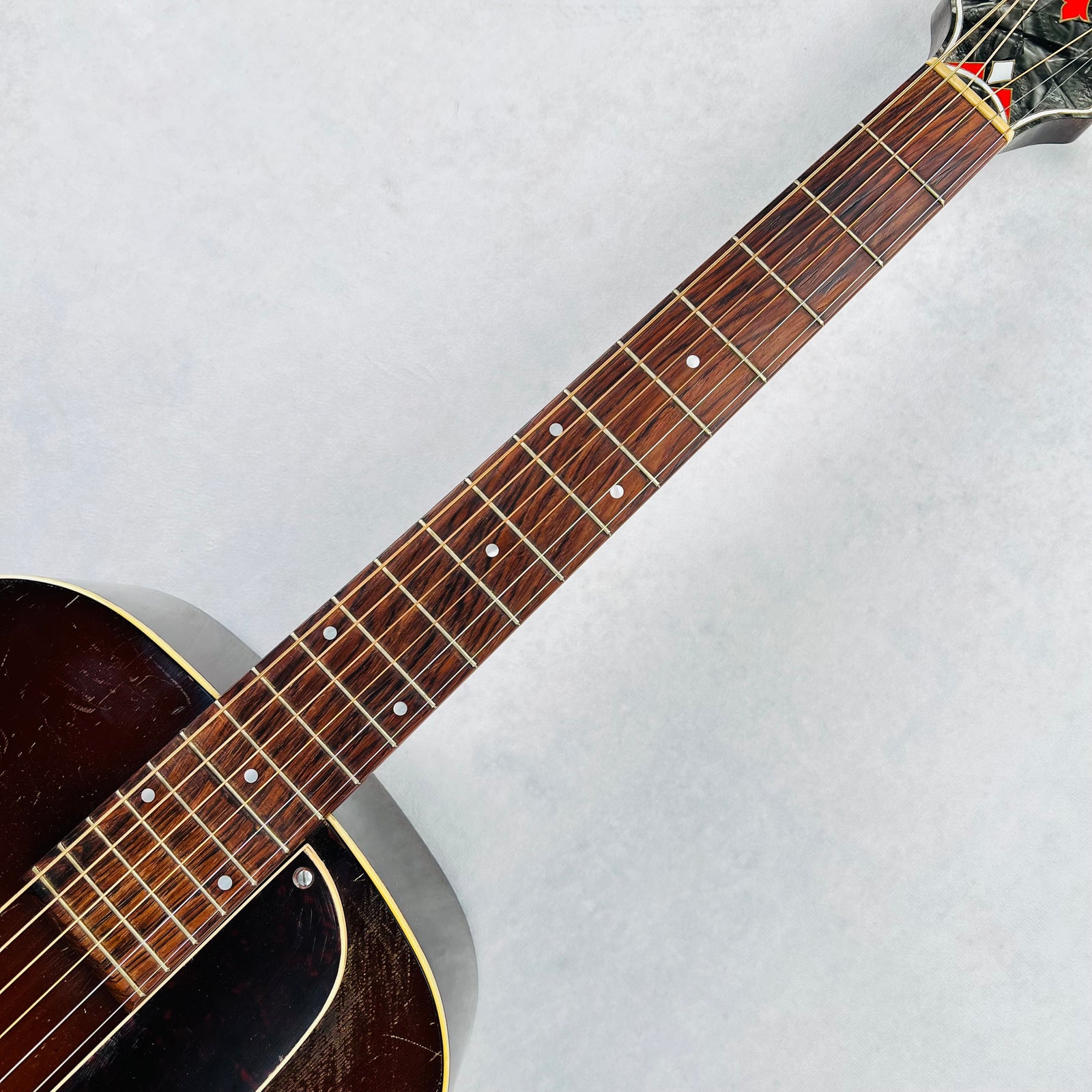

- Rosewood Fingerboard
- Adjustable Rosewood Bridge
- Trapeze Tailpiece

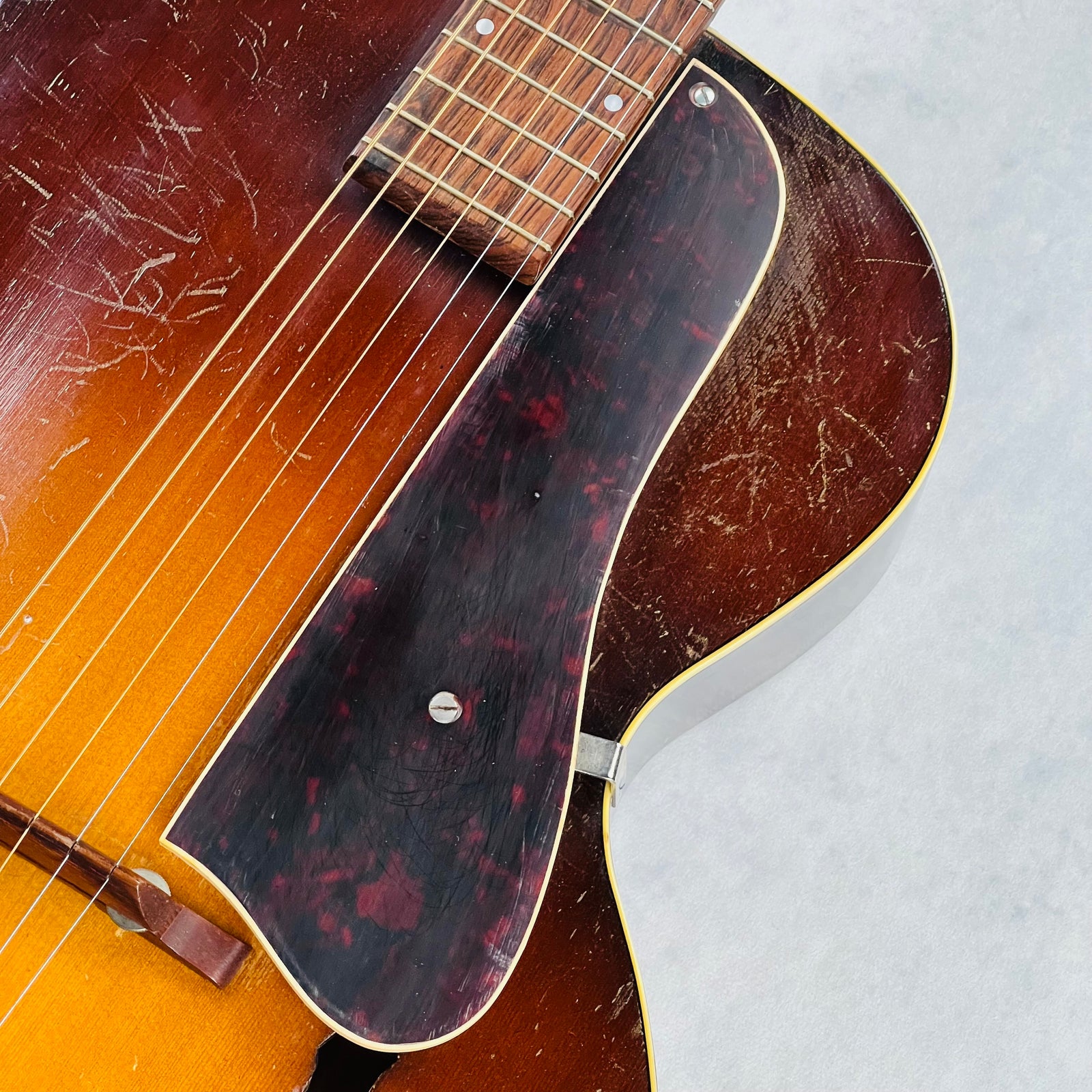

- Tortoise Guard
- 20 Frets
- Narrow Tall Wire
- Dot Inlays
- Open Gear Strip Tuners
- White Buttons
- 25" Scale Length
- 1 11/16" Nut Width
- 15 3/4" Lower Bout Width
- 3 1/2" Body Depth
- MOP Headstock Veneer
- Parallel Braced Top
Reference Images

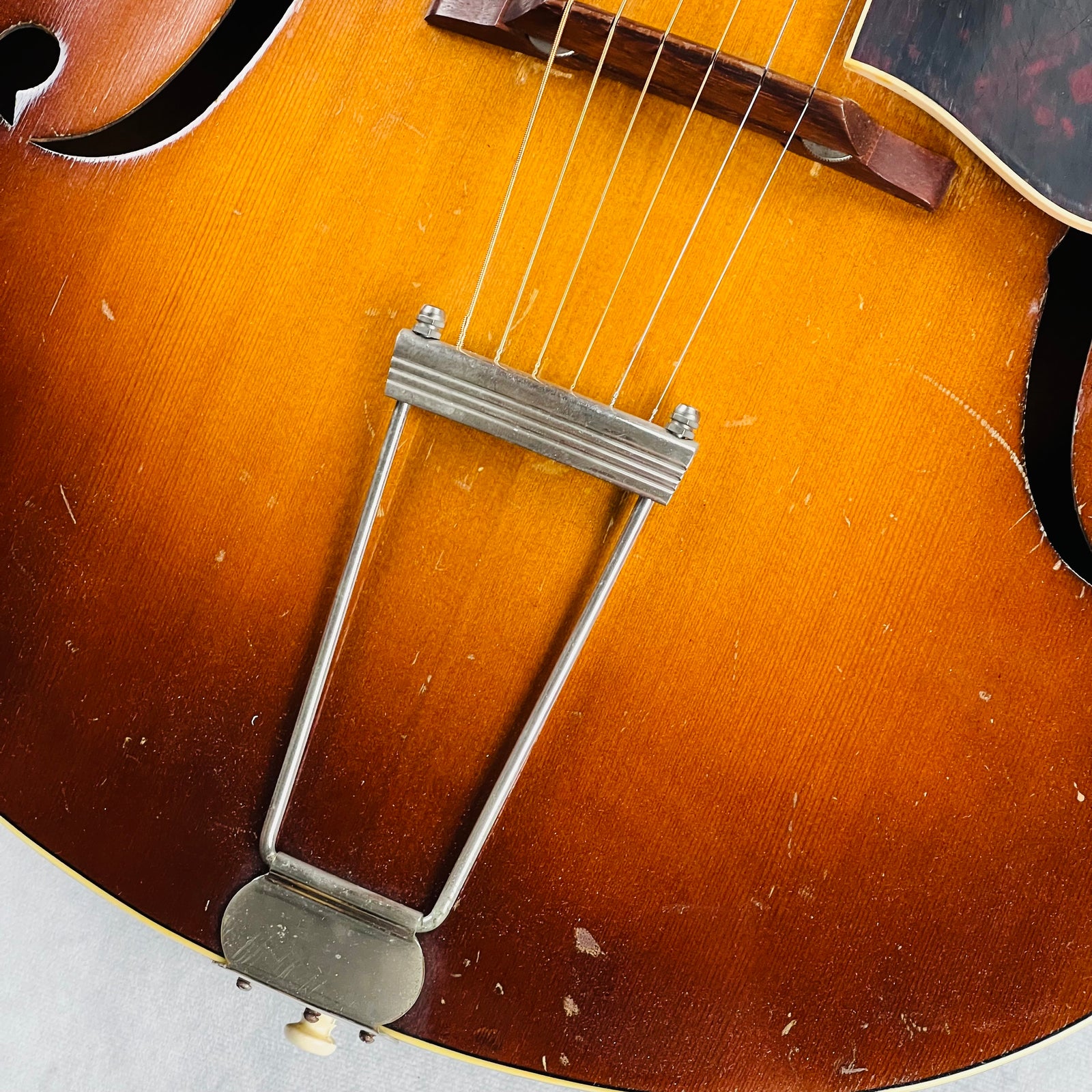

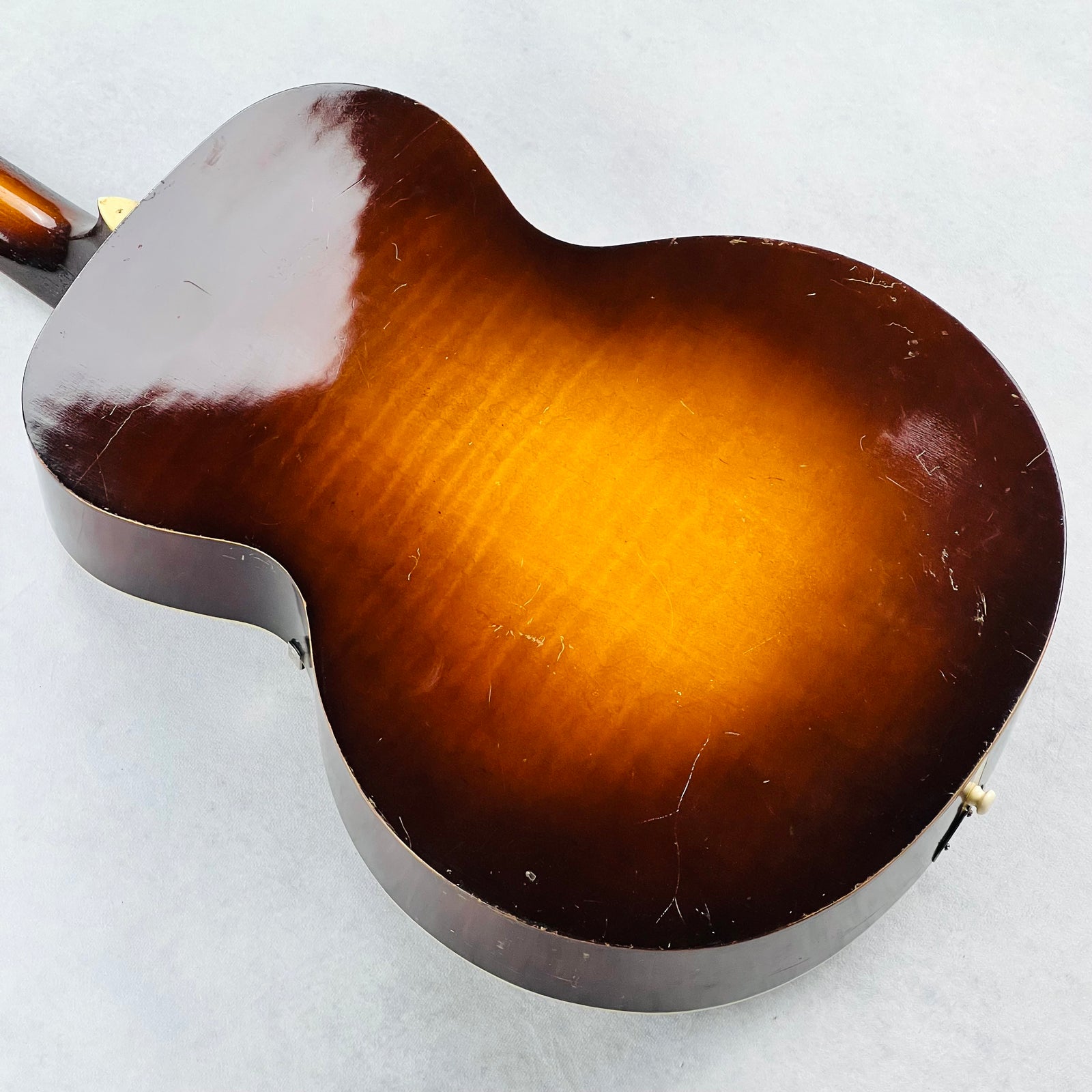

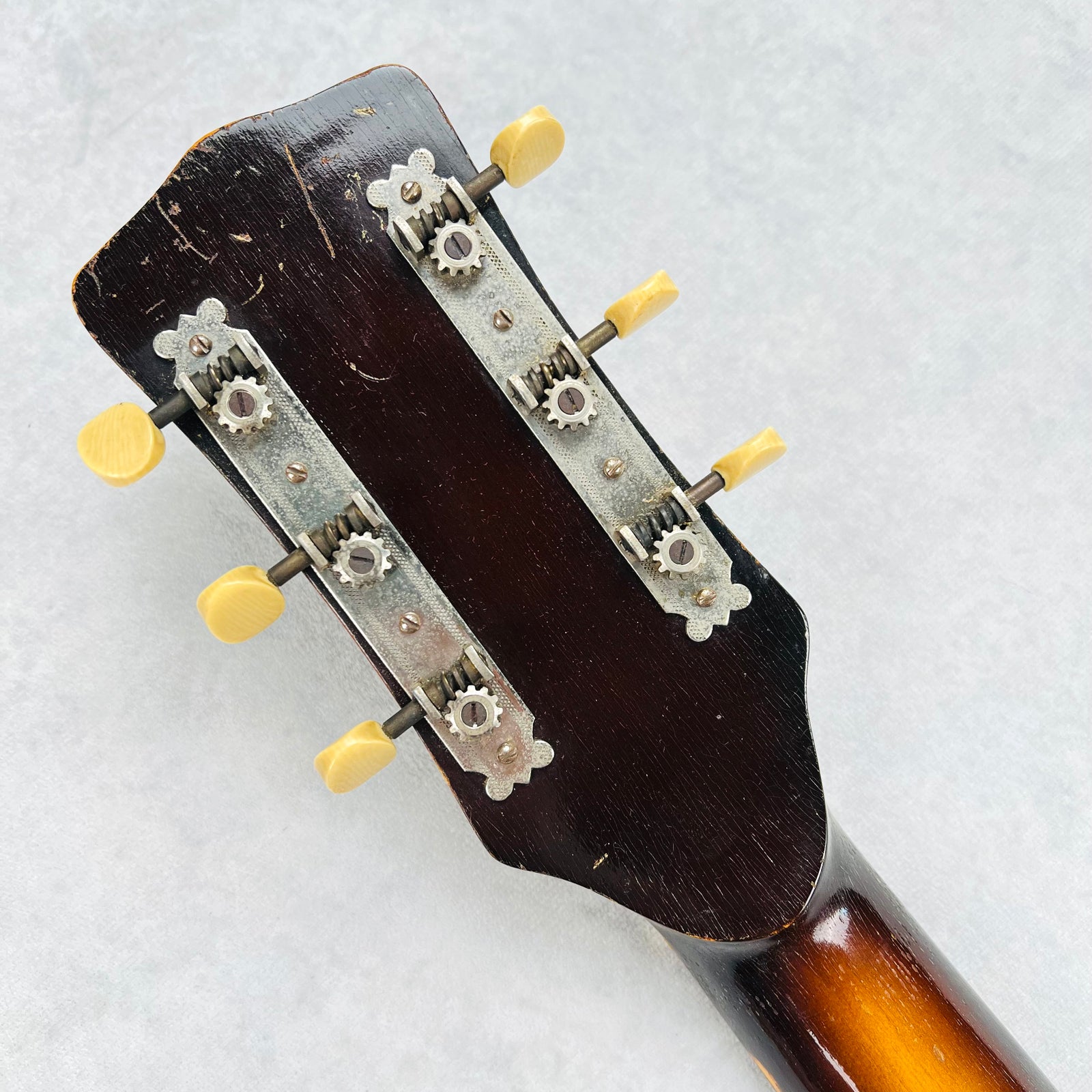

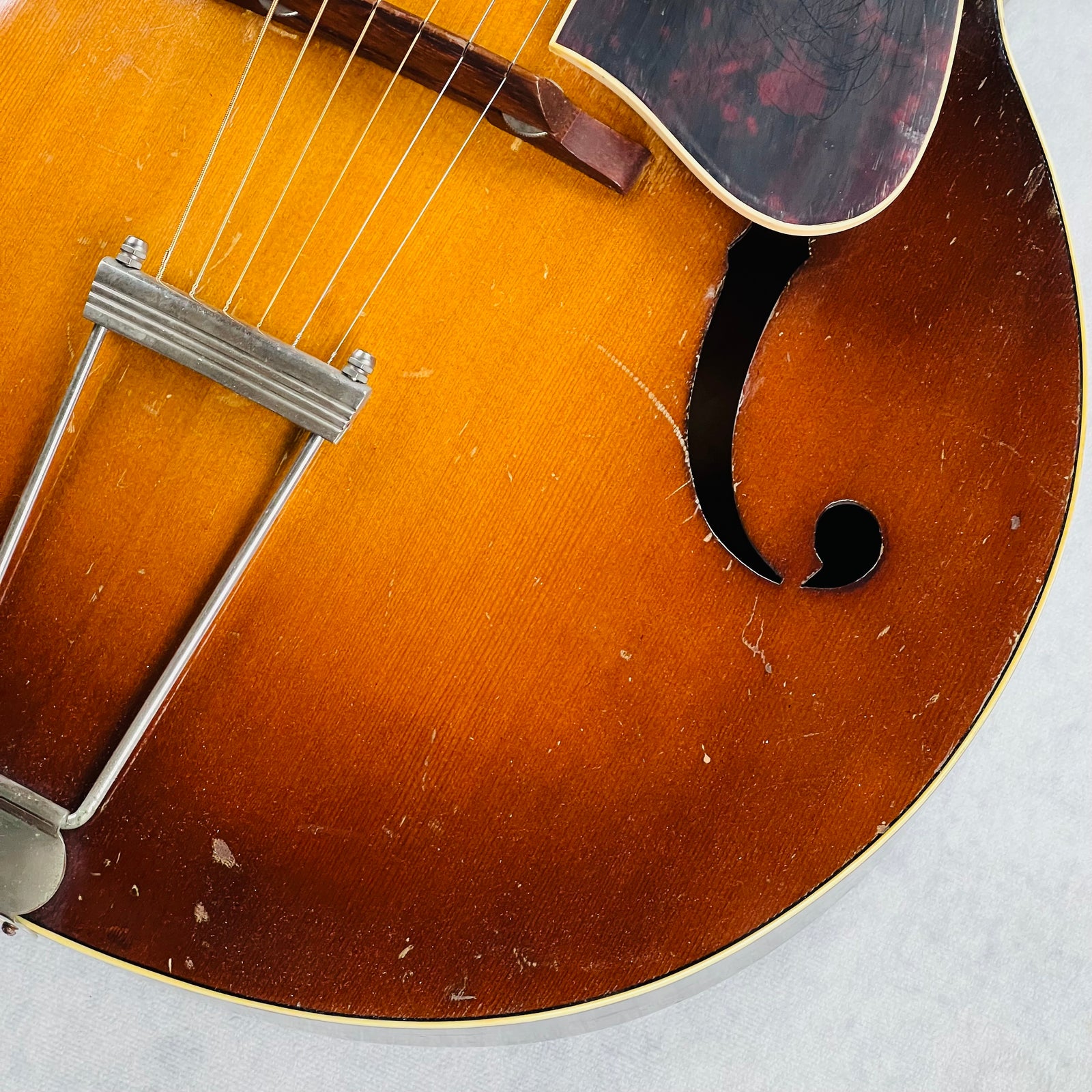

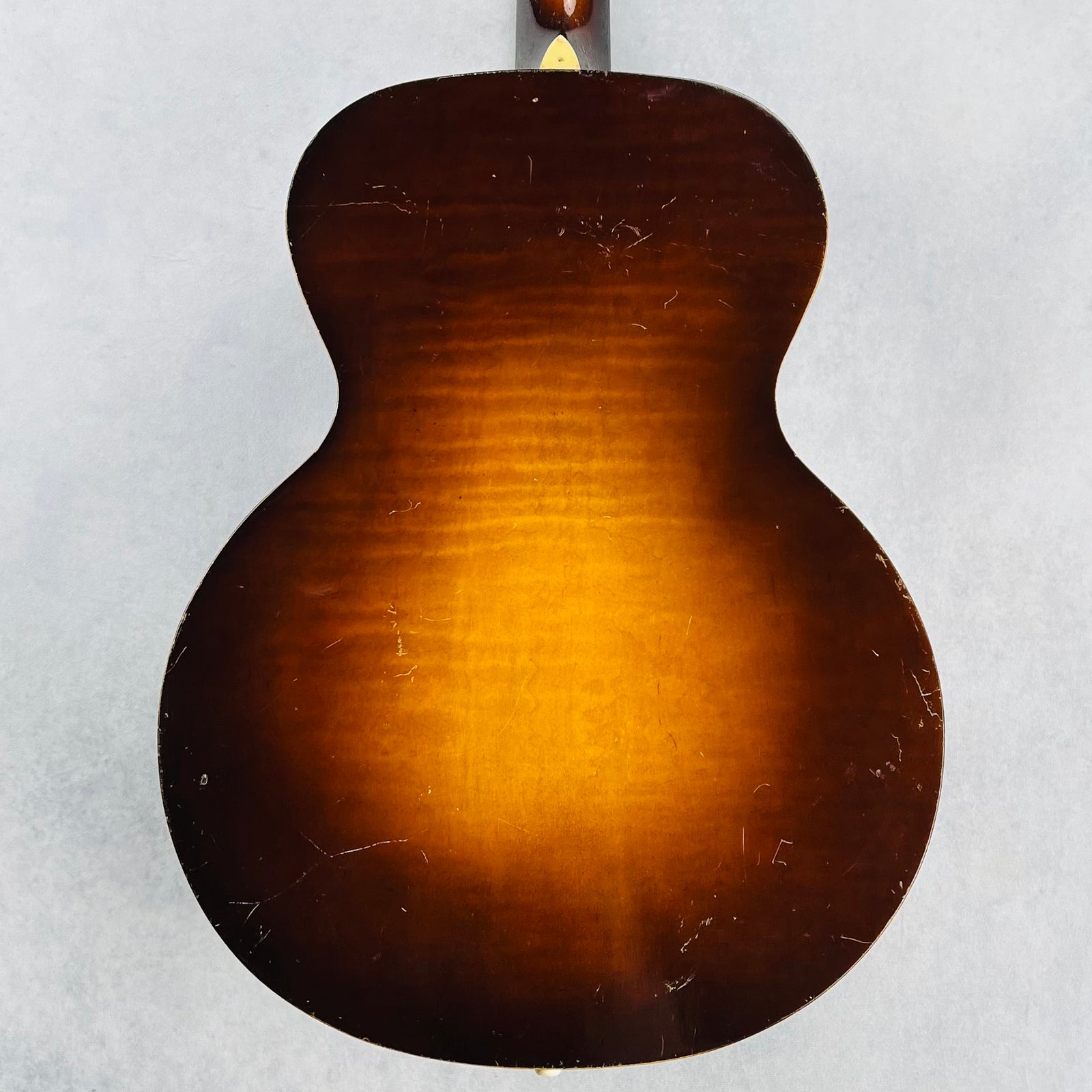

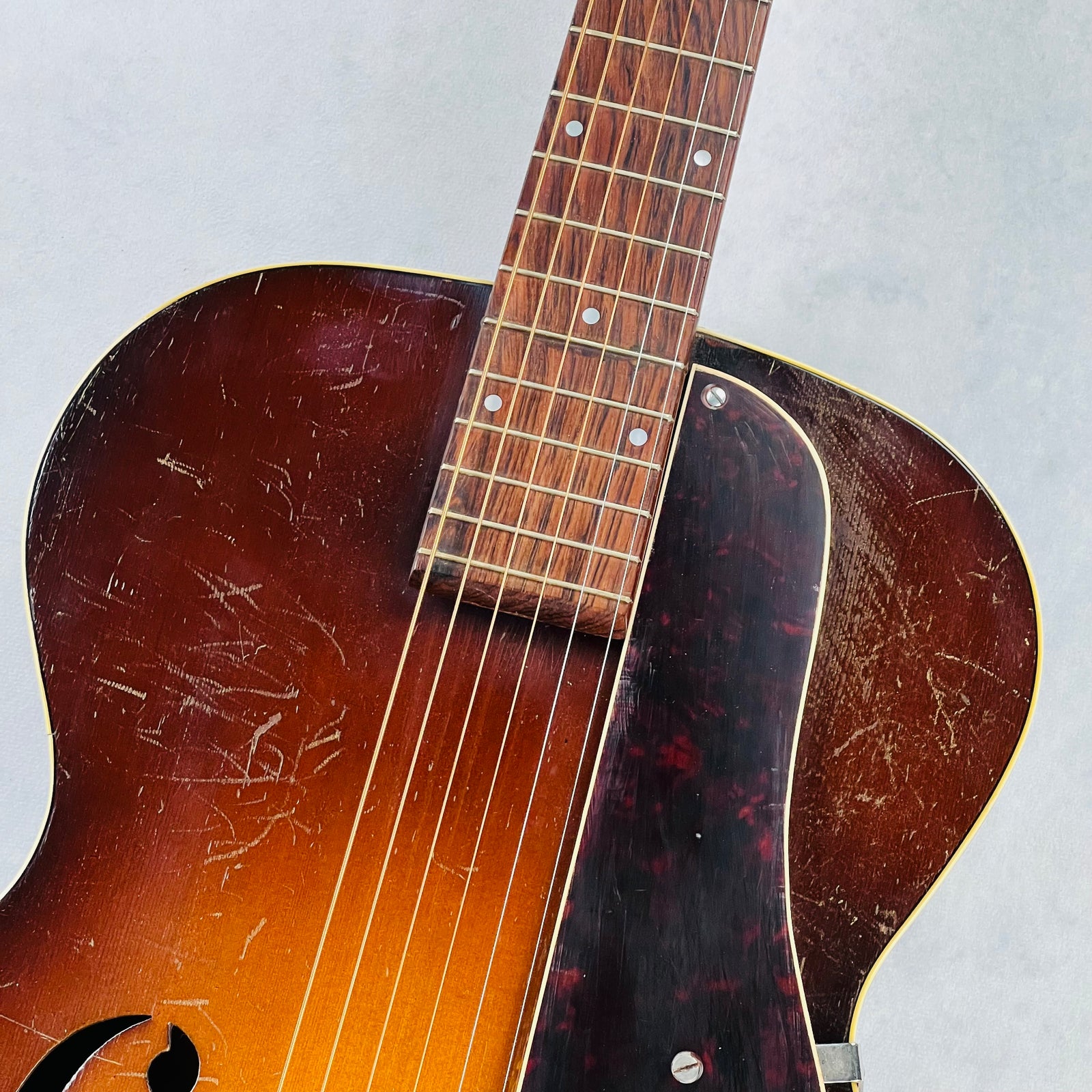

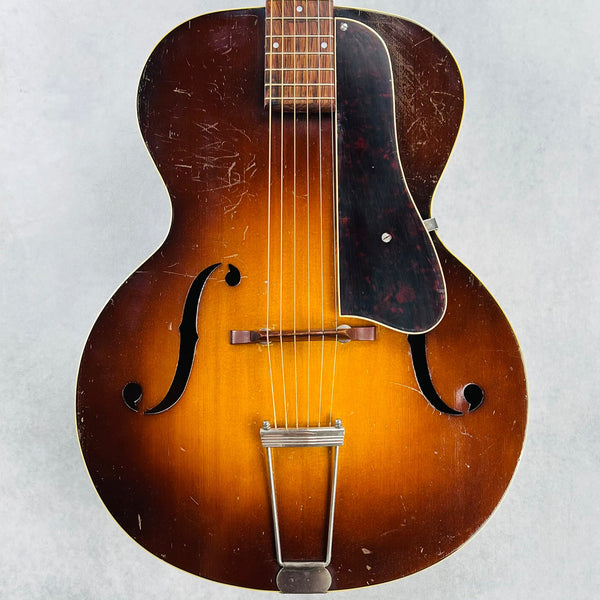

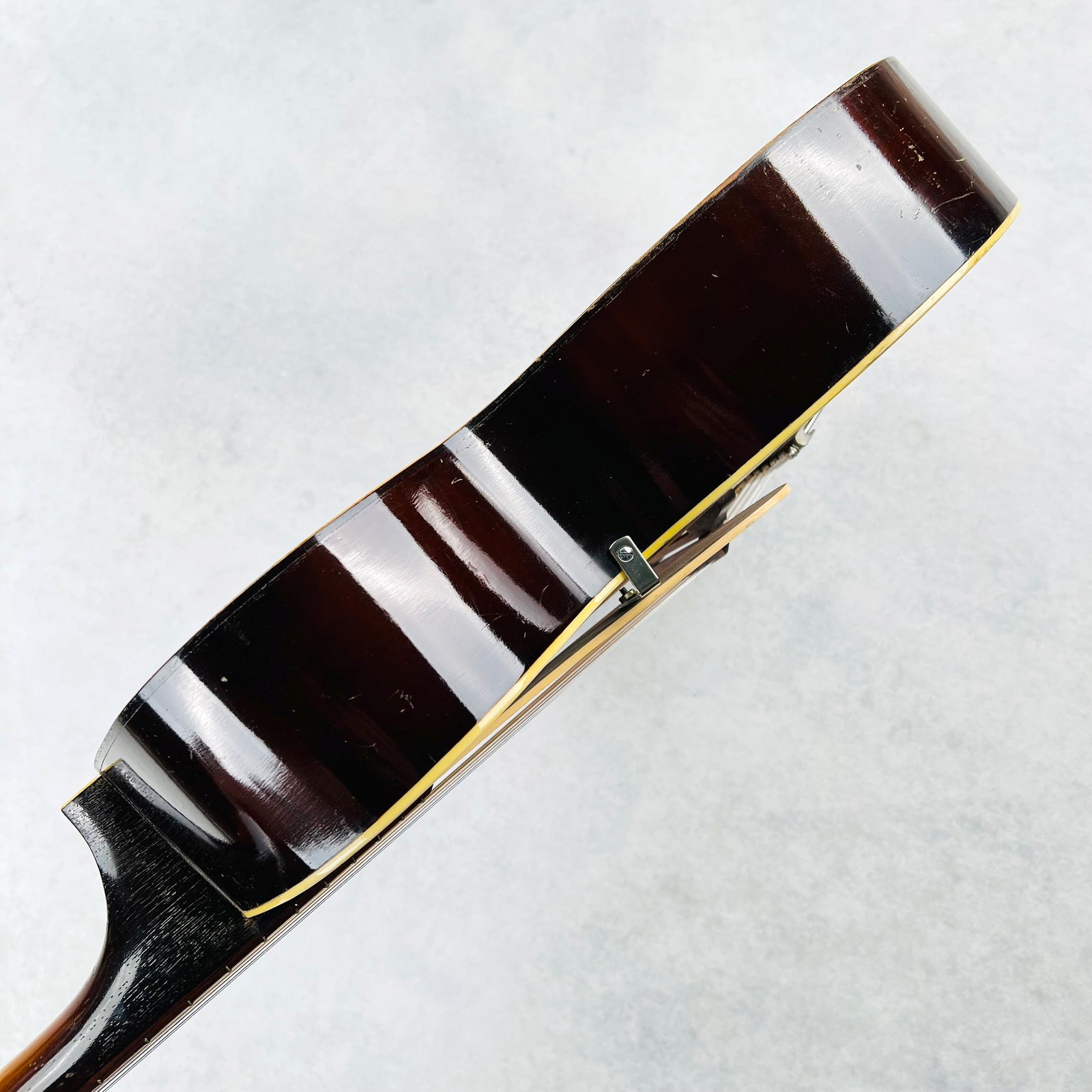

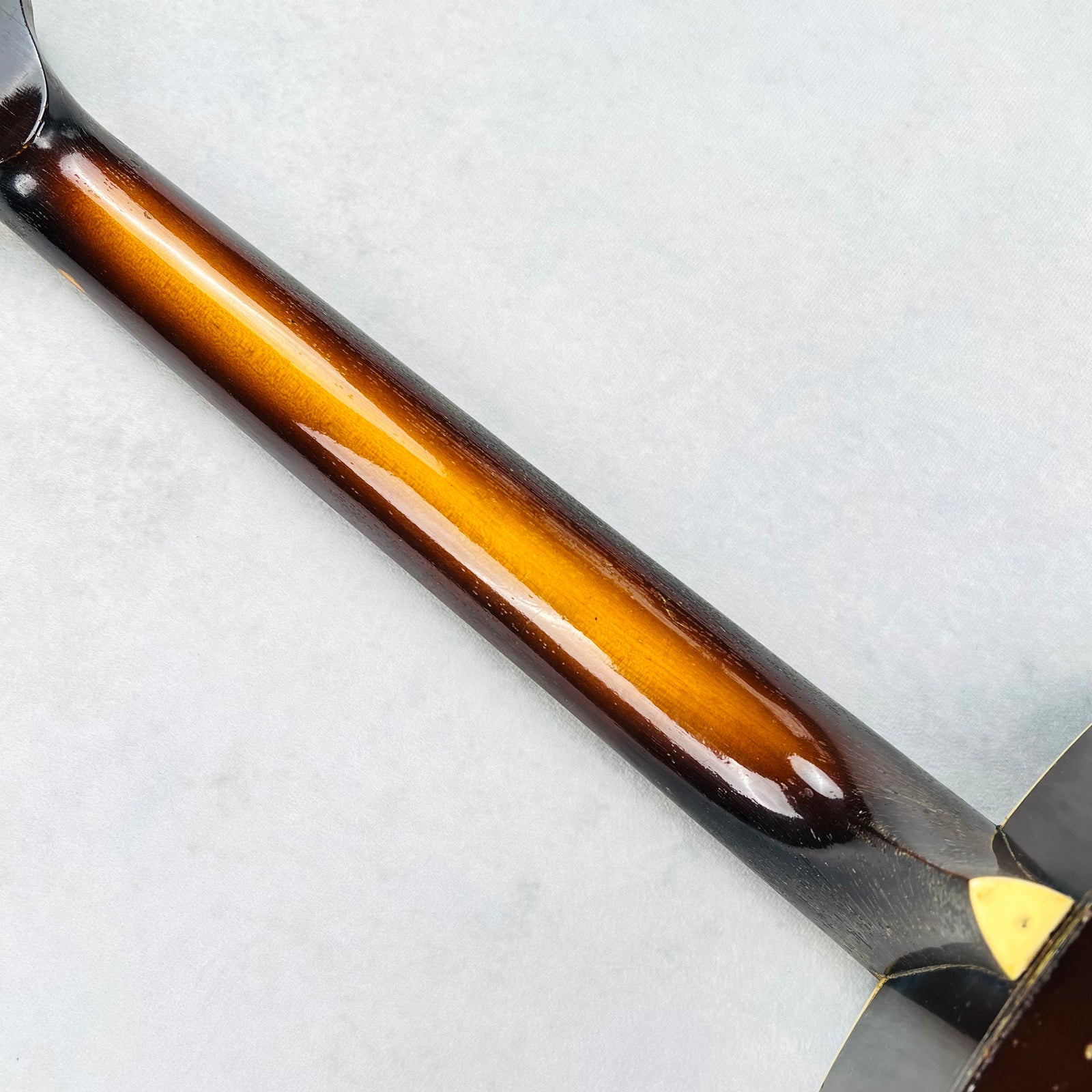

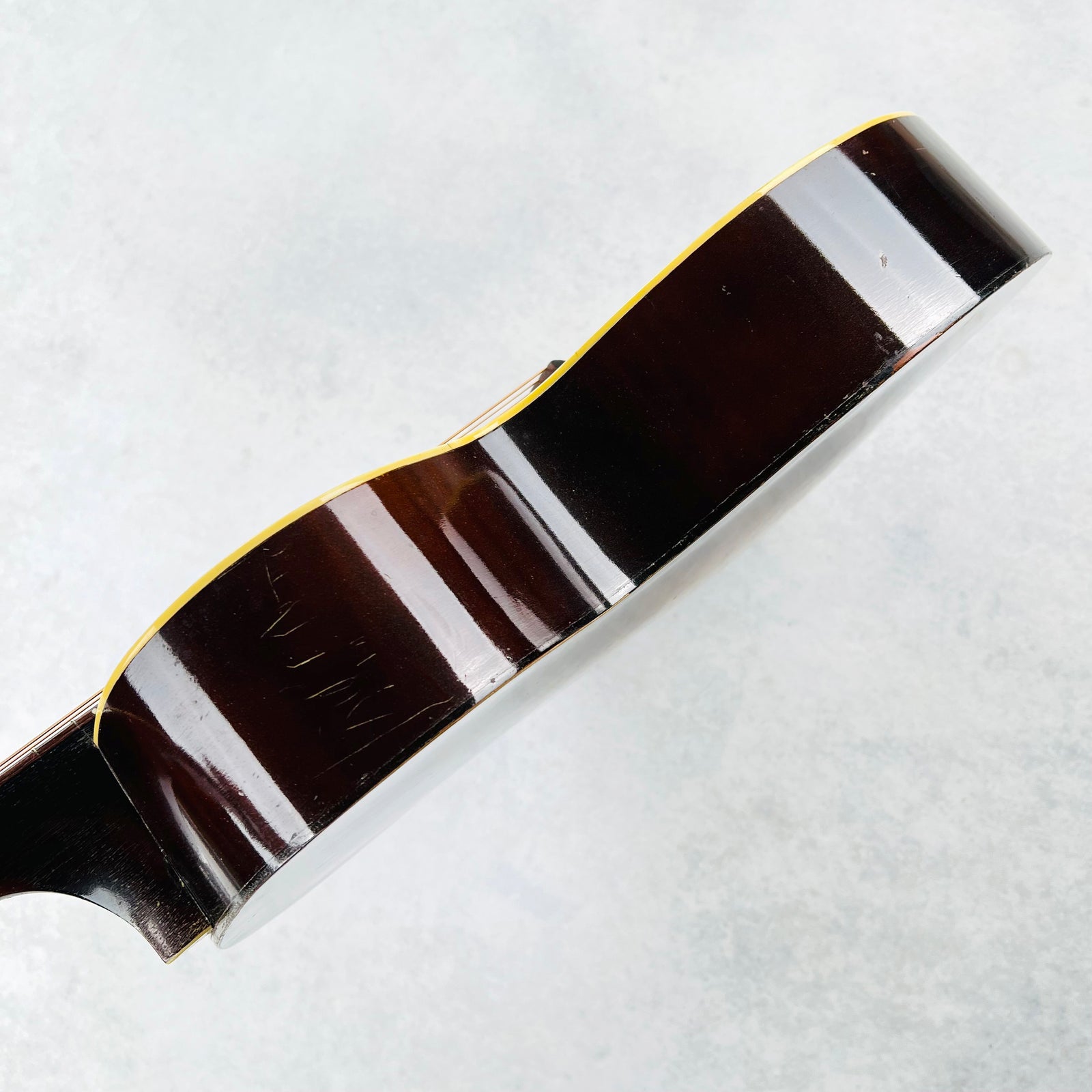

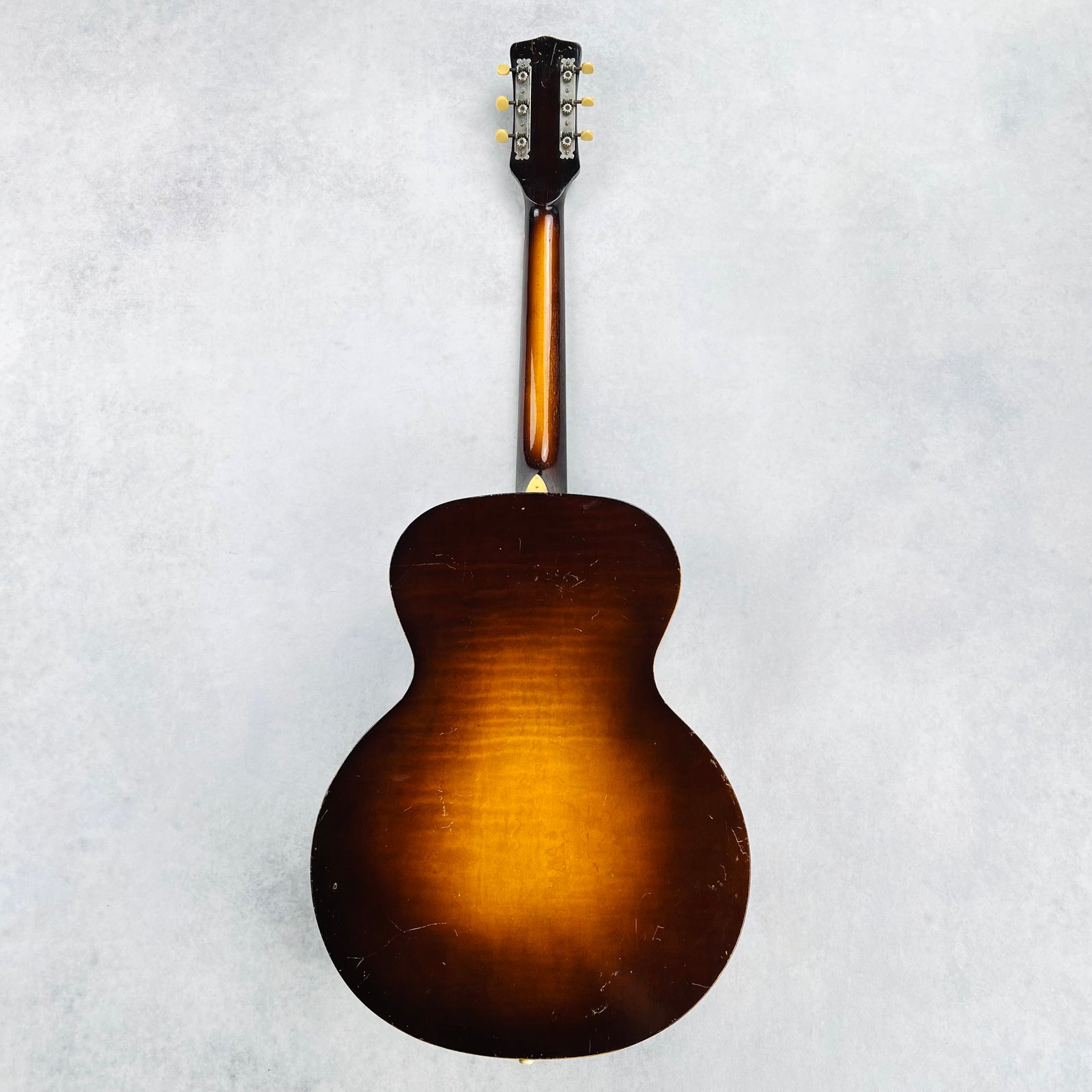

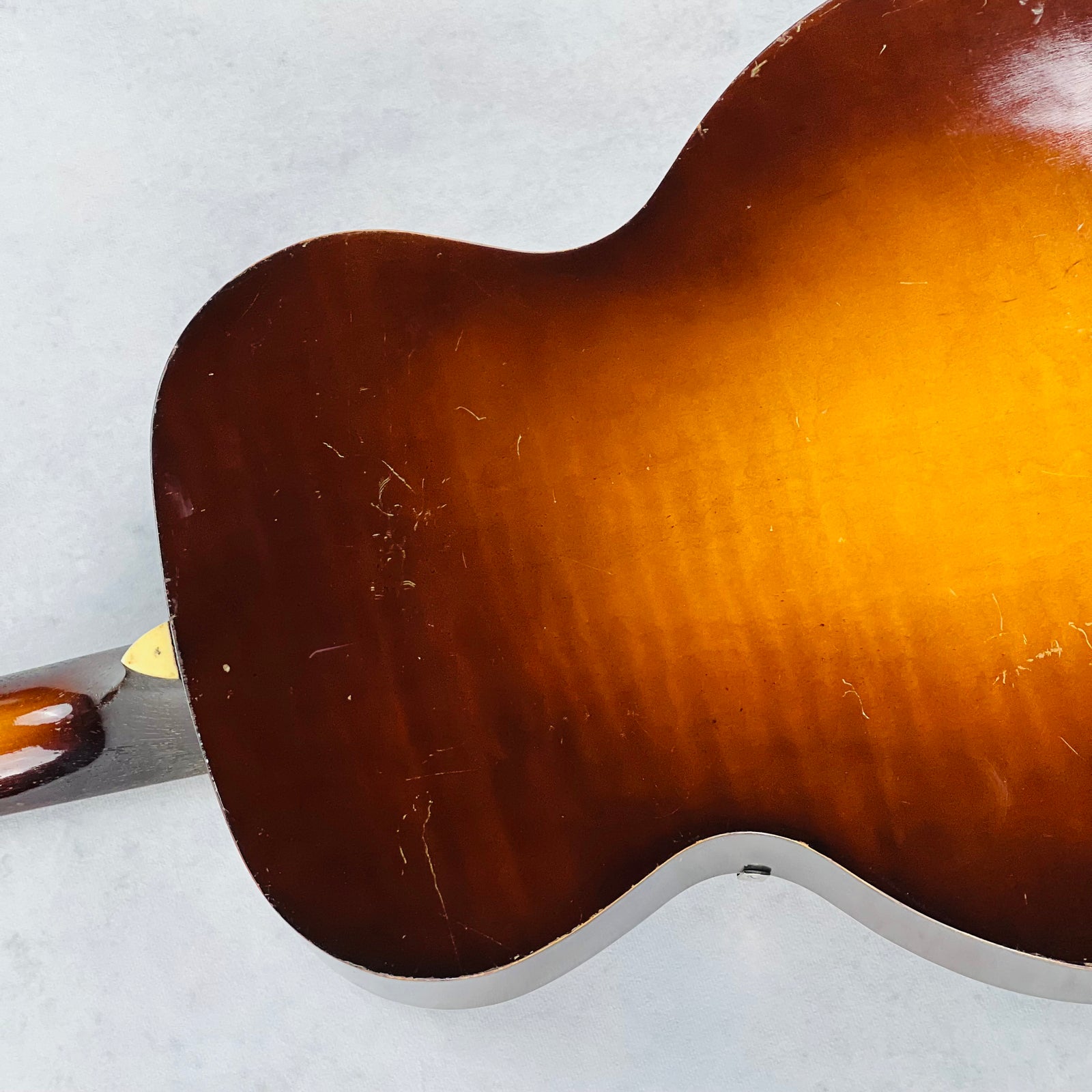

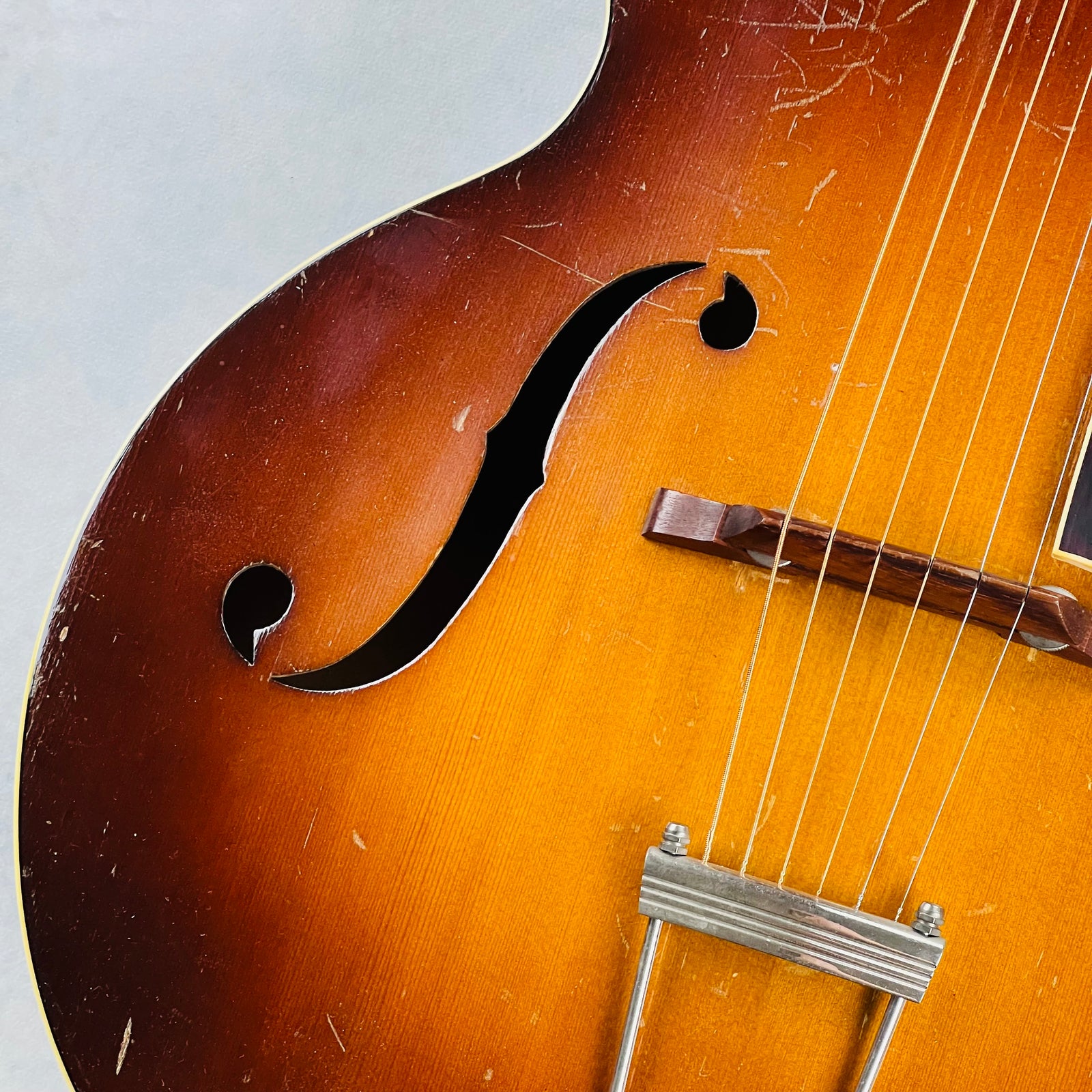

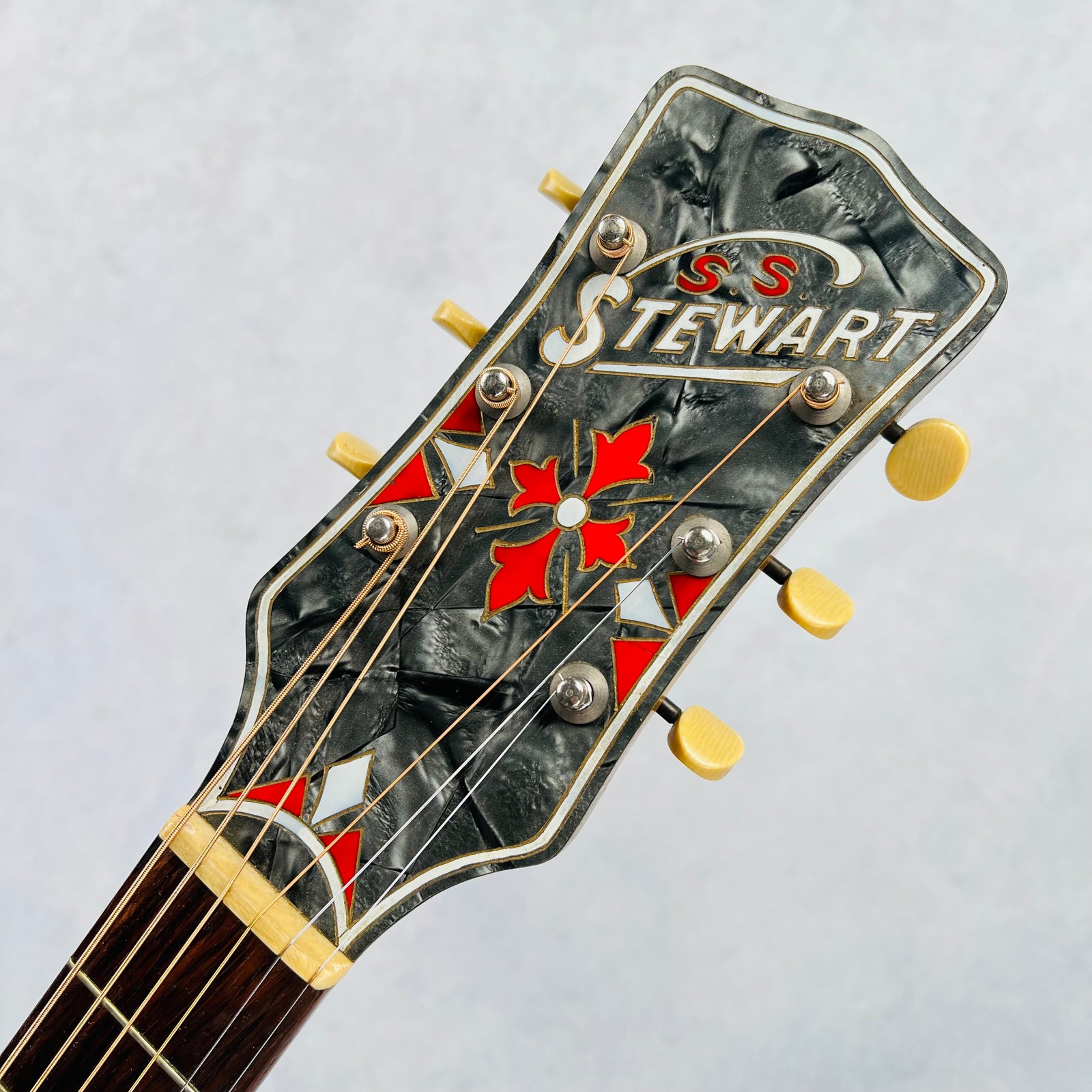

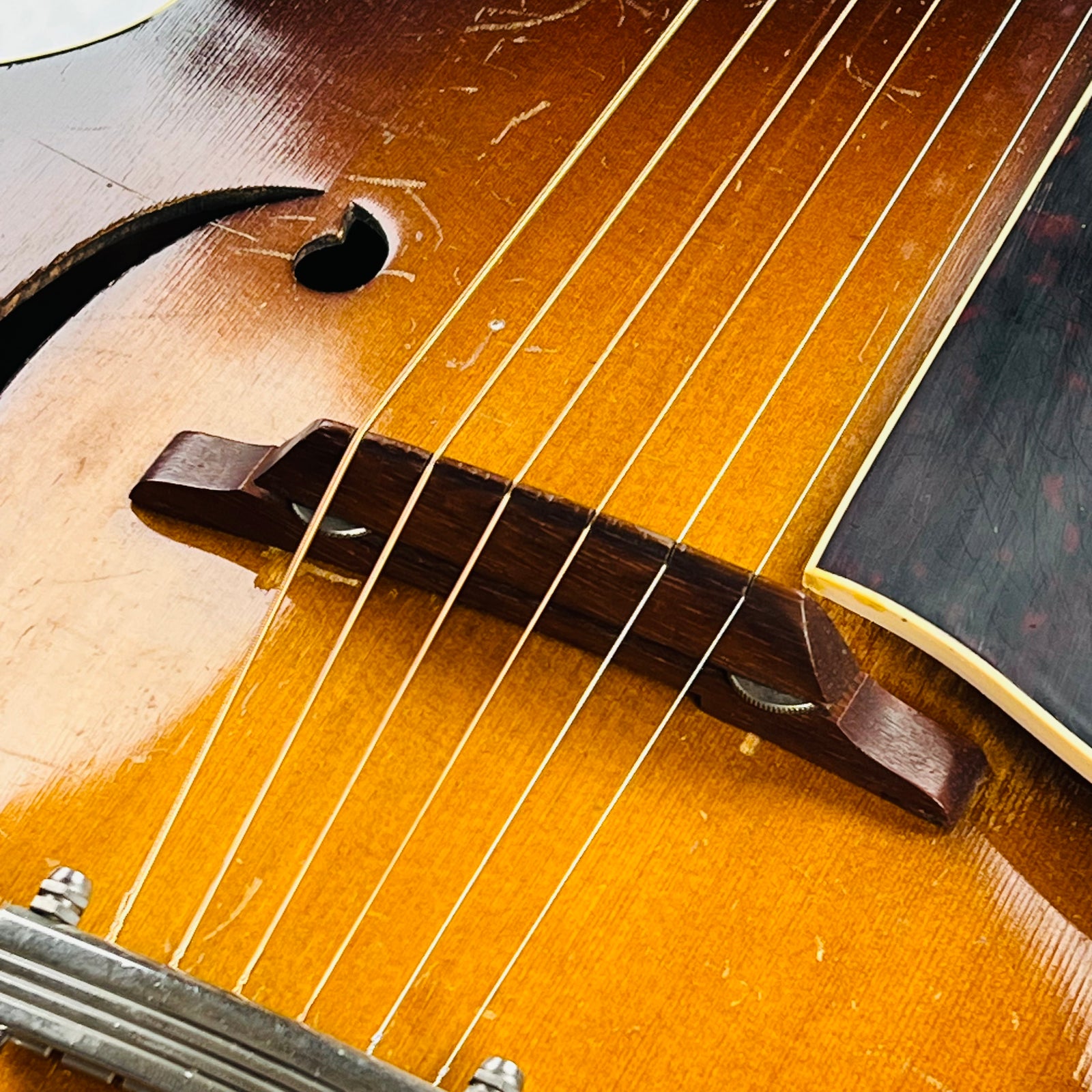

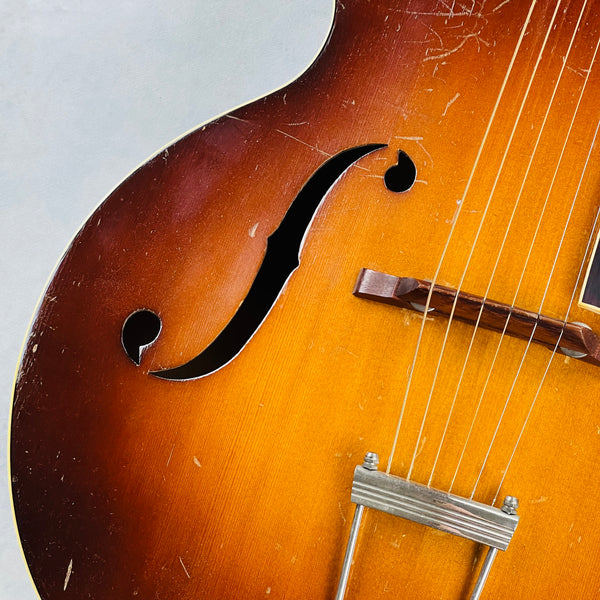

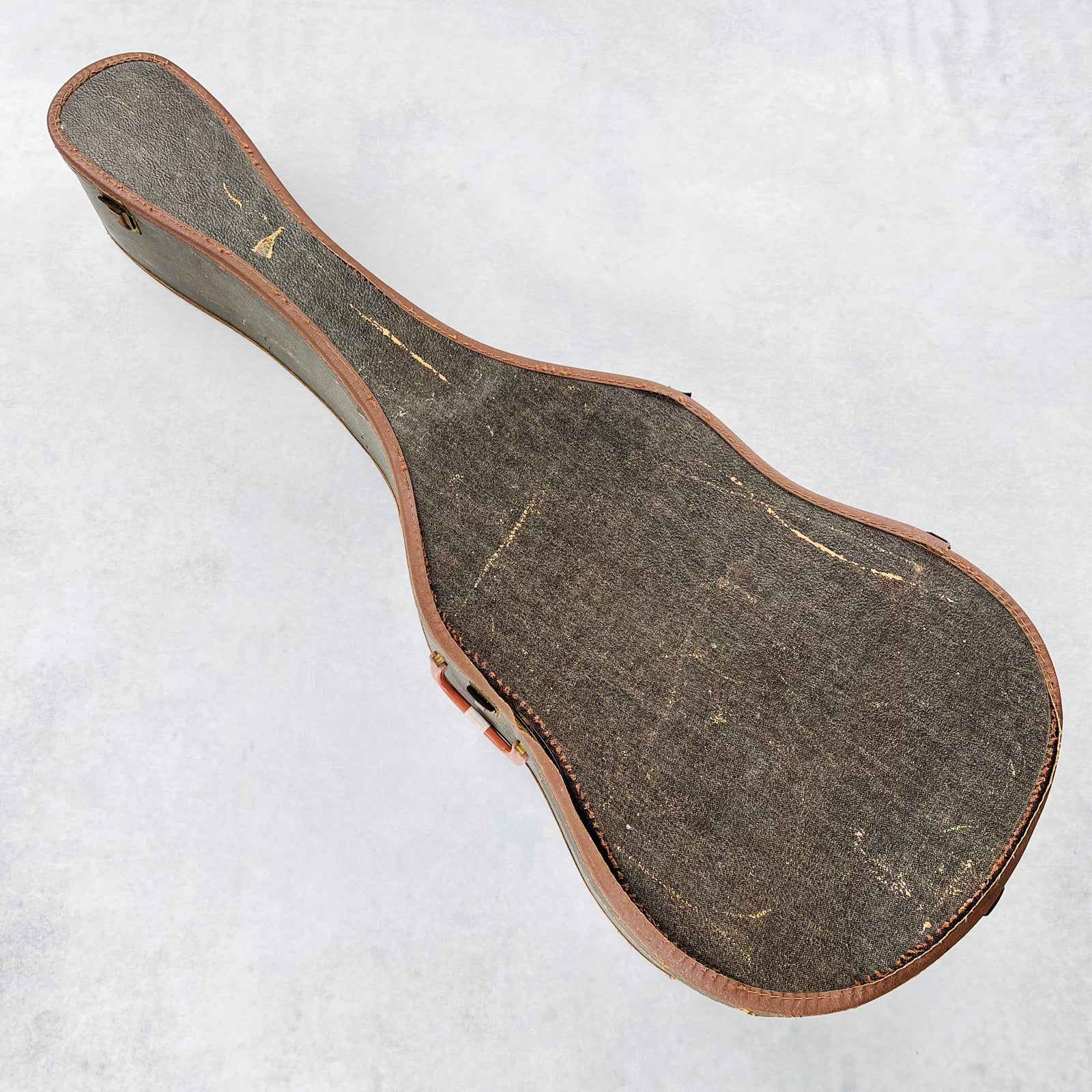

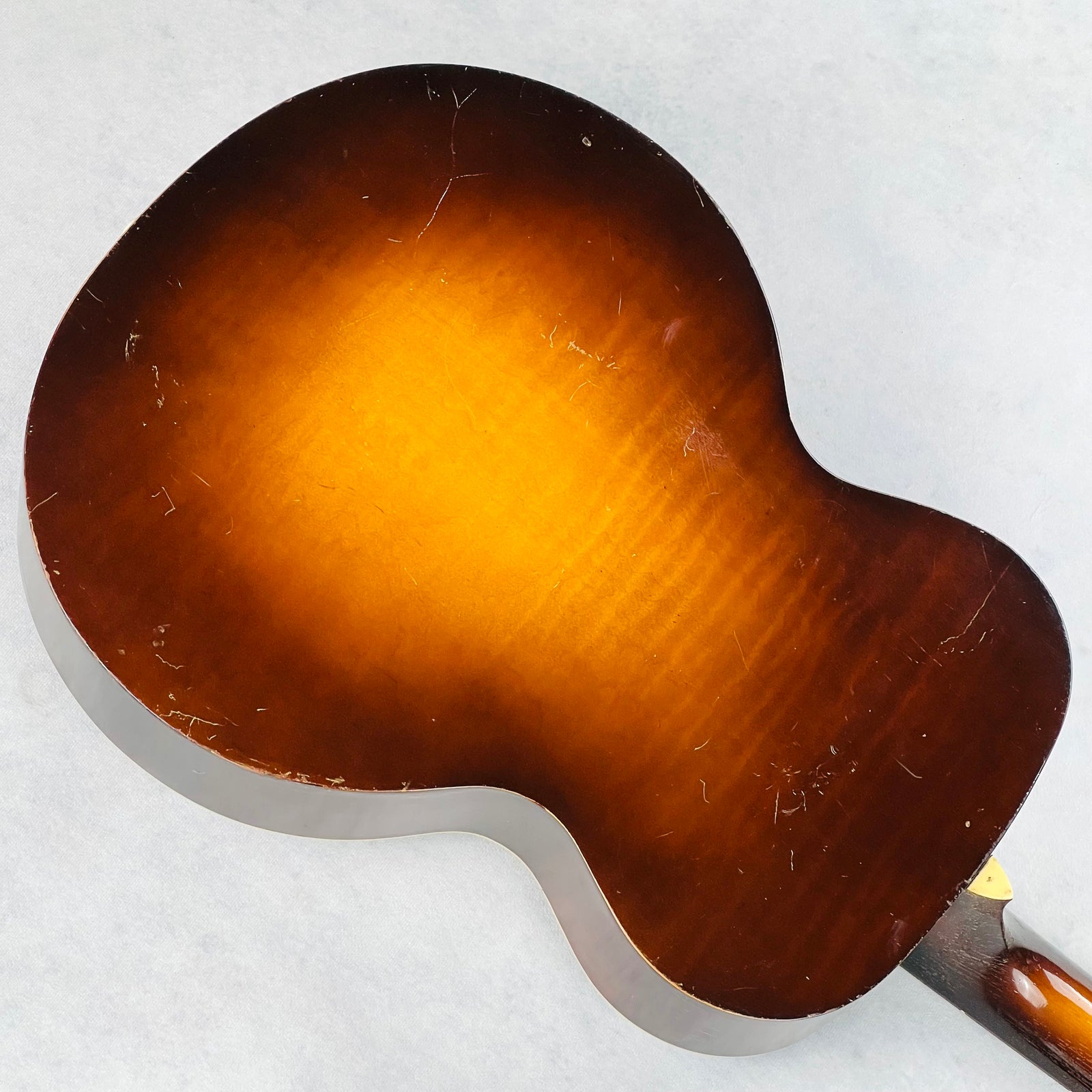

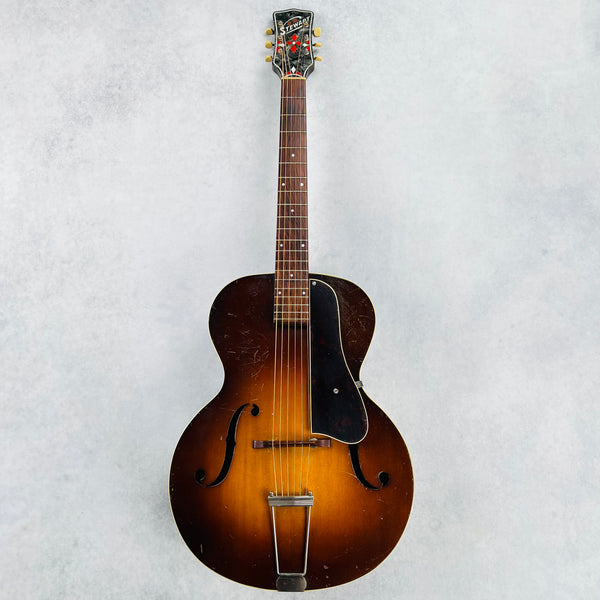

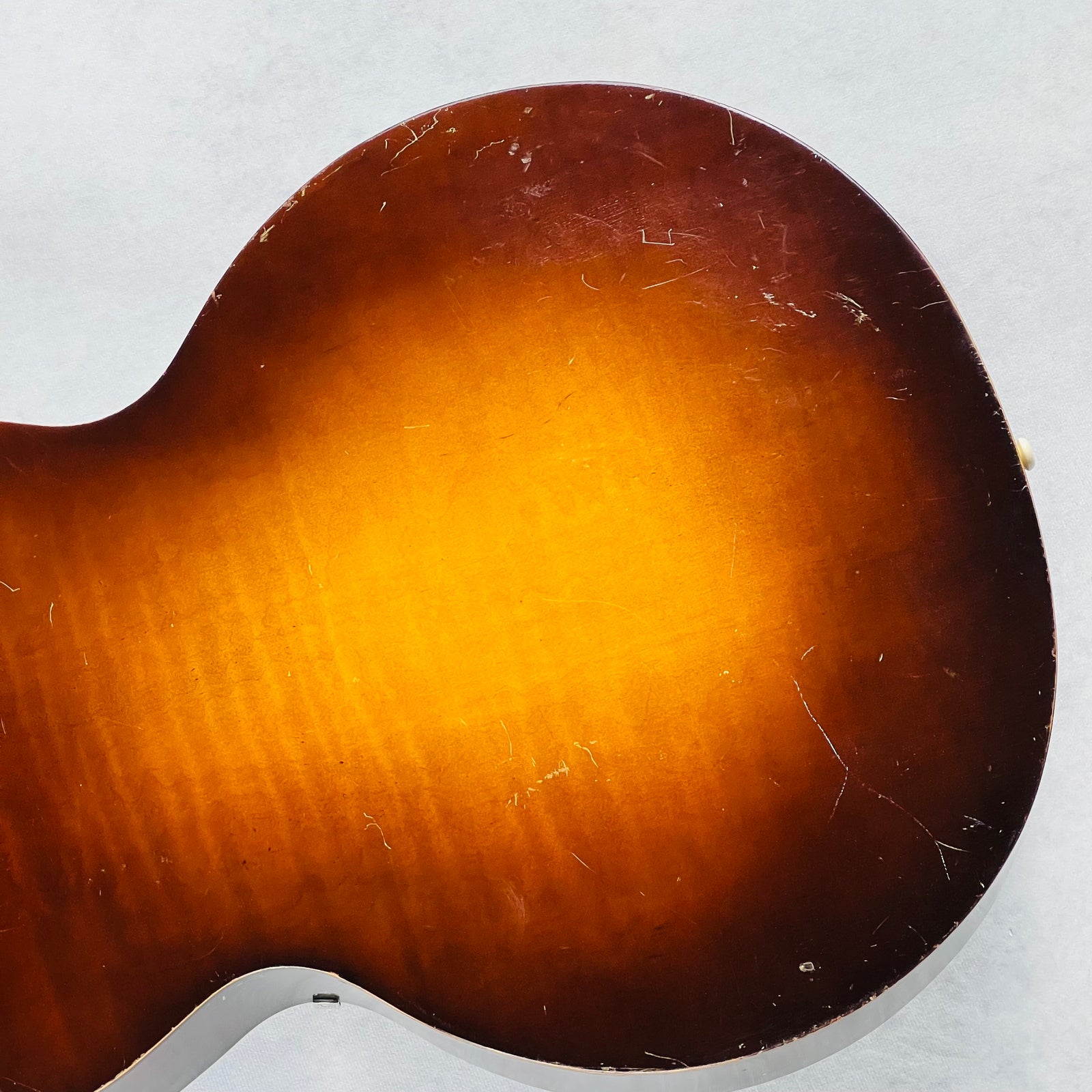

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Archtop Guitar listed above. For larger pics, click on an image to open in a new tab.
