Gretsch Streamliner Jet Club Single-Cut Wraparound Vintage White Specs

The Streamliner Jet Club Single-Cut with Wraparound Laurel Fingerboard Vintage White is a solid body electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Streamliner Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2816939505.

Key Features

Nato Top
Nato Body
Nato Neck
Laurel Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjustable Wrap-Around Bridge
Die-Cast Sealed Tuning Machines
Twin Six Humbucker Bridge Pickup
Twin Six Humbucker Neck Pickup

Product Identifiers

Model Name	Streamliner Jet Club Single-Cut with Wraparound
Part Number	2816939505
Product Series	Streamliner Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	717669887995

Factory Specifications

Body Construction

Body Material	Nato
Top Material	Nato
Back Material	Nato
Body Shape	Jet
Body Binding	Aged White
Body Finish	Gloss

Hardware

Bridge	Adjustable Wrap-Around
Tuning Machines	Die-Cast Sealed
Pickguard	Tortoise with Gold Gretsch Logo
Control Knobs	Gretsch Knurled Radio Knob
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Bone
Neck Shape	Soft "C"
Neck Construction	Bolt-On
Neck Finish	Gloss
Headstock Binding	None

Electronics

Bridge Pickup	Twin Six Humbucker
Neck Pickup	Twin Six Humbucker
Pickup Configuration	HH
Controls	Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional: G2164 Gig Bag (0996460000), G6238FT Hardshell Case (0996474000), G6238 Deluxe Hardshell (0996410000)

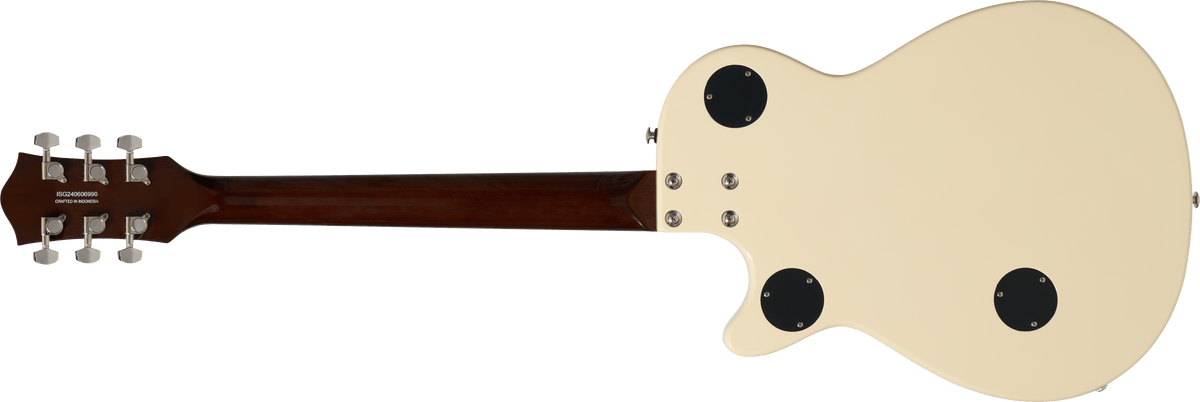

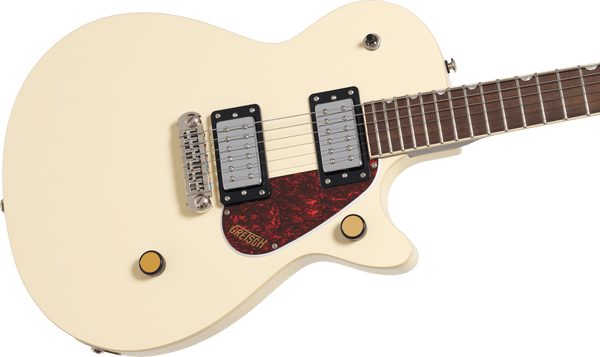

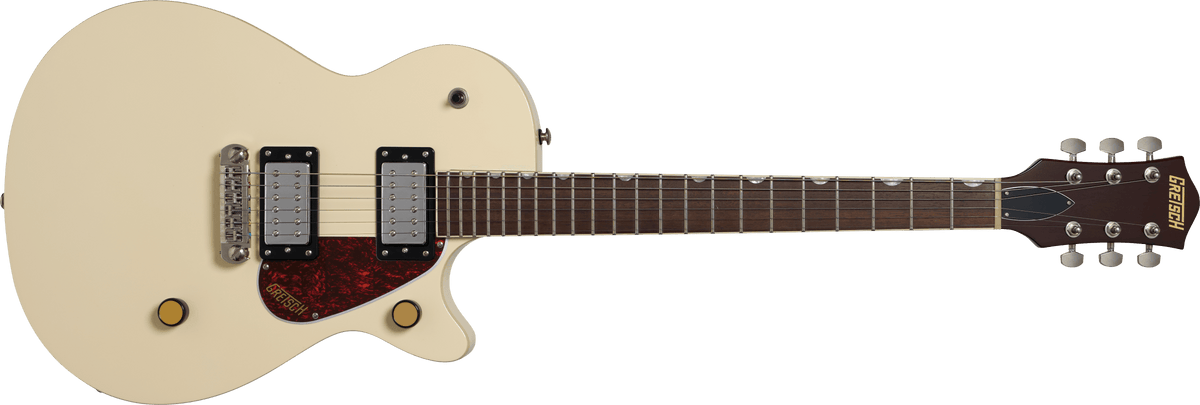

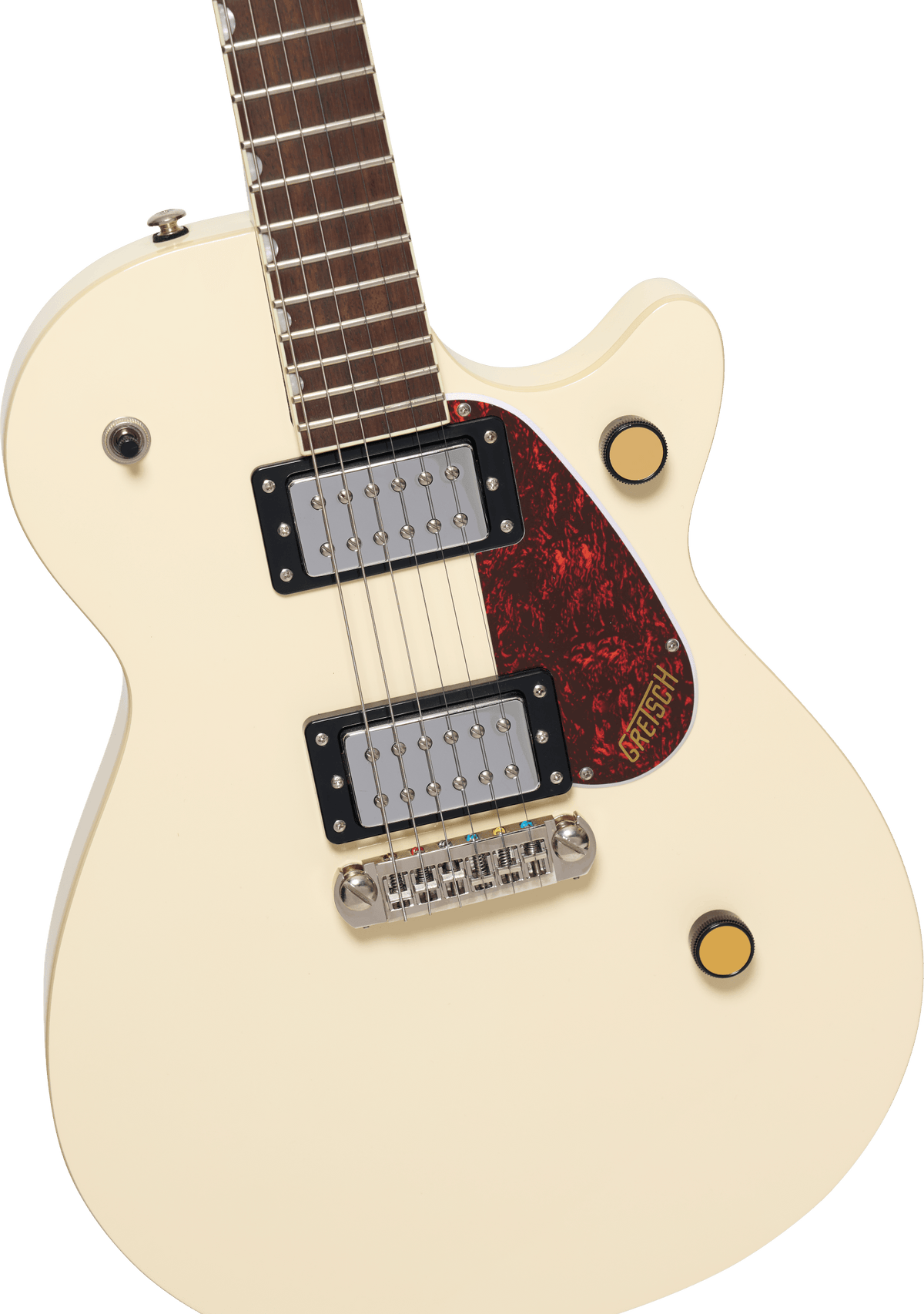

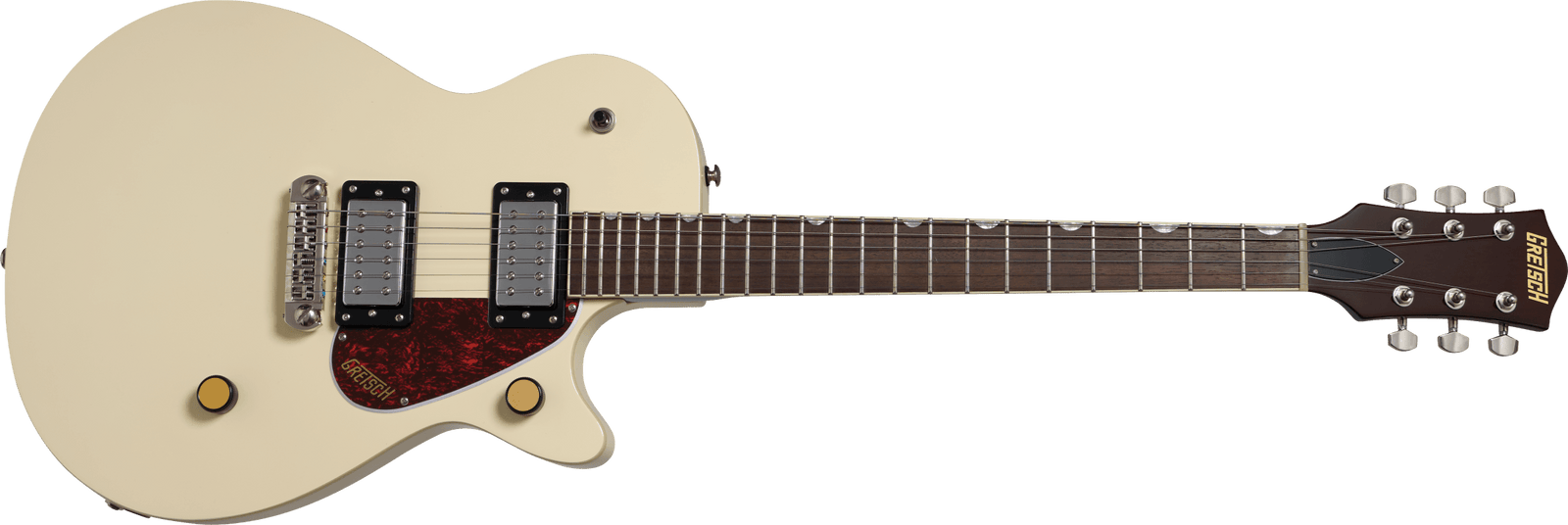

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Streamliner Jet Club Single-Cut with Wraparound Laurel Fingerboard Vintage White listed above. For larger pics, click on an image to open in a new tab.
