Gretsch Streamliner CVT Jet Black Specs

The Streamliner CVT Laurel Fingerboard Jet Black is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Streamliner Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2811502506.

Key Features

Mahogany Body
Mahogany Neck
Bound Indian Laurel Fingerboard
24.88" (632 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Compensated Wrap-Around Bridge
Die-Cast Sealed Tuning Machines
HotWire High Output Ceramic Humbucker Bridge Pickup
HotWire High Output Ceramic Humbucker Neck Pickup

Product Identifiers

Model Name	Streamliner CVT
Part Number	2811502506
Product Series	Streamliner Collection
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	197955147925

Factory Specifications

Body Construction

Body Material	Mahogany
Body Shape	CVT
Body Binding	None
Body Finish	Gloss

Hardware

Bridge	Compensated Wrap-Around
Tuning Machines	Die-Cast Sealed
Pickguard	1-Ply Black
Control Knobs	Numbered Black Speed Knobs
Hardware Finish	Chrome

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Bound Indian Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.88" (632 mm)
Nut Material	Graph Tech NuBone
Neck Shape	"Fast" C
Neck Construction	Bolt-On
Neck Finish	Gloss
Truss Rod	Dual-Action Head Adjust
Truss Rod Nut	4 mm Hex

Electronics

Bridge Pickup	HotWire High Output Ceramic Humbucker
Neck Pickup	HotWire High Output Ceramic Humbucker
Pickup Configuration	HH
Controls	Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge, Position 2. Bridge and Neck, Position 3. Neck

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G2164 Solid Body Gig Bag (p/n 099-6460-000)
Truss Rod Wrench	4 mm Hex (Allen)

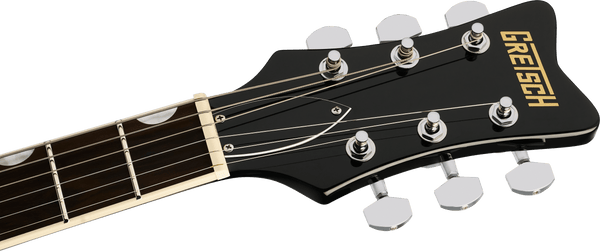

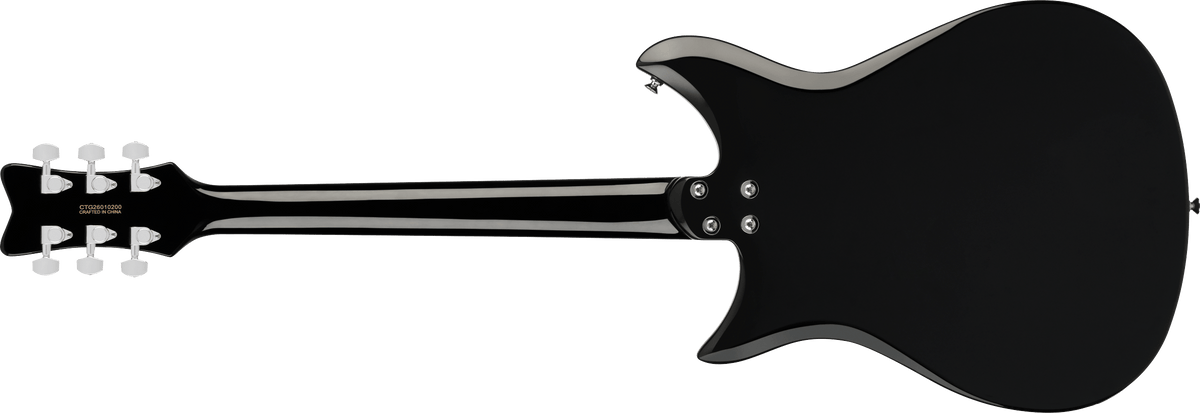

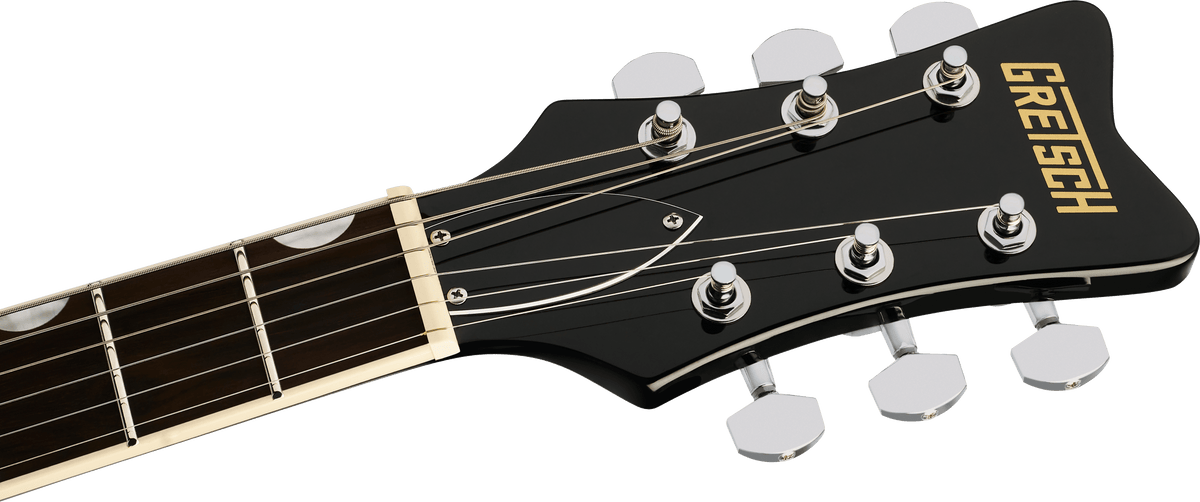

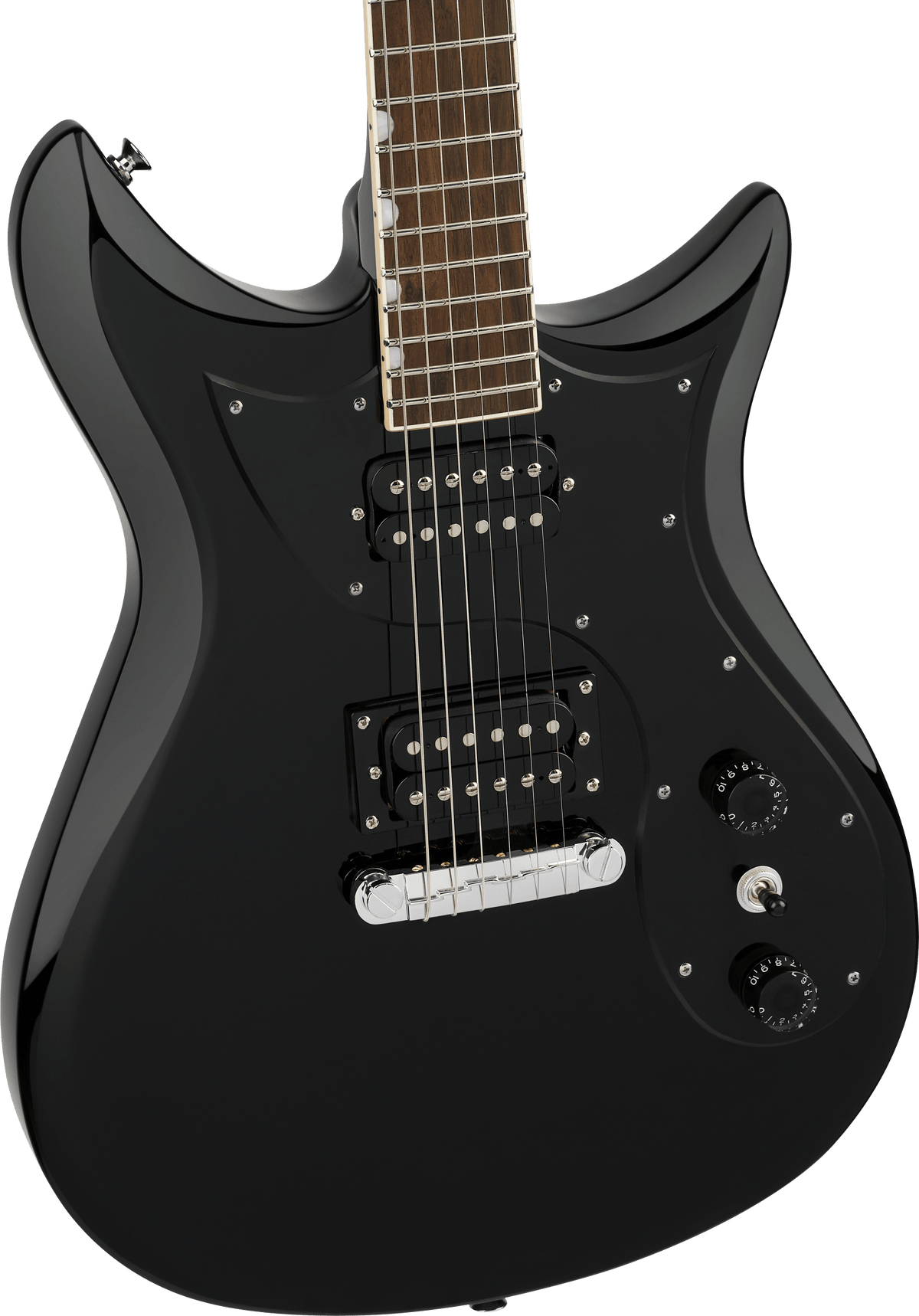

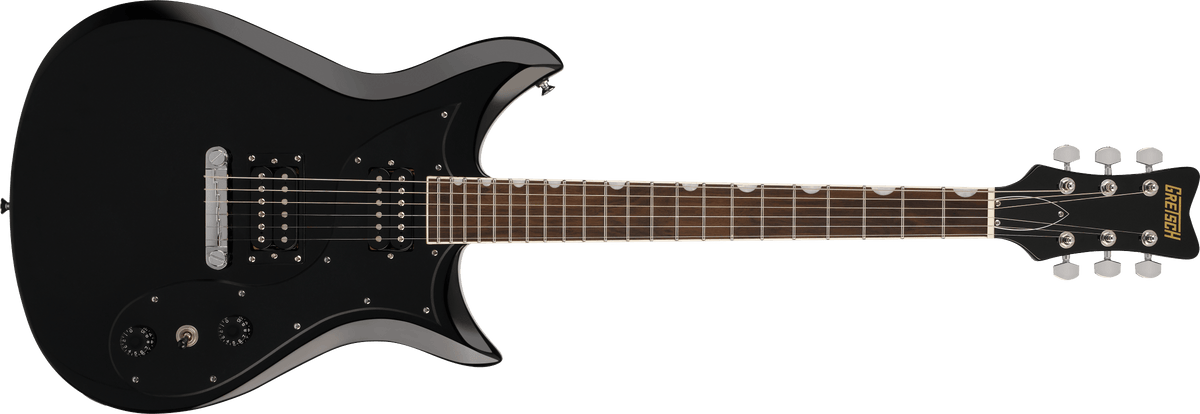

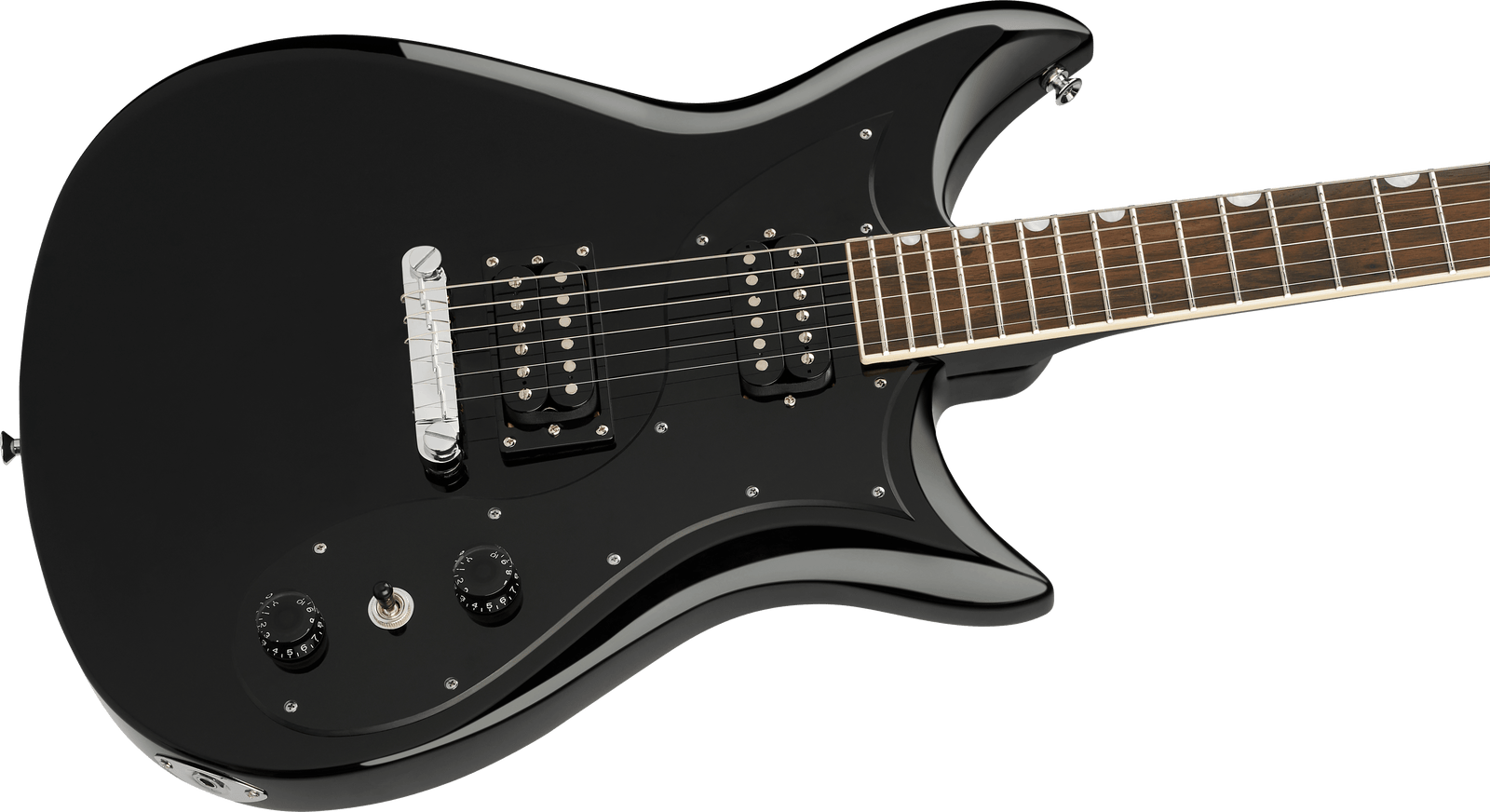

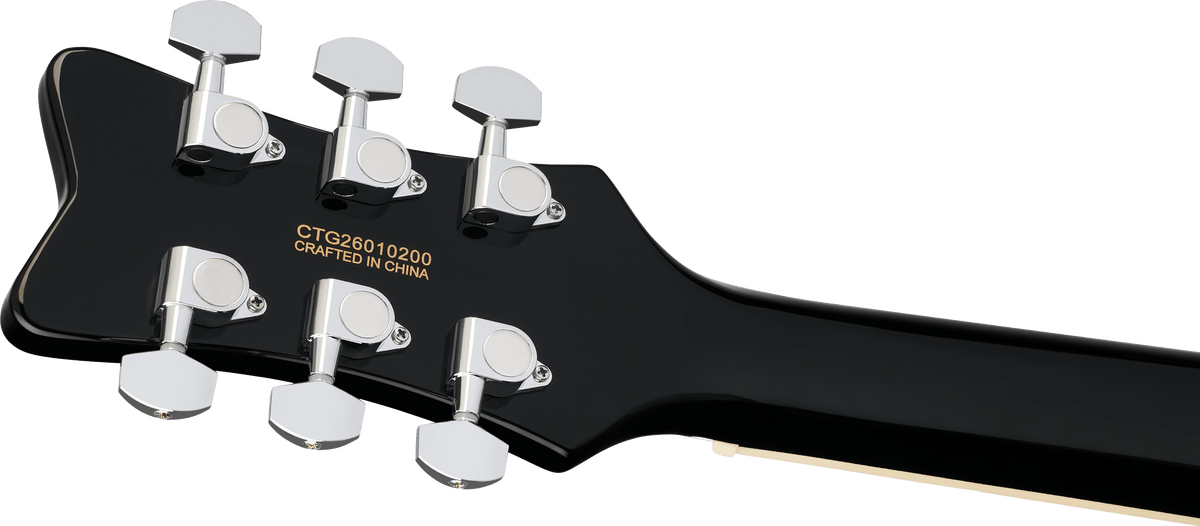

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Streamliner CVT Laurel Fingerboard Jet Black listed above. For larger pics, click on an image to open in a new tab.
