Gretsch Nashville Hollow Body with String-Thru Bigsby and Gold Hardware Cadillac Green Specs

The Nashville Hollow Body with String-Thru Bigsby and Gold Hardware is a hollow body electric guitar built by Gretsch. This single cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401309846.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Gotoh Locking Tuning Machines
PRO-FT Filter'Tron Bridge Pickup
PRO-FT Filter'Tron Neck Pickup

Product Identifiers

Model Name	Nashville Hollow Body with String-Thru Bigsby and Gold Hardware
Part Number	2401309846
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
Subcategory	Single Cutaway Set Neck
UPC Code	0885978048045

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Nashville / G6120
Body Binding	White with B/W/B Purfling
Body Finish	Gloss
Bracing	Arc-Tone Bracing
Upper Bout Width	11.563" (294 mm)
Lower Bout Width	16" (406 mm)
Waist	9.5" (241mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Gotoh Locking
Pickguard	Gold Plexi with Black Gretsch Logo and Nashville Post Sign
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B6GP String-Thru
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Refinement Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Luminlay
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech TUSQ XL
String Nut	Graph Tech TUSQ XL
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	White

Electronics

Bridge Pickup	PRO-FT Filter'Tron
Neck Pickup	PRO-FT Filter'Tron
Refinement Pickups	Filter'Tron / Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Configuration	Filter'Tron / Filter'Tron

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)
Case / Gig Bag	Included: 099-6411-000 G6241 Deluxe Hardshell Case

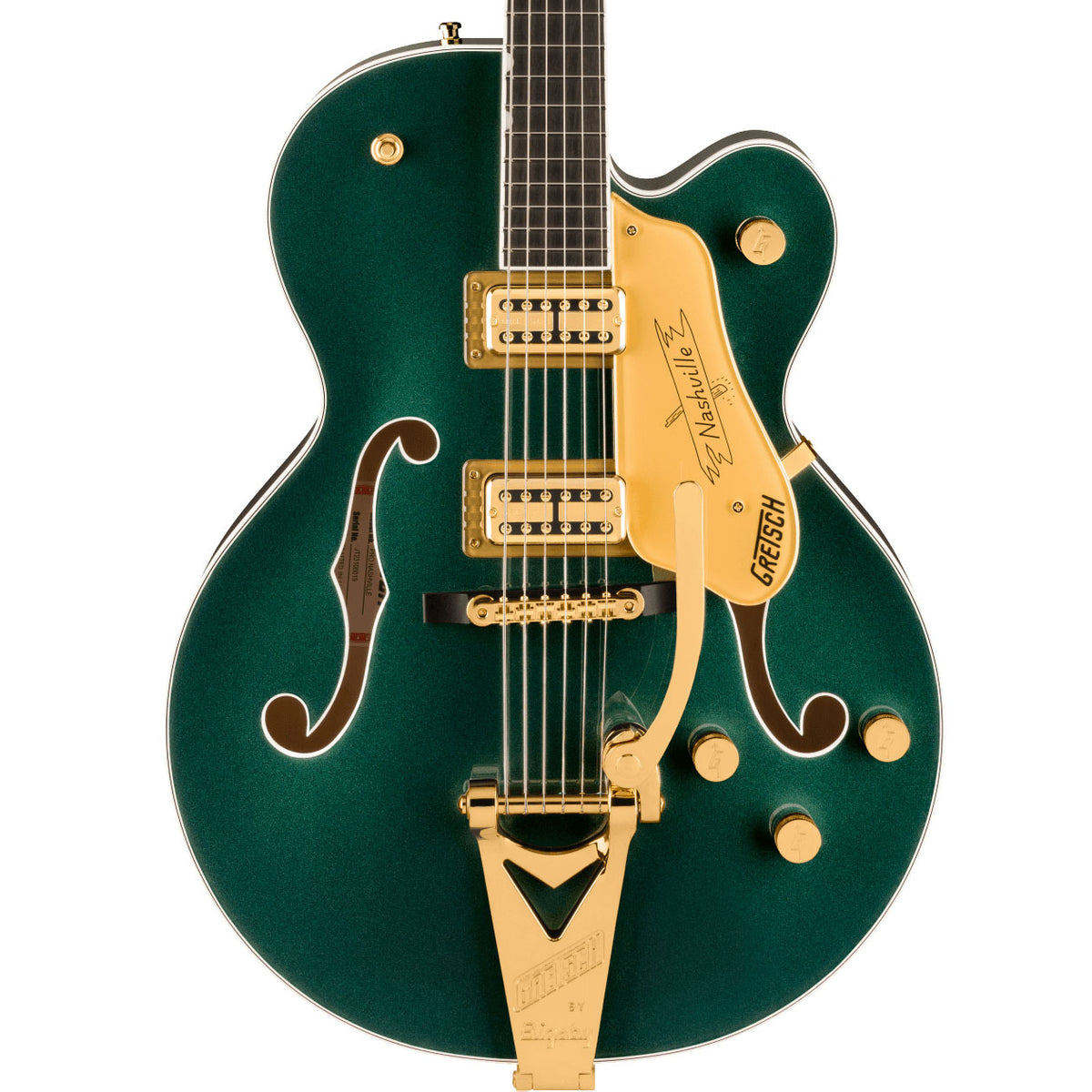

Reference Images

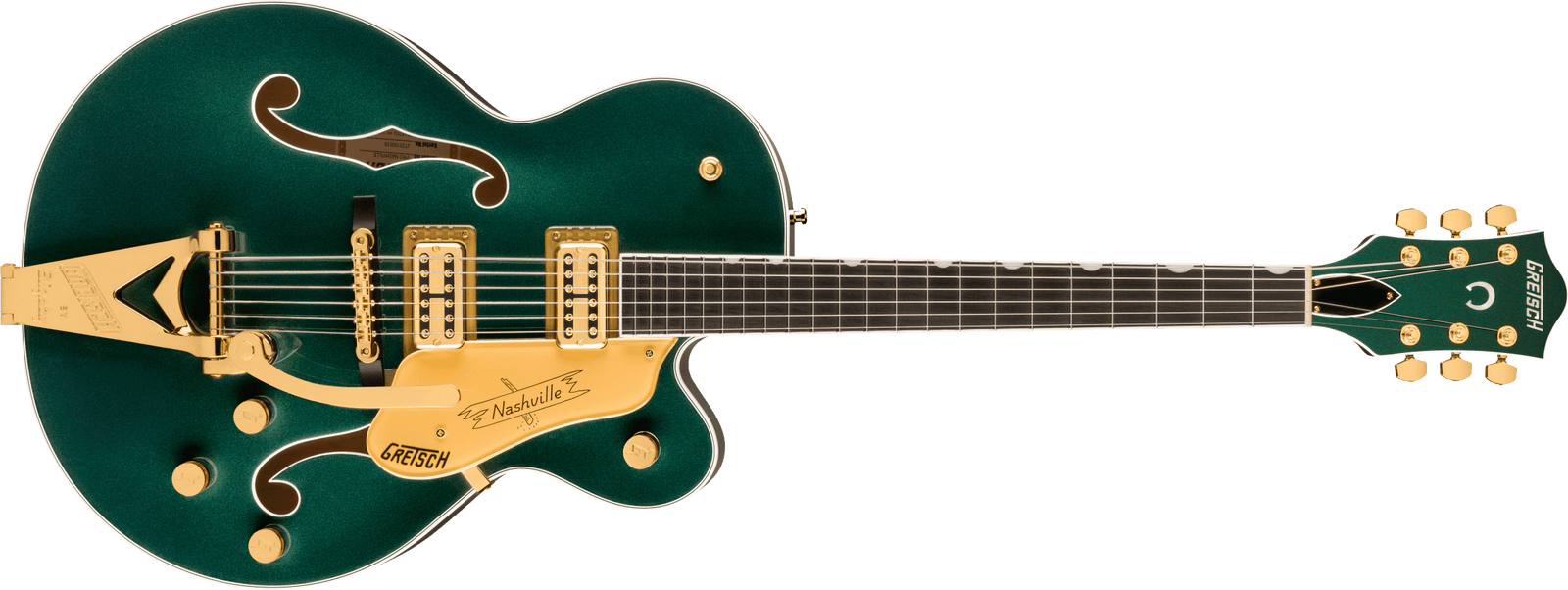

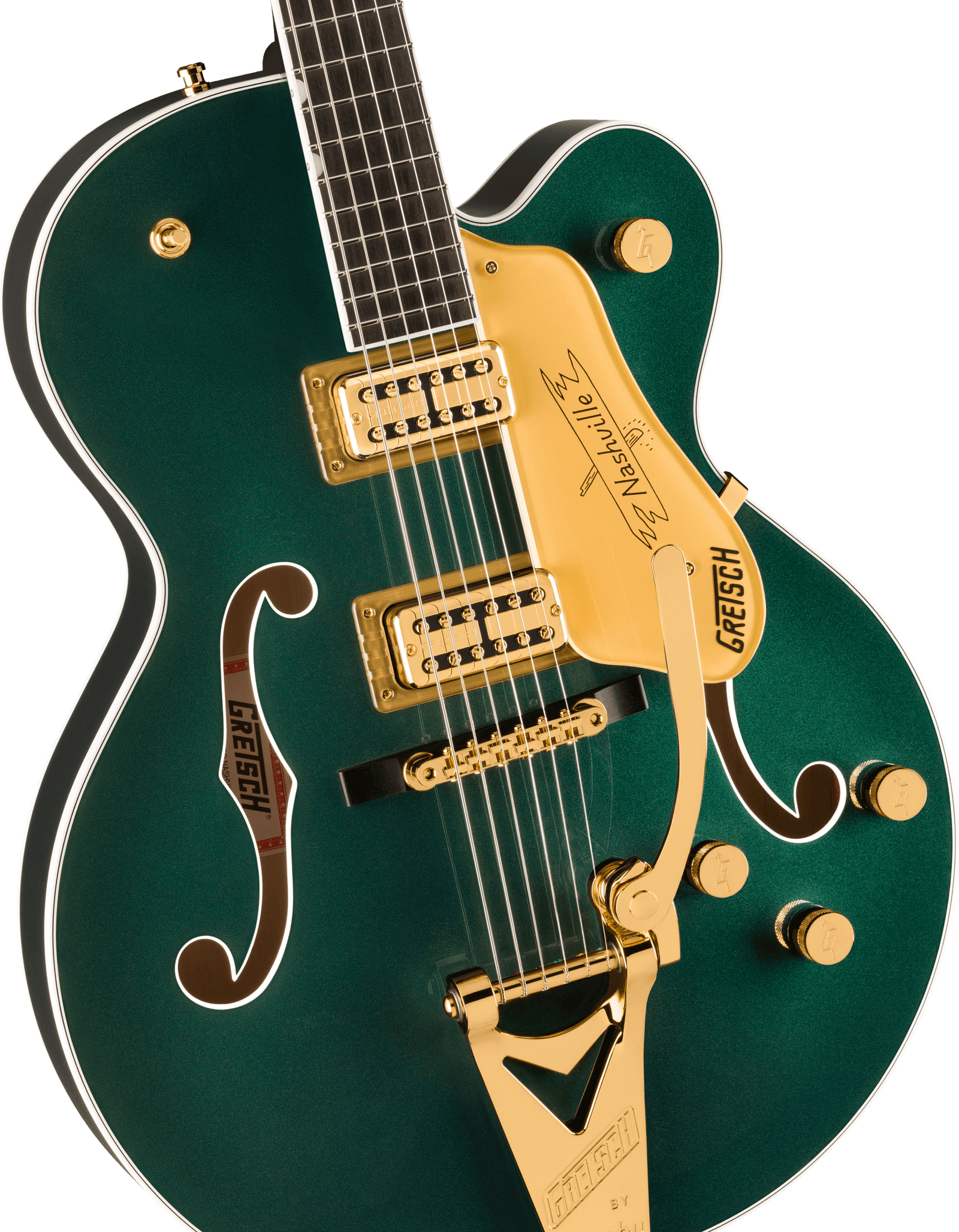

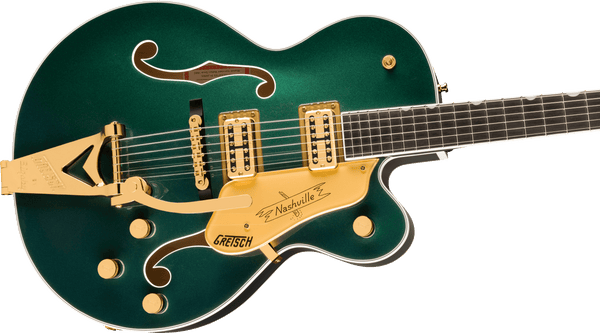

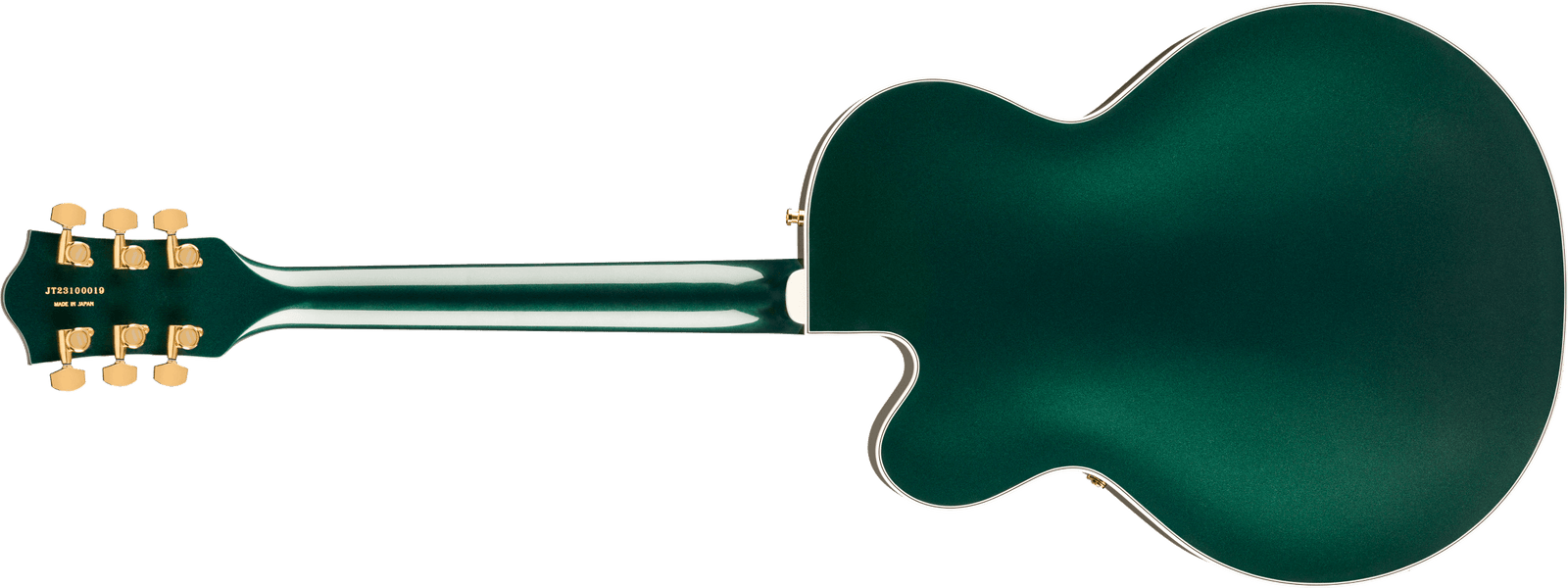

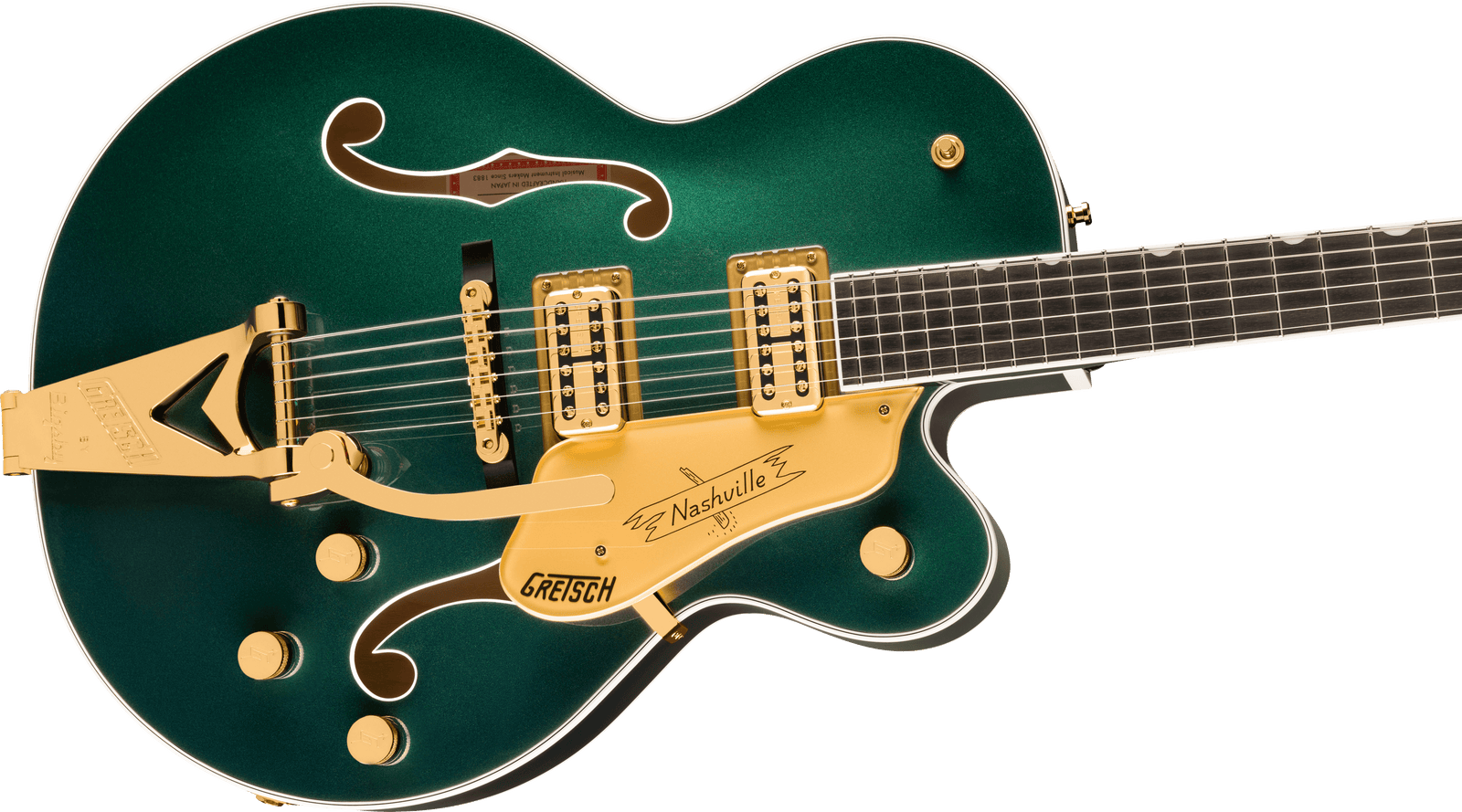

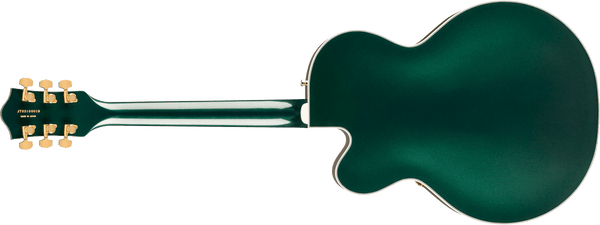

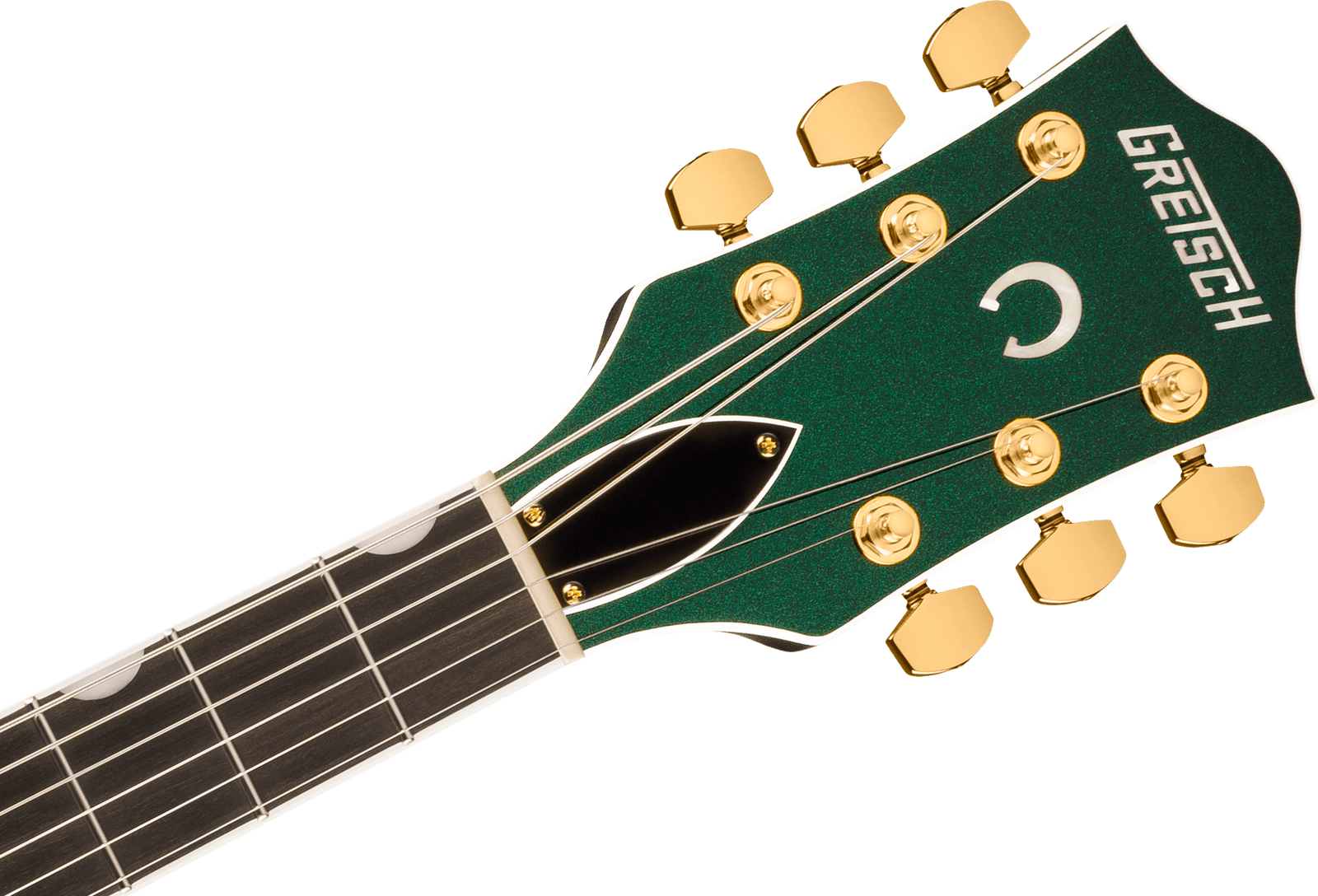

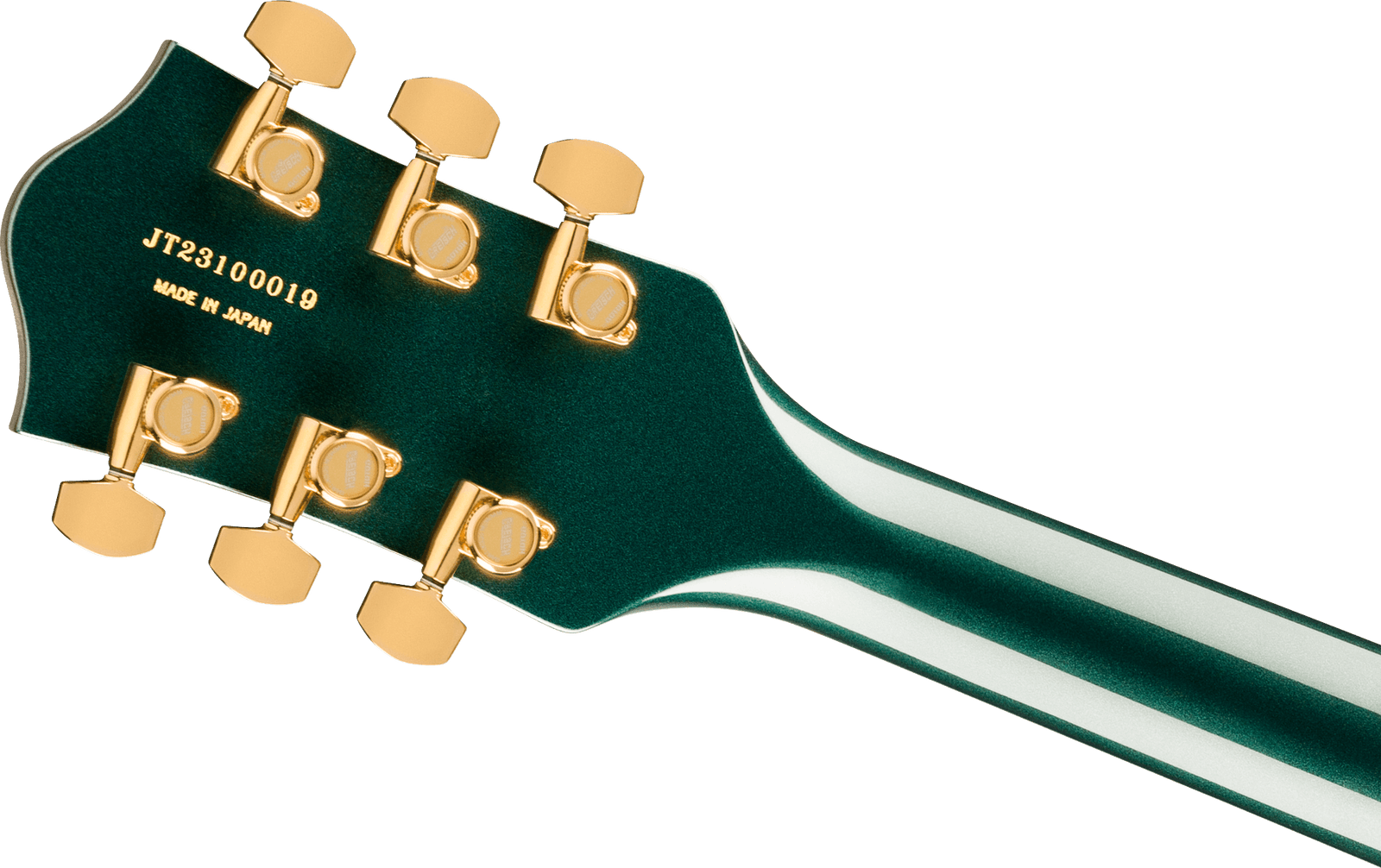

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Nashville Hollow Body with String-Thru Bigsby and Gold Hardware listed above. For larger pics, click on an image to open in a new tab.
