Gretsch Limited Edition Deltoluxe Concert Dark Denim Specs

The Deltoluxe Concert Walnut Fingerboard Aged White Pickguard Dark Denim Top is a concert acoustic guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Jim Dandy model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2711110060.

Key Features

Laminated Sapele Top
Laminated Sapele Back
Laminated Sapele Sides
Nato Neck
Walnut Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Vintage Frets
Walnut with Compensated Saddle Bridge
Open-Gear Die-Cast Tuning Machines

Product Identifiers

Model Name	Limited Edition Deltoluxe Concert
Part Number	2711110060
Product Series	Jim Dandy
Country of Origin	Indonesia
Brand	Gretsch
Type	Acoustic Guitar
Category	Concert
UPC Code	885978639021

Factory Specifications

Body Construction

Body Material	Sapele
Top Material	Laminated Sapele
Back Material	Laminated Sapele
Side Material	Laminated Sapele
Body Shape	Concert
Body Binding	Aged White
Body Finish	Semi-Gloss
Bracing	X-Bracing
Rosette	Gold/White Rings

Hardware

Bridge	Walnut with Compensated Saddle
Tuning Machines	Open-Gear Die-Cast
Pickguard	1-Ply Aged White
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Walnut
Radius	12" (305 mm)
Fingerboard Inlays	White Pearloid Dot
Number of Frets	20 (14 to Body)
Fret Size	Vintage
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Synthetic Bone
Neck Shape	"C" Shape
Neck Finish	Semi-Gloss
Headstock	1950's Gretsch 3x3
Truss Rod	Single-Action
Truss Rod Nut	4 mm Hex

Electronics

Controls	NA
Special Electronics	Gretsch Deltoluxe Soundhole Pickup

General

Orientation	Right-Hand
Strings	D'Addario EJ16 Phosphor Bronze, Light (.012-.053 Gauges)
Truss Rod Wrench	4 mm Hex (Allen)

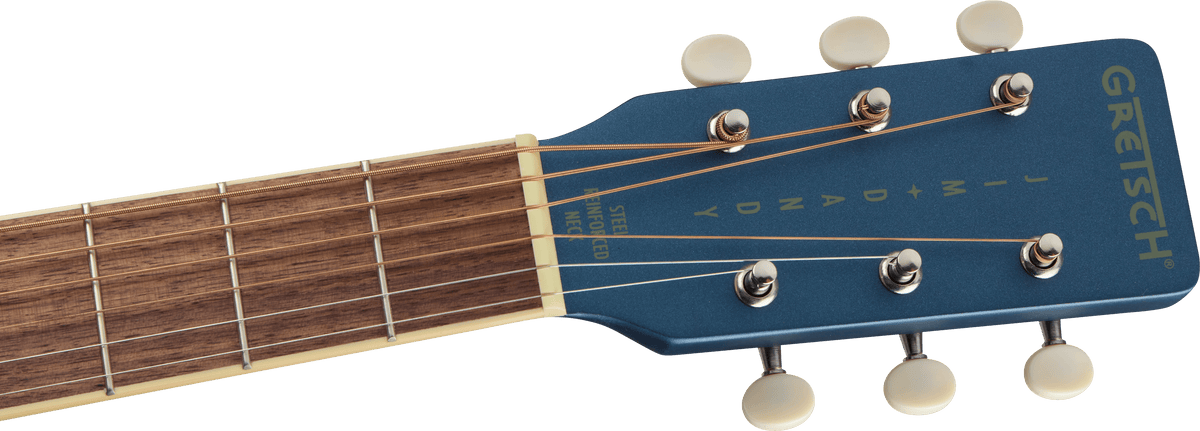

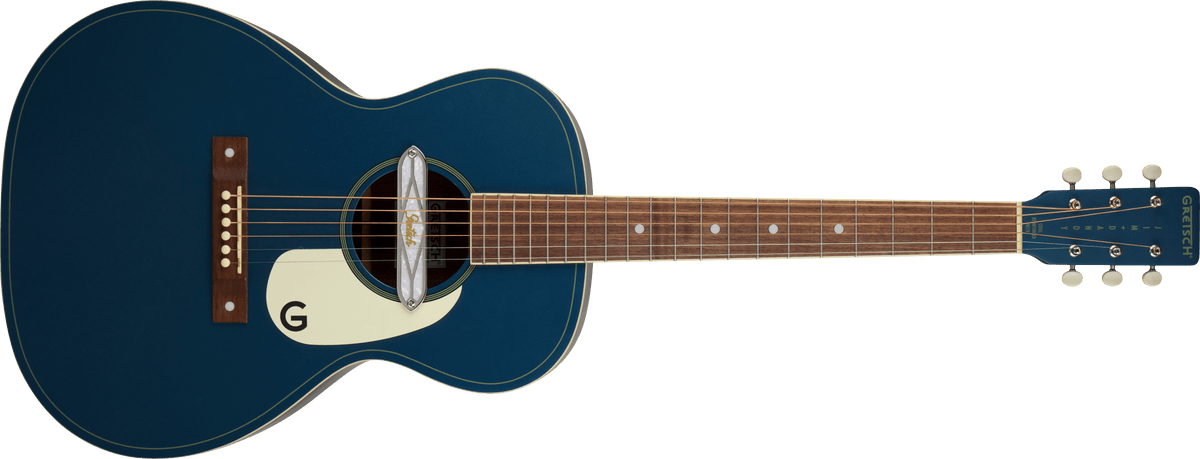

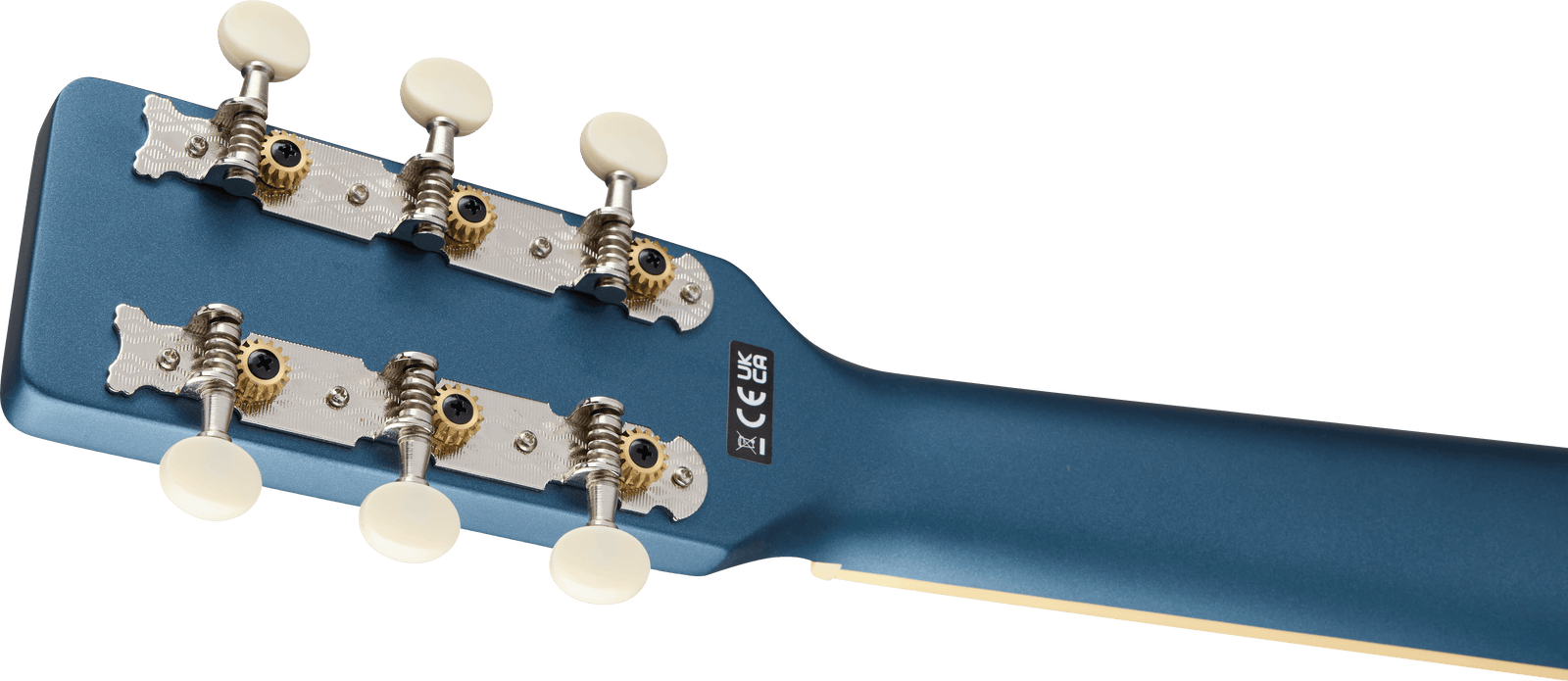

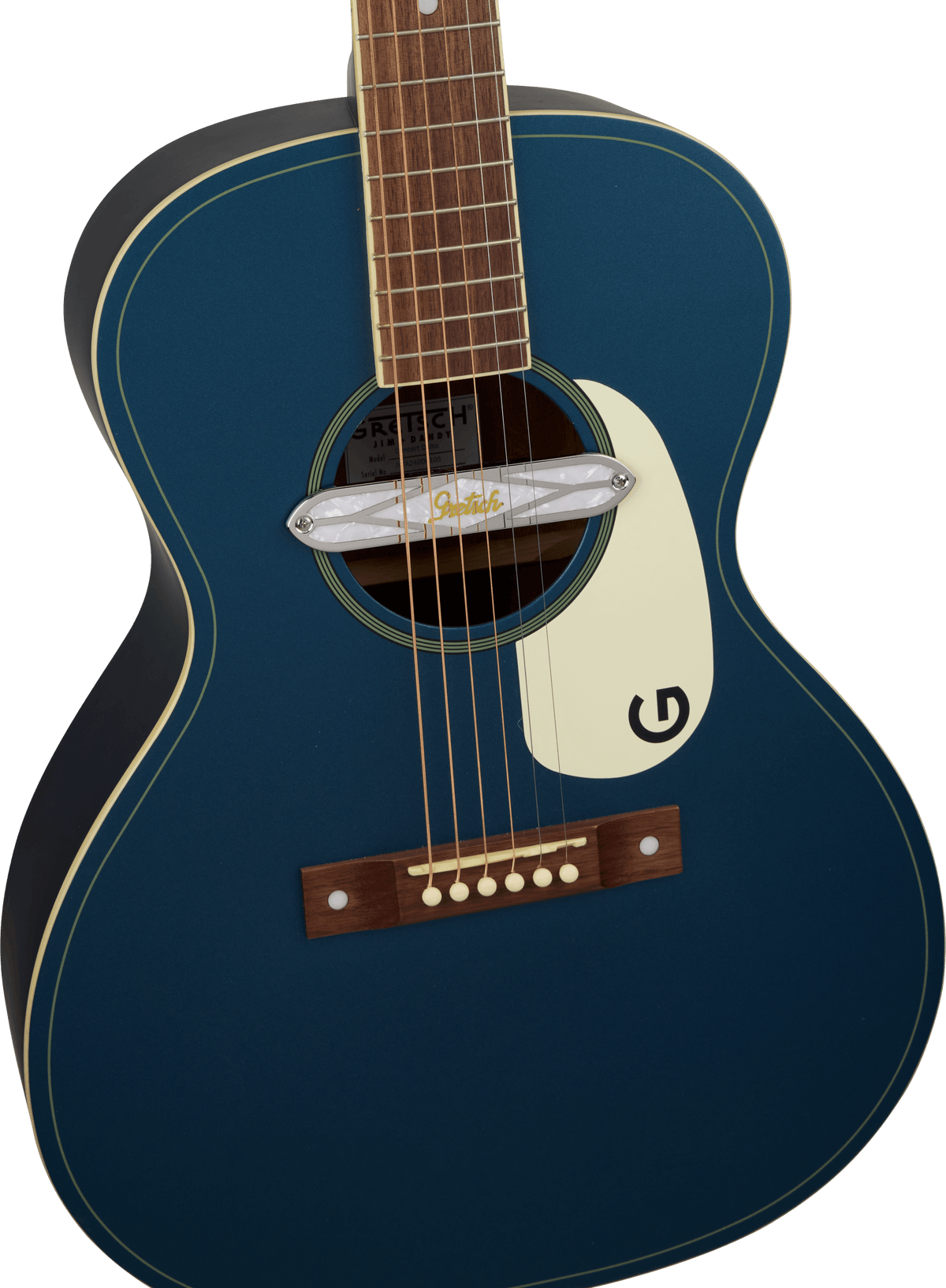

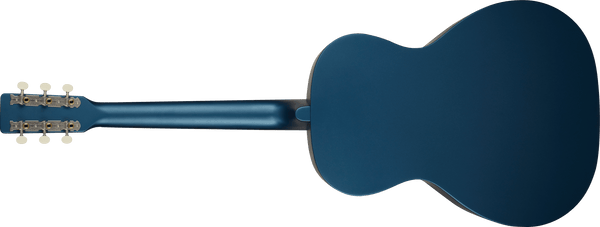

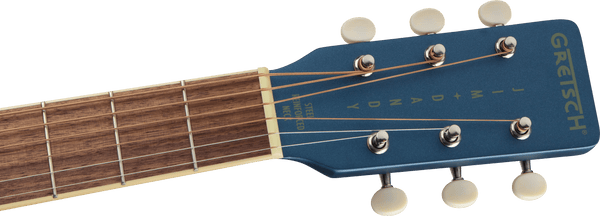

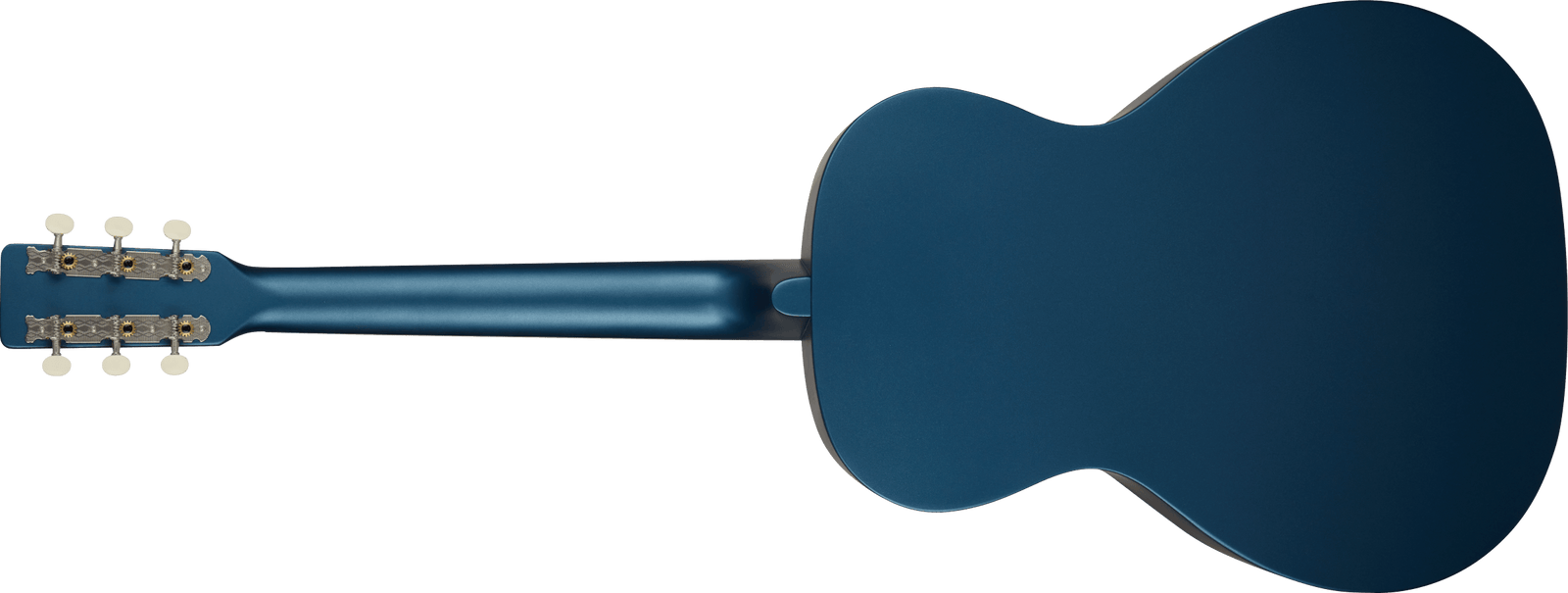

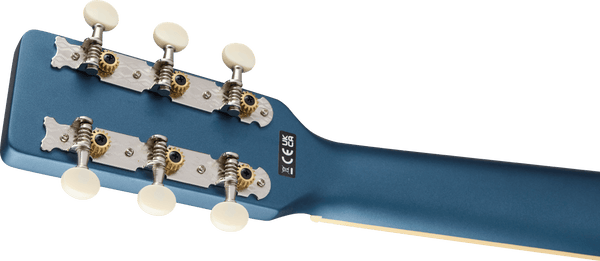

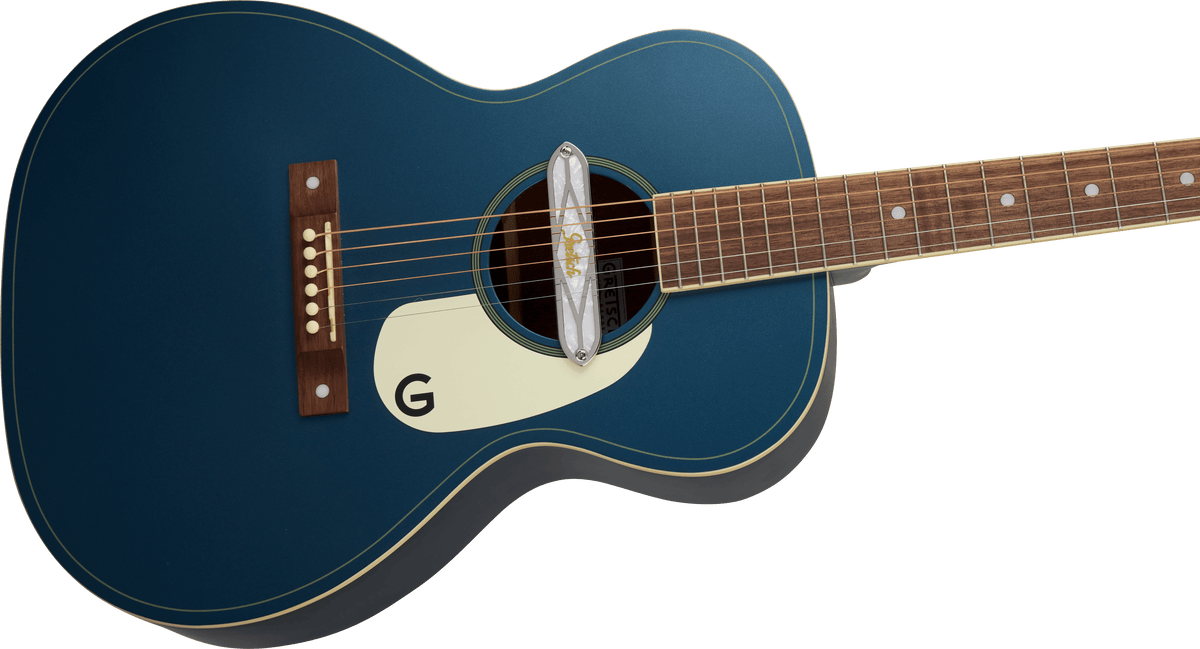

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Deltoluxe Concert Walnut Fingerboard Aged White Pickguard Dark Denim Top listed above. For larger pics, click on an image to open in a new tab.
