Gretsch Jim Dandy Parlor Rex Burst Specs

The Jim Dandy Parlor Walnut Fingerboard White Pickguard Rex Burst is a parlor acoustic guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Jim Dandy model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2711000535.

Key Features

Laminated Basswood Top
Laminated Basswood Back
Laminated Basswood Sides
Nato Neck
Walnut Fingerboard
24" (610 mm) Scale Length
1.69" (43 mm) Nut Width
12" (305 mm) Radius
Vintage Frets
Walnut with Compensated Saddle Bridge
Open-Gear Die-Cast Tuning Machines

Product Identifiers

Model Name	Jim Dandy Parlor
Part Number	2711000535
Product Series	Jim Dandy
Country of Origin	Indonesia
Brand	Gretsch
Type	Acoustic Guitar
Category	Parlor
UPC Code	717669567194

Factory Specifications

Body Construction

Body Material	Basswood
Top Material	Laminated Basswood
Back Material	Laminated Basswood
Side Material	Laminated Basswood
Body Shape	Parlor
Body Binding	Aged White
Body Finish	Semi-Gloss
Bracing	X-Bracing
Upper Bout Width	9.31" (237 mm)
Lower Bout Width	12.6" (320 mm)
Waist	7.8" (19.8 cm)
Rosette	White/Black Rings

Hardware

Bridge	Walnut with Compensated Saddle

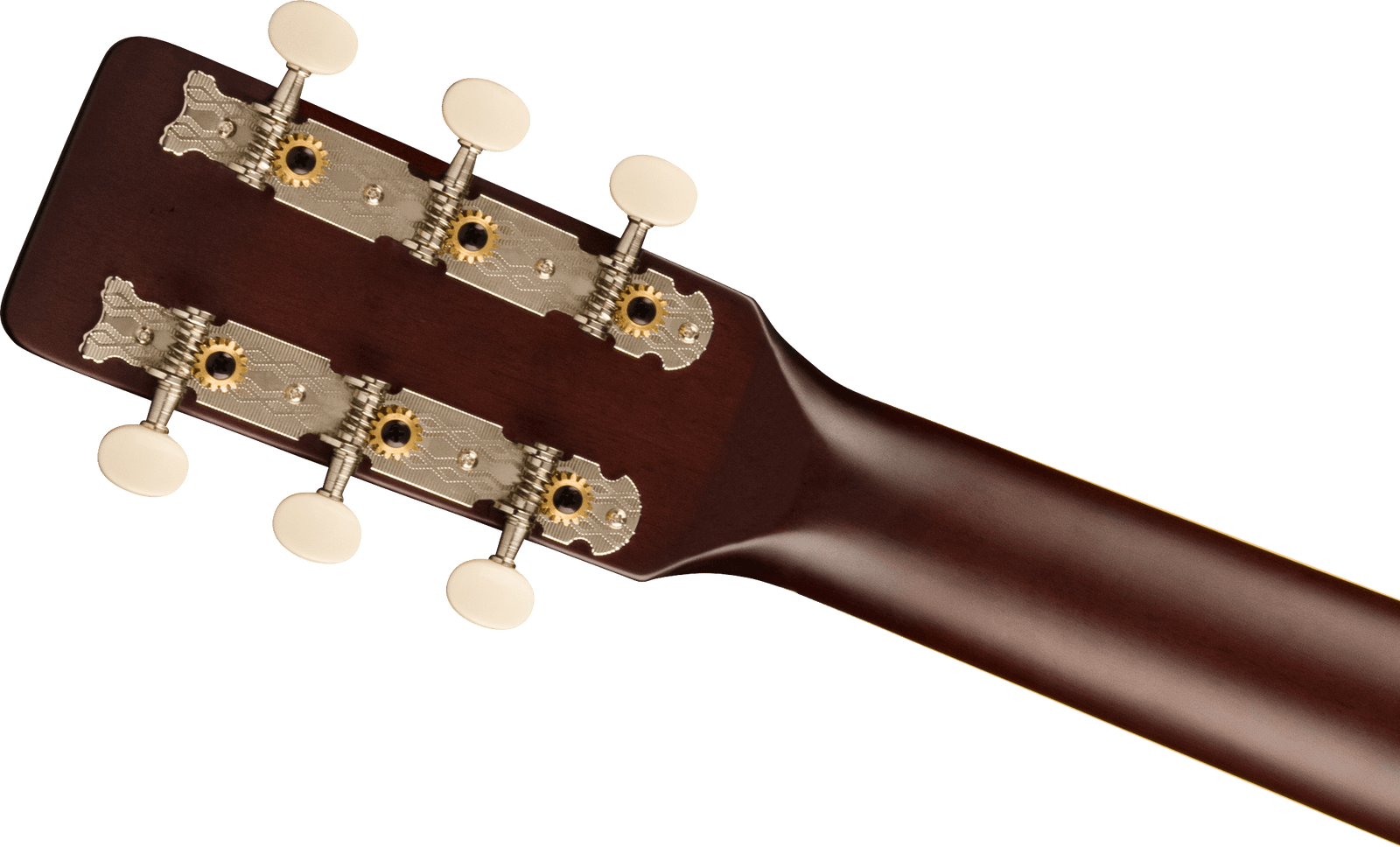

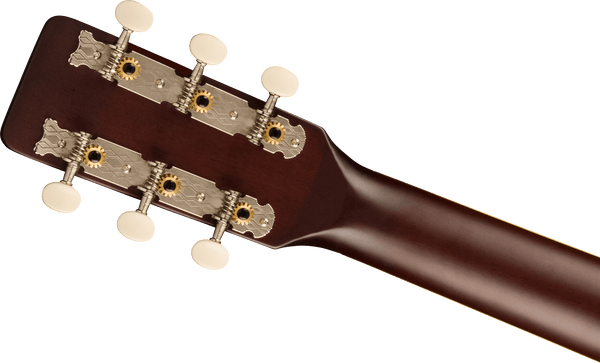

Tuning Machines	Open-Gear Die-Cast
Pickguard	1-Ply White with "G" Graphic
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Walnut
Radius	12" (305 mm)
Fingerboard Inlays	White Pearloid Dot
Number of Frets	18 (12 to Body)
Fret Size	Vintage
Nut Width	1.69" (43 mm)
Scale Length	24" (610 mm)
Nut Material	Synthetic Bone
Neck Shape	"C" Shape
Neck Finish	Semi-Gloss
Headstock	1950's Gretsch 3x3
Truss Rod	Single-Action
Truss Rod Nut	4 mm Hex

Electronics

General

Orientation	Right-Hand
Strings	D'Addario EJ16 Phosphor Bronze, Light (.012-.053 Gauges)
Truss Rod Wrench	4 mm Hex (Allen)

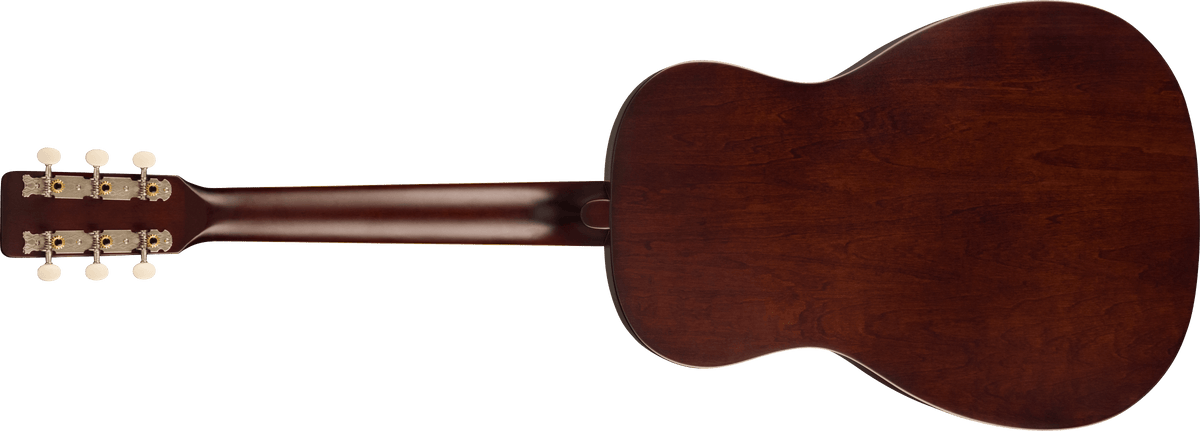

Reference Images

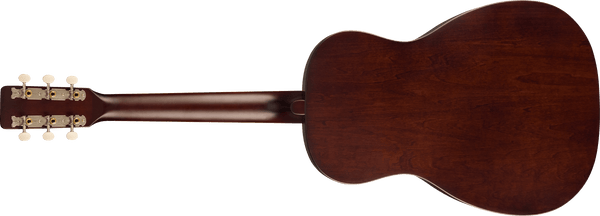

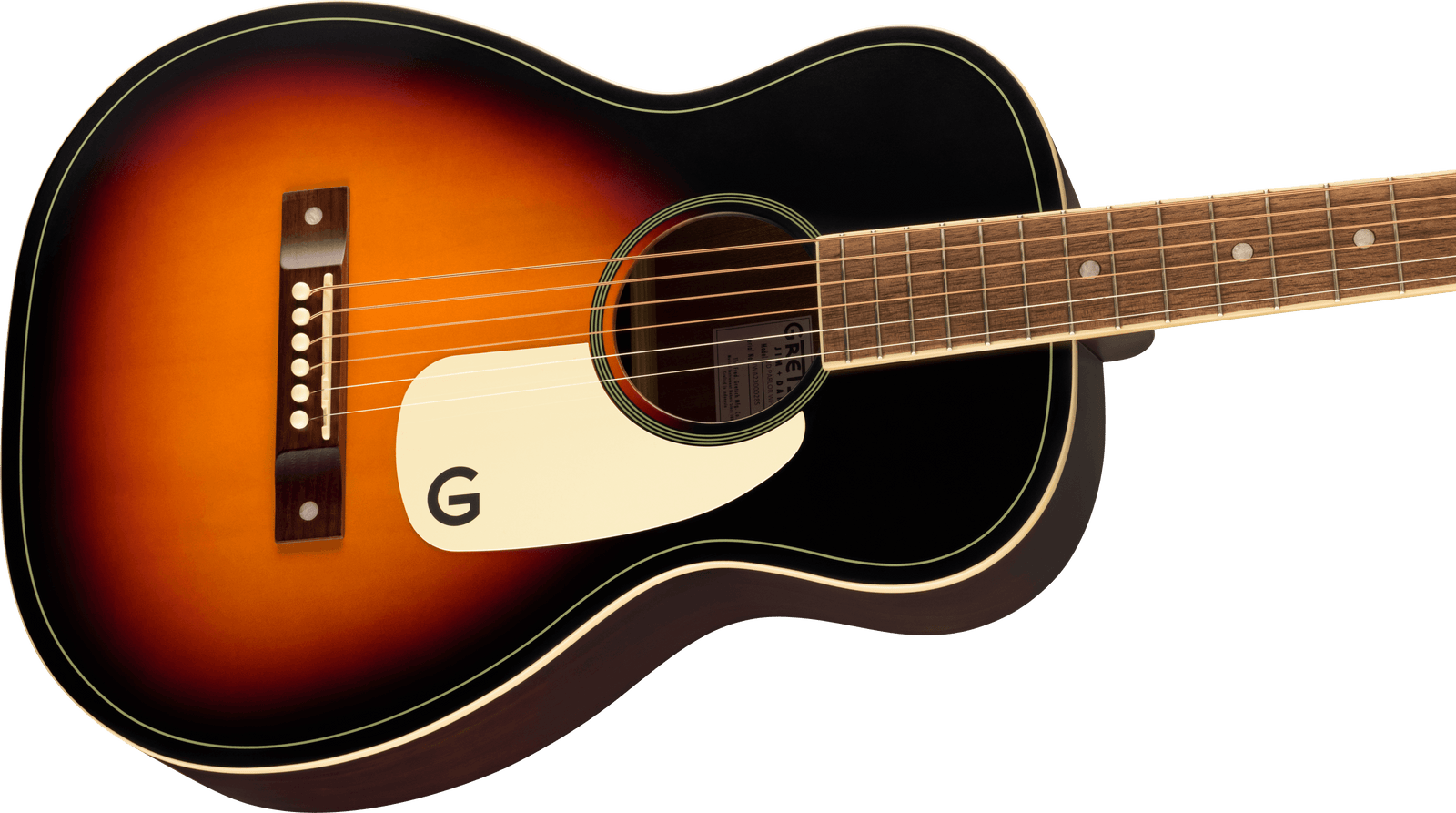

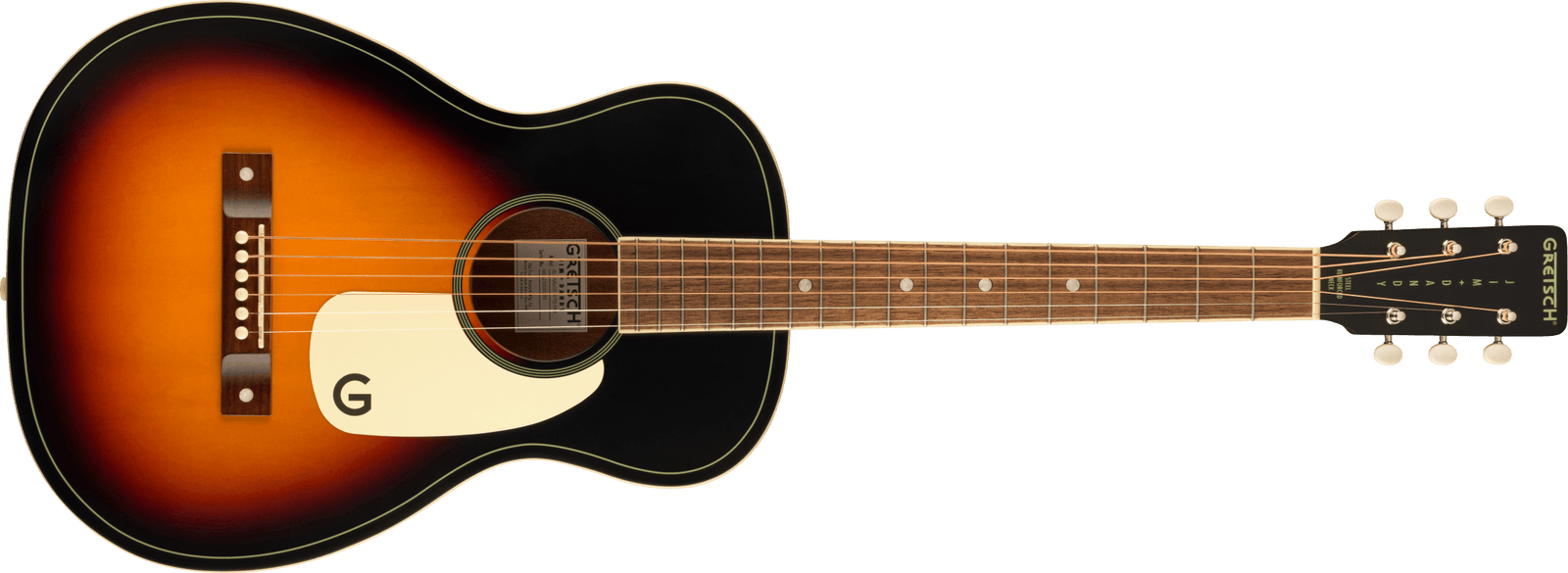

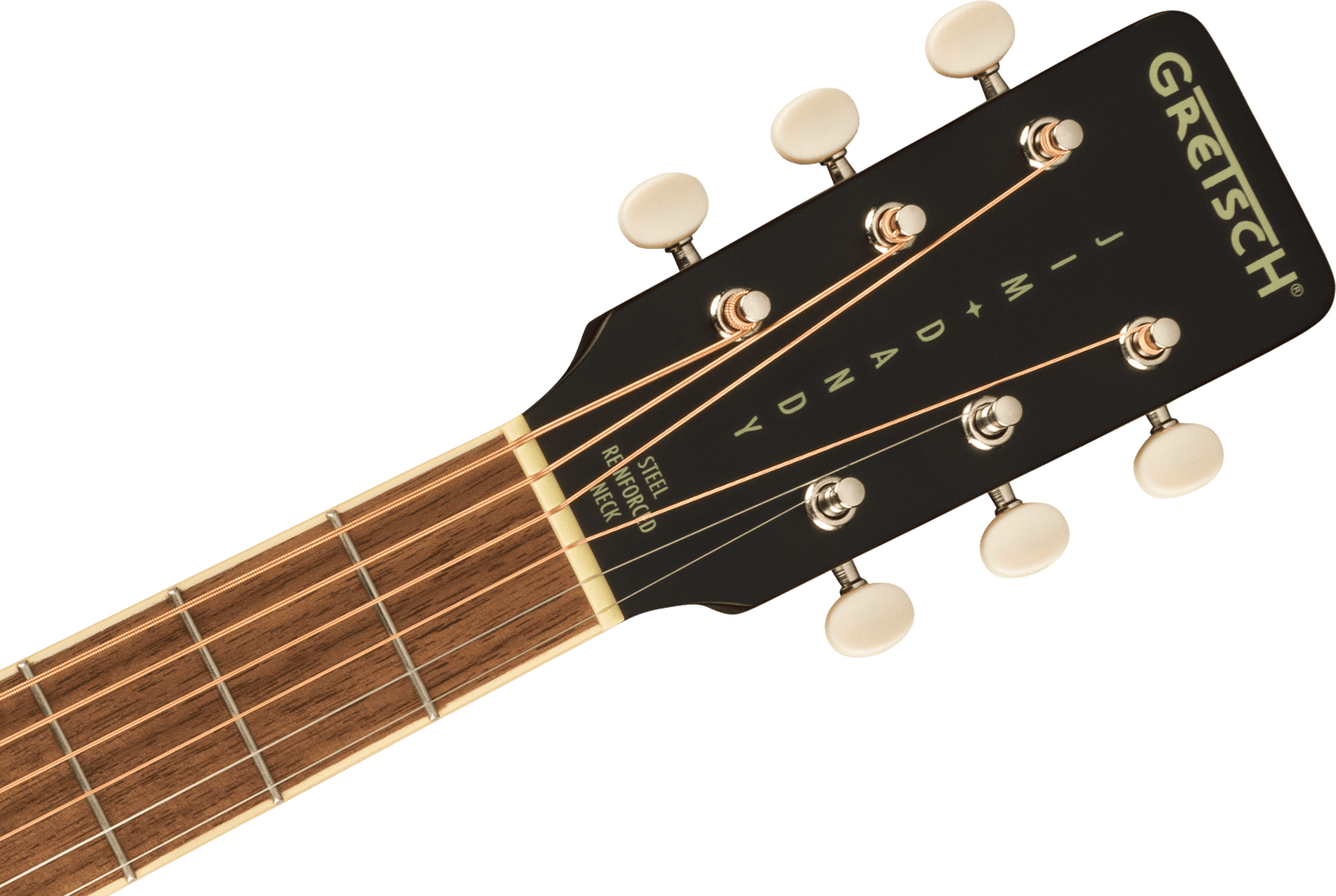

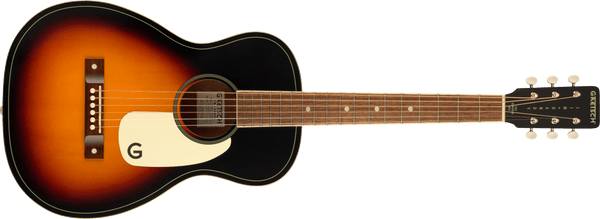

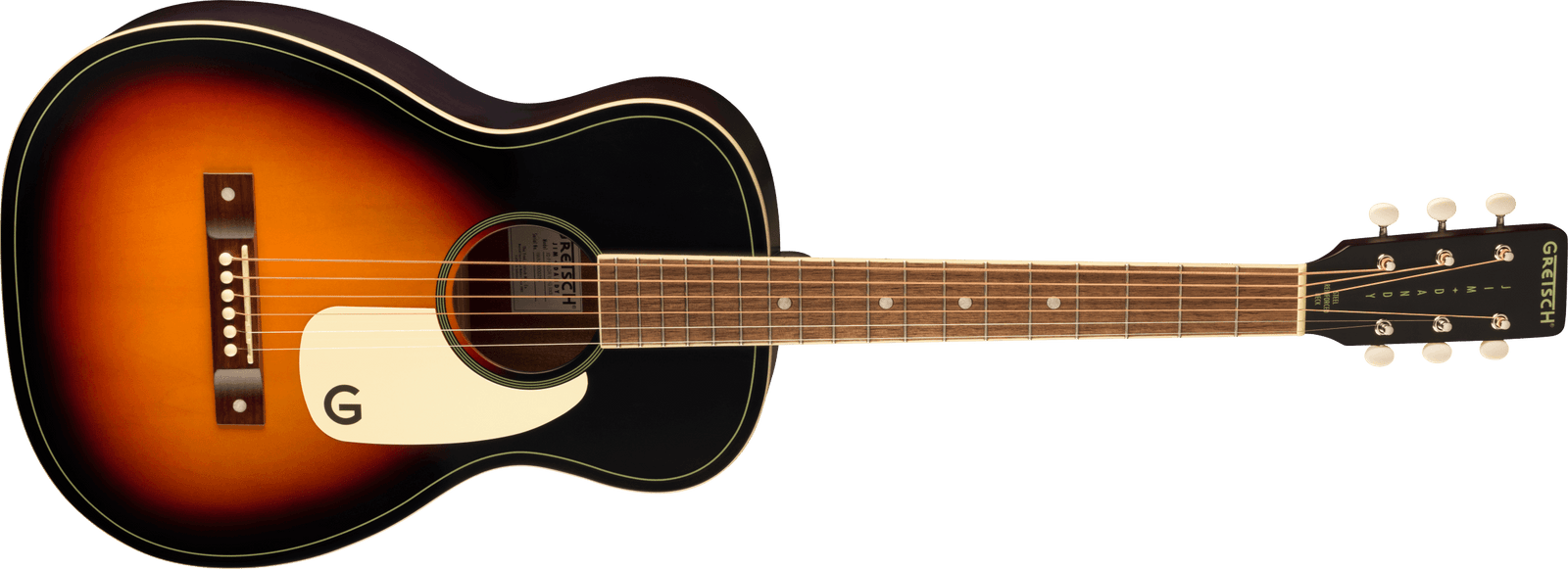

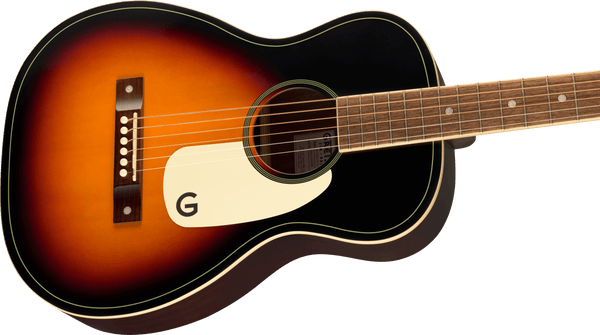

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Jim Dandy Parlor Walnut Fingerboard White Pickguard Rex Burst listed above. For larger pics, click on an image to open in a new tab.
