The G9555 New Yorker Archtop Guitar with Pickup Semi-gloss Vintage Sunburst is a archtop acoustic guitar built by Gretsch. This guitar is manufactured in China and is a Roots Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2704055537.
Key Features
- Arched Solid Spruce Top
- Laminated Maple Back
- Mahogany Neck
- Padauk Fingerboard
- 25" (635 mm) Scale Length
- 1.75" (44.45 mm) Nut Width
- 9.45" (240 mm) Radius
- Vintage Tall Frets
- Ebony Bridge
- Grover Sta-Tite Geared Tuning Machines
Product Identifiers
| Model Name | G9555 New Yorker Archtop Guitar |
| Part Number | 2704055537 |
| Product Series | Roots Collection |
| Country of Origin | China |
| Brand | Gretsch |
| Type | Acoustic Guitar |
| Category | Archtop |
| UPC Code | 885978872480 |
Factory Specifications
Body Construction
| Body Material | Laminated Maple |
| Top Material | Arched Solid Spruce |
| Back Material | Laminated Maple |
| Body Shape | Roots Guitar |
| Body Finish | Semi-Gloss |
| Bracing | Parallel Tone Bars |
| Rosette | N/A |
Hardware
| Bridge | Ebony |
| Tuning Machines | Grover Sta-Tite Geared |
| Pickguard | 1-Ply Tortoiseshell |
| Control Knobs | Clear Amber Plastic |
| Bridge Cover / Tailpiece | Trapeze Tailpiece |
| Hardware Finish | Chrome |
Neck Construction
| Neck Material | Mahogany |
| Fingerboard Material | Padauk |
| Radius | 9.45" (240 mm) |
| Fingerboard Inlays | White Dot |
| Number of Frets | 19 (14 to body) |
| Fret Size | Vintage Tall |
| Nut Width | 1.75" (44.45 mm) |
| Scale Length | 25" (635 mm) |
| Nut Material | Synthetic Bone |
| Neck Shape | Vintage "V" |
| Neck Finish | Semi-Gloss Color Matched |
Electronics
| Controls | Master Volume |
General
| Orientation | Right-Hand |
| Strings | D'Addario EHR350 Half Rounds (.012-.052 Gauges) |
| Case / Gig Bag | Optional G6301 Gretsch G100CE Hardshell (p/n 099-6501-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000) |
| Included Accessories | Deluxe Hardshell Case, Strap and Certificate of Authenticity. |
| Recommended Case | Optional: 099-6458-000 Gig Bag; 099-6501-000 Hardshell Case |
| Truss Rod Wrench | 4 mm Hex (Allen) |
Reference Images

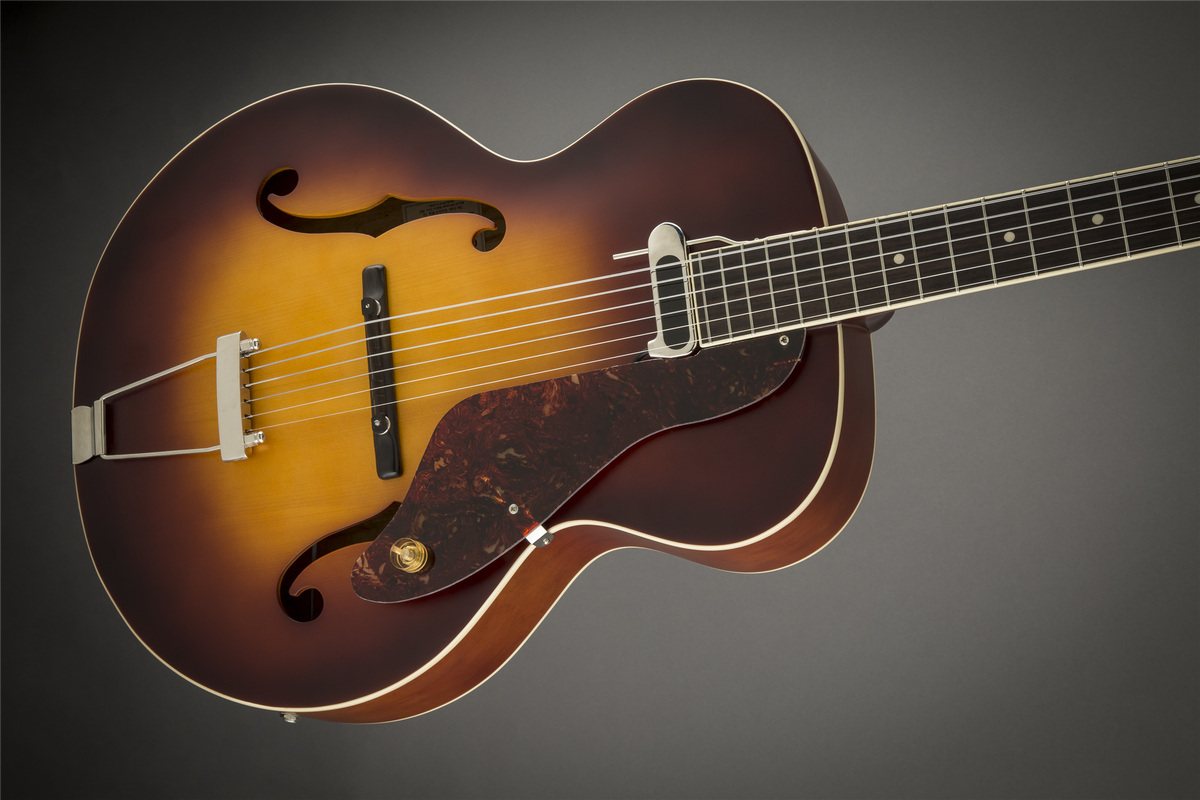

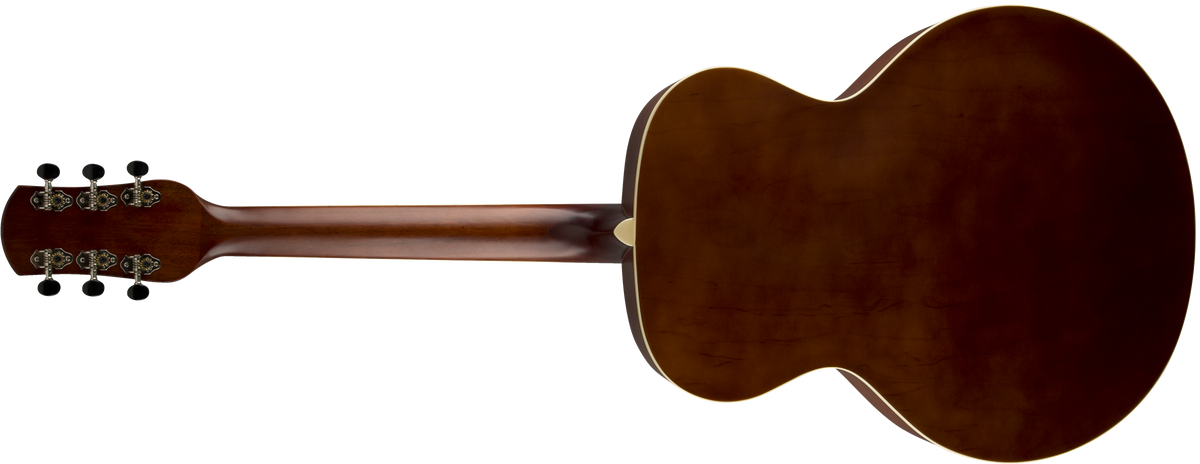

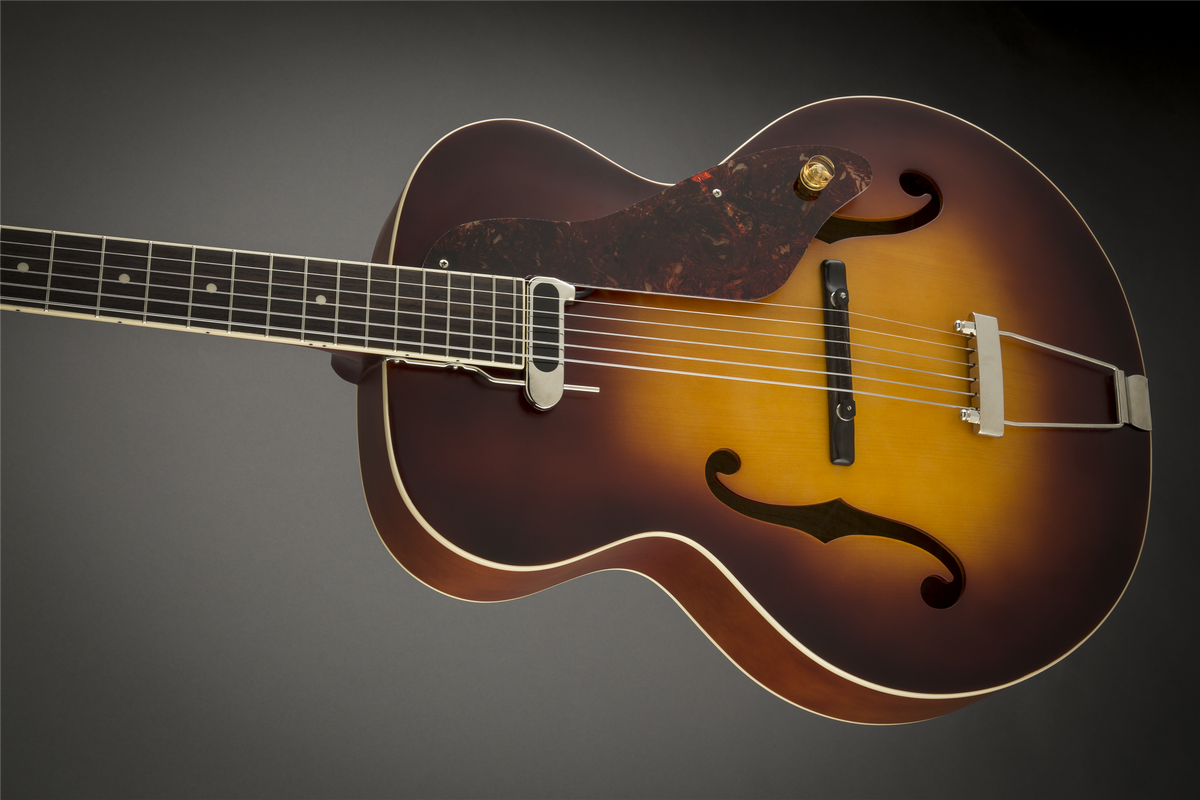

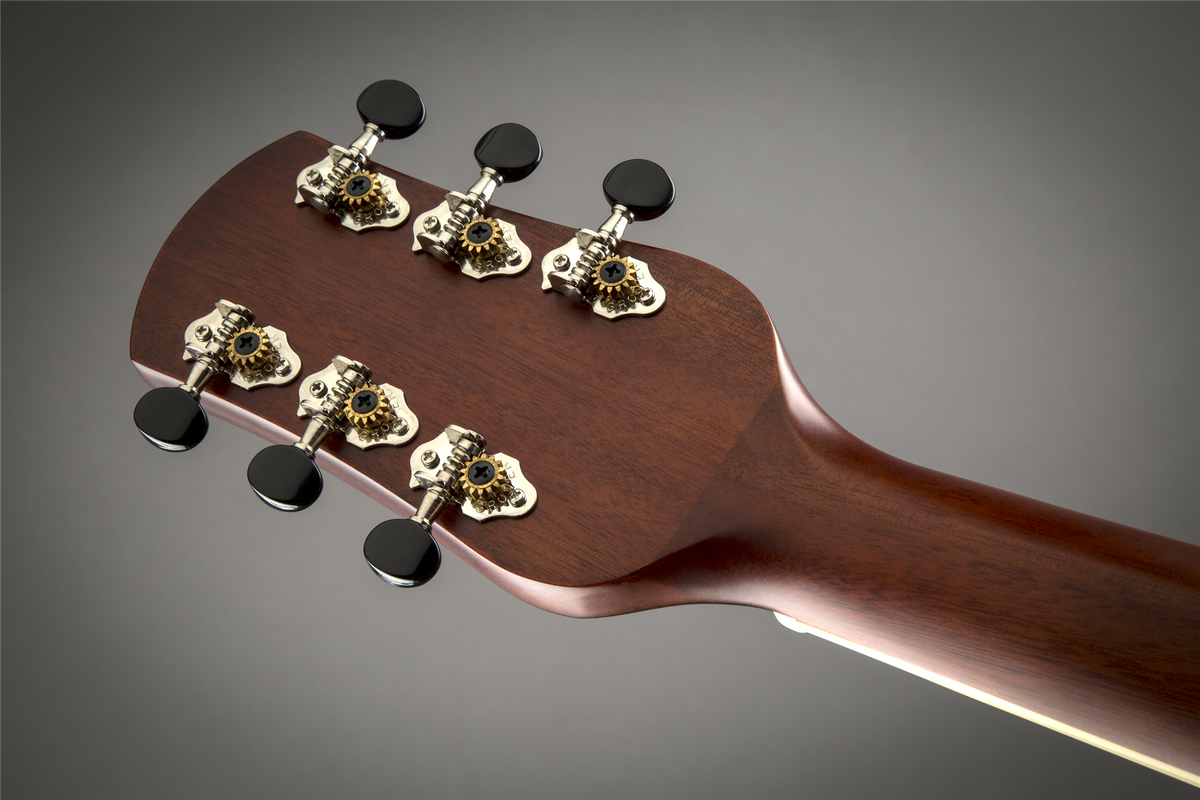

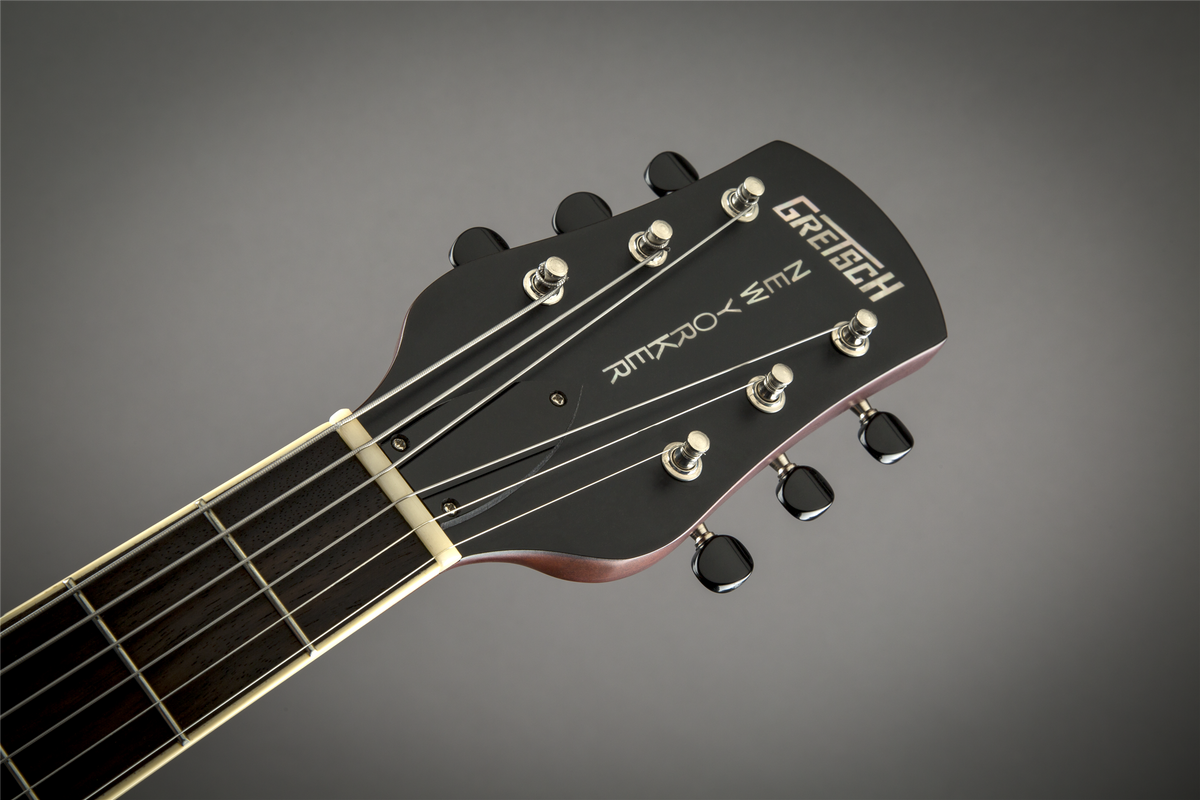

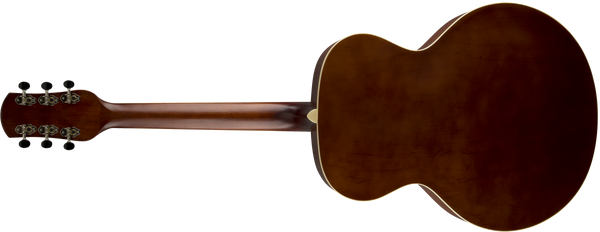

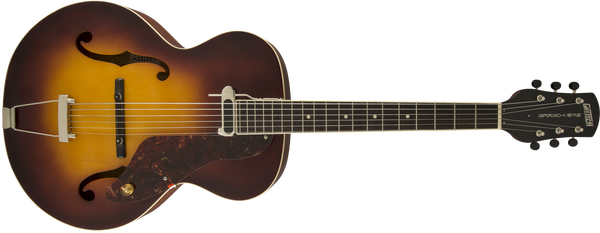

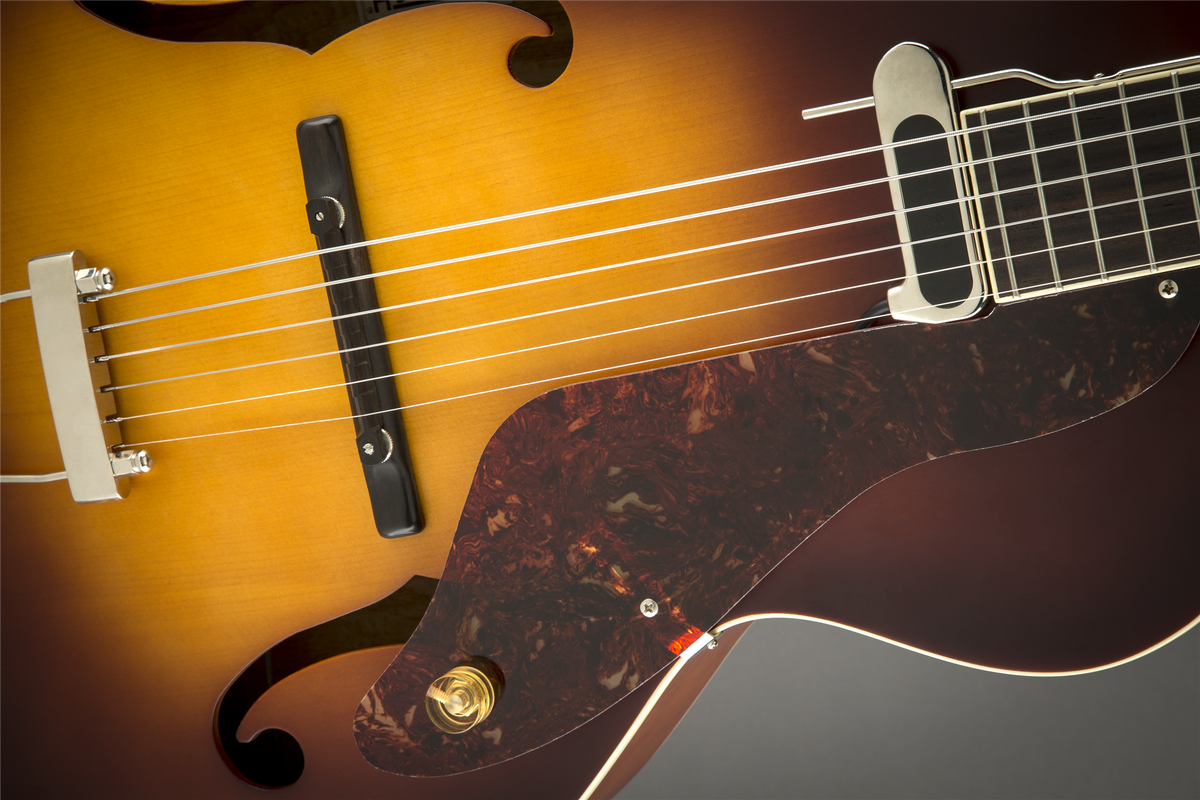

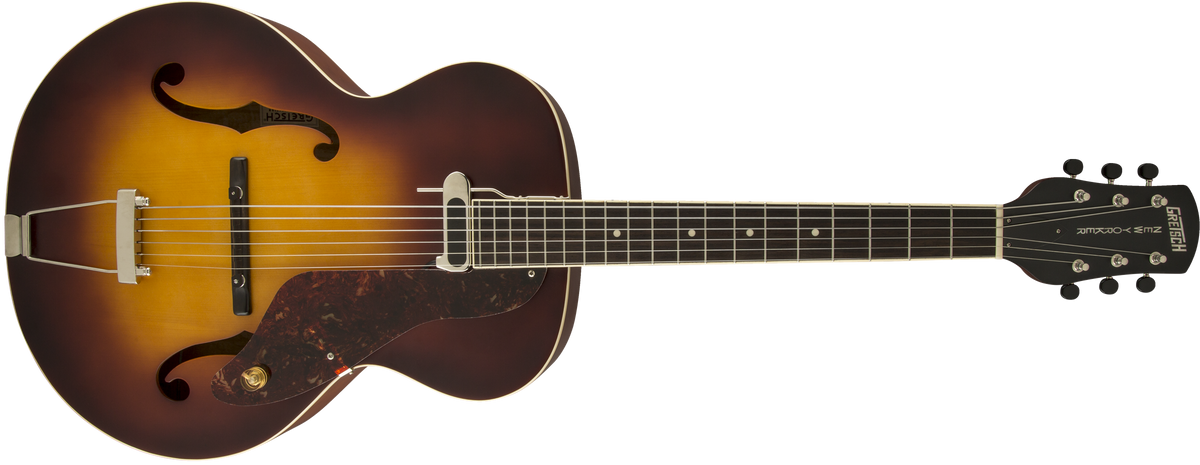

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G9555 New Yorker Archtop Guitar with Pickup Semi-gloss Vintage Sunburst listed above. For larger pics, click on an image to open in a new tab.
