The G9500 Jim Dandy 24" Scale Flat Top Guitar Barn Wood Burst is a concert acoustic guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Roots Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2704000507.
Key Features
- Agathis Top
- Agathis Back
- Agathis Sides
- Nato Neck
- Rosewood Fingerboard
- 24" (610 mm) Scale Length
- 1.6875" (42.86 mm) Nut Width
- 12" (305 mm) Radius
- Vintage-Style Frets
- Walnut Top-Load with Compensated Saddle Bridge
- Open-Gear Die-Cast Tuning Machines
Product Identifiers
| Model Name | G9500 Jim Dandy 24" Flat Top Guitar |
| Part Number | 2704000507 |
| Product Series | Roots Collection |
| Country of Origin | Indonesia |
| Brand | Gretsch |
| Type | Acoustic Guitar |
| Category | Concert |
| UPC Code | 885978639588 |
Factory Specifications
Body Construction
| Body Material | Agathis |
| Top Material | Agathis |
| Back Material | Agathis |
| Side Material | Agathis |
| Body Shape | Jim Dandy |
| Body Binding | Screened White |
| Body Finish | Vintage Semi-Gloss |
| Bracing | X-Bracing |
| Upper Bout Width | 9.375" (238.12mm) |
| Lower Bout Width | 13.125" (333 mm) |
| Waist | 8.125" (20.63 cm) |
| Rosette | White/Black Rings |
Hardware
| Bridge | Walnut Top-Load with Compensated Saddle |
| Tuning Machines | Open-Gear Die-Cast |
| Pickguard | 1-Ply White with "G" Graphic |
| Bridge Cover / Tailpiece | Traditional Acoustic Bridge |
| Hardware Finish | Nickel-Plated |
Neck Construction
| Neck Material | Nato |
| Fingerboard Material | Rosewood |
| Radius | 12" (305 mm) |
| Fingerboard Inlays | White Pearloid Dot |
| Number of Frets | 18 (12 to Body) |
| Fret Size | Vintage-Style |
| Nut Width | 1.6875" (42.86 mm) |
| Scale Length | 24" (610 mm) |
| Nut Material | Synthetic Bone |
| Neck Shape | "C" Shape |
| Neck Construction | Set-Neck |
| Neck Finish | Semi-Gloss Color Matched |
| Headstock | 1950's Gretsch 3x3 |
| Truss Rod | Dual-Action |
| Truss Rod Nut | Hex |
Electronics
| Controls | NA |
General
| Orientation | Right-Hand |
| Strings | D'Addario EJ16 Phosphor Bronze, Light (.012-.053 Gauges) |
| Case / Gig Bag | Optional G6296 Gretsch Round Neck Resonator Hardshell (p/n 099-6495-000); Optional G2180 Gig Bag (p/n 099-6481-000) |
| Recommended Case | Optional: 099-6481-000 Gig Bag; 099-6494-000 Hardshell Case |
| Truss Rod Wrench | Yes |
Reference Images

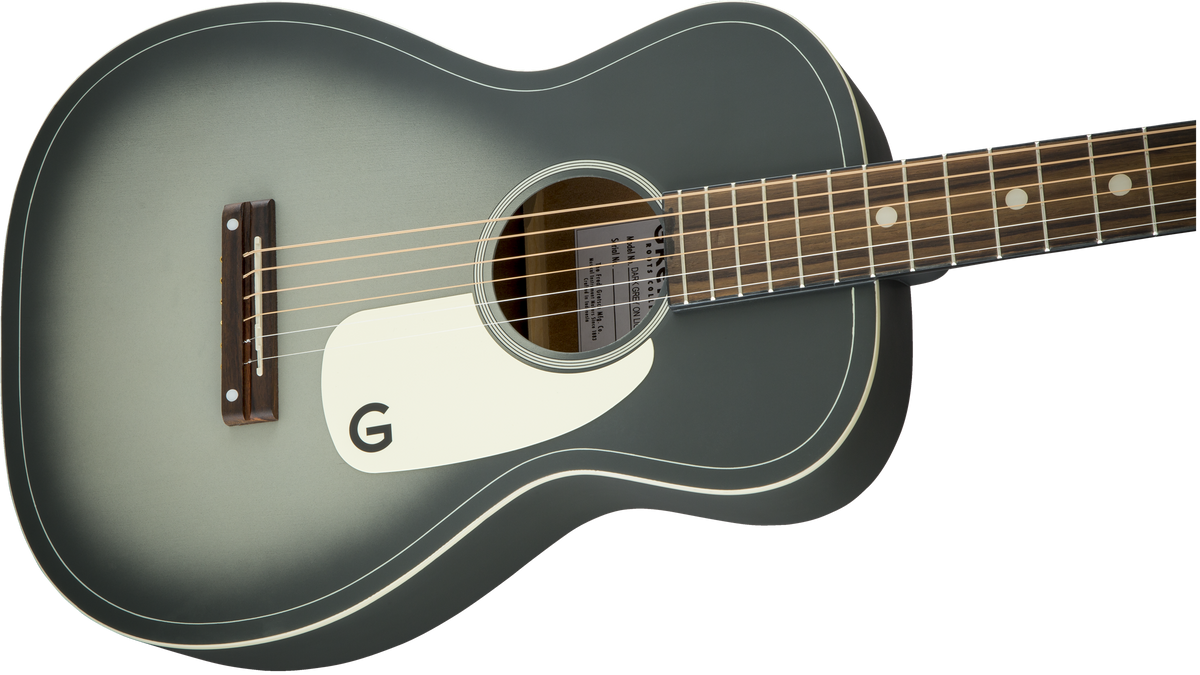

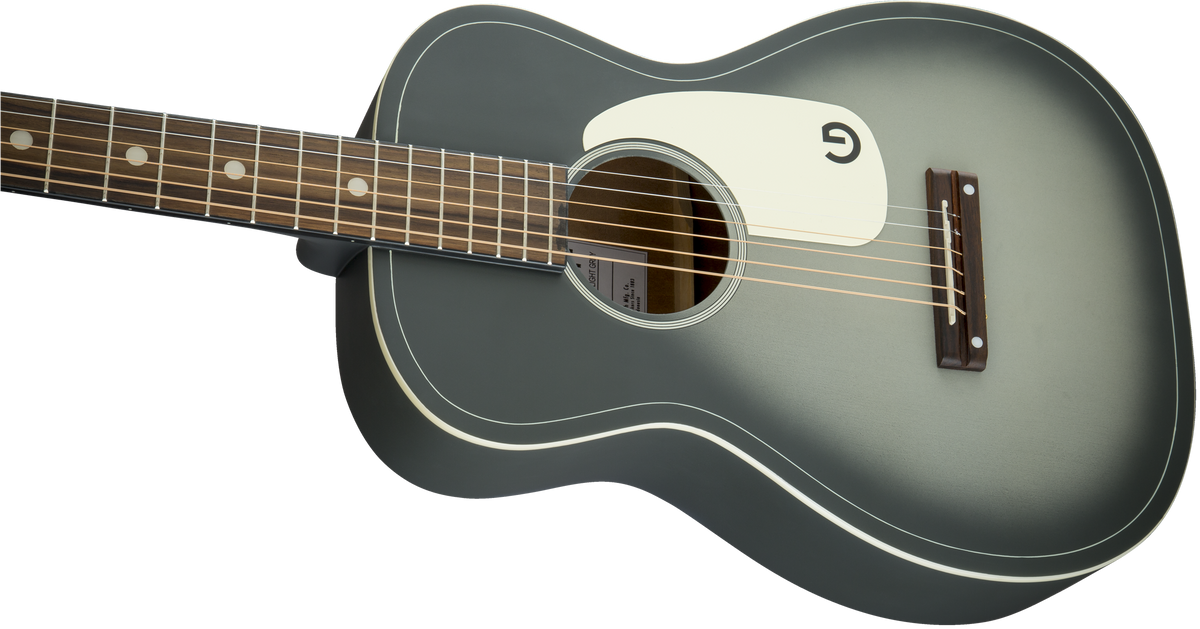

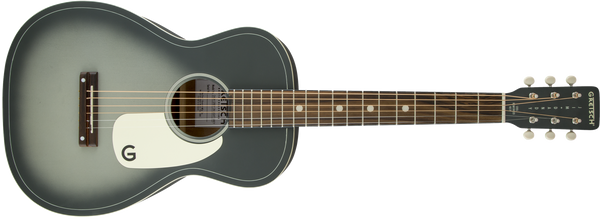

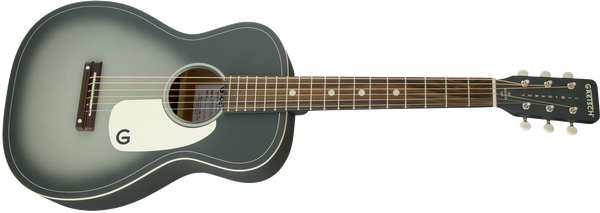

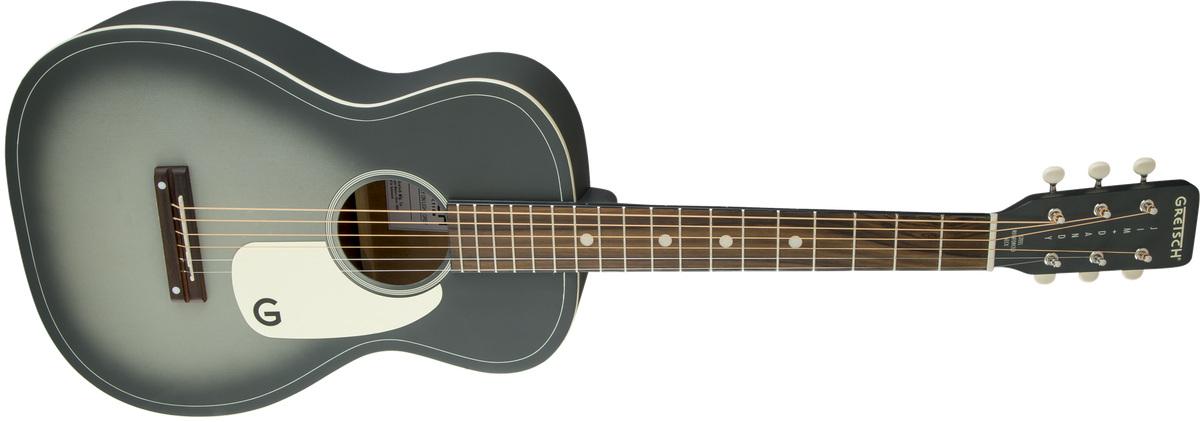

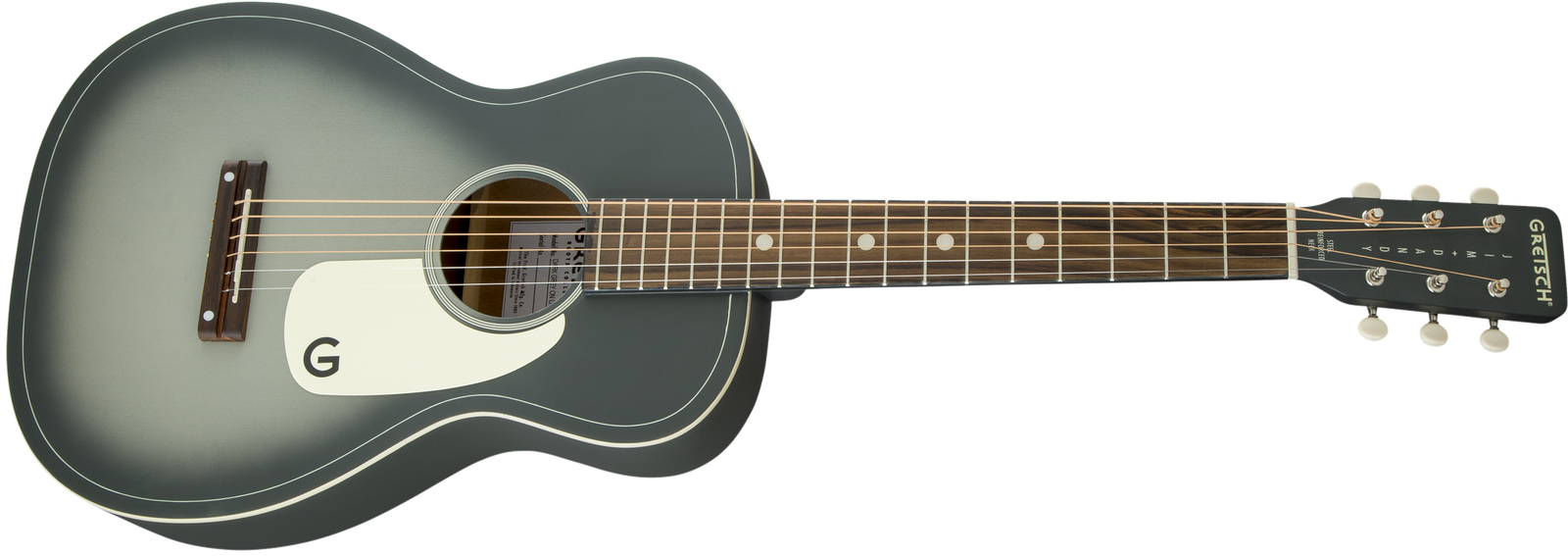

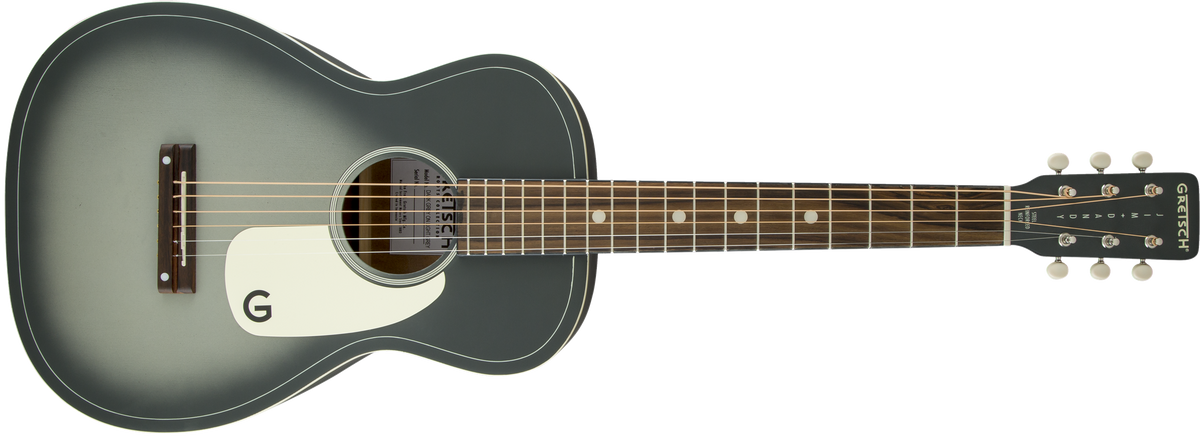

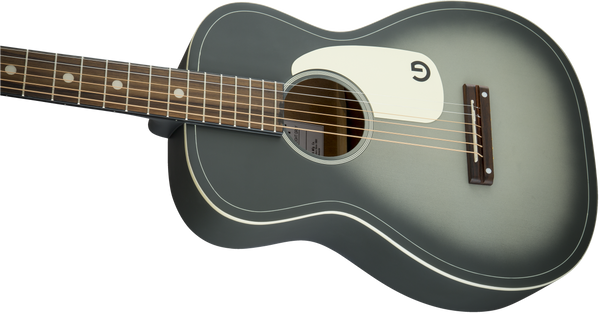

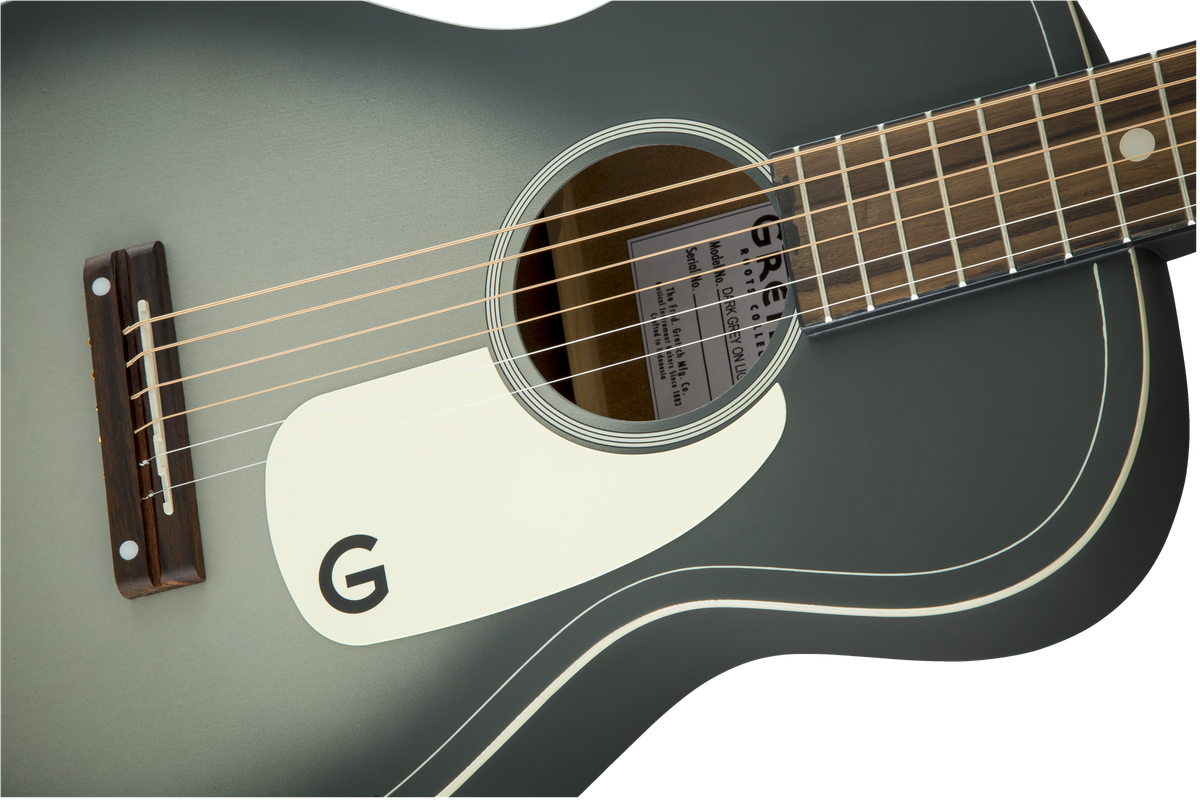

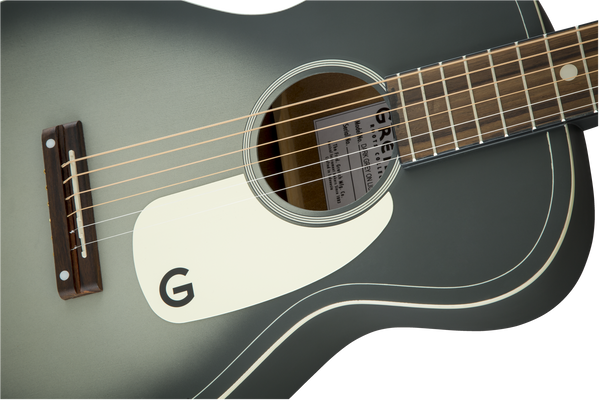

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G9500 Jim Dandy 24" Scale Flat Top Guitar Barn Wood Burst listed above. For larger pics, click on an image to open in a new tab.
