Gretsch G9200 Boxcar Round-Neck Resonator Natural Specs

The G9200 Boxcar Round-Neck Mahogany Body Resonator Guitar Natural is a resonator acoustic guitar built by Gretsch. This guitar is manufactured in China and is a Roots Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2715013521.

Key Features

Laminated Mahogany Body
Mahogany Neck
Padauk Fingerboard
25" (635 mm) Scale Length
1.75" (44.45 mm) Nut Width
15.75" (400 mm) Radius
Medium Jumbo Frets
Spider - Ebony-Tipped Maple Bridge
Grover Sta-Tite Die-Cast Tuning Machines

Product Identifiers

Model Name	G9200 Boxcar Round-Neck Resonator Guitar
Part Number	2715013521
Product Series	Roots Collection
Country of Origin	China
Brand	Gretsch
Type	Acoustic Guitar
Category	Resonator
UPC Code	885978872381

Factory Specifications

Body Construction

Body Material	Laminated Mahogany
Body Shape	Resonator
Body Finish	Vintage Semi-Gloss
Bracing	Internal Sound-Well

Hardware

Bridge	Spider - Ebony-Tipped Maple
Tuning Machines	Grover Sta-Tite Die-Cast
Pickguard	None
Bridge Cover / Tailpiece	Weathered Trapeze Tailpiece
Hardware Finish	Chrome

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Padauk
Radius	15.75" (400 mm)
Fingerboard Inlays	White Dot
Number of Frets	19 (12 to Body)
Fret Size	Medium Jumbo
Nut Width	1.75" (44.45 mm)
Scale Length	25" (635 mm)
Nut Material	Bone
Neck Shape	Soft "V"
Neck Finish	Vintage Semi-Gloss
Headstock	1930's Gretsch 3x3
Truss Rod	Dual-Action Head Adjust
Truss Rod Nut	Hex

Electronics

General

Orientation	Right-Hand
Strings	D'Addario EJ16 Phosphor Bronze, Light (.012-.053 Gauges)
Unique Features	Gretsch Ampli-Sonic Spider Resonator Cone and Bridge; Nickel-Plated Poinsettia Design Cover-Plate; 1930s Gretsch Headstock with Aged Pearloid Face.
Case / Gig Bag	Optional G6296 Gretsch Round Neck Resonator Hardshell (p/n 099-6495-000); Optional G2180 Gig Bag (p/n 099-6481-000)
Recommended Case	099-6495-000 Economy Case - G6296 - (Flat) Round Neck Resonator\|099-6481-000 Gig Bag - G2180 - Resonator Gig Bag

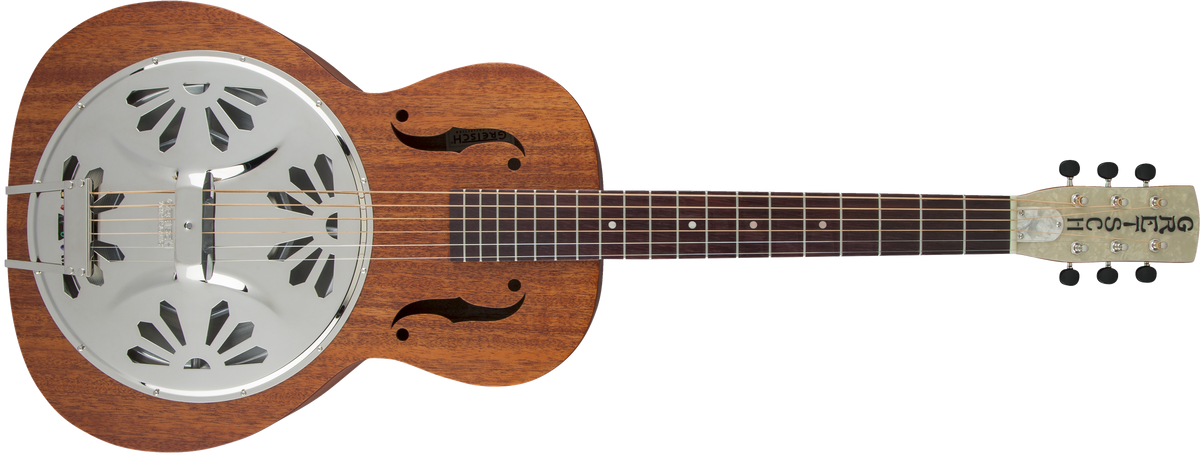

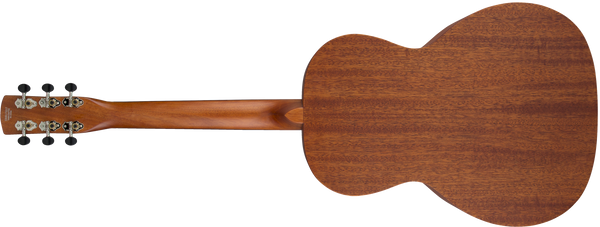

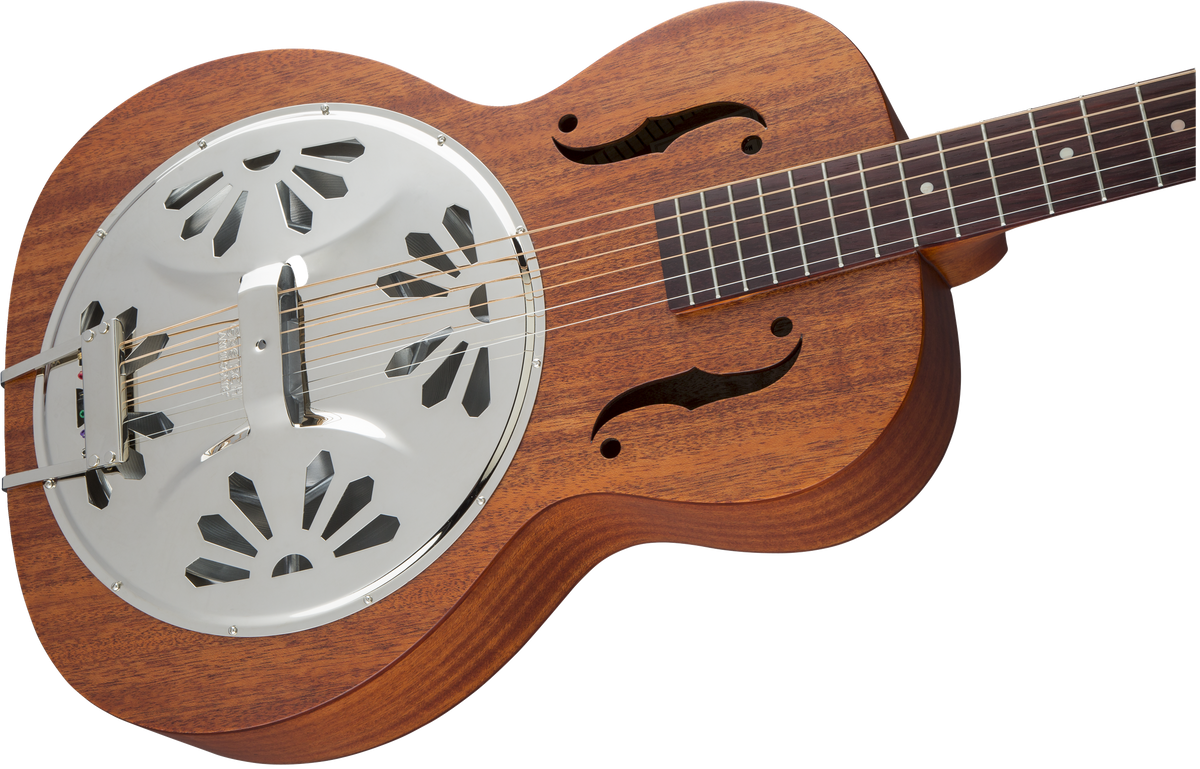

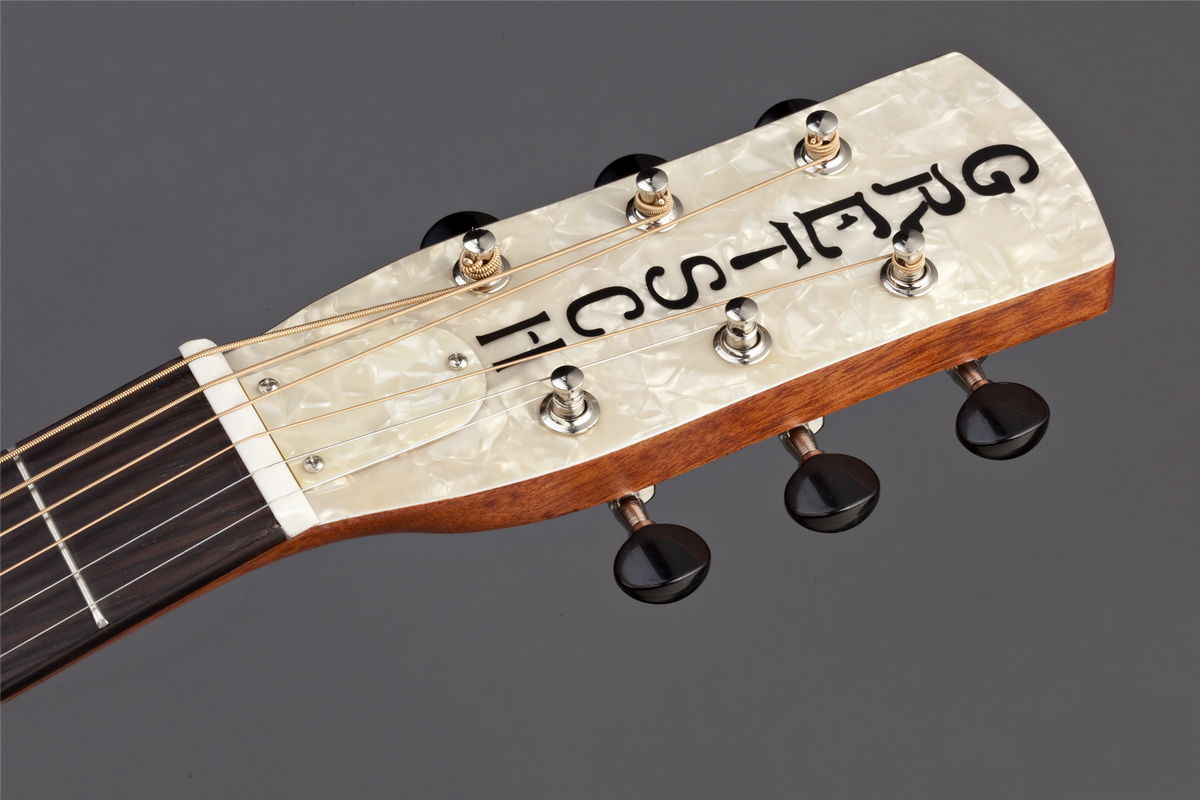

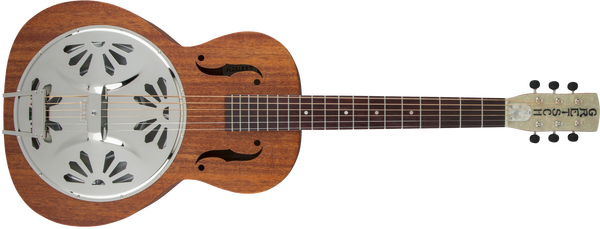

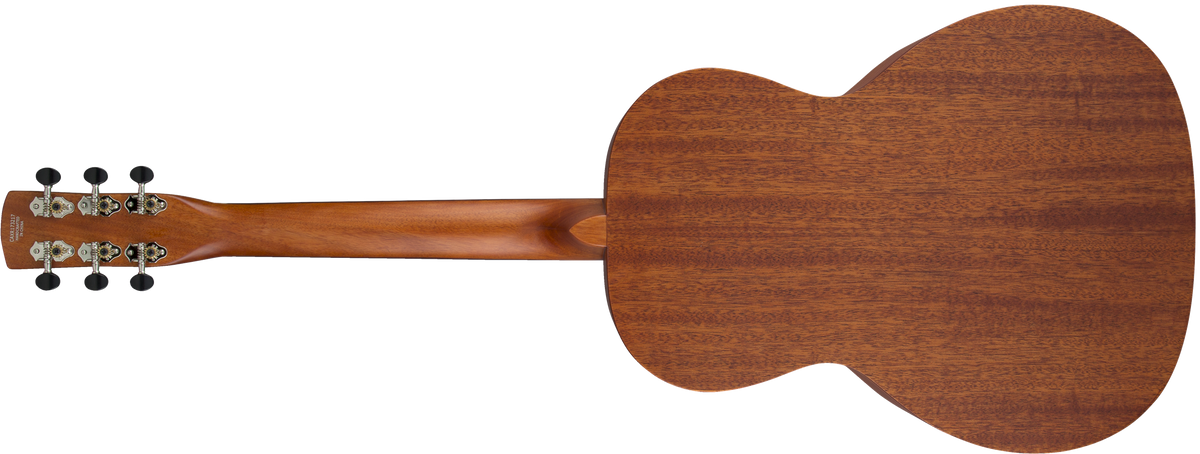

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G9200 Boxcar Round-Neck Mahogany Body Resonator Guitar Natural listed above. For larger pics, click on an image to open in a new tab.
