Gretsch G6228LH Players Edition Jet BT V-Stoptail Left-Handed Cadillac Green Metallic Specs

The G6228LH Players Edition Jet BT with V-Stoptail Left-Handed Rosewood Fingerboard Cadillac Green is a solid body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2413420848.

Key Features

Laminated Maple Top
Mahogany Body
Mahogany Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Gotoh Locking Tuning Machines
Broad'Tron BT-65 Bridge Pickup
Broad'Tron BT-65 Neck Pickup

Product Identifiers

Model Name	G6228LH Players Edition Jet BT with V-Stoptail, Left-Handed
Part Number	2413420848
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978908141

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Laminated Maple
Back Material	Mahogany
Body Shape	Jet
Body Binding	Aged White with B/W Purfling
Body Finish	Gloss
Bracing	Chambered
Upper Bout Width	10.5" (26.7 cm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Anchored Adjusto-Matic
Tuning Machines	Gotoh Locking
Pickguard	Gold Plexi with Black Gretsch Logo
Control Knobs	Arrow
Bridge Cover / Tailpiece	Gretsch "V" Stoptail
Hardware Finish	Nickel

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Big Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech TUSQ XL
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	Broad'Tron BT-65
Neck Pickup	Broad'Tron BT-65
Pickup Configuration	Broad'Tron / Broad'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Left-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6238 Gretsch Deluxe Solid Body Hardshell (p/n 099-6410-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)

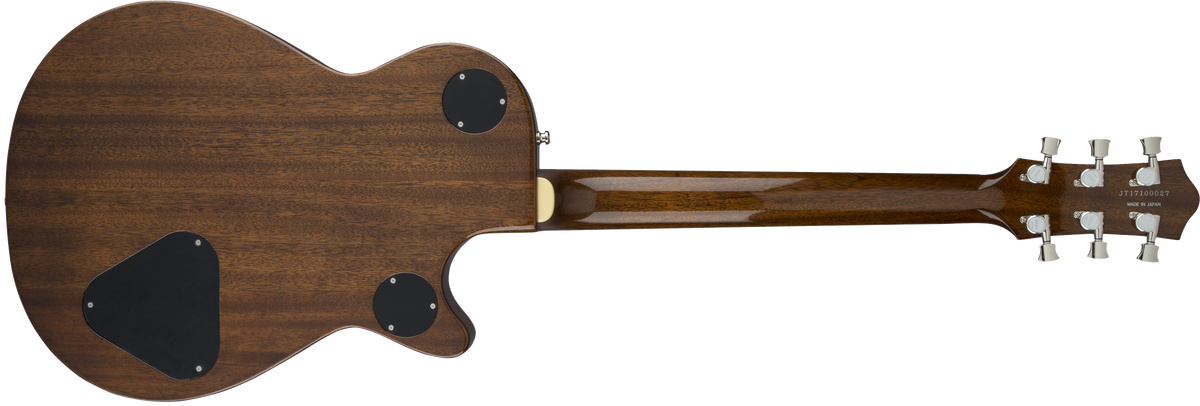

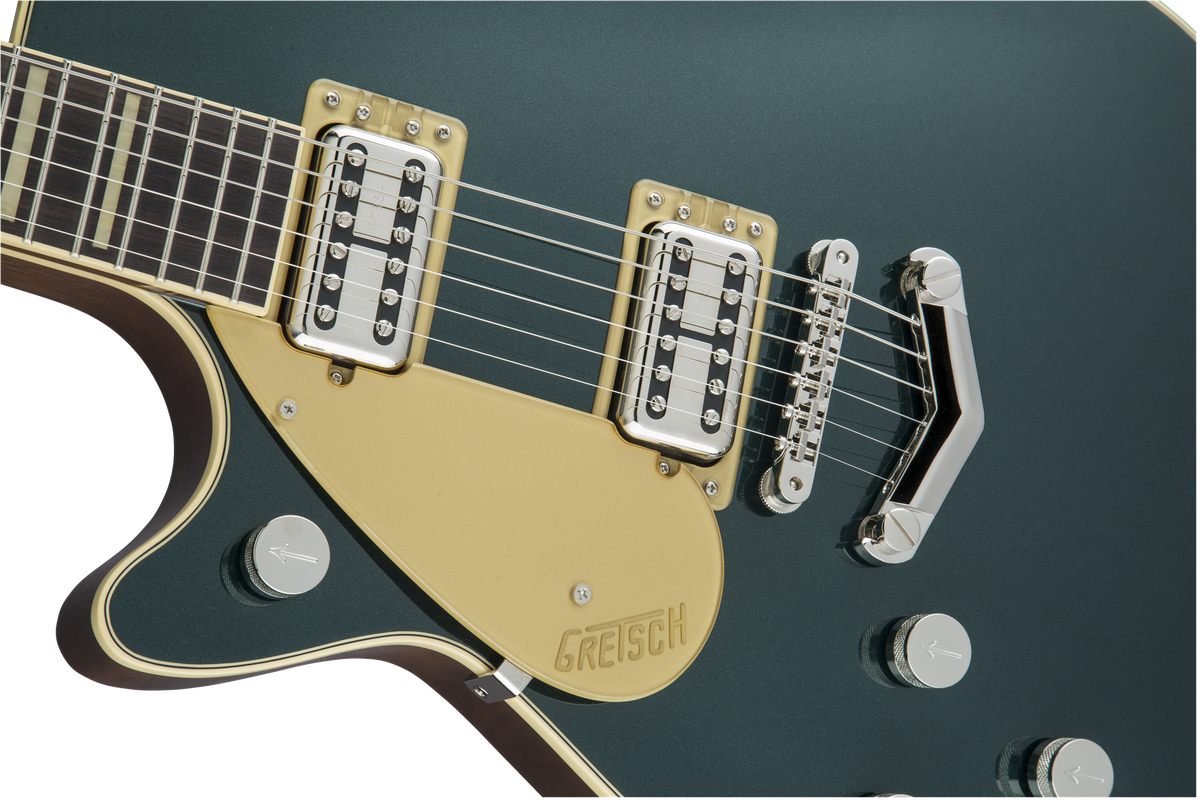

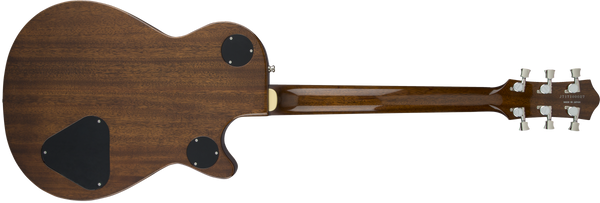

Reference Images

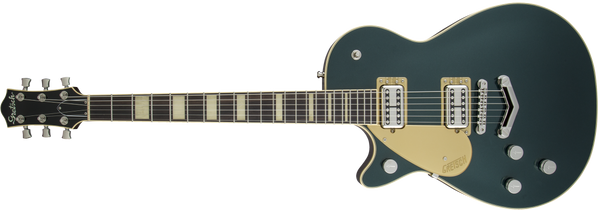

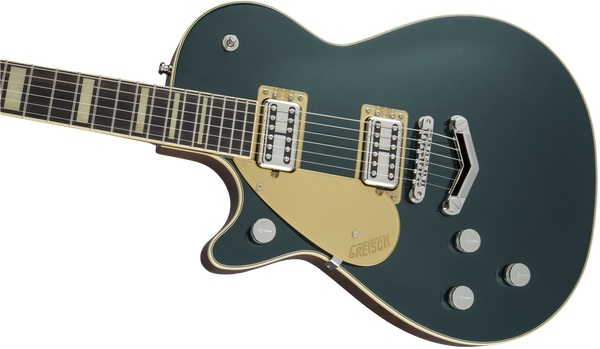

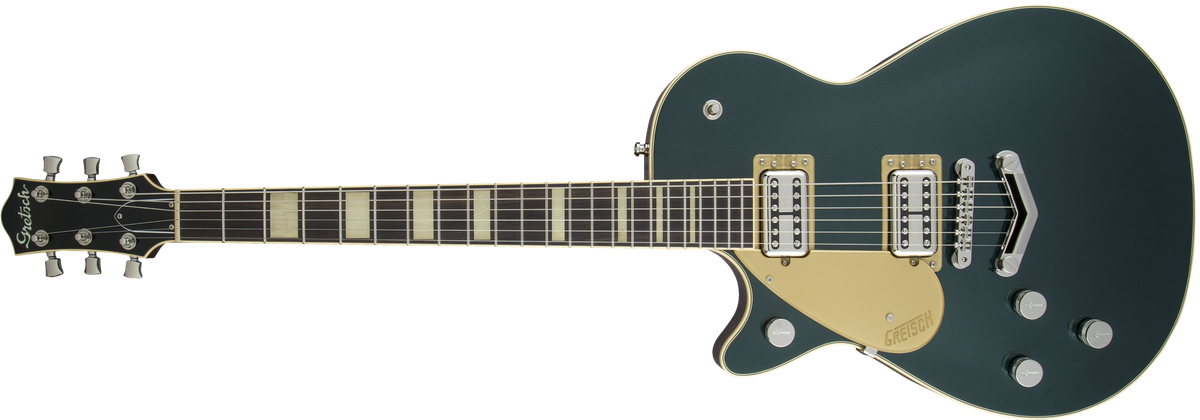

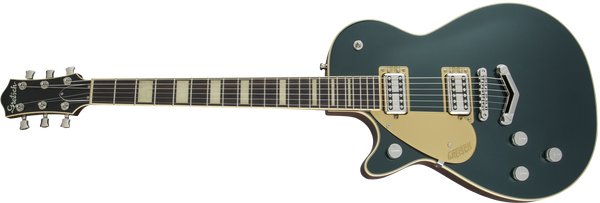

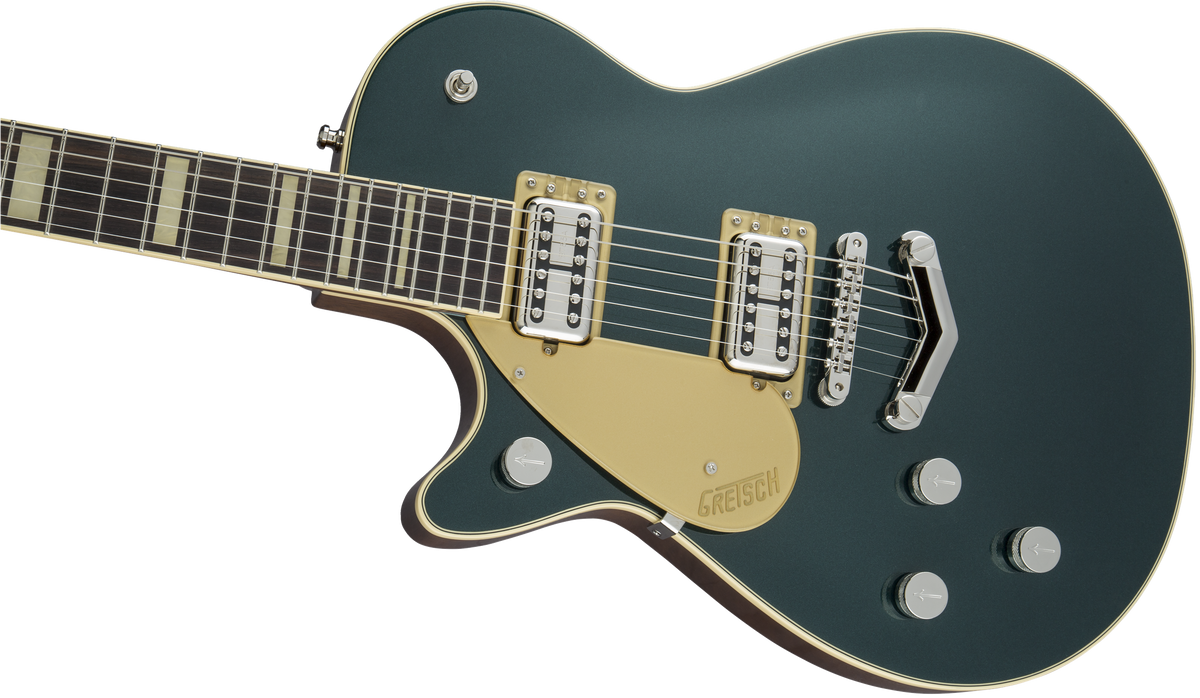

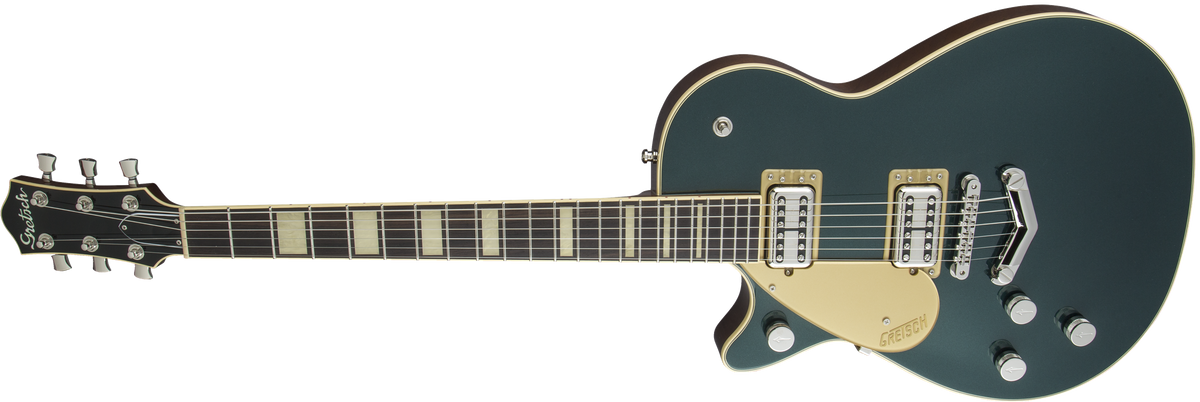

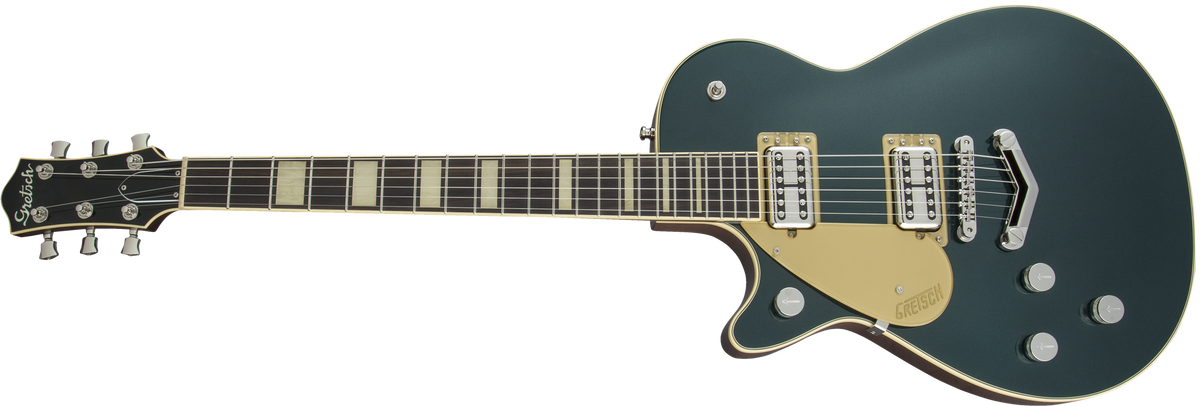

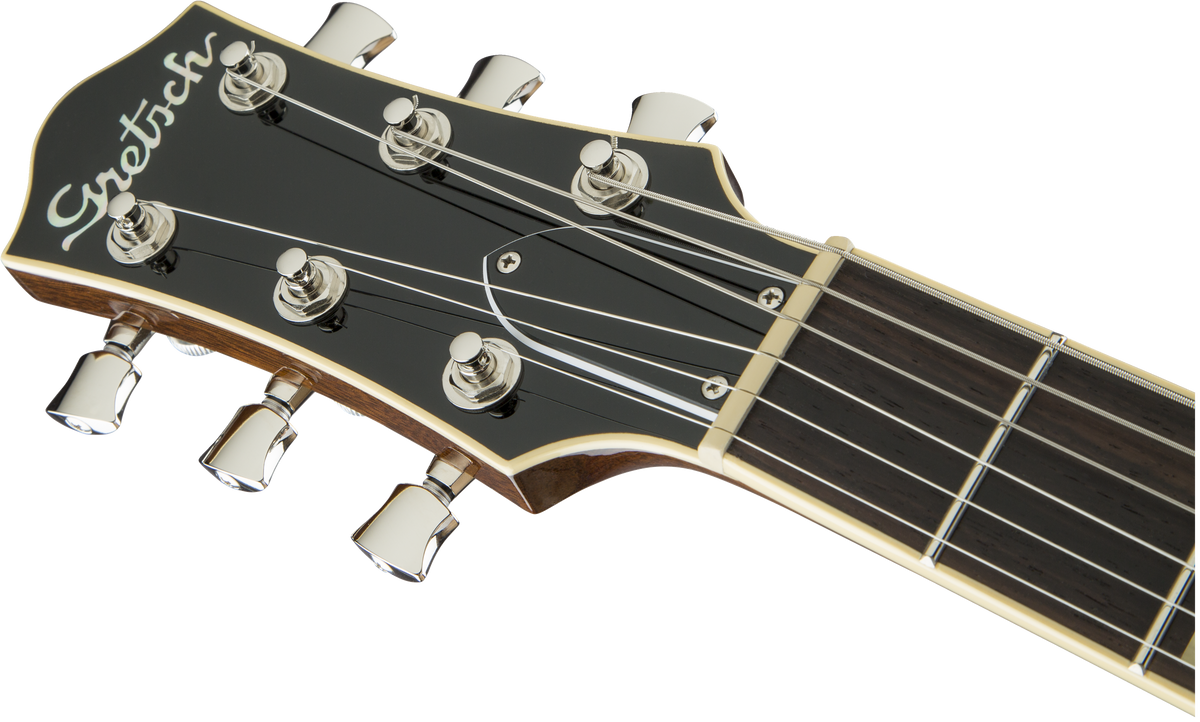

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6228LH Players Edition Jet BT with V-Stoptail Left-Handed Rosewood Fingerboard Cadillac Green listed above. For larger pics, click on an image to open in a new tab.
