Gretsch G6136T-MGC Michael Guy Chislett Signature Falcon Bigsby Vintage White Specs

The G6136T-MGC Michael Guy Chislett Signature Falcon with Bigsby Ebony Fingerboard Vintage White is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Artist Signature Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401635805.

Key Features

Solid Sitka Spruce Top
Laminated Maple Body
Maple Neck
Ebony Fingerboard
25.5" (648 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Pinned Ebony Base Bridge
Grover Imperial Locking Tuning Machines
TV Jones TV Classic Bridge Pickup
TV Jones TV Classic Neck Pickup

Product Identifiers

Model Name	G6136T-MGC Michael Guy Chislett Signature Falcon with Bigsby
Part Number	2401635805
Product Series	Artist Signature Edition
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978380169

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Solid Sitka Spruce
Back Material	Laminated Maple
Body Shape	Falcon
Body Binding	Gold Sparkle with W/B/W/B Purfling
Body Finish	Gloss Nitrocellulose Lacquer
Bracing	1959 Trestle Bracing
Upper Bout Width	12.125" (308mm)
Lower Bout Width	17" (432 mm)
Waist	10.375" (263.53 mm)

Hardware

Bridge	Adjusto-Matic with Pinned Ebony Base

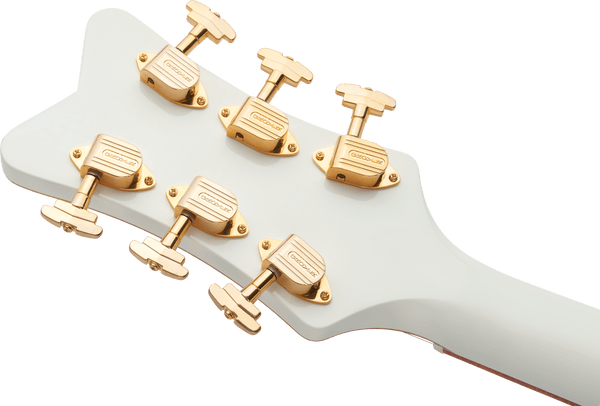

Tuning Machines	Grover Imperial Locking
Pickguard	Gold Plexi with Falcon Graphic and Gretsch Logo
Control Knobs	Jeweled G-Arrow
Bridge Cover / Tailpiece	String-Thru Bigsby B6GP
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Big Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	25.5" (648 mm)
Nut Material	Bone
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Semi-Gloss Lacquer

Electronics

Bridge Pickup	TV Jones TV Classic
Neck Pickup	TV Jones TV Classic
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)
Case / Gig Bag	Included G6242L Deluxe Hardshell Case

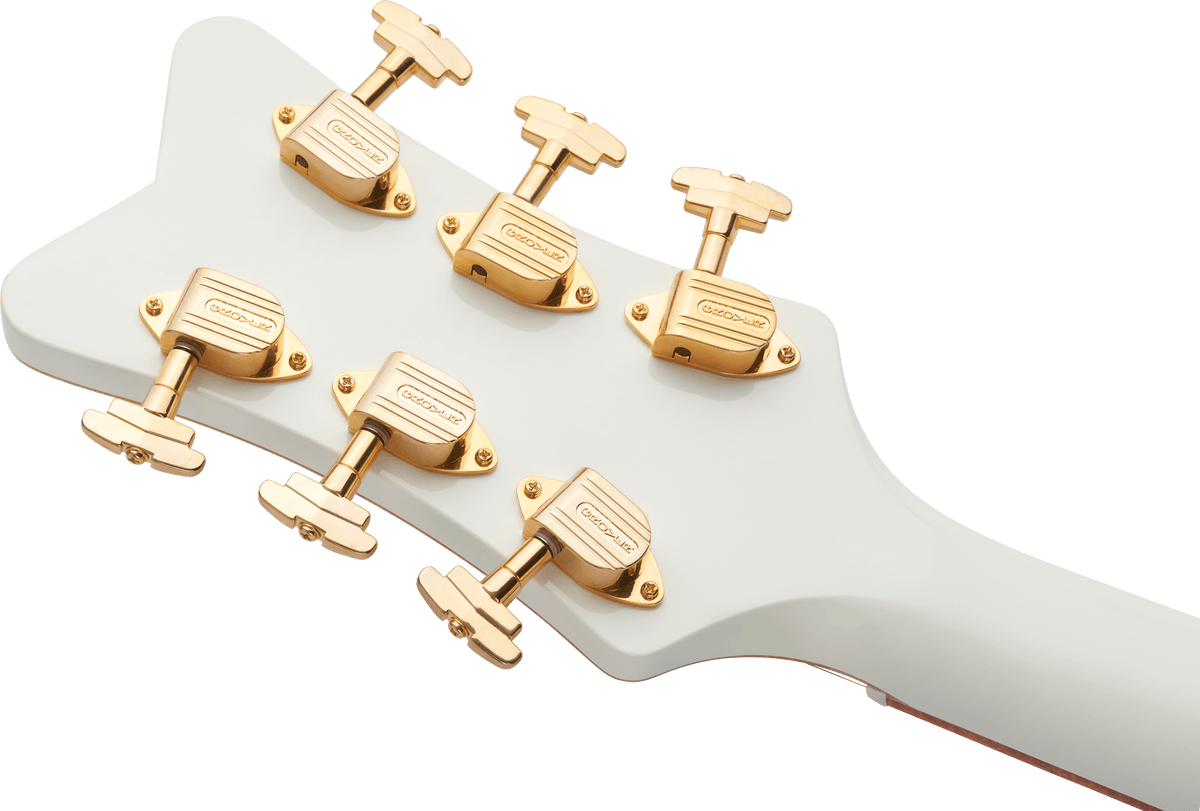

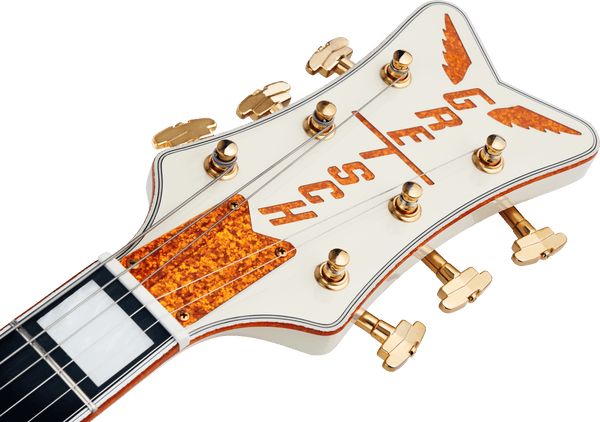

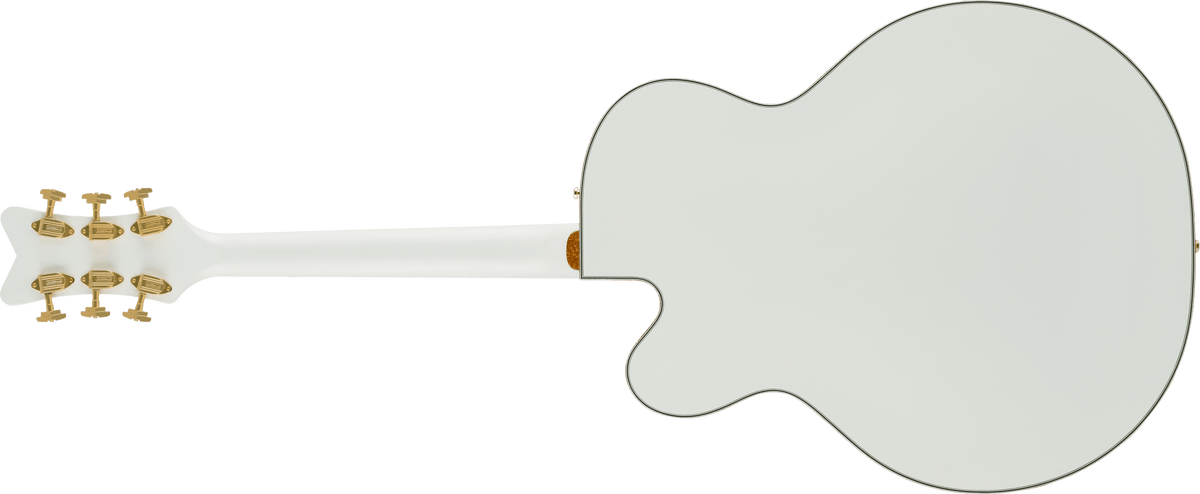

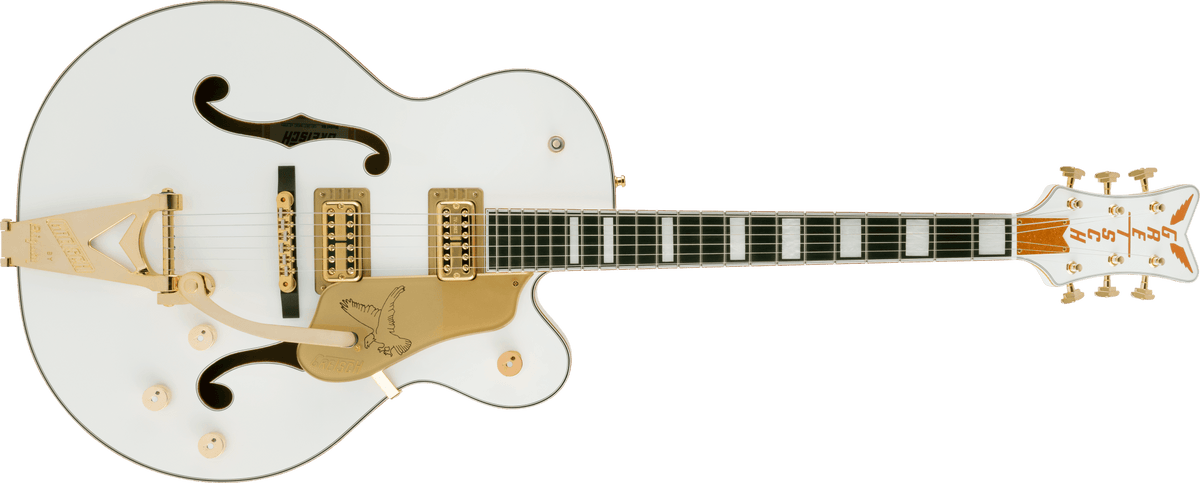

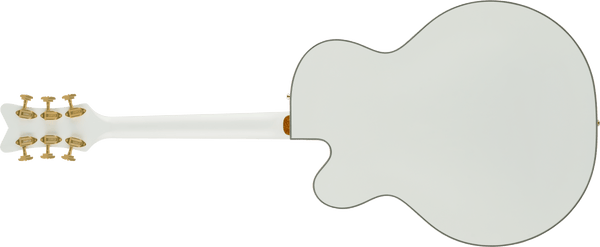

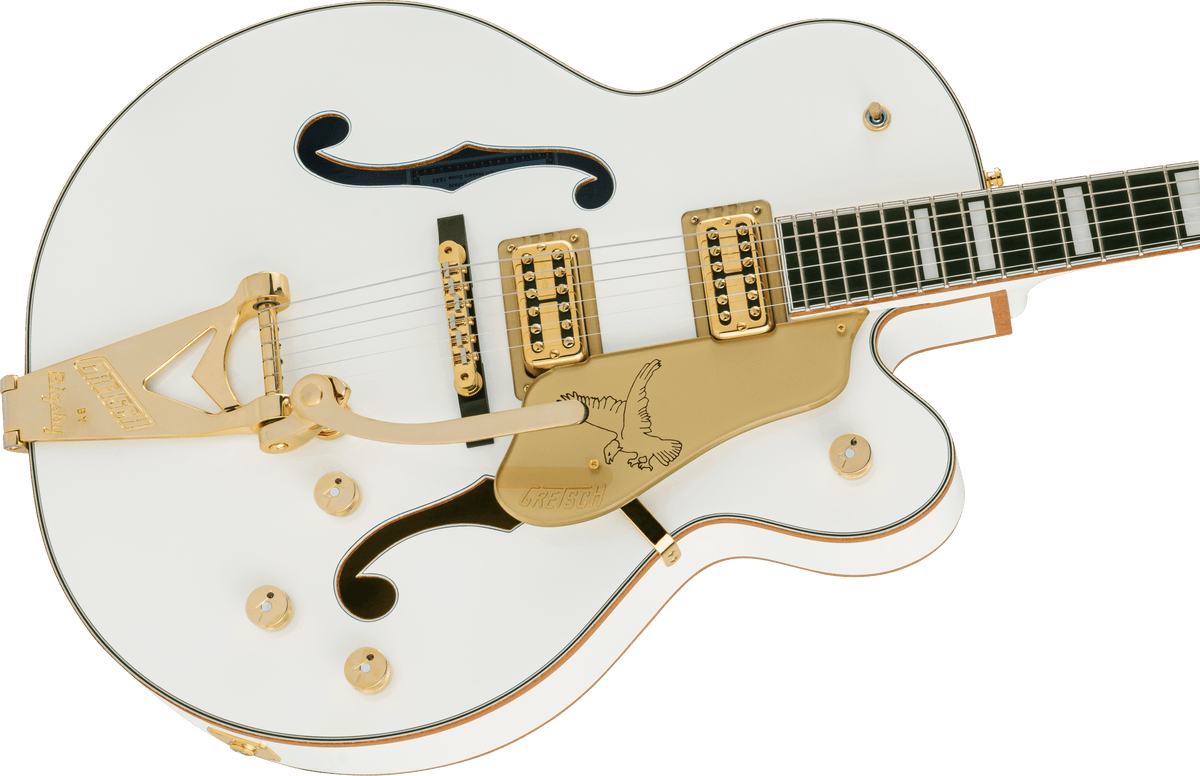

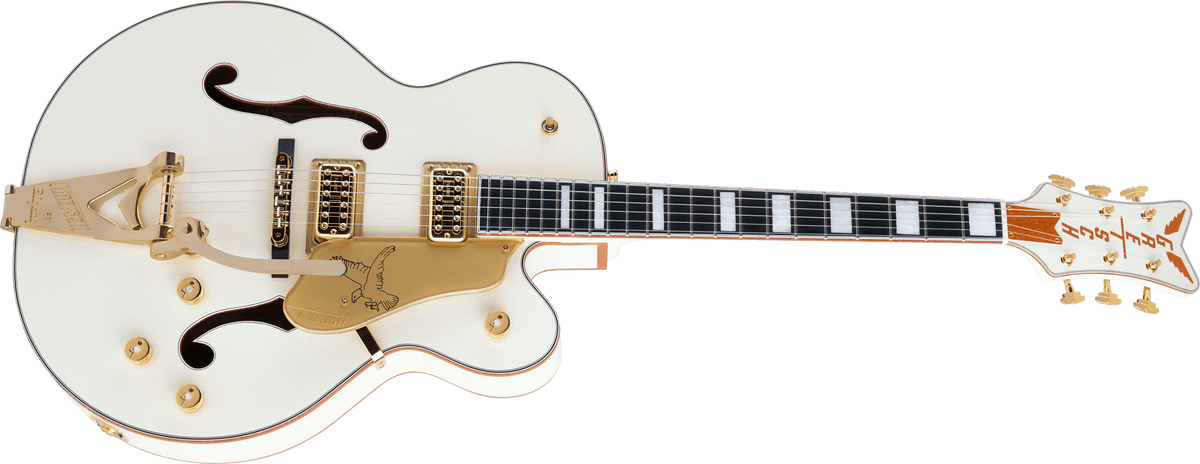

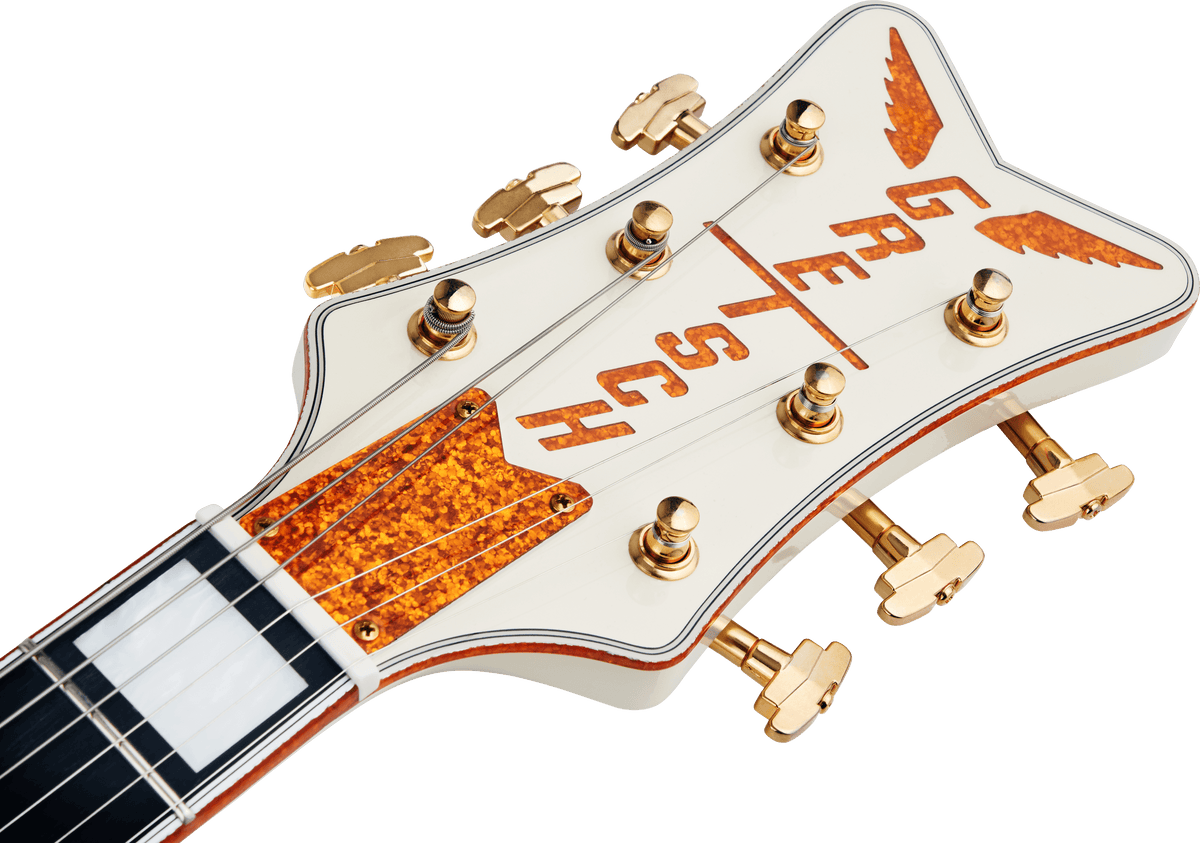

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6136T-MGC Michael Guy Chislett Signature Falcon with Bigsby Ebony Fingerboard Vintage White listed above. For larger pics, click on an image to open in a new tab.
