Gretsch G6136T-CSTRR Custom Shop Rich Robinson "Magpie" Bigsby Raven's Breast Blue Relic Specs

The G6136T-CSTRR Custom Shop Rich Robinson "Magpie" with Bigsby Ebony Fingerboard Raven's Breast Blue Relic is a hollow body electric guitar built by Gretsch. This guitar is manufactured in United States and is a Artist Signature Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 9252003549.

Key Features

Solid Spruce Top
Arched Flame Maple Body
Maple Neck
Ebony Fingerboard
25.5" (648 mm) Scale Length
1.685" (42.8 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Pinned Ebony Base Bridge
Grover Imperial Tuning Machines
TV Jones TV Classic Plus Bridge Pickup
Broad'Tron BT-65 Neck Pickup

Product Identifiers

Model Name	G6136T-CSTRR Custom Shop Rich Robinson "Magpie" with Bigsby
Part Number	9252003549
Product Series	Artist Signature Edition
Country of Origin	United States
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978122660

Factory Specifications

Body Construction

Body Material	Laminated Maple with Solid Spruce Top
Top Material	Solid Spruce
Back Material	Arched Flame Maple
Body Shape	Falcon
Body Binding	Silver Sparkle with W/B/W/B Purfling
Body Finish	Gloss Nitrocellulose Lacquer
Bracing	1959 Trestle Bracing with Added Block Under Bridge
Upper Bout Width	12" (30.5 cm)
Lower Bout Width	17" (43.2 cm)
Waist	10.25" (260 mm)

Hardware

Bridge	Adjusto-Matic with Pinned Ebony Base
Tuning Machines	Grover Imperial
Pickguard	Silver Plexi with Gretsch Logo and Magpie Graphic
Control Knobs	Amber Jeweled G-Arrow
Bridge Cover / Tailpiece	Bigsby B6CBST with String-Thru Shaft
Hardware Finish	Nickel

Neck Construction

Neck Material	Maple
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.685" (42.8 mm)
Scale Length	25.5" (648 mm)
Nut Material	Bone
Neck Shape	"C" Shape
Neck Construction	Set-Neck
Neck Finish	Gloss Nitrocellulose Lacquer

Electronics

Bridge Pickup	TV Jones TV Classic Plus
Neck Pickup	Broad'Tron BT-65
Pickup Configuration	Broad’Tron / Filter’Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Special Electronics	Treble Bleed Circuit

General

Orientation	Right-Hand
Strings	D'Addario EXL110 Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Premium Gray Speckle Hardshell Case

Reference Images

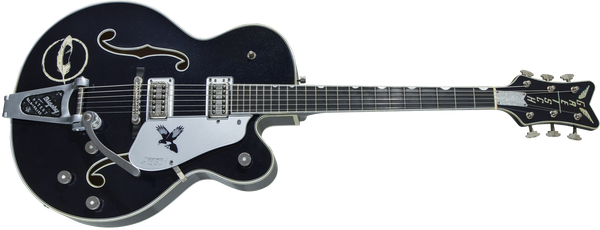

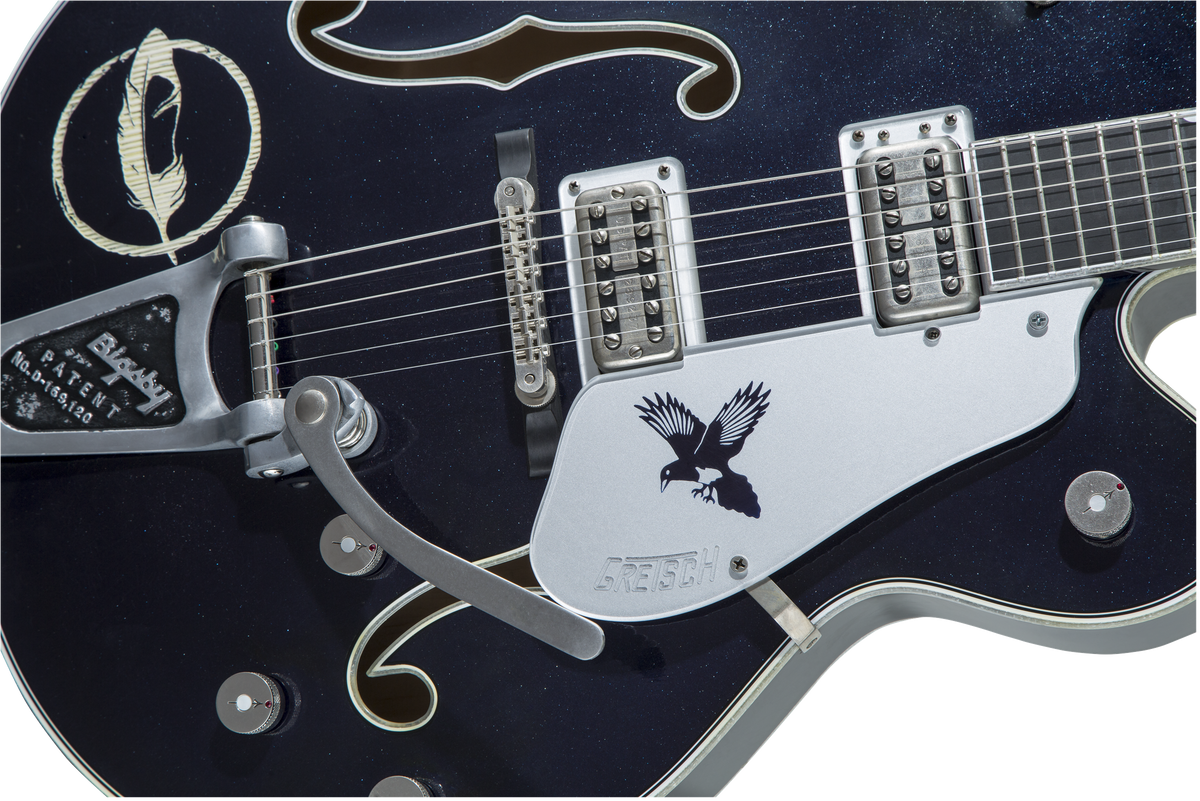

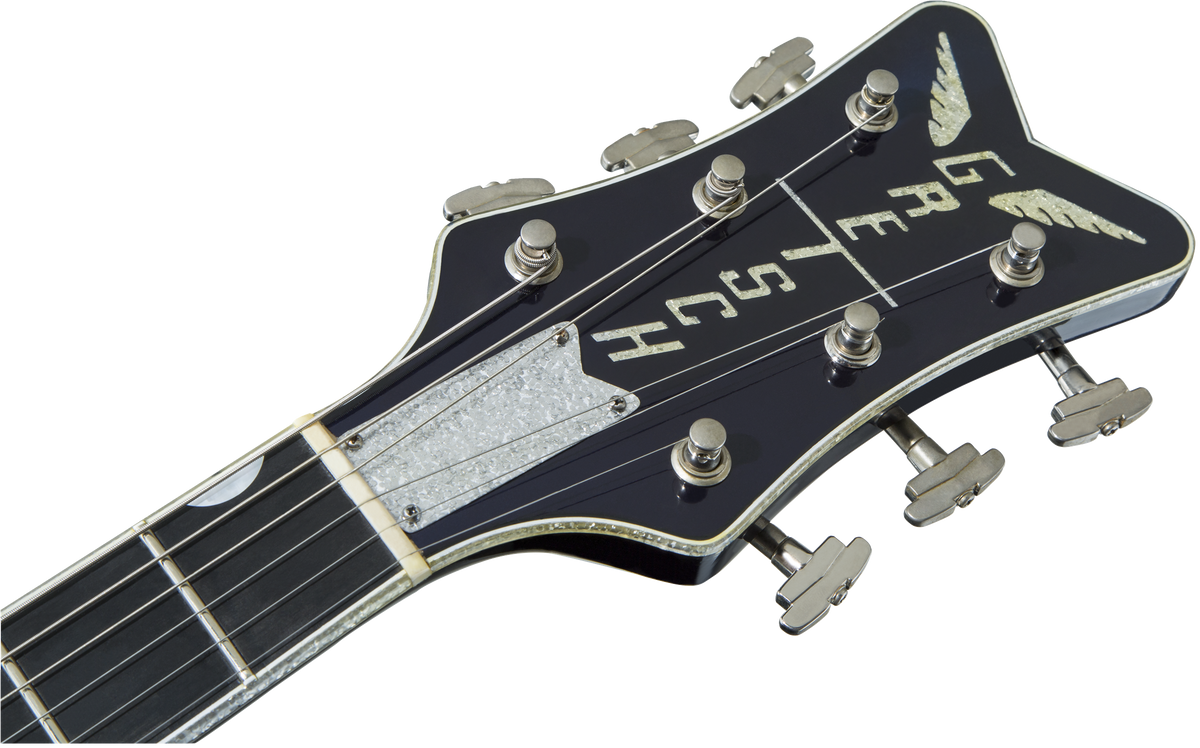

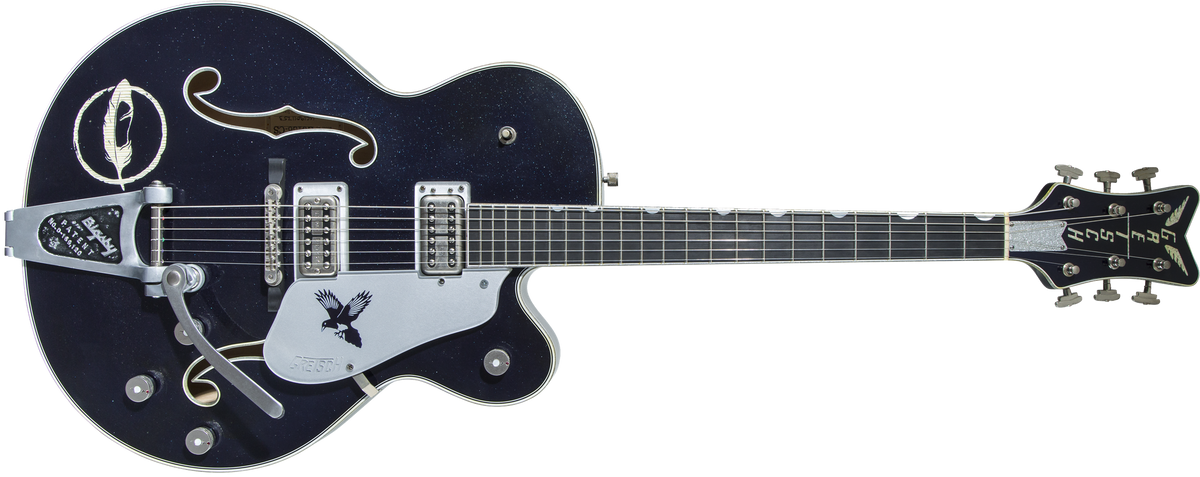

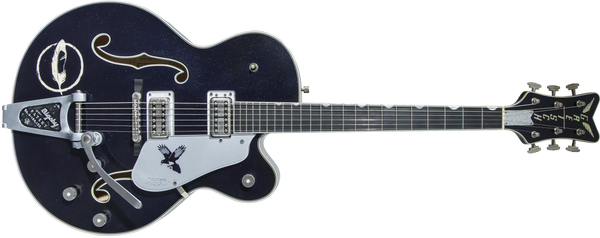

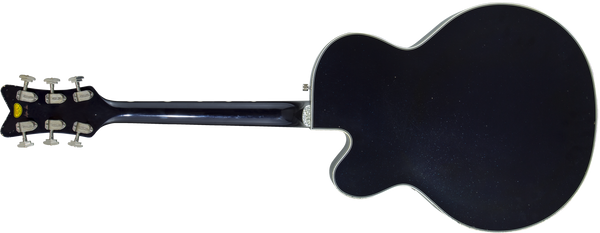

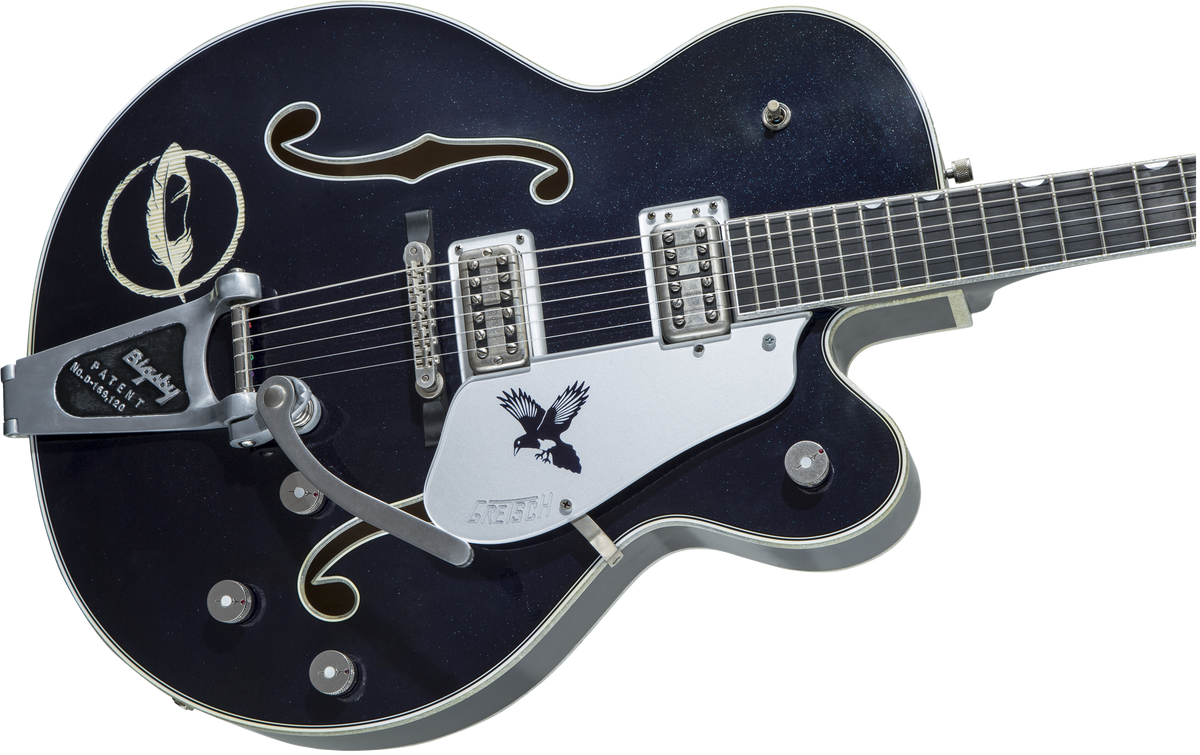

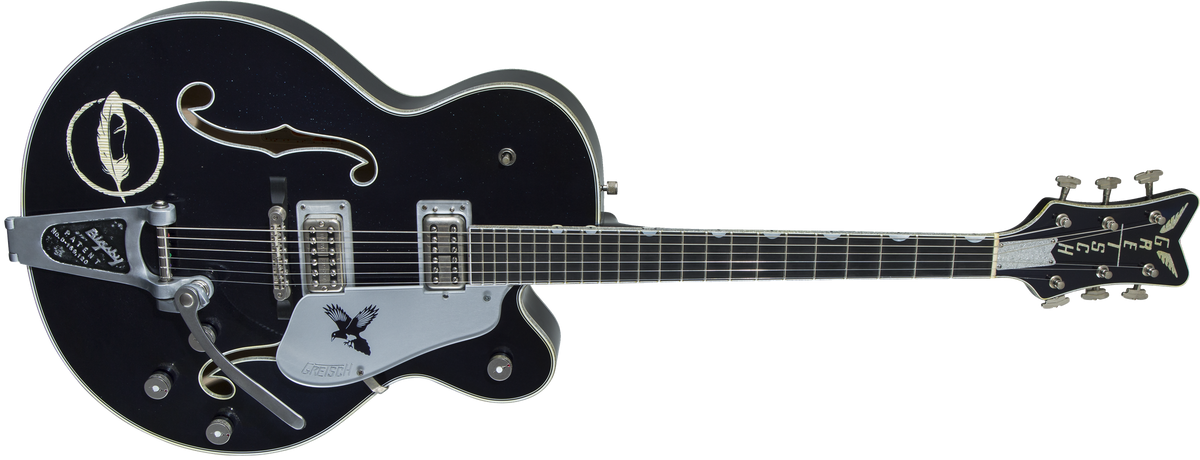

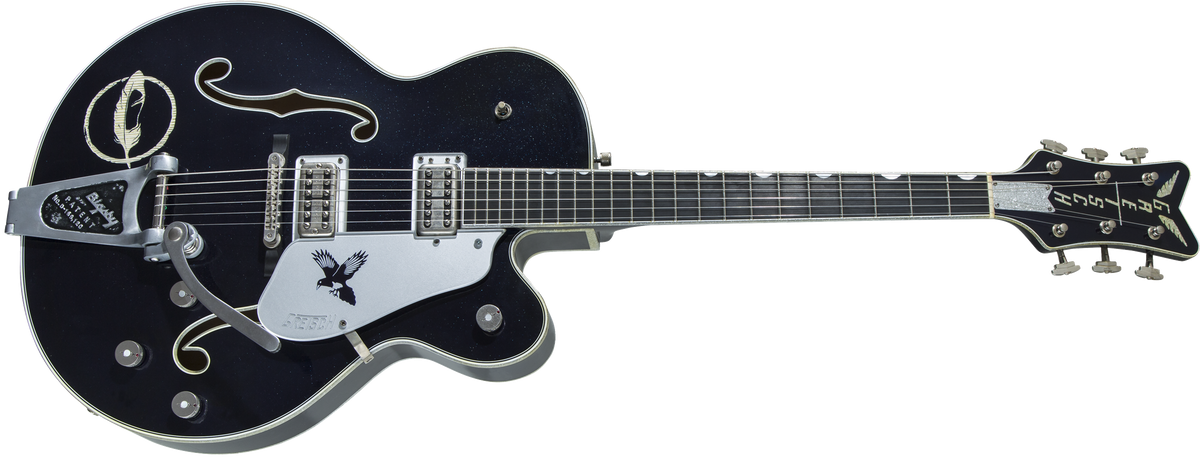

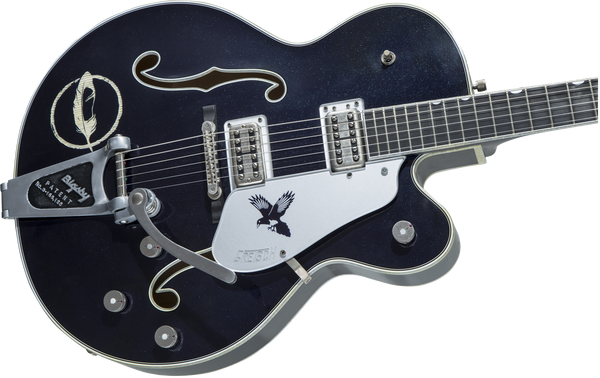

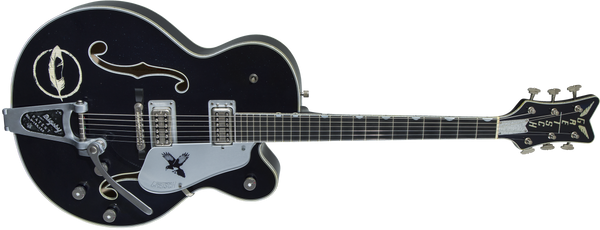

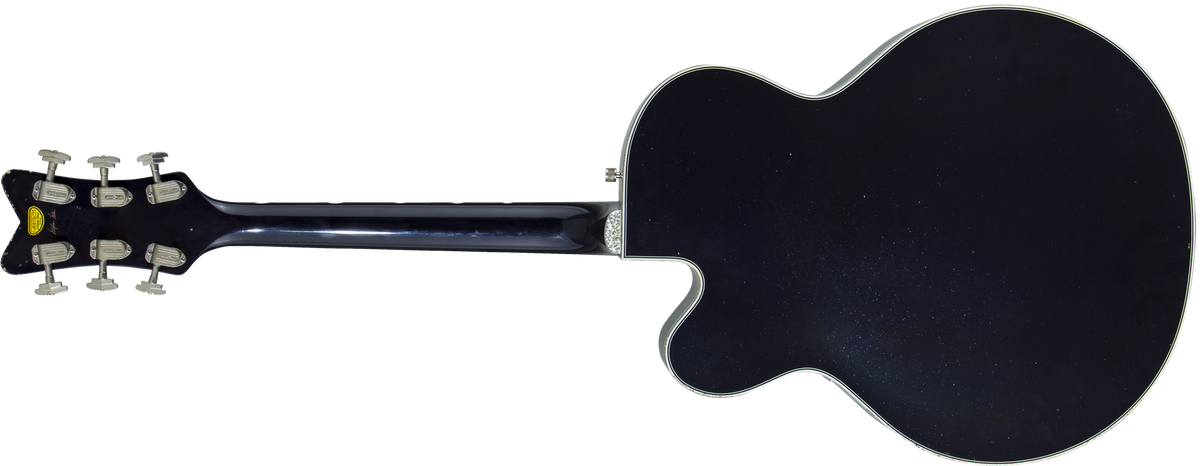

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6136T-CSTRR Custom Shop Rich Robinson "Magpie" with Bigsby Ebony Fingerboard Raven's Breast Blue Relic listed above. For larger pics, click on an image to open in a new tab.
