Gretsch G6134TG-58 Limited Edition 1958 Custom Penguin with Bigsby Nightbird Emerald Specs

The G6134TG-58 Limited Edition 1958 Custom Penguin with Bigsby is a solid body electric guitar built by Gretsch. This single cutaway set neck guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2400589875.

Key Features

Maple Top
Mahogany Body
Mahogany Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Space Control Bridge
Grover Imperial Tuning Machines
TV Jones Ray Butts Ful-Fidelity Bridge Pickup
TV Jones Ray Butts Ful-Fidelity Neck Pickup

Product Identifiers

Model Name	G6134TG-58 Limited Edition 1958 Custom Penguin with Bigsby
Part Number	2400589875
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
Subcategory	Single Cutaway Set Neck
UPC Code	0885978975082

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Maple
Back Material	Mahogany
Body Shape	Penguin
Body Binding	Gold Sparkle with W/B/W/B Purfling
Body Finish	Gloss Nitrocellulose Lacquer
Bracing	Chambered

Hardware

Bridge	Space Control
Tuning Machines	Grover Imperial
Pickguard	Gold Plexi with Gold Gretsch Logo and Penguin Graphic
Control Knobs	Jeweled G-Arrow
Bridge Cover / Tailpiece	Bigsby B3GP String-Thru Vibrato Tailpiece
Hardware Finish	Gold

Neck Construction

Neck Material	Mahogany
Refinement Neck Material	Mahogany
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Mother of Pearl Neo-Classic Thumbnail
Side Dots	Luminlay
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Bone
String Nut	Bone
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Gloss Nitrocellulose Lacquer
Headstock Binding	Gold Sparkle with W/B/W Purfling

Electronics

Bridge Pickup	TV Jones Ray Butts Ful-Fidelity
Neck Pickup	TV Jones Ray Butts Ful-Fidelity
Refinement Pickups	Filter'Tron / Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup, 3-Position Tone Switch
Configuration	Filter'Tron / Filter'Tron

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6238XL Gretsch Solid Body Hardshell (p/n 099-6504-000)

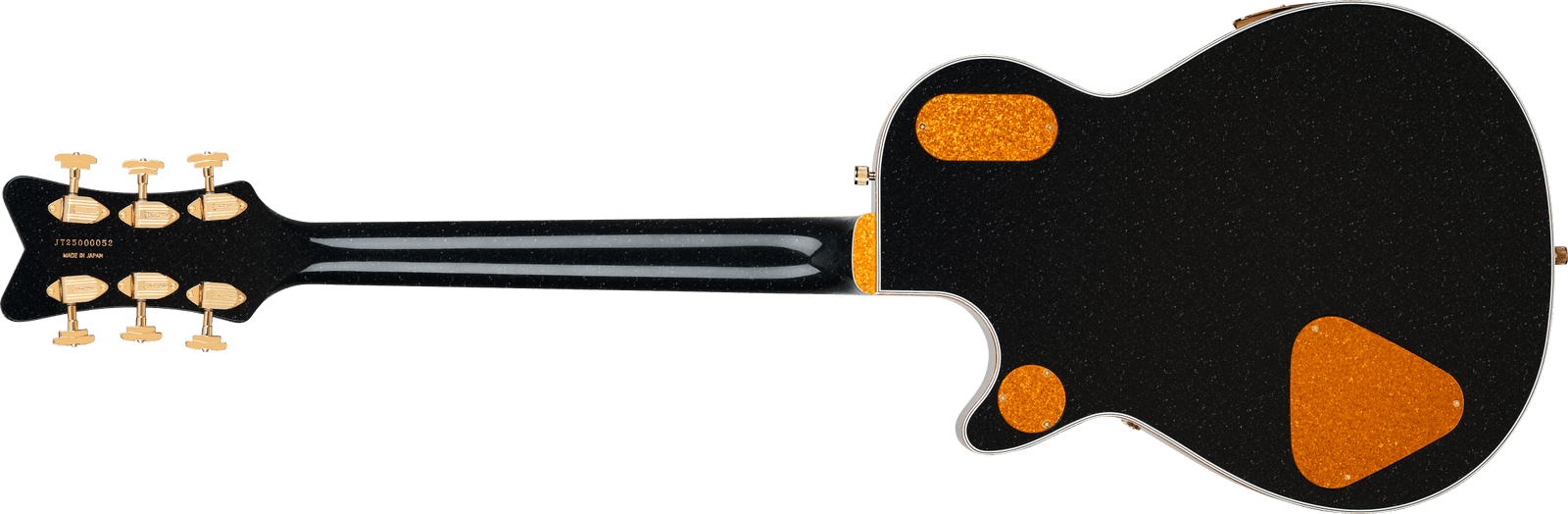

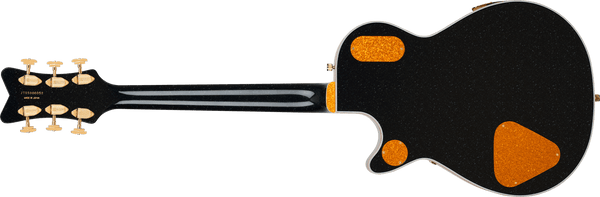

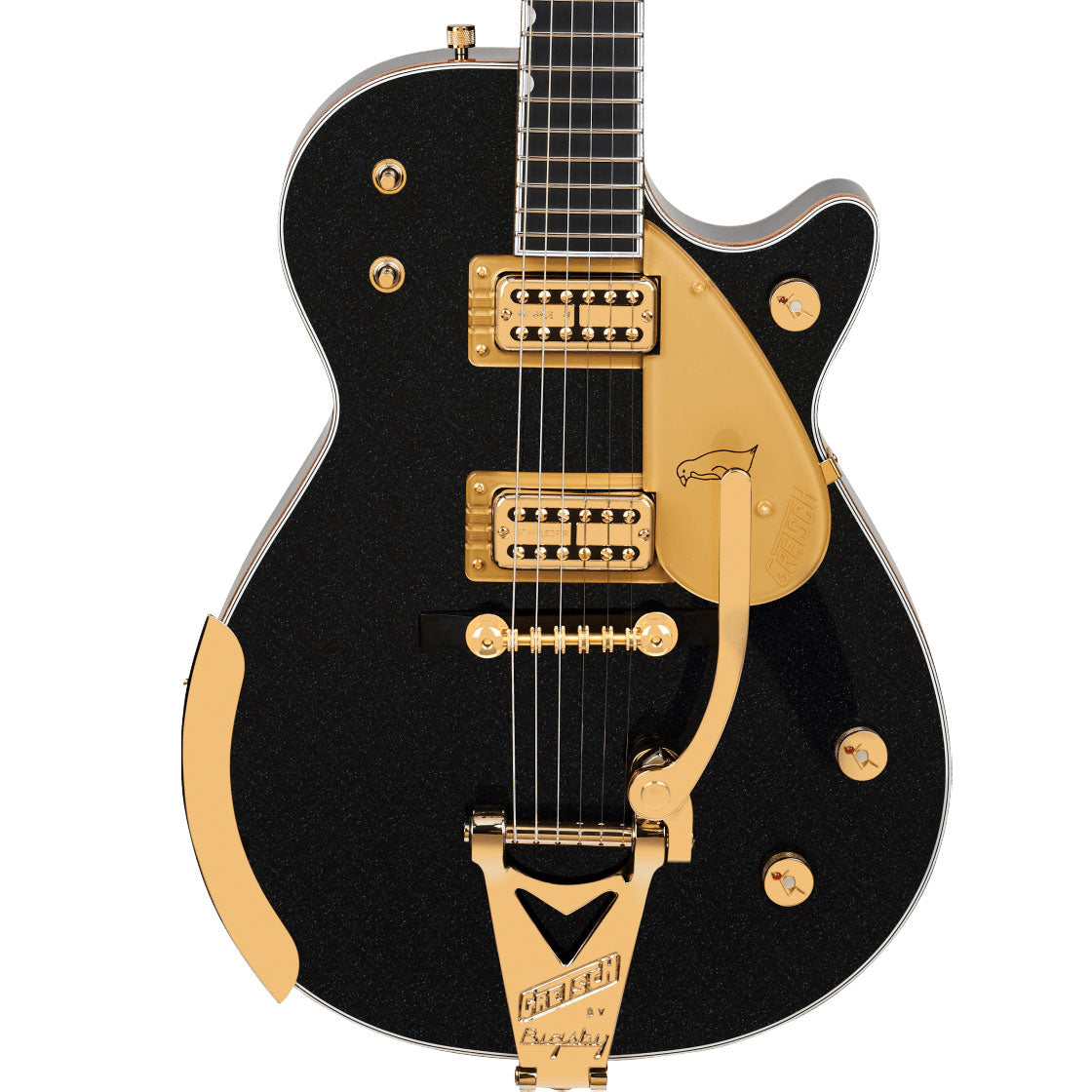

Reference Images

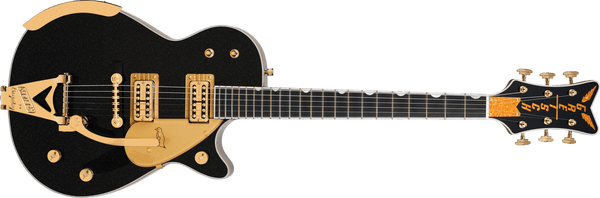

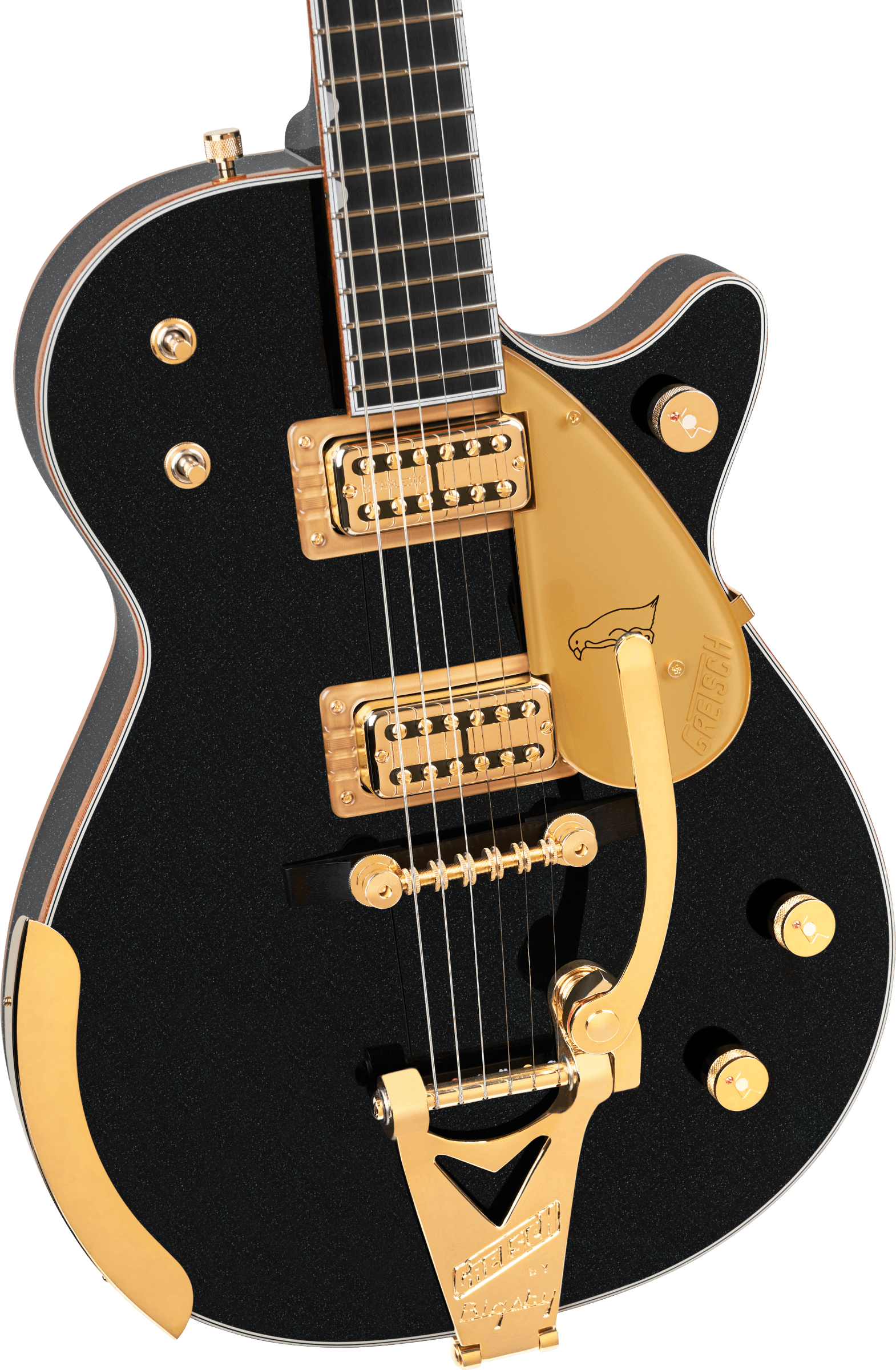

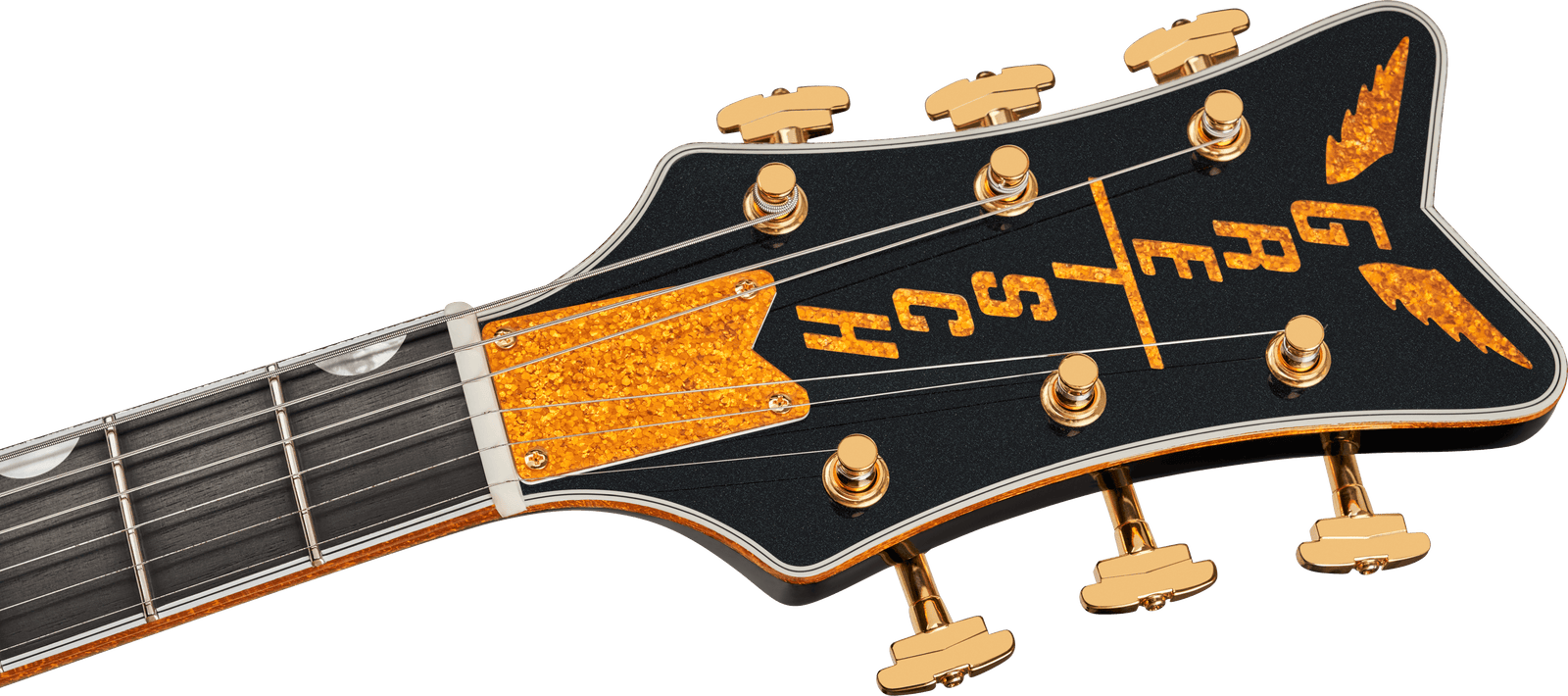

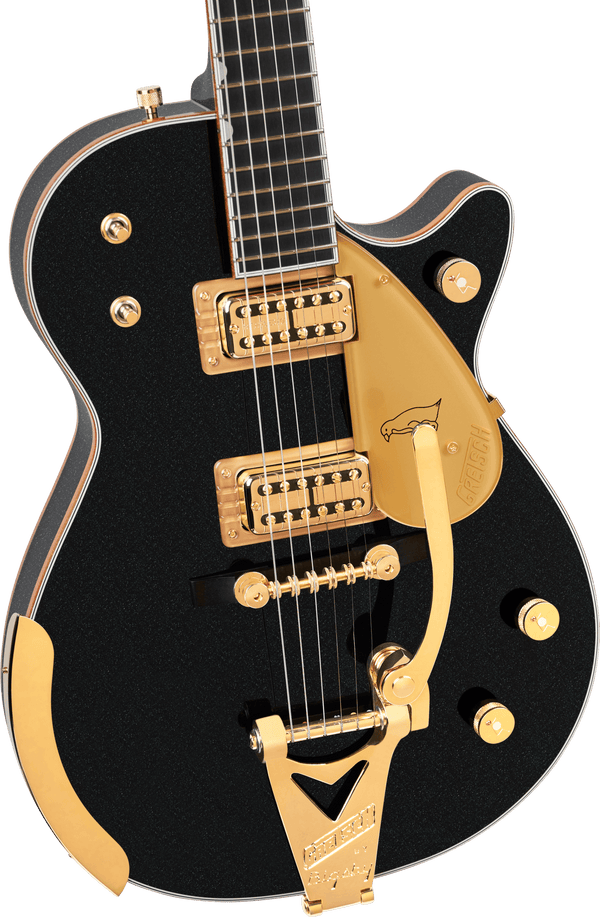

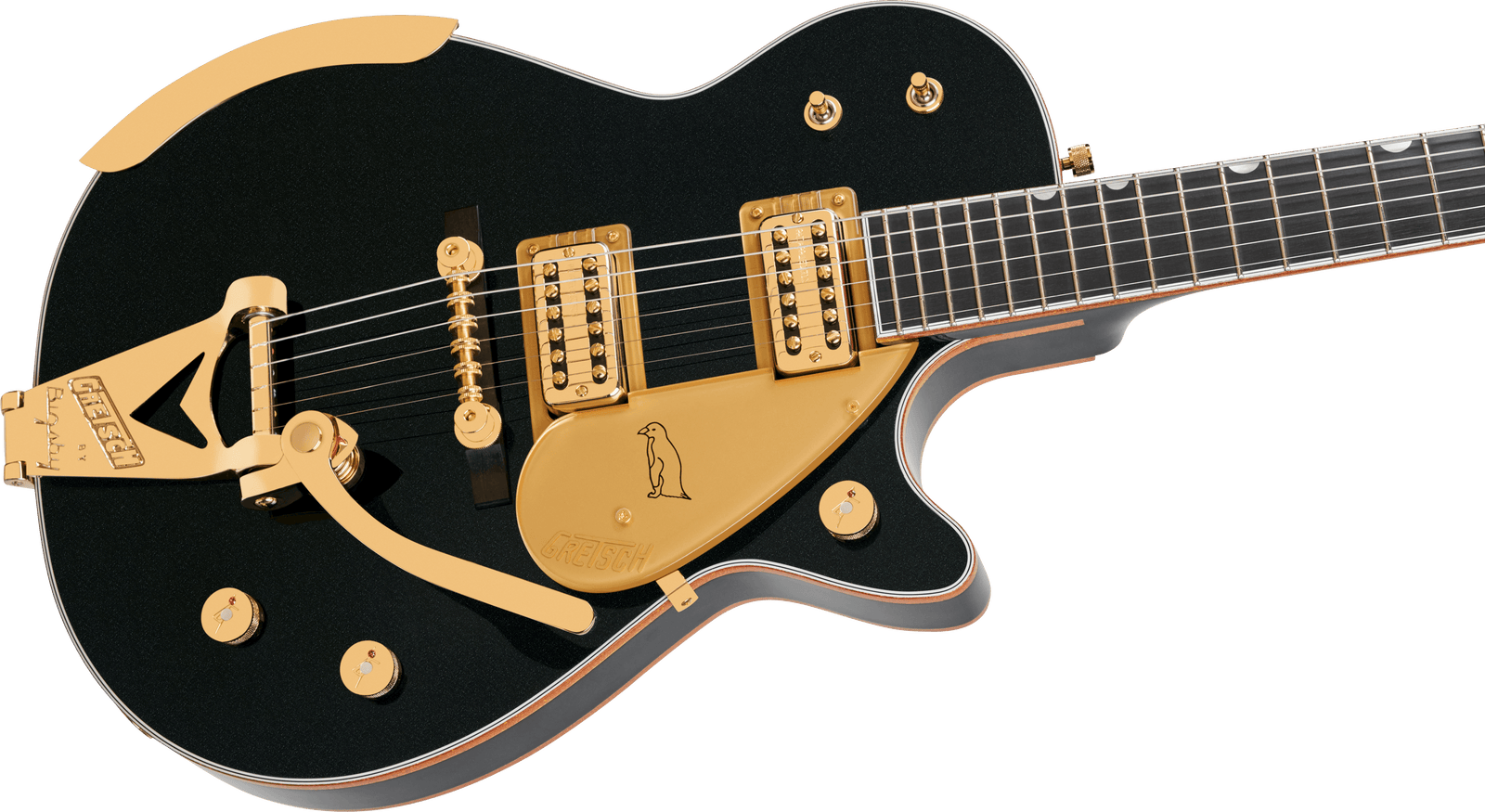

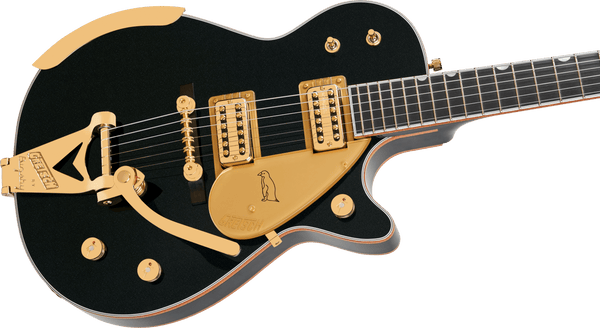

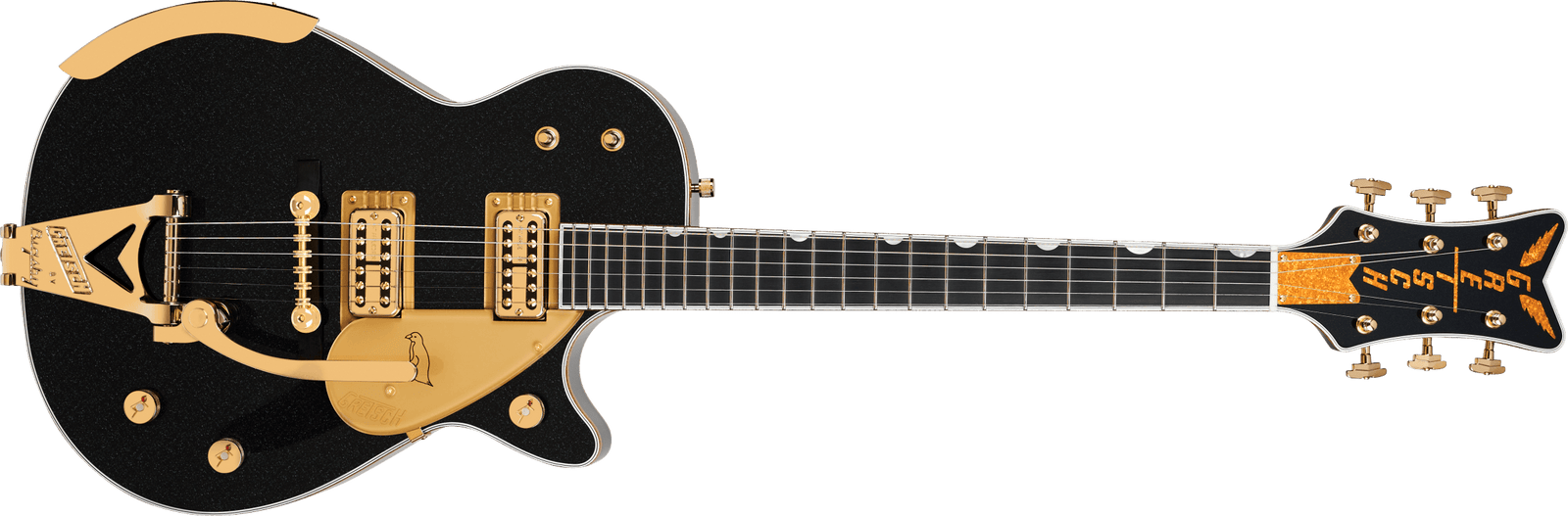

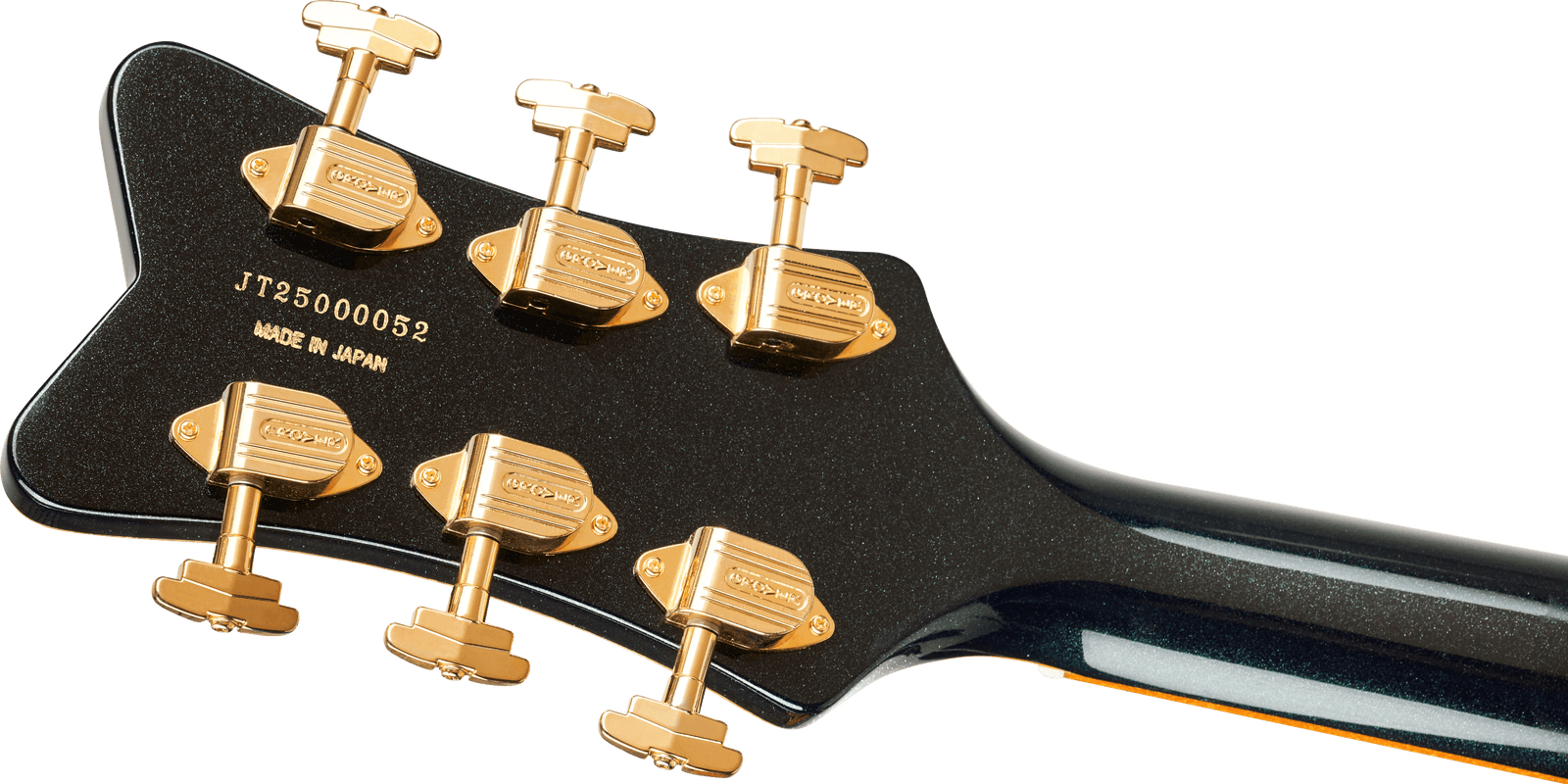

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6134TG-58 Limited Edition 1958 Custom Penguin with Bigsby listed above. For larger pics, click on an image to open in a new tab.
