Gretsch G6131G-MY-RB Limited Edition Malcolm Young Signature Jet Vintage Firebird Red Specs

The G6131-MY-RB Limited Edition Malcolm Young Signature Jet Ebony Fingerboard Vintage Firebird Red is a solid body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Artist Signature Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2411916845.

Key Features

Arched Laminated Maple Top
Mahogany Body
Mahogany Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Jumbo Frets
Harmonica Style Adjusto-Matic Bridge
Schaller Diecast Tuning Machines
TV Jones Ray Butts Ful-Fidelity Bridge Pickup
TV Jones Starwood Humbucker Middle Pickup
TV Jones Ray Butts Ful-Fidelity Neck Pickup

Product Identifiers

Model Name	G6131G-MY-RB Limited Edition Malcolm Young Signature Jet
Part Number	2411916845
Product Series	Artist Signature Edition
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978746507

Factory Specifications

Body Construction

Body Material	Mahogany with Arched Maple Top
Top Material	Arched Laminated Maple
Back Material	Mahogany
Body Shape	Jet
Body Binding	Aged White with B/W/B Purfling
Body Finish	Semi-Gloss Lacquer
Bracing	Chambered
Upper Bout Width	10.5" (267 mm)
Lower Bout Width	13.5" (343 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Harmonica Style Adjusto-Matic
Tuning Machines	Schaller Diecast
Pickguard	Black Plexi Pickguard with White Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Gretsch '60s Jet Vibrato
Hardware Finish	Gold

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Aged Pearloid Neo-Classic Thumbnail
Side Dots	Red
Number of Frets	22 (Plus Zero Fret)
Fret Size	Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Bone
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Semi-Gloss Lacquer
Headstock Binding	Aged White

Electronics

Bridge Pickup	TV Jones Ray Butts Ful-Fidelity
Middle Pickup	TV Jones Starwood Humbucker
Neck Pickup	TV Jones Ray Butts Ful-Fidelity
Pickup Configuration	HHH
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Volume 3. (Middle Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup, 3-Position Tone Switch, 3-Position Stand-By Switch

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included G6238 Gretsch Deluxe Solid Body Hardshell (p/n 099-6410-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)

Reference Images

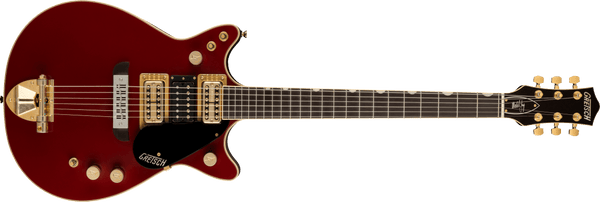

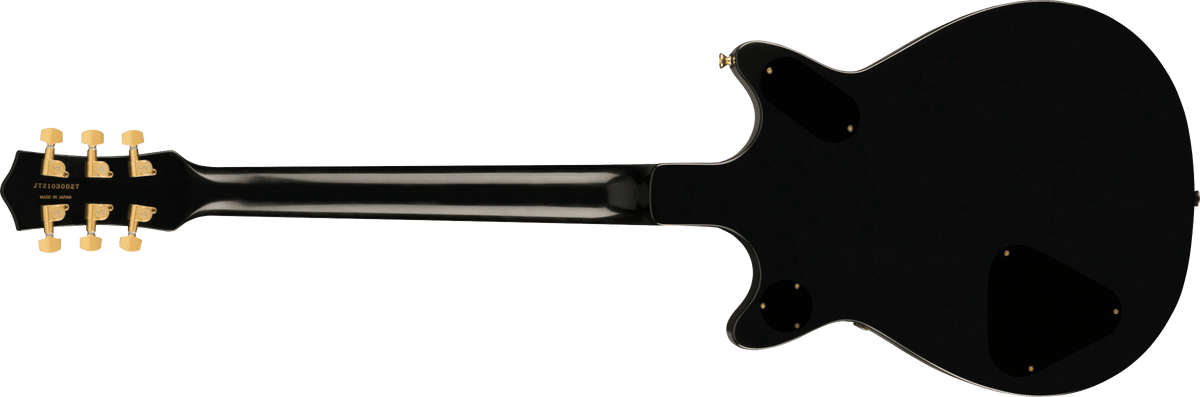

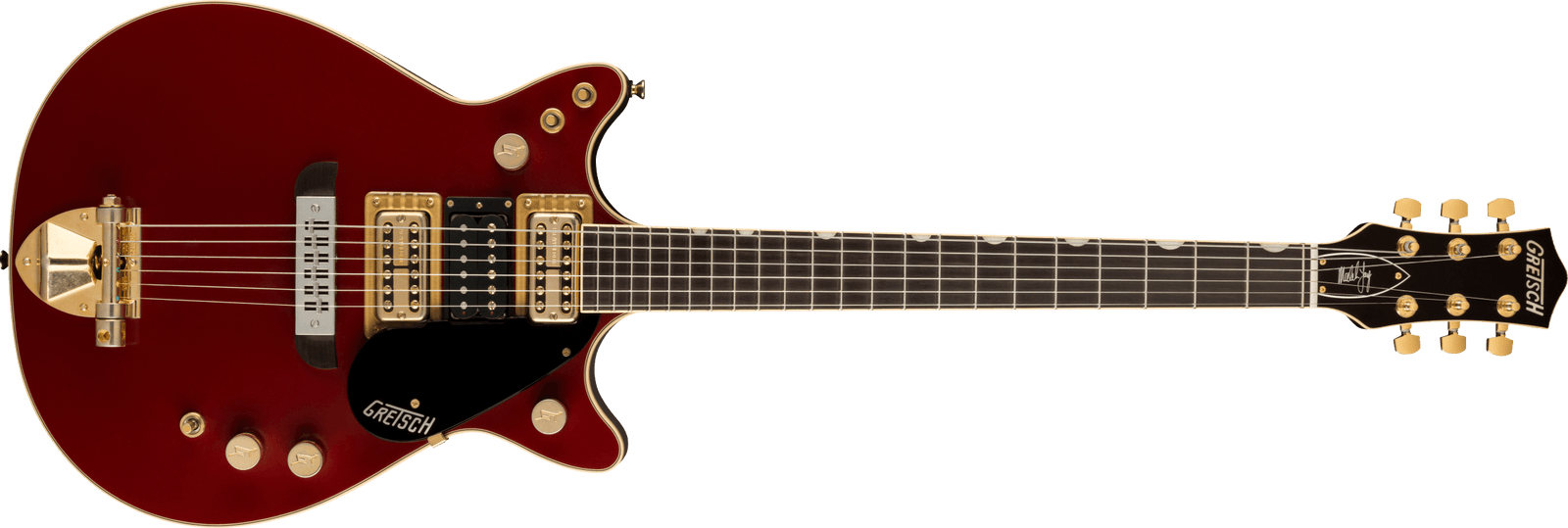

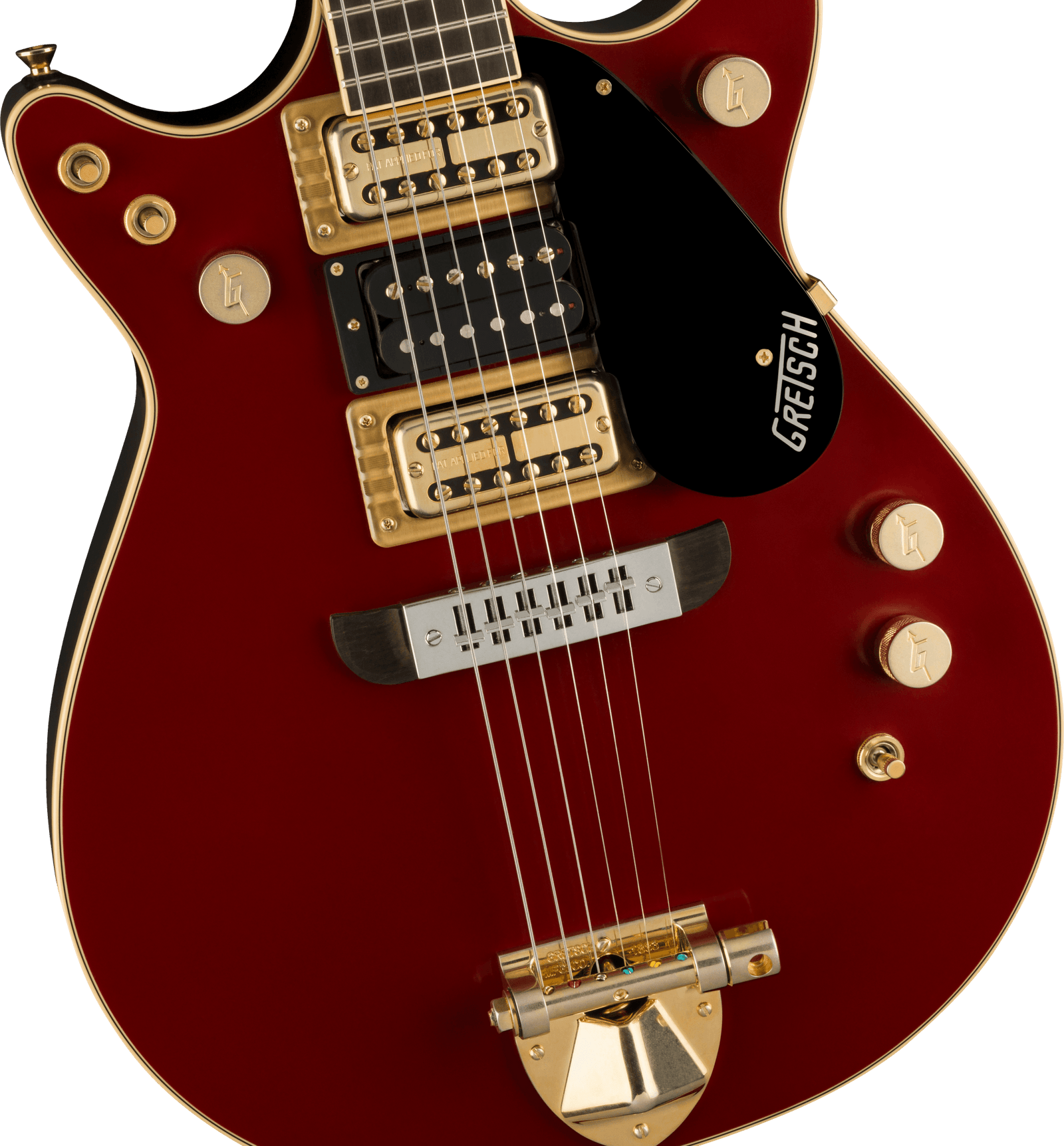

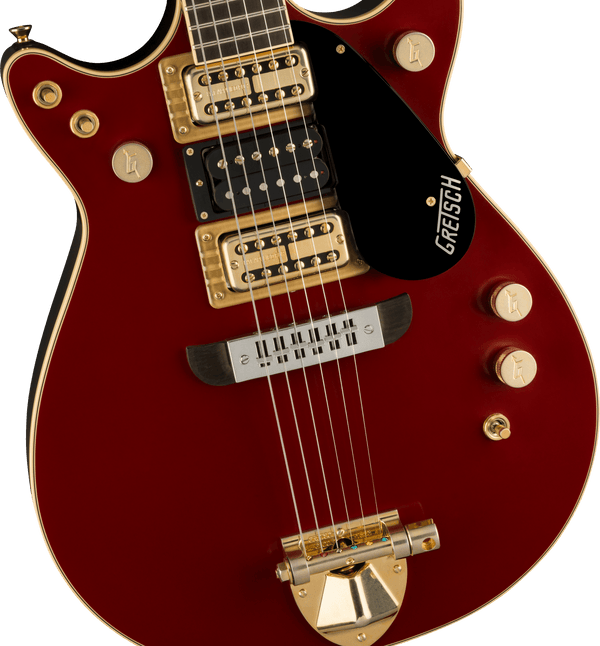

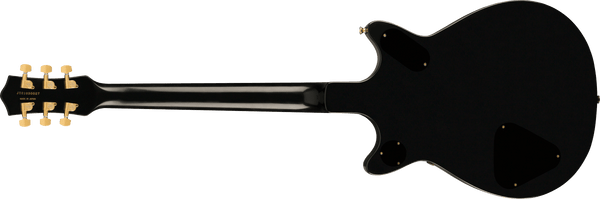

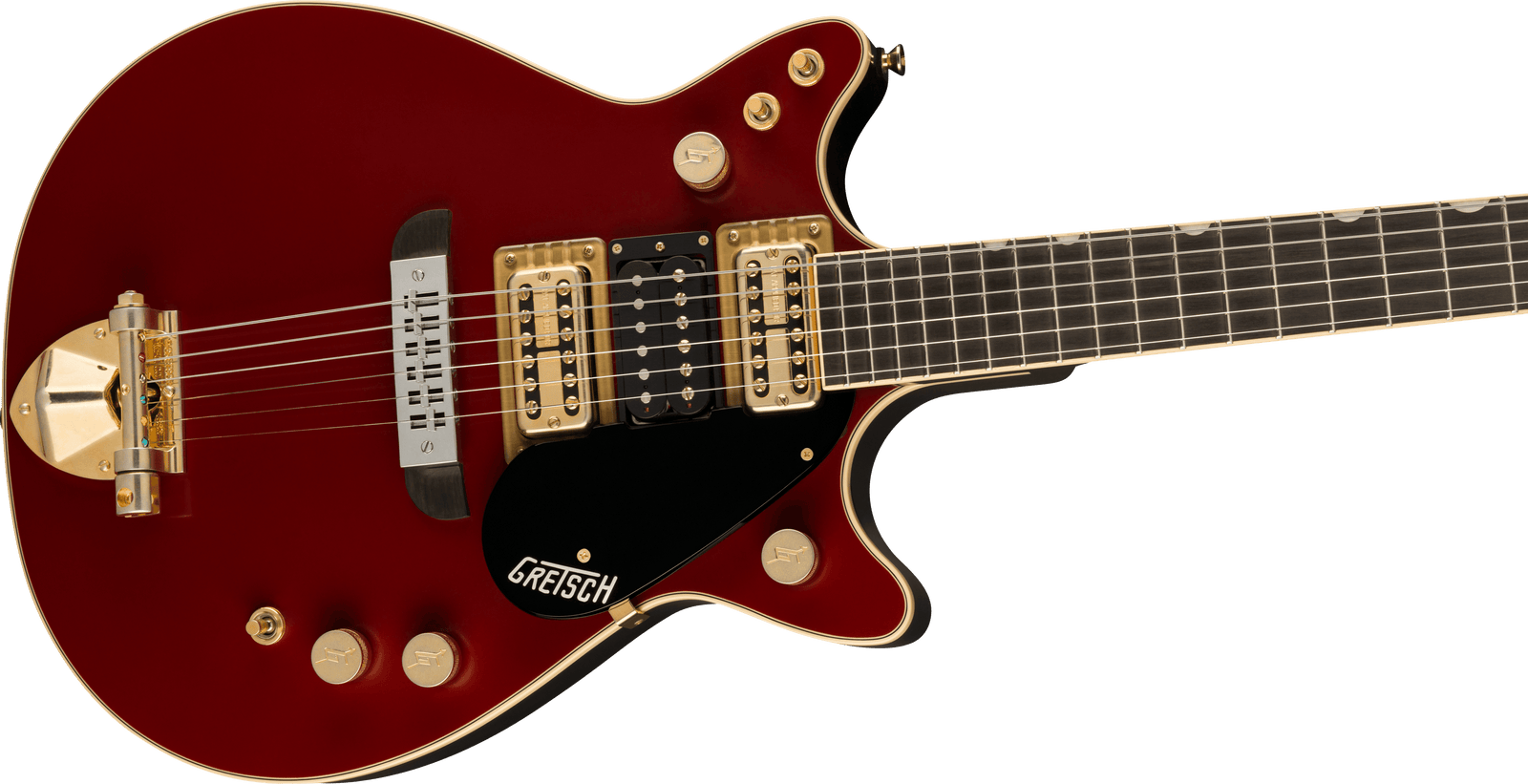

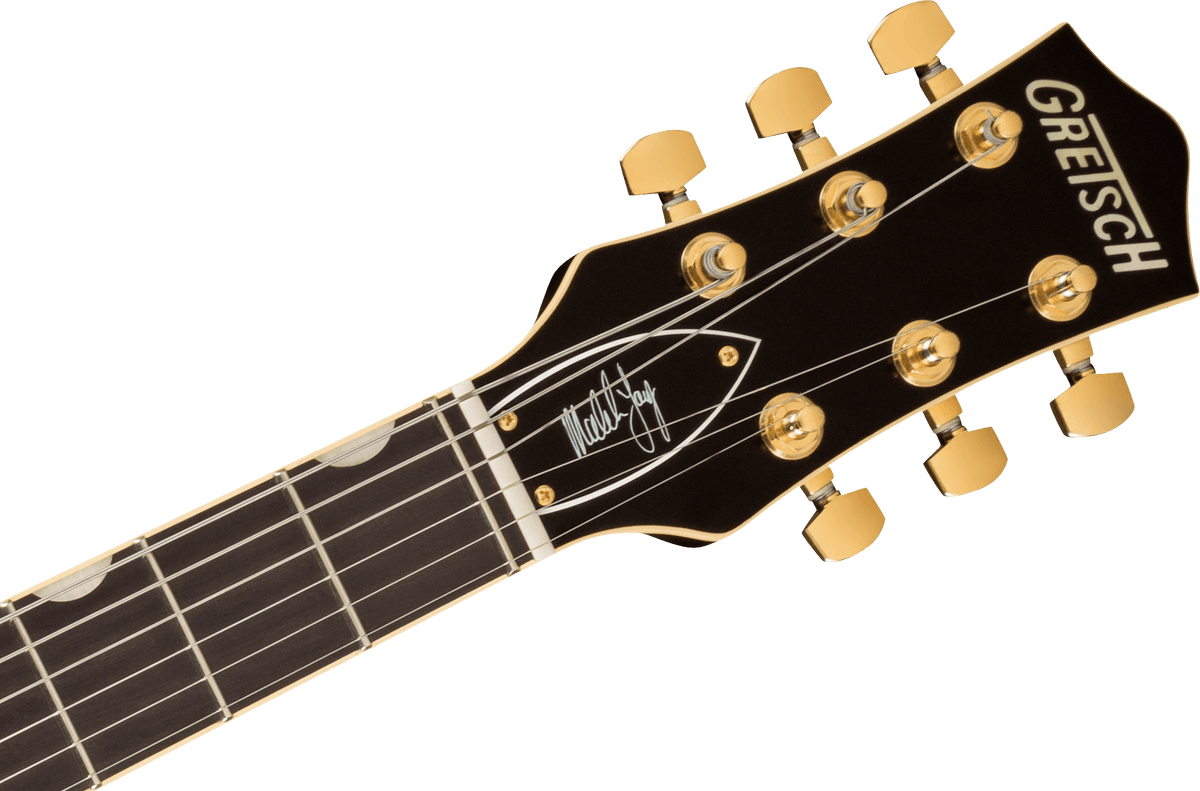

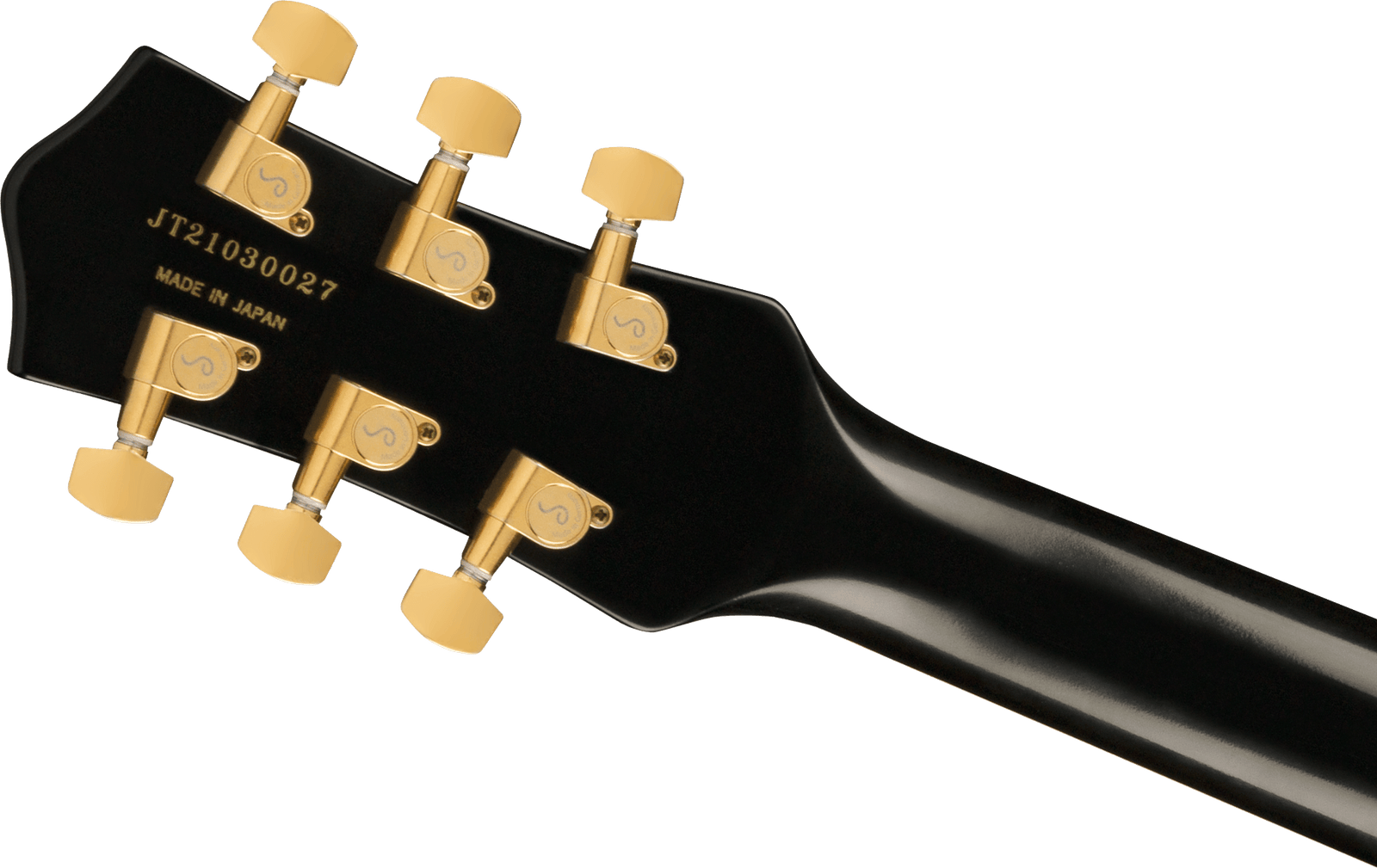

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6131-MY-RB Limited Edition Malcolm Young Signature Jet Ebony Fingerboard Vintage Firebird Red listed above. For larger pics, click on an image to open in a new tab.
