Gretsch G6130T Limited Edition Sidewinder String-Thru Bigsby Bourbon Stain Specs

The G6130T Limited Edition Sidewinder with String-Thru Bigsby Ebony Fingerboard Bourbon Stain is a solid body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2402438826.

Key Features

Flame Maple Top
Mahogany Body
Mahogany Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Unplated Brass Saddles Bridge
Gotoh Locking Tuning Machines
Custom-Wound TV Jones Humbucker Bridge Pickup
Custom-Wound TV Jones Humbucker Neck Pickup

Product Identifiers

Model Name	G6130T Limited Edition Sidewinder with String-Thru Bigsby
Part Number	2402438826
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	717669610289

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Flame Maple
Back Material	Mahogany
Body Shape	Jet
Body Binding	Aged White with B/AW/B Purfling
Body Finish	Gloss Nitrocellulose Lacquer
Bracing	Chambered
Upper Bout Width	10.5" (267 mm)
Lower Bout Width	13.5" (343 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Adjusto-Matic with Unplated Brass Saddles
Tuning Machines	Gotoh Locking
Pickguard	Tortoise with Gold Gretsch Logo and Sidewinder Graphic
Control Knobs	Plain Top Metal
Bridge Cover / Tailpiece	Bigsby B3CP String-Thru
Hardware Finish	Nickel

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Ebony
Radius	12" (305 mm)
Fingerboard Inlays	Mother of Pearl Neo-Classic Thumbnail
Side Dots	Red
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech TUSQ XL
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Gloss Nitrocellulose Lacquer
Headstock Binding	Aged White

Electronics

Bridge Pickup	Custom-Wound TV Jones Humbucker
Neck Pickup	Custom-Wound TV Jones Humbucker
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Included: 099-6410-000 G6238 Deluxe Hardshell Case

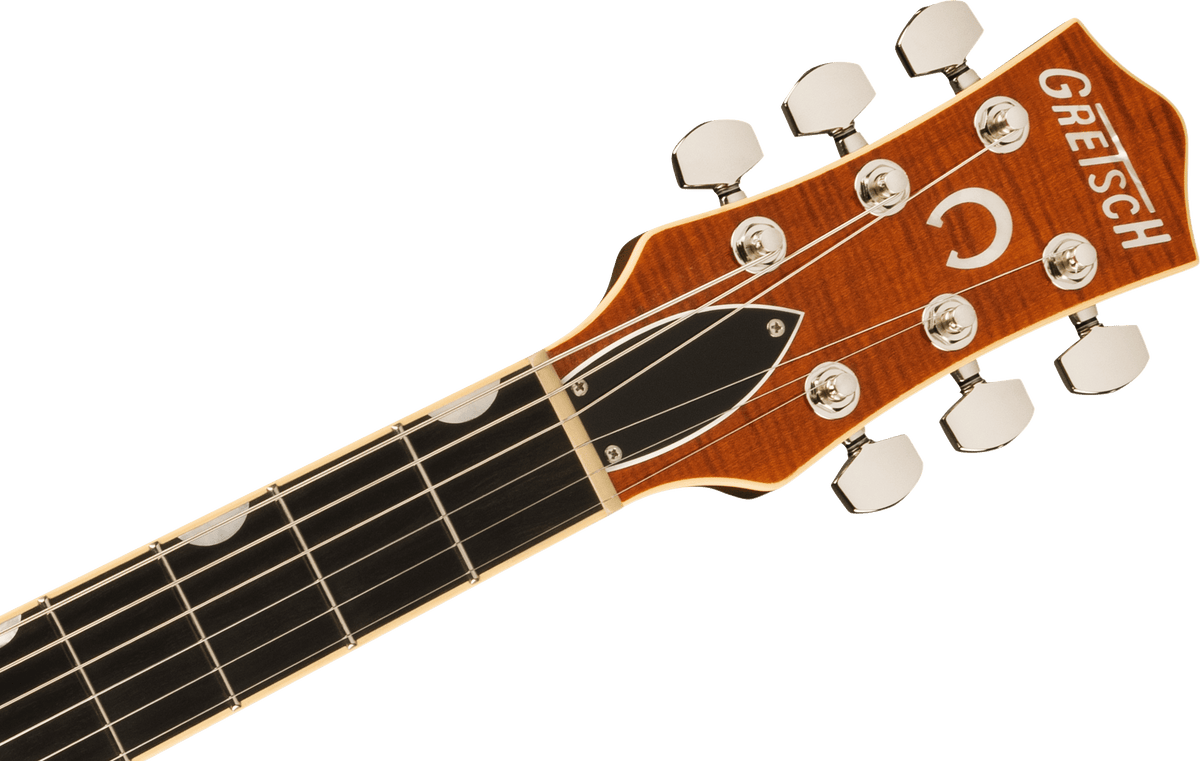

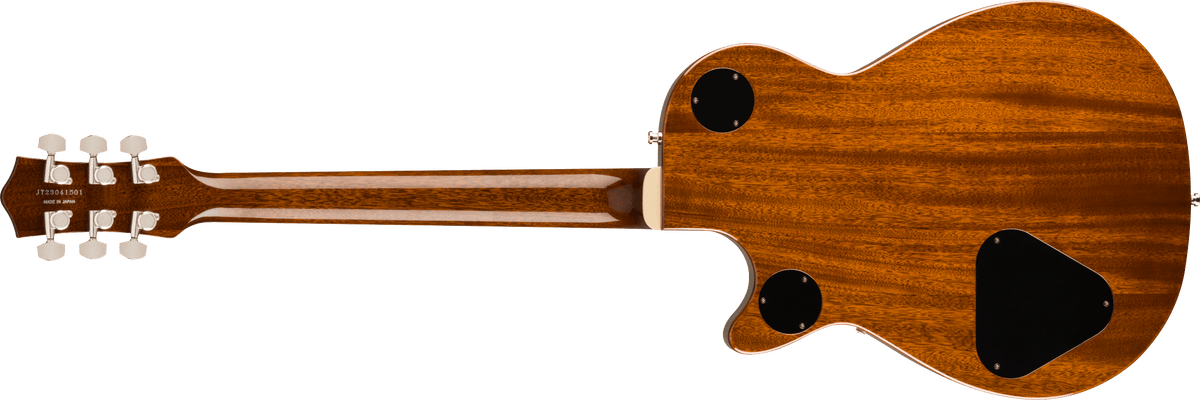

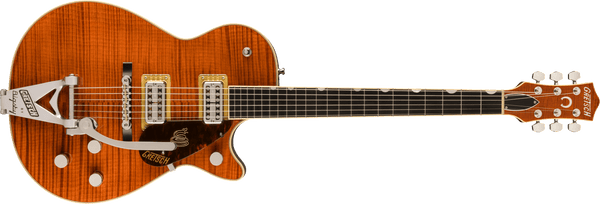

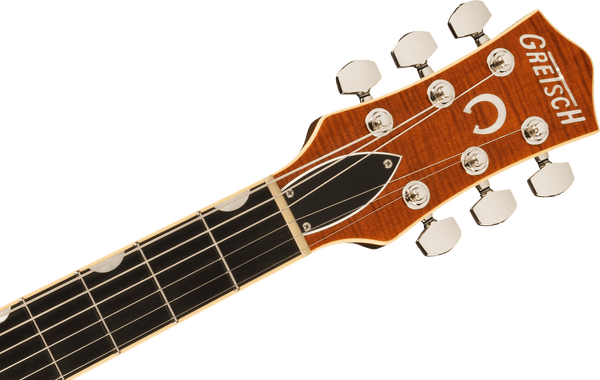

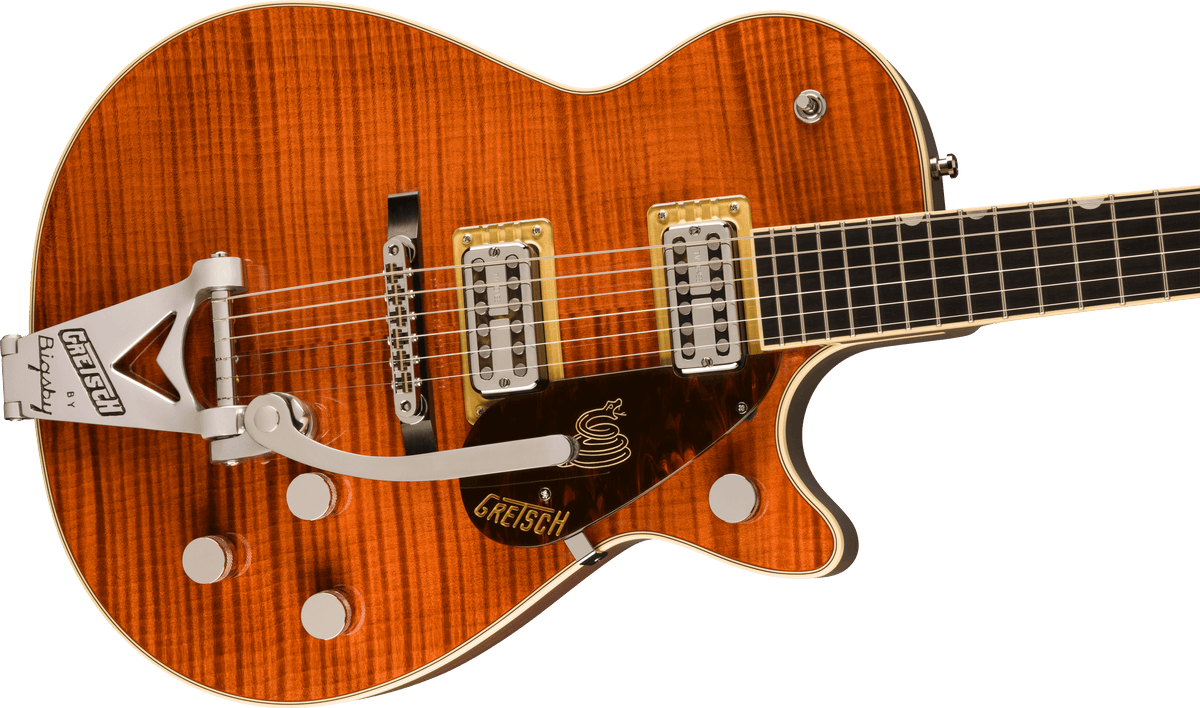

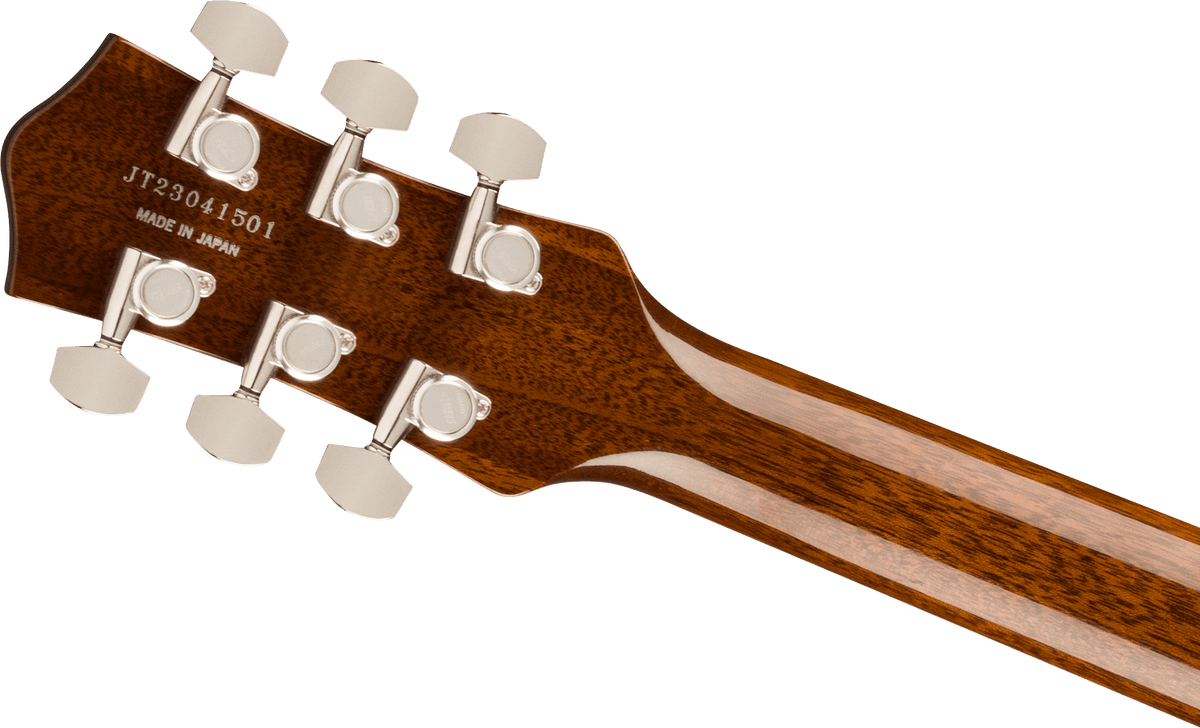

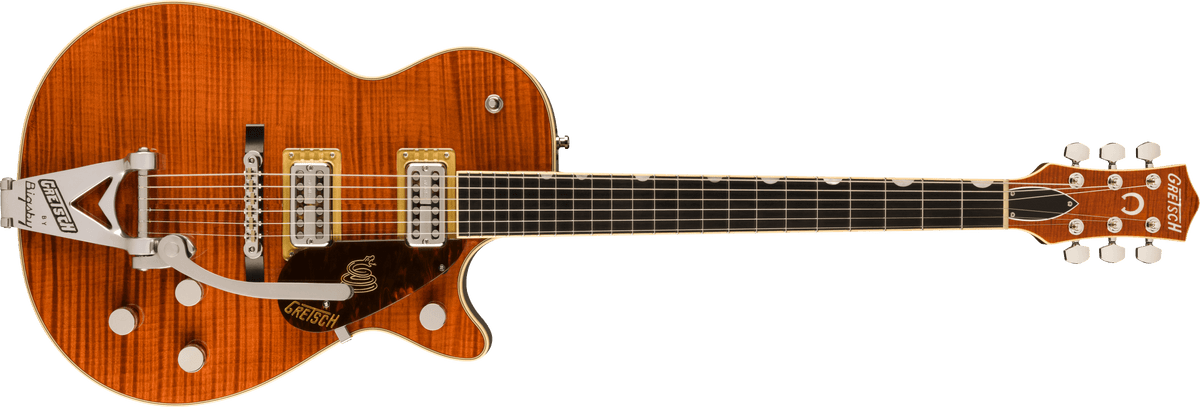

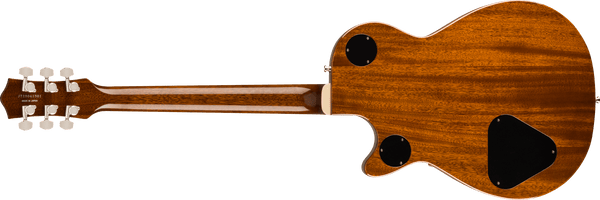

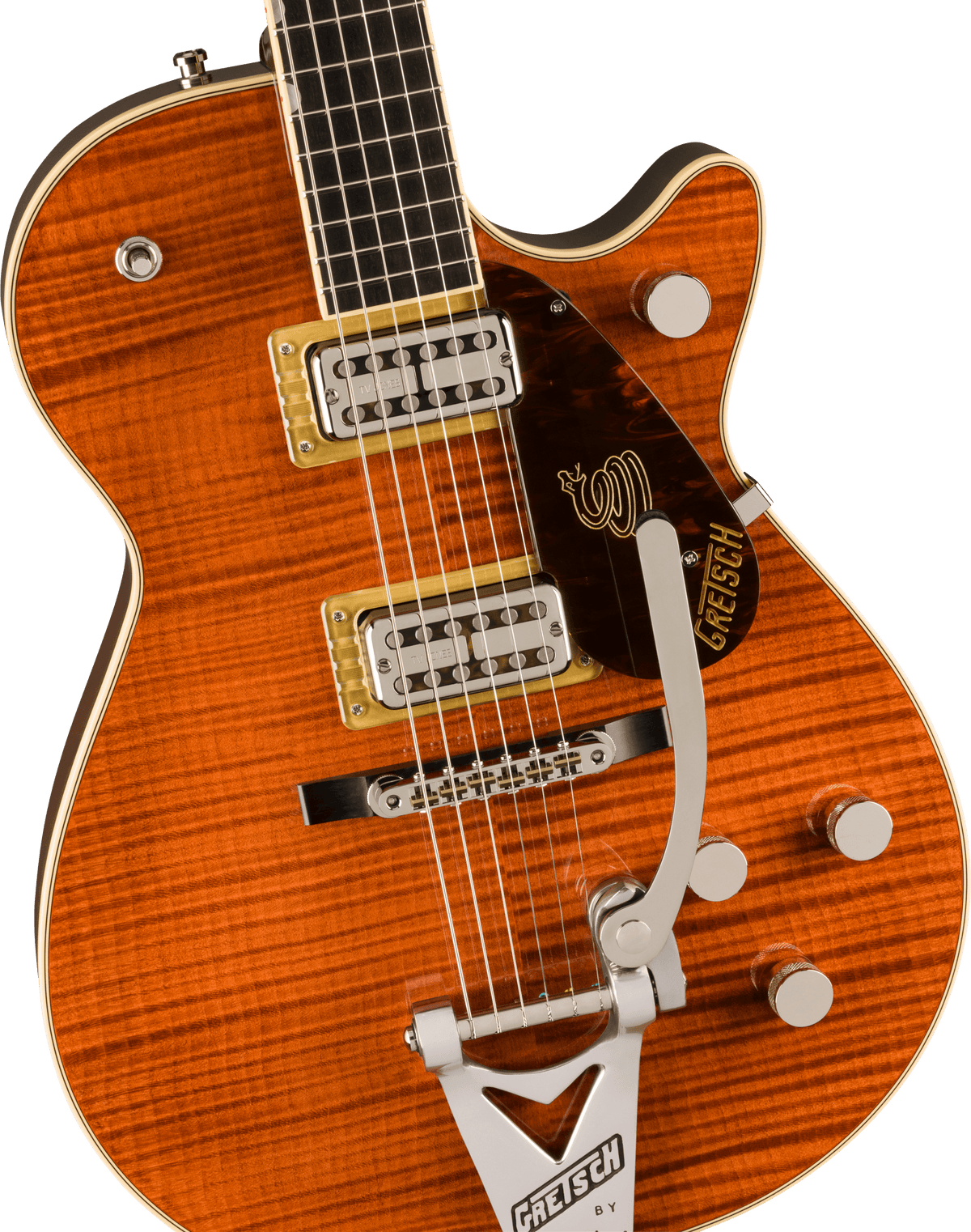

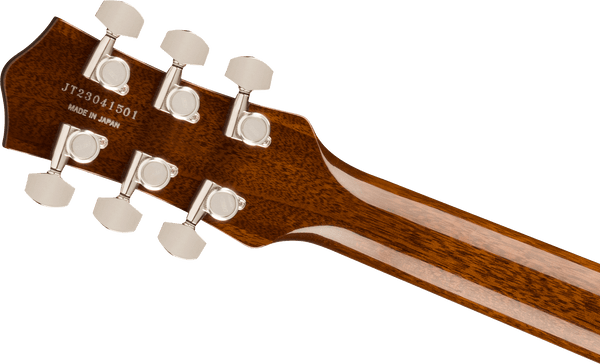

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6130T Limited Edition Sidewinder with String-Thru Bigsby Ebony Fingerboard Bourbon Stain listed above. For larger pics, click on an image to open in a new tab.
