Gretsch G6120T-SW Steve Wariner Signature Nashville Gentleman with Bigsby Magic Black Specs
Gretsch G6120T-SW Steve Wariner Signature Nashville Gentleman with Bigsby Magic Black Specs
The G6120T-SW Steve Wariner Signature Nashville Gentleman with Bigsby is a hollow body electric guitar
built by Gretsch. This single cutaway set neck guitar is manufactured in Japan
and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401370865.
Key Features
Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Ebony Fingerboard
25.5" (648 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
TRU-ARC Brass "Rocking Bar" Bridge
Gotoh Locking Tuning Machines
TV Jones TV Classic Plus Bridge Pickup
TV Jones Paul Yandell Duo-Tron Neck Pickup
Product Identifiers
Model Name
G6120T-SW Steve Wariner Signature Nashville Gentleman with Bigsby
Part Number
2401370865
Product Series
Professional Collection
Country of Origin
Japan
Brand
Gretsch
Type
Electric Guitar
Category
Hollow Body
Subcategory
Single Cutaway Set Neck
UPC Code
0885978152650
Factory Specifications
Body Construction
Body Material
Laminated Maple
Top Material
Arched Laminated Maple
Back Material
Arched Laminated Maple
Body Shape
16" Single-Cut Hollow Body
Body Binding
Aged White with B/W Purfling
Body Finish
Gloss Nitrocellulose Lacquer
Bracing
1959 Trestle Bracing
Upper Bout Width
11.56" (29.4 cm)
Lower Bout Width
16" (40.6 cm)
Waist
9.5" (241mm)
Hardware
Bridge
TRU-ARC Brass "Rocking Bar"
Tuning Machines
Gotoh Locking
Pickguard
Gold Plexi with Black Gretsch Logo and Artist Signature Sign Post Graphic
Control Knobs
G-Arrow
Bridge Cover / Tailpiece
String-Thru Bigsby B6GP
Hardware Finish
Gold
Neck Construction
Neck Material
Maple
Fingerboard Material
Ebony
Radius
12" (305 mm)
Refinement Fingerboard Radius
Modern
Fingerboard Inlays
Pearloid Neo-Classic Thumbnail
Number of Frets
22
Fret Size
Medium Jumbo
Nut Width
1.6875" (42.86 mm)
Scale Length
25.5" (648 mm)
Nut Material
Brass
String Nut
Brass
Neck Shape
Standard "U"
Neck Finish
Gloss Nitrocellulose Lacquer
Electronics
Bridge Pickup
TV Jones TV Classic Plus
Neck Pickup
TV Jones Paul Yandell Duo-Tron
Pickup Configuration
Filter'Tron / Filter'Tron
Controls
Master Volume, Master Tone (with Push/Pull Coil Select Feature)
Pickup Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Included: 099-6411-000 G6241 Deluxe Hardshell Case

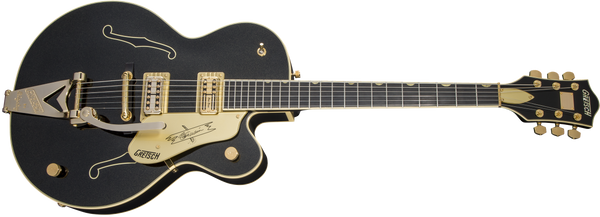

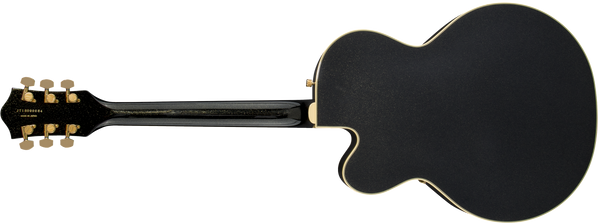

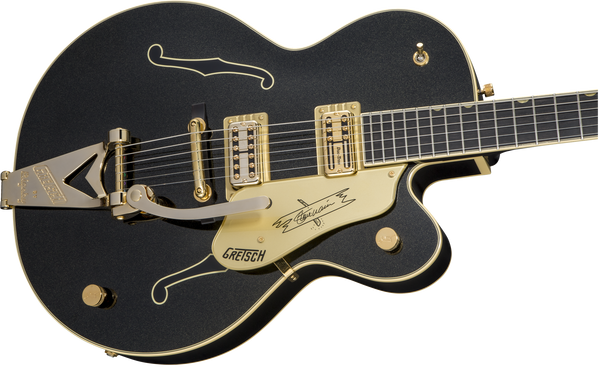

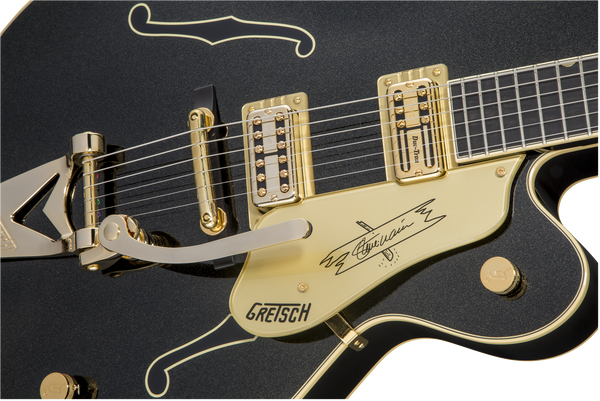

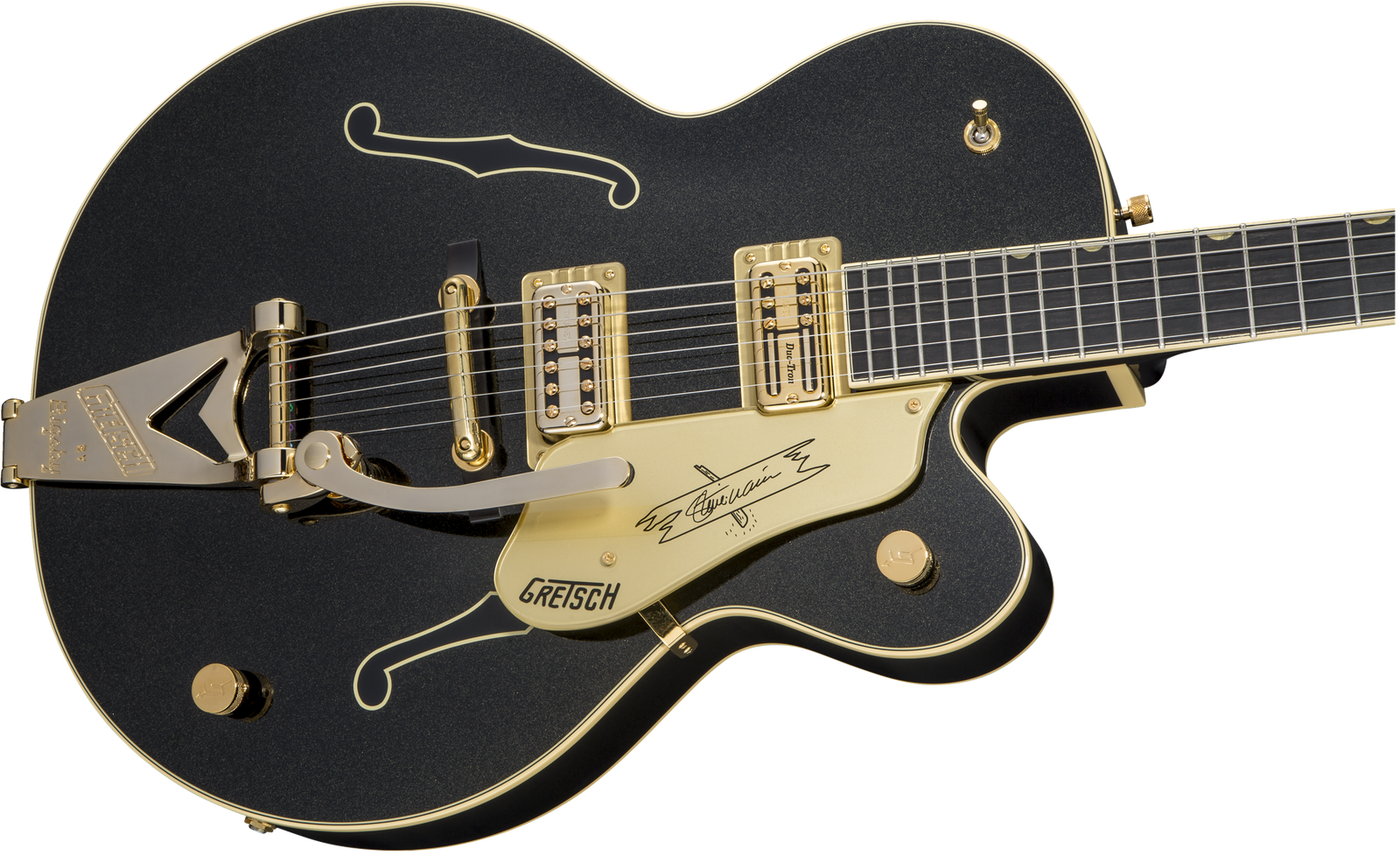

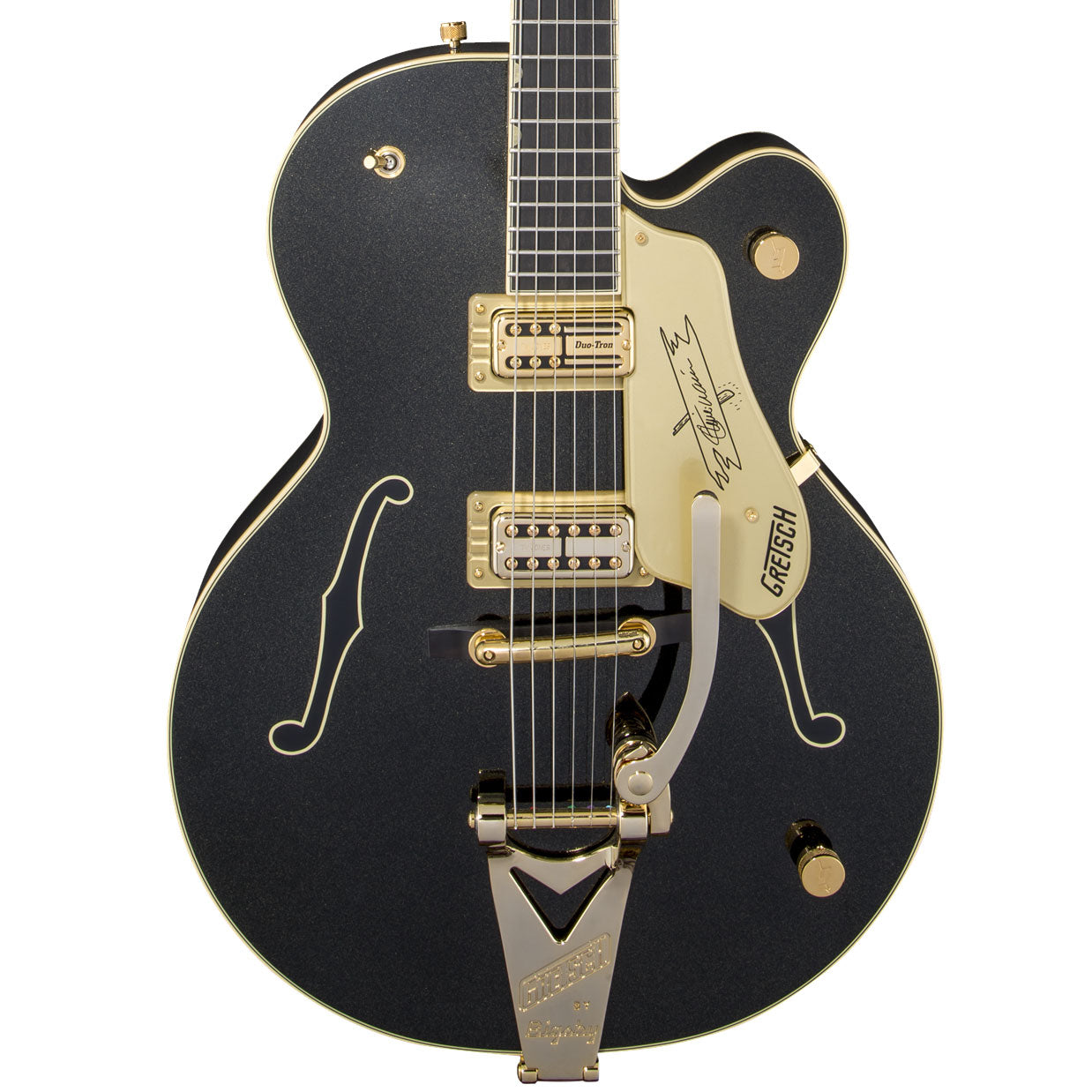

Reference Images

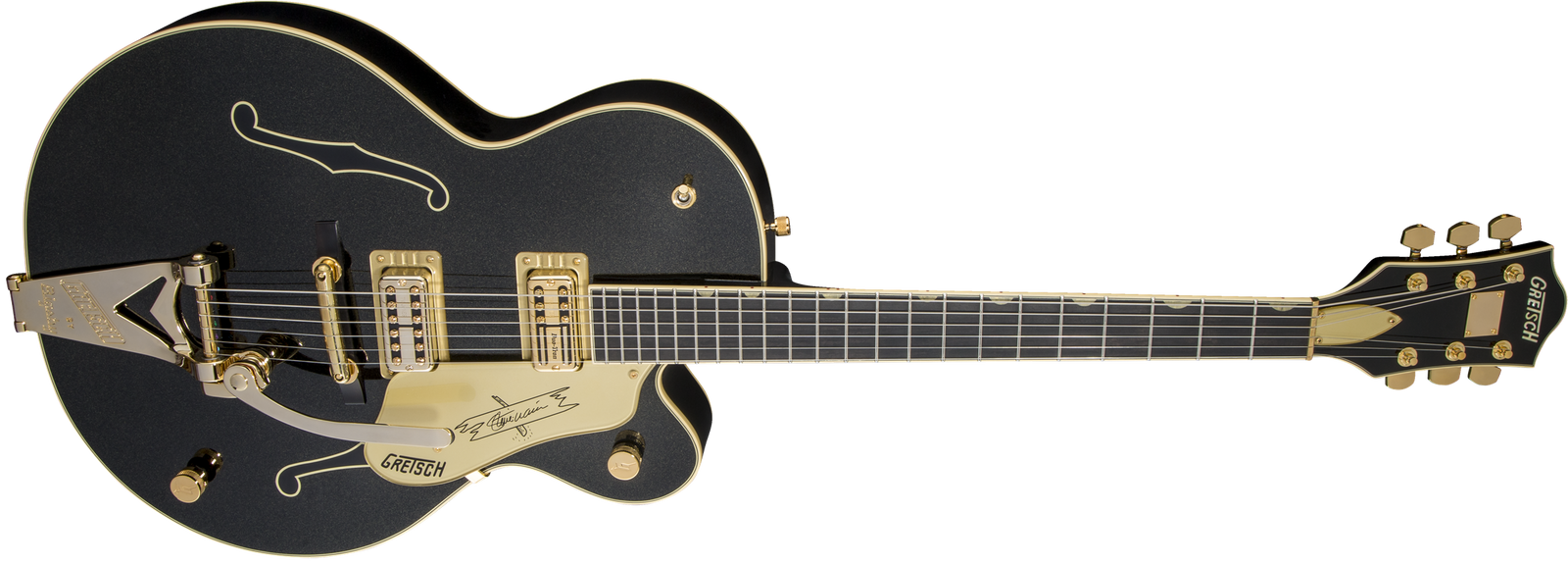

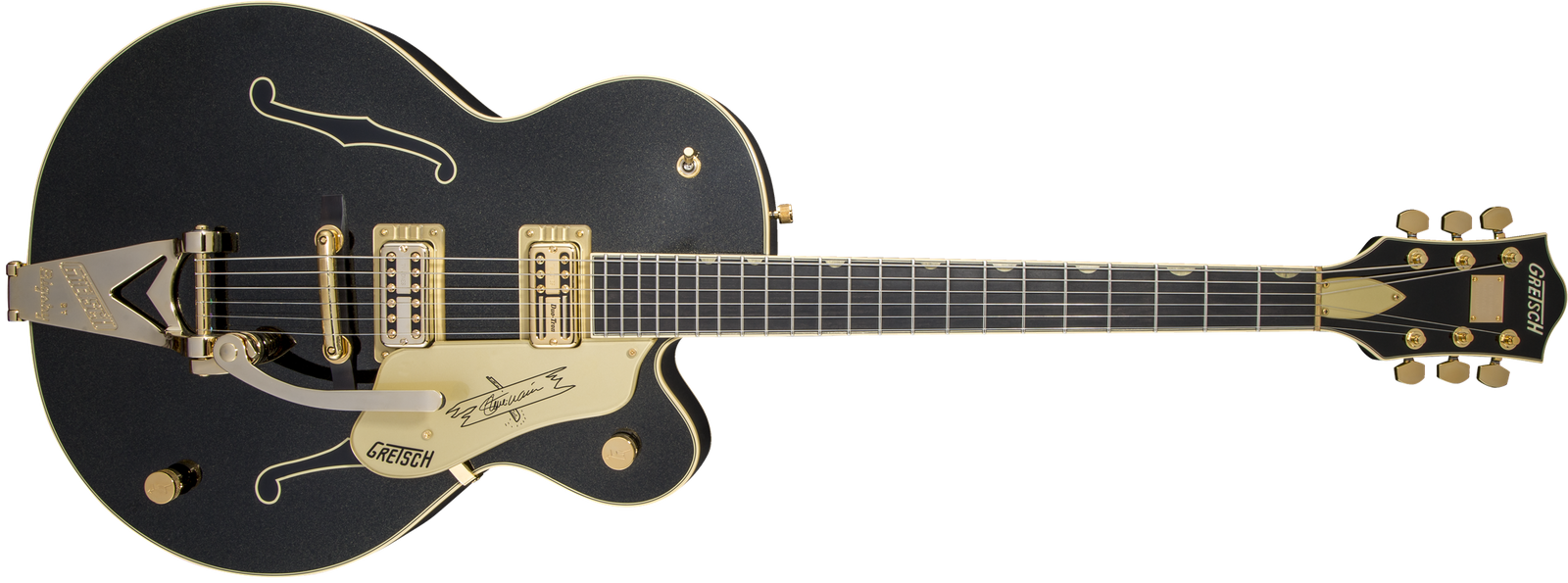

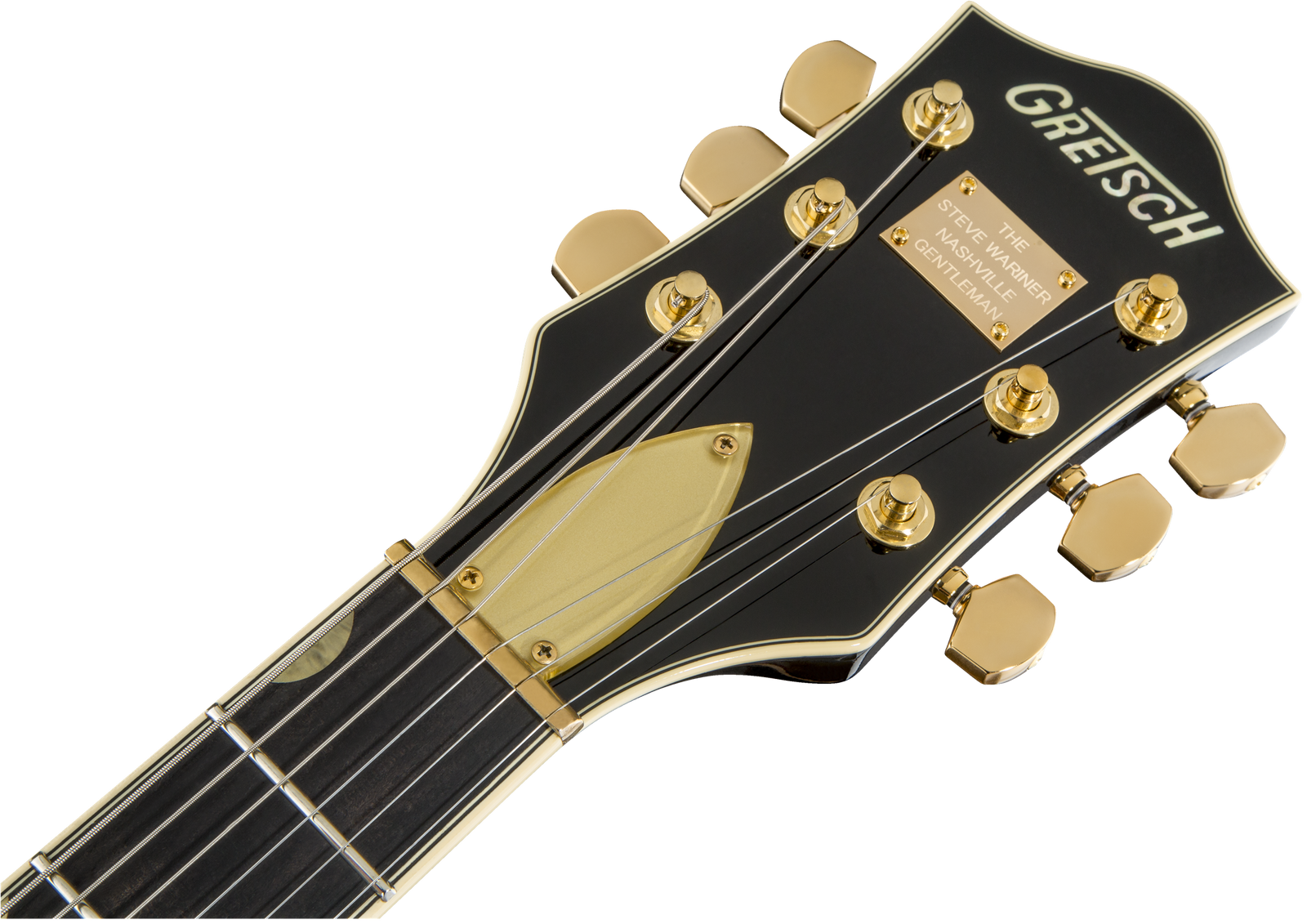

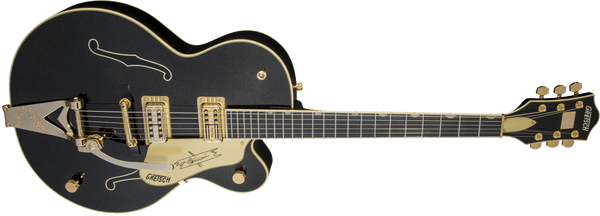

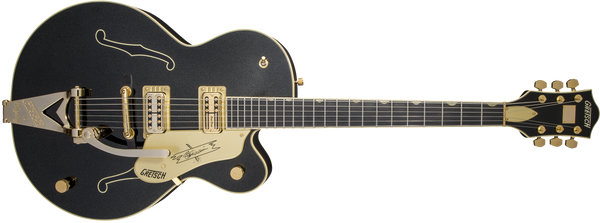

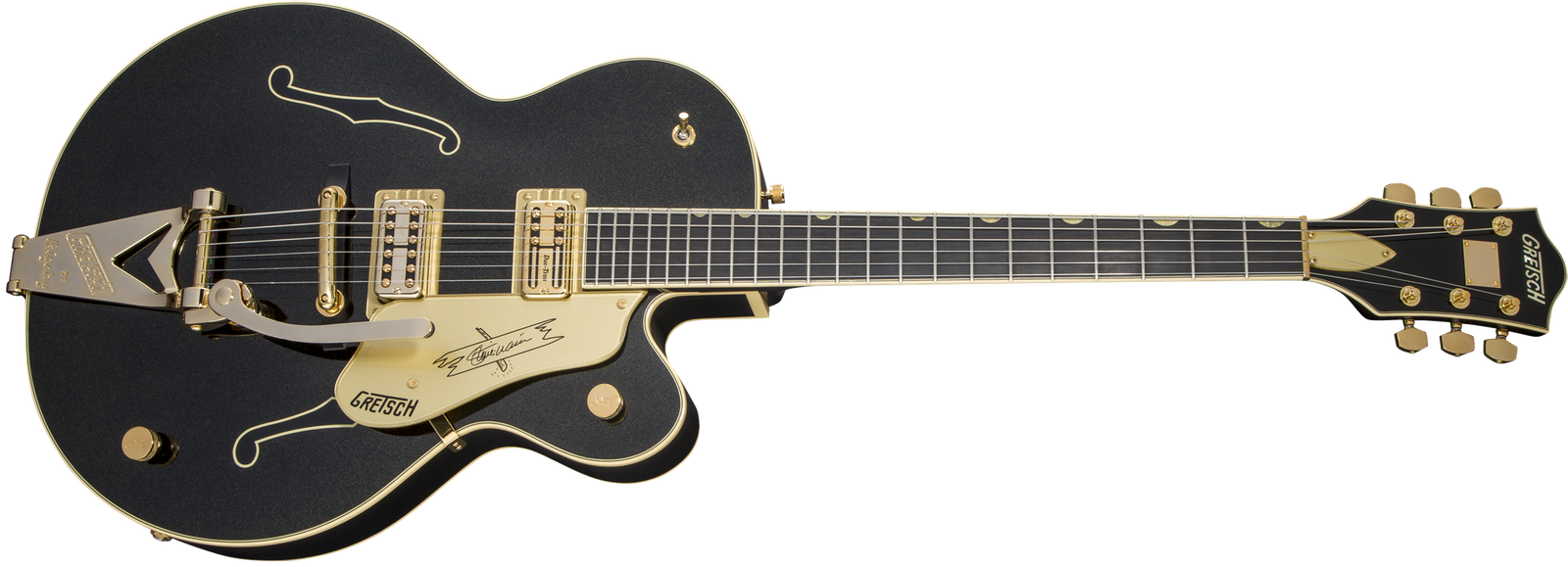

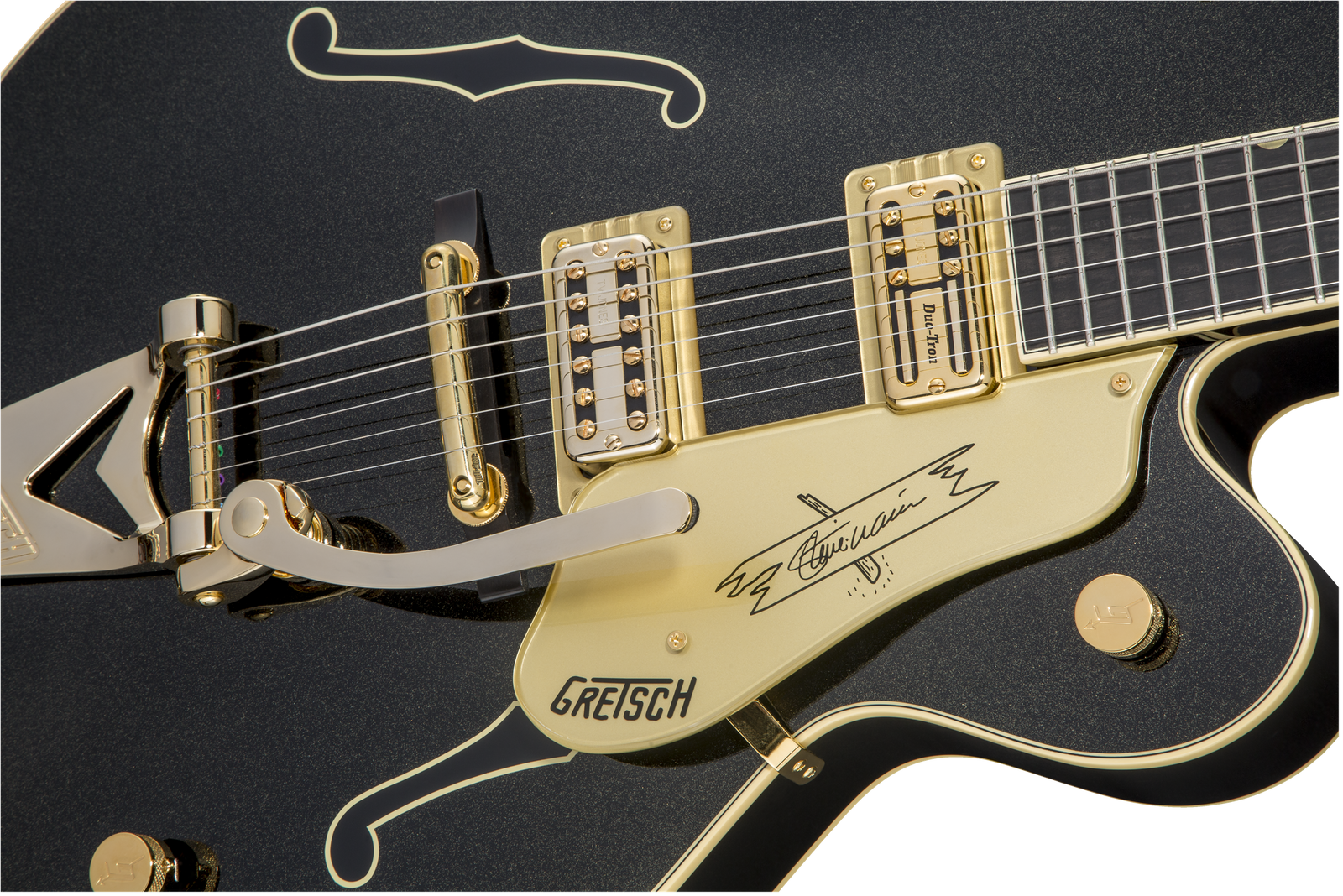

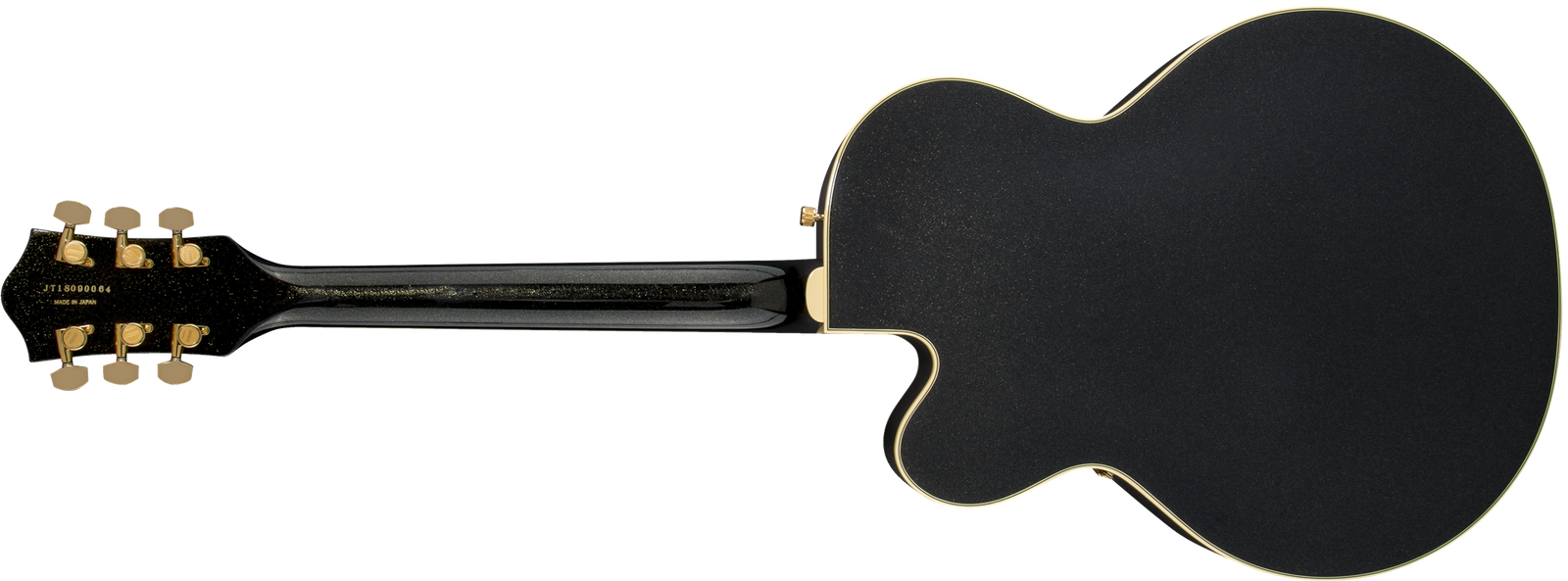

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6120T-SW Steve Wariner Signature Nashville Gentleman with Bigsby listed above. For larger pics, click on an image to open in a new tab.
