The G6120SH-BLND Brian Setzer Hot Rod with Bigsby TV Jones Setzer Pickups Blonde is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2400115897.
Key Features
- Arched Laminated Maple Top
- Arched Laminated Maple Body
- Maple Neck
- Ebony Fingerboard
- 24.6" (625 mm) Scale Length
- 1.6875" (42.86 mm) Nut Width
- 9.5" (241 mm) Radius
- Medium Frets
- Adjusto-Matic with Pinned Rosewood Base Bridge
- Gotoh Locking Tuning Machines
- TV Jones Brian Setzer Signature Filter'Tron Bridge Pickup
- TV Jones Brian Setzer Signature Filter'Tron Neck Pickup
Product Identifiers
| Model Name | G6120SH Brian Setzer Signature Hot Rod Hollow Body with Bigsby |
| Part Number | 2400115897 |
| Product Series | Professional Collection |
| Country of Origin | Japan |
| Brand | Gretsch |
| Type | Electric Guitar |
| Category | Hollow Body |
| UPC Code | 885978518166 |
Factory Specifications
Body Construction
| Body Material | Laminated Flame Maple |
| Top Material | Arched Laminated Maple |
| Back Material | Arched Laminated Maple |
| Body Shape | Nashville / G6120 |
| Body Finish | Gloss Urethane |
| Bracing | 1959 Style Trestle |
| Lower Bout Width | 17" (43.2 cm) |
Hardware
| Bridge | Adjusto-Matic with Pinned Rosewood Base |
| Tuning Machines | Gotoh Locking |
| Pickguard | None |
| Control Knobs | G-Arrow |
| Bridge Cover / Tailpiece | Bigsby B6C Vibrato Tailpiece with Gretsch Logo |
| Hardware Finish | Nickel-Plated |
Neck Construction
| Neck Material | Maple |
| Fingerboard Material | Ebony |
| Radius | 9.5" (241 mm) |
| Fingerboard Inlays | Pearloid Neo-Classic Thumbnail |
| Number of Frets | 22 |
| Fret Size | Medium |
| Nut Width | 1.6875" (42.86 mm) |
| Scale Length | 24.6" (625 mm) |
| Nut Material | Delrin |
| Neck Finish | Gloss Urethane |
| Headstock | G6120 |
Electronics
| Bridge Pickup | TV Jones Brian Setzer Signature Filter'Tron |
| Neck Pickup | TV Jones Brian Setzer Signature Filter'Tron |
| Pickup Configuration | Filter'Tron / Filter'Tron |
| Controls | Master Volume |
| Pickup Switching | 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup |
| Auxiliary Switching | None |
General
| Orientation | Right-Hand |
| Strings | Nickel Plated Steel (.011-.049 Gauges) |
| Case / Gig Bag | Hardshell Case |
| Recommended Case | 099-6458-000 Gig Bag - G2162 - Hollow Body Electric|099-6475-000 Economy Case - G6241FT - 16” (Flat) Hollow Body A6080/BL|099-6448-000 Premium Case - G6272 - 16” Gray Speckle Case |
Reference Images

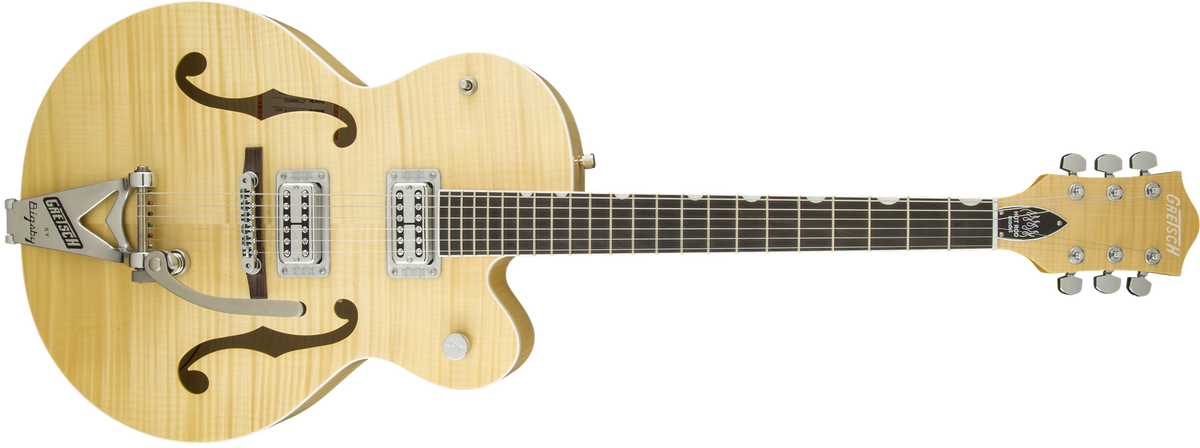

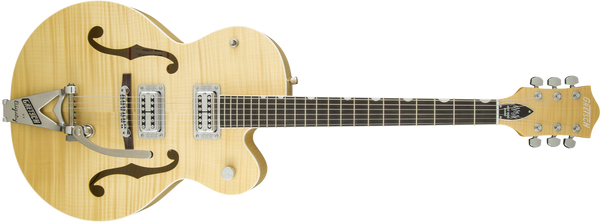

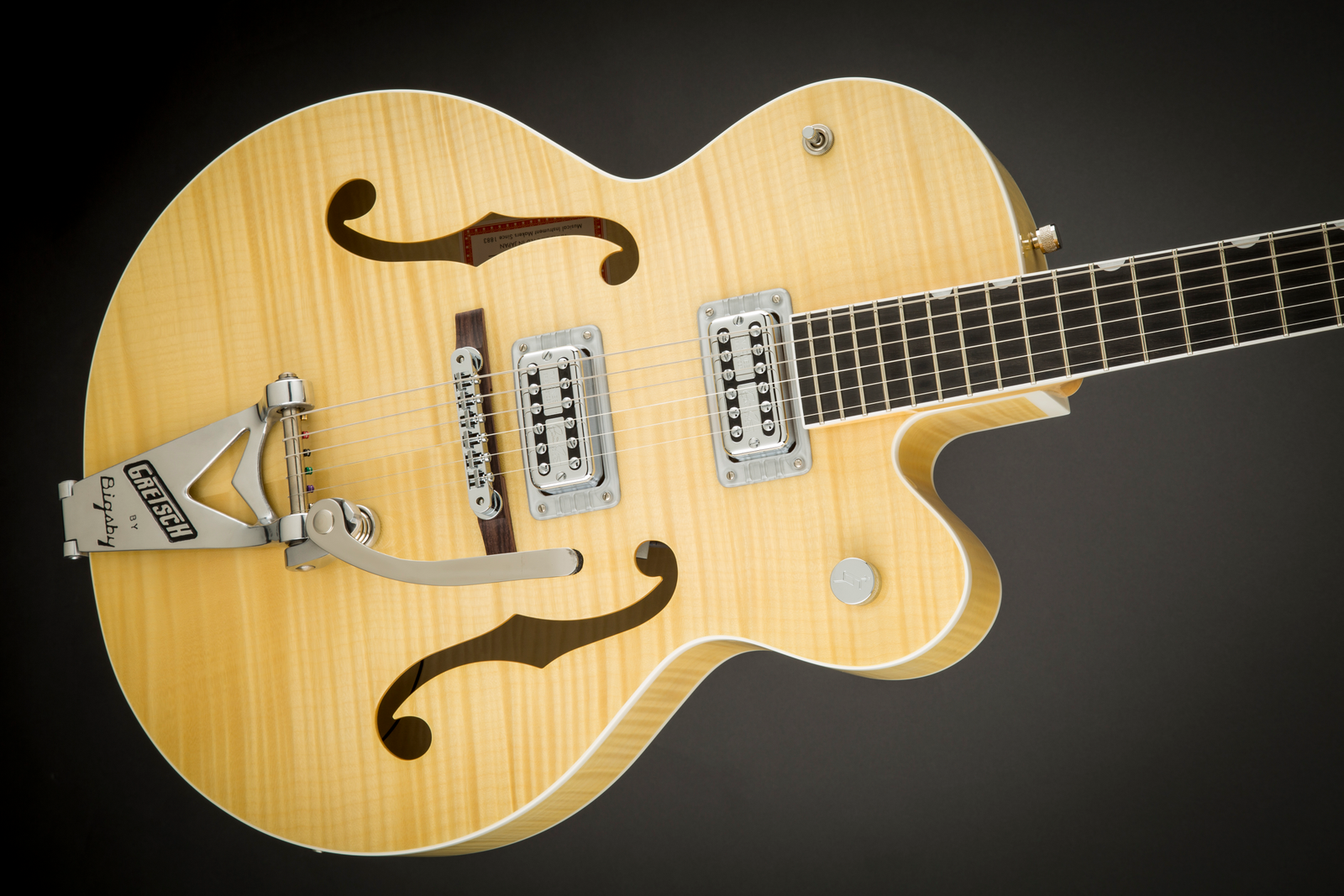

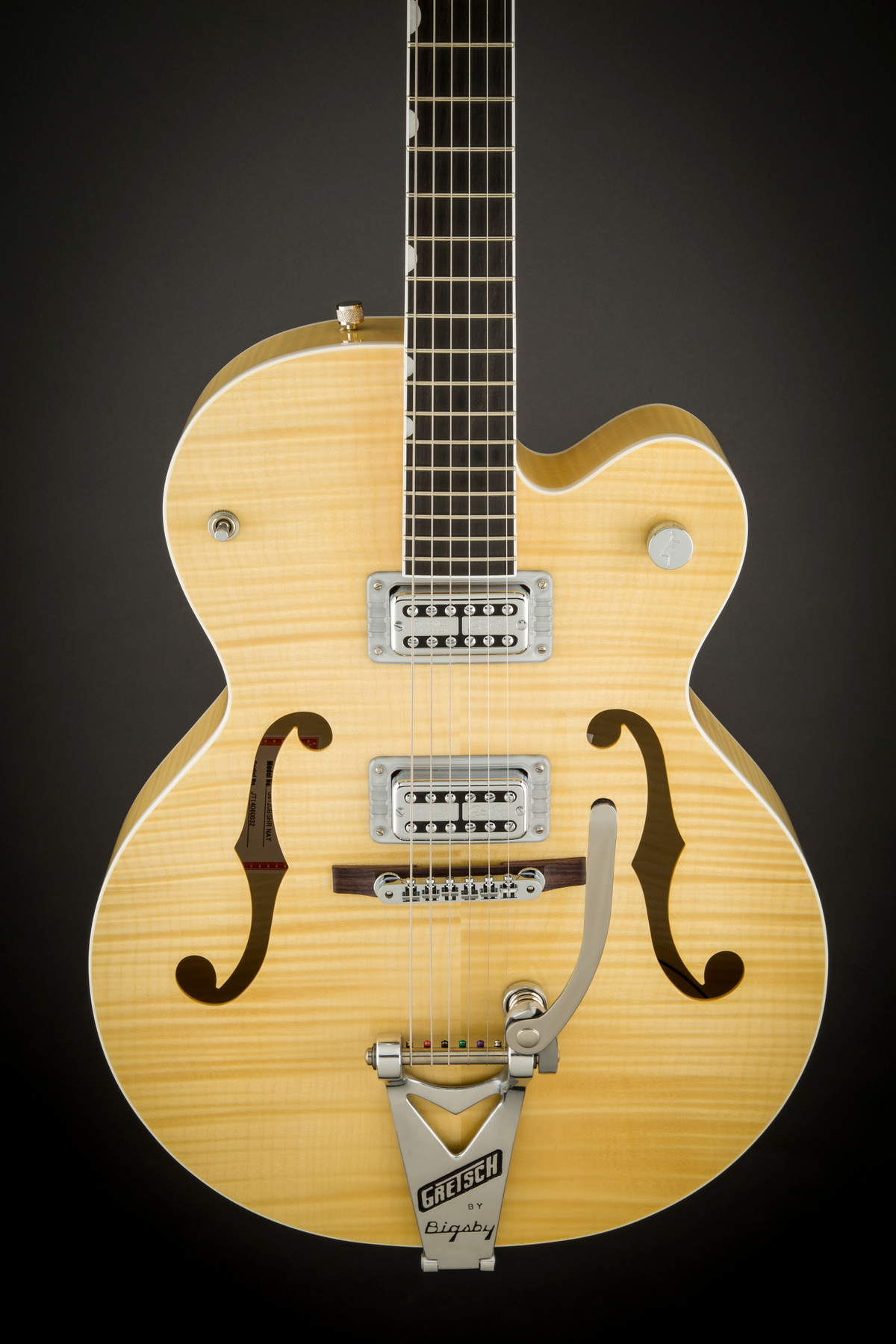

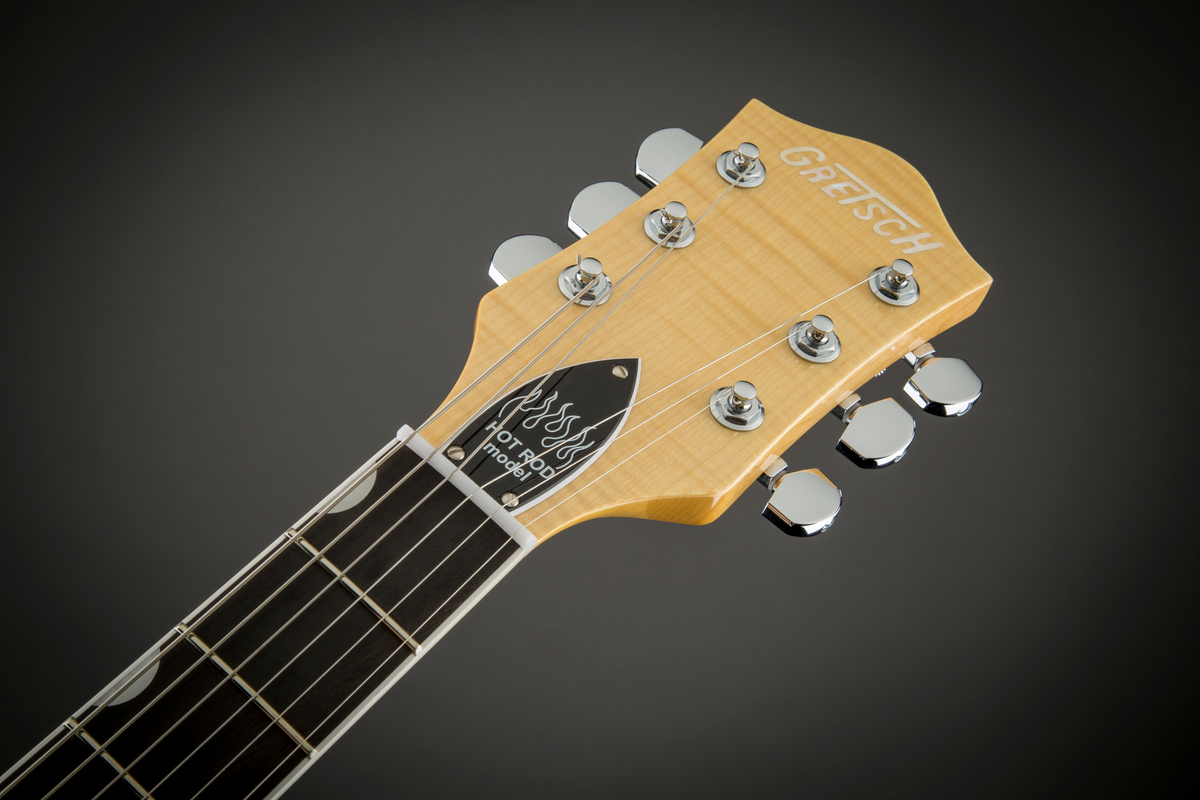

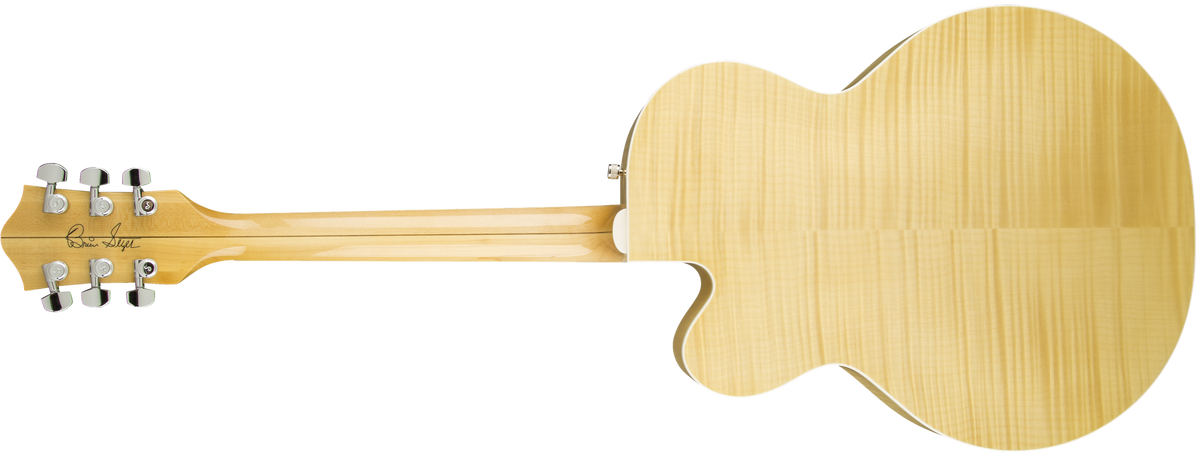

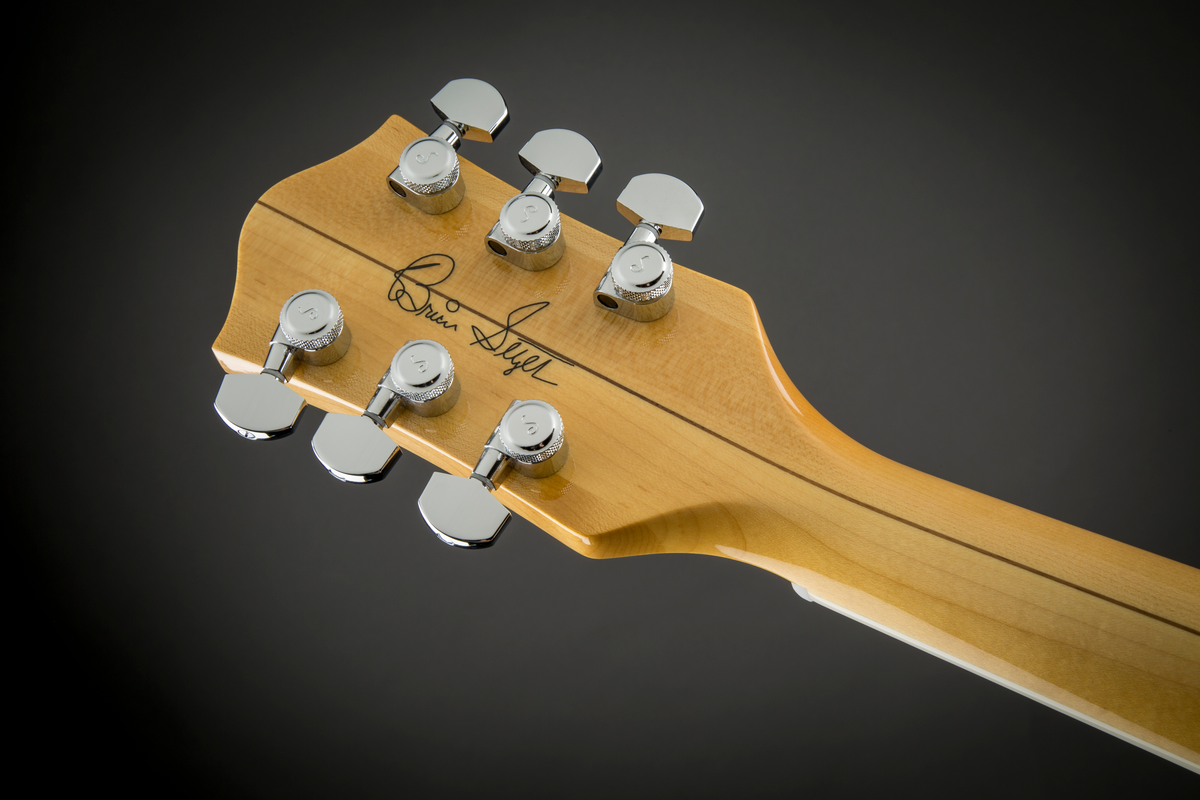

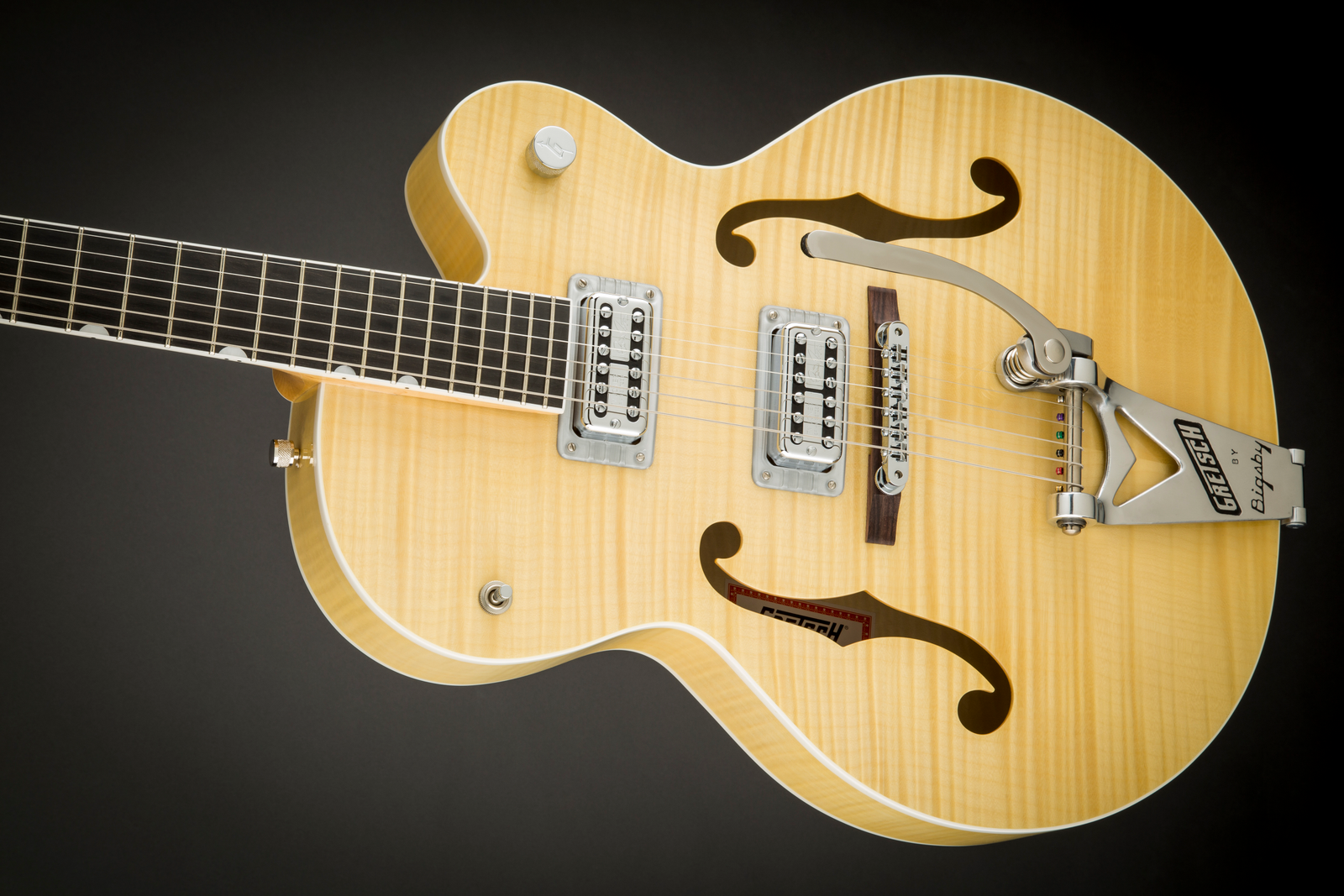

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6120SH-BLND Brian Setzer Hot Rod with Bigsby TV Jones Setzer Pickups Blonde listed above. For larger pics, click on an image to open in a new tab.
