Gretsch G6120RHH Reverend Horton Heat Signature 6120 Hollow Body with Bigsby Orange Stain Lacquer Specs
Gretsch G6120RHH Reverend Horton Heat Signature 6120 Hollow Body with Bigsby Orange Stain Lacquer Specs
The G6120RHH Reverend Horton Heat Signature 6120 Hollow Body with Bigsby is a hollow body electric guitar
built by Gretsch. This single cutaway set neck guitar is manufactured in Japan
and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401217822.
Key Features
Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Ebony Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Pinned Rosewood Base Bridge
Gotoh Cast/Sealed Locking Tuning Machines
TV Jones Filter'Tron Classic Bridge Pickup
TV Jones Filter'Tron Classic Neck Pickup
Product Identifiers
Model Name
G6120RHH Reverend Horton Heat Signature 6120 Hollow Body with Bigsby
Part Number
2401217822
Product Series
Professional Collection
Country of Origin
Japan
Brand
Gretsch
Type
Electric Guitar
Category
Hollow Body
Subcategory
Single Cutaway Set Neck
UPC Code
0717669290894
Factory Specifications
Body Construction
Body Material
Laminated Maple
Top Material
Arched Laminated Maple
Back Material
Arched Laminated Maple
Body Shape
Nashville / G6120
Body Binding
Multiple
Body Finish
Gloss Nitrocellulose Lacquer
Bracing
Trestle
Lower Bout Width
16" (40.6 cm)
Hardware
Bridge
Adjusto-Matic with Pinned Rosewood Base
Tuning Machines
Gotoh Cast/Sealed Locking
Pickguard
Clear Plexi Pickguard with Gretsch Logo
Control Knobs
G-Arrow
Bridge Cover / Tailpiece
Bigsby B6CBDE Vibrato Tailpiece
Hardware Finish
Nickel-Plated
Neck Construction
Neck Material
Maple
Refinement Neck Material
Maple
Fingerboard Material
Ebony
Radius
12" (305 mm)
Refinement Fingerboard Radius
Modern
Fingerboard Inlays
Western Block Inlay Position Markers of Cactus, Steerheads & Fences
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Auxiliary Switching
3-Position Master Tone Switch: Position 1. Medium Level, High Frequency Roll Off, Position 2. Switch Out of Circuit, Pickup Wide Open, Position 3. Slight Level, High Frequency Roll Off
Configuration
Filter'Tron / Filter'Tron
General
Orientation
Right-Hand
Strings
Nickel Plated Steel (.011-.049 Gauges)
Unique Features
Nitrocellulose Lacquer Finish, Aged Vintage Western Block Inlay Position Markers of Cactus, Steerheads and Fences, Routed "G" Brand on the Body, Aged Fingerboard and Headstock Binding, Multiple Aged Body Bindings, Stained Curly Maple Headstock Overlay, Inlaid Pearloid Steerhead and Gretsch Logo on Headstock, Bound Oversized F-Holes, Clear Plexi Pickguard with Embossed "Gretsch", Polished Aluminum Bigsby, G-Arrow Control Knobs, Knurled Strap Retainer Knobs, Adjustable Truss Rod
Case / Gig Bag
Included G6241 Gretsch 16" Deluxe Hollow Body Hardshell (p/n 099-6411-000); Optional G2162 Gretsch Hollow Body Gig Bag (p/n 099-6458-000)
Included Accessories
Included: 099-6411-000 G6241 16" Deluxe Hollow Body Hardshell Case, Black
Recommended Case
Included: 099-6411-000 G6241 16" Deluxe Hollow Body Hardshell Case, Black

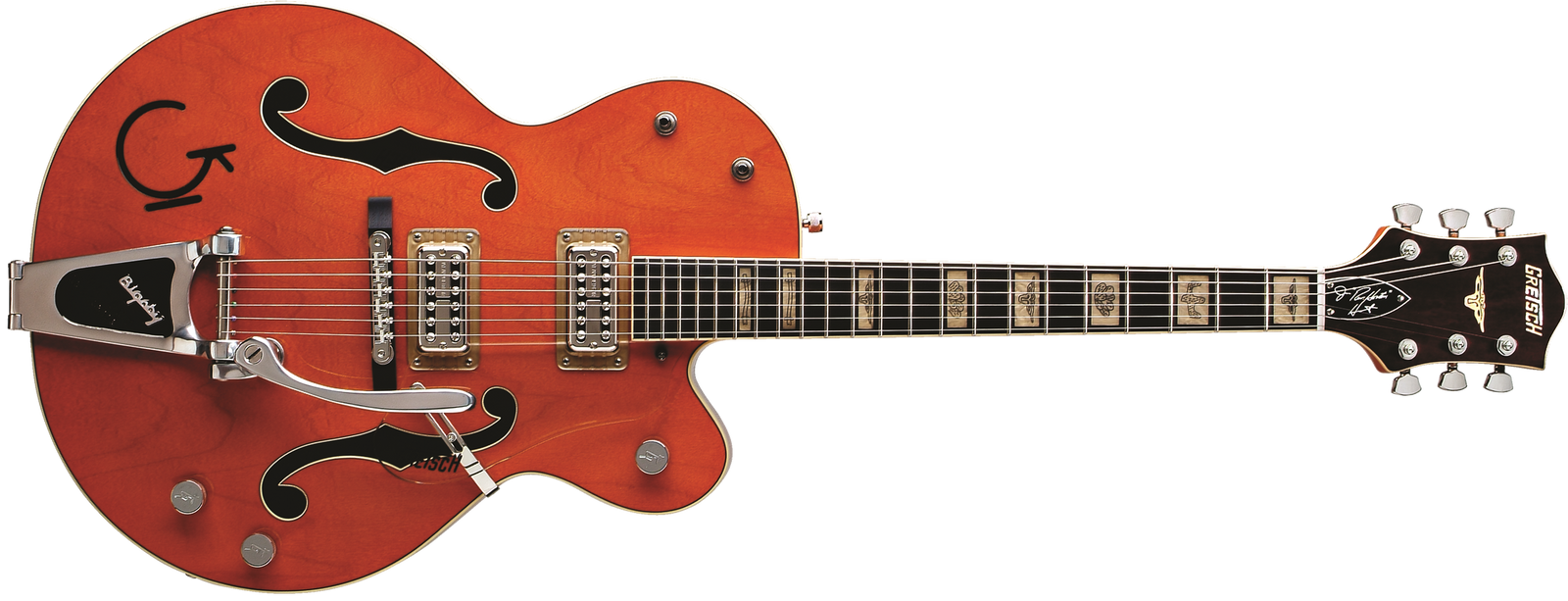

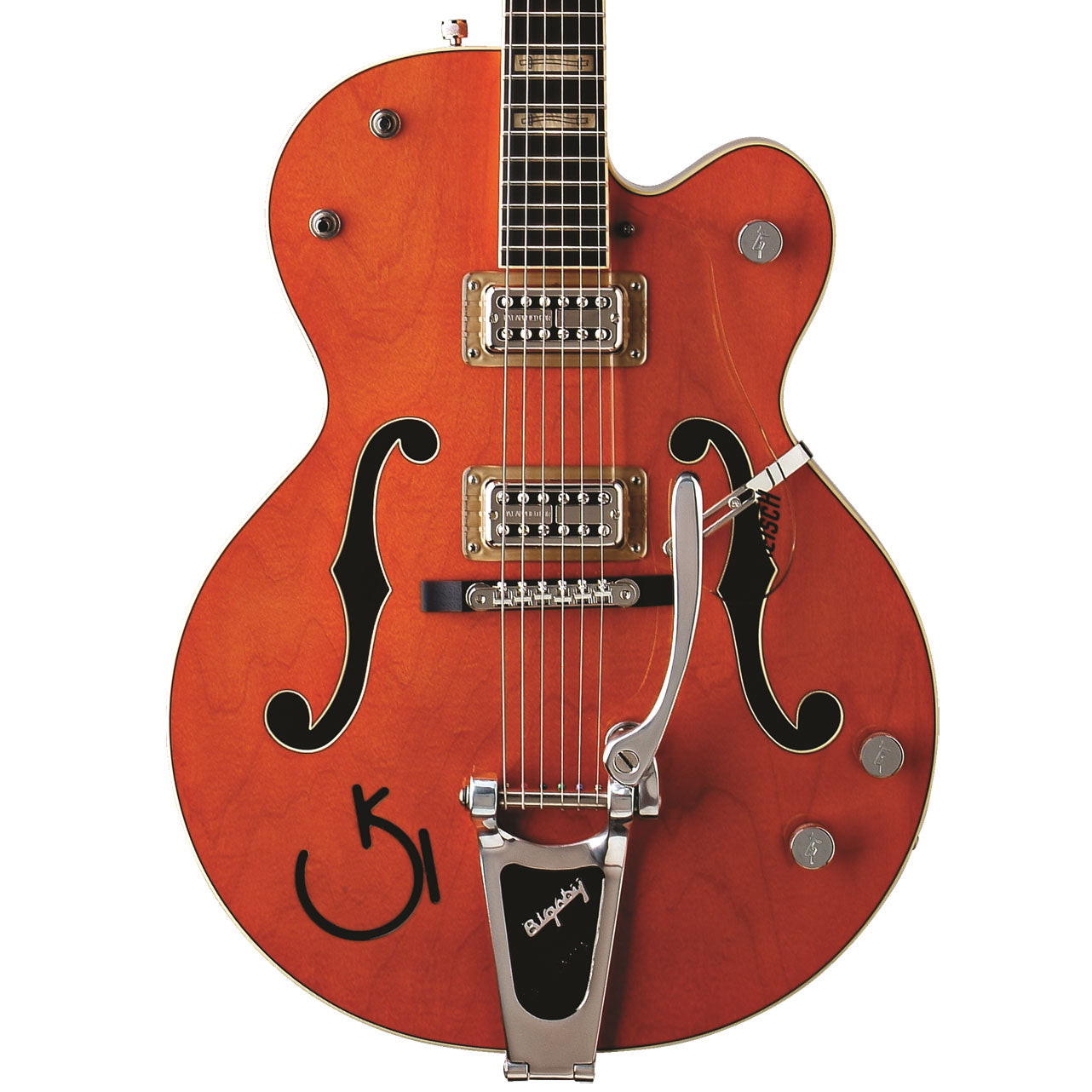

Reference Images
Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6120RHH Reverend Horton Heat Signature 6120 Hollow Body with Bigsby listed above. For larger pics, click on an image to open in a new tab.
