Gretsch G6120LH Eddie Cochran Signature 6120 Hollow Body Bigsby Left-Handed Western Maple Stain Specs

The G6120LH Eddie Cochran Signature Hollow Body with Bigsby Left-Handed Rosewood Fingerboard Western Maple Stain is a hollow body electric guitar built by Gretsch. This guitar is manufactured in China and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401229822.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
2-Piece Maple Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
9.5" (241 mm) Radius
Vintage Small Frets
Compensated Aluminum Bridge
Grover V98 Sta-Tite Open-Back Tuning Machines
DynaSonic Bridge Pickup
Lindy Fralin "Dog Ear" Single-Coil Neck Pickup

Product Identifiers

Model Name	G6120LH Eddie Cochran Signature 6120 Hollow Body with Bigsby, Left-Handed
Part Number	2401229822
Product Series	Professional Collection
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	717669852825

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Nashville / G6120
Body Binding	White/Black
Body Finish	Gloss Urethane
Bracing	Parallel Bracing
Lower Bout Width	16" (40.6 cm)

Hardware

Bridge	Compensated Aluminum
Tuning Machines	Grover V98 Sta-Tite Open-Back
Pickguard	Clear Plexi Pickguard with Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B6GBVF Vibrato Tailpiece
Hardware Finish	Polished Aluminum and Gold-Plated

Neck Construction

Neck Material	2-Piece Maple
Fingerboard Material	Rosewood
Radius	9.5" (241 mm)
Fingerboard Inlays	Western Block Inlay Position Markers of Cactus, Steerheads & Fences
Number of Frets	22
Fret Size	Vintage Small
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Polished Brass
Neck Finish	Gloss Urethane
Headstock	Early '50s Gretsch
Truss Rod	Standard
Truss Rod Nut	5/16" (7.9375 mm)

Electronics

Bridge Pickup	DynaSonic
Neck Pickup	Lindy Fralin "Dog Ear" Single-Coil
Pickup Configuration	Dynasonic / P90
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Left-Hand
Strings	D'Addario EXL115 Nickel Plated Steel (.011-.049 Gauges)
Unique Features	Eddie Cochran Signature on Truss Rod Cover, Red Side Dot Position Markers, Internal "open" body construction design, Bigsby "B6GBVF" tailpiece, Aluminum Bridge, Polished Brass Nut, Lindy Fralin Dog Ear Single-Coil Pickup (Neck), DynaSonic Single-Coil Pickup (Bridge)
Case / Gig Bag	Included G6241 Gretsch 16" Deluxe Hollow Body Hardshell (p/n 099-6411-000); Optional G2162 Gretsch Hollow Body Gig Bag (p/n 099-6458-000)
Included Accessories	Included: 099-6411-000 G6241 16" Deluxe Hollow Body Hardshell Case, Black
Recommended Case	Included: 099-6411-000 G6241 16" Deluxe Hollow Body Hardshell Case, Black
Truss Rod Wrench	5/16" Hex (Allen)

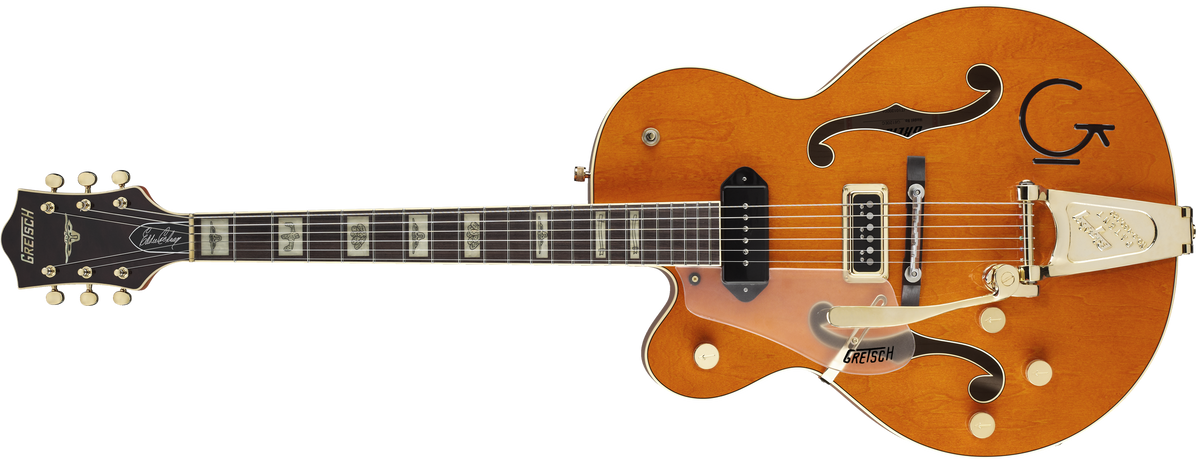

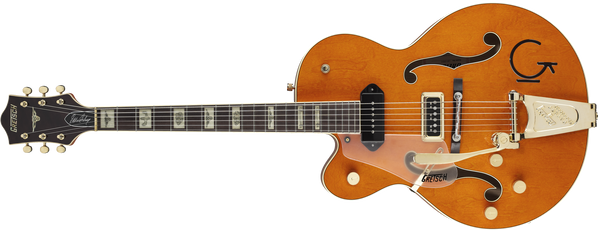

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6120LH Eddie Cochran Signature Hollow Body with Bigsby Left-Handed Rosewood Fingerboard Western Maple Stain listed above. For larger pics, click on an image to open in a new tab.
