Gretsch G6118T-60 Vintage Select Edition '60 Anniversary Hollow Body Bigsby Smoke Green Specs

The G6118T-60 Vintage Select Edition '60 Anniversary Hollow Body with Bigsby TV Jones 2-Tone Smoke Green is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Japan and is a Professional Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2401201871.

Key Features

Laminated Maple Top
Laminated Maple Body
Maple Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Rocking Bar Bridge
Grover V98 Sta-Tite Open-Back Tuning Machines
TV Jones TV-HT Bridge Pickup
TV Jones TV-HT Neck Pickup

Product Identifiers

Model Name	G6118T-60 Vintage Select Edition '60 Anniversary Hollow Body with Bigsby
Part Number	2401201871
Product Series	Professional Collection
Country of Origin	Japan
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978662289

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Laminated Maple
Back Material	Laminated Maple
Body Shape	Anniversary
Body Binding	Aged White with Black Purfling
Body Finish	Gloss Urethane
Bracing	1959 Style Trestle

Hardware

Bridge	Rocking Bar
Tuning Machines	Grover V98 Sta-Tite Open-Back
Pickguard	Smoke Green Plexi with White Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B6C Vibrato Tailpiece with Gretsch Logo
Hardware Finish	Nickel

Neck Construction

Neck Material	Maple
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Bone
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane
Headstock	Late '50s Gretsch

Electronics

Bridge Pickup	TV Jones TV-HT
Neck Pickup	TV Jones TV-HT
Pickup Configuration	Hilo'Tron / Hilo'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Auxiliary Switching	3-Position Master Tone Switch: Position 1. Medium Level, High Frequency Roll Off, Position 2. Switch Out of Circuit, Pickup Wide Open, Position 3. Slight Level, High Frequency Roll Off

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)
Case / Gig Bag	Included G6241 Gretsch 16" Deluxe Hollow Body Hardshell (p/n 099-6411-000); Optional G2162 Gretsch Hollow Body Gig Bag (p/n 099-6458-000)
Included Accessories	Included: 099-6411-000 G6241 16" Deluxe Hollow Body Hardshell Case, Black
Recommended Case	Included: 099-6411-000 G6241 16" Deluxe Hollow Body Hardshell Case, Black

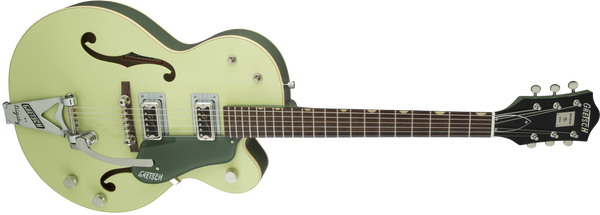

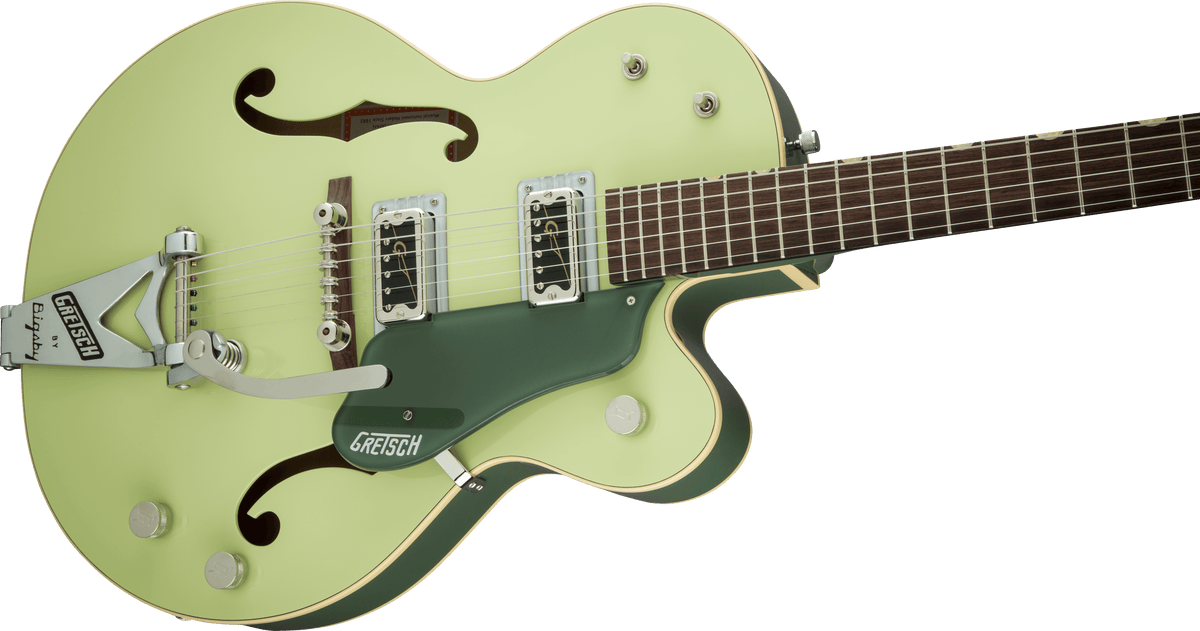

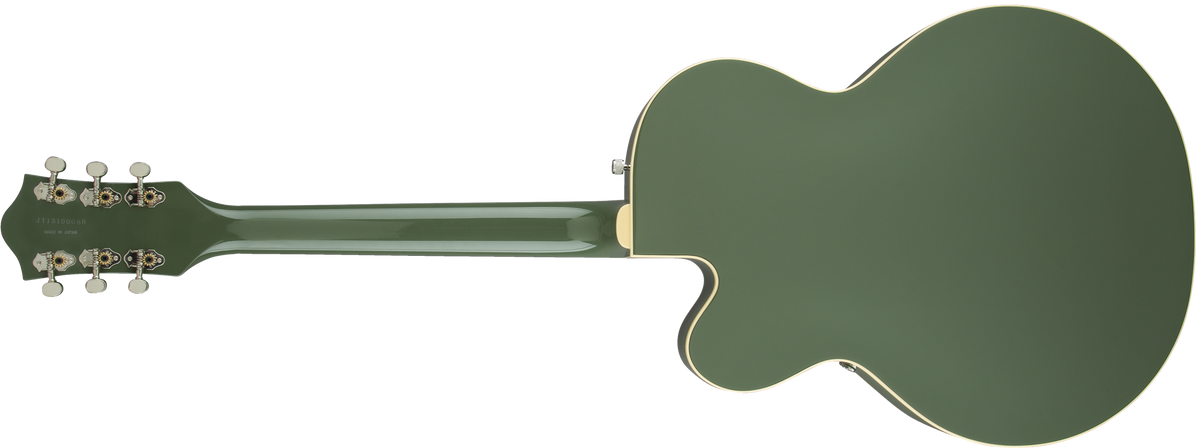

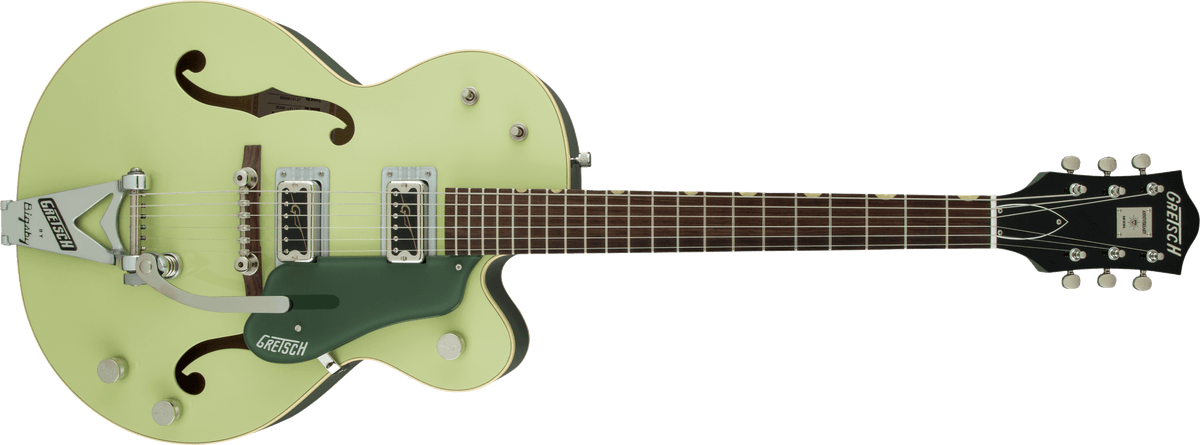

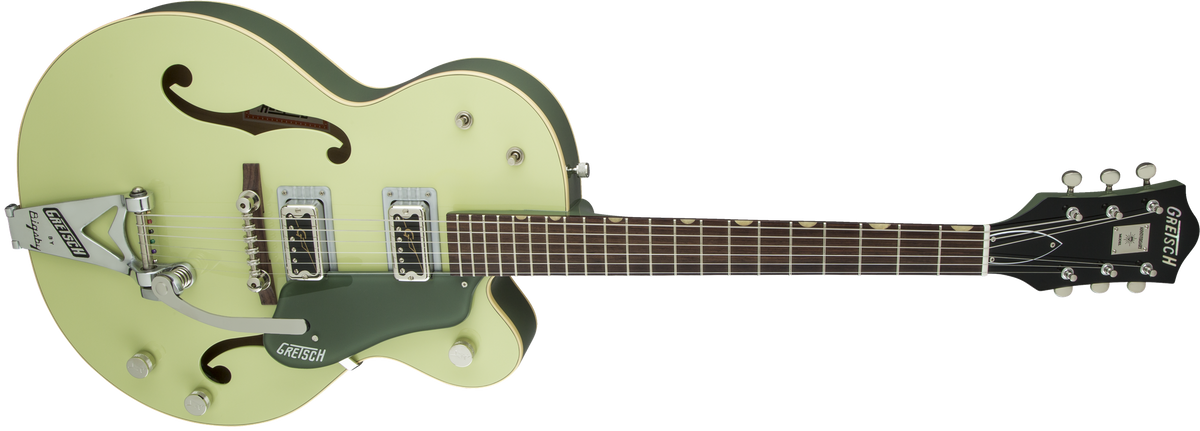

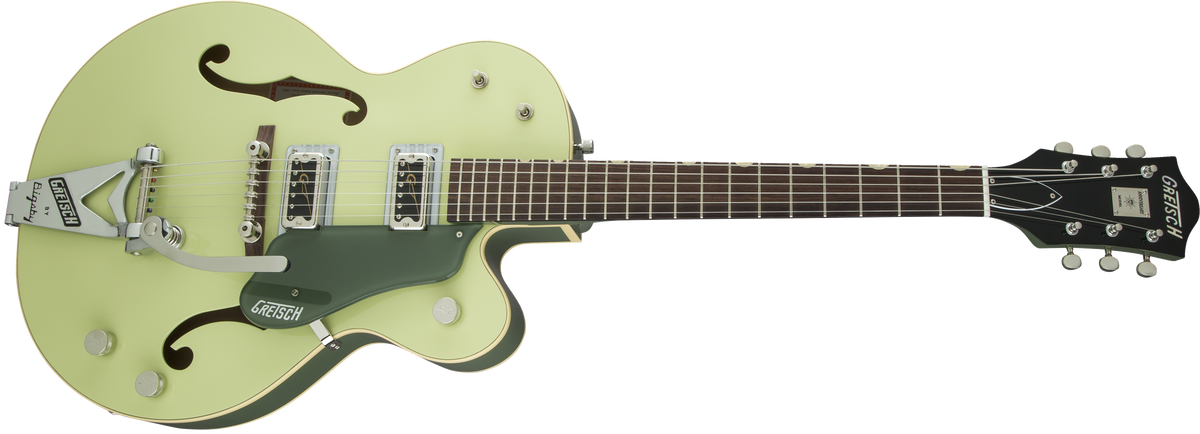

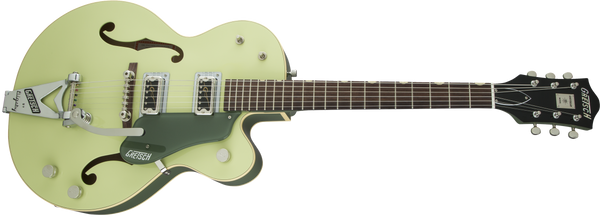

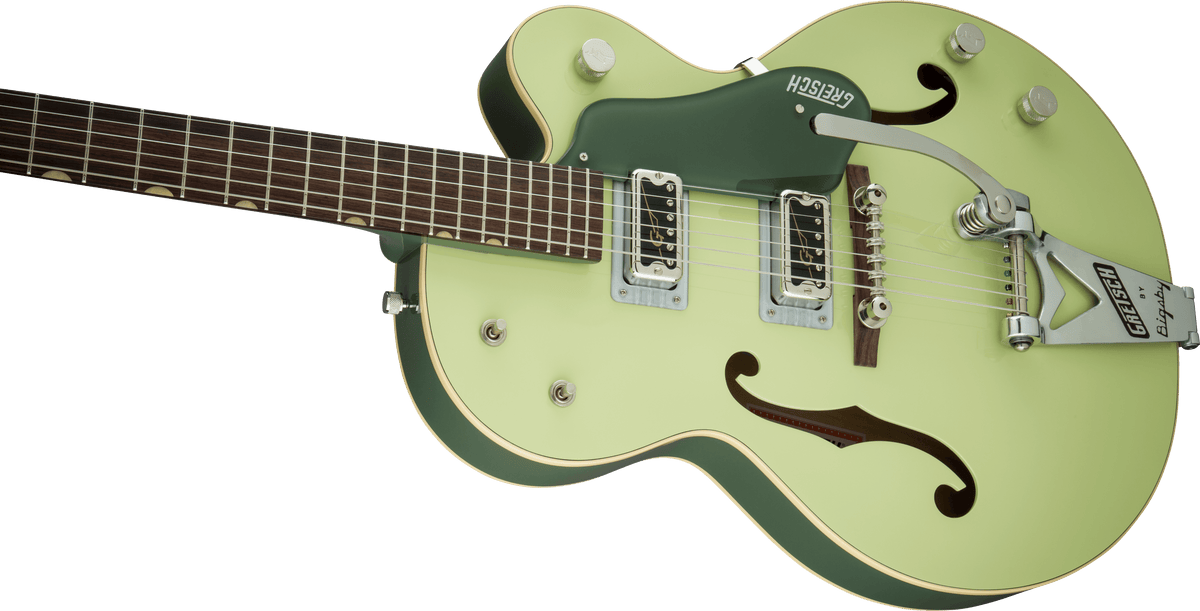

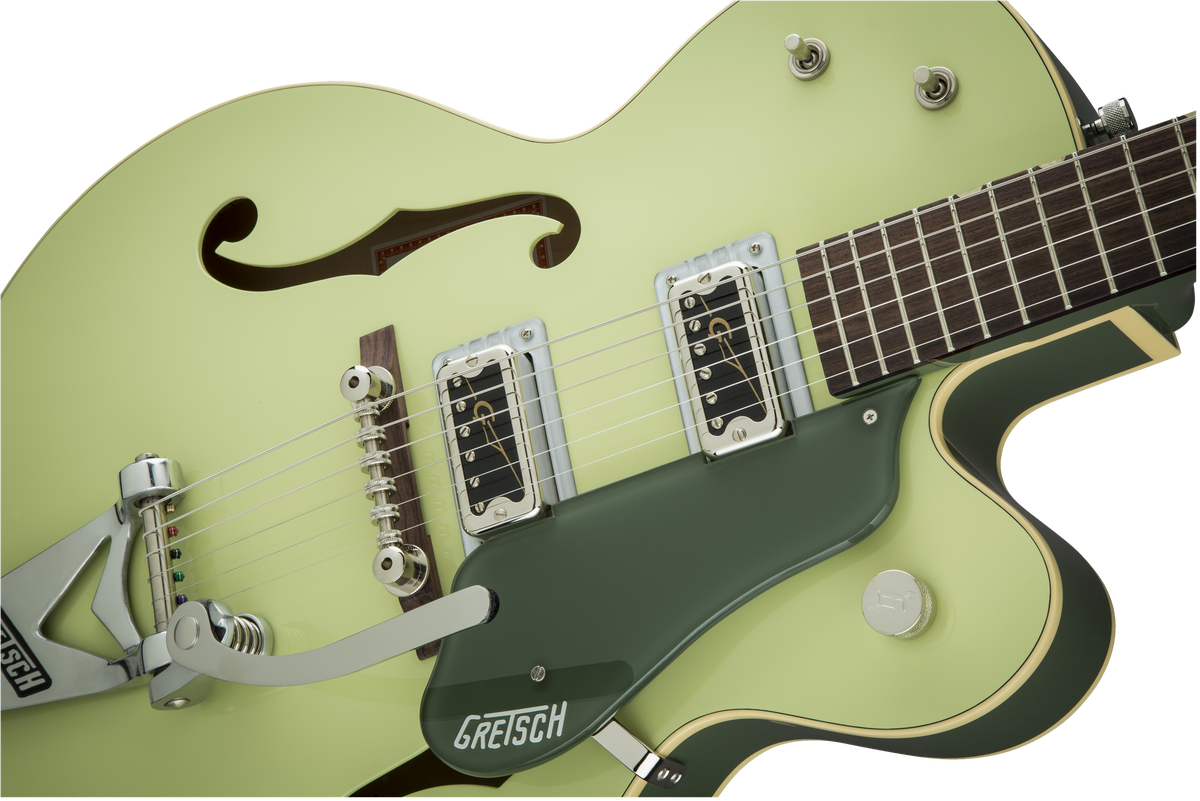

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G6118T-60 Vintage Select Edition '60 Anniversary Hollow Body with Bigsby TV Jones 2-Tone Smoke Green listed above. For larger pics, click on an image to open in a new tab.
