Gretsch G5700 Electromatic Lap Steel Broadway Jade Specs

The G5700 Electromatic Lap Steel Broadway Jade is a lap steel electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2515902548.

Key Features

Mahogany Top
Mahogany Body
N/A Neck
Plastic Fingerboard
22.5" (572 mm) Scale Length
1.875" (47.6 mm) Nut Width
Flat Radius
N/A Frets
Chrome Bar Bridge Bridge
Die-Cast Sealed Tuning Machines
Single-Coil Bridge Pickup

Product Identifiers

Model Name	G5700 Electromatic Lap Steel
Part Number	2515902548
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Lap Steel
UPC Code	717669554460

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Mahogany
Back Material	Mahogany
Body Shape	Lap Steel
Body Binding	None
Body Finish	Gloss

Hardware

Bridge	Chrome Bar Bridge
Tuning Machines	Die-Cast Sealed
Pickguard	None
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Chrome-Plated Cast Zinc
Hardware Finish	Chrome

Neck Construction

Neck Material	N/A
Fingerboard Material	Plastic
Radius	Flat
Fingerboard Inlays	Circle, Triangle, Square and Diamond
Number of Frets	28
Fret Size	N/A
Nut Width	1.875" (47.6 mm)
Scale Length	22.5" (572 mm)
Nut Material	Aluminum
Neck Finish	Gloss
Headstock Binding	None

Electronics

Bridge Pickup	Single-Coil
Pickup Configuration	S
Controls	Master Volume, Master Tone
Pickup Switching	None

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.012-.052 Gauges)
Unique Features	Circle, Triangle, Square and Diamond Position Markers, Silver Plastic Deco Control Plate
Case / Gig Bag	Optional G2165 Lap Steel Gig Bag (p/n 099-6461-000)
Recommended Case	Optional: 099-6461-000 Gig Bag - G2165 - Lap Steel

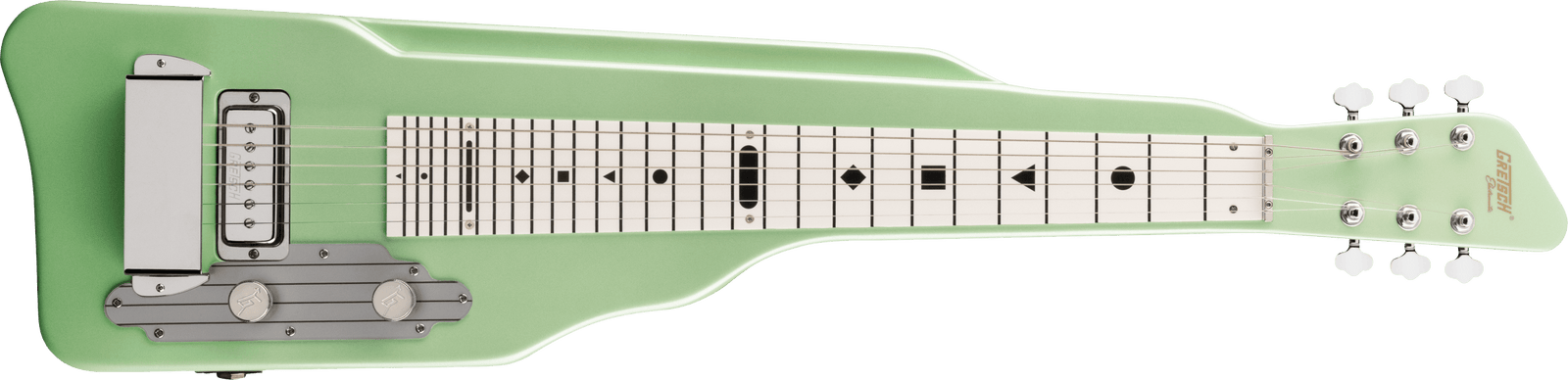

Reference Images

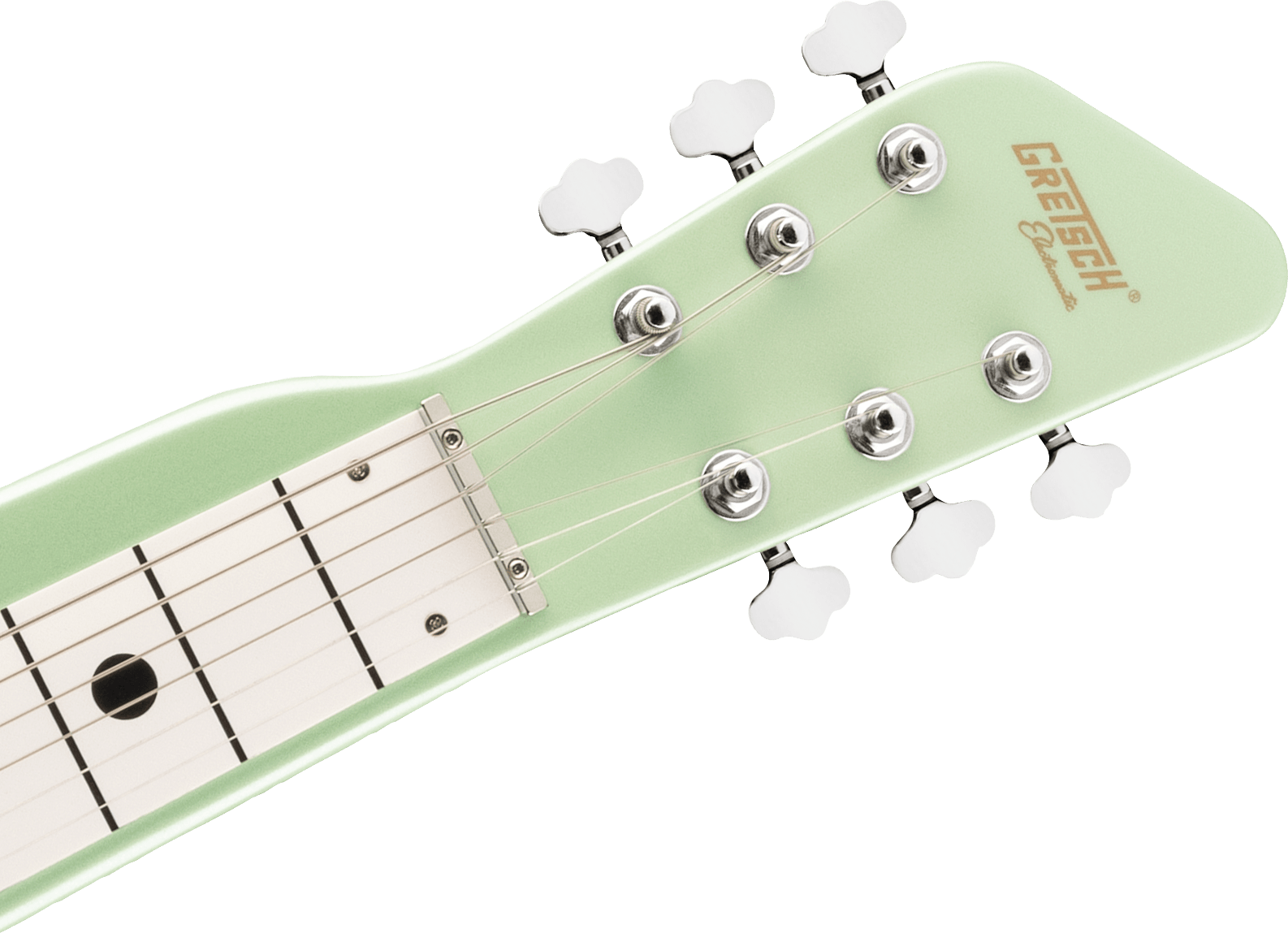

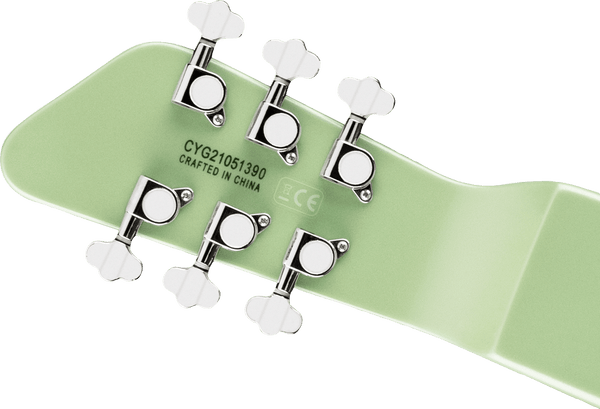

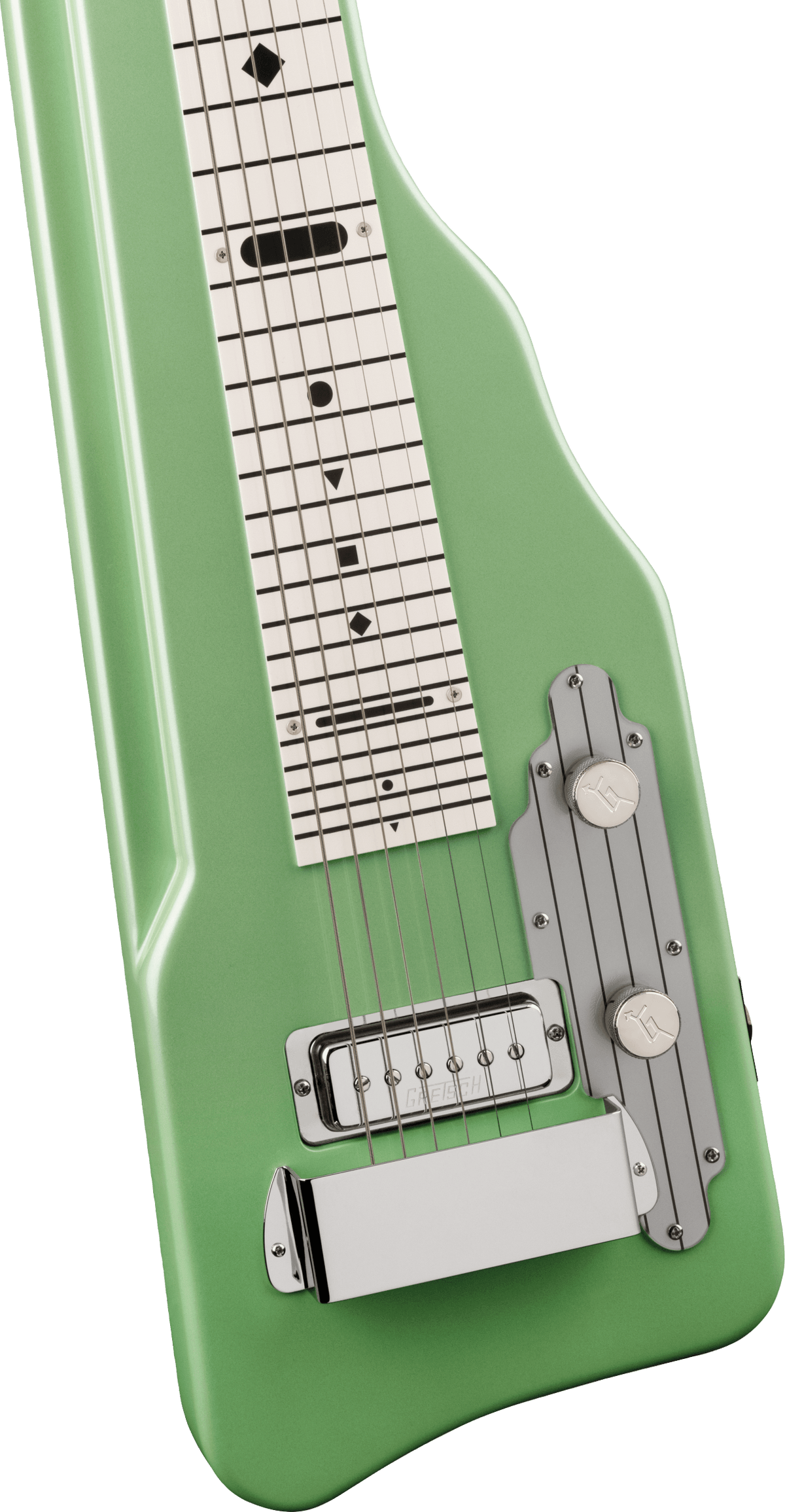

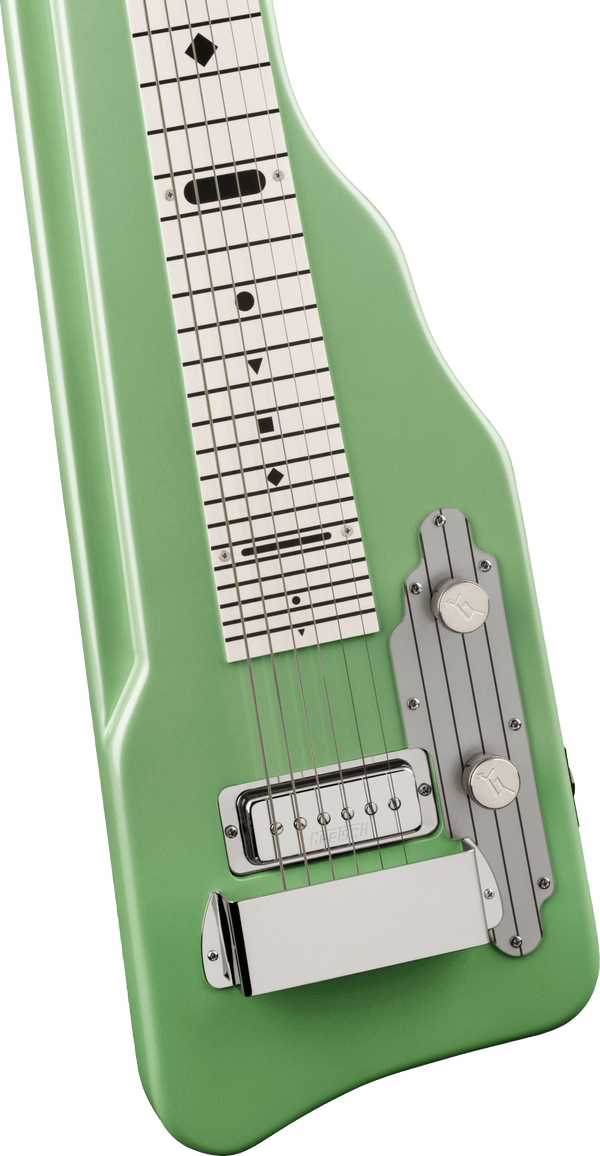

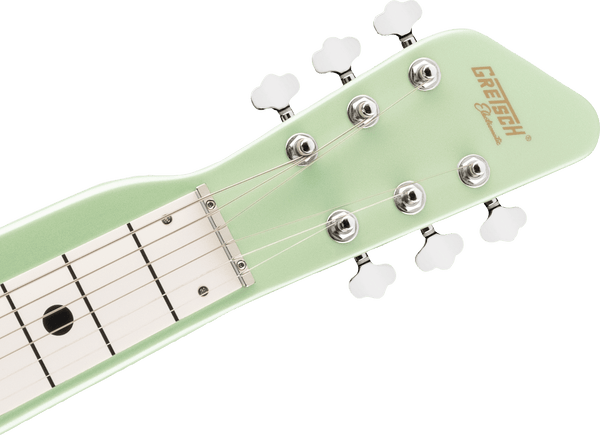

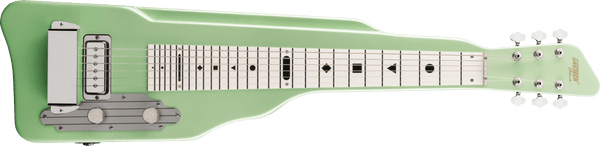

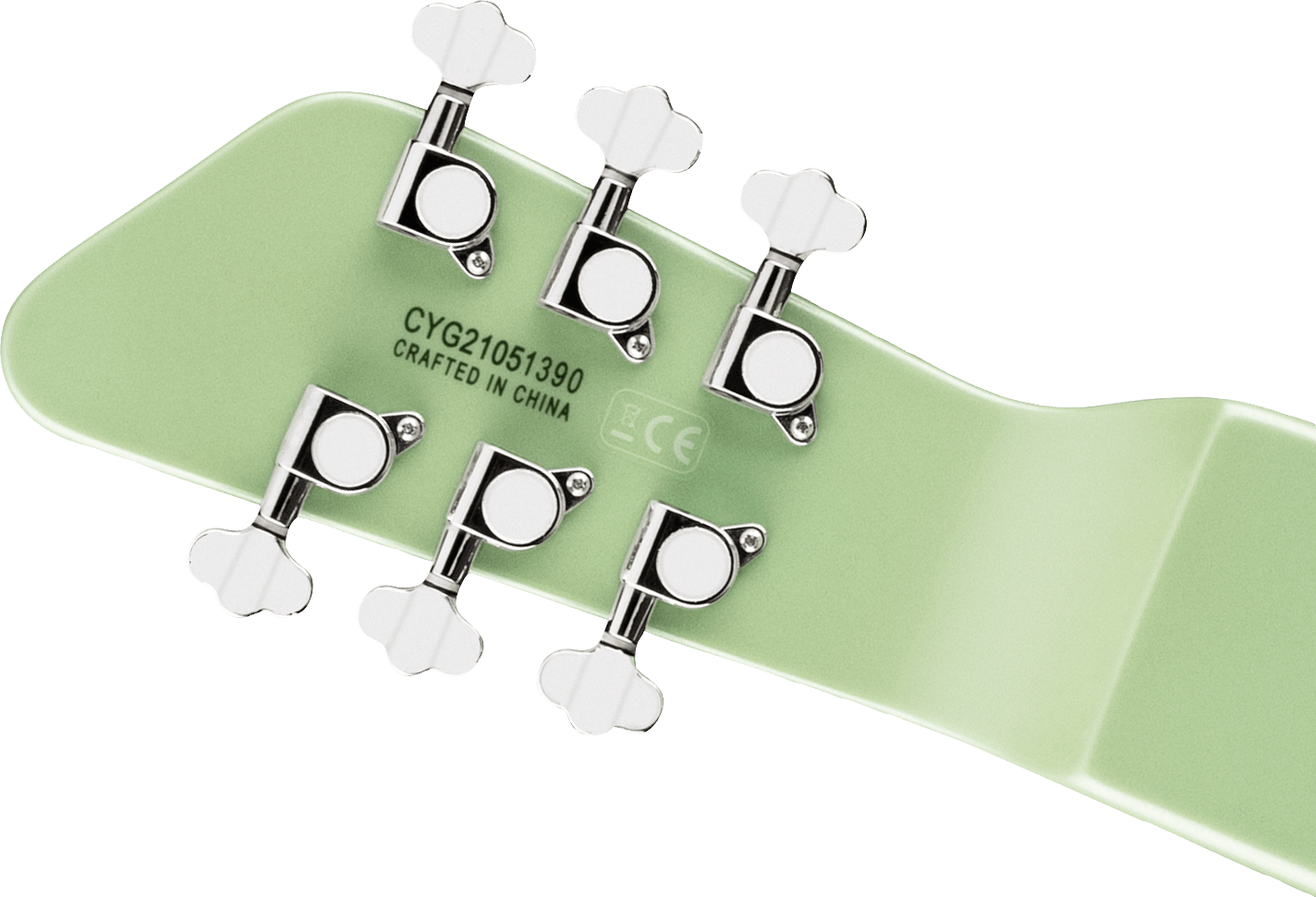

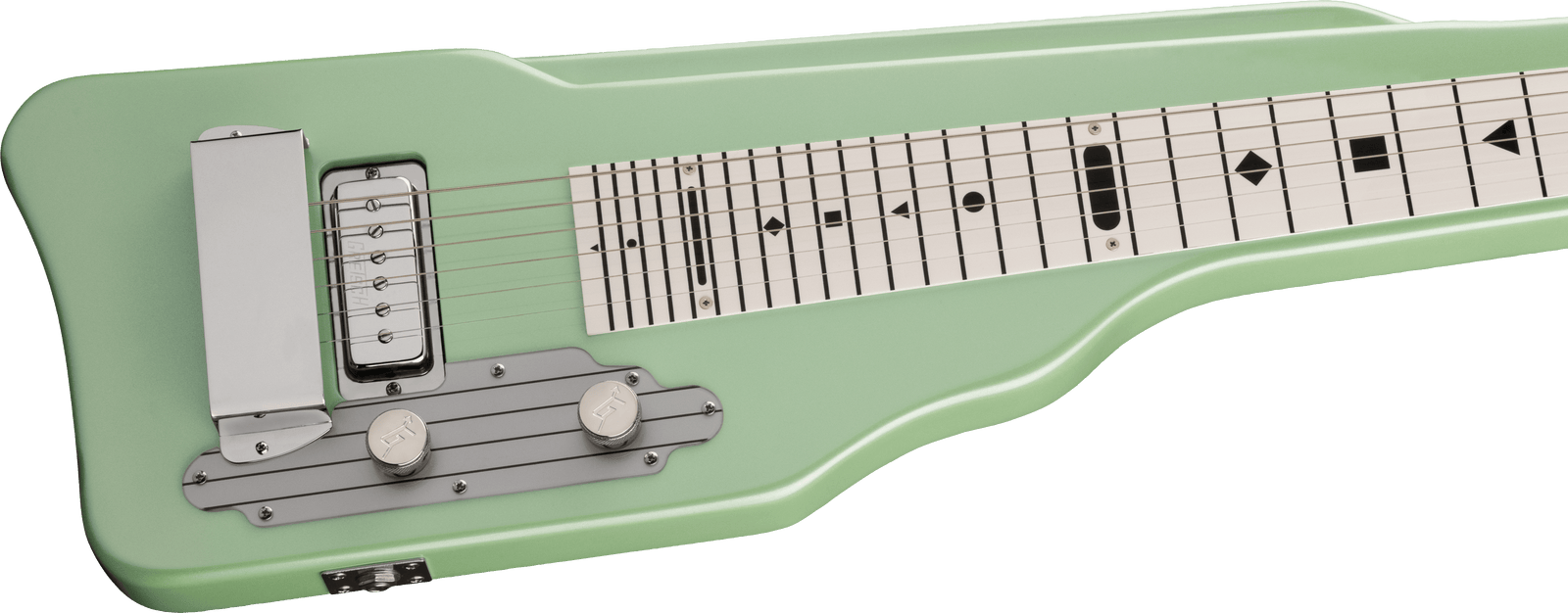

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5700 Electromatic Lap Steel Broadway Jade listed above. For larger pics, click on an image to open in a new tab.
