Gretsch G5655TG Limited Edition Electromatic Center Block Jr. Single-Cut Bigsby Gold Hardware Snow Crest White Specs

The G5655TG Limited Edition Electromatic Center Block Jr. Single-Cut with Bigsby and Gold Hardware Laurel Fingerboard Snow Crest White is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in China and is a Limited Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2509700567.

Key Features

Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Tuning Machines
Black Top Filter'Tron Bridge Pickup
Black Top Filter'Tron Neck Pickup

Product Identifiers

Model Name	G5655TG Limited Edition Electromatic Center Block Jr. Single-Cut with Bigsby and Gold Hardware
Part Number	2509700567
Product Series	Limited Edition
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978972739

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Electromatic Center Block Jr.
Body Binding	Aged White with B/W/B Purfling
Body Finish	Gloss
Bracing	Center Block
Upper Bout Width	10.5" (26.7 cm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.5" (216 mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	Gold Plexi with Black Gretsch and Electromatic Logos
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B70
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech NuBone
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	Black Top Filter'Tron
Neck Pickup	Black Top Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional: Gig Bag 0994640000 / Hardshell Case 0996505000

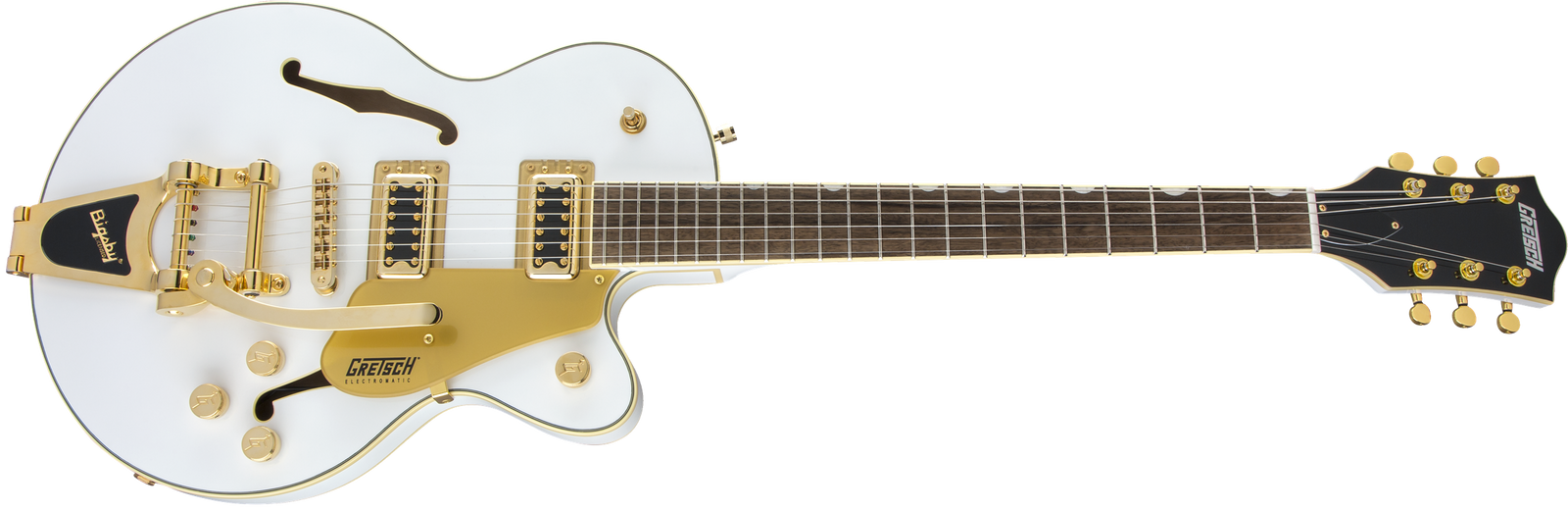

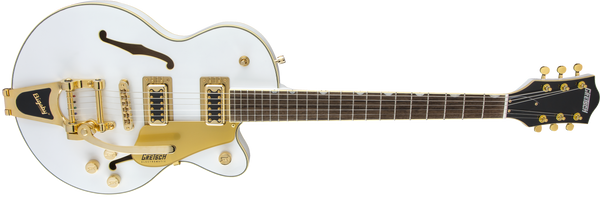

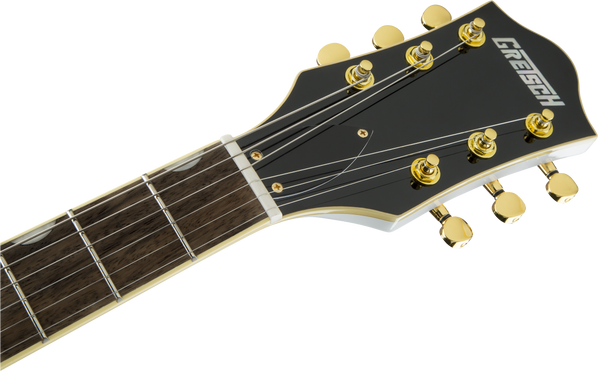

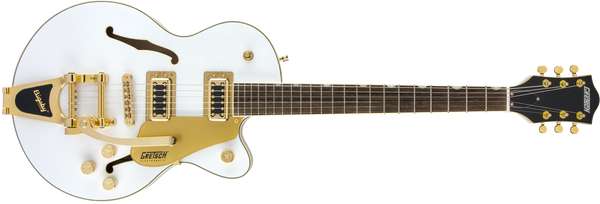

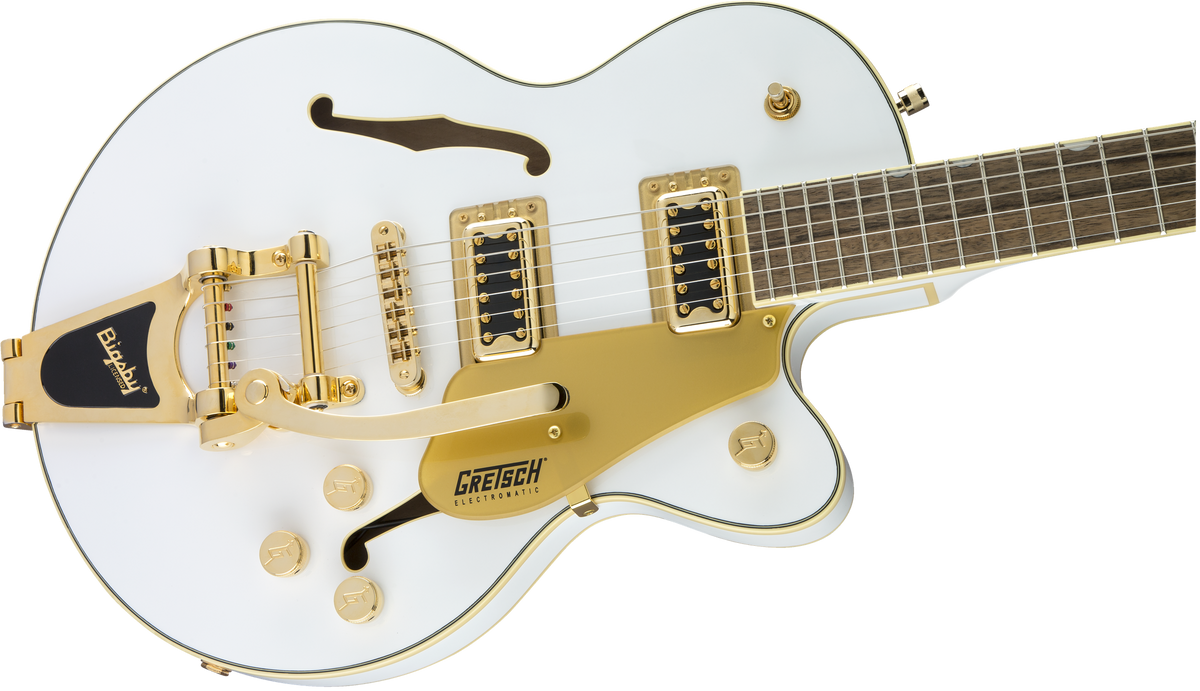

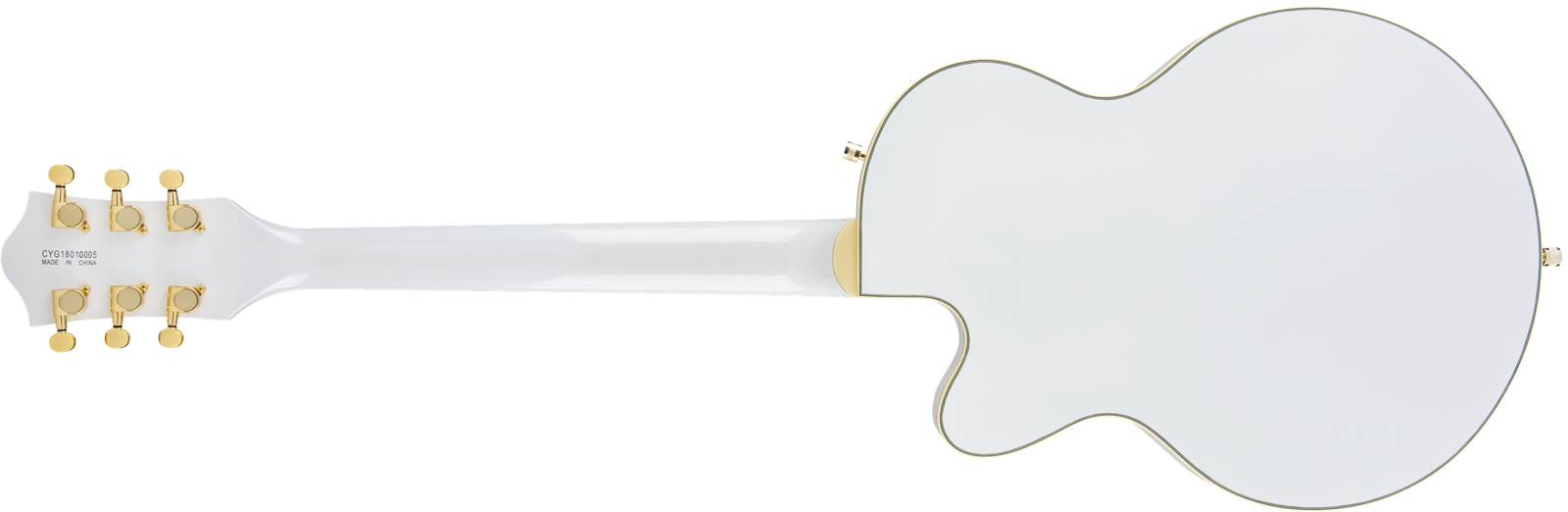

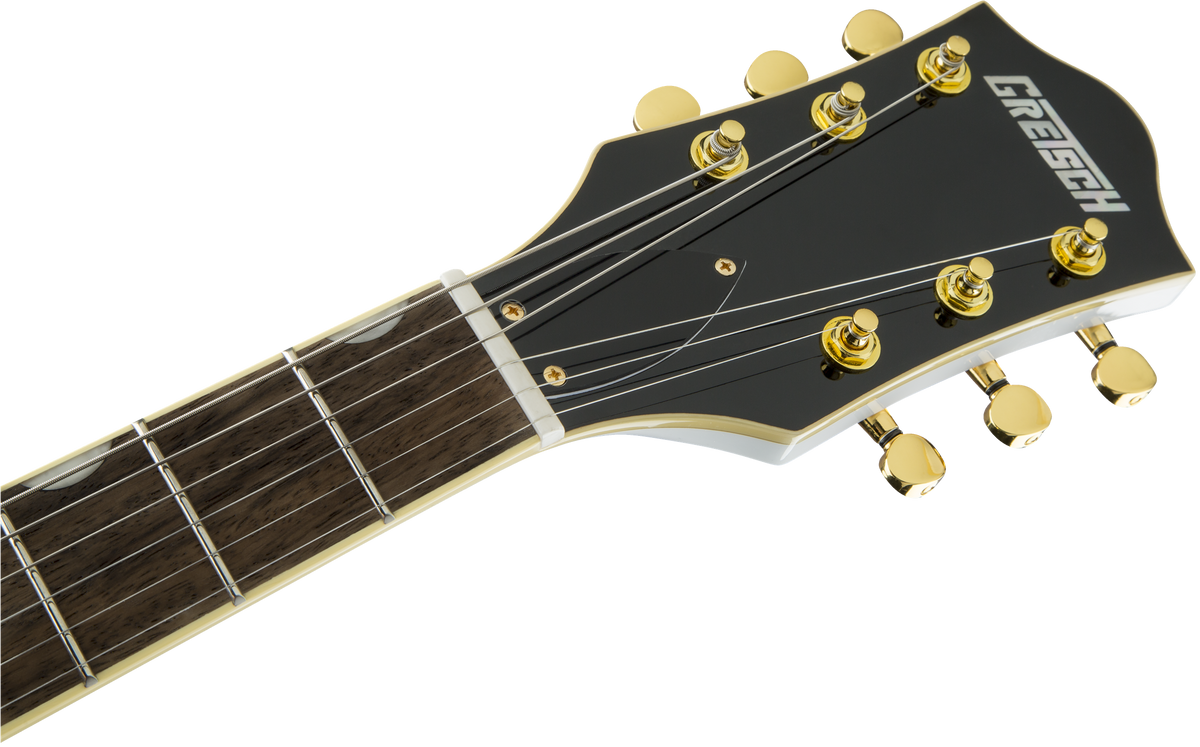

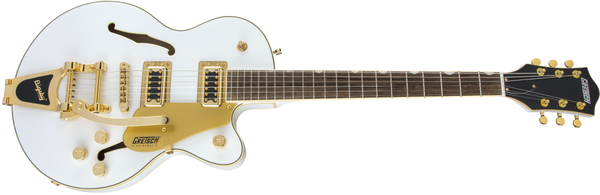

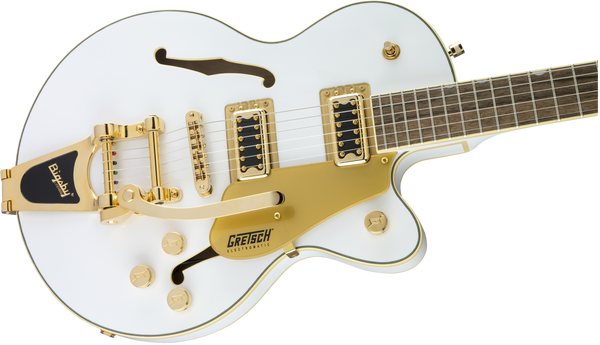

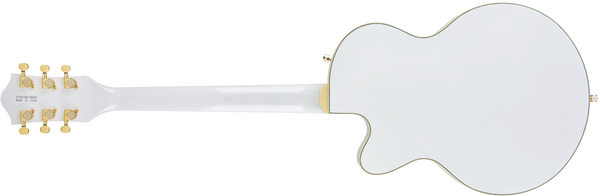

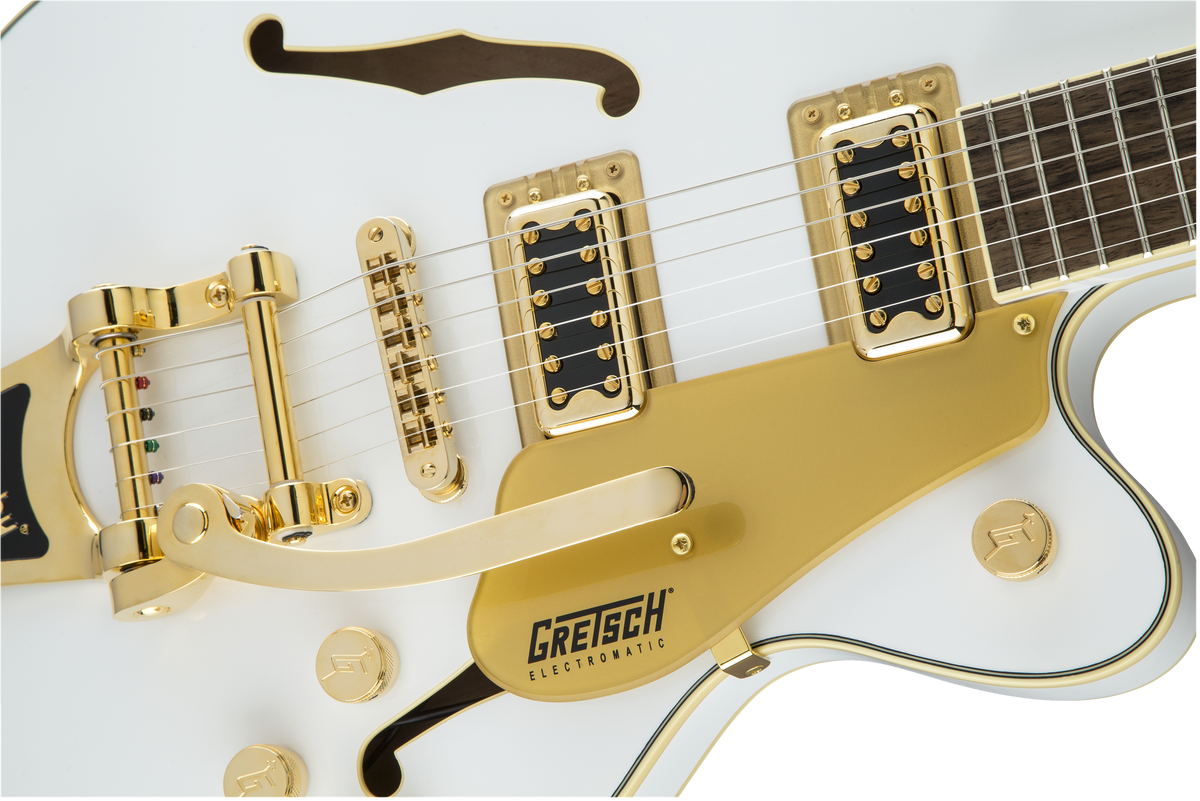

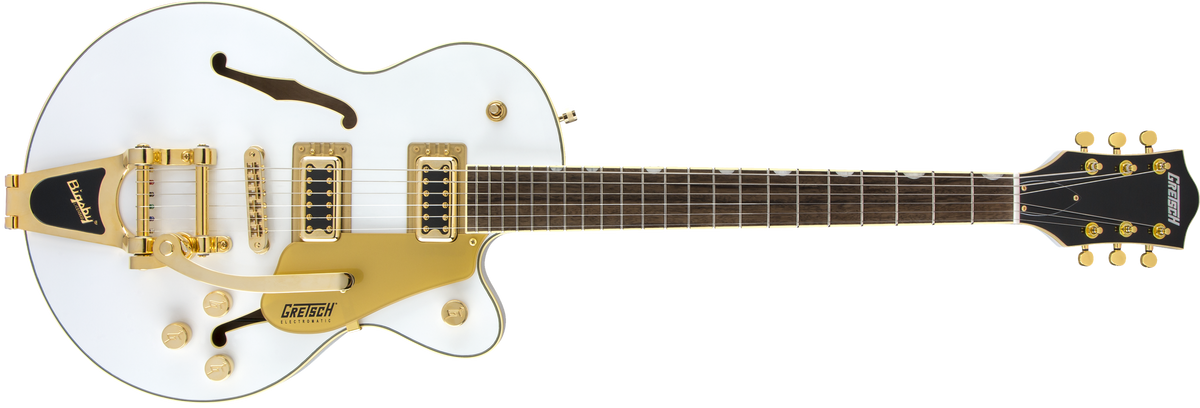

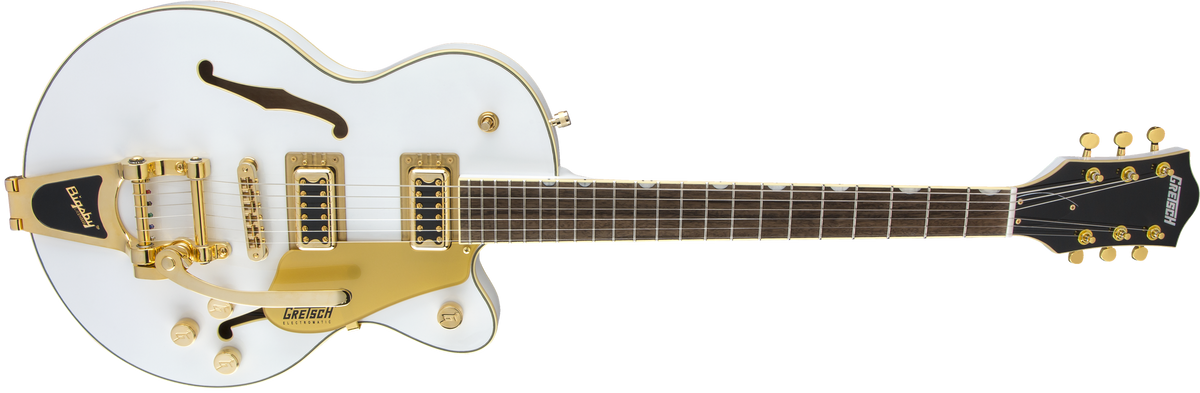

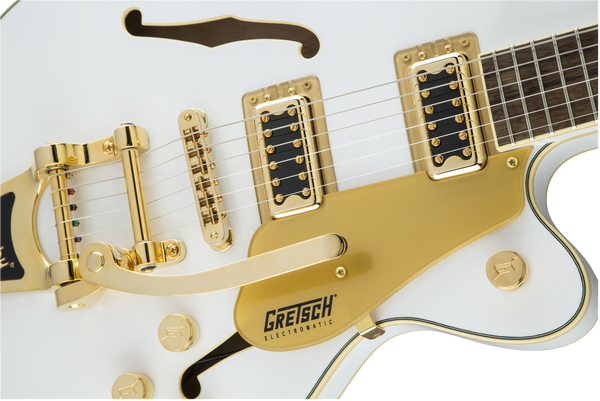

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5655TG Limited Edition Electromatic Center Block Jr. Single-Cut with Bigsby and Gold Hardware Laurel Fingerboard Snow Crest White listed above. For larger pics, click on an image to open in a new tab.
