Gretsch G5655T Electromatic Center Block Jr. Single-Cut Bigsby Jade Grey Metallic Specs

The G5655T Electromatic Center Block Jr. Single-Cut with Bigsby Jade Grey Metallic is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2509801519.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.685" (42.8 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Die-Cast Tuning Machines
Black Top Broad’Tron Bridge Pickup
Black Top Broad'Tron Neck Pickup

Product Identifiers

Model Name	G5655T Electromatic Center Block Jr. Single-Cut with Bigsby
Part Number	2509801519
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978416790

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Center Block Jr.
Body Binding	Aged White with B/AW/B Purfling
Body Finish	Gloss
Bracing	Center Block
Upper Bout Width	10.5" (267 mm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Anchored Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	Silver Plexi with Black Gretsch & Electromatic Logos
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby-Licensed B70 Vibrato
Hardware Finish	Nickel

Neck Construction

Neck Material	Maple
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.685" (42.8 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech NuBone
Neck Shape	Thin "U"
Neck Construction	Set-Neck
Neck Finish	Gloss

Electronics

Bridge Pickup	Black Top Broad’Tron
Neck Pickup	Black Top Broad'Tron
Pickup Configuration	Broad'Tron / Broad'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional: Gig Bag 0996460000 / Hardshell Case 0996412000

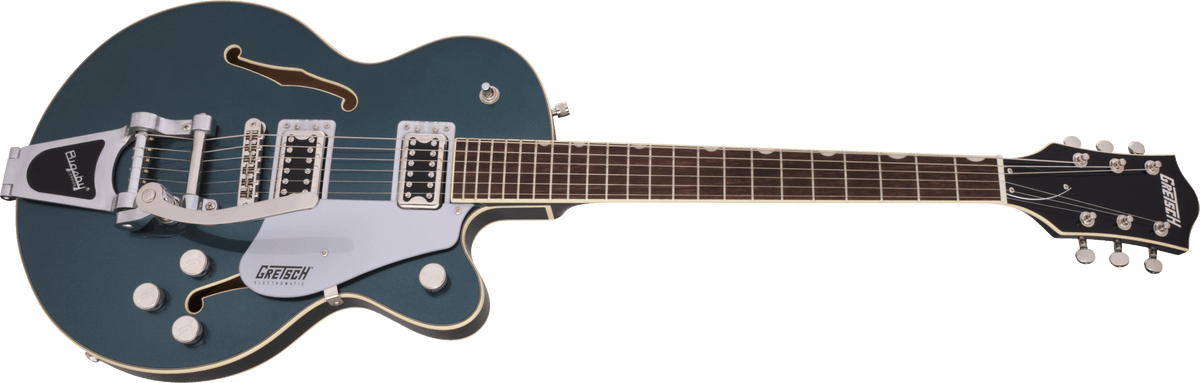

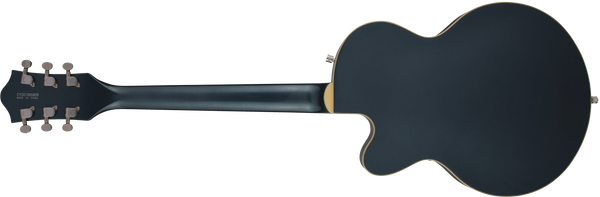

Reference Images

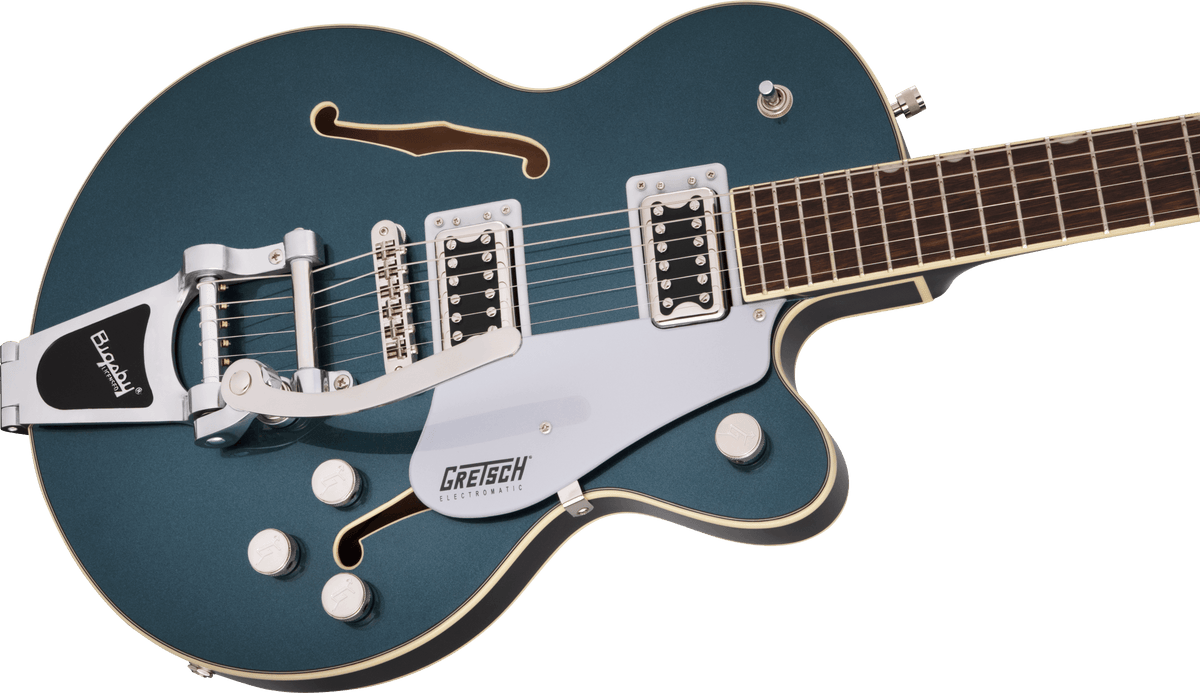

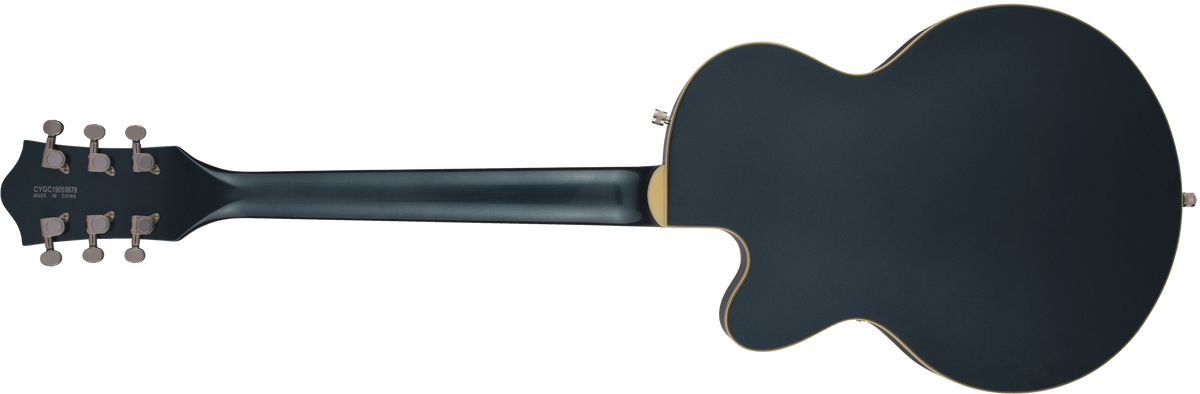

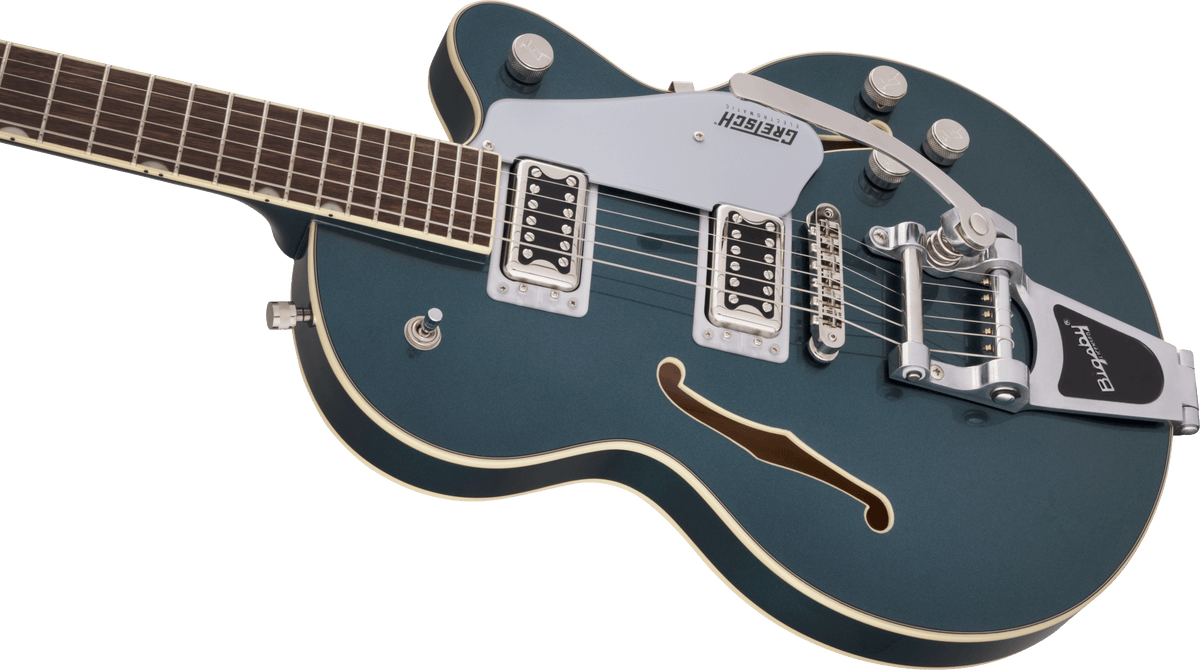

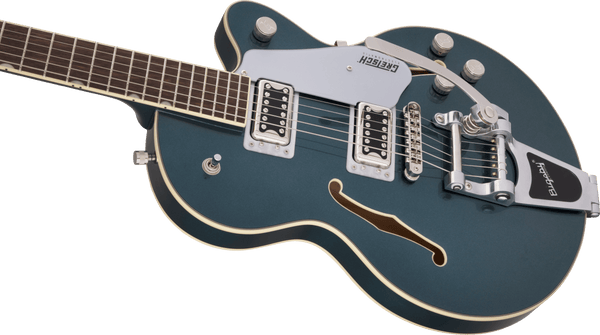

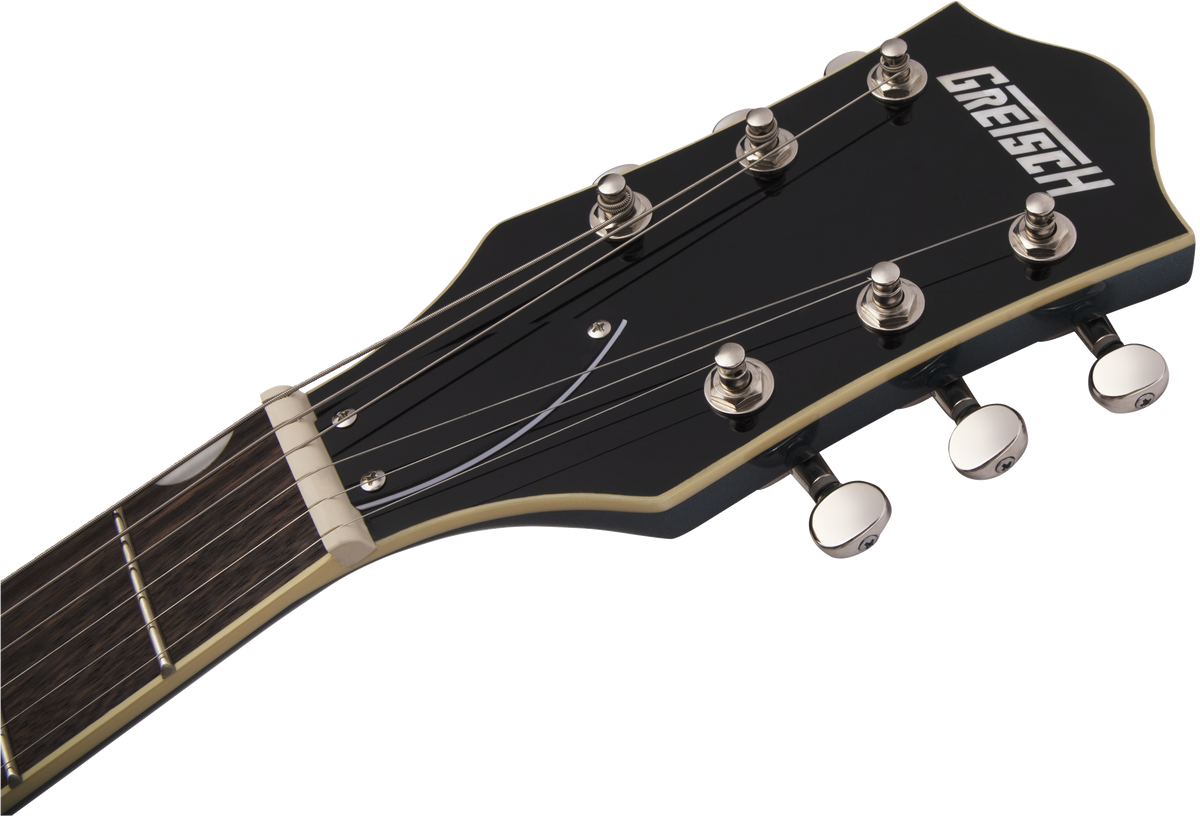

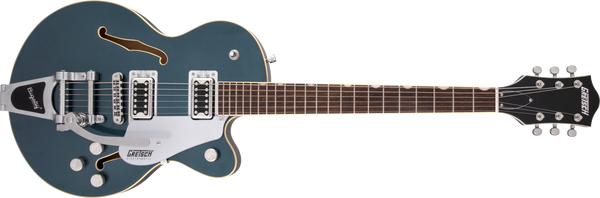

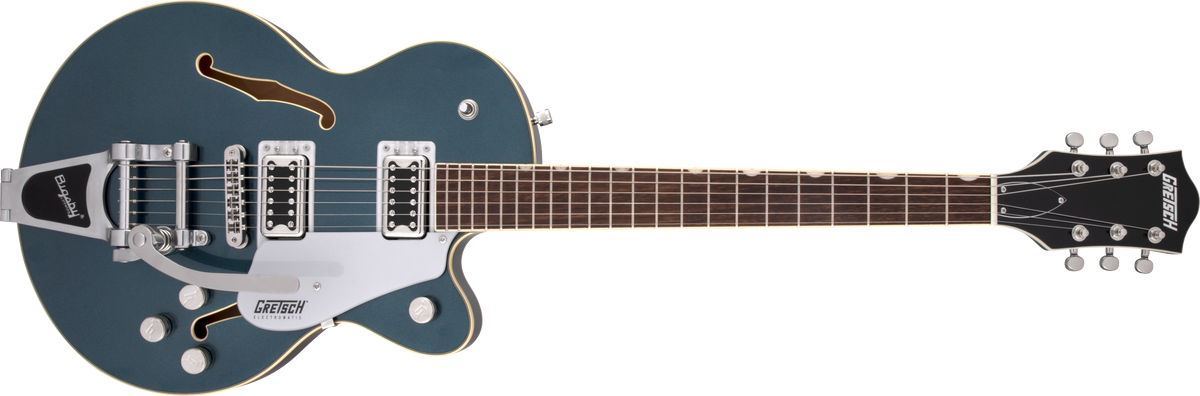

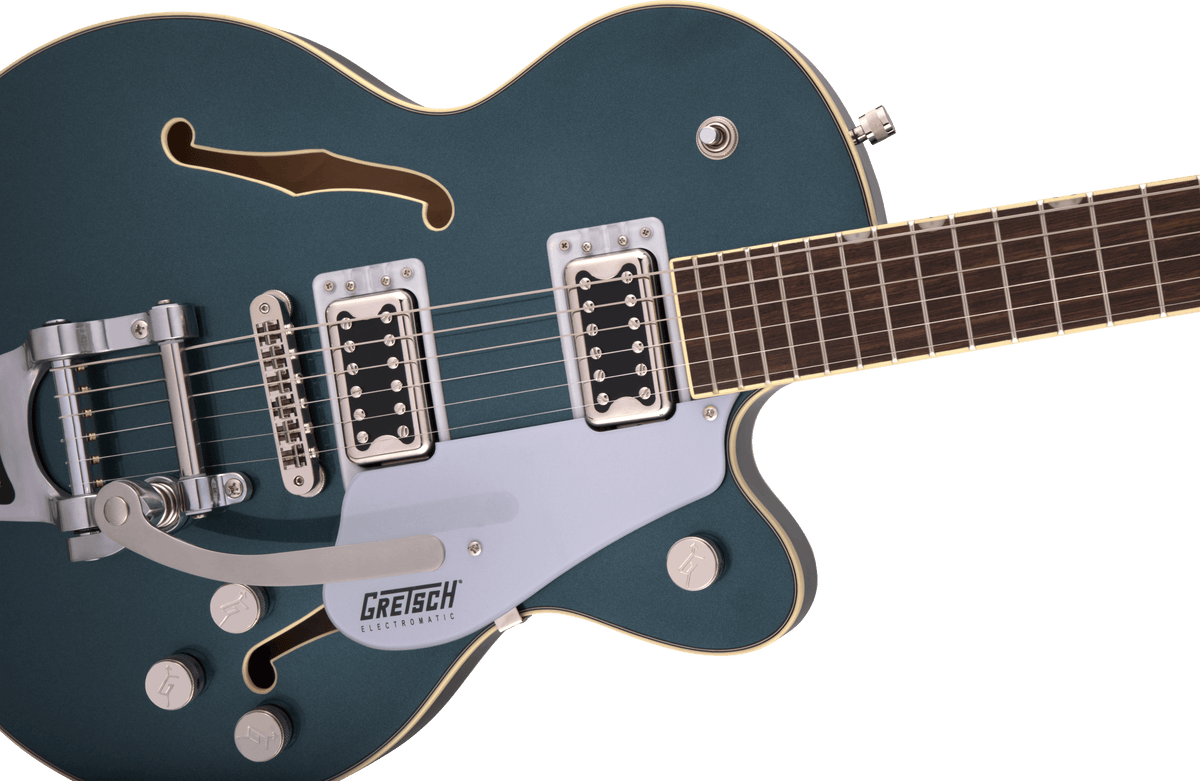

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5655T Electromatic Center Block Jr. Single-Cut with Bigsby Jade Grey Metallic listed above. For larger pics, click on an image to open in a new tab.
