Gretsch G5622T Electromatic Center Block Double-Cut Bigsby Vintage Orange Specs

The G5622T Electromatic Center Block Double-Cut with Bigsby Rosewood Fingerboard Vintage Orange is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Korea and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2509300520.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12.6" (320 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Vintage-Style Open-Back Tuning Machines
Super Hilo'Tron Bridge Pickup
N/A Middle Pickup
Super Hilo'Tron Neck Pickup

Product Identifiers

Model Name	G5622T Electromatic Center Block Double-Cut with Bigsby
Part Number	2509300520
Product Series	Electromatic
Country of Origin	Korea
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978763665

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Center Block
Body Binding	Aged White
Body Finish	Gloss
Bracing	Center Block
Upper Bout Width	11.625" (295 mm)
Lower Bout Width	16" (40.6 cm)
Waist	9.875" (250.8 mm)

Hardware

Bridge	Anchored Adjusto-Matic
Tuning Machines	Vintage-Style Open-Back
Pickguard	Cream Plexi with Gold Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby-Licensed B70 Vibrato
Hardware Finish	Chrome

Neck Construction

Neck Material	Maple
Fingerboard Material	Rosewood
Radius	12.6" (320 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech NuBone
Neck Shape	Standard "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	Super Hilo'Tron
Middle Pickup	N/A
Neck Pickup	Super Hilo'Tron
Pickup Configuration	Super HiLo'Tron / Super HiLo'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Special Electronics	N/A

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G6298 Gretsch Electromatic Hardshell (p/n 099-6408-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000)
Recommended Case	Optional: Gig Bag 0996458000 / Case 0996408000

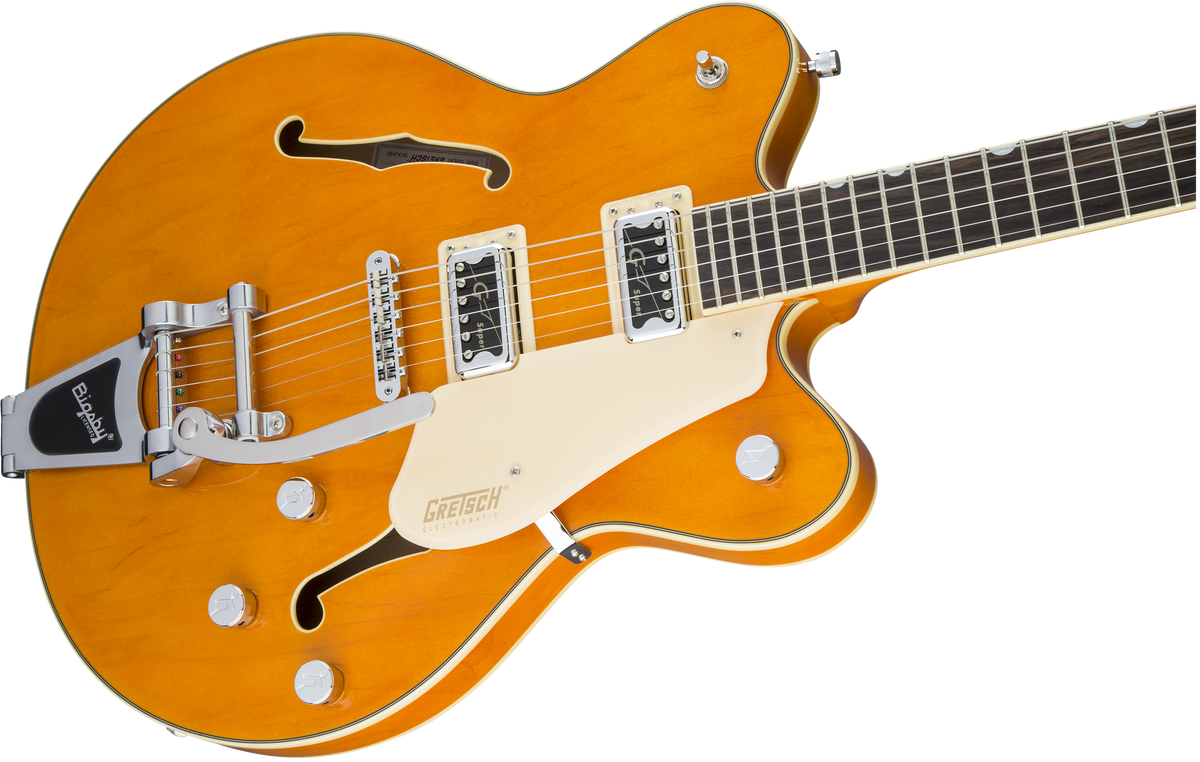

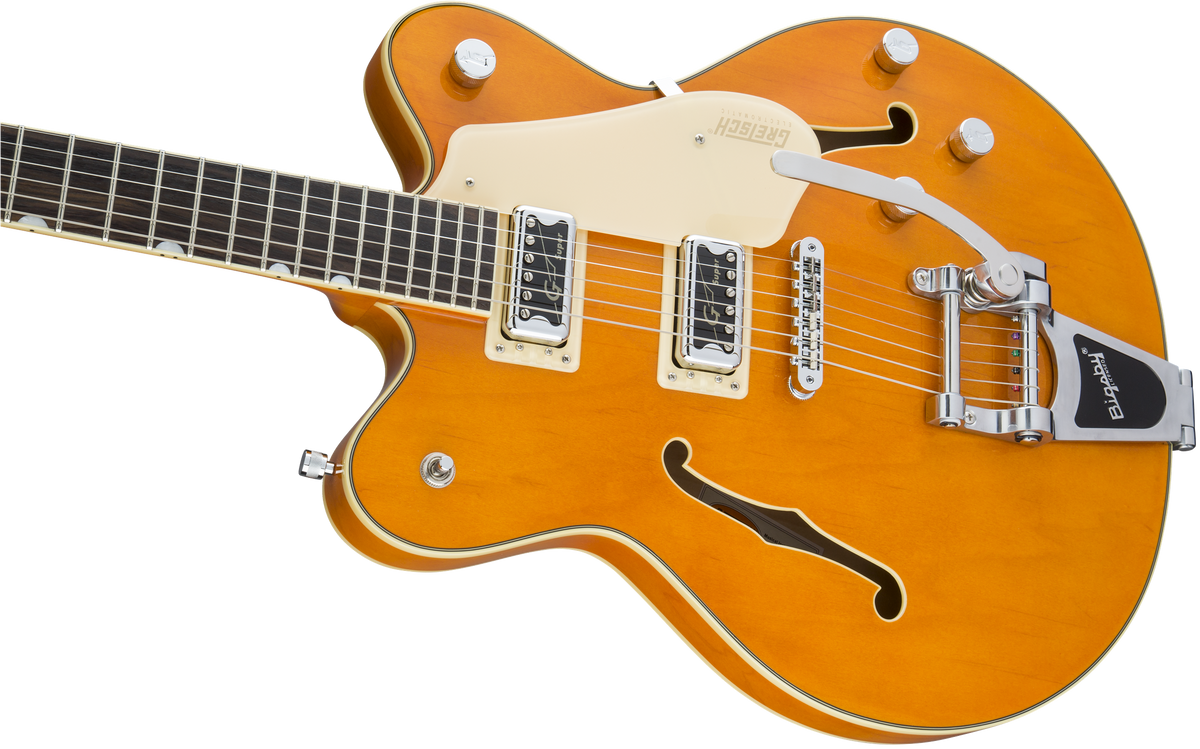

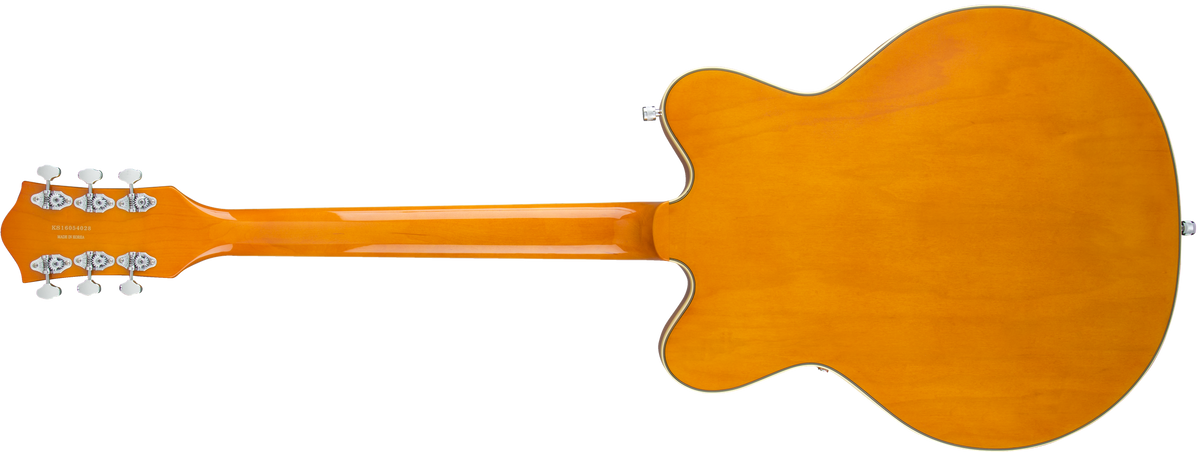

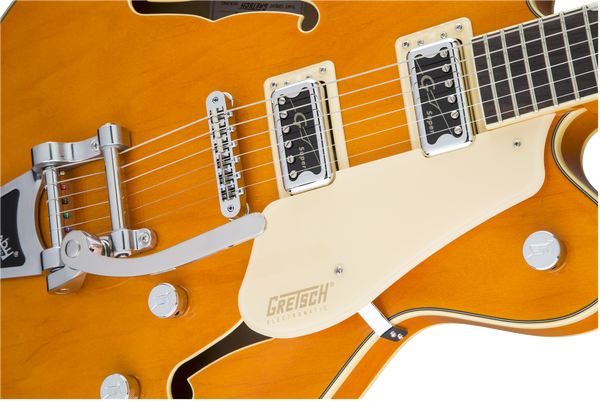

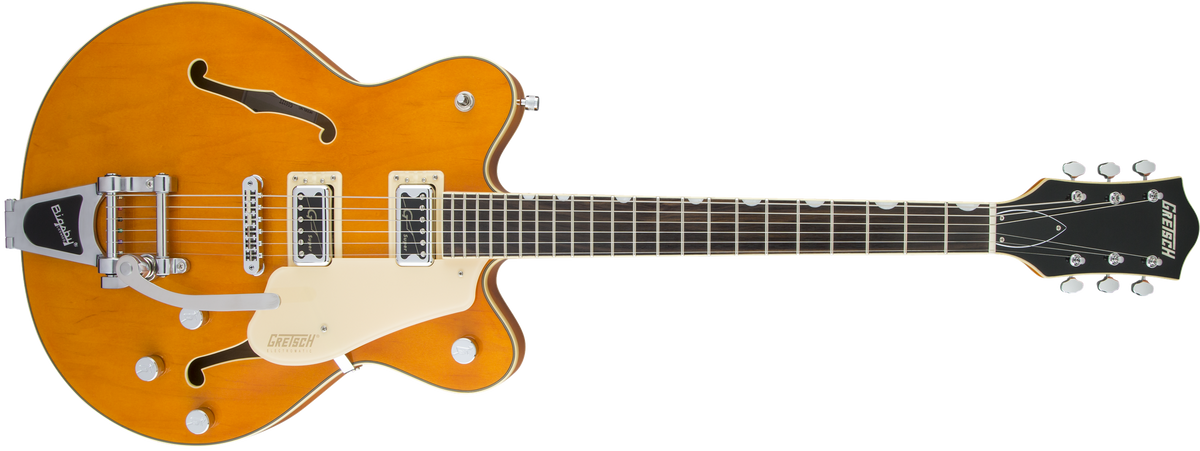

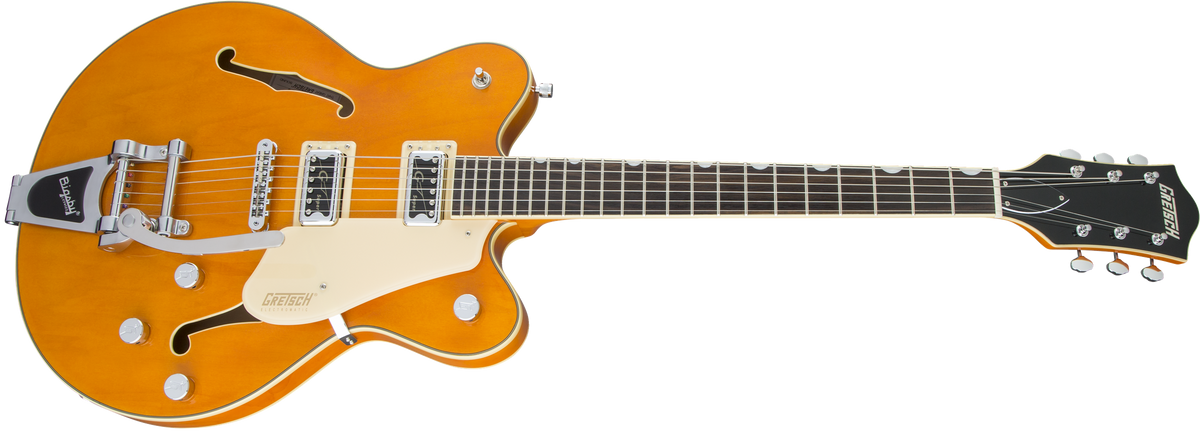

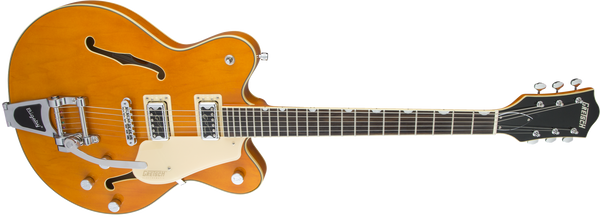

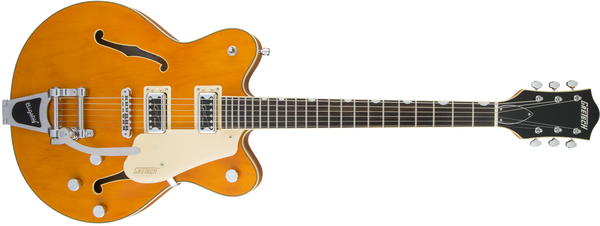

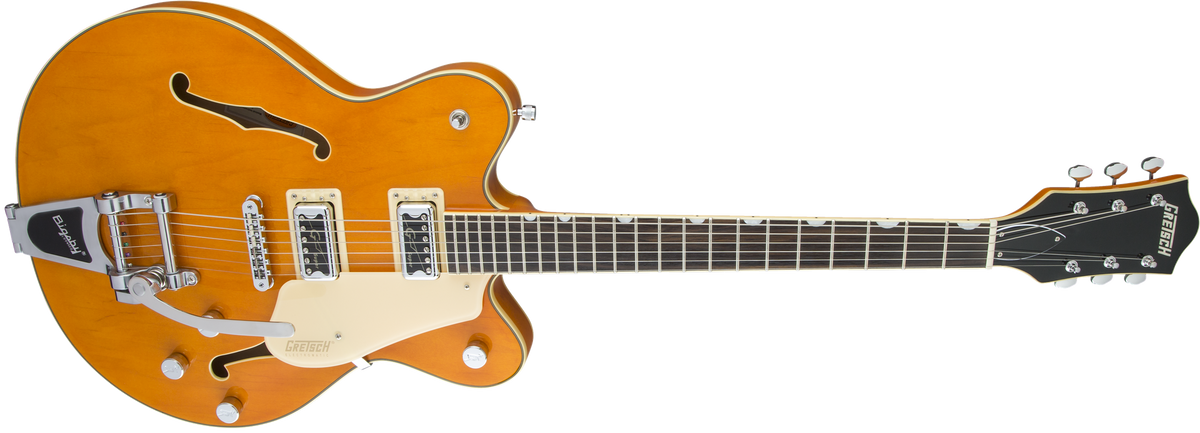

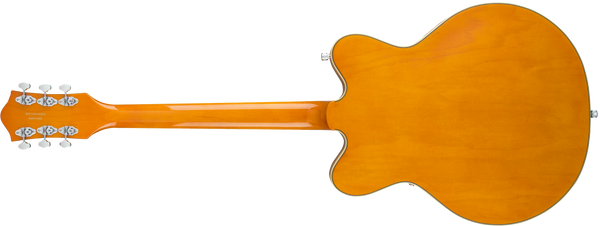

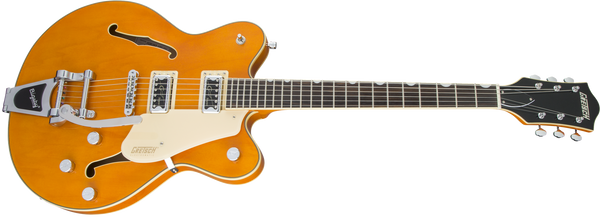

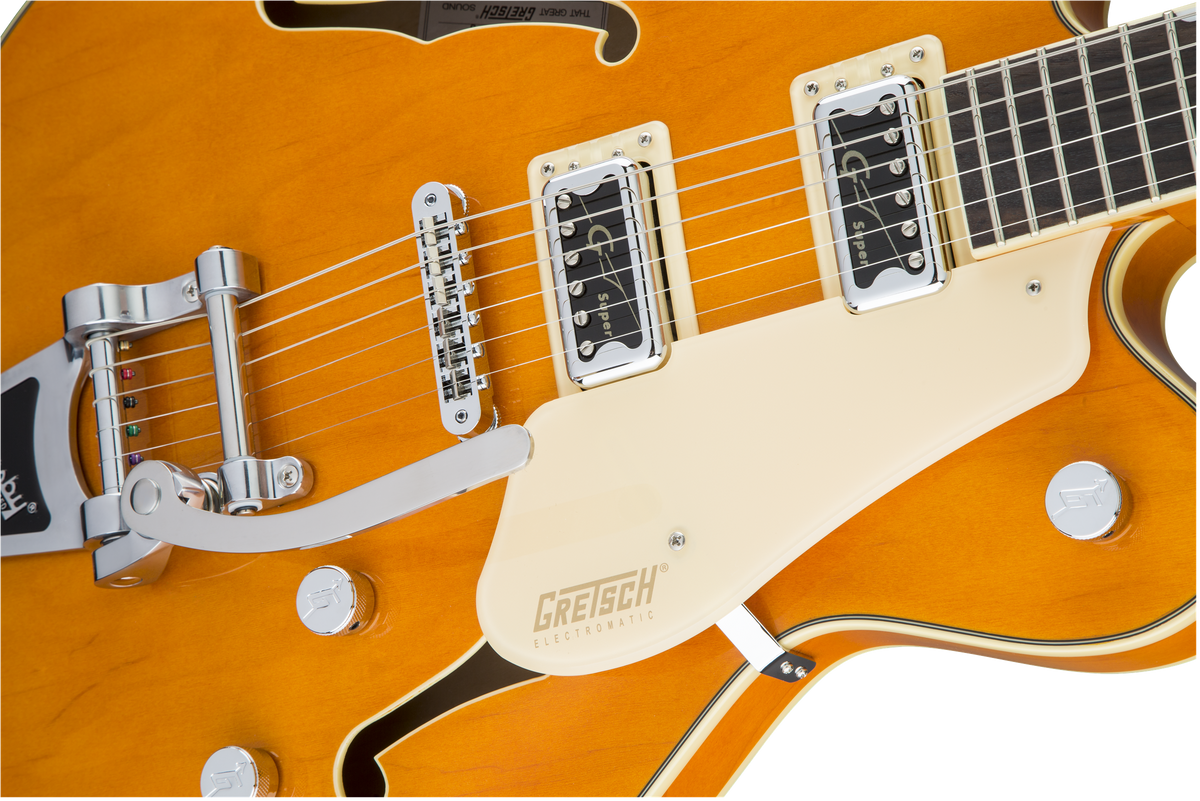

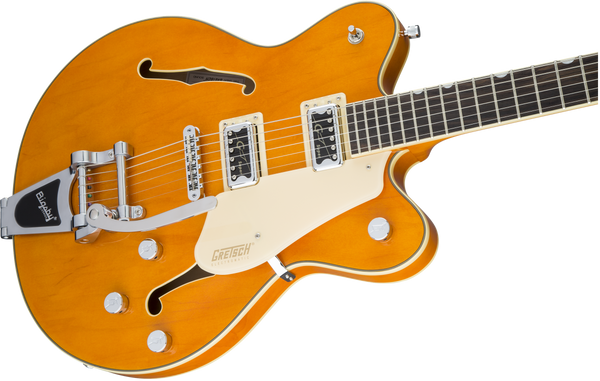

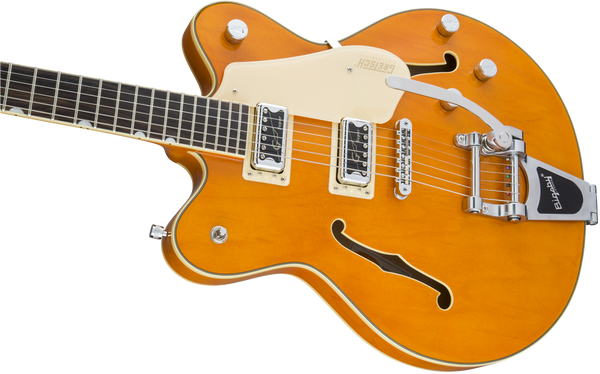

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5622T Electromatic Center Block Double-Cut with Bigsby Rosewood Fingerboard Vintage Orange listed above. For larger pics, click on an image to open in a new tab.
