Gretsch G5445T Electromatic Double Jet Solid Body Double-Cut Bigsby Firebird Red Specs

The G5441T Double Jet with Bigsby Rosewood Fingerboard Firebird Red is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2508040516.

Key Features

Arched Laminated Maple Top
Maple Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Vintage-Style Tuning Machines
Black Top Filter'Tron Bridge Pickup
Black Top Filter'Tron Neck Pickup

Product Identifiers

Model Name	G5445T Electromatic Double Jet Solid Body Double-Cut with Bigsby
Part Number	2508040516
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978495207

Factory Specifications

Body Construction

Body Material	Chambered Basswood
Top Material	Arched Laminated Maple
Body Shape	Jet
Body Finish	Gloss Polyester
Lower Bout Width	13.46" (341.88 mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Vintage-Style
Pickguard	Pearloid with Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby-Licensed B50 Vibrato
Hardware Finish	Chrome

Neck Construction

Neck Material	Maple
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Hump Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Synthetic Bone
Neck Finish	Gloss Polyester
Headstock	Jet Style

Electronics

Bridge Pickup	Black Top Filter'Tron
Neck Pickup	Black Top Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	D'Addario EXL110 Nickel Plated Steel (.010-.046 Gauges)
Unique Features	Double Cutaway, Two-Tone Body Color Scheme, “Black Top” Filter’Tron pickups, Bigsby Licensed B50 Vibrato Tailpiece
Case / Gig Bag	Optional G6238FT Gretsch Flat Top Solid Body Hardshell (p/n 099-6474-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)
Included Accessories	Optional: 099-6460-000 Gig Bag - G2164 - Solid Body Electric; 099-6474-000 Economy Case - G6238FT - (Flat) Solid Body A6079/B; 099-6410-000 Deluxe Case - G6238 - Solid Body Models; 099-6465-000 Premium Case - G6276 - Tweed Case Solid Body
Recommended Case	099-6460-000 Gig Bag - G2164 - Solid Body Electric\|099-6474-000 Economy Case - G6238FT - (Flat) Solid Body A6079/B\| 099-6410-000 Deluxe Case - G6238 - Solid Body Models\|099-6465-000 Premium Case - G6276 - Tweed Case Solid Body

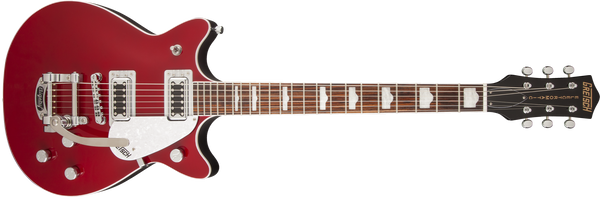

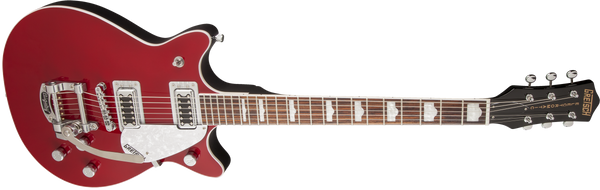

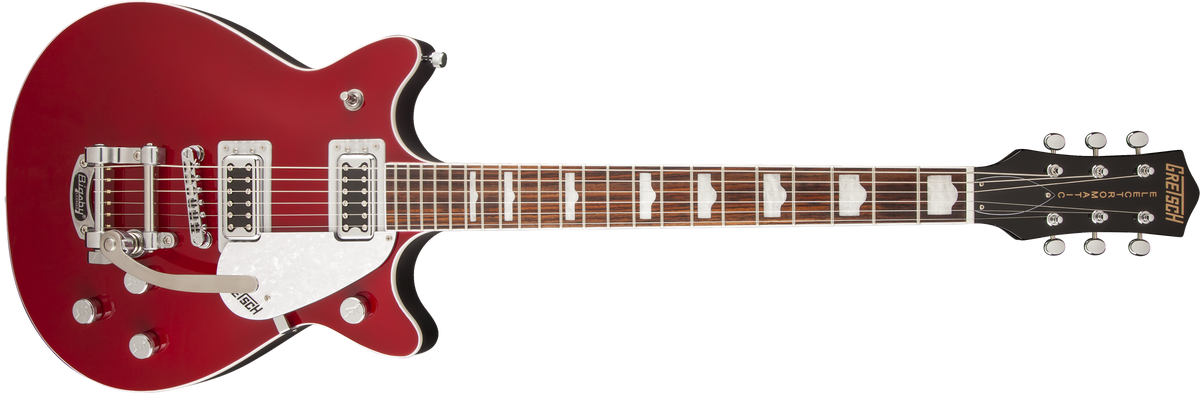

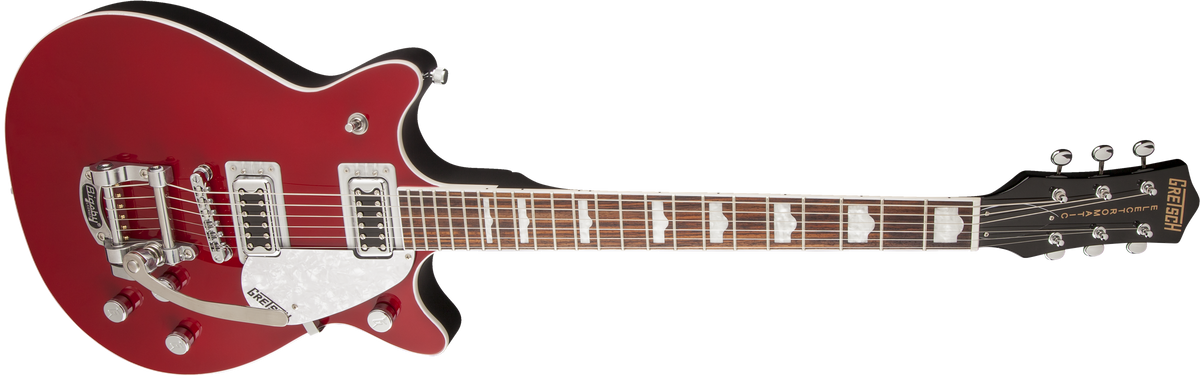

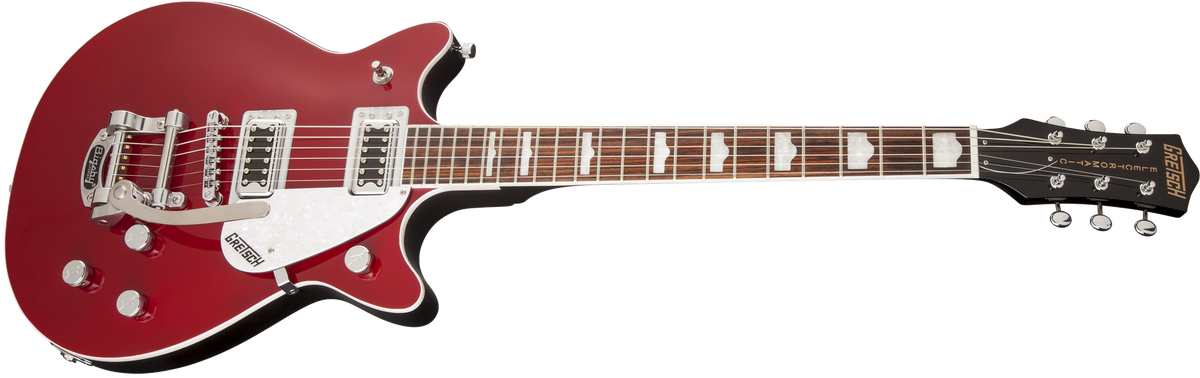

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5441T Double Jet with Bigsby Rosewood Fingerboard Firebird Red listed above. For larger pics, click on an image to open in a new tab.
