Gretsch G5422G-12 Electromatic Hollow Body Double-Cut 12-String Gold Hardware Walnut Stain Specs

The G5422G-12 Electromatic Hollow Body Double-Cut 12-String with Gold Hardware Walnut Stain is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Korea and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2516013517.

Key Features

5-Ply Maple Body
Maple Neck
Rosewood Fingerboard
24.72" (628 mm) Scale Length
1.77" (45 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Secured Rosewood Base Bridge
Die-Cast Tuning Machines
Black Top Filter'Tron Bridge Pickup
Black Top Filter'Tron Neck Pickup

Product Identifiers

Model Name	G5422G-12 Electromatic Hollow Body Double-Cut 12-String with Gold Hardware
Part Number	2516013517
Product Series	Electromatic
Country of Origin	Korea
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978672257

Factory Specifications

Body Construction

Body Material	5-Ply Maple
Body Shape	Electromatic Hollow Body
Body Binding	Aged White with B/W/B Purfling
Body Finish	Gloss
Bracing	Sound Post
Lower Bout Width	16" (40.6 cm)

Hardware

Bridge	Adjusto-Matic with Secured Rosewood Base
Tuning Machines	Die-Cast
Pickguard	Gold Plexi with Black Gretsch and Electromatic Logos
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Gretsch G-Cutout Tailpiece
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Hump Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.77" (45 mm)
Scale Length	24.72" (628 mm)
Nut Material	Graph Tech TUSQ XL
Neck Finish	Gloss Urethane
Headstock	Late '50s Gretsch

Electronics

Bridge Pickup	Black Top Filter'Tron
Neck Pickup	Black Top Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G6298 Gretsch Electromatic Hardshell (p/n 099-6408-000)
Recommended Case	Optional: 099-6408-000 Hardshell Case

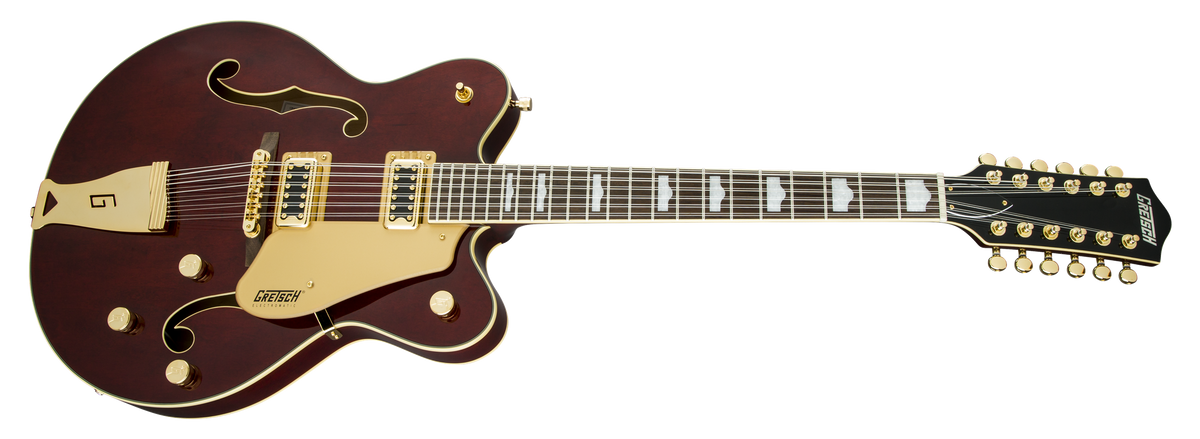

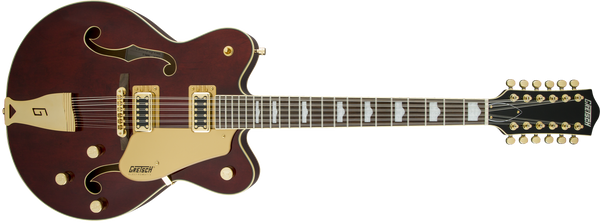

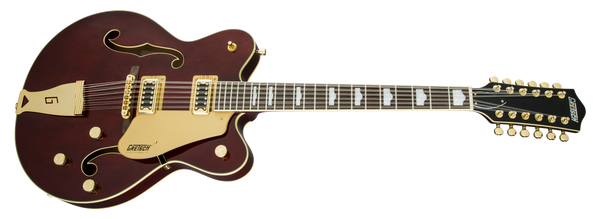

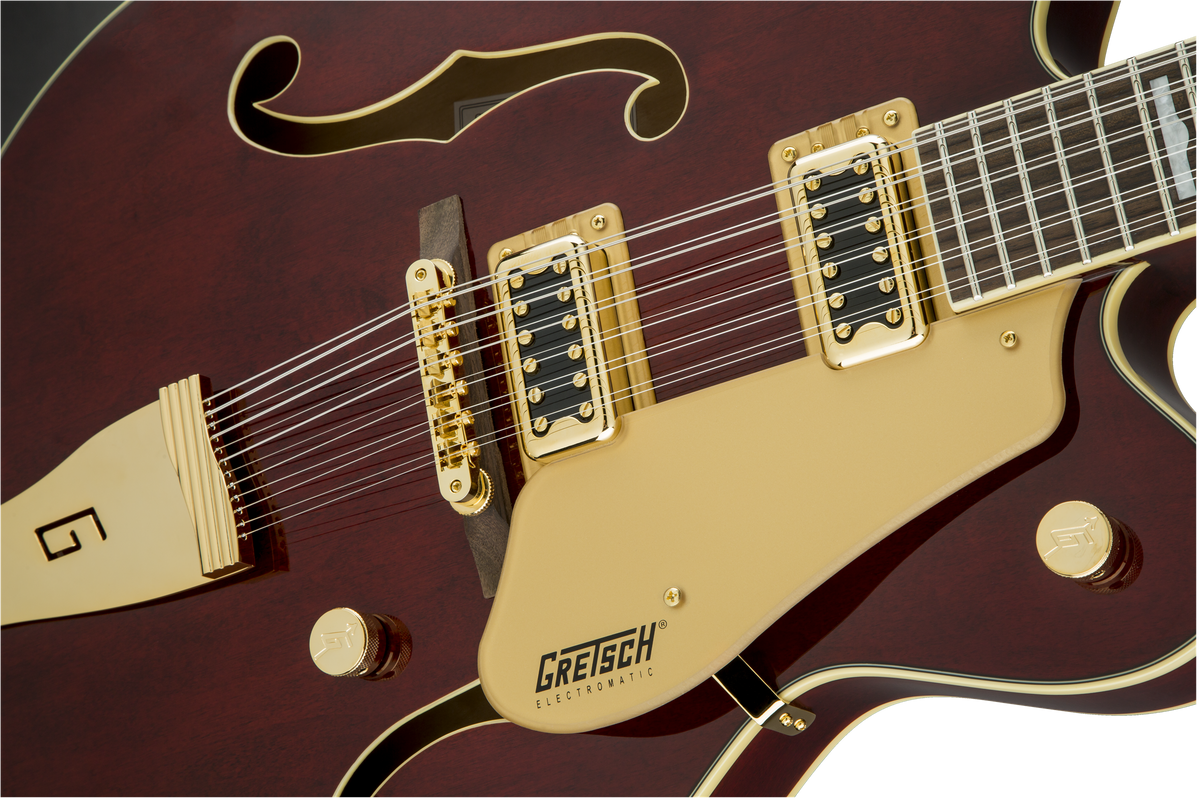

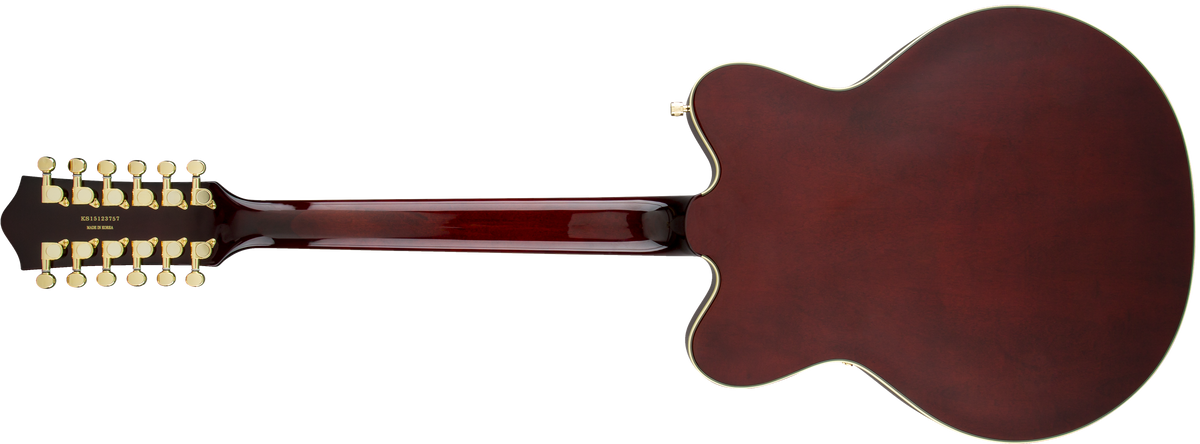

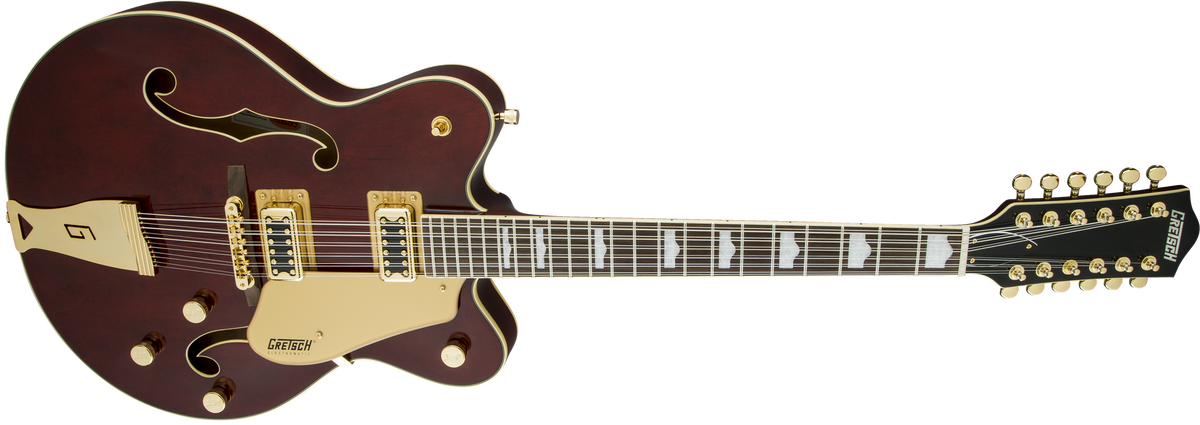

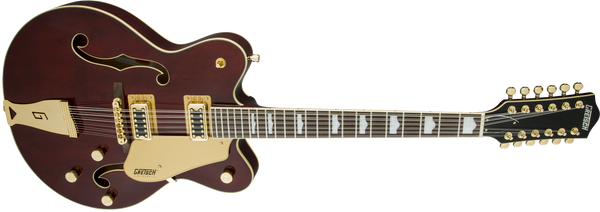

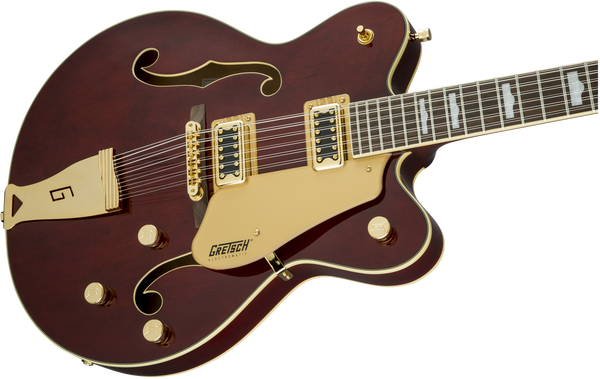

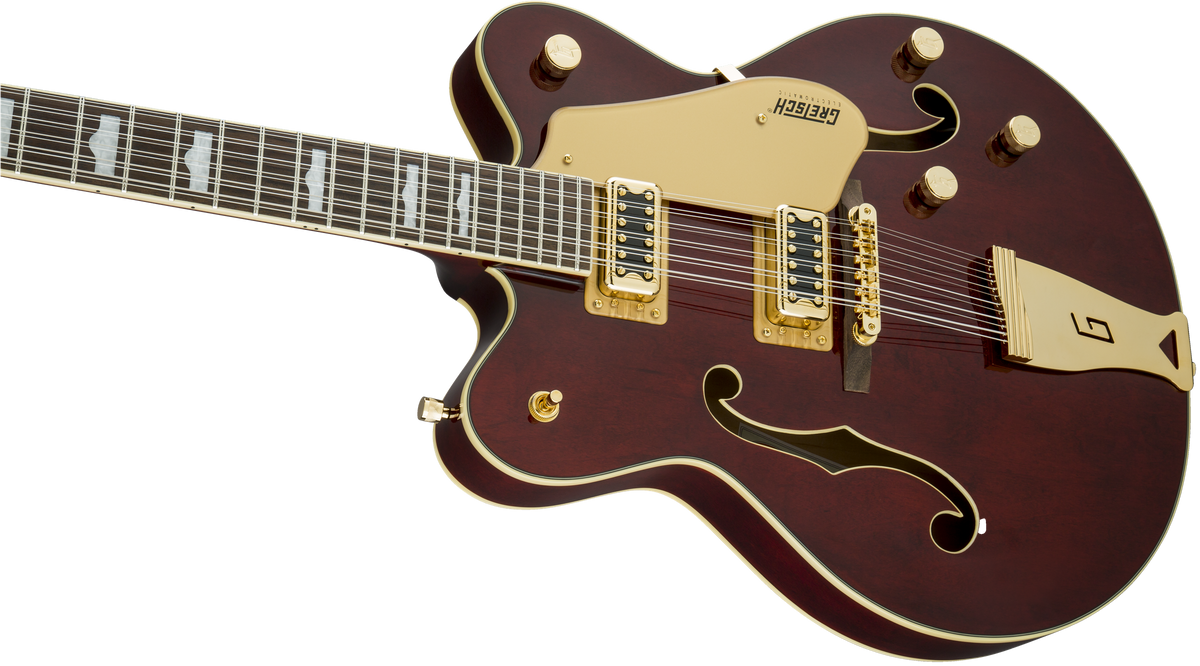

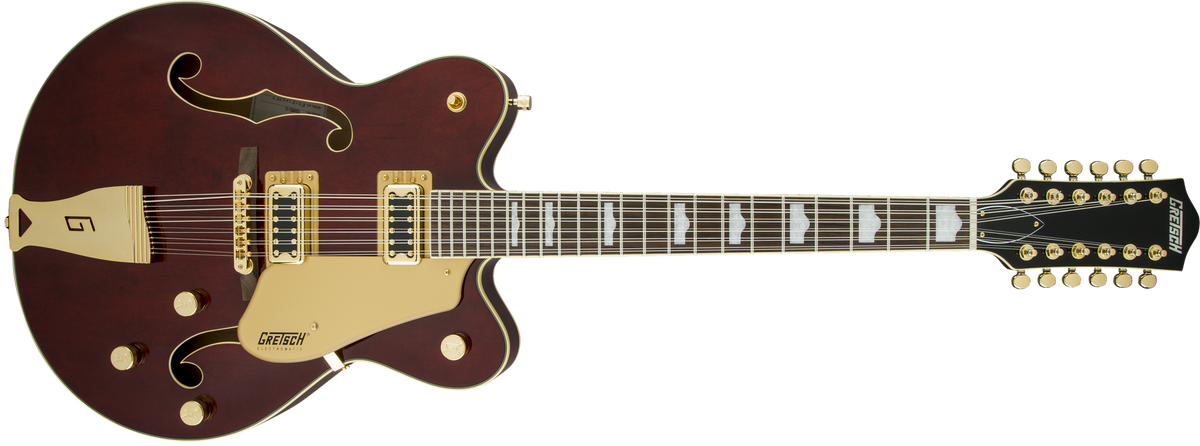

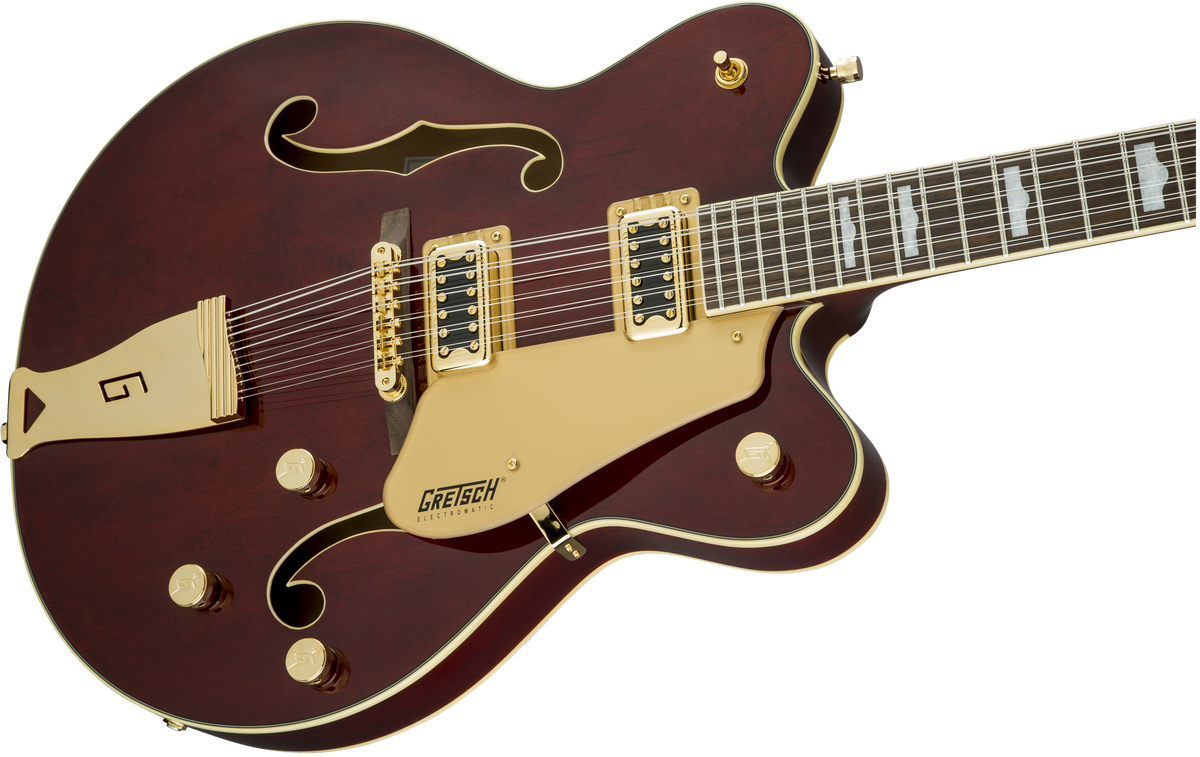

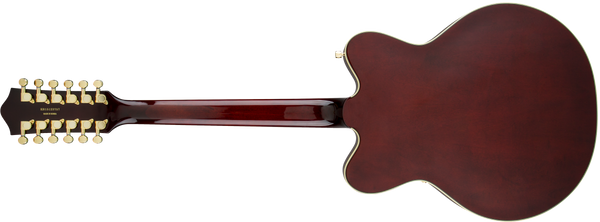

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5422G-12 Electromatic Hollow Body Double-Cut 12-String with Gold Hardware Walnut Stain listed above. For larger pics, click on an image to open in a new tab.
