The G5422G-12 Electromatic Classic Hollow Body Double-Cut 12-String with Gold Hardware Laurel Fingerboard Walnut Stain is a hollow body electric guitar
built by Gretsch. This guitar is manufactured in China
and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2516319517.
Key Features
Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Laurel Fingerboard
24.72" (628 mm) Scale Length
1.77" (45 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic with Secured Laurel Base Bridge
Die-Cast Sealed Tuning Machines
FT-5E Filter’Tron Bridge Pickup
FT-5E Filter’Tron Neck Pickup
Product Identifiers
Model Name
G5422G-12 Electromatic Classic Hollow Body Double-Cut 12-String with Gold Hardware
Part Number
2516319517
Product Series
Electromatic
Country of Origin
China
Brand
Gretsch
Type
Electric Guitar
Category
Hollow Body
UPC Code
885978877089
Factory Specifications
Body Construction
Body Material
Laminated Maple
Top Material
Arched Laminated Maple
Back Material
Arched Laminated Maple
Body Shape
Electromatic Hollow Body
Body Binding
White with B/W/B Purfling
Body Finish
Gloss
Bracing
Trestle Block
Upper Bout Width
11.5" (292 mm)
Lower Bout Width
16" (406 mm)
Waist
9.75" (248 mm)
Hardware
Bridge
Adjusto-Matic with Secured Laurel Base
Tuning Machines
Die-Cast Sealed
Pickguard
Gold Plexi with Black Gretsch and Electromatic Logos
Control Knobs
G-Arrow
Bridge Cover / Tailpiece
Gretsch G-Cutout Tailpiece
Hardware Finish
Gold
Neck Construction
Neck Material
Maple
Fingerboard Material
Laurel
Radius
12" (305 mm)
Fingerboard Inlays
Pearloid Hump Block
Side Dots
Black
Number of Frets
22
Fret Size
Medium Jumbo
Nut Width
1.77" (45 mm)
Scale Length
24.72" (628 mm)
Nut Material
Graph Tech NuBone
Neck Shape
Classic "C"
Neck Construction
Set-Neck
Neck Finish
Gloss
Headstock Binding
White
Electronics
Bridge Pickup
FT-5E Filter’Tron
Neck Pickup
FT-5E Filter’Tron
Pickup Configuration
Filter'Tron / Filter'Tron
Controls
Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume with Treble Bleed, Master Tone
Pickup Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
General
Orientation
Right-Hand
Strings
Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag
Optional G6298 Gretsch Electromatic Hardshell (p/n 099-6408-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000)
Reference Images

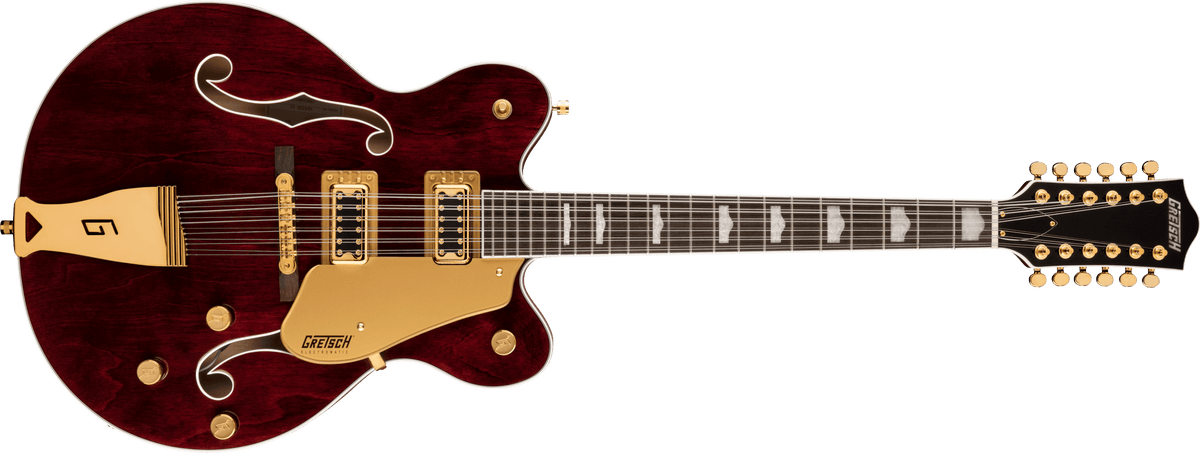

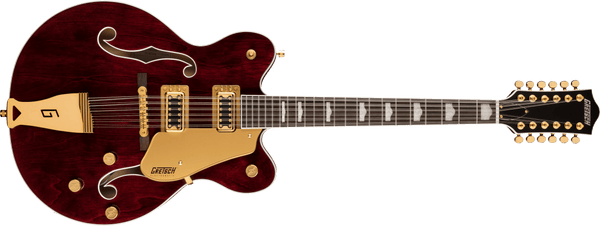

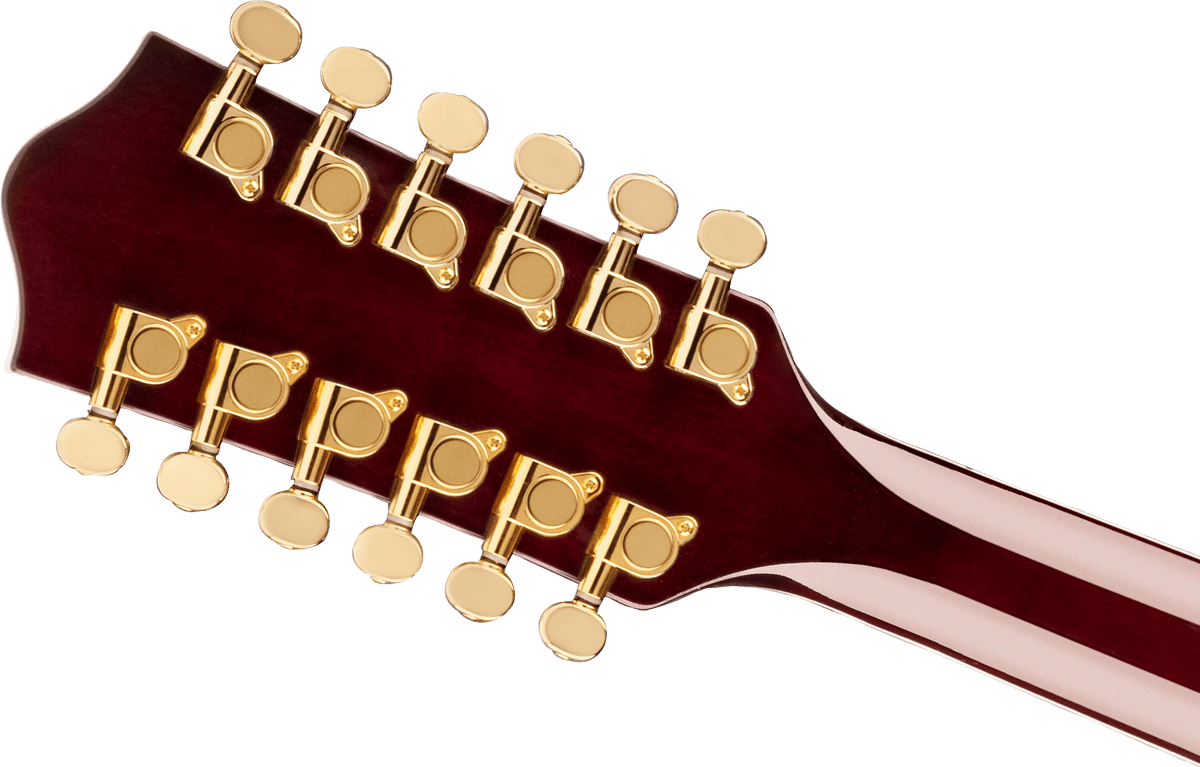

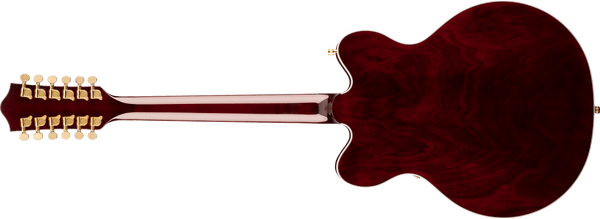

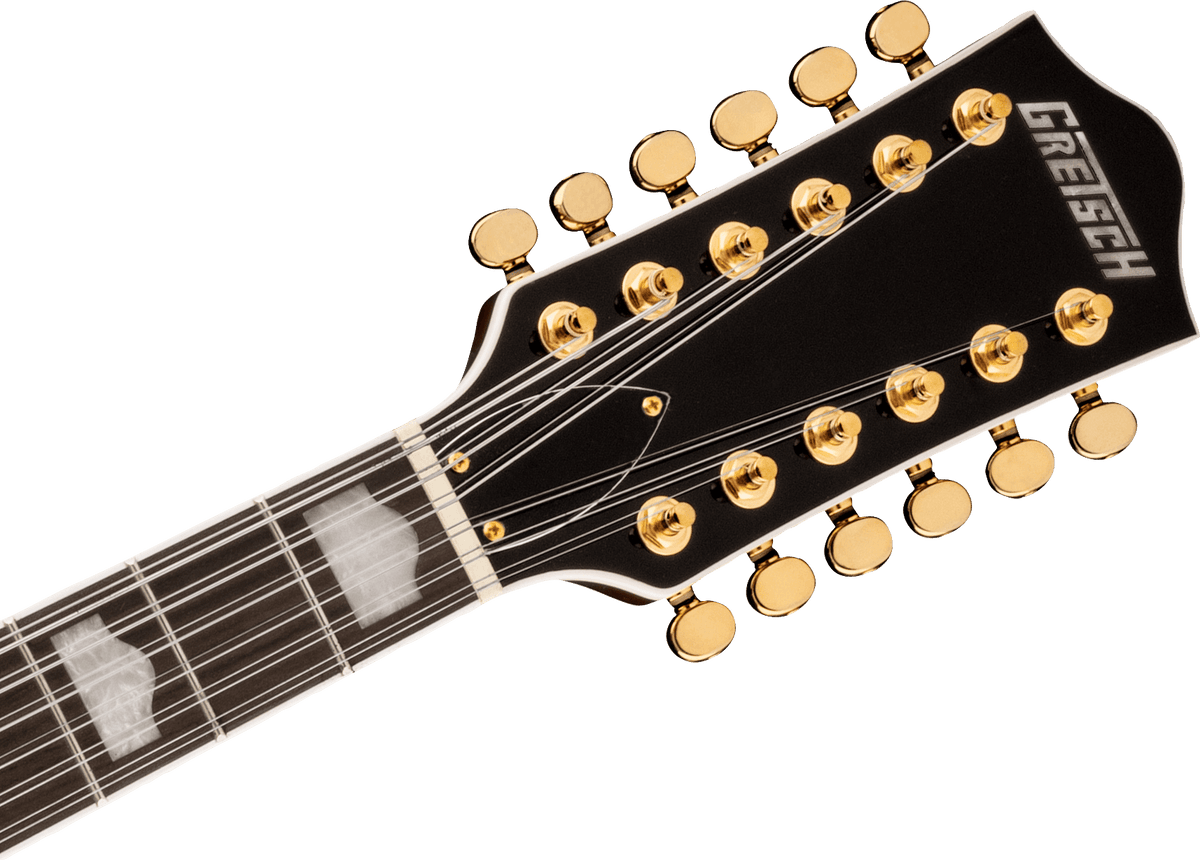

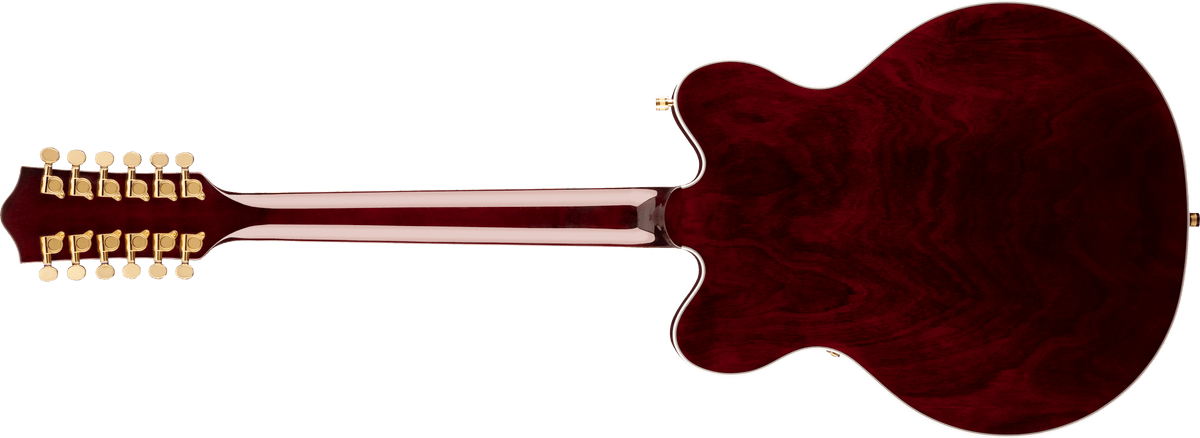

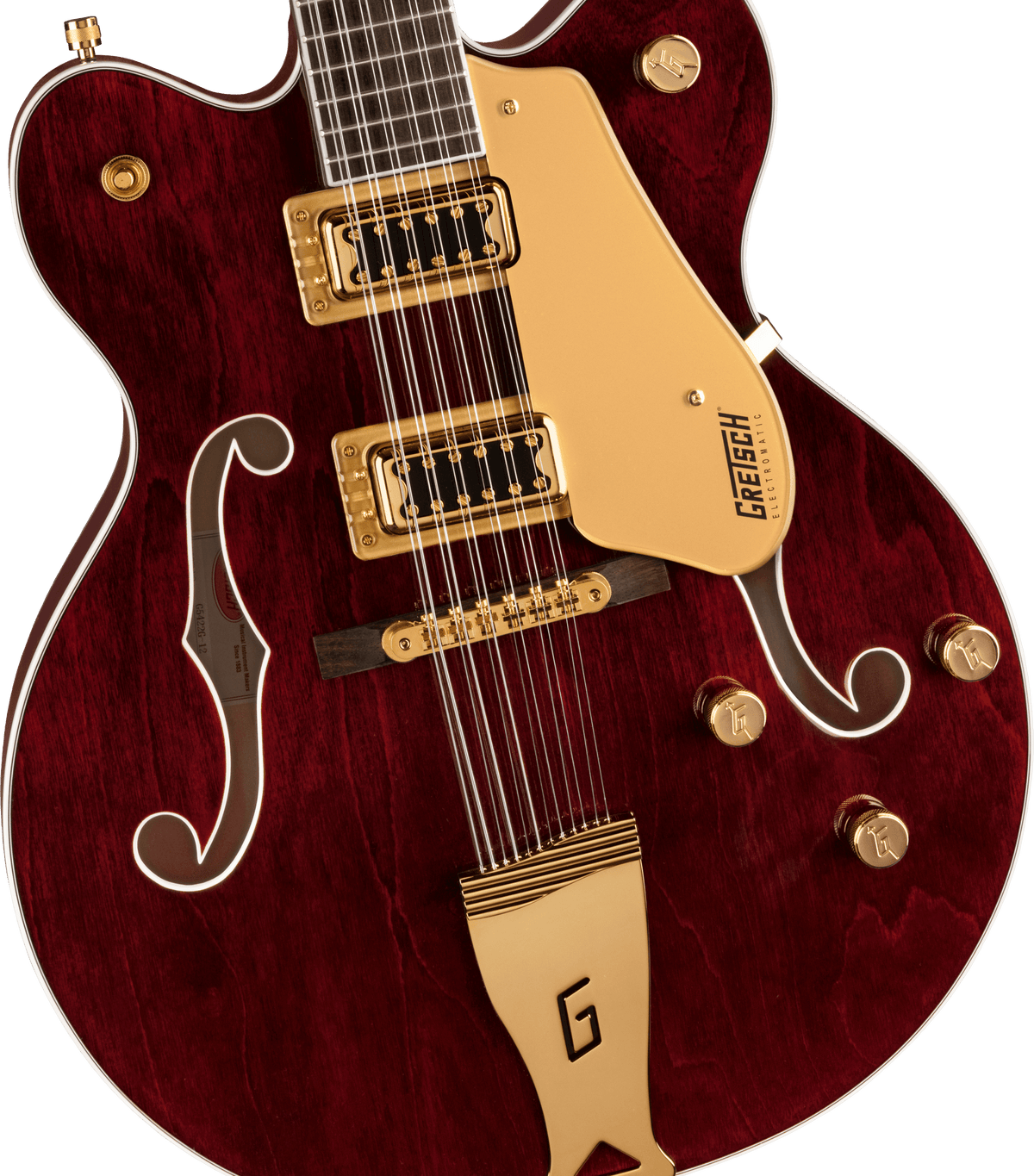

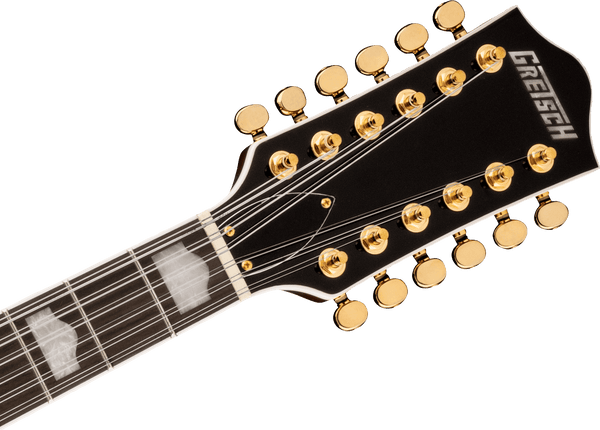

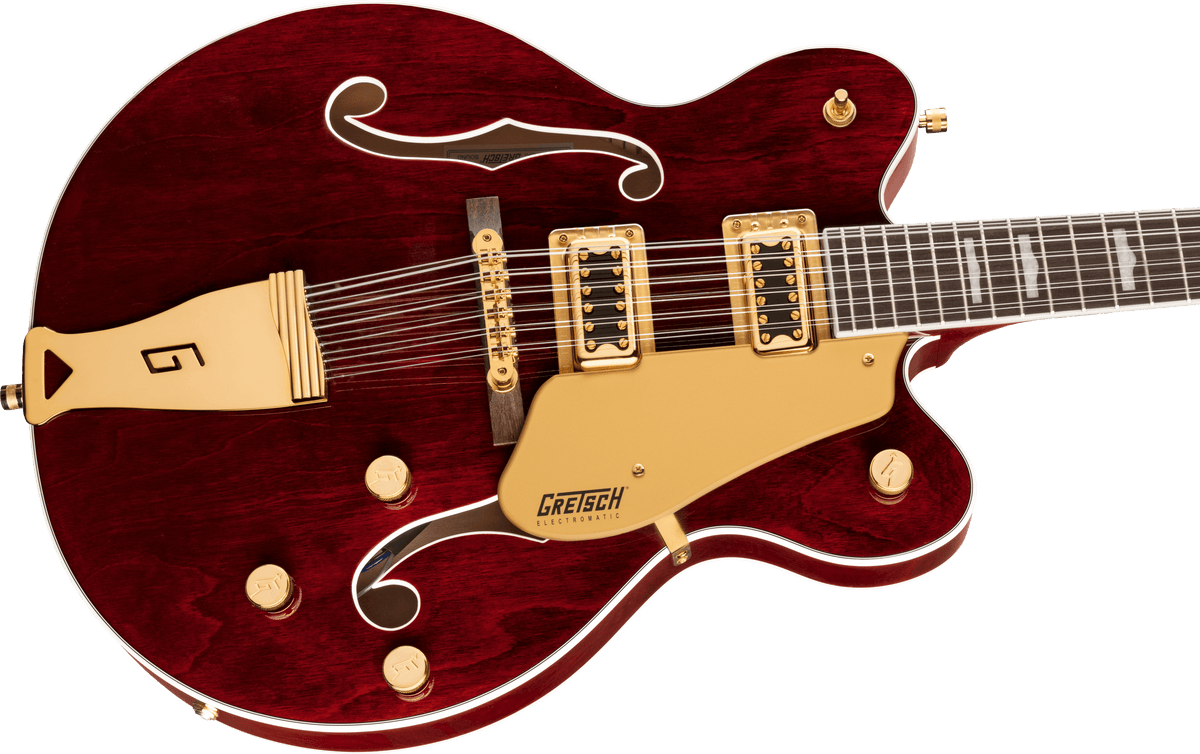

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5422G-12 Electromatic Classic Hollow Body Double-Cut 12-String with Gold Hardware Laurel Fingerboard Walnut Stain listed above. For larger pics, click on an image to open in a new tab.
