Gretsch G5420TG Limited Edition Electromatic '50s Hollow Body Single-Cut Bigsby Gold Hardware Black Specs

The G5420TG Limited Edition Electromatic '50s Hollow Body Single-Cut with Bigsby and Gold Hardware Rosewood Fingerboard Black is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Korea and is a Limited Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2506911506.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Maple Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.685" (42.8 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Vintage-Style Open-Back Tuning Machines
Black Top Filter’Tron with Tortoise Insert Bridge Pickup
Black Top Filter’Tron with Tortoise Insert Neck Pickup

Product Identifiers

Model Name	G5420TG Limited Edition Electromatic '50s Hollow Body Single-Cut with Bigsby and Gold Hardware
Part Number	2506911506
Product Series	Limited Edition
Country of Origin	Korea
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978295654

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Electromatic Hollow Body
Body Binding	Aged White with B/W/B Purfling
Body Finish	Gloss
Bracing	Sound Post
Upper Bout Width	11.625" (295 mm)
Lower Bout Width	16" (40.6 cm)
Waist	9.625" (245 mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Vintage-Style Open-Back
Pickguard	3-Ply Tortoise with Gold Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby-Licensed B60G Vibrato Tailpiece
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Hump Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.685" (42.8 mm)
Scale Length	24.6" (625 mm)
Nut Material	Graph Tech NuBone
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Gloss

Electronics

Bridge Pickup	Black Top Filter’Tron with Tortoise Insert
Neck Pickup	Black Top Filter’Tron with Tortoise Insert
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)
Case / Gig Bag	Optional Gig Bag G2162 (p/n 099-6458-000); G6241FT Hardshell Case (p/n 099-6475-000)

Reference Images

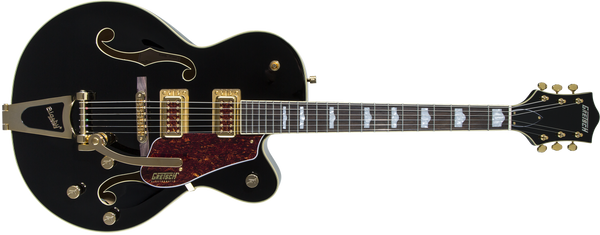

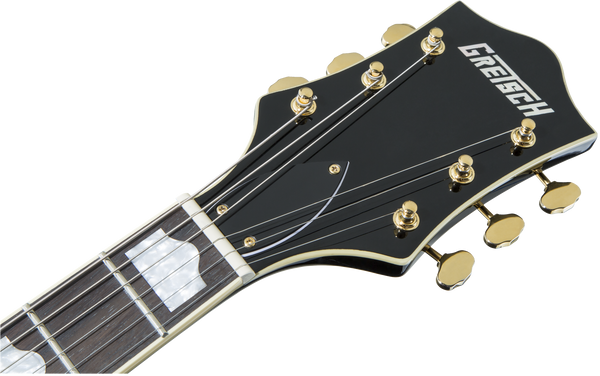

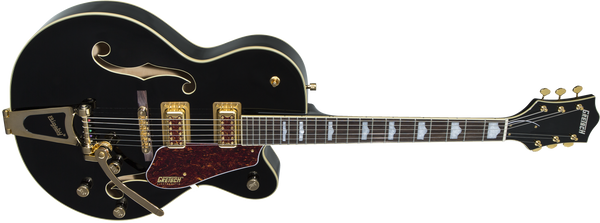

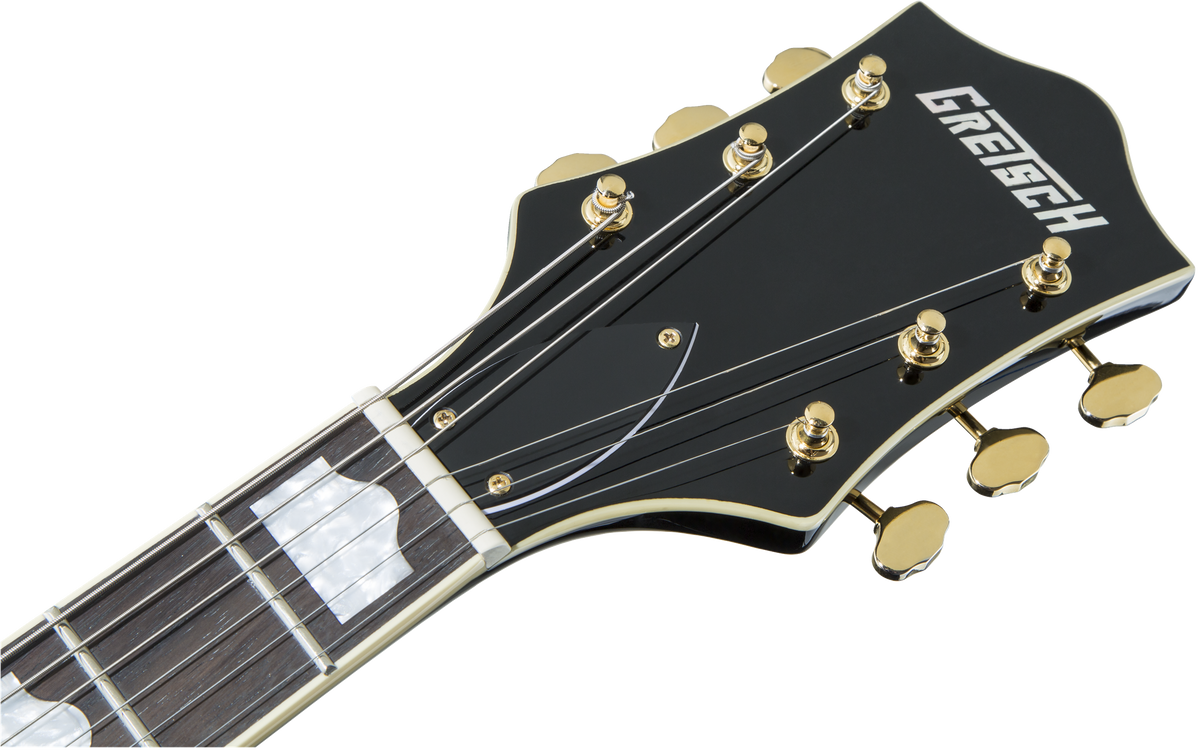

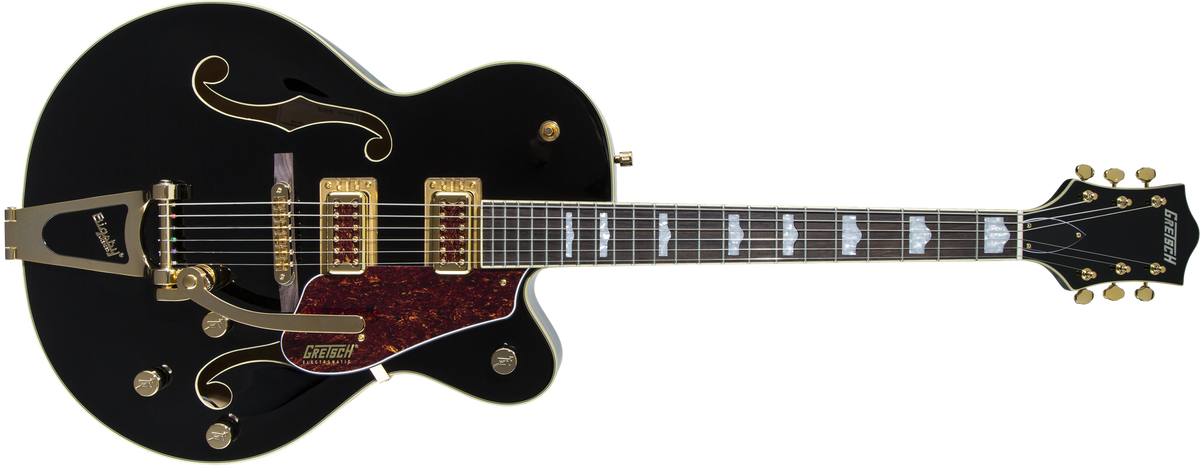

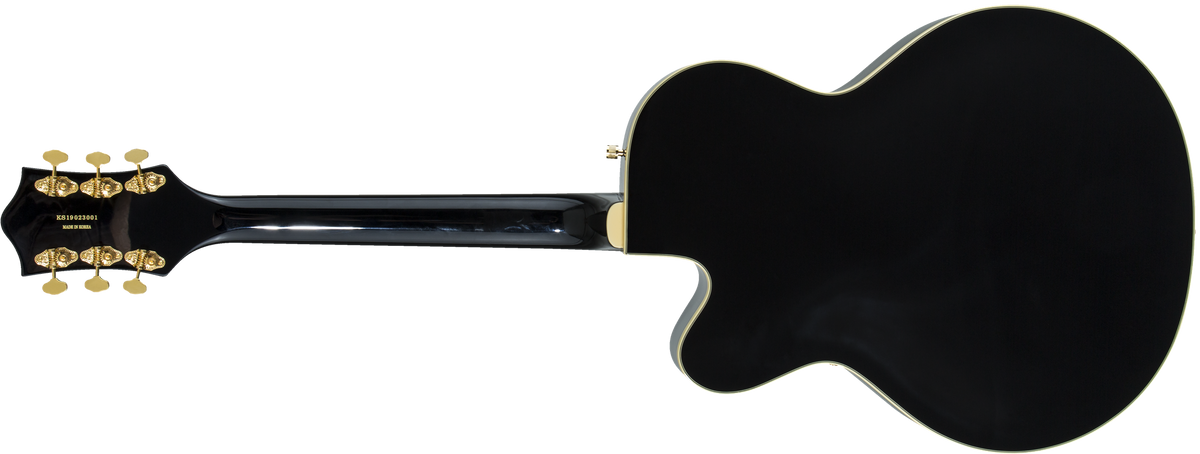

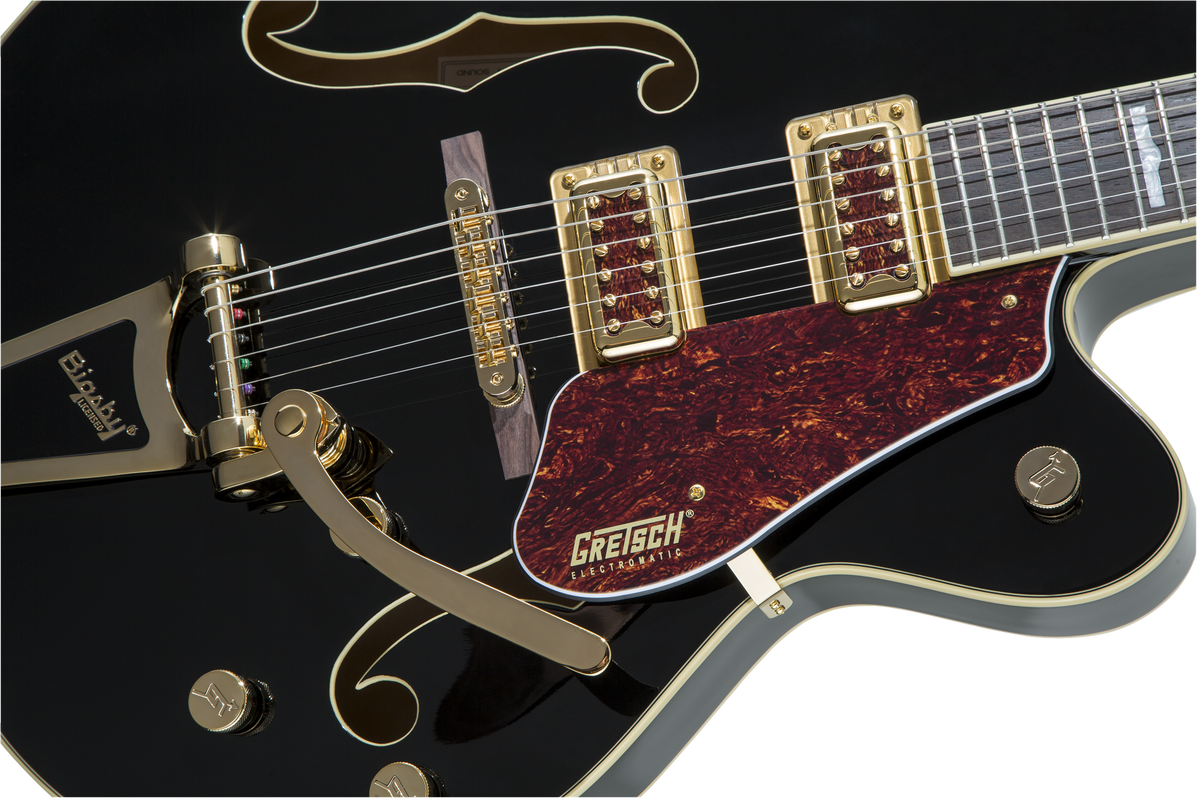

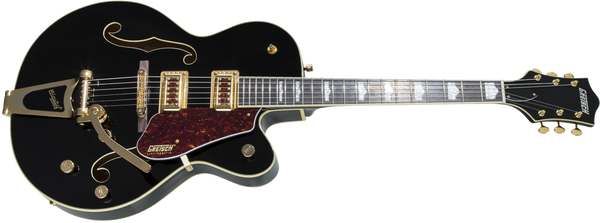

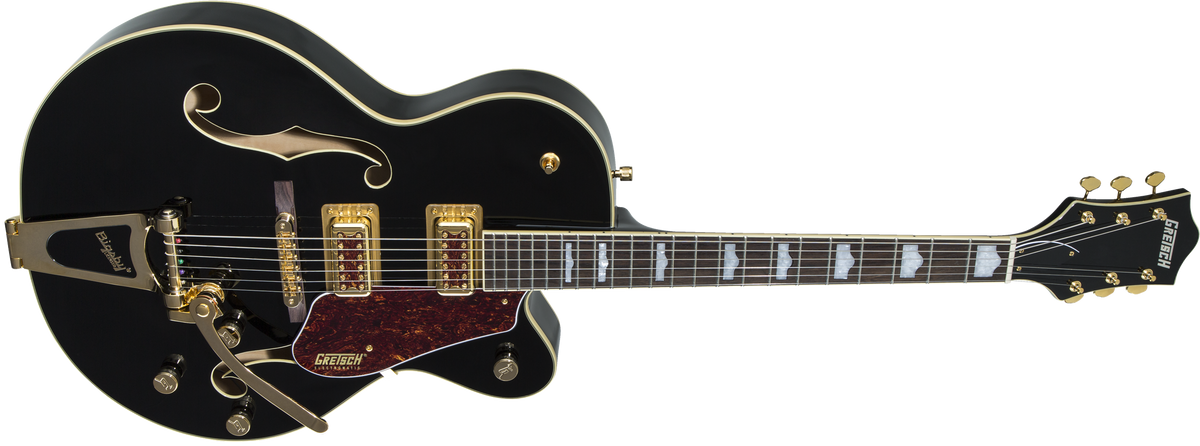

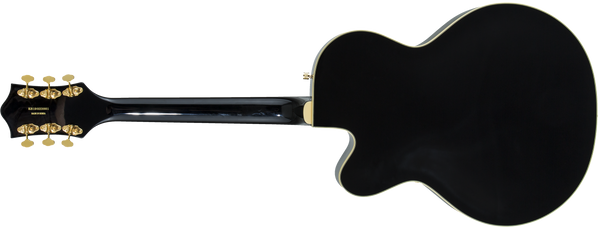

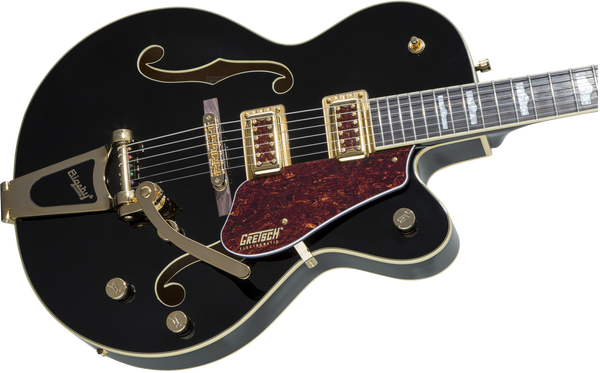

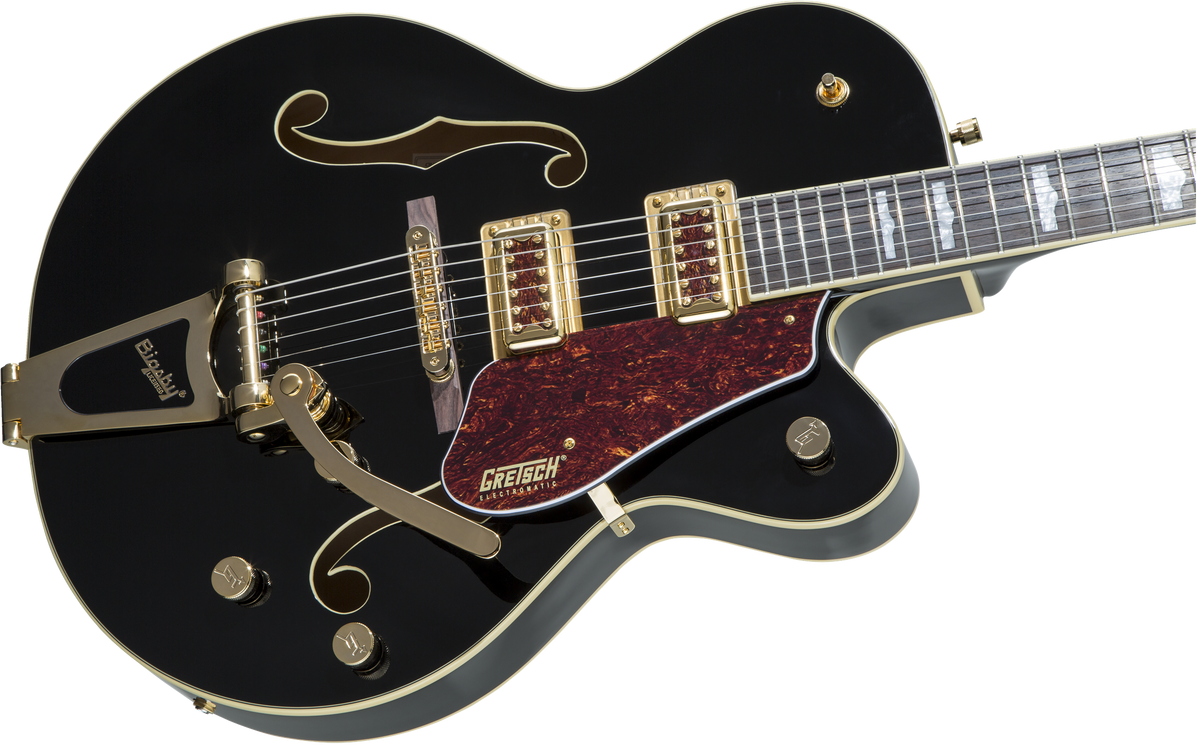

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5420TG Limited Edition Electromatic '50s Hollow Body Single-Cut with Bigsby and Gold Hardware Rosewood Fingerboard Black listed above. For larger pics, click on an image to open in a new tab.
