The G5260 Electromatic Jet Baritone with V-Stoptail Laurel Fingerboard Imperial Stain is a solid body electric guitar
built by Gretsch. This guitar is manufactured in China
and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2516002579.
Key Features
Mahogany Top
Mahogany Body
Maple Neck
Laurel Fingerboard
29.75" (756 mm) Scale Length
1.685" (42.8 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Die-Cast Tuning Machines
Gretsch Mini Humbucking Bridge Pickup
Gretsch Mini Humbucking Neck Pickup
Product Identifiers
Model Name
G5260 Electromatic Jet Baritone with V-Stoptail
Part Number
2516002579
Product Series
Electromatic
Country of Origin
China
Brand
Gretsch
Type
Electric Guitar
Category
Solid Body
UPC Code
717669554354
Factory Specifications
Body Construction
Body Material
Mahogany
Top Material
Mahogany
Back Material
Mahogany
Body Shape
Jet
Body Binding
White with B/W Purfling
Body Finish
Gloss
Upper Bout Width
10" (254 mm)
Lower Bout Width
13" (330.2 mm)
Waist
8.25" (21.0 cm)
Hardware
Bridge
Anchored Adjusto-Matic
Tuning Machines
Die-Cast
Pickguard
Black Plexi w/ Gold Gretsch Logo
Control Knobs
G-Arrow
Bridge Cover / Tailpiece
Gretsch V-Stoptail
Hardware Finish
Chrome
Neck Construction
Neck Material
Maple
Fingerboard Material
Laurel
Radius
12" (305 mm)
Fingerboard Inlays
Pearloid Big Block
Side Dots
Black
Number of Frets
22
Fret Size
Medium Jumbo
Nut Width
1.685" (42.8 mm)
Scale Length
29.75" (756 mm)
Nut Material
Synthetic Bone
Neck Shape
Thin "U"
Neck Construction
Bolt-On
Neck Finish
Gloss
Headstock Binding
White
Electronics
Bridge Pickup
Gretsch Mini Humbucking
Neck Pickup
Gretsch Mini Humbucking
Pickup Configuration
Gretsch Mini Humbucker / Gretsch Mini Humbucker
Controls
Master Volume, Master Tone
Pickup Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
General
Orientation
Right-Hand
Strings
Nickel Plated Steel Gauges .014-.018-.024-.044-.056-.072, Tuned B to B
Case / Gig Bag
Optional G2168 Baritone/Junior Jet Bass Gig Bag (p/n 099-6468-000)
Reference Images

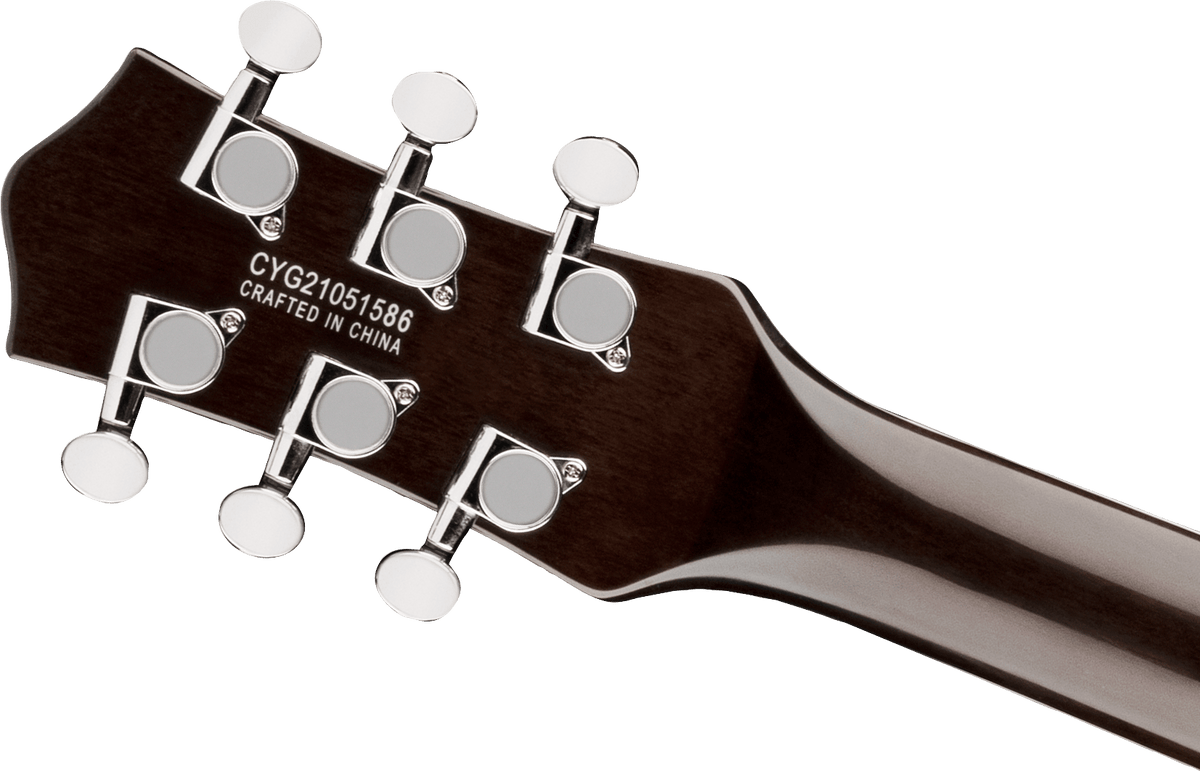

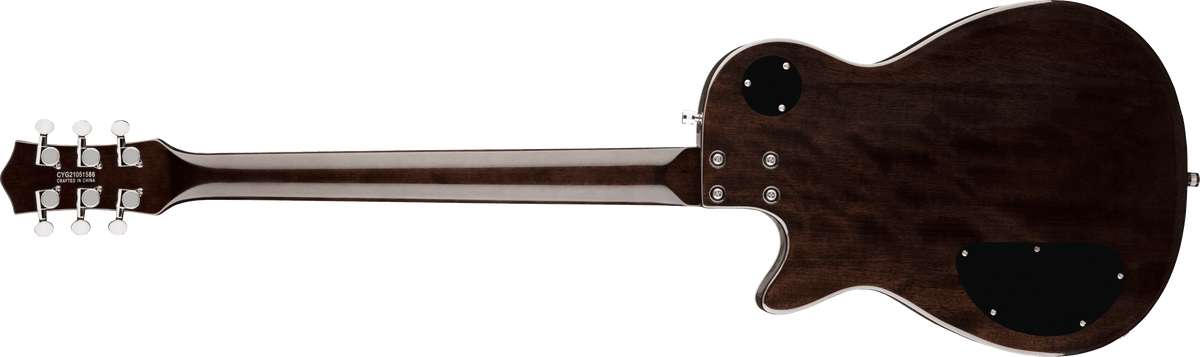

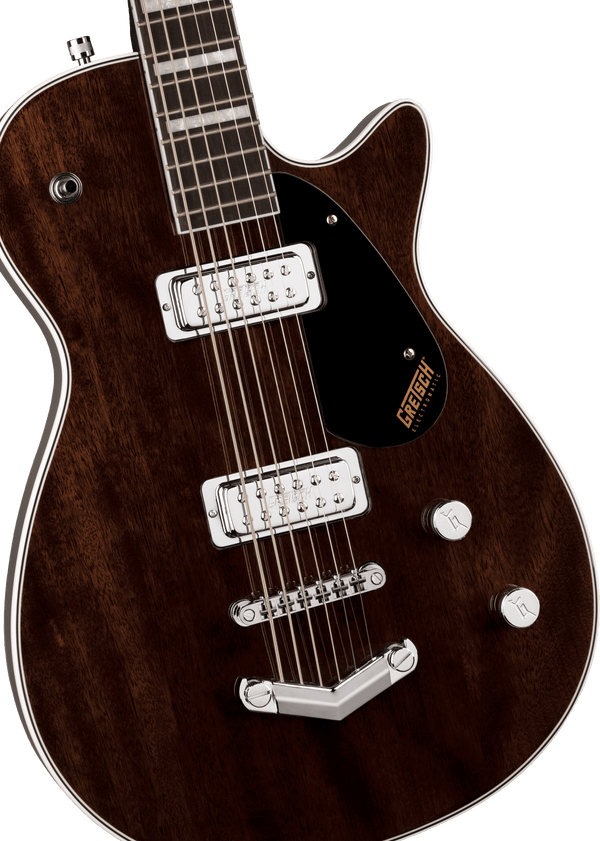

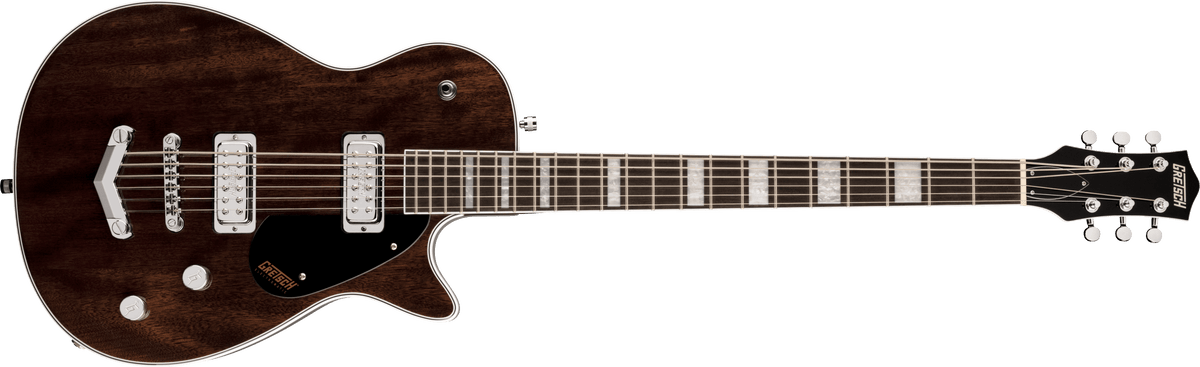

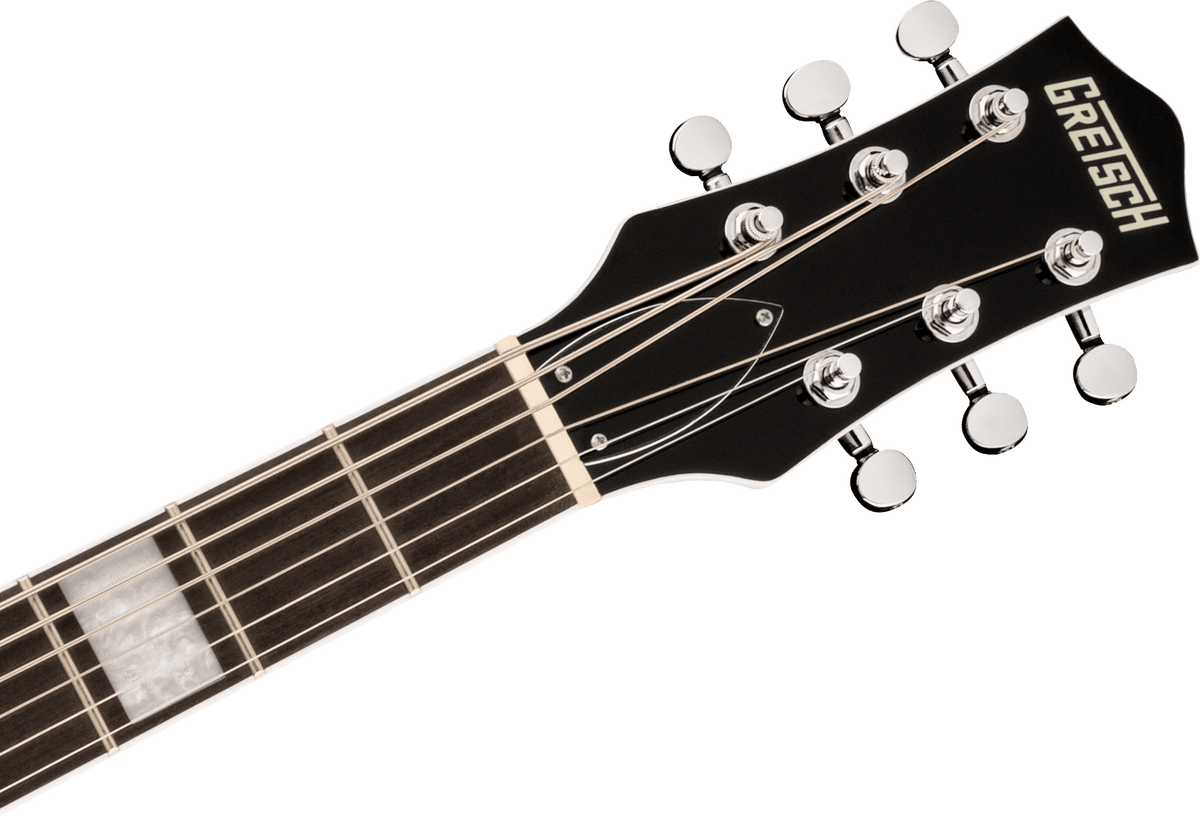

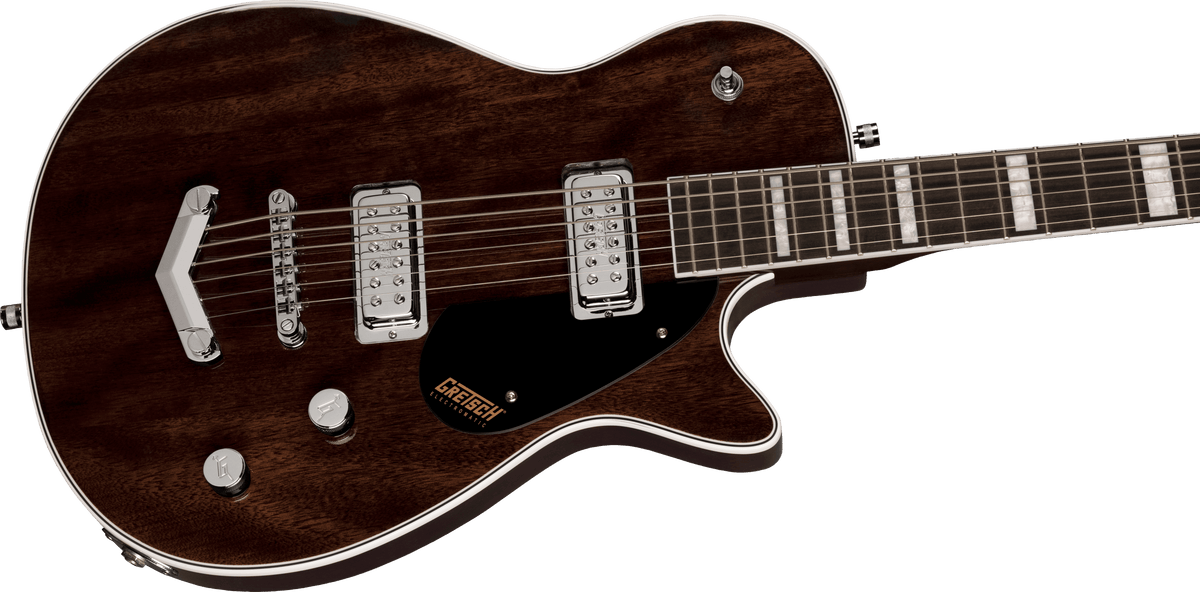

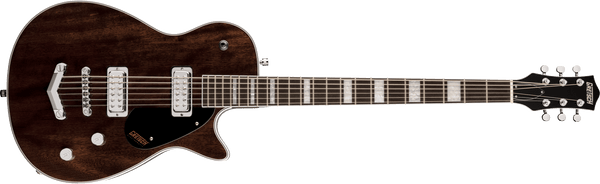

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5260 Electromatic Jet Baritone with V-Stoptail Laurel Fingerboard Imperial Stain listed above. For larger pics, click on an image to open in a new tab.
