Gretsch G5230TG Electromatic Jet FT Single-Cut Bigsby Gold Hardware FSR Cadillac Green Specs

The G5230TG Electromatic Jet FT Single-Cut with Bigsby and Gold Hardware Laurel Fingerboard Cadillac Green is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2507310546.

Key Features

Arched Laminated Maple Top
Mahogany Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Tuning Machines
Black Top Filter'Tron Bridge Pickup
N/A Middle Pickup
Black Top Filter'Tron Neck Pickup

Product Identifiers

Model Name	G5230TG Electromatic Jet FT Single-Cut with Bigsby and Gold Hardware FSR
Part Number	2507310546
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978066490

Factory Specifications

Body Construction

Body Material	Chambered Mahogany
Top Material	Arched Laminated Maple
Body Shape	Jet
Body Binding	White with B/W Purfling
Body Finish	Gloss
Bracing	Chambered
Upper Bout Width	10.25" (260 mm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.5" (216 mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	Gold Plexi with Black Gretsch and Electromatic Logos
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B50
Hardware Finish	Gold

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	Black Top Filter'Tron
Middle Pickup	N/A
Neck Pickup	Black Top Filter'Tron
Pickup Configuration	HH
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Special Electronics	N/A

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional Gig Bag (p/n 099-6460-000); Case (p/n 099-6474-000)

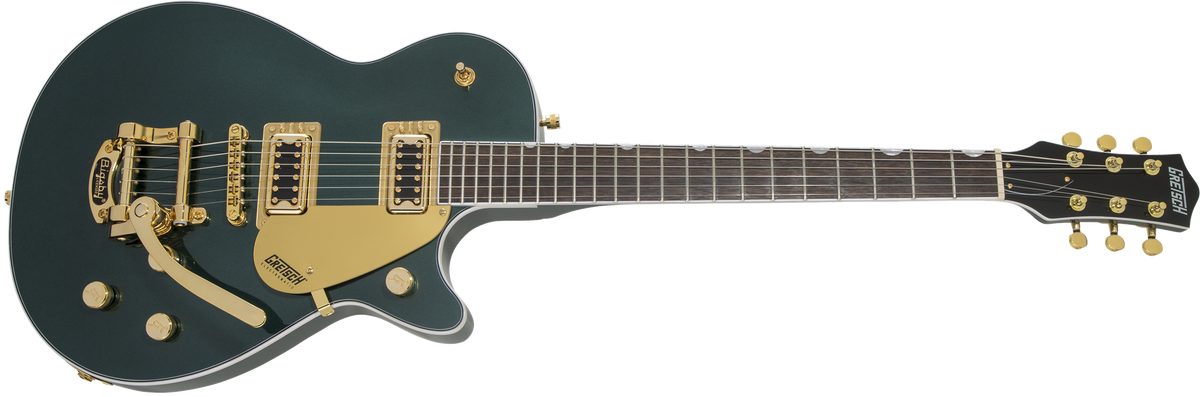

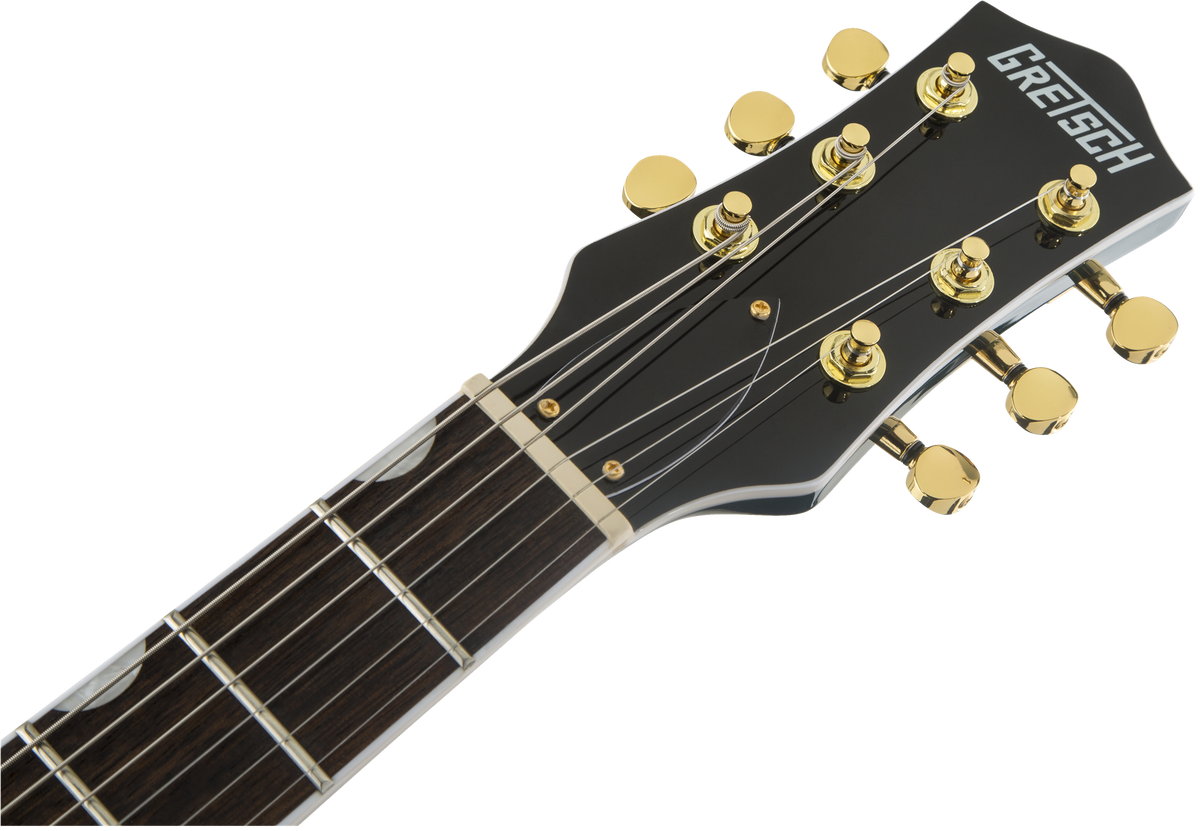

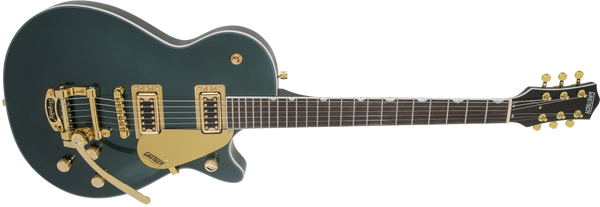

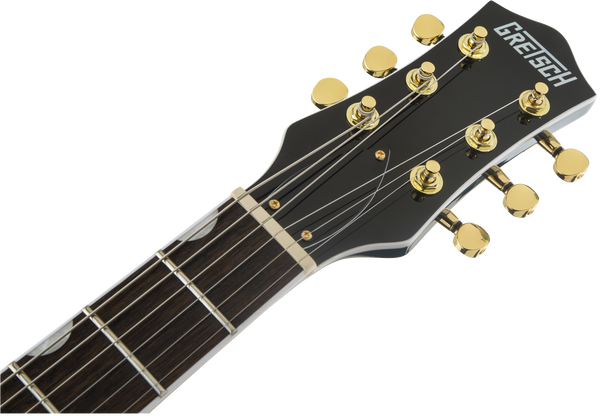

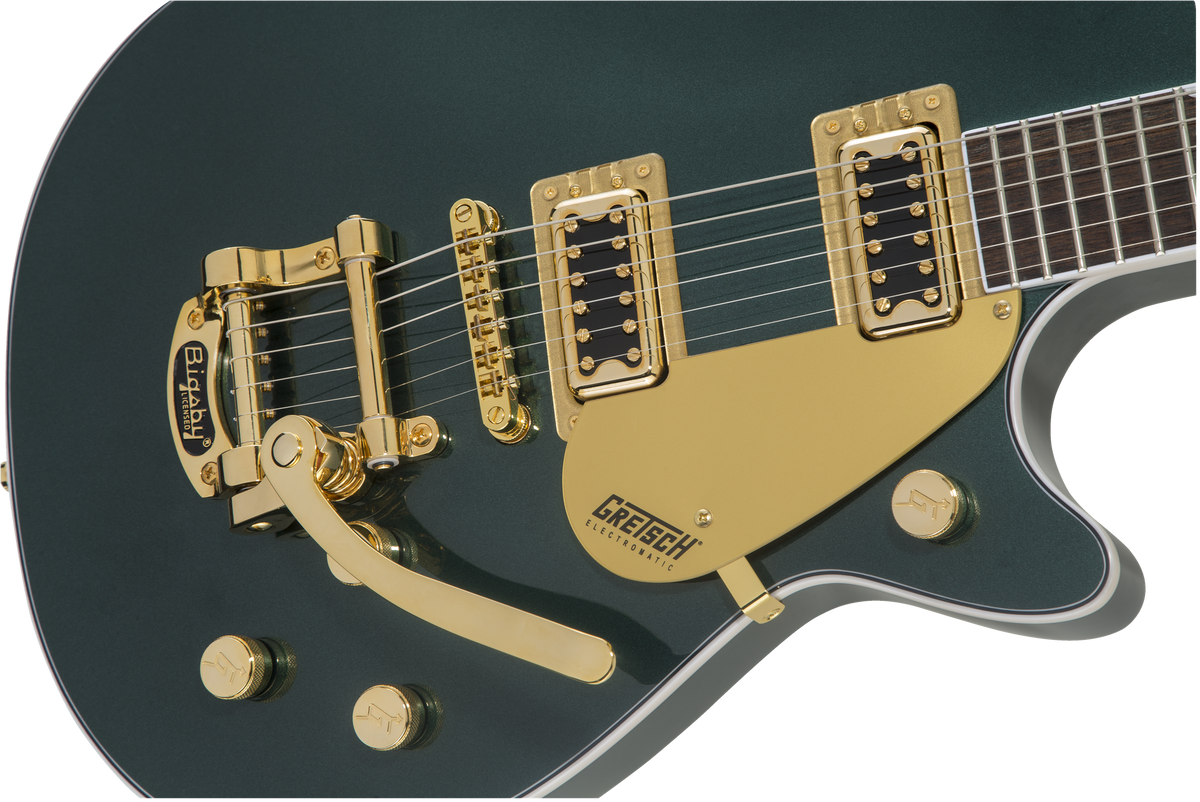

Reference Images

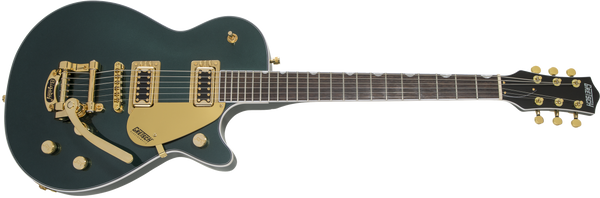

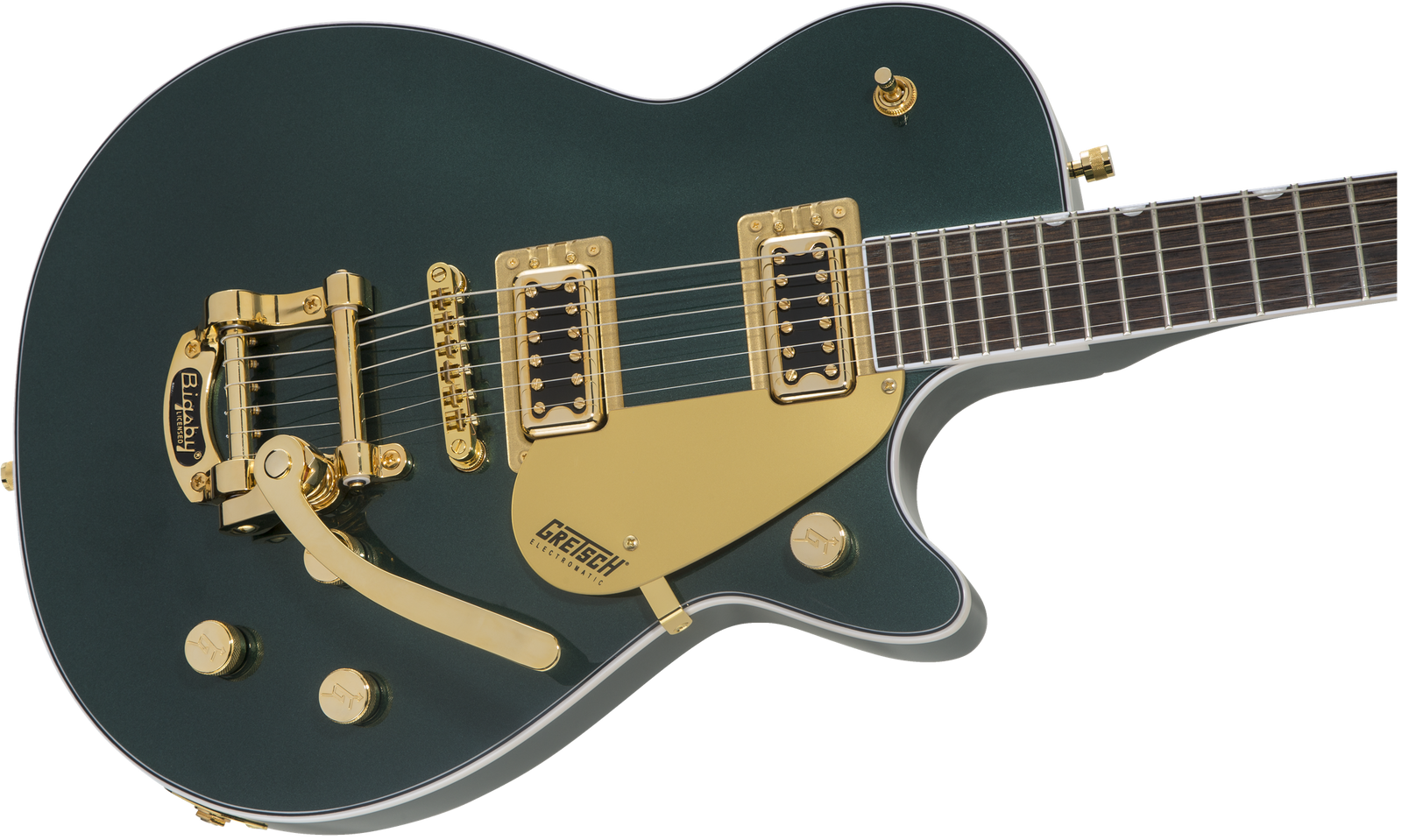

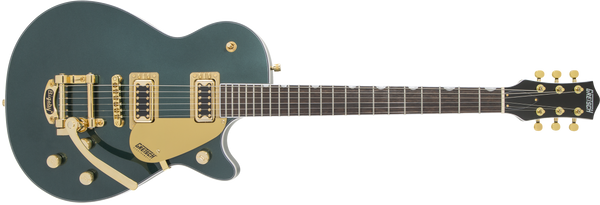

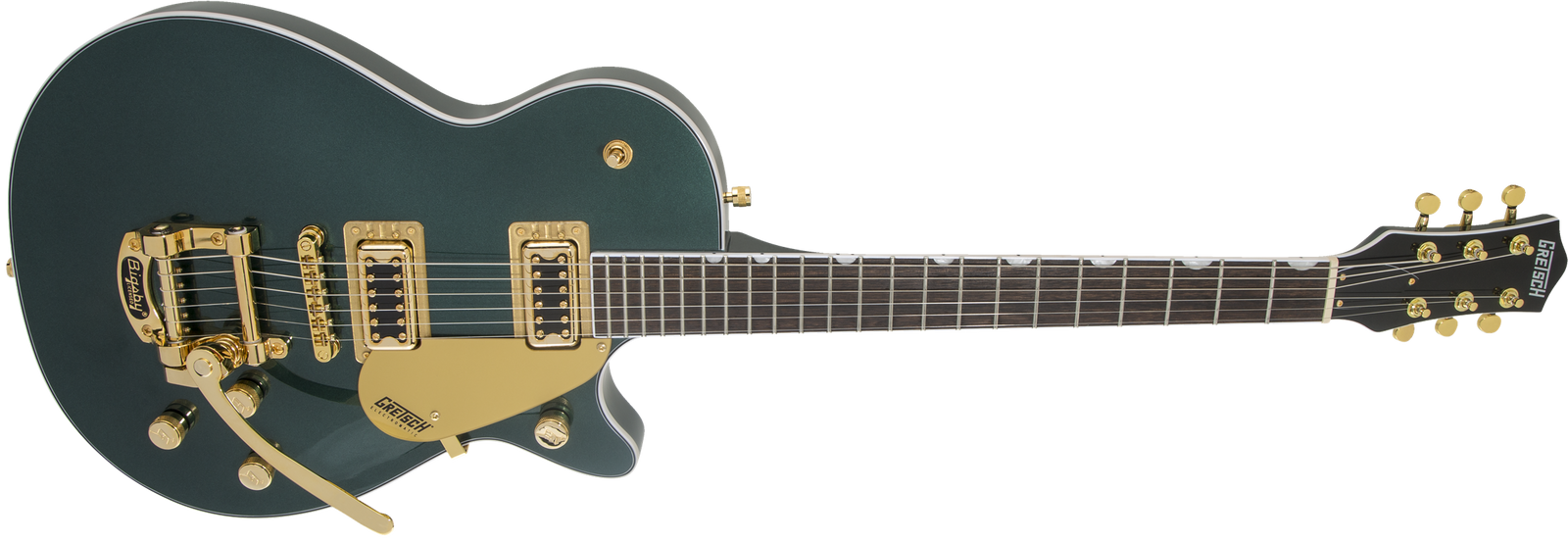

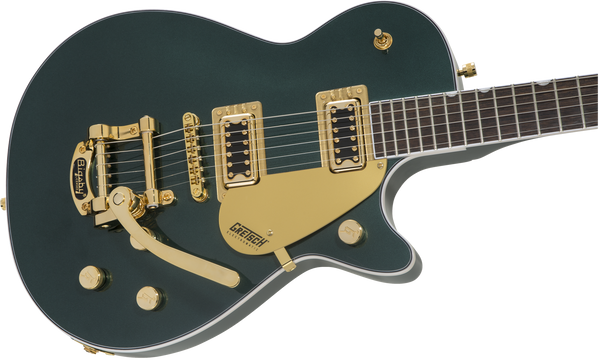

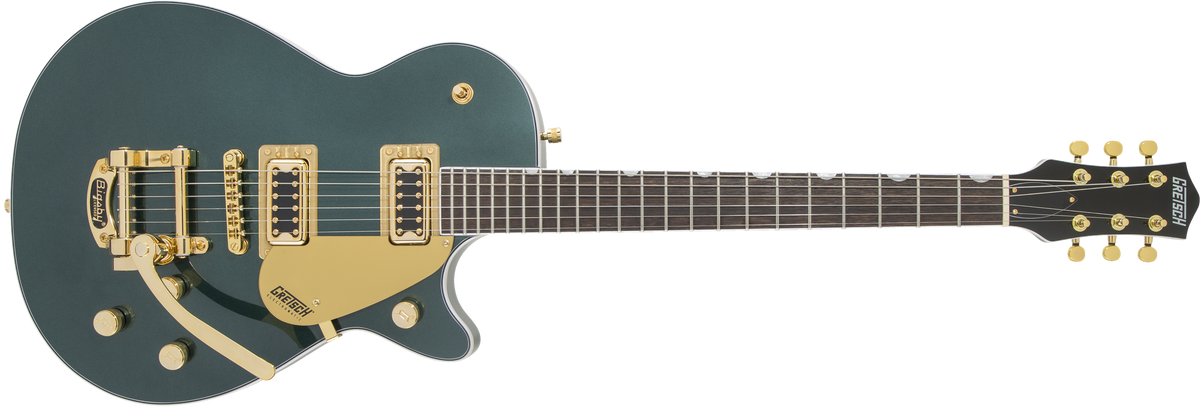

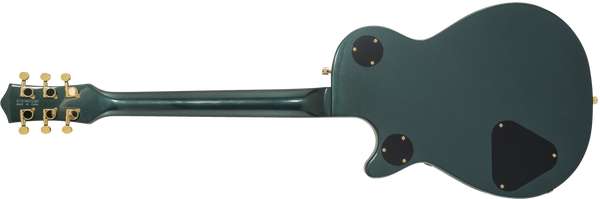

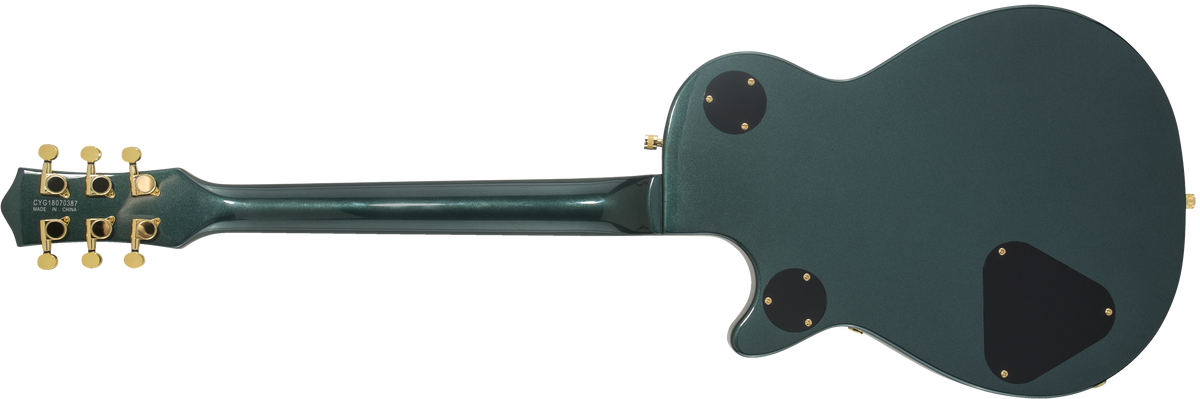

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5230TG Electromatic Jet FT Single-Cut with Bigsby and Gold Hardware Laurel Fingerboard Cadillac Green listed above. For larger pics, click on an image to open in a new tab.
