Gretsch G5230T Nick 13 Signature Electromatic Tiger Jet Bigsby Black Specs

The G5230T Nick 13 Signature Electromatic Tiger Jet with Bigsby Laurel Fingerboard Black is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2508310506.

Key Features

Arched Laminated Maple Top
Mahogany Body
Mahogany Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Die-Cast Tuning Machines
Black Top Filter'Tron Bridge Pickup
Black Top Filter'Tron Neck Pickup

Product Identifiers

Model Name	G5230T Nick 13 Signature Electromatic Tiger Jet with Bigsby
Part Number	2508310506
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978599332

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Arched Laminated Maple
Back Material	Mahogany
Body Shape	Jet
Body Binding	White with B/W Purfling
Body Finish	Gloss
Bracing	Chambered
Upper Bout Width	10.25" (260 mm)
Lower Bout Width	13.375" (340 mm)
Waist	8.5" (216 mm)

Hardware

Bridge	Anchored Adjusto-Matic

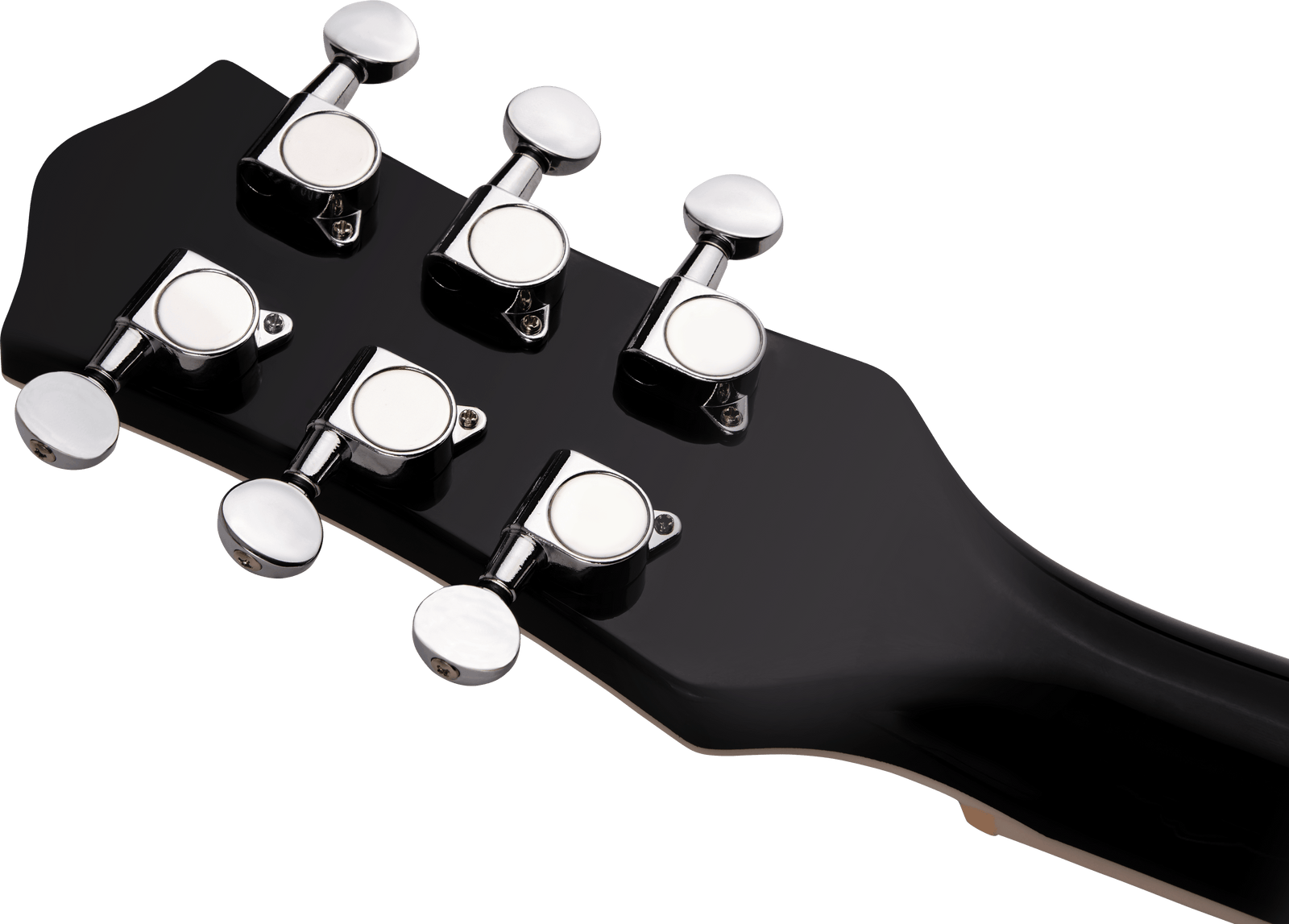

Tuning Machines	Die-Cast
Pickguard	Oxblood Plexi with Cream Gretsch Logo and TigerBat Graphic
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B50
Hardware Finish	Chrome

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid TigerBat
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Construction	Set-Neck
Neck Finish	Gloss

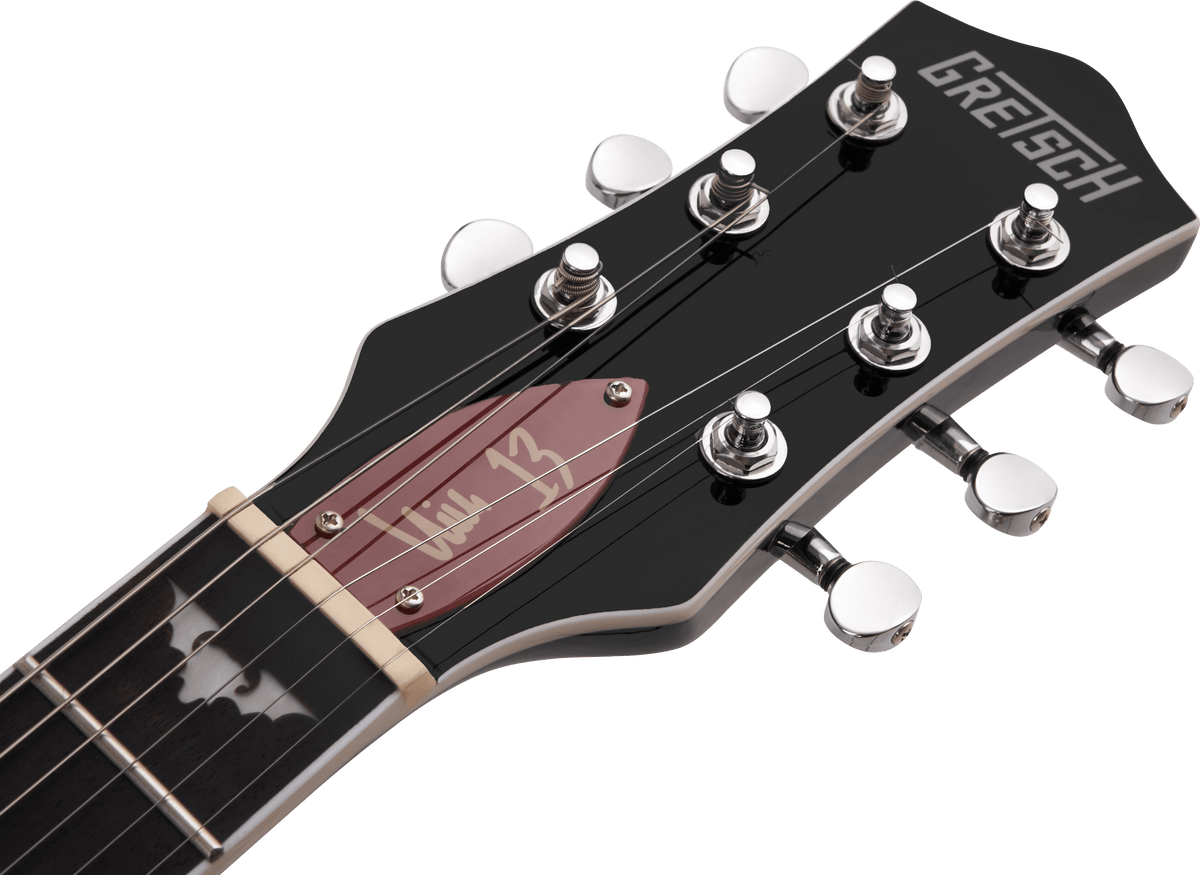

Headstock Binding	White

Electronics

Bridge Pickup	Black Top Filter'Tron
Neck Pickup	Black Top Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G6238FT Gretsch Flat Top Solid Body Hardshell (p/n 099-6474-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)

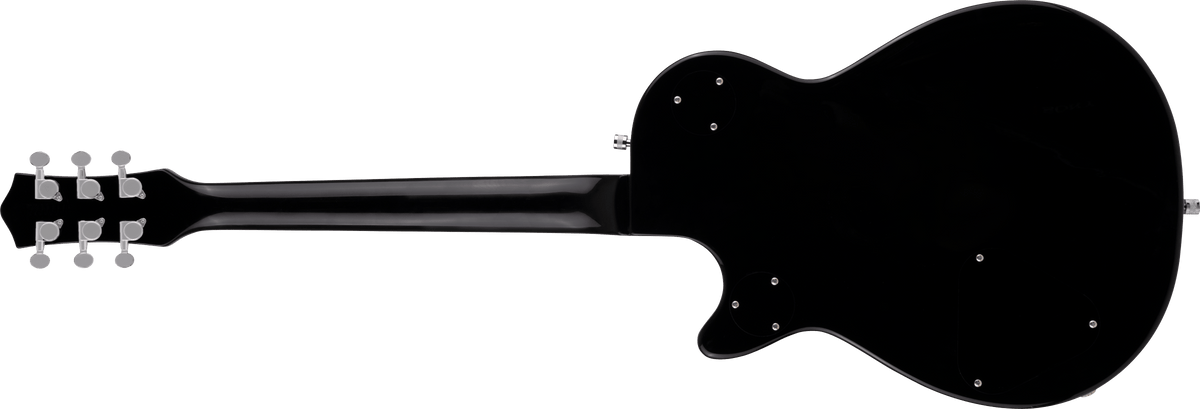

Reference Images

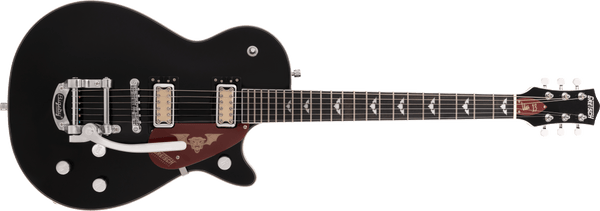

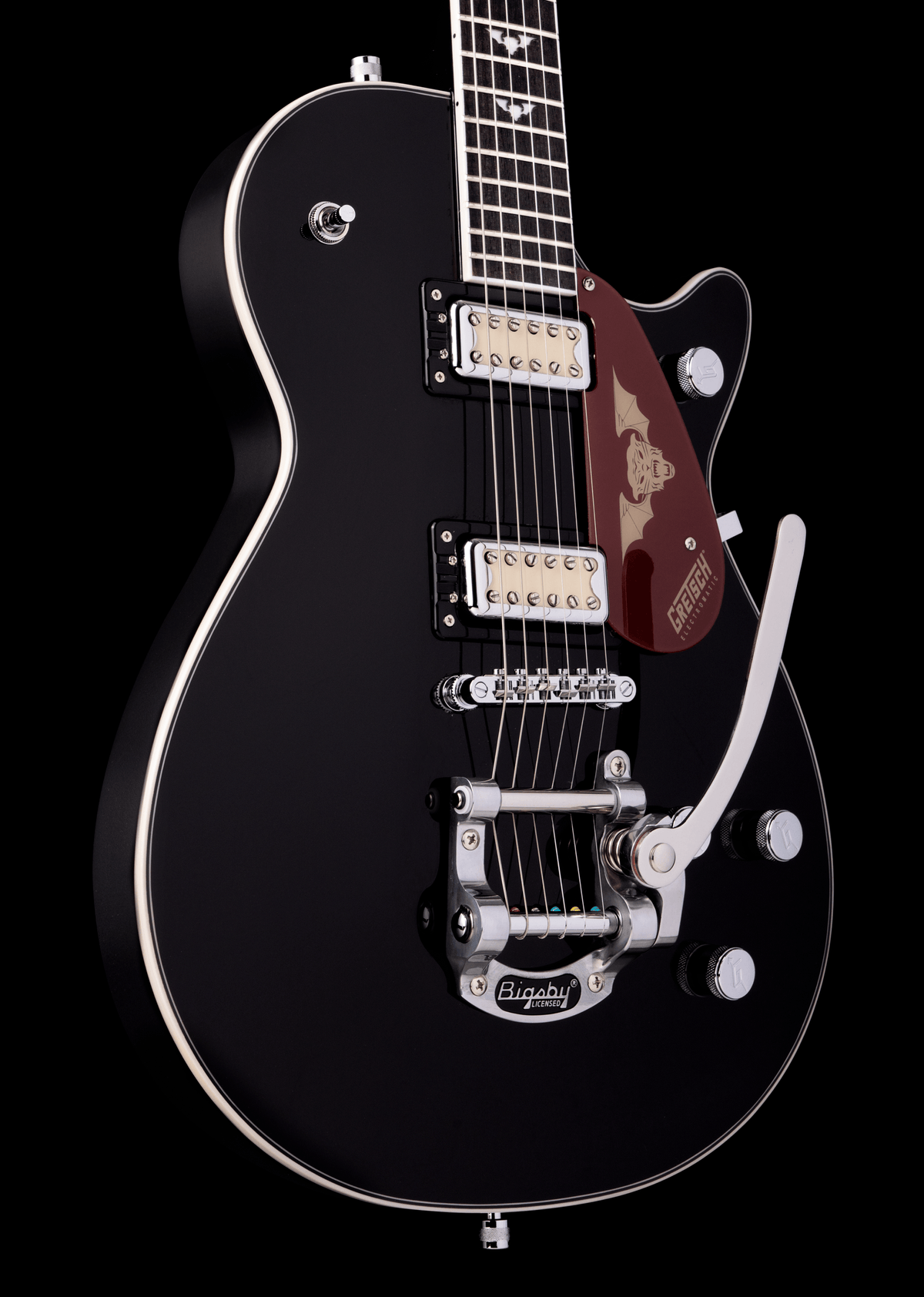

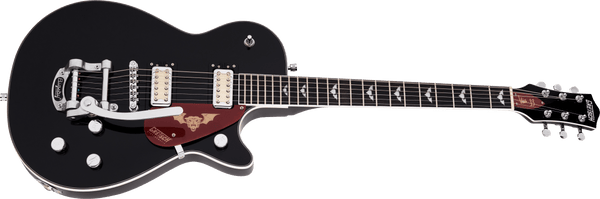

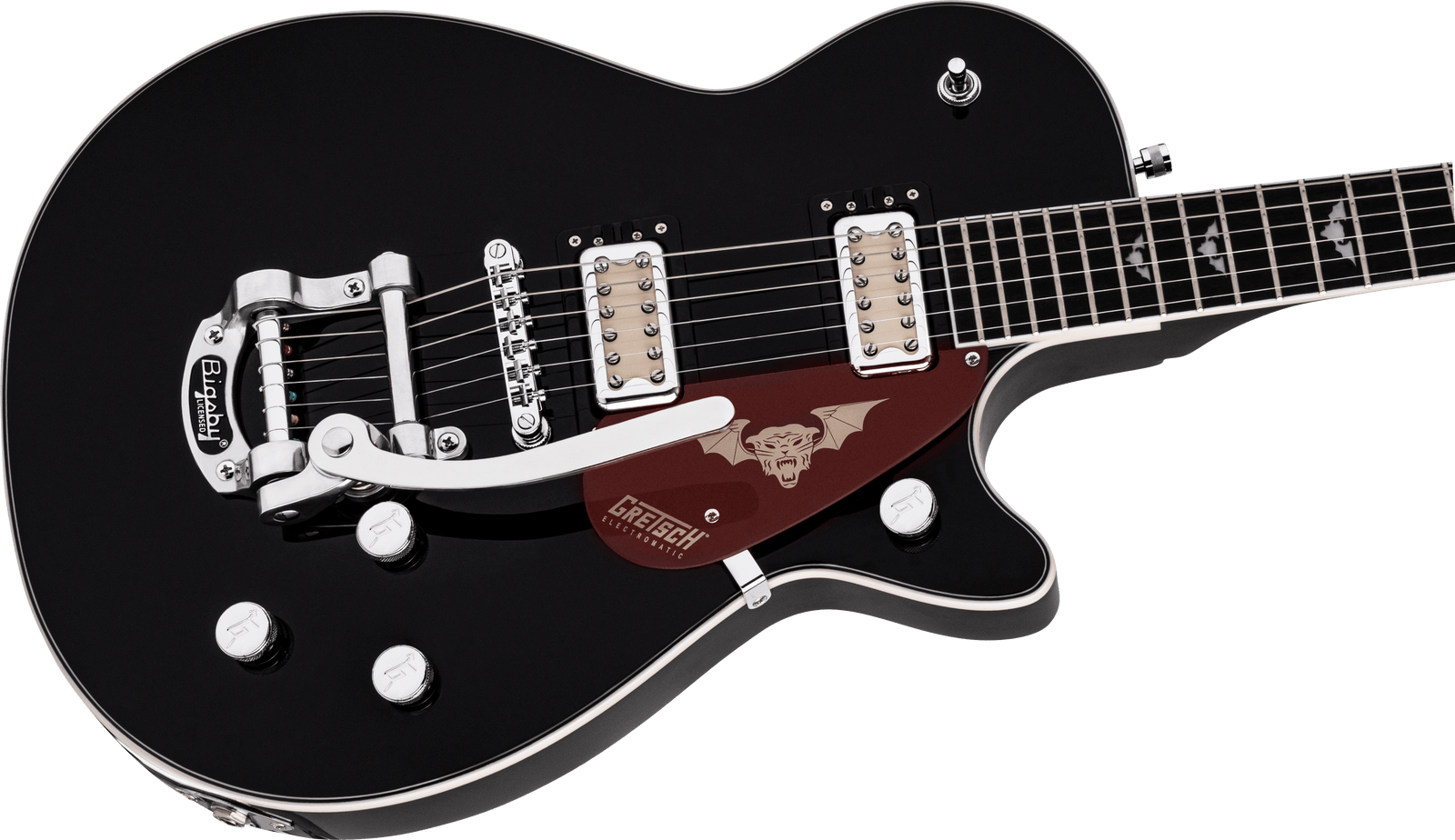

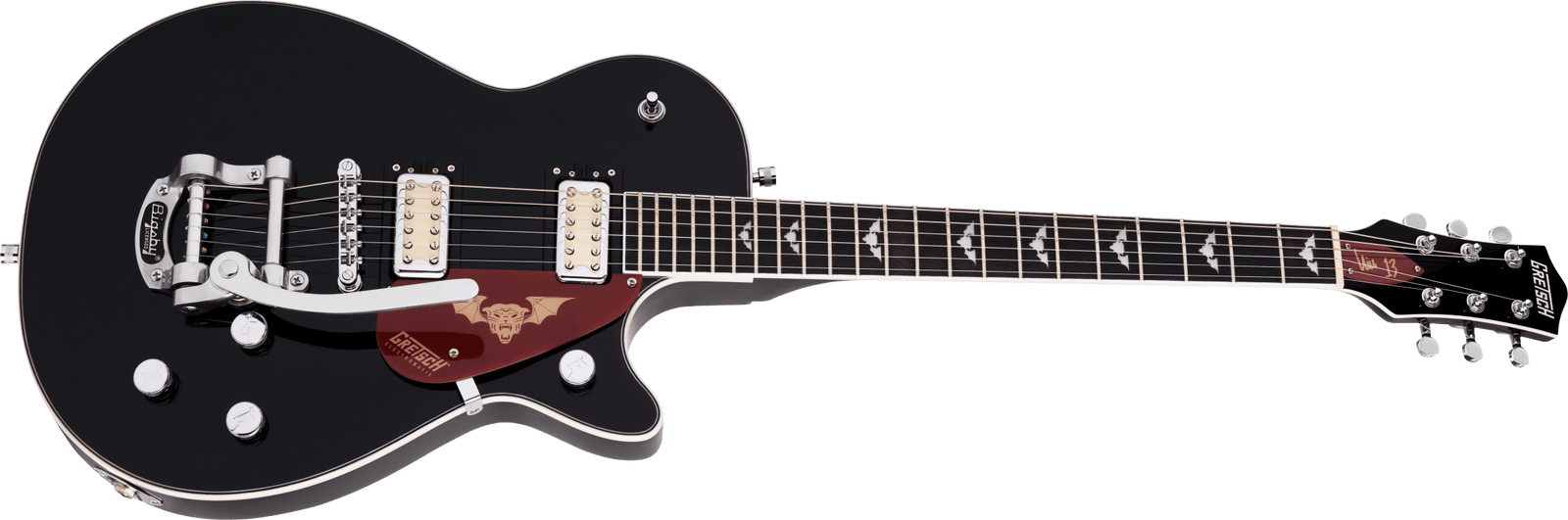

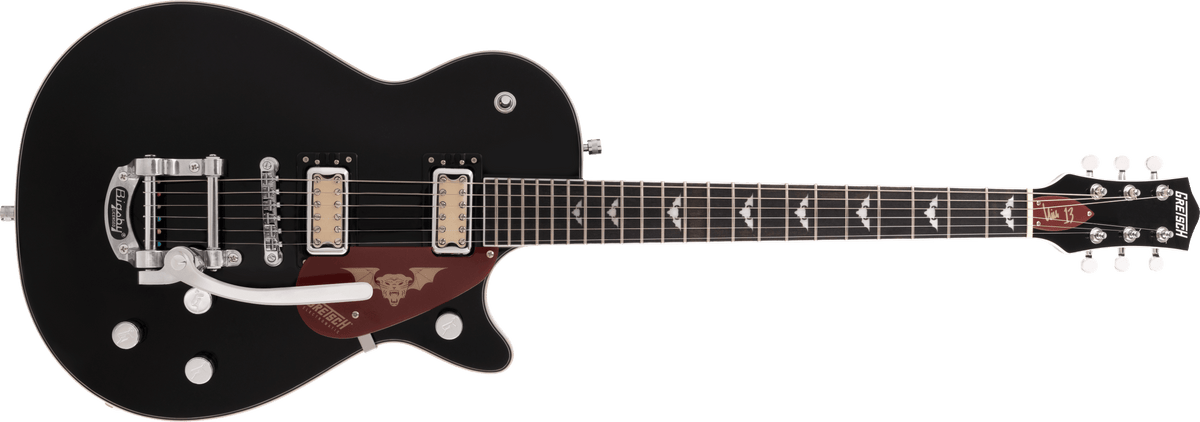

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5230T Nick 13 Signature Electromatic Tiger Jet with Bigsby Laurel Fingerboard Black listed above. For larger pics, click on an image to open in a new tab.
