The G5222 Electromatic Double Jet BT with V-Stoptail Laurel Fingerboard Aged Natural is a solid body electric guitar
built by Gretsch. This guitar is manufactured in China
and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2509310521.
Key Features
Arched Maple Top
Mahogany Body
Mahogany Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Die-Cast Tuning Machines
Black Top Broad’Tron Bridge Pickup
Black Top Broad'Tron Neck Pickup
Product Identifiers
Model Name
G5222 Electromatic Double Jet BT with V-Stoptail
Part Number
2509310521
Product Series
Electromatic
Country of Origin
China
Brand
Gretsch
Type
Electric Guitar
Category
Solid Body
UPC Code
885978415090
Factory Specifications
Body Construction
Body Material
Mahogany with Arched Maple Top
Top Material
Arched Maple
Back Material
Mahogany
Body Shape
Jet
Body Binding
White with B/W Purfling
Body Finish
Gloss
Upper Bout Width
10.25" (260 mm)
Lower Bout Width
13.46" (341.88 mm)
Waist
8.5" (216 mm)
Hardware
Bridge
Anchored Adjusto-Matic
Tuning Machines
Die-Cast
Pickguard
Black Plexi Pickguard with White Gretsch Logo
Control Knobs
G-Arrow
Bridge Cover / Tailpiece
Gretsch "V" Stoptail
Hardware Finish
Chrome
Neck Construction
Neck Material
Mahogany
Fingerboard Material
Laurel
Radius
12" (305 mm)
Fingerboard Inlays
Pearloid Neo-Classic Thumbnail
Number of Frets
22
Fret Size
Medium Jumbo
Nut Width
1.6875" (42.86 mm)
Scale Length
24.6" (625 mm)
Nut Material
Synthetic Bone
Neck Shape
Thin "U"
Neck Construction
Set-Neck
Neck Finish
Gloss
Electronics
Bridge Pickup
Black Top Broad’Tron
Neck Pickup
Black Top Broad'Tron
Pickup Configuration
Broad'Tron / Broad'Tron
Controls
Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume with Treble Bleed, Master Tone
Pickup Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
General
Orientation
Right-Hand
Strings
Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag
Optional G6238FT Gretsch Flat Top Solid Body Hardshell (p/n 099-6474-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)
Reference Images

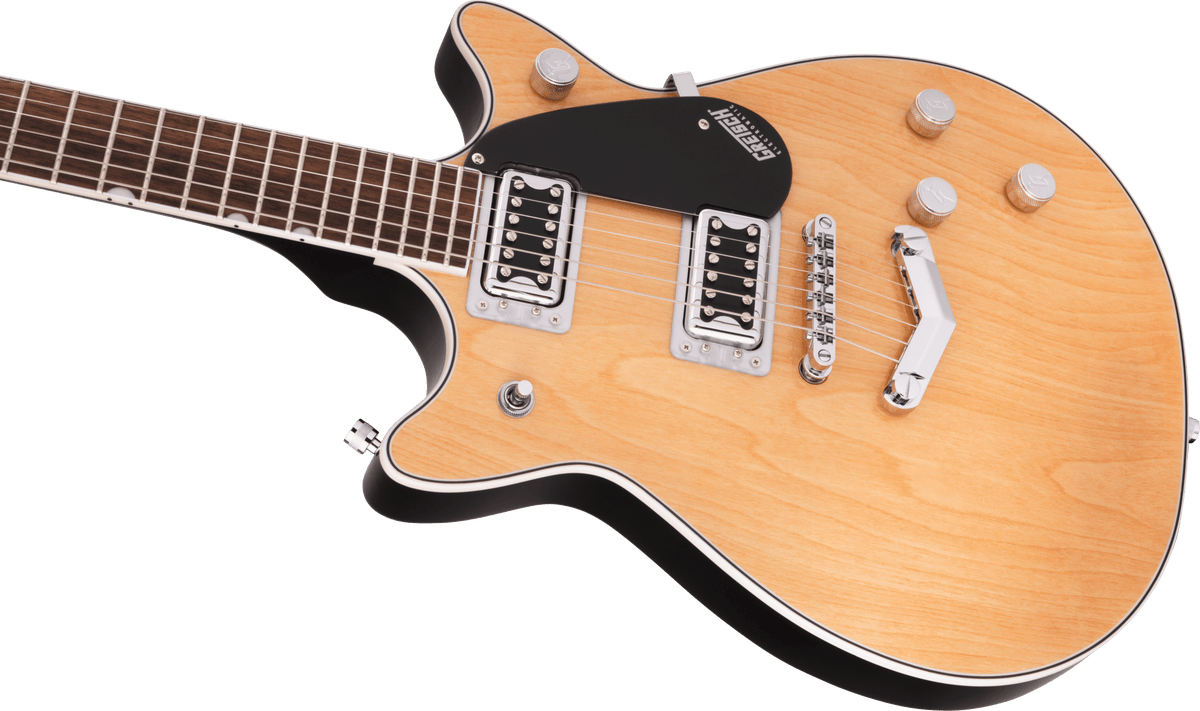

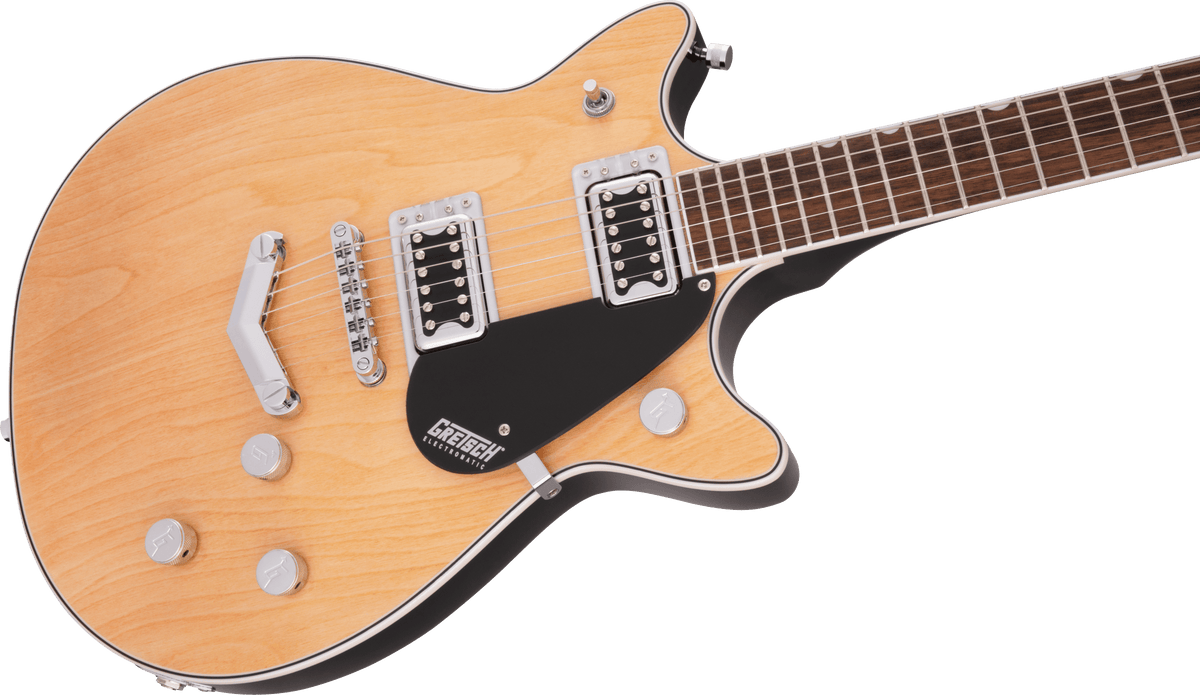

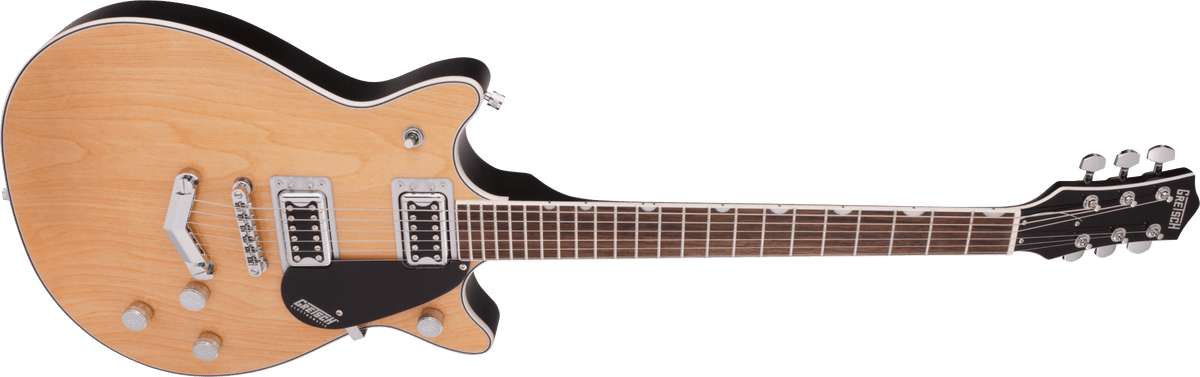

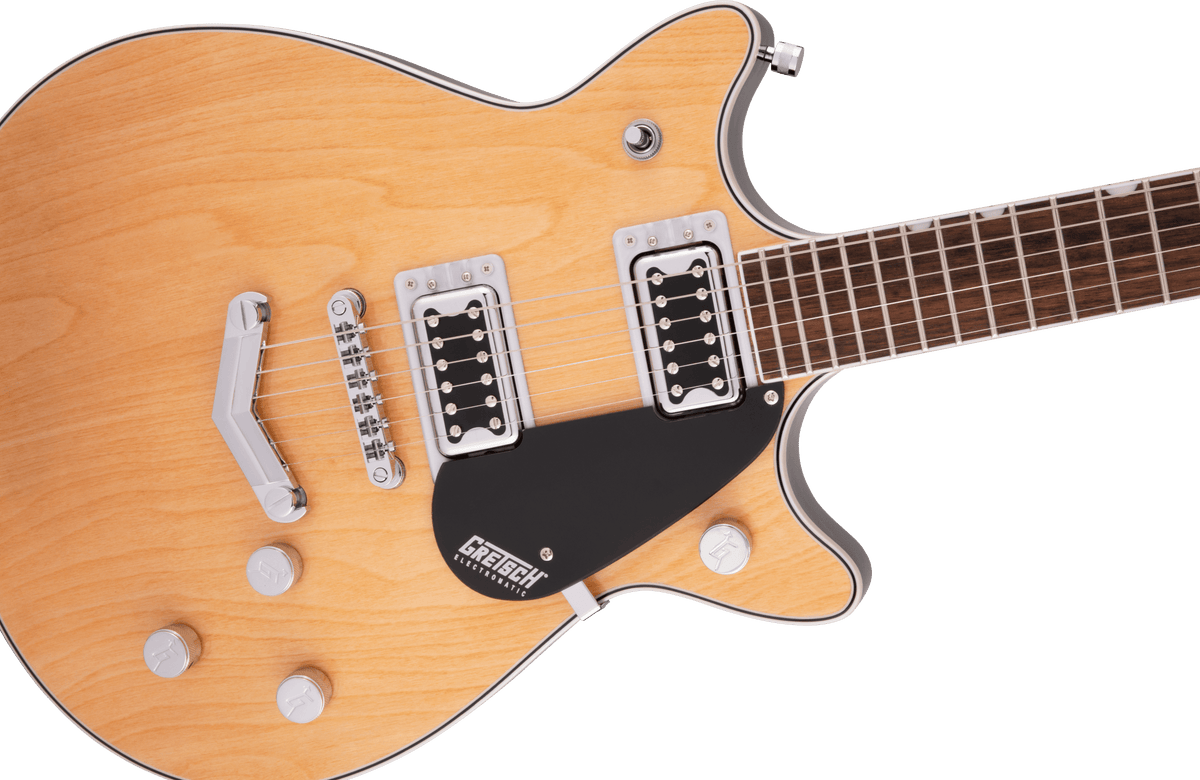

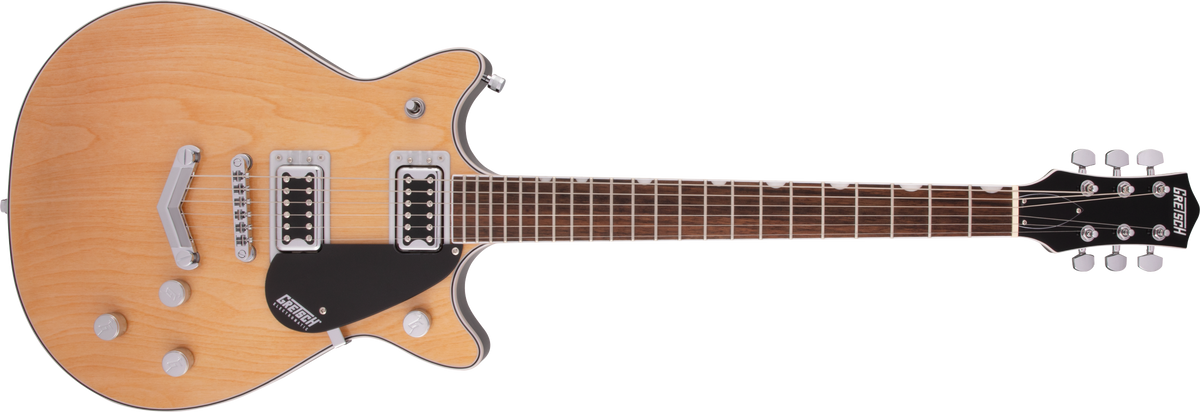

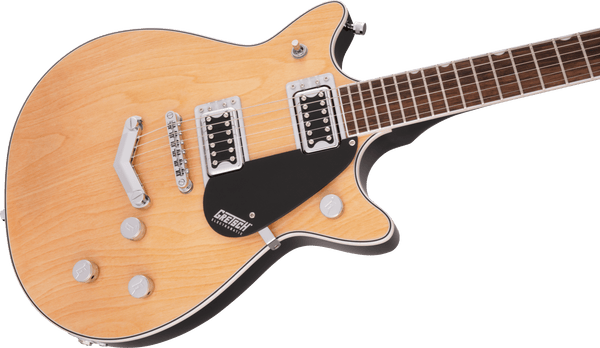

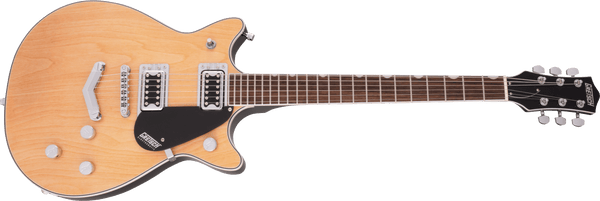

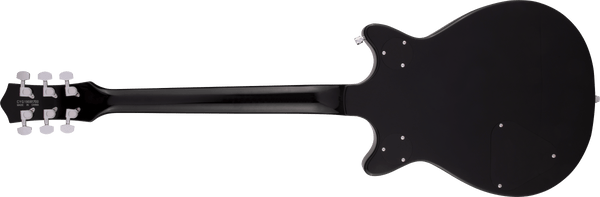

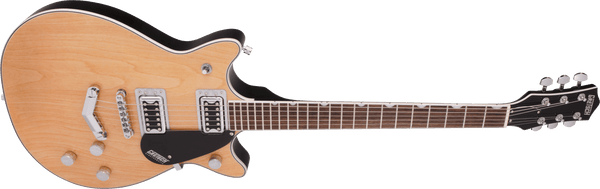

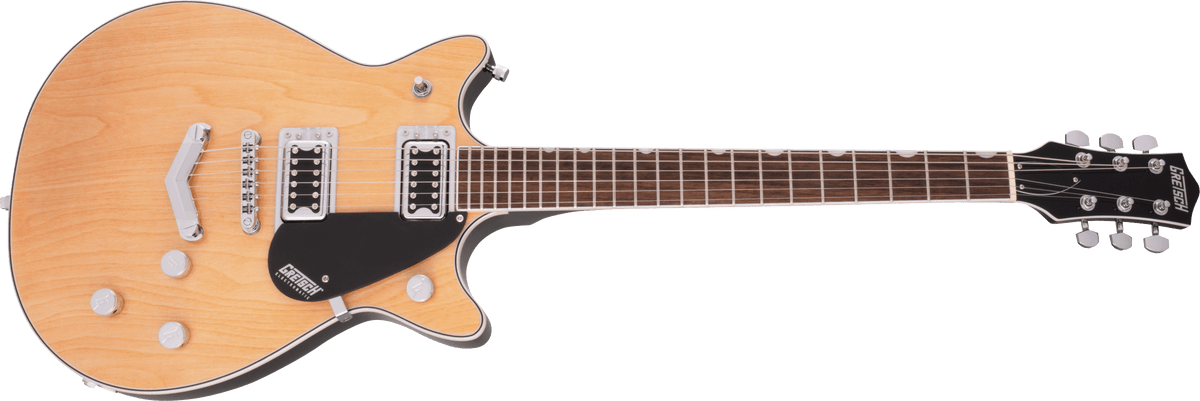

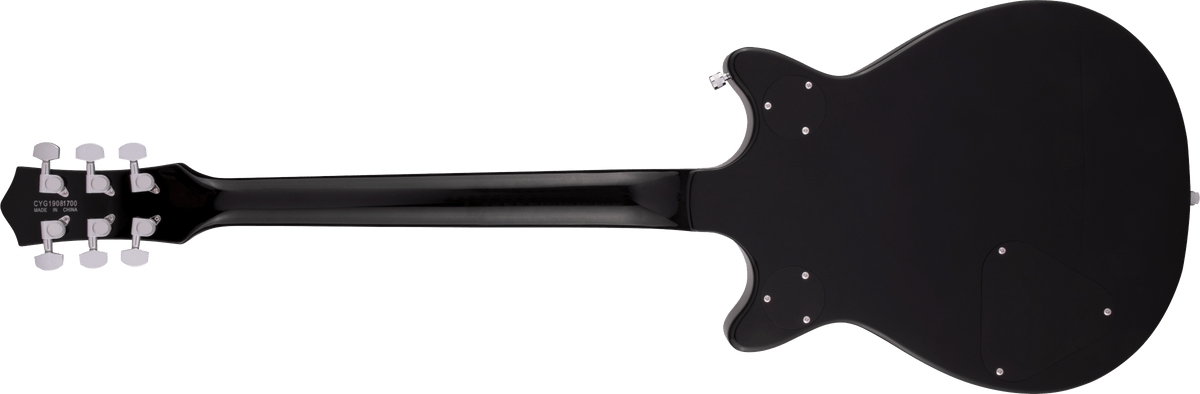

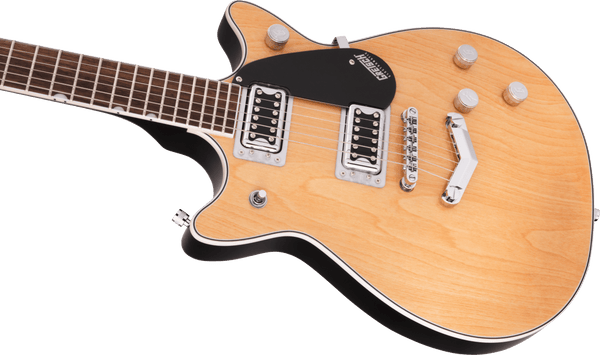

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5222 Electromatic Double Jet BT with V-Stoptail Laurel Fingerboard Aged Natural listed above. For larger pics, click on an image to open in a new tab.
